Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Warming Drawer
Model No. 8120-00-000

Warming Drawer Model No. 8120-00-000
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Warming Drawer Model No. 8120-00-000
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS (continued)
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at -800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Warming Drawer Model No. 8120-00-000
Page 4
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 0700 Medallion Drive, Cincinnati, OH 4524 USA -(800)-543-0862.
Model Description
8120-00-000: Warming Drawer with Digital Heat Control.
Items Included with this Unit
•Power Cord
•Drawer Base Plate and 3 Drawer Racks
Setup and Unit Features
This unit has been tested at the factory.
. Remove all packaging and tape prior to operation.
2. Place the unit on a sturdy, level base.
3. Place Drawer Racks into Drawer Base Plate in desired positions (see image below).
4. To remove Drawer, rotate both Drawer Stops back, and slide drawer out of cabinet.
Drawer Rack
Drawer Base Plate
Drawer Stops
To remove Drawer, rotate Drawer Stops
back, and sl de drawer out of cab net.

Warming Drawer Model No. 8120-00-000
Page 5
gmpopcorn.com
Electrical Requirements
The following power supply must be provided:
8120-00-000: 20 V~, 850 W, 60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle. We recommend this equipment be on a dedicated and protected circuit.
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold
Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The
use of extension cords is not recommended due to safety concerns, and may cause sacrificed
and/or reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
. Make sure all machine switches are in the OFF position before plugging the equipment
into the receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the
power supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install the unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by a special cord or
assembly available from Gold Medal Products Co. or its service agent.
038_062714

Warming Drawer Model No. 8120-00-000
Page 6
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
POWER SWITCH
Two position, lighted rocker switch – provides power to the fan and supplies power to the
Digital Heat Control. The green light ON indicates there is power to the unit.
DO NOT operate the unit if the fan is not working (see Troubleshooting section of this
manual.).

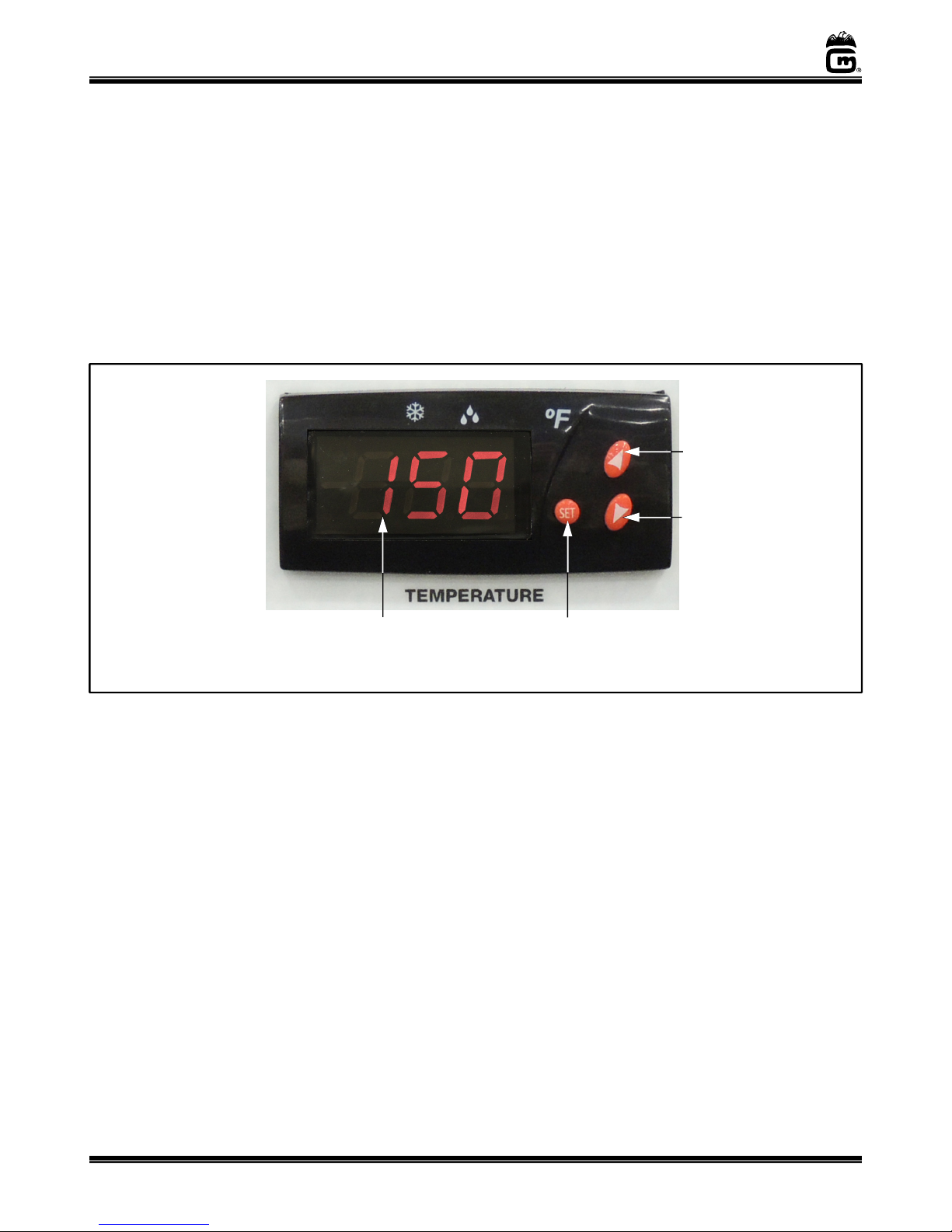

DIGITAL HEAT CONTROL (D g tal D splay)
This device controls (and displays) the temperature of the cabinet. The control will
display the temperature as long as the main power is on. To adjust the set temperature
(program the Digital Heat Control), see Adjusting the Set Temperature section.
Operating Instructions
. Turn the Power Switch ON.
2. The unit will heat to the preset temperature (factory preset to 50°F). Adjust as
needed to maintain desired product warmth for serving (see Adjusting the Set
Temperature section). Warming time varies by product.
3. Place product in the drawer (do not over fill).
Power Sw tch
D g tal Heat Control

Warming Drawer Model No. 8120-00-000
Page 7
gmpopcorn.com
Adjusting the Set Temperature
The Warming Drawer comes from the factory with the Digital Heat Control preset to 50°F
(maximum setting is 70°F). Follow the steps below to adjust this preset temperature.
. Press “SET” button on the Digital Heat Control, and “SP” will appear. Press “SET” again
to display current set temperature.
2. Press the “UP/DOWN” arrows to adjust to the desired temperature. Press “SET” to save.
3. Press “SET” and the “DOWN” arrow at the same time to return to operating mode.
D g tal Heat Control
SET Button
UP Arrow
DOWN Arrow
D g tal D splay

Warming Drawer Model No. 8120-00-000
Page 8
gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet.
Always unplug the equipment before cleaning or servicing.
025_111616
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of
advertising your product.
Follow the directions below to clean and sanitize the unit each day after use.
. With the machine OFF, unplug the unit and allow it to cool before attempting to clean.
2. Make sure to clean all of the pans (racks) in order to sanitize them before each use.
3. Wipe the outside of the unit with a soft cloth, dampened with soap and hot water.
4. Wipe the inside of the unit with a soft cloth slightly dampened with soap and hot
water (drawer may be removed, reference the Setup and Unit Features section of this
manual).
5. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless
steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088).
DO NOT use oven cleaners or abrasive materials as they will damage parts of the
machine.

Warming Drawer Model No. 8120-00-000
Page 9
gmpopcorn.com
Troubleshooting
Issue
Poss ble Cause
Solut on
Un t Does Not Heat A. No power to unit A. Check that the unit is plugged into the wall
outlet. See Electrical Requirements Section for
electrical specifications. Make sure the main
Power Switch is ON.
Fan Not Operat ng A. Fan Defective B. If the fan does not come on when activated, do
not use the unit, have Qualified Service Person
inspect/repair the unit.
Product Heats Slow C. Too Much Product A. Do not overfill the unit.

Warming Drawer Model No. 8120-00-000
Page 10
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Warming Drawer Model No. 8120-00-000
Page 11
gmpopcorn.com
ORDERING SPARE PARTS
. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to:
Parts Department
Gold Medal Products Co.
0700 Medallion Drive
Cincinnati, Ohio 4524 -4807
Or, place orders by phone or online:
Phone: [phone]
(5 3) 769-7676
Fax: [phone]
(5 3) 769-8500
E-mail: inf[email protected]
Web Page: gmpopcorn.com

Warming Drawer Model No. 8120-00-000
Page 12
gmpopcorn.com

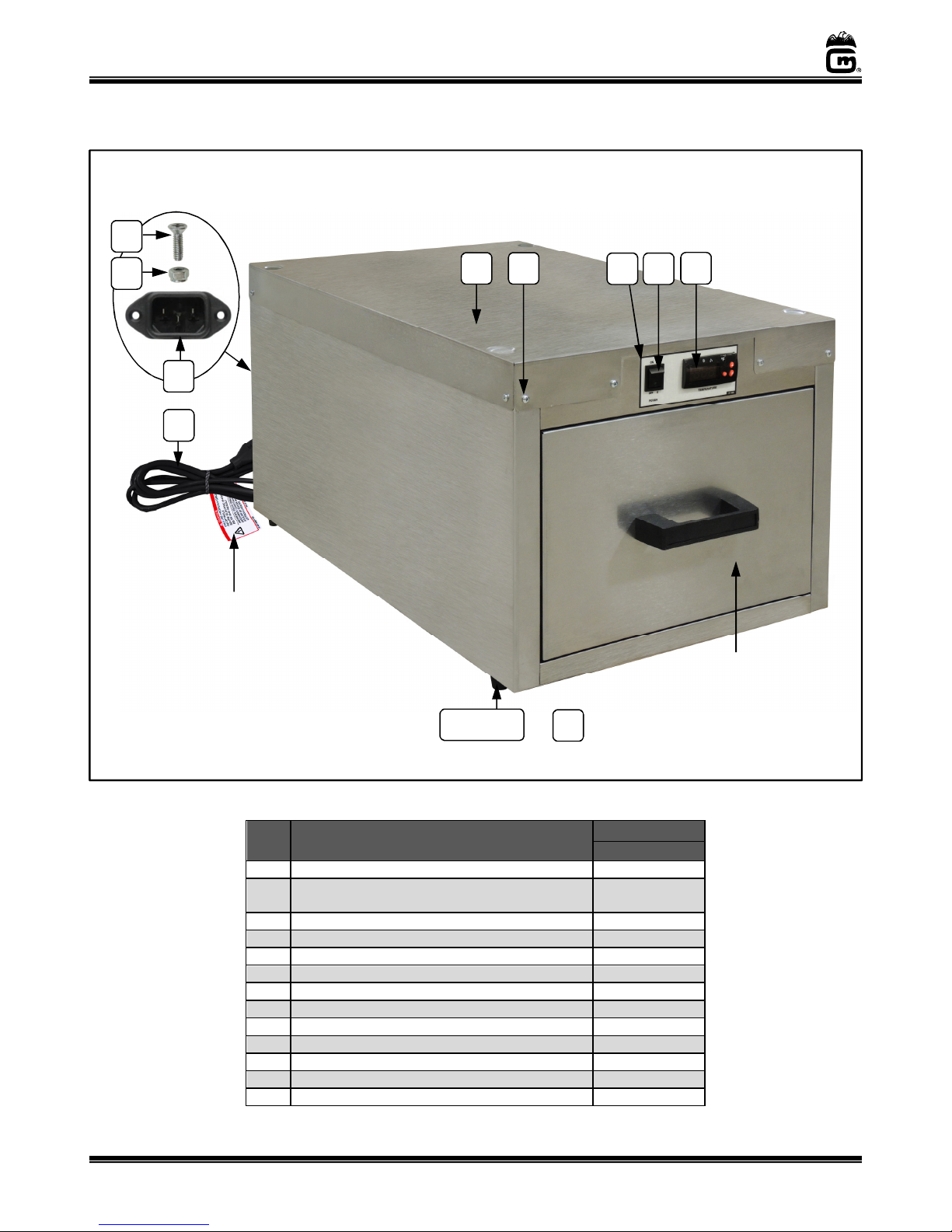

Cabinet Exterior
Item Part Descr pt on Part No.
8120-00-000
DOME 396
2 SCREW #8-32X3/8 PAN HD PH (used to fasten
Dome and Bottom Plate) 74 4
3 8 20 LABEL 495
4 GREEN LIGHTED ROCKER SWITCH 42798
5 DIGITAL CTRL PTC NTC 5V 0 20-000
6
6
-
32 X /2 PH FLAT HD M/S
4 796
7 6-32 GRIP NUT ZINC PLATED 475 7
8 IEC CONNECTOR (Located on back panel of unit.) 020 3
9* 6 AWG POWER CORD 02020
0 3/4 INCH HIGH RUBBER FEET (4 required) 47 55
8-32 X PH PAN M/S S.S. 22 9
2 8-32 SERRATED FLANGE NUT 6 5
3 BOTTOM COVER 395
*CAUTION: If supply cord s damaged, t
must be replaced by a spec al cord or
assembly ava lable from Gold Medal
Products Co. or ts serv ce agent.
For Safety Labels, see
Safety Label Sect on.
9*
4
5
8
13
10, 11, 12
See Drawer V ew for
parts breakdown.
1 2
Bottom Cover
(not shown)
IEC Receptacle and Fasteners
(located on back panel)
7
6
3
8120-00-000

Warming Drawer Model No. 8120-00-000
Page 13
gmpopcorn.com
Cabinet Interior – Fan View
Item Part Descr pt on Part No.
8120-00-000
HEAT ELEMENT, 250W, 20V 38824
2 AXIAL FAN 4072
3 EXHST BLOWER PLUG & CORD 47 99
4 .500 IN SNAP BUSHING 47236
5 HEAT SENSOR 36 03
6 DIGITAL CTRL PTC NTC 5V 0 20-000
7 GREEN LIGHTED ROCKER SWITCH 42798
8 .875 IN SNAP BUSHING 45396
4
1 2
3
7
8
6
5
8120-00-000

Warming Drawer Model No. 8120-00-000
Page 14
gmpopcorn.com
Cabinet Interior (View with Drawer Removed)
Item Part Descr pt on Part No.
8120-00-000
PROBE BRACKET 496
2 WIRE CLIP 762 6
3
HEAT SENSOR
36 03
4 8-32 X 3/8 PAN HD PH M/S 2389
5 8-32 HEX NUT, ESLOK, S.S. 22070
6 SLIDE 7705
7 0-32 X /2 RH PHIL 8-8 (used to fasten Slide
to cabinet interior.) 44366
8 0-32 WHIZ LOCK NUT HARD (used to fasten
Slide to cabinet interior.) 4244
9 600 WATT HEAT ELEMENT 374
0 ELEMENT BRACKET 389
8-32 X /2 PHIL PN M/S SS (used to fasten
Element Bracket) 42226
2 8-32 SERRATED FLANGE NUT (used to fasten
Element Bracket) 6 5
6, 7, 8
9
10
1 2
4, 5 3
11, 12
8120-00-
000

Warming Drawer Model No. 8120-00-000
Page 15
gmpopcorn.com

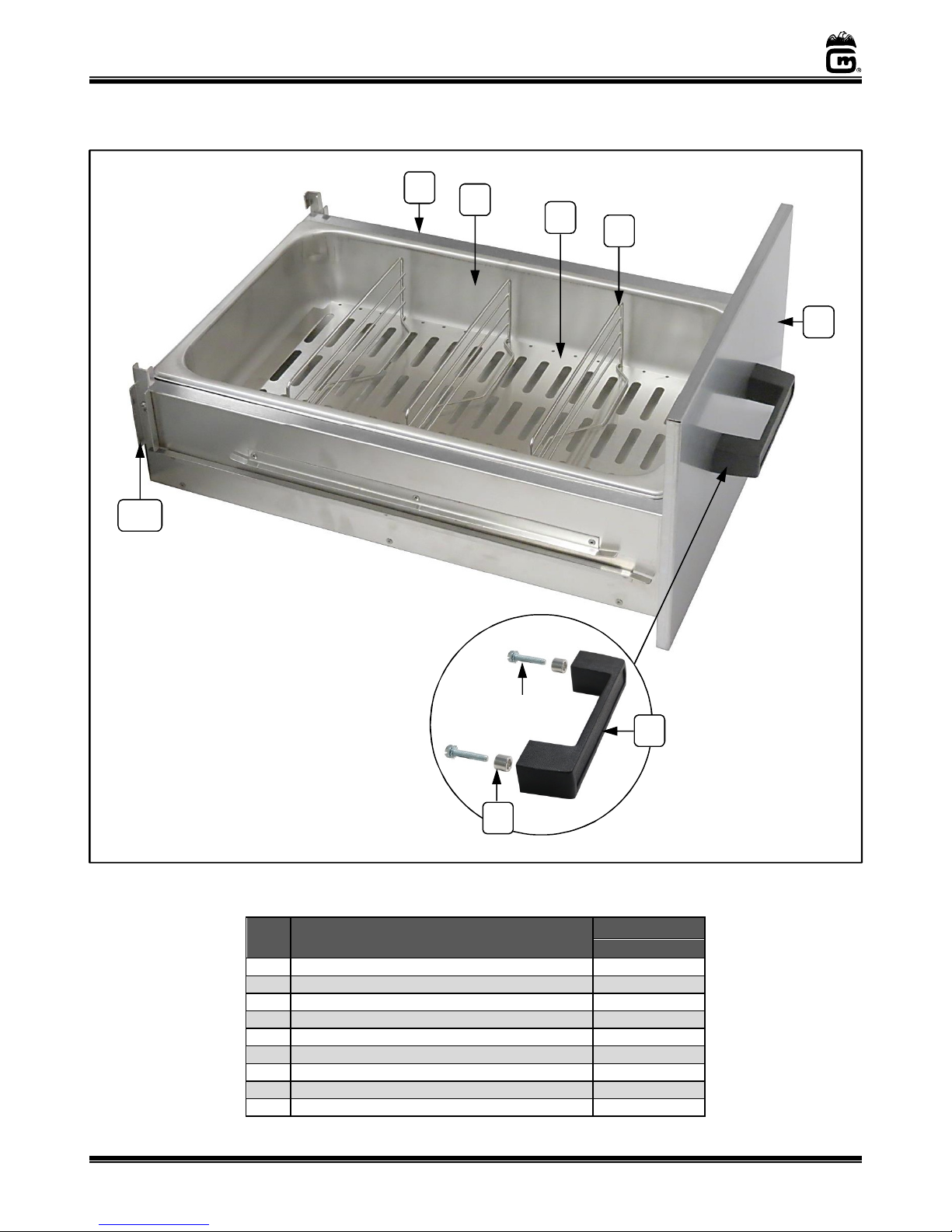

Drawer View
Item Part Descr pt on Part No.
8
1
20
-
00
-
000
DRAWER SUB ASSEMBLY 398
2 FULL STEAM PAN 424
3 FALSE BOTTOM 446
4 DRAWER RACK 399
5 DRAWER FRONT 7582
6 PLASTIC DRAWER HANDLE (Includes 2 Screws) 69 9
7 SPACER 050 6
8 8-32 X /2 PHIL PN M/S SS 42226
9 DRAWER STOP 445
2
3
4
1
8, 9
5
6
7
Screws Included
8020-00-
000

Warming Drawer Model No. 8120-00-000
Page 16
gmpopcorn.com
Safety Labels
Item Part Descr pt on Part No.
8120-00-000
COOKER LABEL 03
2 CORD SET CAUTION LABEL 02032
3 MAIN GROUND LABEL 42375
4 WARNING LABEL CORD 68720
5 POWER CORD TAG 76 35
2 3
Power Cord Label
s
5
Un t Labels
1
4

Warming Drawer Model No. 8120-00-000
Page 17
gmpopcorn.com

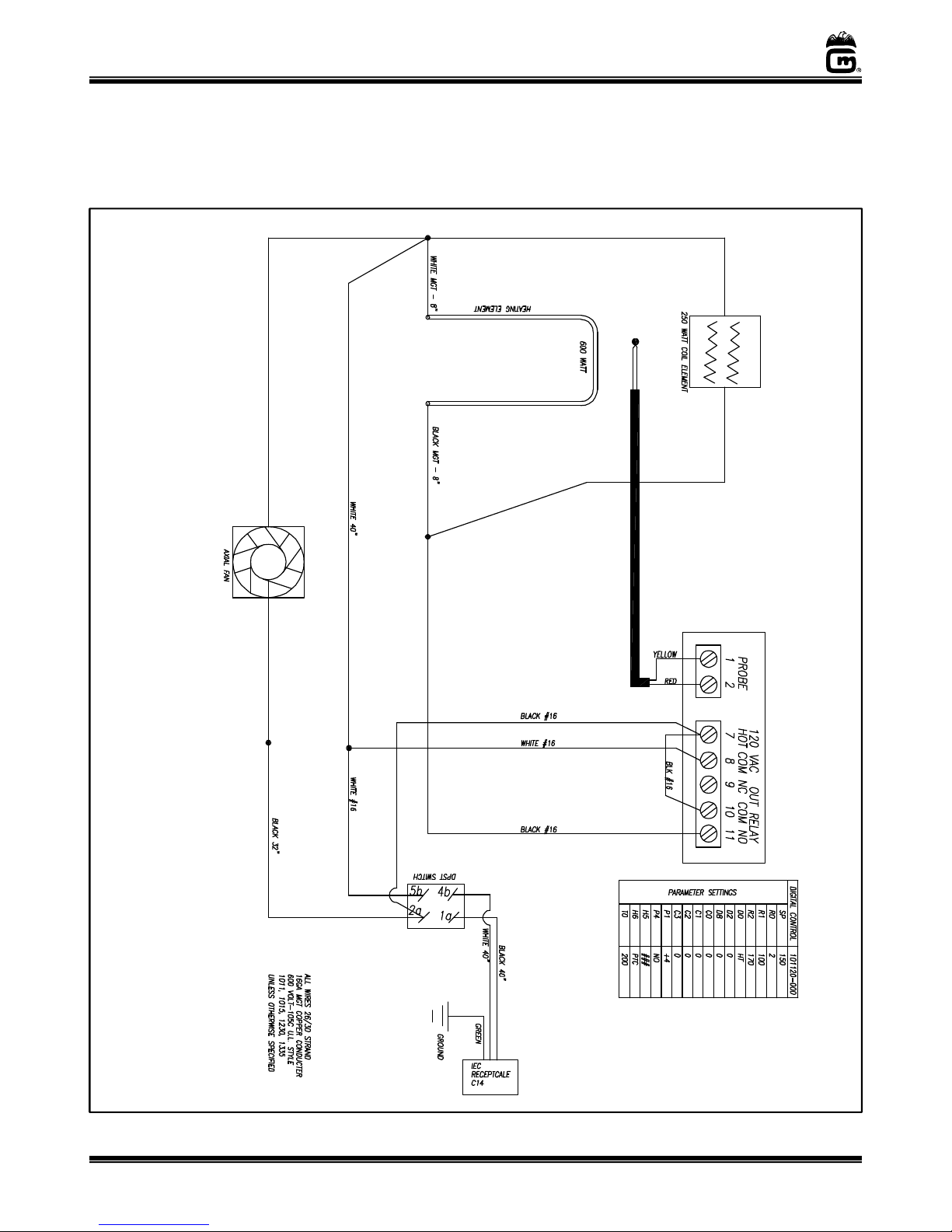

Wiring Diagram
Model No. 8120-00-000

Warming Drawer Model No. 8120-00-000
Page 18
gmpopcorn.com
WARRANTY
© 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241
-
4807 USA
gmpopcorn.com
Phone: [phone] Fax: [phone]
[phone] [phone]
