Goldmund EIDOS REFERENCE BLUE User manual

USER MANUAL
GOLDMUND EIDOS REFERENCE BLUE
Blu-Ray Player

Congratulations.
Thank you for purchasing the Goldmund EIDOS REFERENCE BLUE Player.
Please take some time to read this manual. It will provide you with useful information
to make your pleasure of listening to the EIDOS REFERENCE BLUE even higher.
INTRODUCTION
GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player
Goldmund was founded in 1978 and has ever since been dedicated to the accurate
reproduction of sound and image.
At Goldmund, we strive to lead in the creation, development and manufacture of the
industry’s most advanced technologies, including audio and video systems, home-
networking and music distribution.
The guiding principle at Goldmund is to produce a precise sound with the least
possible loss of quality through the different stages. Goldmund will never adopt a
technology before it is sufficiently developed to satisfy the high quality standards we
set. This is why Goldmund has often rejected mainstream technologies and
developed its own.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 4
Table of Content
1 FEATURES & COMPATIBILITY 6
2 UNPACKING 7
3 POWER SUPPLY VOLTAGE SELECTION 8
4 CHOICE OF PLAYER LOCATION 8
5 POWER CONNECTION 9
6 BACK PANEL CABLE CONNECTIONS 9
7 SETTING THE DISPLAY SYSTEM 13
8 BASIC OPERATIONS 20
9 SETTINGS 29
10 CLEANING 41
11 MAINTENANCE 41
12 TECHNICAL SPECIFICATIONS 42
13 REMOTE CONTROL 44

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 5
W A R N I N G
W A R N I N GW A R N I N G
W A R N I N G !
!!
!
This high quality universal player possesses
technical features which are necessary for
accurate tracking of today’s best Blu Rays,
DVDs and CDs.
Only careful installation and use can
provide the satisfaction you are expecting.
The installation instructions must be carried
out in full and the mentioned precautions
taken to get the expected result and to
avoid impairing performance.
No connection or manipulation may be done
before reading these instructions. Damage
to the universal player may result if the
following instructions are not understood
and applied.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 6
1 FEATURES & COMPATIBILITY
1.1 COMPATIBILITY
Please note that the Goldmund Eidos Reference Blue is compatible with the
following formats:
High Definition (HD) movie and mu ic di c
High Definition (HD) movie and mu ic di cHigh Definition (HD) movie and mu ic di c
High Definition (HD) movie and mu ic di c
- BD-ROM and BD-RE/BD-R discs in BDMV and BDAV mode, including 8cm discs.
- Discs supporting BONUSVIEW (BD-ROM version 2 Profile. 1 version 1.1/Final
Standard Profile) that allows Virtual packages or Picture-in-Picture functions to be
used.
- Discs supporting BD-Live (BD-ROM version 2 Profile 2) that provides interactive
features when the player is connected to the Internet.
High quality movie and mu ic di c
High quality movie and mu ic di cHigh quality movie and mu ic di c
High quality movie and mu ic di c
- Commercially released DVD discs, DVD+RW/DVD+R/DVD-RW/DVD-R using
Version 1.1 of the DVD Video Recording Format, finalized.
- Multi-channel or stereo high resolution audio with compressed digital video or still
pictures. Some DVD-Audio discs also contain a DVD-Video portion.
- SACD: High resolution audio-only discs with stereo and/or multi-channel audio.
- Hybrid discs with both high resolution and CD-compatible layers.
- Compact Discs (CD) that contain audio and music.
- High-definition digital video camera format using efficient data compression coding
technology (AVCHD).

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 7
1 FEATURES & COMPATIBILITY (Ctd.)
1.2 ASSOCIATED EQUIPMENT
Sound technicians, musicians, or users who demand the very best in sound
transcription, may decide to use of one of our separate D/A converters, such as
the Goldmund Mimesis 20H. However, the D/A converters built into the Eidos
Reference Blue are high quality units that can be used with all systems and
formats.
2 UNPACKING
You will find in the packaging
- The universal player itself,
- A remote control,
- The power cord,
- This user manual.
ATTENTION
ATTENTIONATTENTION
ATTENTION
If you need to return the player to the factory or to your local representative for
repair, please note that it must be repackaged in the original packing. This
packaging has been specifically designed to protect the Eidos Reference Blue.
Use of alternative packaging is likely to result in damages to the unit and
invalidates its warranty.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 8
3POWER SUPPLY VOLTAGE
SELECTION
The power supply of your unit has been adjusted to operate with the AC voltage of
your area. Check on the back panel of the unit if in any doubt. If you move after
purchasing the Universal player to an area using a different voltage, do not forget to
switch the back panel selector to the voltage used in your new country of residency.
The unit can operate at 50 or 60 Hz mains.
4 CHOICE OF PLAYER LOCATION
Thanks to the specific quality of the Goldmund Mechanical Grounding
construction, the choice of the player location is not critical when using the Eidos
Reference Blue. Feedback is mostly so low that no special precaution is required.
Nevertheless, we recommend you position the player as far as you can from the
speakers if you want to totally avoid the air coupling between the speakers and
the player.
Locate the player to provide the most rigid possible connection to the ground.
Solid coupling is essential and the support used must be as rigid and solid as
possible.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 9
5 POWER CONNECTION
Plug the AC power cord to the back of the Eidos Reference Blue and in a wall
socket. Switch the back power switch to “ON”. The front display will light up as
soon as you press any key or when pressing the remote control “STANDBY”
button, indicating that the unit is powered on.
Unplug the power cord if you are not going to use the player for an extended period
of time. Hold the power plug when unplugging. Do not pull on the cord.
6 BACK PANEL CABLE CONNECTIONS
6.1 VIDEO CONNECTIONS
The Eidos Reference Blue offers 2 different types of Video signal outputs:
- HDMI VIDEO OUTPUT
- COMPONENT VIDEO OUTPUT
Note:
There are 2 HDMI output connectors; we recommend using the HDMI 1 (video)
HDMI 2 (audio). This configuration is required to offer the best video quality.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 10
6 BACK PANEL CABLE CONNECTIONS
(Ctd.)
6.2 AUDIO CONNECTIONS
Connecting to
Connecting toConnecting to
Connecting to a Receiver/Amplifier with HDMI
a Receiver/Amplifier with HDMI a Receiver/Amplifier with HDMI
a Receiver/Amplifier with HDMI
Input/Output
Input/OutputInput/Output
Input/Output
HDMI can transmit both audio and video signals over a single cable. If you have an
HDMI-capable receiver that can support HDMI audio, you can simply run an HDMI
cable from the player to your receiver and enable HDMI audio on the receiver (see
your receiver’s owners’ manual for more information). The receiver usually has an
HDMI output that you can connect to your TV or projector to pass the video signal.
This player has been set up, as recommended by Goldmund, to have HDMI and
Digital outputs in LPCM format.
In case you would need to restore the Goldmund factory setup of you player, follow
this sequence on the Setup Menu of the Eidos 20BD:
Setup > Audio Format Setup > HDMI Audio 

LPCM
PCM connection:
PCM connection: PCM connection:
PCM connection: Connecting to a Receiver/Amplifier in
Connecting to a Receiver/Amplifier in Connecting to a Receiver/Amplifier in
Connecting to a Receiver/Amplifier in
PCM or Digital 7.1/5.1 multichannel
PCM or Digital 7.1/5.1 multichannel PCM or Digital 7.1/5.1 multichannel
PCM or Digital 7.1/5.1 multichannel
Goldmund recommends that the greatest care is taken when selecting the cable
linking the player to the D/A converter or the preamplifier. The very accurate
signal provided by the Eidos 20BD can easily be ruined by an imperfect
connection. Use a "Goldmund Lineal" cable from the coaxial output if you want
to achieve the most accurate jitter-free connection for CD playback.
Setup > Audio Format Setup > Coaxial/Optical Output 

BITSTREAM

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 11
6
66
6 BACK PANEL CABLE CONNECTIONS
(Ctd.)
Connecting to a Receiver/Amplifier with 7.1ch/5.1ch
Connecting to a Receiver/Amplifier with 7.1ch/5.1ch Connecting to a Receiver/Amplifier with 7.1ch/5.1ch
Connecting to a Receiver/Amplifier with 7.1ch/5.1ch
Audio Input
Audio InputAudio Input
Audio Input
Please use 8 interconnect cables to connect the FRONT-L (Front Left), FRONT-R
(Front Right), SURR-L (Surround Left), SURR-R (Surround Right), Center, SUB
(SubWoofer), REAR-L (Surround Back Left) and REAR-R (Surround Back Right),
analog output terminals of the Eidos Reference Blue to the corresponding multi-
channel analog audio input jacks of your A/V receiver or amplifier. If the A/V receiver
or amplifier only has 5.1ch audio input, the REAR-L (Surround Back Left) and
REAR-R (Surround Back Right) terminals do not need to be connected.
Goldmund recommends that the greatest care is taken when selecting the cable
linking the player to the D/A converter or the preamplifier. The very accurate
signal provided by the Eidos Reference Blue can easily be ruined by an imperfect
connection. Use a "Goldmund Lineal" cable from the coaxial output if you want
to achieve the most accurate jitter-free connection for CD playback
Connecting to a Stereo Audio Sy tem
Connecting to a Stereo Audio Sy temConnecting to a Stereo Audio Sy tem
Connecting to a Stereo Audio Sy tem
If your audio system only offers stereo audio inputs, or if you would like to connect a
dedicated stereo system in addition to the surround system, you can connect it to
the LEFT-STEREO-RIGHT audio output terminals of the player.
NOTE
NOTENOTE
NOTE
The STEREO AUDIO OUT terminals will always provide a down-mixed stereo signal
from multi-channel sources. The “Down Mix” and other speaker settings in the Audio
Processing Setup Menu do not affect the STEREO AUDIO OUT.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 12
7 SETTING THE DISPLAY SYSTEM
Acce the Ea y Setup Wizard
Acce the Ea y Setup WizardAcce the Ea y Setup Wizard
Acce the Ea y Setup Wizard
When the player is turned on for the first time, an Easy Setup Wizard screen will
appear. It is a series of guided instructions designed to configure the basic settings
for the player.
To start the Easy Setup Wizard, please follow these steps:
1) Turn on the display/projector.
2) Turn on the player.
3) Switch the input selection on your TV or projector so that the TV displays the
signal from the player. You should see the first step of the Easy Setup Wizard.
If the Easy Setup Wizard has previously been completed or cancelled, it will no
longer initiate when you turn on the player. Instead, you will see the background
screen with the Blu-Ray Disc logo. To access Easy Setup Wizard, please press the
SETUP button on the remote control, select Device Setup, then Reset Factory
Default. Select “OK” to confirm loading the factory default settings. Once the factory
default settings are loaded the Easy Setup Wizard will appear.
The first step of the Easy Setup Wizard gives you the opportunity to skip the entire
wizard. If you are familiar with setting up audio/video equipment and would like to
customize the player settings using its Setup Menu, you may use the LEFT/RIGHT
ARROW buttons to select the “Cancel” option, then press the ENTER key to exit the
Easy Setup Wizard. Otherwise, to continue with the Easy Setup Wizard, select the
“OK” option and press the ENTER key.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 13
7 SETTING THE DISPLAY SYSTEM

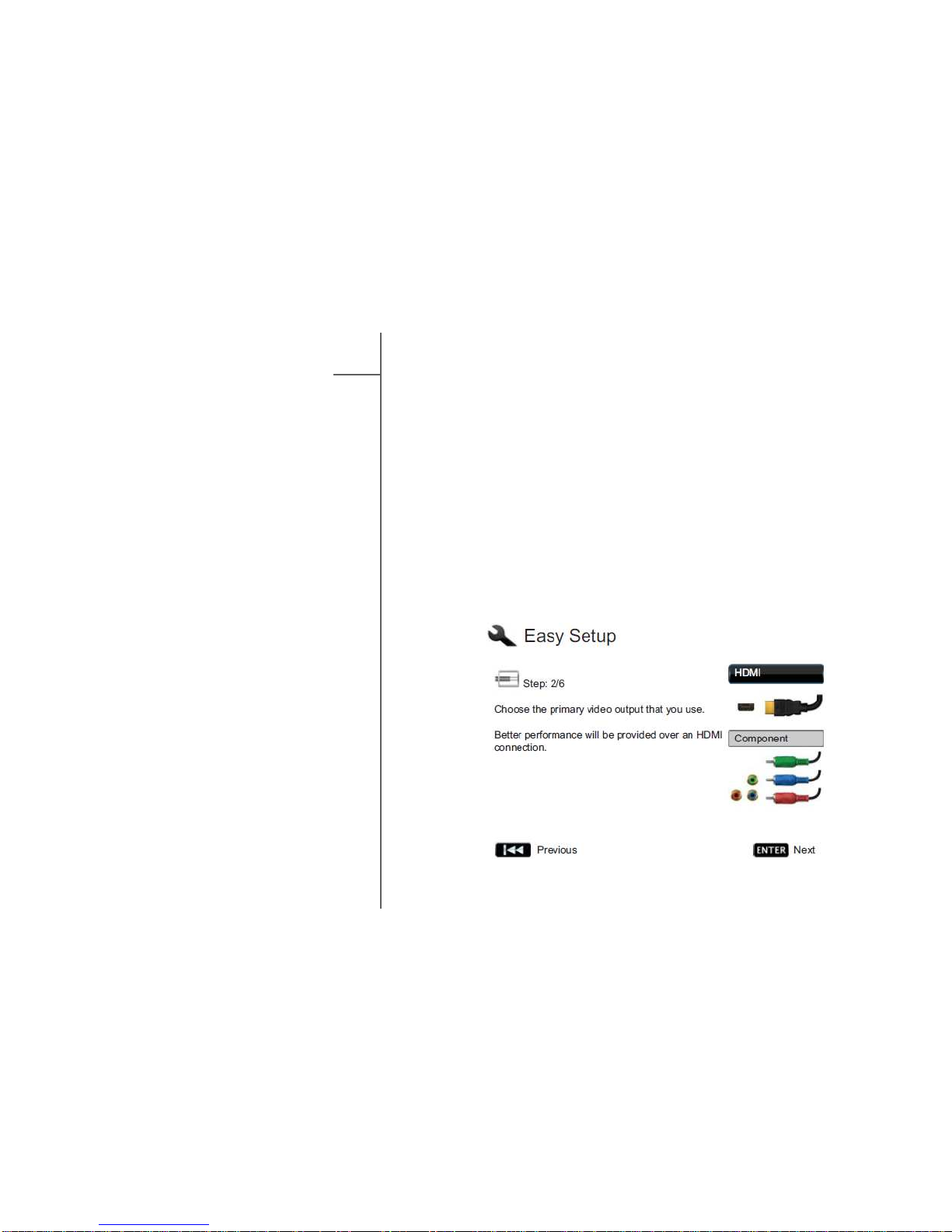

Choo e the Primary Video Output
Choo e the Primary Video OutputChoo e the Primary Video Output
Choo e the Primary Video Output
The player can output video through its HDMI and component output terminals.
(Composite video output is also available but not recommended.)
By setting the “Primary Video Output” option, the player can optimize video output of
the selected terminal. The choices are “HDMI” and “Component”. If you connect the
player to the TV using an HDMI cable please select “HDMI”.
If you connect the player to the TV using component video cables please select
“Component”. Please note: the best performance will be provided over the HDMI
connection. To make your selection, use the UP/DOWN ARROW buttons to
highlight the choice, and then press the ENTER button to go to the next step.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 14
7 SETTING UP THE DISPLAY SYSTEM
(Ctd.)
Select the Be t Output Re olution
Select the Be t Output Re olutionSelect the Be t Output Re olution
Select the Be t Output Re olution
One of the major advantages of the Eidos Reference Blue Player is its ability to play
high-definition Blu-Ray video and also up-convert standard definition video stored on
DVD discs to high definition. The sophisticated video processor inside the player
ensures that the video will have the best possible color, detail and motion. The
player offers several standard and high definition video output resolutions. To get the
best visual result, it is important to select an output resolution that best matches your
TV or display device.
The rule of thumb when selecting an output resolution is to match the “native
resolution” of your TV or display device as closely as possible. The “native
resolution” is the resolution of the actual display component in the TV, such as the
Plasma panel, LCD panel, or DLP™ chip. The TV may accept input signals with
lower or higher resolutions than its native resolution. In such cases the electronics in
the TV will up-scale or downscale the video to fit its display component.
Unfortunately many TVs on the market only do an average job scaling the video. On
the other hand, if you set the Eidos Reference Blue to output a resolution that
matches or is very close to the native resolution of the TV, you are more likely to get
a great picture.
For the latest generation of 1080p, “Full HD” or “True HD” displays, the best output
resolution will naturally be 1080p. (A few early model 1080p displays do not accept
1080p signal. For these displays the best output resolution to use is 1080i.) For all
other digital televisions this will likely be 720p. For CRT tube or rear projection
televisions this will likely be 1080i. For EDTV displays (very rare if they have HDMI
or DVI) this will be 480p. These are general recommendations that work for most
users, but there can be exceptions.
Advanced users may want to try all supported resolutions and choose the one that
provides the best visual result. This Goldmund Blu-ray Disc Player supports a

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 15
special “Source Direct” output resolution on its HDMI output. This resolution is
recommended for use with external video processors or high-end TVs.
7 SETTING UP THE DISPLAY SYSTEM
(Ctd.)

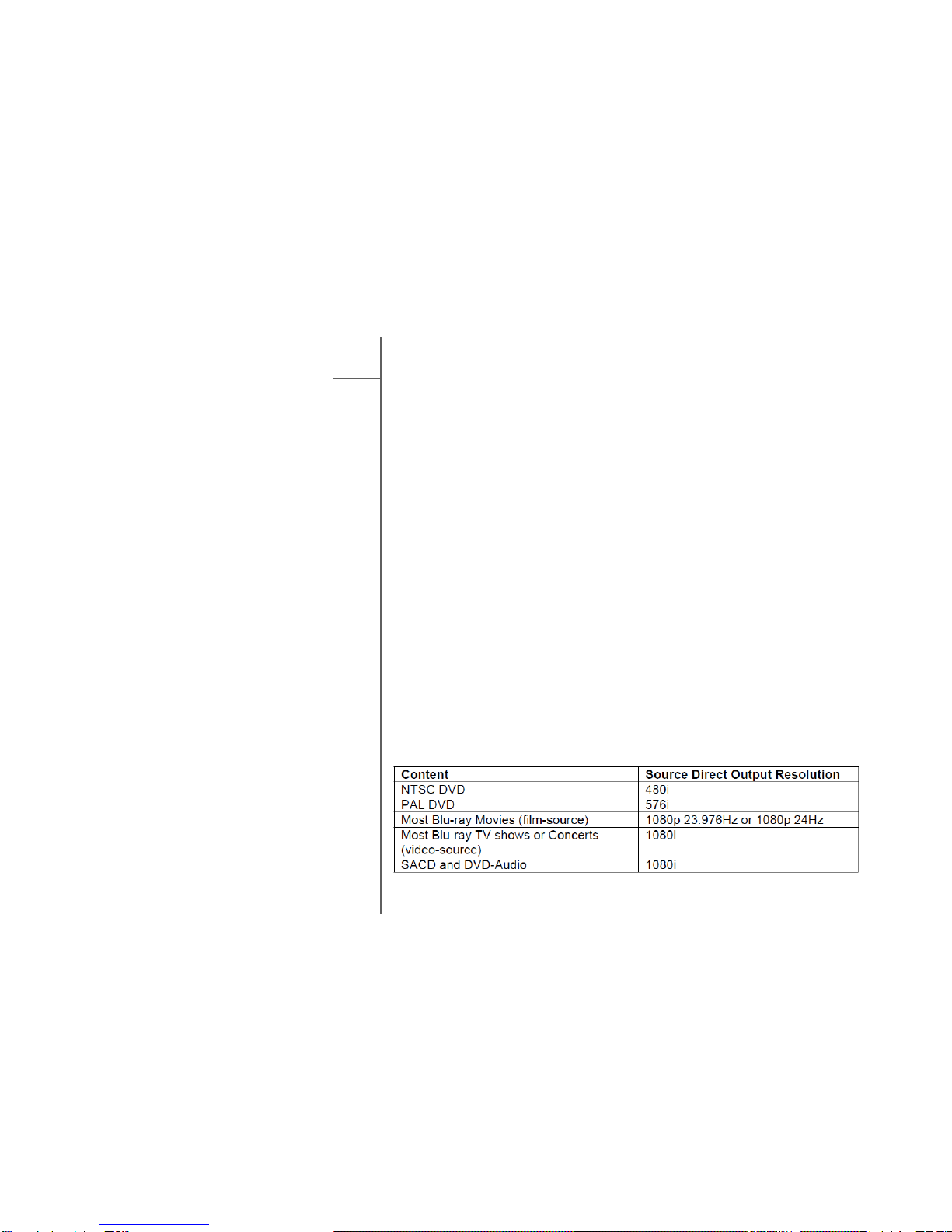

In “Source Direct” mode, the player works as a “transport”. It decodes video from the
discs and then sends the raw video signal in its native resolution and format, without
extra processing, to the external video processor or TV.
Depending on your selection of “Primary Video Output”, the available output
resolution selections will differ. For the HDMI output, the following output resolutions
are available: Auto, 1080p, 1080i, 720p, 480p/576p, 480i/576i, and Source Direct. If
signal resolution that the TV can display. For the component output, the following
output resolutions are available: 1080i, 720p, 480p/576p and 480i/576i. Please refer
to the specification of your TV to find the best resolution to use.

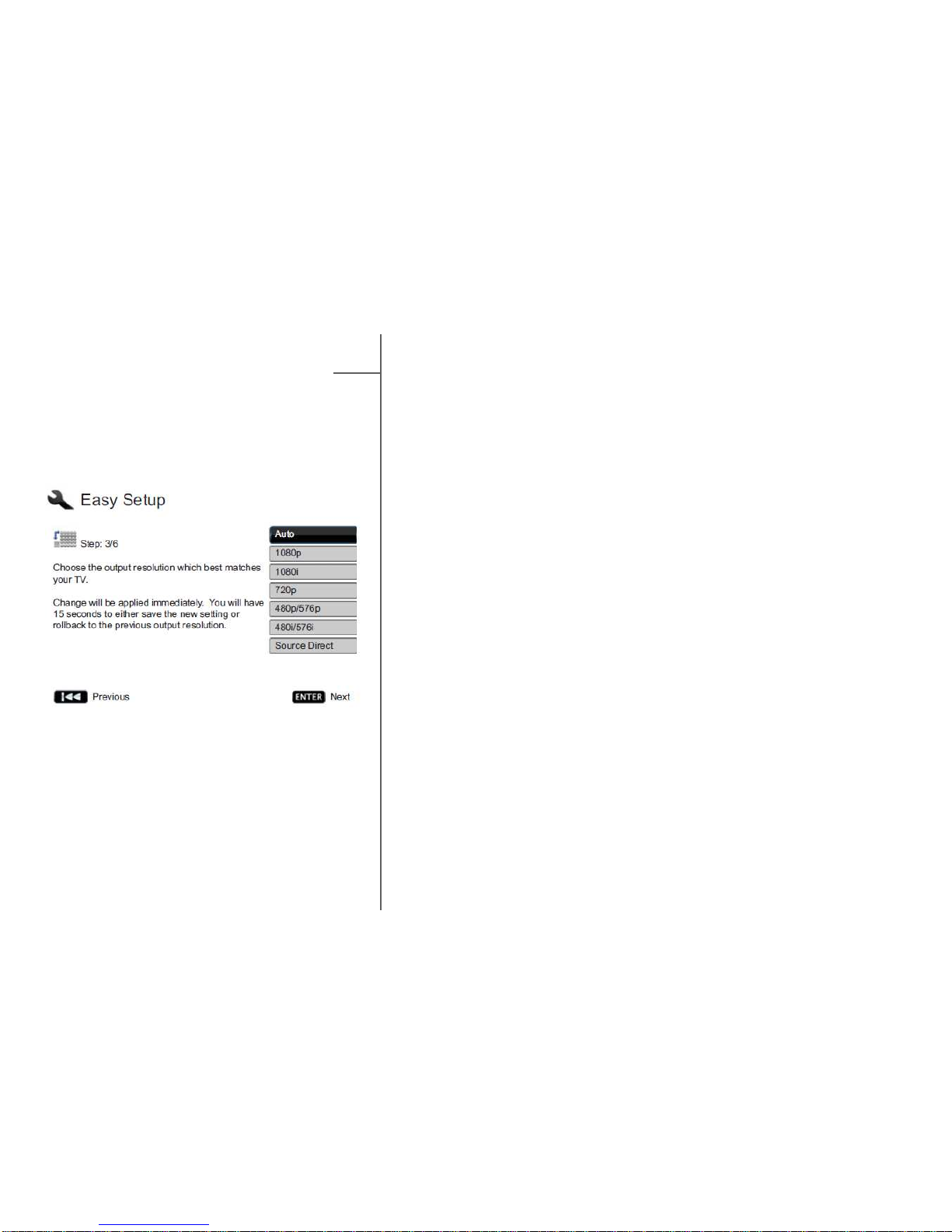

Press the UP/DOWN ARROW buttons to select the desired output resolution, then
press the ENTER button. The player will apply the selected output resolution and
ask you to confirm the selection. If your TV supports the selected resolution, you will
see a “OK” option and press the ENTER button to save the resolution setting. If your
TV does not support the selected resolution, you may see a black screen or an error
message. In this case please wait for 15 seconds and the Easy Setup screen will
reappear. Select a different resolution that your TV can support.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 16
7 SETTING UP THE DISPLAY SYSTEM
(Ctd.)
NOTE
NOTENOTE
NOTE
• In case you are not able to get a picture using the HDMI or component output,
please connect the player to the TV using the composite video output, and then use
the Setup Menu to adjust the player settings.
• Video up-conversion over the component output is only available for unencrypted
discs such as home video and consumer-created contents. Most commercially
pressed DVD discs are CSS-encrypted and will be limited to 480i/480p resolution.
This restriction applies to the component output only. The HDMI output is protected
with HDCP and has no such restriction.
Determine the Di play A pect Ratio
Determine the Di play A pect RatioDetermine the Di play A pect Ratio
Determine the Di play A pect Ratio

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 17
7 SETTING UP THE DISPLAY SYSTEM
(Ctd.)

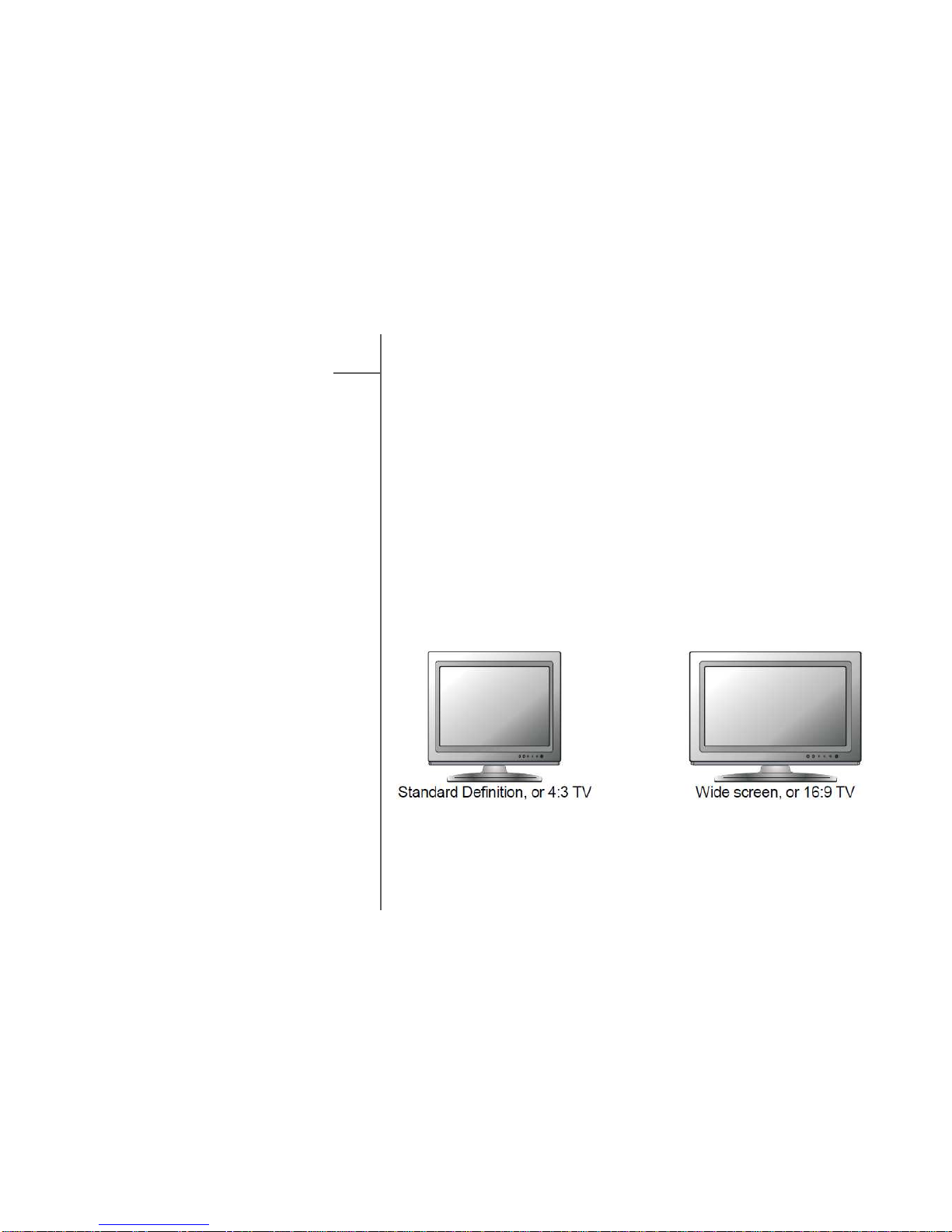

The aspect ratio is the proportional ratio of a TV/display width and height. Older
television sets generally have a 4:3 aspect ratio – the width is 4/3 (or 1.33) times the
height. Newer wide screen television sets have a 16:9 aspect ratio – the width is
16/9 (or 1.78) times the height. For best performance, the video output of your
player needs to match the screen aspect ratio of your diaplay. Since almost all Blu-
ray Discs and many DVD discs are released in wide screen format, it is highly
recommended that you use a wide screen display with the player.
The Aspect Ratio selections are 4:3 Letterbox, 4:3 Pan & Scan, 16:9 Wide, and 16:9
Wide/Auto. Depending on your selection and the video format recorded on the discs,
image appearance on the screen can be one of the following:

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 18
7 SETTING UP THE DISPLAY SYSTEM
(Ctd.)
If you have a 4:3 or standard definition screen, select one of these options:
• 4:3 Letterbox – 4:3 TV Letterbox. Choose when the display is 4:3. Widescreen
image is displayed in “letterbox” format with black borders on top and bottom • 4:3
Pan & Scan – 4:3 TV Pan and Scan. Choose when the display is 4:3. Both sides of a
widescreen image are clipped (you lose about 30% of the picture).
If you have a widescreen (16:9) display, select one of these options:
• 16:9 Wide – 16:9 (widescreen) sources will be displayed in their native aspect ratio,
and 4:3 sources will be horizontally stretched.
• 16:9 Wide/Auto – 16:9 (widescreen) as well as 4:3 sources will be displayed in their
native aspect ratio. Please note that in this mode 4:3 sources will be displayed with
black borders on both left and right sides to maintain the correct 4:3 aspect ratio.
Press the UP/DOWN ARROW buttons to select the proper aspect ratio for your TV,
then press the ENTER button.
Select the Audio Setting
Select the Audio SettingSelect the Audio Setting
Select the Audio Setting
The Blu-ray Disc format brings not only high resolution video, but also high bit rate
audio such as Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution and DTS-
HD Master Audio. Blu-ray Discs may also include additional audio features such as
menu click sound and Secondary Audio Program (SAP – audio associated with the
secondary video in Picture-in-Picture mode). Depending on the user preferences
and other audio/video equipment connected to the player, the audio settings need to
be adjusted to achieve the best result. The Easy Setup Wizard offers two basic
selections to get you started.
The “Compatible” setting configures audio output in a way that is generally
compatible with all types of equipment and content. If you connect the player to a
television directly, or to a receiver with an HDMI 1.1/1.2 or optical/coaxial input,
selecting the “Compatible” setting is recommended.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 19
7 SETTING UP THE DISPLAY SYSTEM
(Ctd.)
When menu click sound and Secondary Audio Program are presented in the
content, those will be mixed into the audio output. The “Advanced” setting configures
audio output to send the original main audio content to a connected receiver for
decoding and reproducing. It requires a receiver capable of decoding all high bit rate
audio formats. If you connect the player to a receiver supporting HDMI 1.3 and high
bit rate audio formats, selecting the “Advanced” setting is recommended. Menu click
sound and Secondary Audio Program are turned off by default to preserve the
original quality of the main audio content.
Press the UP/DOWN ARROW buttons to select one of the audio setting choices,
and then press the ENTER button. The two basic audio setting choices may not
cover all situations. You can further customize the audio settings using the player’s
Setup Menu.
Complete the Ea y Setup Wizard
Complete the Ea y Setup WizardComplete the Ea y Setup Wizard
Complete the Ea y Setup Wizard
Once you have selected the audio setting, the initial Easy Setup Wizard is
completed.
Press the ENTER button to close the Easy Setup Wizard. You player is now ready
for use.
Congratulation , et up i complete!

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 20
8 BASIC OPERATIONS
8.1 PLAYING VIDEO CONTENTS
Di c Playback
Di c PlaybackDi c Playback
Di c Playback
1. Press the POWER button to turn on the player.
2. Press the OPEN/CLOSE (OPEN) button to eject the disc tray.
3. Place the disc with the label side facing up and the recorded side facing down.
4. Press the OPEN/CLOSE (OPEN) button again to retract the tray.
5. The player will read the disc information and starts playback.
6. Depending on the content of the disc, a menu or navigation screen may appear.
Please use the navigation ARROW and SELECT buttons to select the content to
play.
7. To stop playback, press the STOP button.
8. To turn off the player, press the POWER button.
NOTE
NOTENOTE
NOTE
• During DVD and some Blu-ray Disc playback, pressing the STOP button for the
first time brings the player to a pre-stop mode. You can resume playback from the
stopped point by pressing the PLAY button. This pre-stop mode allows you to
change the player settings and then resume playback. To completely stop playback,
press the STOP button twice.
• Certain Blu-ray Discs with BD-Java technology do not support the pre-stop mode.
Pressing the STOP button during playback of such discs will completely stop the
disc.
Pressing the PLAY button once the disc is stopped will restart it from the very
beginning.
• This unit consumes a tiny amount of power even when it is turned off to STANDBY
mode. If it is not to be used for a long time, unplug it from the household AC outlet.

GOLDMUND EIDOS REFERENCE BLUE – Blu-Ray Player - 21
8 BASIC OPERATIONS (Ctd.)
8.1 PLAYING VIDEO CONTENTS (Ctd.)
Fa t Playback
Fa t PlaybackFa t Playback
Fa t Playback
You may fast forward or reverse during playback.

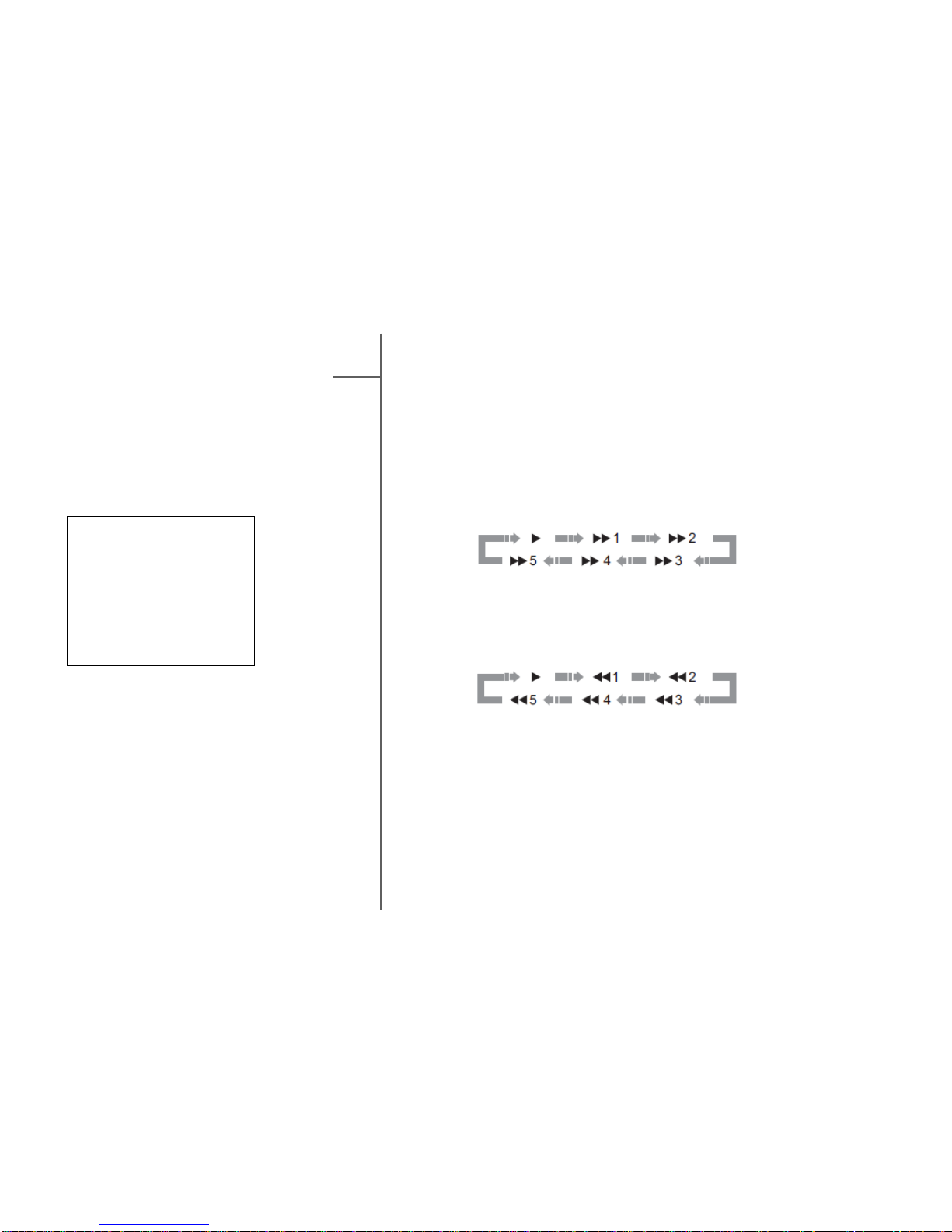

1. Press the FWD button on the remote control and the player starts fast forward
playback. Each press of the FWD button switches the playback speed in the
following sequence:
2. Press the REV button on the remote control and the player starts fast reverse
playback. Each press of the REV button switches the playback speed in the
following sequence:
NOTE
NOTENOTE
NOTE
Certain Blu-ray Discs utilizing
the BD-Java technology may
have their own fast forwarding
and reversing control. The
actual speed varies by disc,
and a progress scale may be
displayed by the disc.
