MICROWAVE OVEN
SERVICE MANUAL
MODEL: MV-1525W,
CAUTION
http://www.LGEservice.com
BEFORE SERVICING THE UNIT, READ THE
SAFETY PRECAUTIONS IN THIS MANUAL.
MV-1525B

CAUTION
SAFETY PRECAUTIONS
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
a. Do not operate or allow the oven to be operated with the door open.
b. Make the following safety checks on all ovens to be serviced before activating the
magnetron or other microwave source, and make repairs as necessary; (1) Interlock
operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and
other damage), (4) damage to or loosening of hinges and latches, (5) evidence of
dropping or abuse.
c. Before turning on microwave power for any service test or inspection within the
microwave generating compartments, check the magnetron, wave guide or
transmission line, and cavity for proper alignment, integrity, and connections.
d. Any defective or misadjusted components in the interlock, monitor, door seal, and
microwave generation and transmission systems shall be repaired, replaced, or
adjusted by procedures described in this manual before the oven is released to the
owner.
e. A Microwave leakage check to verify compliance with the Federal Performance
Standard should be performed on each oven prior to release to the owner.
• Proper operation of the microwave ovens requires that the magnetron be assembled to the
wave guide and cavity. Never operate the magnetron unless it is properly installed.
• Be sure that the magnetron gasket is properly installed around the dome of the tube whenever
installing the magnetron.
• Routine service safety procedures should be exercised at all times.
• Untrained personnel should not attempt service without a thorough review of the test
procedures and safety information contained in this manual.

FOREWORD
Read this Manual carefully. Failure to adhere to or observe the information in this Manual may result in exposing
yourself to the Microwave Energy normally contained within the oven cavity.
TABLE OF CONTENTS (Page)
SAFETY PRECAUTIONS ......................................................................................................... Inside front page
SPECIFICATIONS.......................................................................................................................................... 1-1
CAUTIONS..................................................................................................................................................... 2-1
INSTALLATIONS............................................................................................................................................ 3-1
OPERATING INSTRUCTIONS....................................................................................................................... 4-1
CONTROL PANEL ................................................................................................................................. 4-1
CONTROL PANEL INSTRUCTIONS ..................................................................................................... 4-2
OVERALL CIRCUIT DIAGRAM...................................................................................................................... 5-1
SCHEMATIC DIAGRAM......................................................................................................................... 5-1
MATRIX CIRCUIT FOR TOUCH KEY BOARD...................................................................................... 5-2
GENERAL INFORMATION FOR SERVICE................................................................................................... 6-1
GENERAL PRECAUTIONS IN USE ...................................................................................................... 6-1
TRIAL OPERATION ............................................................................................................................... 6-1
FEATURES AND SPECIFICATIONS FEATURES................................................................................. 6-1
SERVICE INFORMATION ............................................................................................................................. 7-1
PRECAUTIONS AND REPAIR SERVICE TIPS..................................................................................... 7-1
MICROWAVE LEAKAGE TEST............................................................................................................. 7-2
POWER OUTPUT MEASUREMENT ..................................................................................................... 7-3

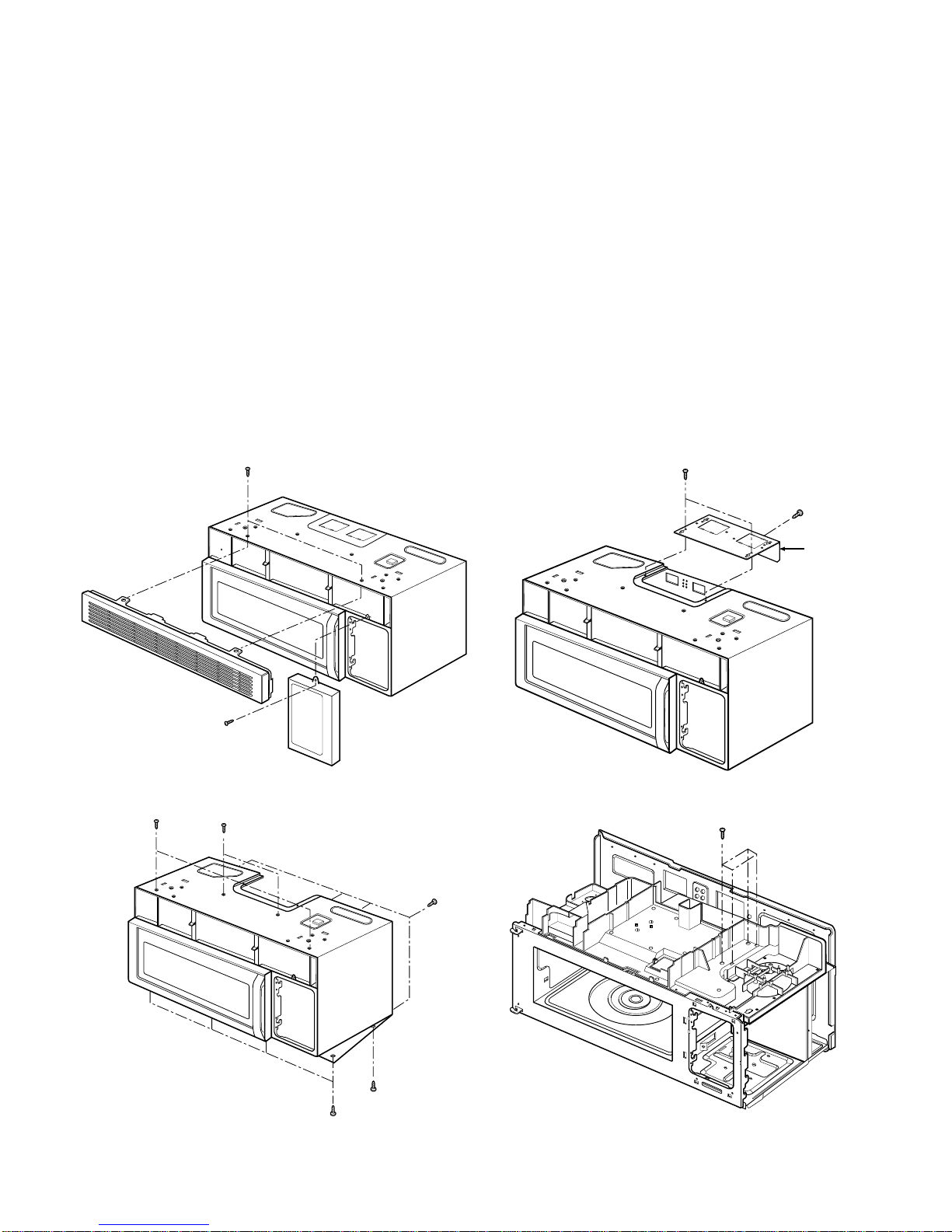

DISASSEMBLY INSTRUCTIONS .......................................................................................................... 7-4
INTERLOCK SYSTEM .......................................................................................................................... 7-12
INTERLOCK CONTINUITY TEST.......................................................................................................... 7-14
TEST AND CHECKOUT PROCEDURES AND TROUBLE SHOOTING................................................ 7-15
A. TEST PROCEDURES................................................................................................................ 7-15
B. CHECKOUT PROCEDURES..................................................................................................... 7-18
C. TROUBLE SHOOTING.............................................................................................................. 7-21
EXPLODED VIEW.......................................................................................................................................... 8-1
REPLACEMENT PARTS LIST............................................................................................................... 8-8
SCHEMATIC DIAGRAM OF PCB .......................................................................................................... 8-15
PRINTED CIRCUIT BOARD .................................................................................................................. 8-16
PCB PARTS LIST................................................................................................................................... 8-17

1-1
Rated Power Consumption 1,500W maximum (Microwave oven only)
1,600W maximum (Microwave oven+Cook top lamps+Ventilation fan)
Microwave Output 1000W (IEC 705 TEST PROCEDURE)
Adjustable 100W through 1000W, 10 steps
Frequency 2,450 MHz +
_ 50 MHz
Power Supply 120 VAC, 60 Hz
Rated Current 13 Amp. (Microwave oven only)
14 Amp. (Microwave oven+Cook top lamps+Ventilation fan)
Magnetron Cooling Forced Air Cooling
Rectification Rectification Voltage Double Half-Wave
Door Sealing Choke System
Safety Devices Magnetron Thermal Fuse:
Open at 109
° C +
_ 4
° C
Oven Cavity Thermostat:
Open at 110
° C +
_ 50
° C
Fuse(20A)
Primary Interlock Switch
Secondary Interlock Switch
Interlock Monitor
Magnetron 2M246-310GF or 2M248E
High Voltage Capacitor Capacitor: 1.0µF, 2.1 KV AC
High Voltage Diode Diode; 350mA, 9.0 KV
Cook top Lamp 125 V, 30 W or 40 W
Cavity Lamp 125 V, 30 W or 40 W
Timer Digital, up to 99 mim. 99 sec. (in each cooking stage)
Tray Tempered Safety Glass
Overall Dimensions 2915/16”(W)x167/16”(D)x153/8”(H)
Oven Cavity Size 197/8”(W)x145/32”(D)x815/16”(H)
Effective Capacity of Oven Cavity 1.5 Cu.ft.
Accessories Owner’s Manual & Cooking Guide, Installation Manual,
Exhaust Adapter, Exhaust Damper, Mounting Kit and Two
Filters, Rotating Ring Assembly, Metal Rack.
SPECIFICATIONS

2-1
CAUTIONS
• DO NOT operate on a 2-wire extension cord during
repair and use.
• NEVER TOUCH any oven components or wiring during
operation.
• BEFORE TOUCHING any parts of the oven, always
remove the power plug from the outlet.

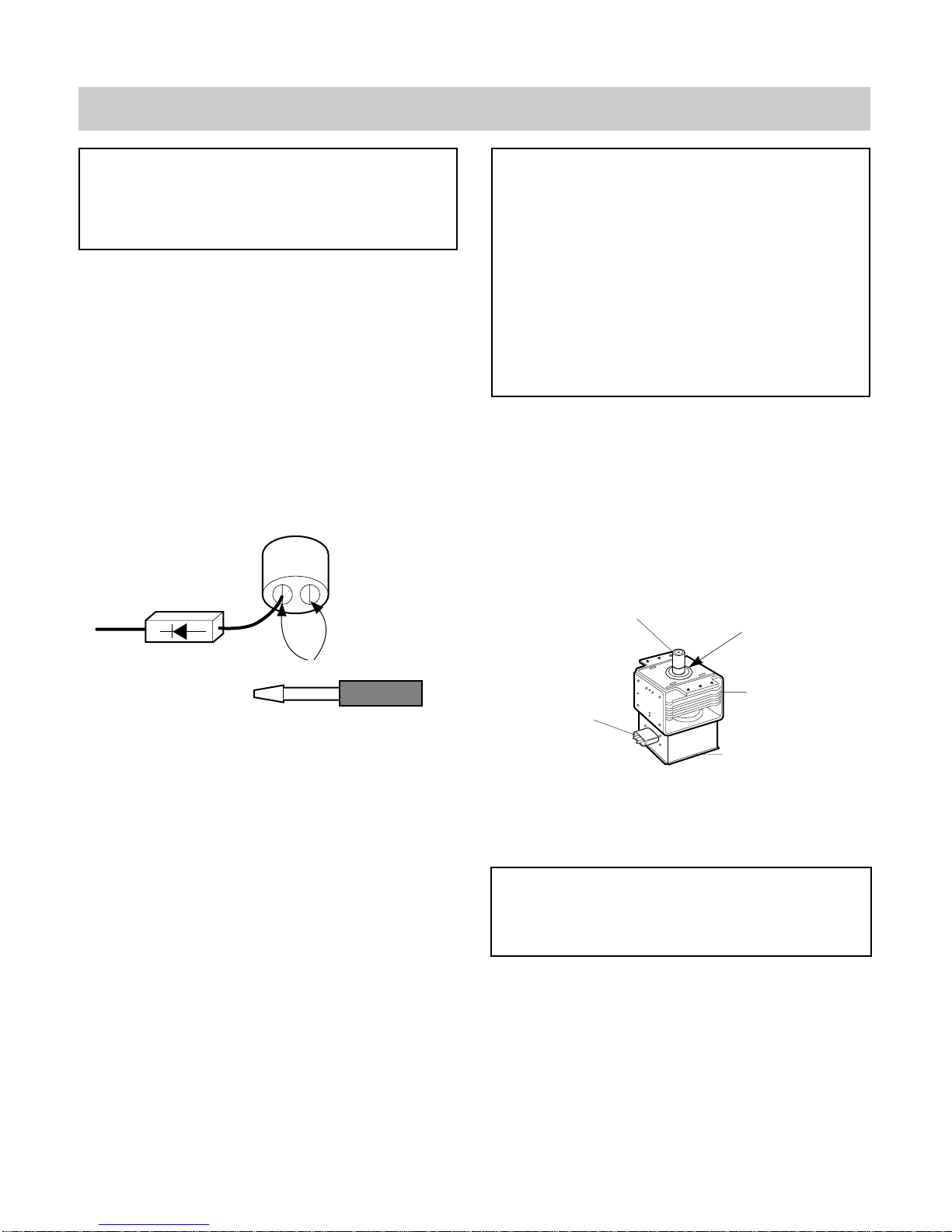

• For about 30 seconds after the oven stops, an electric
charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.
•
Remove your watches whenever working close to or
replacing the Magnetron.
• DO NOT touch any parts of the control panel circuit. A
resulting static electric discharge may damage this
P.C.B.
• NEVER operate the oven with no load.
• NEVER injure the door seal and front plate of the oven
cavity.
• NEVER put iron tools on the magnetron.
• NEVER put anything into the latch hole and the interlock
switches area.
• Proper operation of the microwave oven requires that
the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is properly
installed around the dome of the tube whenever
installing the magnetron.
Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange, and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.
Gasket
ANTENNA
COOLING FIN
MAGNETRON
CHASSIS GROUND
FILAMENT
TERMINALS
MAGNETRON

3-1
INSTALLATIONS
PRECAUTIONS ON INSTALLATION
A. Plug the power supply cord into a 120V AC, 60Hz,
single-phase power source with a capacity of 15A
or 20A.
B. Avoid placing the unit in a location where there is
direct heat or splashing water.
C. Install the unit on the mounting plate firmly.
D. Place the unit as far away as possible from TV,
radio, etc. to prevent interference.
GROUNDING INSTRUCTIONS
For personal safety, this appliance must be fully
grounded at all times.
In the event of an electrical short circuit, grounding
reduces the risk of electrical shock.
The plug must be plugged into an outlet that is
properly installed and grounded.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.
WARNING
Improper use of the grounding plug can result in a
risk of electric shock.
Do not, under any circumstances, cut or remove the
third ground prong from the power cord plug.
CAUTION
This unit is equipped with a 3-prong plug for your
safety. If the wall outlet is a grounded 3-hole type,
the unit will be grounded automatically.
Plug with Ground
Prong
Properly Polarized
and Grounded
Outlet

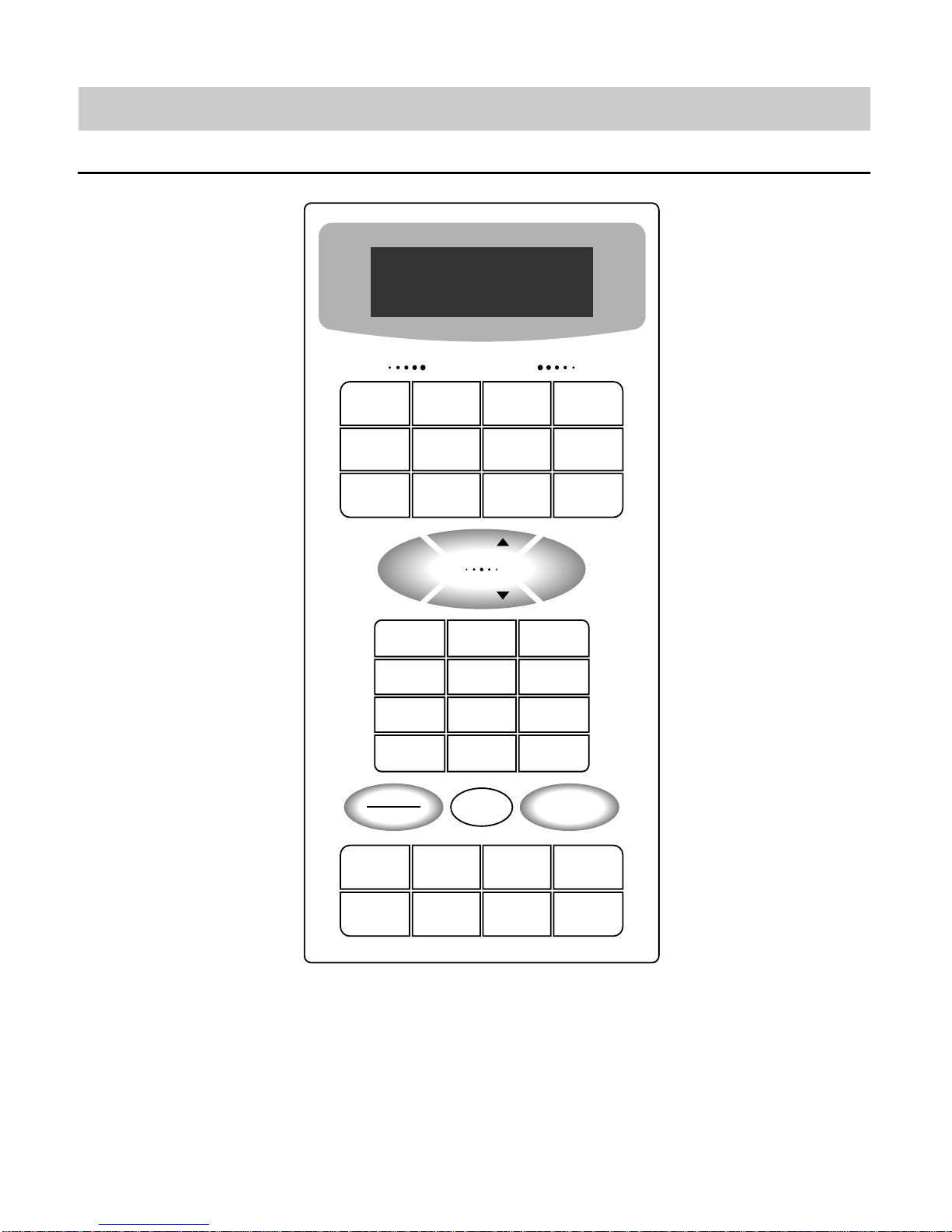

CONTROL PANEL
4-1
OPERATING INSTRUCTIONS
CUSTOM
COOK
TURNTABLE
ON/OFF FAN HI/LO/OFF LIGHT HI/LO/OFF KITCHEN TIMER
CUSTOM
SET CLOCK AM/PM
LIGHTTIMER
AM/PM
POTATO
PIZZA
RICE DINNER
PLATE SOUP SAUCE FROZEN ENTREE
BACON
FRESH
VEGETABLE FROZEN VEGETABLE
POPCORN
BEVERAGE CASSEROLE
POWER
HELP
HOLD
WARM
AUTO TOUCH
123
456
78
0
9
Ez OnEz On DEFROST
MOREMORE
LESSLESS
STOP
CLEAR
START

CONTROL PANEL INSTRUCTIONS
4-2
The entire operation is done by simple touch control
pads.
(1) Display Window
Numbers and letters are shown in the display
window (Vacuum Fluorescent Tube).
Each Indicator Light shows which function is set
and involved in the course of cooking by turning
itself on. Indicator Lights automatically go out
upon completion of cooking.
(2) MORE, LESS Key
Used to add or subtract ten seconds of cooking
time each time pressing it.
(3) POWER Key
Used to select cooking power level.
(4) EZ on Key
Used to cook for one minute at 100% power level.
It can be used to extend cooking time in multiples
of one minute up to 99 minutes.
(5) CLOCK(TIME OF DAY) Key
Used in setting Time of Day.
(6) STOP/CLEAR Key
Used to stop the oven or clear all entries except
Time of Day.
(7) START Key
Touch the START key after setting the desired
cooking times etc. Also touch the START key to
resume cooking after the cooking is temporarily
stopped by opening the door. The key will not
function unless the door is closed.
(8) DEFROST Key
Used to defrost for frozen foods by weight.
(9) AUTO TOUCH
Used to cook the preprogrammed food
automatically.
(10) HELP Key
This HELP key display feature information and
helpful hints.
(11) LIGHT TIMER
Used to set the cooktop light to turn on and off
automatically at any time you want. The light
comes on at the same time every day until reset.
(12) KITCHEN TIMER
Used to set the timer.
(13) TURNTABLE ON/OFF
Touch this pad to turn off the turntable.
“T/TABLE OFF” will appear in the display.
(14) CUSTOM SET Key
Touch this pad to change the oven’s default
setting for sound, clock, display speed, defrost
weight, and demo mode operations.
(15) FAN HI/LO/OFF Key
Touch FAN once for HIGH fan speed, twice for
low fan speed, or threetimes to turn the fan off.
(16) LIGHT HI/LO/OFF Key
Touch LIGHT once for bright light, twice for the
night light, or three times to turn the light off.

5-1
1
RY 1
RY 3
RY 4
RY 5
PH 1 VR 2
PK
(NO)
PRIMARY
SWITCH
(BOTTOM)
(C) BL
CN 1
RY6 RY2
123
CN 2
RD1
1
1
2
2
1
22
3
31
23
456
123456
RD
RD
RD
6 uF
CAPACITOR
RD
S.M F.M FAN
MOTOR
TURNTABLE
MOTOR
SECONDARY
SWITCH
(TOP)
RD
RD
RD
RD
BR
BR
BR
(NC)
H.V.TRANSFORMER
H.V.CAPACITOR MAGNETRON
FA
F
RECTIFIER
CONTROL MODULE
(C)
MONITOR
SWITCH
(MIDDLE)
BK
BK
WH
RESISTOR
BK
BK
BK
GY
15 PIN CONNECTOR(CN 1)
* NOTE
1. DOOR OPENED & COOK OFF MODE.
2. BLUE MARK ON LAMP SOCKET MUST BE CONNECTED
TO LIVE PART(BLACK WIRE).
3. ONLY CERTAIN MODELS USE THE ABSOLUTE HUMIDITY SENSOR.
BK
BK
BK
OVEN LAMP
COOK TOP
LAMPS
O.L
BK
SINGLE PHASE
ONLY AC 120V 60Hz
BL
BL
BL
CHi
Low
BL
GN
LN
BL
PK
PK
YL
GY
YL
YL
WH
WH
WH
WH
WH
WH
WH
C.L C.L
WH
WH
WH
STIRRER
MOTOR
YL
(C)
(NO)
WH
WH WH
SYMBOL COLOR
WHITE
BLACK
RED
YELLOW
PINK
BLUE
BROWN
GREEN
BK
RD
YL
PK
BL
BR
GN GREY
GY
WIRE COLORS
13579111315
WH
WH
WH
RD
BK
BK
BK VENT
MOTOR
V.M
FUSE 20A
MGT
THERMAL
FUSE
(109 C/228 F)
MICRO COMPUTER BOARD
POWER
TRANS 3
5
7
9
11
13
15
OVEN
THERMOSTAT
(110 C/230 F)
BASE
THERMOSTAT
(56 C/133 F)
3 PIN (CN 2)
(For not provided
Temp Probe)
BL
PK
13
T.M
SCHEMATIC DIAGRAM
OVERALL CIRCUIT DIAGRAM

MATRIX CIRCUIT FOR TOUCH KEY BOARD
7654321
FROZEN
VEGETABLE
POPCORN FAN(VENT)
HI/LO/OFF HELP N.C 5 0
POTATO FROZEN
ENTREE LIGHT
HI/LO/OFF CUSTOM
SET DEFROST 61
BEVERAGE DINNER
PLATE EZ on CLOCK 7 2
RICE HOLD
WARM
POWER
KITCHEN
TIMER
FRESH
VEGETABLE
LIGHT
TIMER N.C 8 3
PIZZA
CASSEROLE
START STOP/
CLEAR 94
SOUP/
SAUCE
BACON CUSTOM
COOK LESS MORE N.C TURNTABLE
ON/OFF
8
9
10
11
12
13
5-2

6-1
GENERAL PRECAUTIONS IN USE
A. Never operate the unit when it is empty.
Operating the oven with no load may shorten the
life of the magnetron. Whenever cooking dry foods
(dried fish, bread, etc.) or a small amount of food,
be sure to put a glass of water into the cooking
compartment. The glass turntable may become hot
after operating, be careful when touching it.
B. Aluminum foil should be avoided because it will
disrupt cooking and may cause arcing. However,
small pieces may be used to cover some parts of
food to slow the cooking. Any aluminum foil used
should never be closer than 2.5 cm to any side wall
of the oven.
TRIAL OPERATION
After installation, the following sequences and results
should be checked carefully.
A. Put a container filled with water (about 1 liter) into
the oven, and close the door tightly.
B. Set cooking time for 10 minutes by touching “1”
and then “0” three times. “1, 0, 0, 0” appears in
the display window.
C. Touch the START key.
Make sure the cavity light comes on. The unit will
begin cooking and the display window will show the
time counting down by seconds.
D. After about 5 minutes, make sure the primary
interlock switch, the secondary interlock switch and
the interlock monitor switch operate properly by
opening and closing the door several times. Touch
the START key each time the door is closed.
E. Continue operating the unit. Two short and a long
beep sound signal is heard when the time is up.
The unit will shut off automatically.
F. Confirm the water is hot.
G. Finally, measure the output power according to
“POWER OUTPUT MEASUREMENT” on
page 7-3.
FEATURES AND SPECIFICATIONS
FEATURES
A. The safety systems incorporated in this model are:
(1) Primary interlock switch
(2) Secondary interlock switch
(3) Interlock monitor switch
(4) Choke system
(5) Magnetron thermal fuse
(6) Oven cavity thermostat
(Note: This thermostat located on the oven
cavity will open and stop the unit from operation
only if a high temperature is reached, such as,
a fire created by overcooking food.)
B. Any one of 10 power output levels ranging 100W to
1000W can be selected by the touch control and
electronic computer system.
GENERAL INFORMATION FOR SERVICE

PRELIMINARY
A. SINCE NEARLY 2,100 VOLTS EXISTS IN SOME
CIRCUITS OF THIS UNIT REPAIRS SHOULD BE
CARRIED OUT WITH GREAT CARE.
The filament leads of magnetron carry High
Voltage with respect to ground. Extreme caution
must be exercised. Never plug the unit into a
power source to determine which component is
defective in high voltage section.
B. TO AVOID POSSIBLE EXPOSURE TO
MICROWAVE ENERGY LEAKAGE, THE
FOLLOWING PRECAUTIONS MUST BE TAKEN
BEFORE SERVICING.
(1) Before the power is applied:
(a) Make sure the primary interlock switch, the
secondary interlock switch and the interlock
monitor switch operate properly by opening
and closing the door several by opening and
closing the door several times.
(b) Make sure the perforated screen and the
dielectric choke of the door are correctly and
firmly mounted.
(2) After power is applied:
(a) Make sure the interlock switch mechanism
is operating properly by opening and closing
the door.
(b) Check microwave energy leakage must bebelow
the limit of 5 mW/cm2.
(All service adjustments should be made for
minimum microwave energy leakage
readings).
(3) Do not operate the unit until it is completely
repaired, if any of the following conditions exist.
The unit must not be operated.
(a) The door does not close firmly.
(b) The hinge is broken.
(c) The door seal is damaged.
(d) The door is bent or warped, or there is any
other visible damage on the unit that may
cause microwave energy leakage.
NOTE: Always keep the seal clean.
(e) Make sure that there are no defective parts
in the interlock mechanism.
(f) Make sure that there are no detective parts
in the microwave generating and transmission
assembly (especially waveguide).
(4) The following items should be checked after the
unit is repaired:
(a) The interlock monitor switch is connected
correctly and firmly.
(b) The magnetron gasket is properly positioned
and mounted.
(c) The waveguide and the oven cavity are intact.
(no microwave energy leakage)
(d) The door can be properly closed and the
safety switches work properly.
(e) The unit must stop when the door is opened or
the time is up.
The unit must not be operated with any of the above
components removed or by-passed.
7-1
PRECAUTIONS AND REPAIR SERVICE TIPS
SERVICE INFORMATION

7-2
CAUTIONS
•Be sure to check microwave leakage prior to
servicing the oven if the oven is operative prior to
servicing.
•The service personnel should inform the
manufacture importer, or assembler of any certified
oven unit found to have a microwave emission level
in excess of 5 mW/cm2and should repair any unit
found to have excessive emission levels at no cost to
the owner and should ascertain the cause of the
excessive leakage. The service personnel should
instruct the owner not to use the unit until the oven has
been brought into compliance.
•If the oven operates with the door open, the service
personnel should:
- Tell the user not to operate the oven.
- Contact the manufacturer and CDRH
(Center for Devices and Radiological Health)
immediately.
NOTE: Address on CDRH
Office of Compliance(HFZ-312)
Center for Devices and Radiological
Healthe 1390, Piccard Drive,
Rockville. MD 20850
• The service personnel should check all surface and
vent openings for microwave leakage.
• Check for microwave leakage after every servicing. The
power density of the microwave radiation leakage
emitted by the microwave oven should not exceed
4 mW/cm2. Always start measuring of an unknown field
to assure safety for operating personnel from radiation
leakage.
EQUIPMENT
• TESTER (VOLTS-DC, AC, Ohmmeter)
• Microwave survey meter
- Holaday HI-1500
HI-1501
- Narda 8100
8200
• 600 cc non conductive material beaker (glass or
plastic), inside diameter: approx. 8.5 cm (31/2 in.)
• Glass thermometer: 100°C or 212°F (1 deg scale)
MEASURING MICROWAVE ENERGY
LEAKAGE
•Pour 275±15cc of 20±5°C(68±9°F) water in a beaker
which is graduated to 600 cc, and place the beaker
on the center of the turntable.
•Set the energy leakage monitor to 2,450 MHz and
use it following the manufacturer's recommended
test procedure to assure correct result.
•When measuring the leakage, always use the 2-inch
(5cm) spacer supplied with the probe.
•Operate the oven at its maximum output.
•Measure the microwave radiation using and
electromagnetic radiation monitor by holding the
probe perpendicular to the surface being measured.

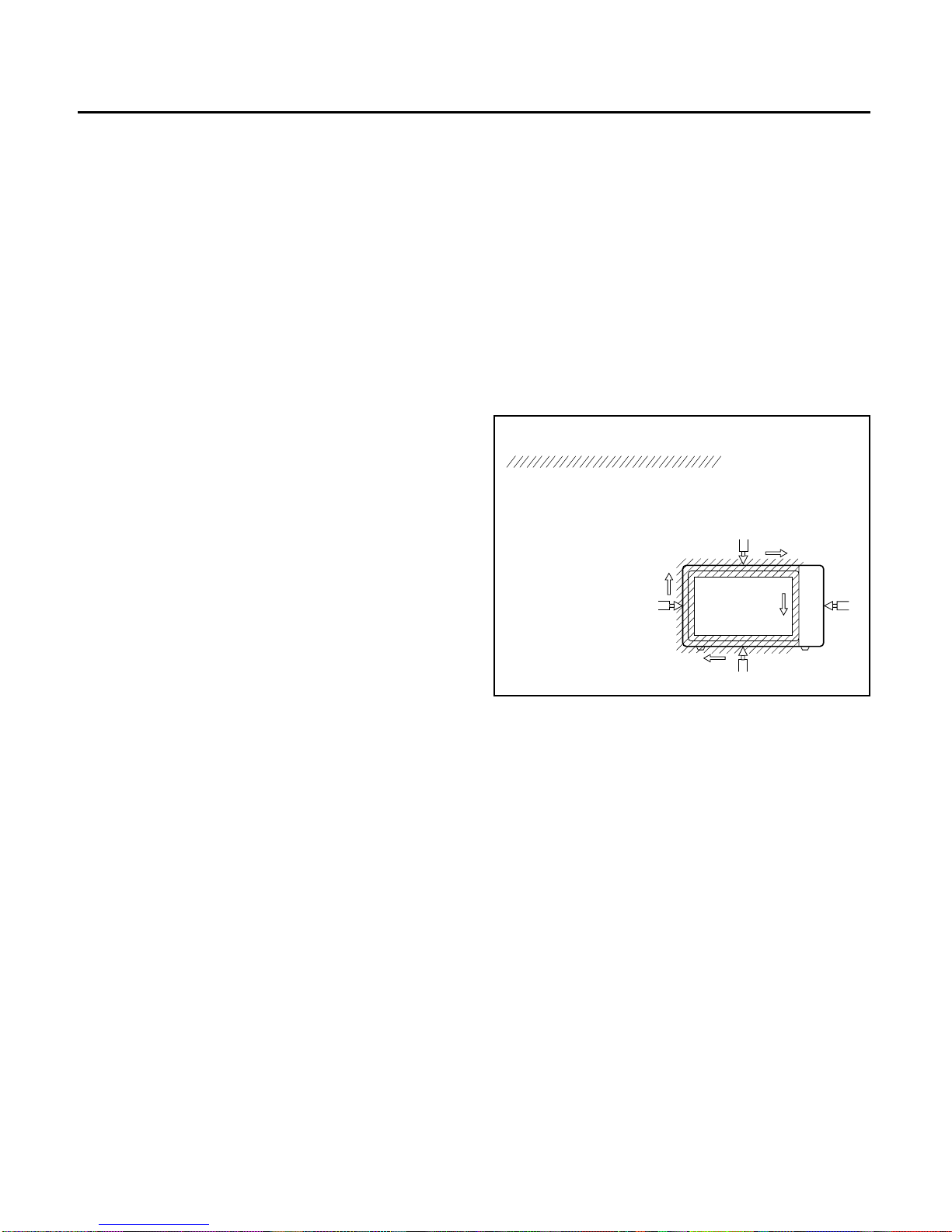

Move probe along shaded area.
Probe scanning speed
Less than 2.5 cm/sec. ( 1 in/sec)
MICROWAVE LEAKAGE TEST

MEASUREMENT WITH THE OUTER CASE
REMOVED
(1) When you replace the magnetron, measure for
microwave energy leakage before the outer case
is installed and after all necessary components
are replaced or adjusted. Special care should be
taken in measuring the following parts.
- Around the magnetron
- The waveguide
WARNING: AVOID CONTACTING ANY HIGH
VOLTAGE PARTS.
MEASUREMENT WITH A FULLY
ASSEMBLED OVEN
(1) After all components, including the outer
panels, are fully assembled, measure for
microwave energy leakage around the door
viewing window, the exhaust opening and air
inlet openings.
(2) Microwave energy leakage must not exceed the
values prescribed below.
NOTES:
Leakage with the outer panels removed - less
than 5 mW/cm2.
Leakage for a fully assembled oven (“Before the
latch switch (primary) is interrupted”) with the door
in a slightly opened position - less than 2 mW/cm2.
NOTE WHEN MEASURING
(1) Do not exceed meter full scale deflection.
(2) The test probe must be removed no faster than
1 inch/sec (2.5cm/sec) along the shaded area,
otherwise a false reading may result.
(3) The test probe must be held with the grip portion
of the handle. A false reading may result if the
operator’s hand is between the handle and the
probe.
(4) When testing near a corner of the door, keep
the probe perpendicular to the surface making
sure the probe horizontally along the oven
surface, this may possibly cause probe damage.
RECORD KEEPING AND NOTIFICATION
AFTER MEASUREMENT
(1) After adjustment and repair of any microwave
energy interruption or microwave energy blocking
device, record the measured values for future
reference. Also enter the information on the
service invoice.
(2) Should the microwave energy leakage not be
more than 2 mW/cm2after determining that all
parts are in good condition, functioning properly
and genuine replacement parts which are listed in
this manual have been used.
(3) At least once a year, have the electromagnetic
energy leakage monitor checked for calibration
by its manufacturer.
(1) Microwave power output measurement is made with
the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting
with a load of (1000±5) g of potable water.
(2)
The water is contained in a cylindrical borosilicate
glass vessel having a maximum material thickness of
1/8” (3 mm) and an outside diameter of
approximately 7.6” (190mm).
(3) The oven and the empty vessel are at ambient
temperature prior to the start of the test.
(4) The initial temperature (T1) of the water is (10±2)°C
(50°F) It is measured immediately before the water is
added to the vessel. After addition of the water to the
vessel, the load is immediately placed on the center
of the turntable which is in the lowest position and the
microwave power switched on.
(5)
The time T for the temperature of the water to rise by
a value ∆T of (10±2)°K is measured, where T is the
time in seconds and ∆T is the temperature rise. The
initial and final water temperatures are selected so
that the maximum difference between the final water
temperature and the ambient temperature is 5°K.
(6)
The microwave power output P in watts is
calculated from the following formula :
4187 x (∆T)
T
is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)
(7) The water is stirred to equalize temperature
throughout the vessel, prior to measuring the final
water temperature.
(8) Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.
7-3
WATER LOAD
TURNTABLE
P =
POWER OUTPUT MEASUREMENT

IMPORTANT NOTES:
UNIT MUST BE DISCONNECTED FROM ELEC-
TRICAL OUTLET WHEN MAKING REPAIRS, RE-
PLACEMENTS, ADJUSTMENTS AND CONTIN-
UITY CHECKS. WAIT AT LEAST ONE MINUTE,
UNTIL THE HIGH VOLTAGE CAPACITOR IN THE
HIGH VOLTAGE POWER SUPPLY HAS FULLY
DISCHARGED.
THE CAPACITOR SHOULD BE DISCHARGED BY
USING INSULATED WIRE - I.E. TEST PROBE
CONNECTED TO 10K-OHM RESISTOR IN SERIES
TO GROUND.
WHEN RECONNECTING THE WIRE LEADS TO
ANY PART, MAKE SURE THE WIRING CONNE-
CTIONS AND LEAD COLORS ARE CORRECTLY
MATCHED ACCORDING TO THE OVERALL CIR-
CUIT DIAGRAM. (ESPECIALLY SWITCHES AND
HIGH VOLTAGE CIRCUIT.)
A. REMOVING POWER AND CONTROL
CIRCUIT BOARD (Figures 1, 2 and 3)
(1) Remove a screw securing the control panel
assembly to the oven cavity.
(2) Remove the control panel with pushing it upward.
(3) Remove the three connectors (CN1, CN2) and
wire leads (Relay2 and Relay6) from the circuit
board.
CAUTION:The relay connector 2(White) and 6(Red)
must be correctly connected Relay 2 and Relay 6 for
each.These two connectors are not interchangeable.
(4) Remove 3 screws securing the circuit board.
(5) Remove the FPC connector from the terminal
socket following “HOW TO REMOVE THE FPC
CONNECTOR” on the next page.
(6) Remove the circuit board from the control bracket
carefully.
7-4
Circuit Board
T
FPC Connector(S1)
Control Bracket
Circuit Board
Relay 2
Relay 6
Figure 1
Figure 2
Figure 3
DISASSEMBLY INSTRUCTIONS
Control Panel
Relay 2
Relay 6
(Relay 6)-Red
(Relay 2)-White
(CN1)
(CN2)
Screw
Power
Transformer

7-5
HOW TO REMOVE THE F.P.C. CONNECTOR
Follow the steps below as illustrated in Figures 4
and 5 to remove the F.P.C. connector.
(1) Hold the edges of the plastic fastener with
thumb and forefinger.
(Figure 4)
(2) Lift up the lever of the plastic fastener from
the terminal socket by lightly pressing the
lever end with forefinger.
(Figure 5)
(3) Remove the F.P.C. connector from the
terminal socket.
HOW TO INSERT THE F.P.C. CONNECTOR
Follow the steps below as illustrated in Figures 6
and 7 to insert the F.P.C. connector.
(1) Insert the F.P.C. connector into the terminal
socket securely with the fingers.
(2) Hold the plastic fastener with thumb and
forefinger of the other hand, and push it
slowly into the terminal socket. (Figure 6)
NOTE: When reconnecting the F.P.C
connector make sure that the holes
on the F.P.C. connector are properly
engaged with the hooks on the plastic
fastener
(3) Lock the level of the plastic fastener into the
hook of the terminal socket securely by
releasing the fingers.
(Figure 7)
Terminal
socket
Terminal
socket
F.P.C.
Connector
F.P.C.
Connector
Plastic fastener
Holes
Hook
Plastic fastener
Plastic
fastener
Terminal
socket
F.P.C.
Connector
Terminal
socket
F.P.C.
Connector
Plastic fastener
Holes
Hook
Figure 4
Figure 7
Figure 6
Figure 5

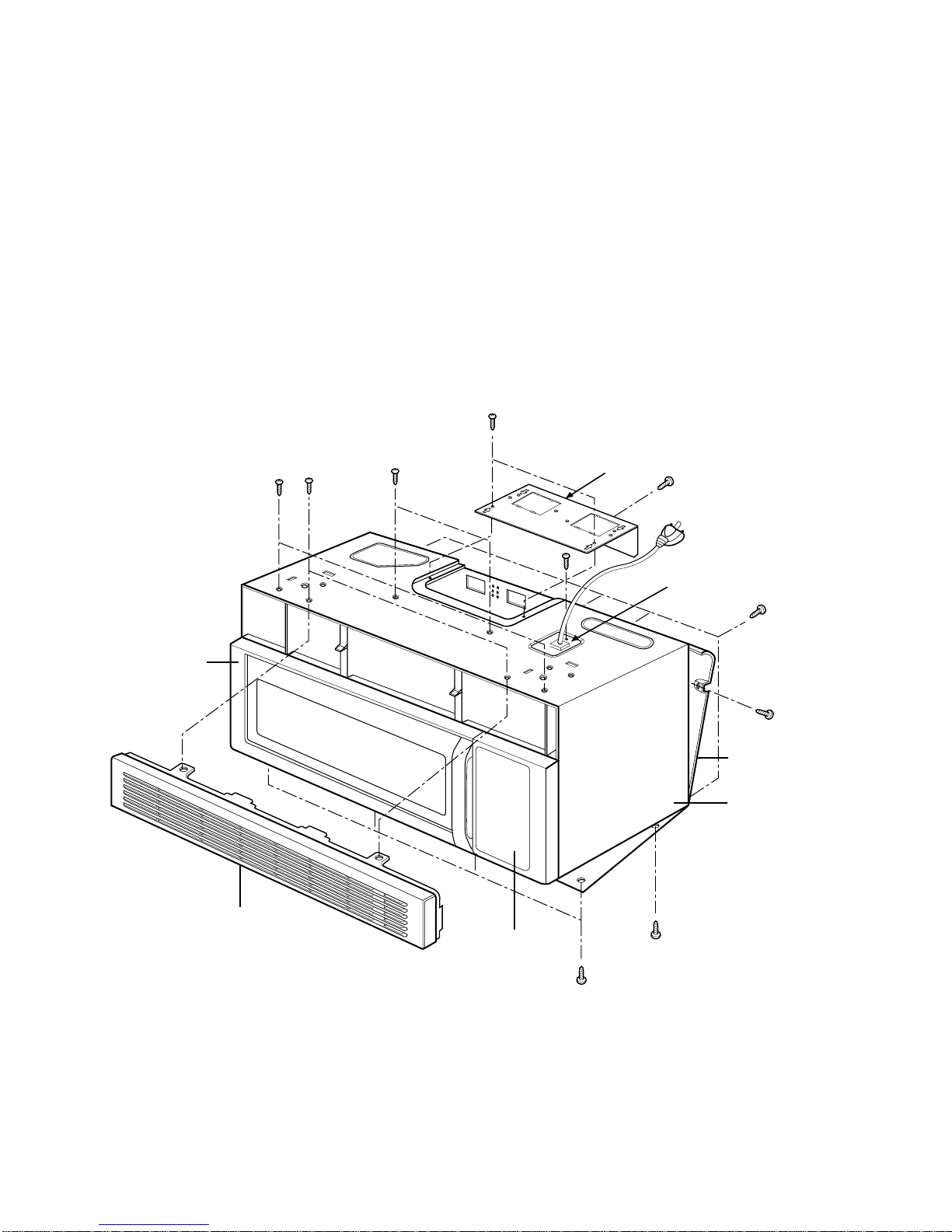

B. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the out case.
(2) Remove two screws securing it to the front
bracket.
(3) Remove two screws securing it to the air duct.
(4) Remove the mounting plate by turning the two
screws securing it to the out case.
(5) Remove the base plate by removing six screws
securing it to the out case. Remove the Mount,
All from the out case by removing two screws
securing it to the out case and one screw securing
it to the ventilation motor ASS'Y and cavity.
(6) Remove the power cord cover from outcase by
removing a screw.
(7) Remove the power cord to the inner of the out
case with turning power cord and remove the out
case with pushing it back.
Vent Grille Controller
Mounting
Plate
Door
Out Case
Mount,All
Power cord cover
Figure 8
7-6

7-7

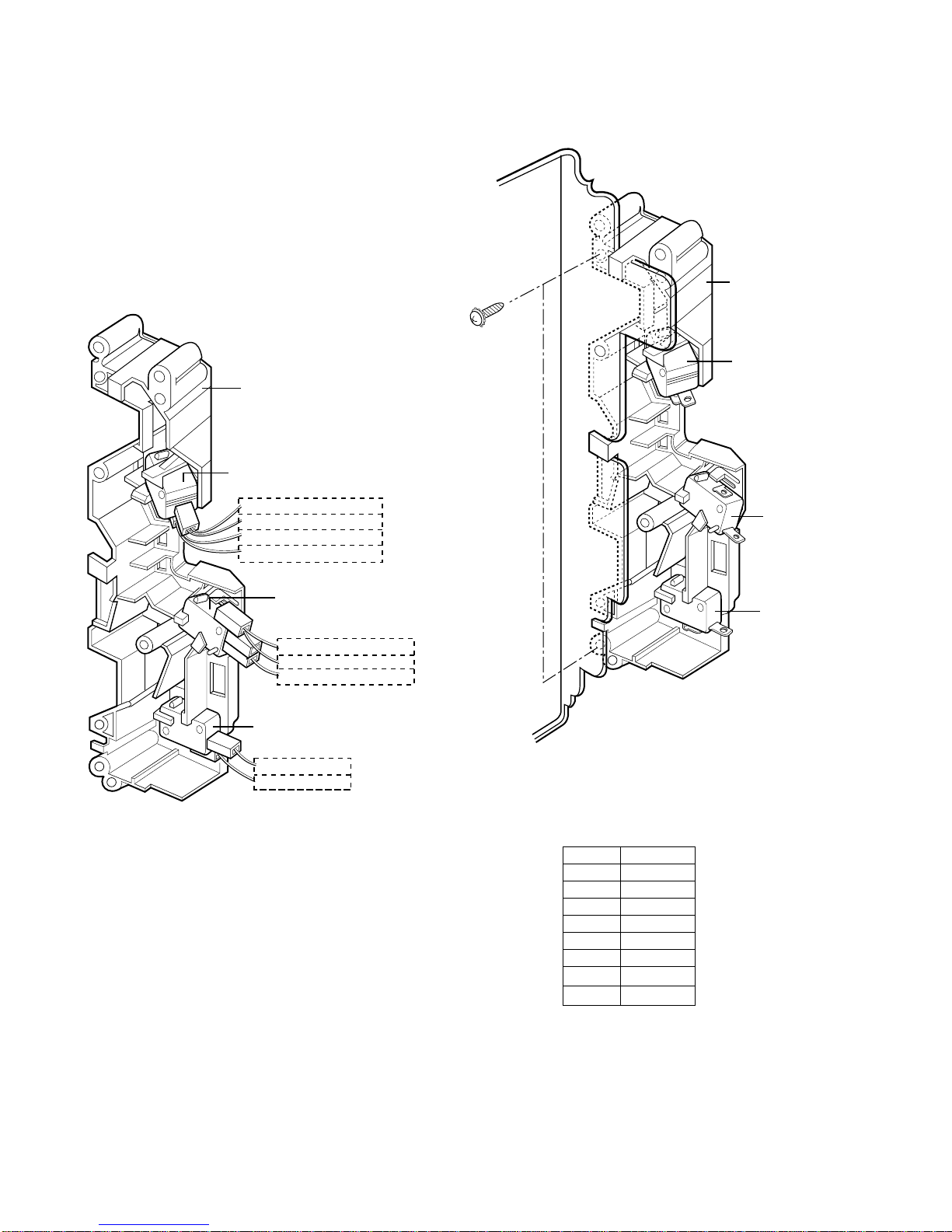

C REMOVING THE DOOR INTERLOCK
SWITCHES (Figures 9,10)
(1) Disconnect the wire leads from the interlock
switches.
(2) Remove two screws securing the Latch Board.
(3) Make necessary replacements and check
microwave energy leakage according to
“ADJUSTMENT PROCEDURE” on page 7-12.
Latch Board
Secondary
Interlock Switch
Interlock
Monitor Switch
Primary
Interlock Switch
Latch Board
WH (from H.V.Transformer)
YL ( from Fan Motor )
WH
( from Power Cord)
WH
( from cooktop lamp )
Secondary Interlock Switch
Monitor Interlock Switch
Primary Interlock Switch
PK(from P.C.B)
BL
( from P.C.B)
WH (from H.V.Transformer)
BR (from Turntable Motor)
RD (from H.V.Transformer)
Figure 9
Figure 10
WIRE COLOR
SYMBOL COLOR
WH
BK
BR
RD
BL
PK
GY
N.P.
WHITE
BLACK
BROWN
RED
BLUE
PINK
GREY
Not Provided

D. REMOVING MAGNETRON
(Figures 11 Through 14)
(1) Remove the vent grille by removing two screws.
(Figure 11)
(2) Remove the controller by removing a screw and
disconnect all wire leads. (Figure 11)
(3) Remove the mount all from the out case by
removing two screws securing it to the out case
and one screw securing it to the ventilation motor
ASS'Y and cavity. (Figure 12)
(4) Remove the base plate by removing six screws
securing it to the oven front plate and outcase,
remove the outcase by removing nine screws
securing it to the oven back plate, air duct, and
front bracket. (Figure 13)
(5) Remove four tap tite screws securing the
magnetron to the wave guide. (Figure 14)
(6) Remove the magnetron VERY CAREFULLY.
NOTES:
• When removing the magnetron, make sure that its
dome does not hit any adjacent parts, or it may be
damaged.
• When replacing the magnetron, be sure to install the
magnetron gasket in the correct position and be sure
that the gasket is in good condition.
• After replacing the magnetron, check for microwave
energy leakage with a survey meter Check
microwave energy leakage must be below the limit
of 5 mW/cm2. (All service adjustments should be
made for minimum microwave energy leakage
readings.)
mount, all
Figure 11
Figure 13 Figure 14
Figure 12
7-8

E. REMOVING STIRRER FAN DISK
(Figures 15 and 16)
(1) Remove 1 rivet ASS'Y securing it to the oven
upper plate by using knife blade.
(2) Rotate slightly and pull out the stirrer fan cover.
(3) Remove the stirrer fan disk.
F. REMOVING DOOR (Figure 17)
(1) Remove the vent grille by removing two screws
securing it to the front bracket.
(2) Lift up and push the door.
G. DISASSEMBLING DOOR (Figure 18)
(1) Remove the dielectric choke by using knife
blade or small screw driver, etc.
(2) Remove two screws securing it to the door handle.
CAUTION: Be careful not to damage door seal
plate with the screwdriver.
NOTES:
• After replacing the door, be sure to check that the
primary interlock switch, the secondary interlock
switch and the interlock monitor switch operate
normally.
• After replacing the door, check for microwave energy
leakage with a survey meter. Microwave energy
leakage must be below the limit of 5mW/cm2. (With a
275 ml water load)
7-9
Door Screen
Figure 16
Figure 15
Figure 18
Figure 17
