Owner’s Manual and Assembly Instructions
Model W446AL
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Save this manual with your sales receipt.
MINI COOPER S manufactured by Paragon Child Products Co.Ltd,(Goodbaby Group),
No.20 Lufeng East Road, Lujia Town, Kunshan City, Jiangsu Province, China.
The MINI trademarks are used under license from BMW AG. MINI name and associated
logos are trademarks of BMW AG.

Thank You
PREVENT INJURIES AND DEATHS:
•NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view
when child is in vehicle. Direct adult supervision is REQUIRED.
•NEVER use roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
•ALWAYS wear shoes.
•ALWAYS sit on the seat.
•
•
NEVER allow more than one (1) riders in the MINI Cooper S.
WARNING!
Thank youfor purchasing the Mini Cooper S. With the
Mini Cooper S yourchild will have funand enjoyment for years
to come. Some of the features on the Mini Cooper S include:
forward and reverse switch, lights andengine sounds. Please
contact Hunter Products Pty Ltd at www.electricrideon.com.au
oe Call at 1800 224 094 (local call cost) with comments
or questions.
RISK OF FIRE. Do not bypass.

Contents
Safety. . . . . ............ . . . . ...... . . . . . . . . . 1
........ . ...... . . . . . . . . . 2
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Install the Front Wheels . . . . . . . . . . . . . . . . . . . . . . . . 7
Install the Rear Wheels . . .............. . . . . . . . . . 8
Attaching the Steering Wheel . . ............ . . . . . . 9
Assemble the Speedometer and Windshield . . . . . . . . 10
Assemble Soft Roof and Mirror. . ....... . .... . . . . . 11
. . . . . . . . . . . . . . . . . . .13
Attach the Remote Control batteries . . . . . . . . . .12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
General . ..... . ... . ... . .......... . . . ... . . . . . . 14
Battery. ....... . . . ......................... . . 14
Troubleshooting Guide ... . . ......... . ... . . . 19
Services Repairs and Parts........ . . . .... . . . 21
22Warranty . . . . .... . . . . . . . . . . . . . . . . . . . . . . . . .
User Requirements
Charging the Battery: Warnings......... . ... . . . . 3
Remote Control Operation

The following safety hazards may result in serious injury or death to the
user of the MINI Cooper S:
• This product contains small parts that are for adult assembly only.
Keep small children away when assembling. Remove and dispose
of all protective material and poly bags before assembly. Be sure to
remove all packaging materials and parts from underneath the car body.
• Riding the vehicle without a helmet. Riders must always wear a
fitted helmet that complies with Australian Standard
AS/NZS 2063:2008.
• Battery posts, terminals and related accessories contain lead and lead
compounds (acid) chemicals that are toxic and corrosive. Never open
the battery.
• Body parts such as hands, legs, hair and clothing can get caught in
moving parts. Never place a body part near a moving part or wear loose
clothing while using the vehicle. Always wear shoes when using the
vehicle.
• Using the vehicle near streets, motorvehicles, drop-offs such as: steps,
water (swimming pools) or other bodies of water, sloped surfaces, hills,
wet areas, flammable vapors, in alleys, at night or in the dark could
result in an unexpected accident. Always use the vehicle in a safe,
secure environment with continuous adult supervision.
• Using the vehicle in unsafe conditions such as snow, rain, loose dirt,
mud, sand or fine gravel may result in unexpected action such as tip
over and skidding.
• Using the vehicle in an unsafe manner. Examples include but are not
limited to:
• Pulling the vehicle with another vehicle or similar device
Allowing more than two riders
Pushing the user from the back
Traveling at an unsafe speed
•
•
•
• Always use common sense and safe practices when using the
vehicle.
• Store the vehicle indoors or cover it with a tarp to protect it from
weather. Do not wash the car with a hose or soap and water. Water will
damage the motor, electric system, and battery.
WARNING!
Safety
1

WARNING!
User Requirements
Age Range 3 and 7 years
Weight Range No more than 77 lbs (35kg)
Before using the MINI Cooper S the child should understand the vehicle
controls and safety issues. They must also demonstrate the capability to
handle the vehicle and operate its controls. It is the responsibility of the
adult to educate the child and supervise the vehicles use.
Read the following safety warnings to any child using the MINI Cooper S
Spyder Ride-on:
• Only use the vehicle when an adult is present to watch (supervise).
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed at a time on the MINI Cooper S Spyder
Ride-on.
• Children under three years old cannot use the vehicle.
• Only drive on level ground.
• Do not go near water, drop-offs or up and down steep slopes.
• Do not drive the vehicle into loose dirt, mud, sand or gravel.
• Do not drive the vehicle on streets or near cars.
2

Charging the Battery: Warnings
3
• Contact or exposure to battery leakage (lead acid) may cause
serious injury. If contact or exposure occurs immediately call
your physician. If the chemical is on the skin or in the eyes,
with cool water for 15 minutes. If the chemical was swallowed,
immediately give the person water or milk. Do not give water or milk
if the patient is vomiting or has a decreased level of alertness.
Do not induce vomiting.
The following safety hazards may result in serious injury or death to
the user of the MINI Cooper S:
WARNING!
•
•
• Explosive gases are created during charging. Charge the battery
in a well ventilated area. Do not charge the battery near heat or
materials.
• Contact between the positive and negative terminals may result in
or explosion. Avoid direct contact between the terminals. Picking
up the battery by the wires or charger can cause damage to the
battery and may result in a Always pick up the battery by it’s
case or handles.
• Liquids on the battery may cause or electric shock. Always keep
all liquids away from the battery and keep the battery dry.
Use of a battery or charger other than the supplied 6v rechargeable
battery and charger may cause a fire or explosion. Only use the
supplied 6v rechargeable battery and charger with the vehicle.
Using the 6v rechargeable battery and charger for any other
product may result in over heating, fire or explosion. Never use the
6v rechargeable battery and charger with another product.

WARNING!
4
•
Important! Before using the MINI Cooper S for the first time the battery
needs to be charged for a full twenty-four hours (no more than thirty hours).
Only an adult who has read and understands the following safety warnings
should handle, charge or recharge of the battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for
charging. However, if the adapter cord will not safely reach a 240V
wall outlet, the battery can be removed for charging (see page 6 for
instructions concerning battery replacement).
• Tampering or modifying the electric circuit system may cause a
shock, or explosion and permanently damage the system.
Exposed wiring, circuitry in the charger may cause electric
shock. Always keep the charger housing closed.
Battery posts, terminals and related accessories contain lead and
lead compounds (acid), chemicals and are toxic and corrosive.
Never open the battery.

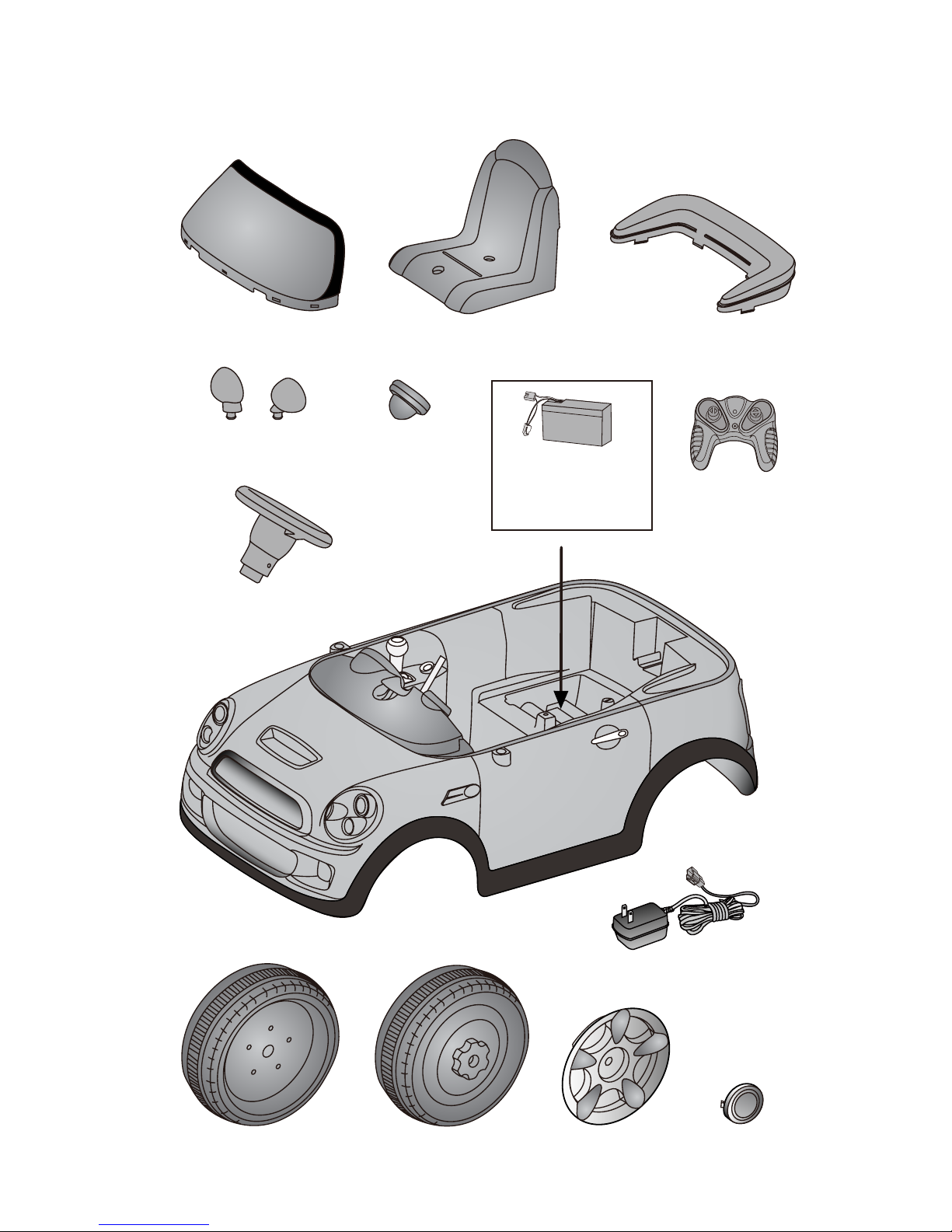

Parts
hub cap x4 wheel cover x4
charger
speedometer
seat soft topwindshield
battery
Please note: Battery is
already installed in sealed
rear compartment.
mirrors (L & R)
steering wheel
body
rear wheel x2front wheel x2
5
remote controller

Charge Battery Before Assembly
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY.
NOTE: It is not necessary to remove the battery from the vehicle for
charging. However, if the adapter cord will not safely reach a 240-volt
wall outlet, the battery can be removed for charging.
Disconnect Charger from Battery
1. Unplug the charger from the wall outlet.
2. Unplug the charger connector from the battery.
3. Plug the engine connector into the battery.
4. Position the seat over the battery. Lower the seat hooks into the holes
(at front of seat). Lock seat screws (Figure 1).
Connect Charger to Battery
1. Use a flathead screwdriver to unlock
the screws. Lift seat (Figure 1).the screws. Lift seat (Figure 1).
2. Unplug the engine connector from the
battery (Figure 2).
3. Plug the charger connector into the
battery (Figure 3).
Use ONLY the 6-volt charger included
with the Mini Cooper S.
Input: AC 240V, 50Hz
Output: DC 7.0V, 0.8A
4. Plug the charger into a standard
240-volt wall outlet (Figure 4). The
charger may feel warm during
charging. This is normal and not a
cause for concern.
1
2
3
6
4

Install the Front Wheels
1. Slide large washer onto axle as shown.
2. Locate a wheel marked front. Slide the wheel onto the axle with the
word front facing in, towards the vehicle.
3. Align the posts on the back of the wheel cover with the holes in the
wheel and slide the wheel cover into the wheel.
4. Slide a small washer and then the snap-pin onto the axle.
5. Align the locks in the hubcap with the holes in the wheel cover and
press in place.
NOTE: Do not use a hammer. Repeat steps 1-5 to attach both front wheels.
7
large washer
front wheel
wheel cover
small washer
hub cap
snap pin

Install the Rear Wheels
1. Locate a wheel (marked “rear” with gear shaped protrusion).
2. Slide the wheel onto the axle with protrusion facing toward the vehicle.
3. Fit the gear shape protrusion into the gear box.
4. Align the locating pins on the inside of the wheel cover into the
wheel holes, and push the wheel cover into place.
5. Slide a small washer and then the snap-pin onto the axle.
6. Align the locks in the hubcap with the holes in the wheel cover. Press
the hubcap into place.
NOTE: Do not use a hammer.
7. Repeat steps 1-6 to attach the other wheel.
8
rear wheel
gear box
axle
wheel cover
small washer
snap pin
hub cap

•DO NOT mix old and new batteries.
•DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-
cadmium) batteries.
WARNING!
9
Attaching the Steering Wheel
1. Remove the battery compartment cover and insert (2) AA batteries
into the top of the steering wheel. Place and screw the cover back on.
2. Place the steering wheel onto the steering column and line up the
screw holes.
3. Insert the screw through the holes and thread the nut onto the screw.
4. Tighten the nut.
steering rod
nut
M5 x 42 screw

10
Align the speedometer with the slot of the dashboard. Push it slightly
until you hear the “click” to complete the assembly.
Align the windshield with the two side slots between the dashboard
and the body and push it at the same time. NOTE: the two sides of the
windshield must be inserted evenly. Push the middle of the windshield
until you hear a “click”. The assembly is completed once you hear
the “click.”
Assemble the Speedometer
Assemble the Windshield
Speedometer
Windshield

Assemble Soft Top
Assemble the Mirror
Align the clip of the soft top with the slot of the rear body, push it slightly
until you hear a “click” to complete the assembly.
Insert the clip of the mirror into the slot of the body, push it into the slot
until you hear a “click” to complete assembly. Please be reminded to
differentiate the left and right mirrors.
soft top
Mirror
Mirror
11

foot pedal
forward/reverse shifter power switch
engine horn
Manual control operation
Engine sound on left and horn on right.
12
Attach the Remote Control batteries
Open the battery cover. Take out
the old batteries and replace with
new one. Then close the battery
cover. Please change the battery
following step above when the red
light off on R/C found.
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard
(carbon-zinc), or rechargeable
(nickel-cadmium) batteries.
WARNING!
Battery cover
R/C
manual/rc
Seat in the car, turn the power
switch to the position of “I”, Press
Remote/manual control switch to
manual; Puush the forward/reverse
shifter to forward or reverse
position; press the foot pedal down
to go forward on reverse release
foot pedal to stop.
on/off
Resetturning
MP3 jack
Turn on powder and radio
switch, then can use chosen key
to adjust different radio program,
replacement key can make radio
chosen to original position. MP3
line insert to the jack, then the
radio will have different music as
MP3 ( volume can adjust by
MP3 ).

13
Remote Control Operation
Coding switch
Forward/Reverse lever
Left/Right lever
Matching the code :
Press the match code button on the remote
control until the LED is blinking, then release
the code button and press only the match
code button on the drive board until the Led
stops blinking and keeps in light on status in
just 1 seconds then it will be off, the recod-
ing is Successful you can release your
fingers.(If the LED keeps blinking over than
10 seconds , the recoding is fail and will at
last be off automatically , the reason may be
that there is no electricity on the drive board
or the time interval between you press the
button on the remote control and on the
drive board is too long. To match the code
again, please release the code buttons and
repeat above steps.
If the recode is fail, please turn off the power
and then turn on to recode. If it still couldn’t
work, please change a new remote –control
and a new drive board.
Remote –control mode :
Rider sits in the car, turns on the power
switch, set the manual / remote-control
switch at remote-control mode. Move the
lever on the 2.4G remote-control to forward
or reverse position, the car will go forward or
reverse accordingly, when move the lever to
left or right position, the car will go to the left
or right. The car will stop if the lever
released. The headlightwill on when the car
moves forward. There is no need to match
the code when first using the remote-control.
When it happens to replace the remote-
control, motor control board or mal-function
of the remote-control, please match the
code again as Matching code steps.
Sleep mode:
If you don’t operate the car in 8 hours after
you turn on the power switch, the car will
shift to sleep mode automatically. If you
want to use the unit, please turn the power
switch off and restart it to activate.
Coding switch

Maintenance
General
The vehicle should be checked for damage, missing or badly worn parts
before use.
•Check the tightness of the fasteners before each use.
•Check the tightness of the wheel nuts. Use a flat head screw driver to
gently pry off the hub caps. Note: If the screw nuts are not tight the
wheels will not engage the forward gears and the vehicle will not run.
• Ensure the battery bracket is securely in place before use.
•Occasionally use lightweight oil to lubricate moving parts such as
wheels and steering linkage. Do not use oil on plastic or nylon parts.
No lubrication is required.
•Store the vehicle indoors or cover it with a tarp to protect it from the
weather. Keep it away from sources of heat, such as stoves and
heaters.
•Clean the vehicle with a soft, dry cloth. To restore shine to plastic
parts, use a non-wax furniture polish. Do not use car wax, abrasive
cleaners or wash the vehicle with soap and water. Water will damage
the motor, electrical system and battery.
Battery
Only an adult who has read and understands the safety warnings (see
Assembly) should handle, charge or recharge of the battery. Failure to
comply with the following safety warnings may result in serious injury or
death.
•DO NOT mix old and new batteries.
•DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-
cadmium) batteries.
WARNING!
14

15
The following safety hazards may result in serious injury or death to
the user of the MINI Cooper S:
WARNING!
•
•
Use of a battery or charger other than the supplied Avigo 6V
rechargeable battery and charger may cause a fire or explosion.
Only use the supplied 6V rechargeable battery and
charger with the vehicle.
Using the 6V rechargeable battery and charger for any other
product may result in overheating, fire or explosion. Never use the
6V rechargeable battery and charger with another product.
•Explosive gases are created during charging. Charge the battery
in a well ventilated area. Do not charge the battery near heat or
flammable materials.
•Contact between the positive and negative terminals may result in
fire or explosion. Avoid direct contact between the terminals. Picking
up the battery by the wires or charger can cause damage to the
battery and may result in a fire. Always pick up the battery by it’s
case or handles.
•Liquids on the battery may cause fire or electric shock.
Always keep all liquids away from the battery and keep the battery
dry.
•Contact or exposure to battery leakage (lead acid) may cause
serious injury. If contact or exposure occurs immediately call
your physician. If the chemical is on the skin or in the eyes,
with cool water for 15 minutes. If the chemical was swallowed,
immediately give the person water or milk. Do not give water or milk
if the patient is vomiting or has a decreased level of alertness. Do
not induce vomiting.

16
WARNING!
The following safety hazards may result in serious injury or death to
the user of the MINI Cooper S:
•Battery posts, terminals and related accessories contain lead and
lead compounds (acid), chemicals that are toxic and corrosive.
Never open the battery.
•Tampering or modifying the electric circuit system may cause a
shock, fire or explosion and permanently damage the system.
Exposed wiring, circuitry in the charger may cause electric shock.
Always keep the charger housing closed.
Re-Charge Interval and Time
Important!
•Damage to the battery may occur if it is allowed to drain completely.
Do not allow the battery to drain completely.
•Check the battery and charger (supply chord, connector) for wear and
damage before charging. Do not charge the battery if damage has
occurred. Only replace with a 6V rechargeable battery
and charger.
The battery should be charged after each use, or if not used regularly,
once a month at a minimum. Charge the battery for a full 16 hours. Do
not charge the battery for more than 30 hours. Failure to charge the
battery as directed would cause permanent damage to the battery and
will void the warranty.

17
Battery Storage
Do not leave the battery connected in the vehicle for long period of
times while not being used. This may drain the battery completely
and cause permanent damage. Disconnect the battery connectors
from the battery when the vehicle is not going to be used for a long
period of time. Follow these guidelines if the battery is removed:
•Store the battery where temperatures are between -24°C and 24°C
•Store the battery on a wood surface. Do not place the battery
on cement floor for extended periods.This will result in battery
discharge.
•Wipe the battery clean with a dry cloth prior to storage.
•Charge the battery once every month for 16 hours.
Battery Replacement and Disposal
The Avigo 6V battery will eventually lose the ability to hold a charge.
Depending on the amount of use, and varying conditions, the battery
should operate for one to three years. Follow these steps to replace
and dispose the battery:
1. Use a coin to loosen the 2 plastic screws in the seat. Lift the
seatup and set aside.
2. Remove screws at bottom of the rear cover. Remove cover.
3. Disconnect the battery connectors.
4. Remove the battery bracket.
5. Carefully lift the battery.
•Depending on the condition of the battery (i.e.:leakage) you
may want to wear protective gloves before removal.
•Do not lift the battery by its connectors or cables
6. Place the dead battery in a plastic bag.
Important! Recycle the dead battery responsibly. The battery
contains lead acid (electrolyte) and must be disposed of properly
and legally It is illegal in most areas to incinerate lead acid
batteries or dispose of them in landfills. Take it to a federal or
state-approved lead acid battery recycler. Do not throw the battery
away with your regular household trash!
