XK DHC-2 A600 User manual

DHC-2 A600
Quick Start Guide
5CH BRUSHLESS MOTOR 3D6G SYSTEM AIRPLANE
www.xk-innovations.com

Introduction
Catalogue
-1-
The great Electronic gyroscope system ,3 axis gyroscope 3D flight, you can lock the attitude
precision, easy to make a variety of special effects.6 axis gyroscope 6G flight, the attitude
model is very stable, very suitable for beginners to flight, Regardless of any aircraft in flight,
the aircraft immediately reply to loosen the rocker, smooth flight.
Standard X4 Transmitter aileron down the joystick in seconds for transfer 3D/6G , to experience
different fun.
A high-end Transmitter fifth channel switching control gyroscope, 3D/6G
Safety precautions
Packing list
Product parameters
Controller diagram
Transmitter battery installation
Battery charging
The center gravity position of the plane
Wing mounting
Landing gear installation
Perparation before flight
Receiver plugs introduction
Rudder adjustment of plane
Flying operation
Take off on the ground
Throw off
Landing
3D/6G Transform
Gyro calibration
Flight finish
Turn off the power of Transmitter

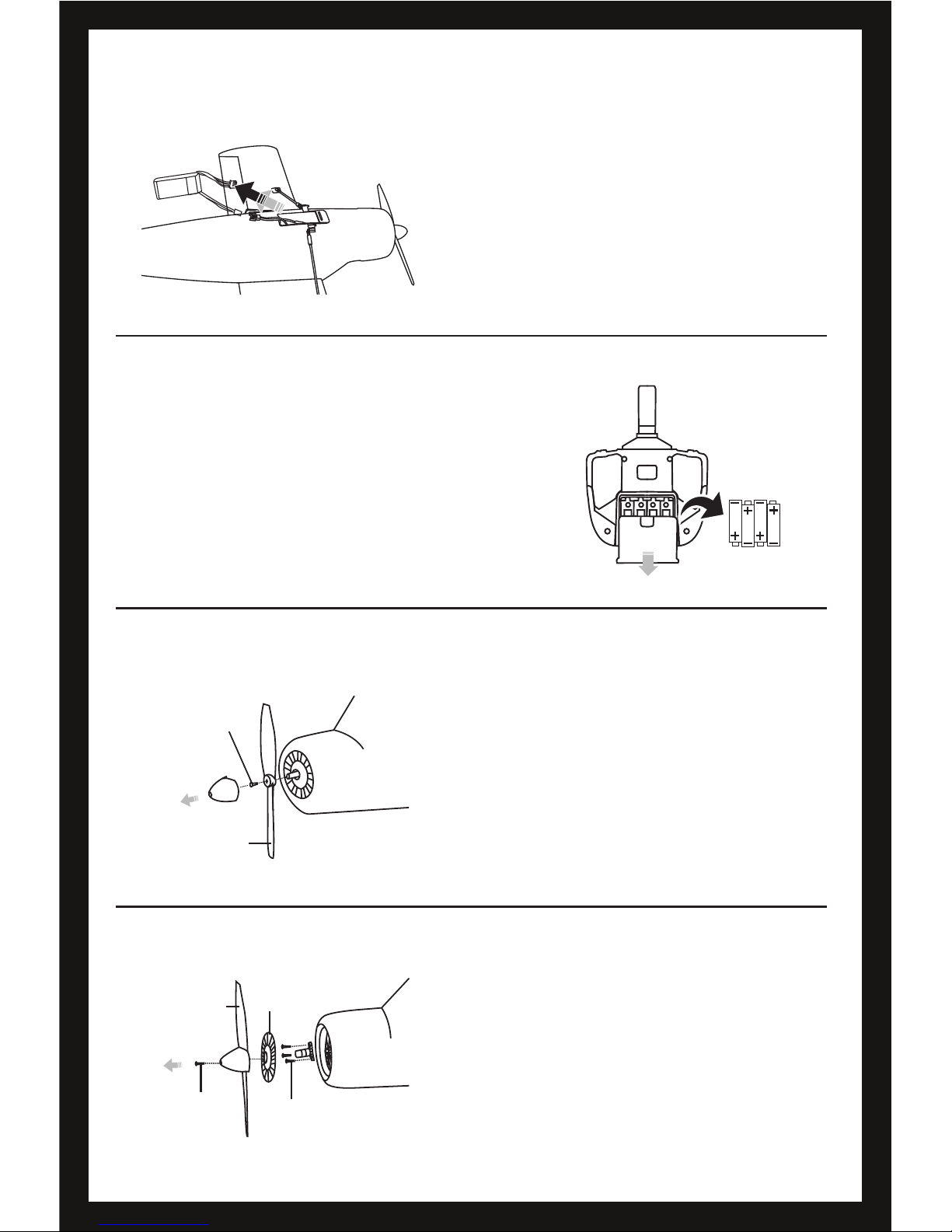

Wing replacement
Blade hoop replacement

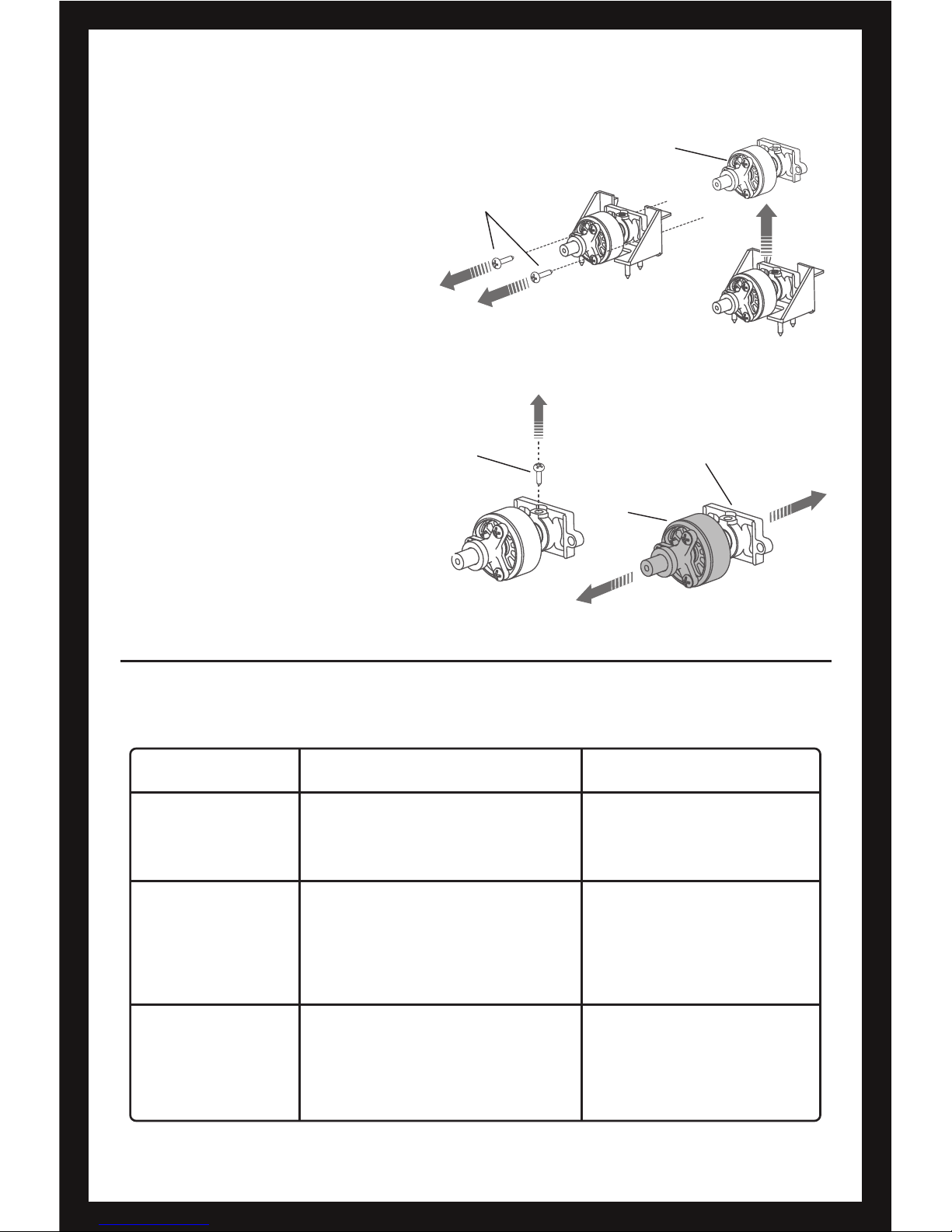

Motor replacement
How to eliminate abnormity
2
3
3
4
4
5
5
5
6
6
7
7
7-8
8
8
9
9
9
10
10
10
10
11
11-12
Thank you for purchasing Our XK A600 DHC-2 beaver simulation plane, the plane used 6 axis
gyroscope (compatible with the 3D/6G 3 axis gyroscope)With the function of 3D transfer to 6G,
4-CH Single wing layout is very suitable for you to do sports and leisure flying, even if you are a
beginner, in 6G mode also can be easy to flight.
If you are a little flying experience, in 3Dmode, you can easily make stunt like professional
person.
Matching 2S lithium polymer battery 2500KV1106 brushless motor, high efficiency of blade,
provides strong power for you.This aircraft uses gyroscope aided flight, Before the first flight,
Pls read the instructions, so that you can experience and enjoy it,stabel 3 axis gyro is compatible
with the 6 axis gyro.

Safety precautions
-2-
This product flight is suitable for the outdoor and wind scale less than
4 grade. This hobby need fly at outdoor and without any obstacle. And
keep away from people and pets pls do not flight in the dangerous
environment, such as heat source,wire, power source and soon. In order
to avoid collision, landing, risks and causing fire, electric shock, thereby
causing the loss of your property.
The hobby belong to the dangerous goods, flying must be away from people. If Install not well
or spare parts broken, Tranmitter control broken, and not have experience of handing, It all may
causing flight out of control and broken. Pls be carefully for flying. And you must to know that
the duty of wrong handing is in charge of yourself.
Li-po battery is more danger compared with other battery. Pls read the
introduction method of the battery before you use. Our company will
be not reposible for the wrong way to put the battery.
(1. Prohibited to use other charger except from our factory.
In order to avoid the dangerous of explosion and fire.
2. Prohibited hit, disassemble, Polarity reverse connection, Burning
of the battery, Avoid metal products touch the positive and negative
of the battery and cause short circuit. And please prevent sharp
products pierce the battery, to avoid fire of the battery.
3. Pls be careful when charging, be ensure that charging in your line of
sight. And keep away from the place which the children can touch.
In order to avoid danger.
4. Prohibit charging when the battery hot. otherwise it will cause the
battery expansion, deform, explosion even fire burning, cause the
safety of the life and property.
5. Please clean up abandoned battery recycling in strict accordance
with the law of the country or region of waste disposal, to avoid
pollution of the environment.)
Pls confirm the positive and nagetive position of the battery when
Install it. Do not uput together with the old and new battery so as
not to affect the life of battery.
If long time does not use this product, please take out the battery, so
as to avoid battery leakage, fault. If the battery liquid leakage do not
use.Waste battery, please according to the countries or regions of the
waste disposal, in order to avoid polluting the environment.
Please do not disassemble or any transformation process, any upgrade
or repair, please use this product catalog parts, to ensure the safety of
the structure.
Please confirm the product limit operation, do not overload to use,
and must be use according to the law.
This products composed of sophisticated electronic components,so
must absolutely prevent moisture or water vapor,avoid to use in
bathroom or in the rain, prevent water vapor enter into inside of the
body and cause the body and electronic component broken and
causing the unexpected accident.

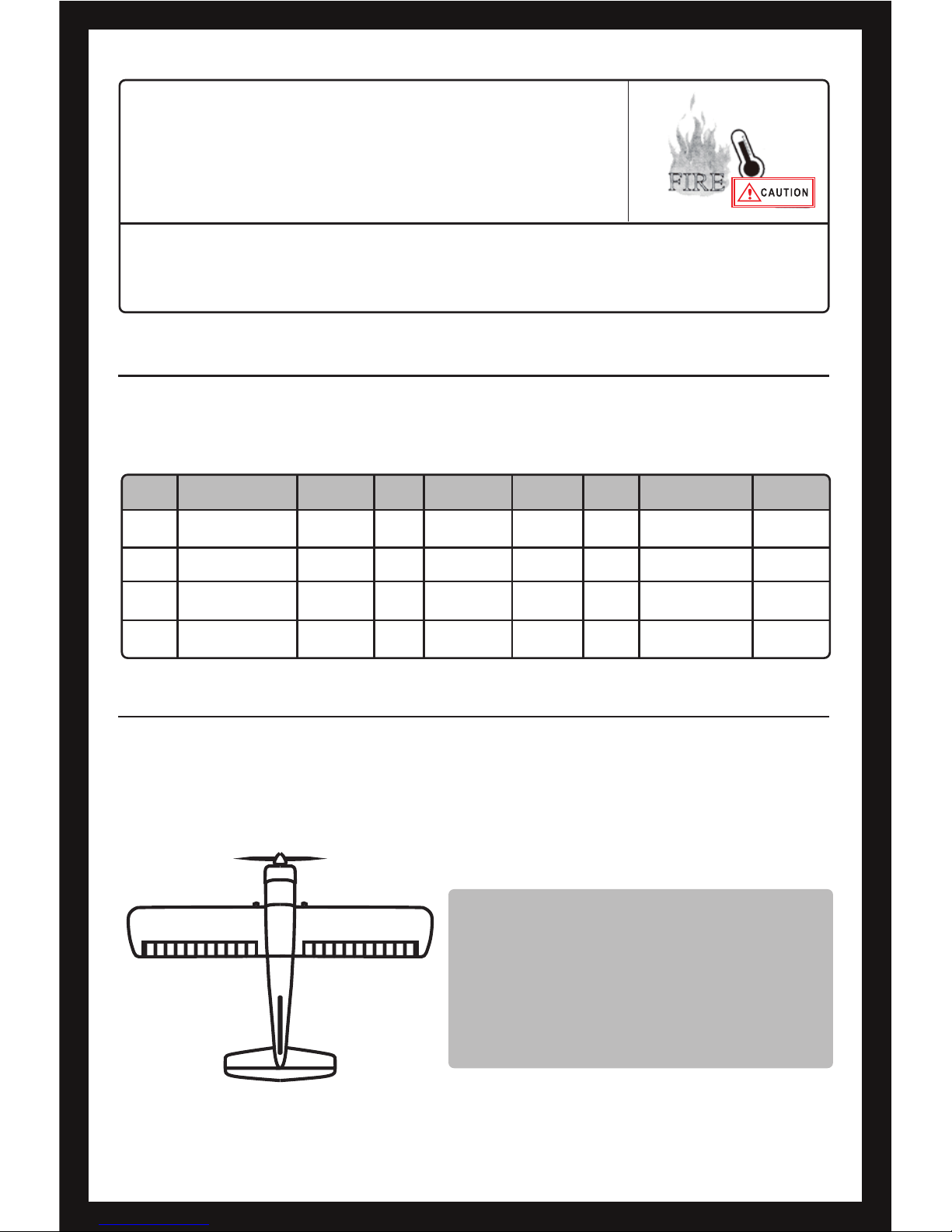

Product paremeters
Packing list
·Item No.
·Product colour:
·Product description:
·Product material:
·Product size:
·Product weight:
A600 (compatible FUTABA S-FHSS)
Orange
system plane
EPS
Wingspan(580mm)length(434mm)
90g
-3-
No. Quantity QuantityQuantityName Name Name No. No.
color box
body
Airfoil
reinfore bar
Front / rear
landing gear
controller
charger
adapter
Poly packing
battery
7.4V 300mAh
entry manual
1 1
1
1
1
1
1
2
Each 1
1
1
2
3
4
5
6
7
8
9
airfoil10
Remote control like the real machine is mostly EPS foam, electronic
products as the main material, so try to keep away from heat, sunlight,
to avoid distortion caused by high temperature and melt the
possibility of damage.
This product is suitable for more than 14 years of age, flight the real machine would be a little difficult
to learn . Like the real machine would be a little difficult to learn.
ery difficult at the early stage of learning, to manipulate the model prototype simulator like flying.

Controller diagram
Transmitter battery installation
-4-
MODE 1(the asia version）
Throttle/Aileron joystick
（presss the 6G/3D Switch）
antenna
power indicator light
power switch
Aileron trim
LED display
Direction trim
elevator trim
elevator trim
throttle/direction joystick
（press down the rudder to change）
MODE 2(European Version）
4pcs”AA”battery
（in additional to buy）
battery
cover
Put the back of the battery cover down and out,
and then install 4 pcs “AA” batteries according
to the positive and negative direction correctly.
finally,close the battery cover.
（(Do not use different types of batteries.）
antenna
power indicator light
power switch
Aileron trim
LED display
direction trim
elevator trim
throttle trim
elevator /joystick
（press down 6G/3D Switch）
throttle/direction joystick
（press the rudder key to change）

Wing mounting:
-5-
The center gravity position of the plane
The central position of the plane at the leading edge of the wing back about 28mm, battery
replacement or position change will affect the plane gravity position, influence of flight,
change the battery type Number, Pls confirm that does not influence of the gravity position.
28mm28mm
Simulated helicopter wing joint according to shown
in "A" into the interface on the body and fix in place.
Use a screwdriver to screw according to the diagram
shown in "B" clockwise rotation the wing.
Then the wing reinforcing bar according to the
diagram shown in "C" installed in the wing and
body interface.
A
C
B
Battery charging
charge
indicator
light
power
indicator light
7.4V 300mAh battery
1. The power adapter connected with lipo charger.
2. And then put the charger into AC socket,at the
same time the indicator lamp of lipo charger
(green light) lights.
3. Put battery plug into charger,the indicator lamp
(red light) lights, The The battery is saturated after
lights out.
Warns:
1. In order to ensure the safety, please charge with person.
2. Children can not charge alone, to be in charge of adult
assistance.
3. Please use the original standard charger for charging,
pls don’t use the charger which one not make from
our factory in order to cause explosion.

Perparation before flight
Landing gear installation
-6-
Front Landing gear put into head at the bottom of
the interface as shown A.And then back landing
gear Installed in the tail bottom interface as shown.
B.At last Install the front landing of Two pieces of
component into Front landing gear Support bar. A
B
C C
ABC
Open the battery cover, The
battery connector in connection
with battery cover connector as
picture B Shown.
After connecting the battery, the
battery install into the battery
groove, And then close the
battery cover as picture “C”
Shown. When gyro
Self-inspection finish.
It can be flight.
Binding code of Transmitter and receiver
You buy the model before leaving the factory has been to code completion, if need to re-code,
please according to the following steps:
1. At first Open the Transmitter power switch
2. Put battery into simulated plane, the red light on the receiver will be lights, Press the button
of the receiver code about 1 second, the red light of receiver will be go out. When the red light
of receiver and blue light of signal light always on, to complete the code.
3. When binding pls avoid to open same type same frequency Transmitter surround. In order to
effect binding. This product is compatible with FUTABA S-FHSS. Can compatible with
FUTABA S-FHSS Controller on the market.
At first turn on the controller,
Make sure throttle joystick is
on the bottom position.

Flying operation
-7-
Prohibited to flight before do not understand the control method of this plane. Pls read this Instruction
and come to understand until your finger can control the Transmitter correctly .
1.Put the model in an open place,and the tail of model face to yourself.
2.Pratice operate the joystick of controller( operate as follows), And repeatedly practice throttle
high / low, left / right aileron, Rudder forward/backward and rudder left /right.
3.simulation flight exercises is very important, please repeat do exercise until skillful, The finger can
control the plane naturally when orders.
Rudder adjustment of plane
Receiver plugs introduction
1. Put into battery for the plane, Aileron/lift Rudder
Vertical rudder Should back to middle. If the rudder
is not in the middle position, By hand rotation of the
adjustment will be adjusted to the middle position
of the rudder.
2. The Motor can not start when you adjust the plane.
Gyro in the state of close. Gyro in the situation of
repairing, can not adjust surface correctly to the
position of middle.
3. Wire spin to the right to shorten the length of
push-pull wire, left spin can be extend length of
push-pull wire.
1. Adjust the steel wire of whole surface, The Transmitter must be close.
Note:
ESC socket
Aileron socket
code key
battery Socket
lifting socket
deirection socket

Take off on the ground
-8-
placed on a level surface
MODE MODEICON ICON
上升
turn
left turn right
rudder
face up
Rudder left Rudder righti
rolling
left rolling right
downup down up
rudder
down
go down
Note:
1.choose a relatively flat ground.
2.Throttle accelerate Slowly, Make the plane keep
sliding distance to reach the takeoff speed.
3.Up / down rocker assisted take off, Tie Too many
may lead to the appeared to spiral lost.
1.The plane facing the windward on the Ground, Confirm
each Rudder back to middle again,The rudder direction is
correct or not.
2.To make sure the above steps is no problem , Push the
sliding throttle rocker gradually increased to 100%, and
then Lift and pulled up/down rocker, the plane leave
the ground .
Throw off
To ensure all the rudder is back
in the middle or not.
100%,The throttle rocker push
to 100%.
Facing the wind throw the plane
and according to the flight
situation to repair in time.
1.Throwing error method
2.Correct throwing method
3.Throwing error method
1
2
3

Landing
3D/6G Transform
Gyro calibration
-9-
Note:
In the process of gliding if the air route deviation can make the rudder correction. When the wind is too
large to control the plane in the downwind distance. To avoid unnecessary loss caused by the wind is too
large. Must be landing when the power of plane is came down. Don’t put the battery run out. If landing
not good must be need flight again and keep a little power. At First, open the Transmitter. put battery
into the plane, The plane on the ground or table.
Pls land immediately when the you feel the plane lack of
power. First of all, the plane flew to windward area adjust
the head and upwind landing. Pull down throttle and
reduce the flight speed. The plane will slowly slider down.
Until the plane touches the grounp. Then the throttle to
the lowest position. In the process of slide should be
adjusted according to the plane flight attitude .Keep the
plane glide smoothly.
1.Turn on is for 6G Mode. By pressing the aileron
joystick one second and change to 3D(Locking type)
2.3D mode flight.when plane in any position ,By
pressing Aileron joystick change to 6G mode.Plane
will be get back to the stable position.
3.6G Mode suitable for the begineer,3D mode can
do stunt.
gyro will be change accompany with the temperature and
accumulation error, Caused deviation in flight. Advise you
adjust again and Reset gyroscope.
1.At First, open the Transmitter. put battery into the plane,
The plane on the ground or table.
2.At the same time,put the left joystick and right joystick
to the left corner and right corner.
3.At this moment ,the signal red light of the plane will be
flashing and then blue flashing twice,when the signal
light of red and blue light long time.gyro Complete
zero calibration.

Flight finish
Turn off the power of Transmitter
Wing replacement
-10-
Battery
cover
warn:
If the battery not removed will be cause Excessive
battery discharge and damage, Even cause fire.
Warns:
If the battery not removed will be cause Excessive
battery discharge and damage, Even cause fire.
End of flight,pls bring down the batteries.
When you turn off the power of Transmitter, and
long time not play it, pls bring down the battery
and keep it.
1. Pull up the blade as the picture (A)shown.
2. Use the screwdriver rushed out the screw which
are fixed on the blade As picture (B) shown.
3. Bring out the blade from the center of motor
as(C) shown.
1. Use the screwdriver rushed out the screw which
are fixed on the blade As picture (A) shown.
2. Bring out the blade from the center of motor as
(B) shown.
3.The paddle hoop cover is taken off, and then screw
out 3 screws with a screwdriver blade hoop, then
paddle hoop, to replace the new paddle hoop.(C-D)
A
A
BC
D
B
C
Blade hoop replacement

-11-
Motor replacement
Note:
The plane after using. Motor will be catch a
high temperature, before it’s not cool,
please do not touch and change motors,
in order to avoid burns.
B
A
C
D
E
1. Remove 2 pcs screw from firewall by twisting.
2. The motor one the firewall tried to pull out.
3. Remove the screw which one on motor
by twisting.
4.Separate motor with fixed plate,
re-placement the new motor.
How to eliminate abnormity
The status reason countermeasure
When the flight signal
light flash, control No
reaction
Transmitter and plane code
binding is not successful
Binding again as the code bind
steps according to the warns
in page sixth
Plane do not start
after power on
The gyro motor
starts to work
When the plane with
battery, the throttle
Make the throttle rocker in the
right position put throttle trim
return to the middle point and
put battery
After the plane in battery,
The throttle is not working.
signal light is normal,
Steering gear is working
properly
When the battery power is low, the
ESC into shutdOff protection
charge the battery or replace the
battery which with full power

-12-
The status reason countermeasure
Push the motor but
motor did not start
properly, motor in turn.
Motor and ESC bad contact
or motor break down. Motor socket connecting or change motor.
Motor gear appear less teeth. Replace the motor with problem.
Vibration when the
motor run at it. Blade transformation ,blade hoop and motor position is not firm or blade hoop fracture. Replacing the Blade and blade hoop which are with problem. The blade
hoops fixed firmly, Motor need
to be fixed.
The model flying yaw, can
not flight straight Blade transformation ,blade hoop and motor position is not firm or blade hoop fracture.
Motor fixing seat loose.
1.The rudder in the back.
2.Gyroscope Zero
Adjustment
When flying ,gyro
no working,can
not repair
gyro out of order
need to replace the receiver
When plane landed or
throttle joystick on the
bottom position, motor
is still working
Because when flying you make
the throttle trim too high Pls make a adjustment to the throttle trim to the middle point
The motor socket connection
and replace motor rocker
control individual servo will
be appear rudder-blocked.

Email:[email protected]
Shenzhen XK Innovations Technology Co., Ltd.
