We thank you for the
confidence you have shown by
purchasing our appliance.
We wish you find a lot of pleasure in its
use.
The appliance is intended solely for
household use.
The freezer is intended for freezing fresh
food and for long-term storage of frozen
food (up to one year, depending on the
type of food).

3
TABLE OF CONTENTS
460401
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND WARNINGS
7 ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES
8 APPLIANCE DESCRIPTION
9 INSTALLATION AND CONNECTION
12 CHANGING THE DIRECTION OF DOOR OPENING
14 OPERATING THE APPLIANCE WITH ELECTRONIC CONTROLS
20 APPLIANCE INTERIOR EQUIPMENT
21 FREEZING AND STORING FROZEN FOOD
23 DEFROSTING THE APPLIANCE
24 CLEANING THE APPLIANCE
25 TROUBLESHOOTING
26 INFORMATION ABOUT APPLIANCE NOISE
OTHER
STORING AND
FREEZING FOOD

4
IMPORTANT
NOTES AND WARNINGS
460401
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or metal capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Before connecting the appliance to the power mains,
please read carefully the instructions for use which
describe the appliance and its correct and safe use. The
instructions apply for several appliance types/models;
thus, settings or equipment may be described herein
which is not available in your appliance. The instruction
manual includes the NO FROST version/model of
the freezer which is fitted with a fan and in which the
defrosting process is automatic.
Remove the packaging intended for protecting the
appliance or particular parts during transport.
Spacers are fitted on the
corners of the doors.
Remove them and insert
the supplied plugs into
their slots (only in some
models).

5
460401
Before connecting the appliance to the power
mains, let the appliance rest in a vertical position for
approximately 2 hours. This will reduce the possibility
of operation faults due to the effect of transport on the
cooling system.
The appliance must be connected to the power
mains and grounded in compliance with the effective
standards and regulations.
The appliance may not be used outdoors and it may
not be exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
Before cleaning the appliance, unplug the appliance
from the power mains (unplug the power cord from the
wall outlet).
If the power cord is damaged, it must be replaced by a
service technician or other adequately trained person.
If the appliance will be out of use for a prolonged
period of time, switch it off using the relevant button,
and unplug the appliance from the power mains. Empty
the appliance, defrost it, clean it, and leave the door
ajar.
If LED lighting does not work, call a service technician.
Do not attempt a repair of the LED lighting yourself, as
there is danger of contact with high voltage!
To protect the environment, take the obsolete

6
460401
appliance to an authorized home appliance collection
center.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without
any hazard to the environment.
Rating plate can be found in the appliance interior. If
the language on the rating plate is not the language of
your choice or the language of your country, replace it
with the one supplied.
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
The symbol on the product or its packaging indicates that the product should not
be treated as normal household waste. The product should be taken to an
authorized collection center for waste electric and electronic equipment
processing. Correct disposal of the product will help prevent any negative effects
on the environment and health of people which could occur in case of incorrect product
removal. For detailed information on removal and processing of the product, please
contact the relevant municipal body in charge of waste management, your waste
disposal service, or the store where you bought the product.

7
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
460401
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for other reasons, have it
replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the appliance, cool it to room temperature.
• Defrost frozen food in the refrigerator compartment.
• Remove the drawers from the freezer compartment as described in the instruction
manual, in order to make use of the entire interior.
• Defrost your conventional freezer when an approximately 3-5 milimeter layer of of frost
or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that the food
is placed so that the air can freely circulate in the appliance interior (observe the
recommended placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots.
• If you do not need the fan or the ionizer, switch them o to reduce power consumption.

8
APPLIANCE DESCRIPTION
460401

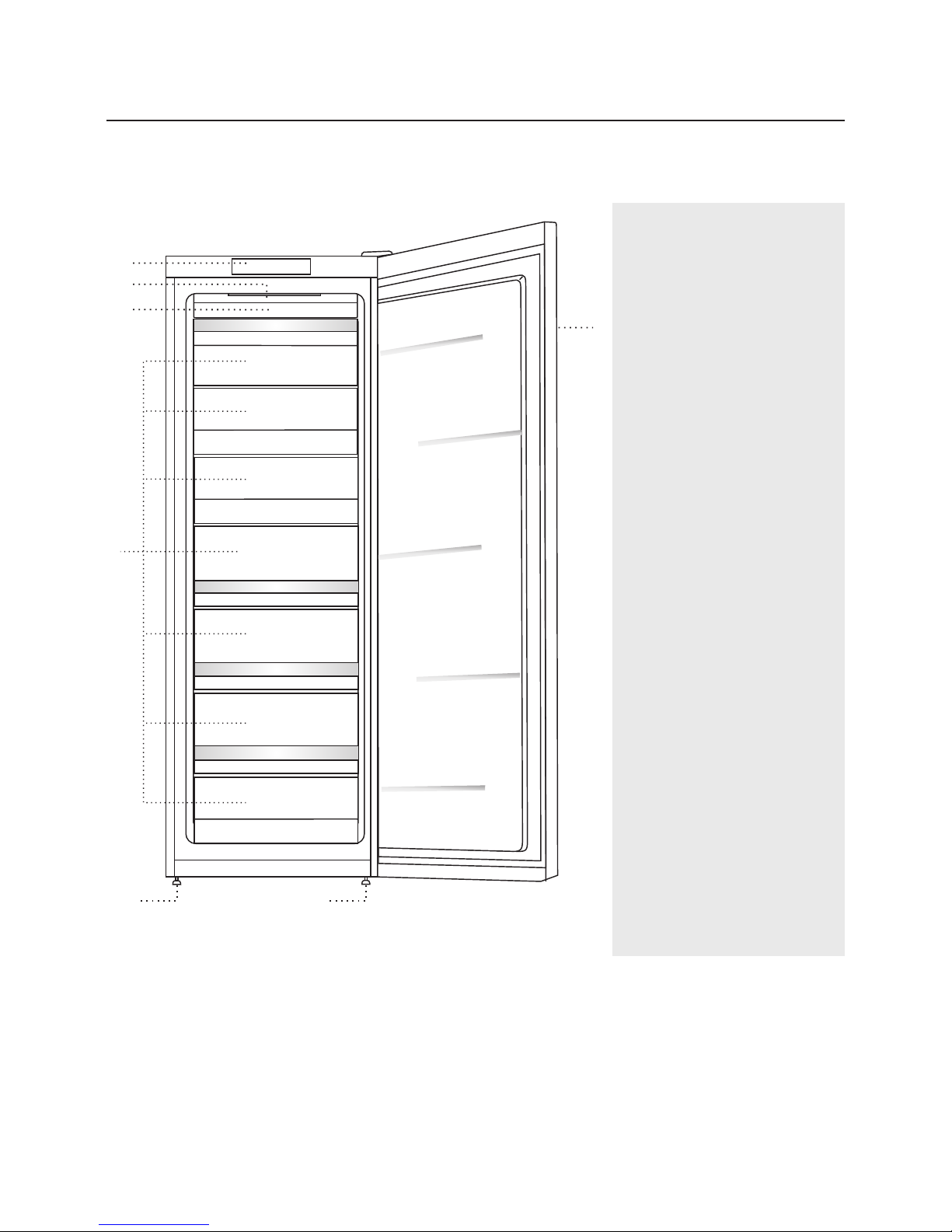

1Control unit
2Led lighting of freezer
interior
3NO FROST freezing unit
(cooler, fan ...)
4Freezing and storage
compartment
5Foot
• Appliance interior equipment may change according to the appliance model.
• The drawers are protected against pulling out. To remove a drawer from the appliance,
open it, then lift the front part and pull it out.
• Fan (hid within the freezer unit) provides better distribution of temperature. It is o
when the freezer door is open, or during idle compressor periods.
NO FROST FREEZER
1
2
3
4
55
1

9
INSTALLATION AND CONNECTION
460401
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly
if the environment temperature is in the interval specified in the table. The appliance class is
indicated on the rating plate / label with the basic information on the appliance.
Class Temperature
SN (subnormal) from +10°C to +32°C
N (normal) from +16°C to +32°C
ST (subtropical) from +16°C to +38°C
T (tropical) from +16°C to +43°C
Warning: Make sure the room where the appliance is installed is large enough. There
should be at least 1 m3of space per 8 grams of refrigerant. Amount of refrigerant is stated
on the rating plate in the appliance interior.
INSTALLING THE APPLIANCE
Appliance installation should be carried
out by at least two persons to avoid any
physical injury or damage to the appliance.
• The appliance must stand level or tilted
slightly to the back, stable on a solid
base. At the front, the appliance is fitted
with two adjustable legs that can be used
to level the appliance. At the rear side,
casters allow for easier installation of the
appliance (only with some models).
• There should be a clearance of at least 5 cm
between the appliance and any cupboard
installed above it, in order to allow adequate
cooling of the condenser unit.
• The appliance is supplied with two
spacers which should be installed on
the lower part of the housing to prevent
from pushing the appliance too close to
the wall. Appliance may also be installed
without the spacers; however, this may
increase power consumption.
• Do not expose the appliance to direct
sunlight and do not place it near any
source of heat. If this cannot be avoided,
install an insulation panel.
max
30 mm
> 90°

10
460401

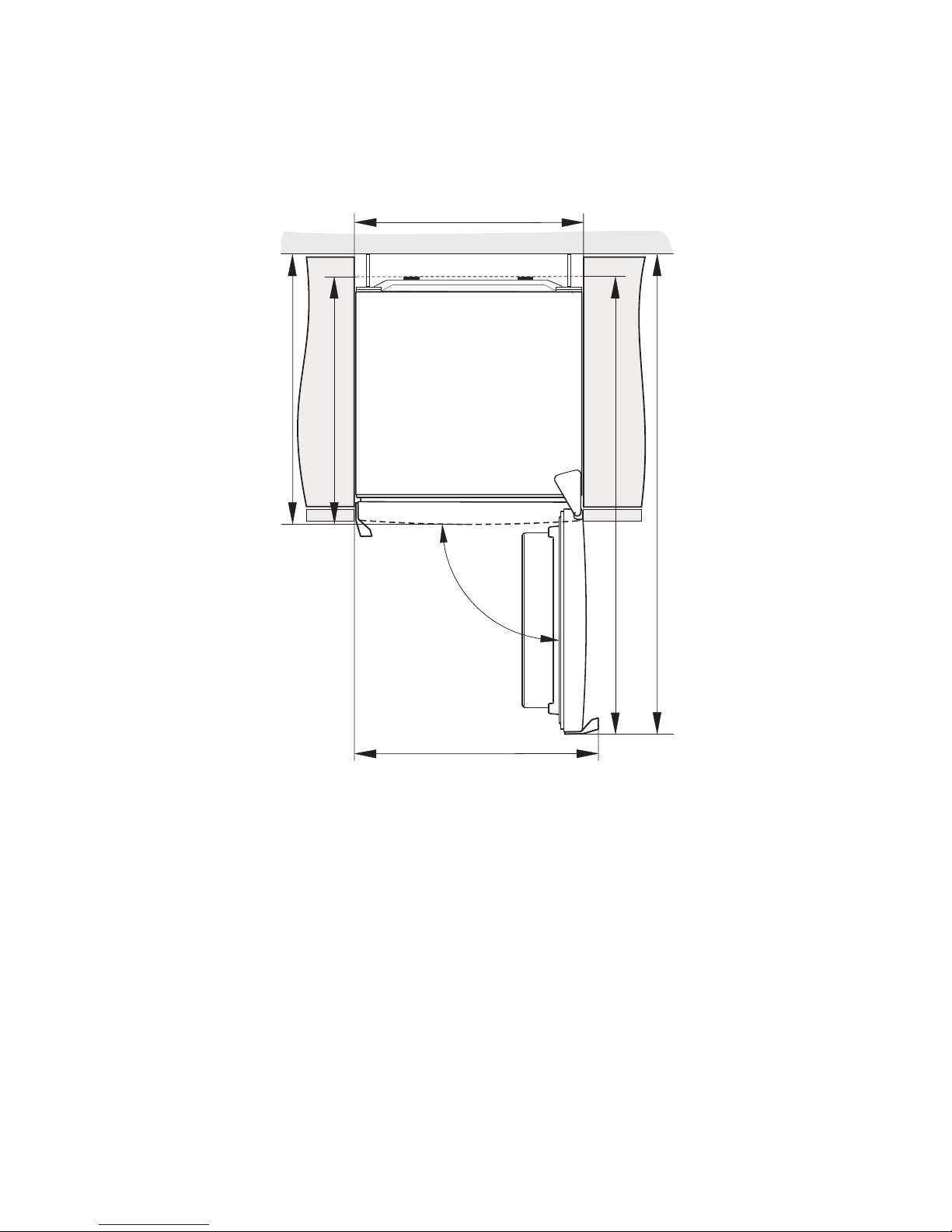

• The appliance may stand alone or it may be placed ext to a cupboard or a wall. Consider
the clearance required to fully open the door in order to allow pulling out the drawers
and shelves (see installation diagram).
1249 mm
688 mm
640 mm
600 mm
644 mm
max 90°
1201 mm

11
460401
CONNECTING THE APPLIANCE
• Connect the appliance to the power mains using a connection cable. The wall outlet
should be fitted with a ground contact (safety socket). Nominal voltage and frequency
are indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the power mains and grounded in compliance
with the eective standards and regulations. The appliance will withstand short-term
deviations from the nominal voltage, but not more than +/- 6%.
Note: When placing the appliances side by side, the anti-dew (anti-condensation) set has to be
purchased and installed!
dry room (relative humidity below 60%) Code for ordering the set
METAL PLATE (INOX) 576604
PLASTIC PLATE
WHITE 672114
GREY 672115
BLACK 672116
humid room (relative humidity over 60%)* Code for ordering the set
METAL PLATE (INOX) 558776*
* For safety reasons, the appliance should only be installed by an authorized service
technician!
After placing the two upright freezers side by side, you can use: 576604, 672114, 672115 or
672116 set. Other combinations require the 558776* set.

12
CHANGING THE DIRECTION OF
DOOR OPENING
460401
Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver
The procedure to change the direction of door opening should be carried out by at least
two persons.

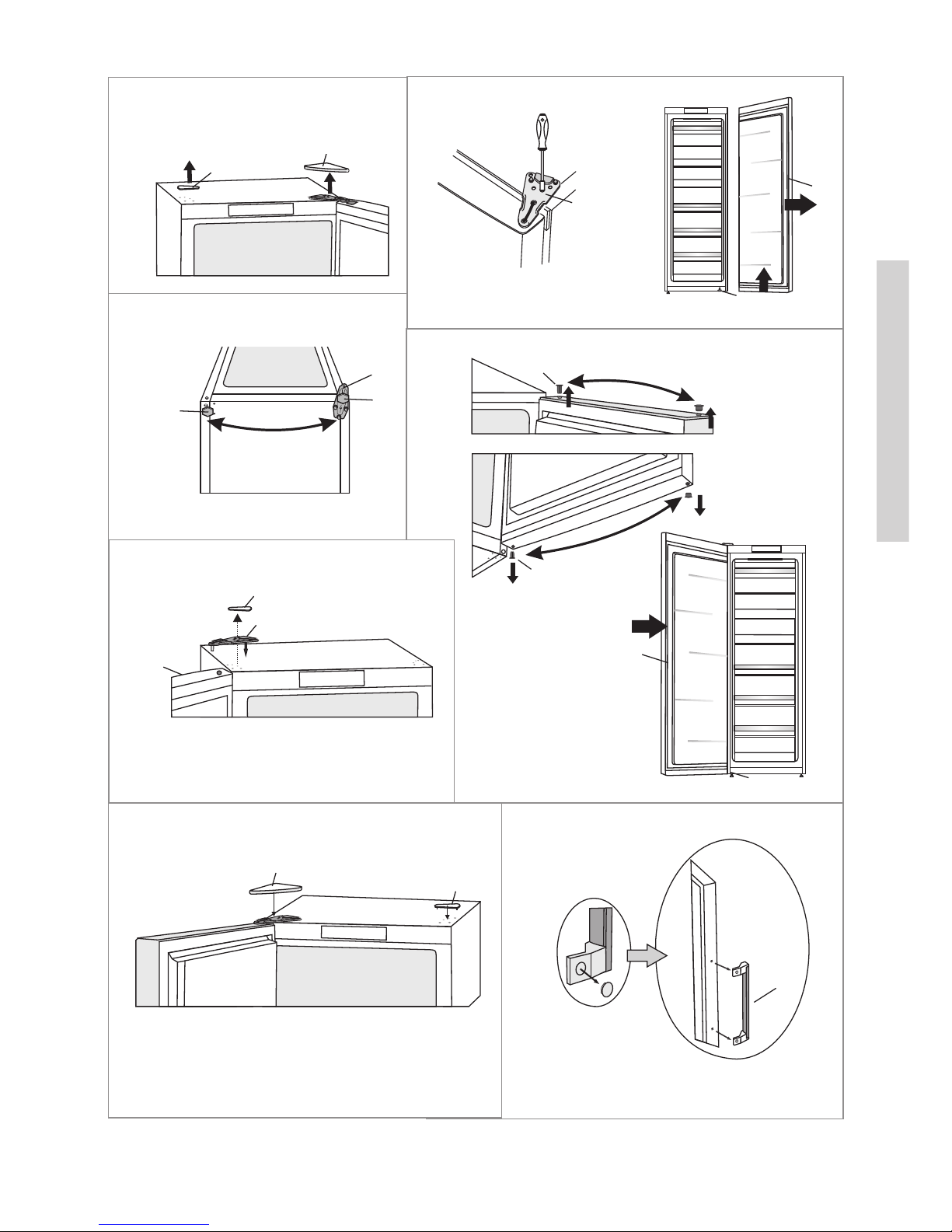

1. Remove the upper hinge cover (A) and the covering cap (G).
2. Undo the upper hinge (B) and remove the door (C) from the lower hinge (D).
3. Tilt the appliance backwards (make sure you do not press against the condenser unit
on the rear wall of the appliance as this may damage the cooling system), unscrew the
lower hinge (D) and the foot (E), and move them to the opposite side. Make sure the
washer is installed like it was before disassembly.
4. Move the door hinges (F) to the opposite side and replace the door (C) back on the
lower hinge (D).
5. Use the screws to attach the upper hinge (B) on the opposite side.
6. Replace the upper hinge cover (A) and the covering cap (G) on the opposite side.
7. Replacing the handle (H): remove the handle covering caps, undo the screws, and
remove the handle. Remove the hole plugs on the opposite side of the door and attach
the handle. Replace the covering caps on the handle. Insert the new hole plugs supplied
in the bag with the instruction manual into the holes where the handle was initially
attached.
Replacing the hinged handle:
- Push a small screwdriver into the handle
slot as indicated in Figure 1 and remove
the cover.
- Remove the caps on the opposite side of
the door.
- Undo the three screws, making sure not
to disassemble the handle.
- Rotate the handle by 180° as indicated in
Figure 3 and attach it to the opposite
side of the door.
- Replace the cover and the caps.
12
34

13
460401
12
3
D
E
E
67
A
G
B
F
F
G
A
D
4
D
H
C
G
B
5
E
E

14
OPERATING THE APPLIANCE
WITH ELECTRONIC CONTROLS
460401

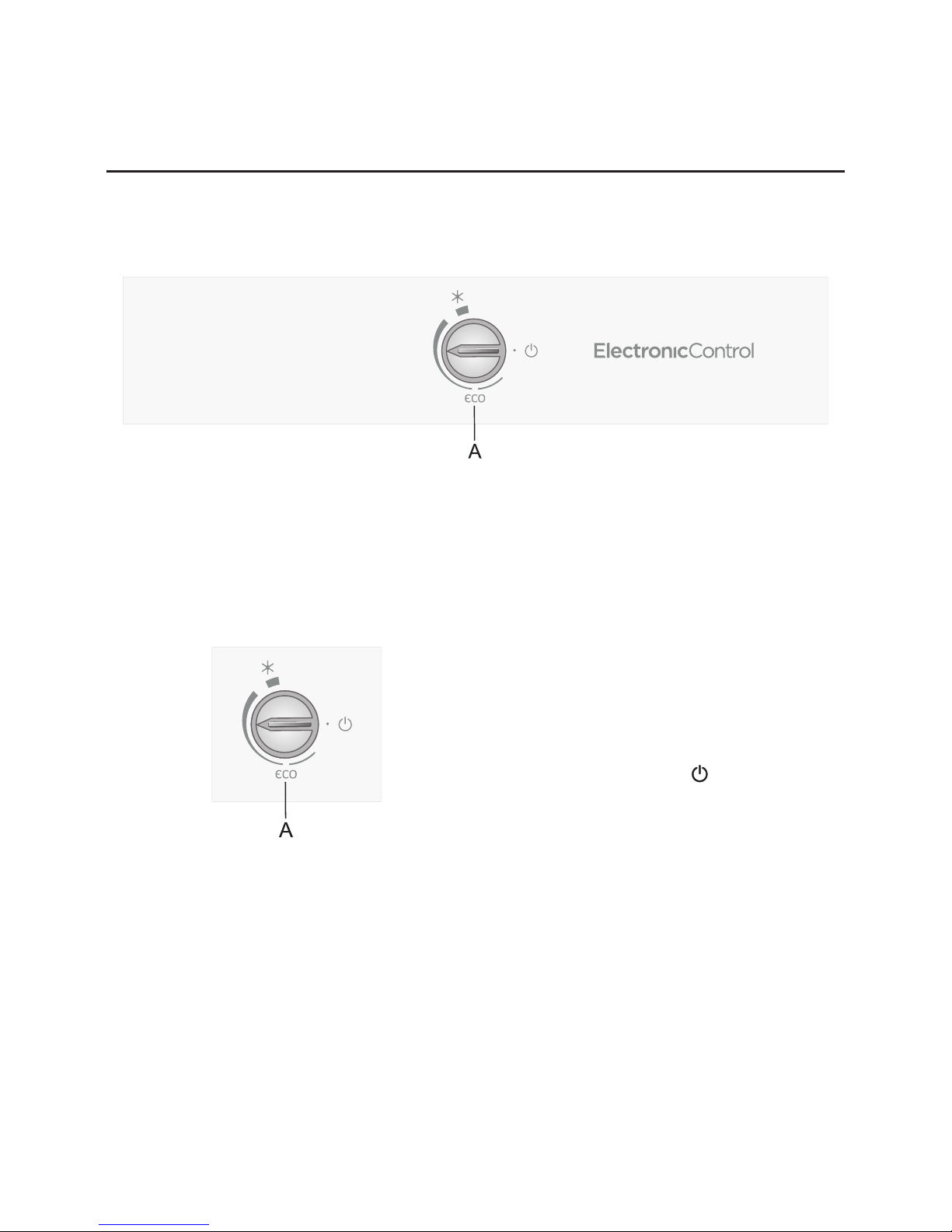

SWITCHING THE APPLIANCE ON/OFF
CONTROL UNIT 1
A Knob for temperature settings, switching the appliance on/o, and activating the super
freeze function
To switch on: rotate the thermostat knob
Aclockwise towards the thicker end of the
sign.
To switch off: rotate the Adial so that the
arrow is aligned with the sign (caution:
appliance will remain powered, i.e. there will
still be electric current in the appliance).

15
460401
ADJUSTING THE TEMPERATURE
FREEZER BOOST (SUPER FREEZE) FUNCTION
• To set the desired temperature, rotate the
Adial in clockwise direction, i.e. to the
right.
• Recommended setting of the Aknob is
on the eco position.
• A change in the environment temperature
will aect the temperature in the
appliance. Adjust the setting with the A
dial accordingly. Positions towards the
thicker part of the sign mean a lower
temperature in the appliance (cooler).
Settings towards the thinner part of
the sign mean a higher temperature
(warmer).
Use this setting after switching on the
appliance for the first time, before cleaning,
or 24 hours before inserting a large amount
of food.

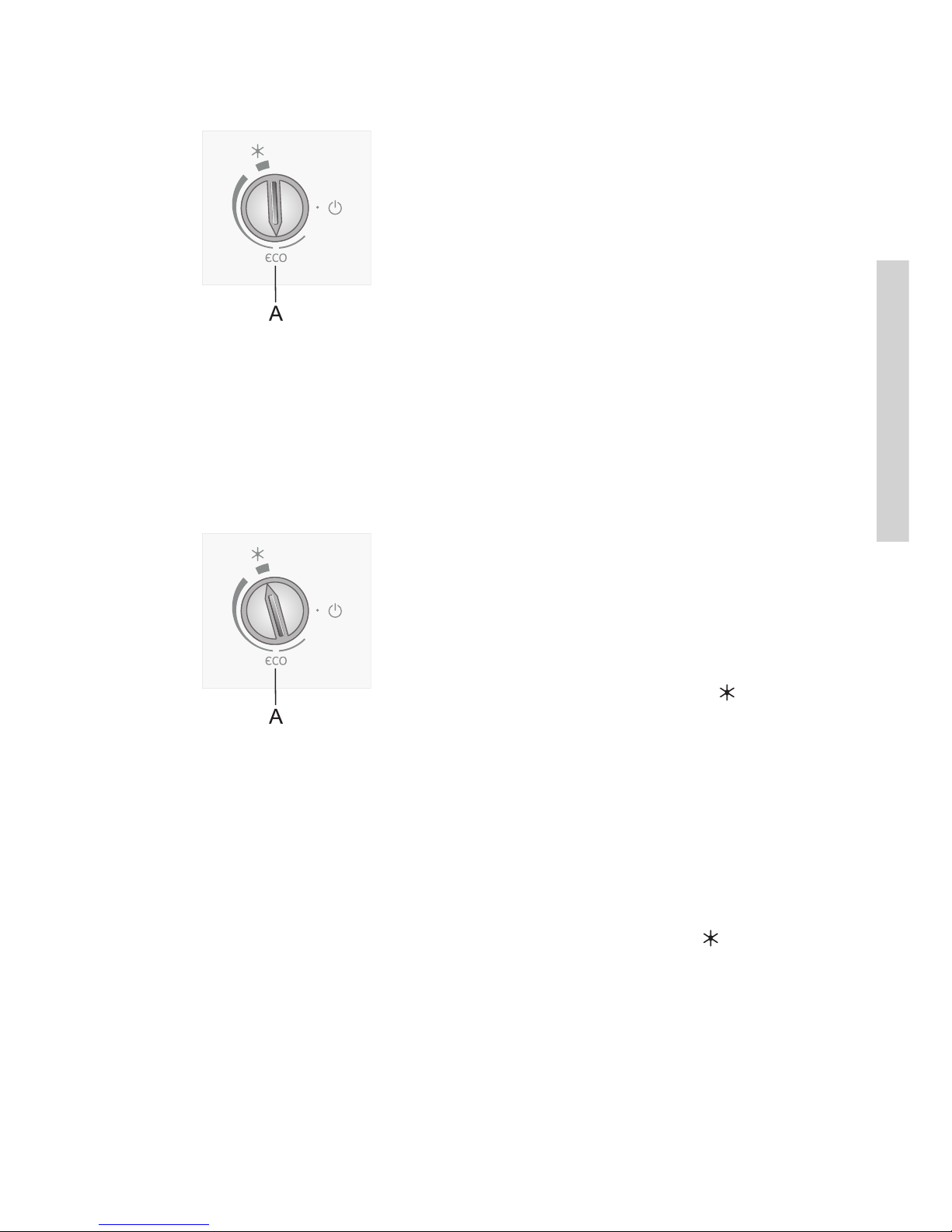

Switching on the freezer boost (super
freeze) function:
Rotate the Adial to position .
After the end of the freezer boost cycle,
rotate the Aknob back to the desired
setting.
If the freezer boost is not deactivated
manually, it will be automatically switched
off after approximately 2 days. Then the
temperature of the freezer compartment
returns to the most recently set value
(knob position remains at ).

16
460401
CONTROL UNIT 2
Switching on: To switch on: rotate the A
dial clockwise.
Switching off: Rotate the Adial in the
counter-clockwise direction until the arrow
is aligned with the symbol . (Warning:
appliance will remain powered, i.e. there will
still be electric current in the appliance.)
SWITCHING THE APPLIANCE ON/OFF
BA
A Temperature setting and on/o dial
Use the dial to switch the appliance on or o , set the temperature, and control the ECO
and intensive freezing (freezer boost) function.
B Temperature display
It displays the currently set temperature in the refrigerator compartment.

17
460401
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
INTENSIVE FREEZING
• To set the desired temperature, rotate the
Adial in clockwise direction.
• Recommended setting of the Adial is on
the eco position.
• With this setting, the temperature in the
freezer compartment temperature will be
around –18 °C.
• A change in the environment temperature
will aect the temperature in the
appliance. Adjust the setting with the A
dial accordingly. Positions towards the
thicker part of the marking mean a lower
temperature in the appliance (cooler).
Settings towards the thinner part of the
marking mean a higher temperature
(warmer).
We recommend using this setting before
cleaning the appliance or 24 hours before
inserting a large amount of food. Activating
this function will make sure the food is cooled
or frozen faster to retain vitamins, minerals,
nutrients, and flavour, and to extend its freshness.
• Switching on the intensive freezing:
Rotate the Adial to position .

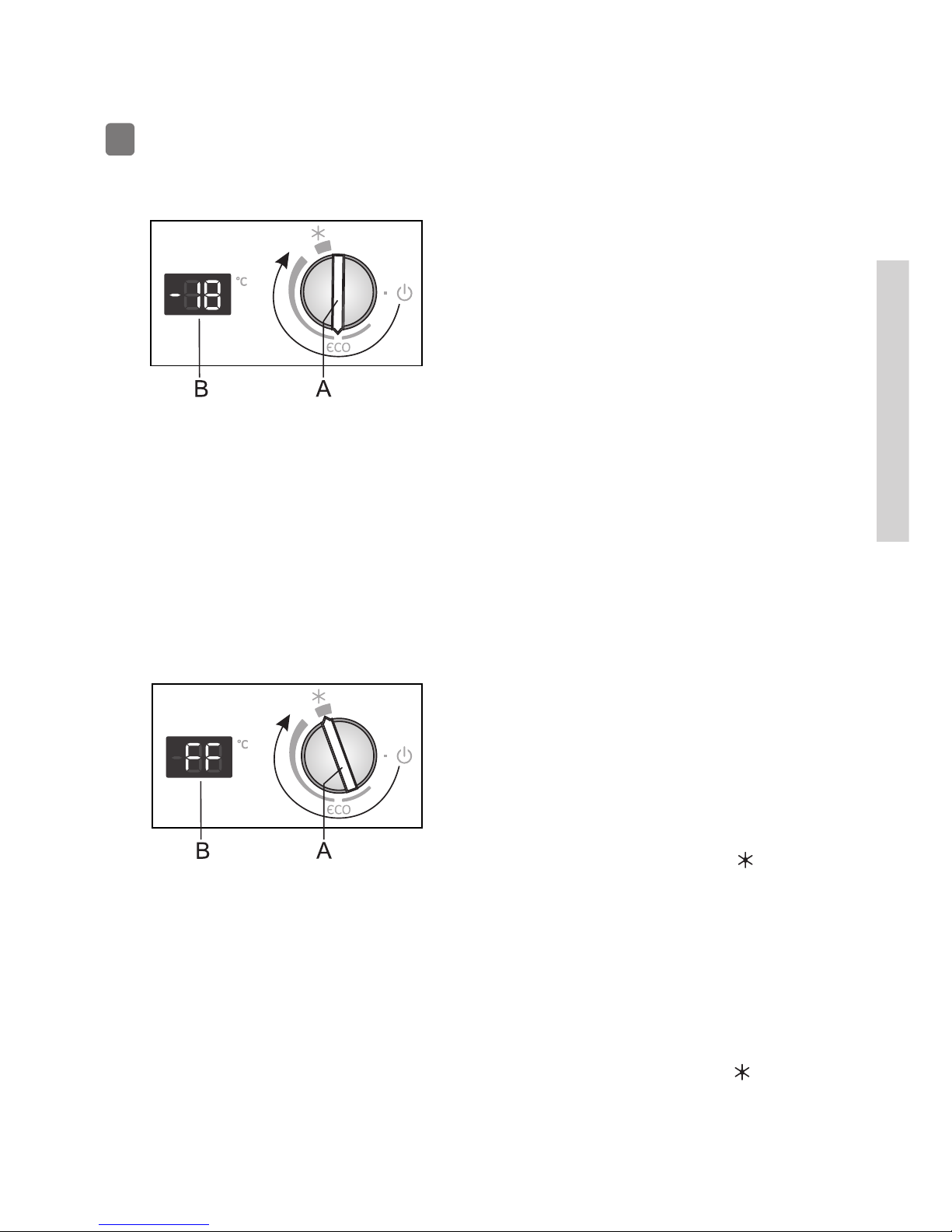

• When the intensive freezing function is active, the Bdisplay indicates FF.
• When the intensive freezing function is activated, the appliance will operate with
maximum power. During this time, operation may be somewhat louder.
• After the end of the intensive freezing cycle, rotate the Adial back to the desired setting.
If the function is not deactivated manually, it will be deactivated automatically after
approximately two days. The temperature returns to the most recently set value (the most
recent setting appears on the display B, but the knob remains in the position .
i
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator before the
temperature drops to the selected setting.

18
460401
CONTROL UNIT 3

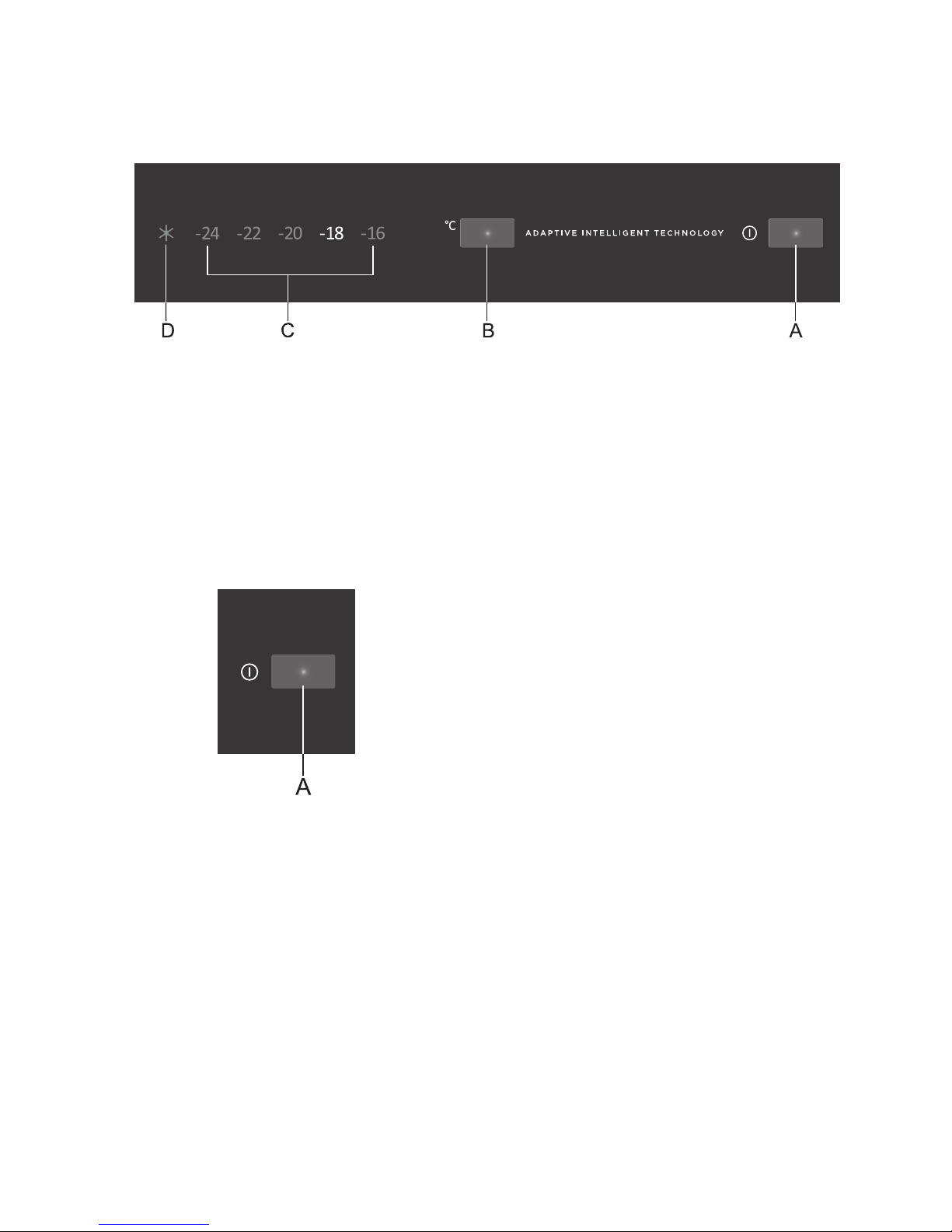

A On/off switch
B Temperature adjustment and freezer boost key
C Freezer temperature display
D Freezer boost function indicator
Press the Akey to switch the appliance on/
off.
SWITCHING THE APPLIANCE ON/OFF

19
460401
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
• Adjust the temperature as desired with
the Bkey.
• Set the desired temperature, indicated on
the display, by successively pressing the B
key.
• Recommended temperature setting is
-18°C.
FREEZER BOOST (SUPER FREEZE) FUNCTION
To activate the freezer boost function,
press the Bkey until the symbol Dlights up.
• Use this setting after switching on the
appliance for the fi rst time, before
cleaning, or 24 hours before inserting a
large amount of food.
If the function is not deactivated
manually, it will be deactivated
automatically after approximately 2
days. Then the temperature of the
freezer compartment returns to the most
recently set value.

20
APPLIANCE INTERIOR EQUIPMENT
460401
(* only in some models)

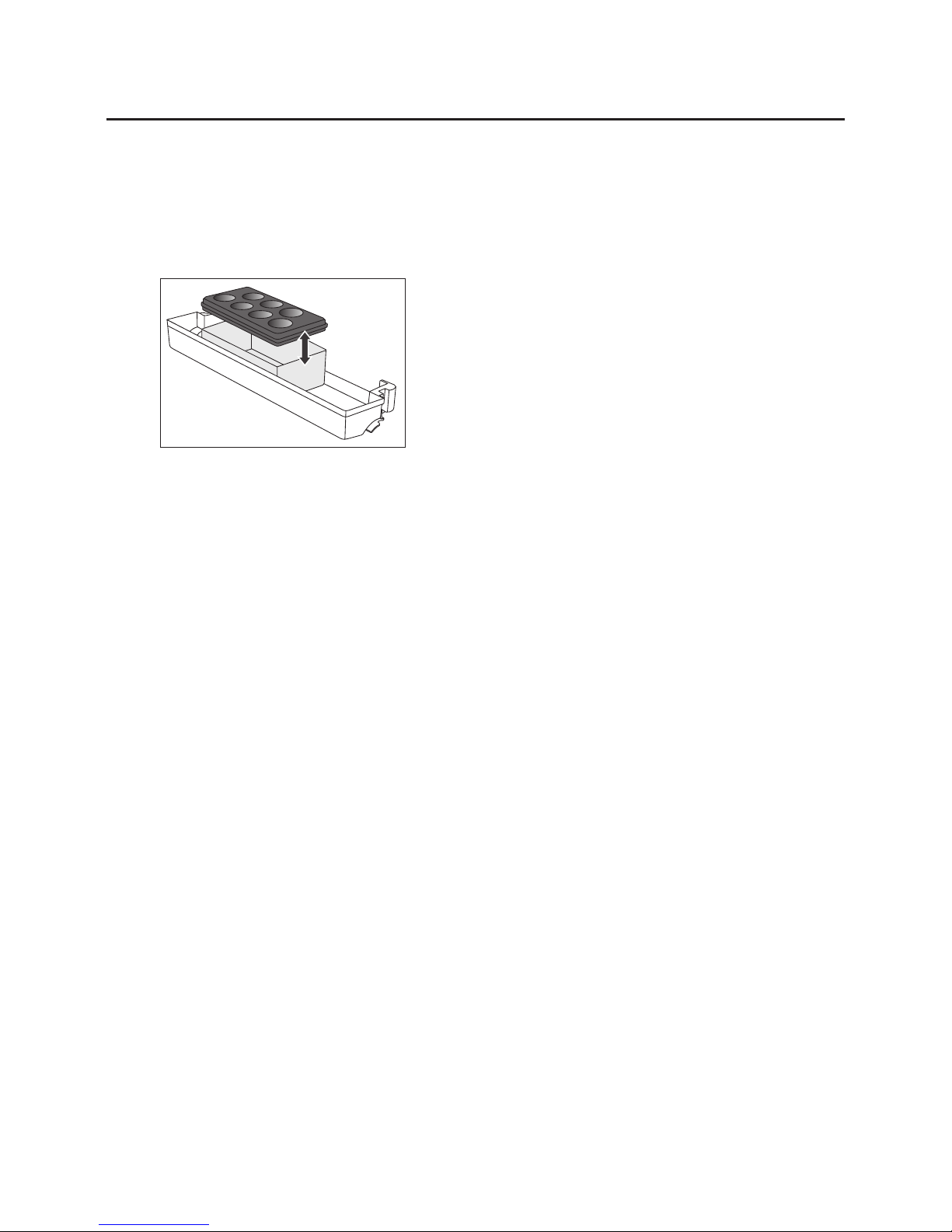

MULTIBOX STORAGE BIN/ICE TRAY*
• The MultiBox bin is convenient for storing
food with a strong or pungent smell.
• The silicone lid provides an air-tight seal
that prevents the food from drying out
and the odour to spread throughout the
refrigerator compartment.
• The flexible lid can also be used as an ice
tray.
