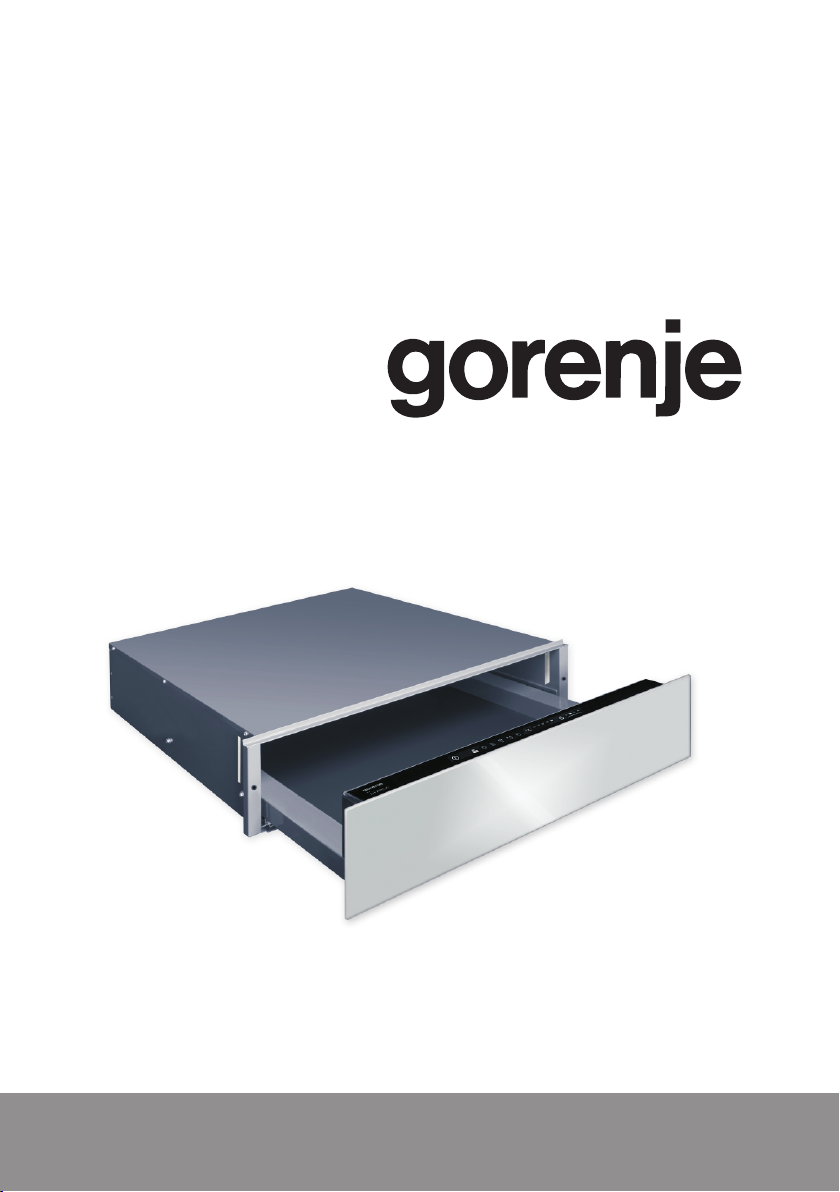

Gorenje WD1410X User manual

www.gorenje.com

455140
90°
max. 30 kg
1.
2.

3.

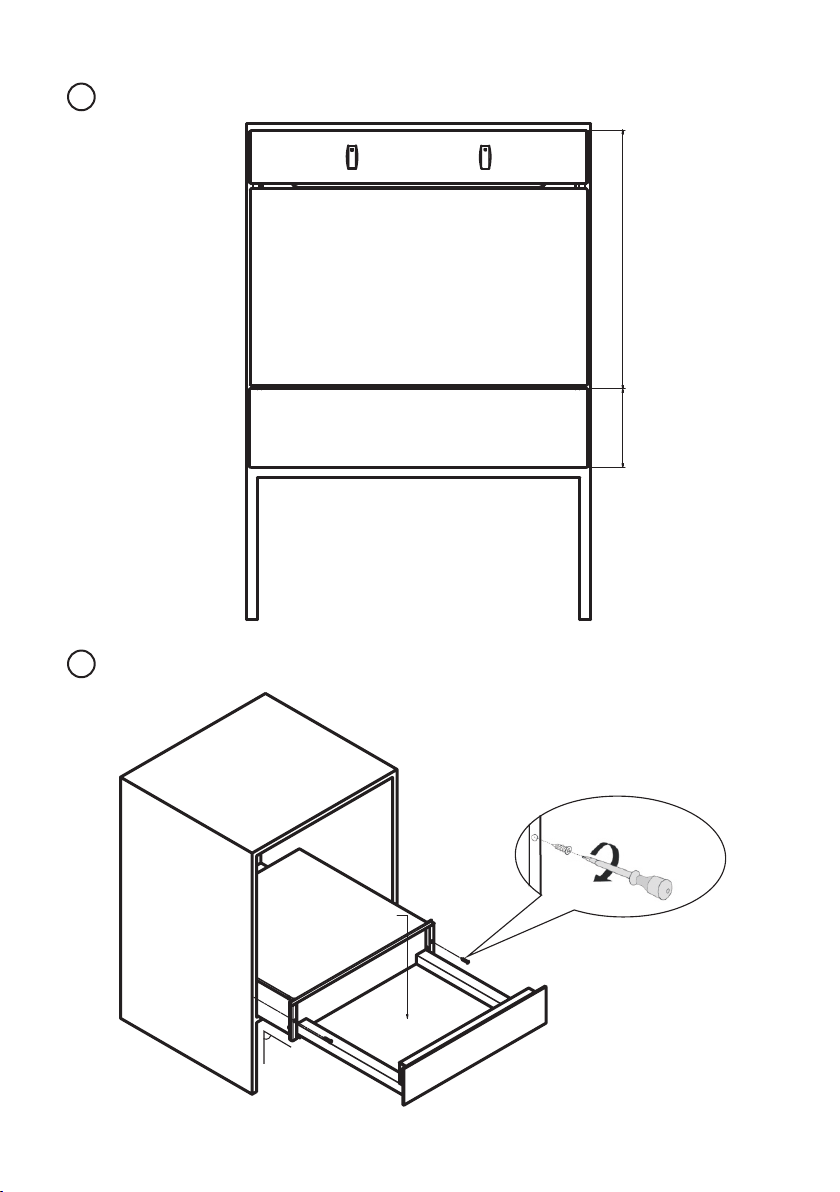

132
560
595
530
140
4.
564–570
564–570

EN 1
Dear customer,
You have purchased a
product of our new series of
appliances. We hope that our
product will serve you well and
for a long time.
Read this manual before
installation and use of this
appliance. It contains
important information
concerning how safely and
economically operate the
appliance. Save the manual
together with the appliance for
an eventual further use.
You can find this manual for use also on the web site:
www.gorenje.com / <http://www.gorenje.com/>
Important information
Tips, remarks

EN 2
CONTENT
3 IMPORTANT INFORMATION, INSTRUCTIONS AND
RECOMMENDATIONS
6 DESCRIPTION AND OPERATION OF APPLIANCE
9 THE USE OF WARMING DRAWER
12 DISPOSAL OF APPLIANCE AND PACKAGING
13 CLEANING AND MAINTENANCE
14 CLAIMS
15 THE CONNECTION OF APPLIANCE TO POWER NET
16 INSTRUCTIONS FOR INSTALLATION
17 TROUBLESHOOTING
18 TECHNICAL DATA
INTRODUCTION
AND
DESCRIPTION
OPERATION
MAINTENANCE
AND
RECLAMATION
INSTALLATION
TECHNICAL
DATA

EN 3
IMPORTANT INFORMATION,
INSTRUCTIONS AND RECOMMENDATIONS
SAFETY MEASURES
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Before connecting, check that the data concerning the nominal
voltage on the product's data sheet corresponds with the voltage
of your electrical network. The appliance should only be installed
and connected to the electrical network by an authorized service
technician or similarly qualified person with national standards
and regulations.
The producer bears no responsibility for damage to the appliance
or human health arising from faulty mounting or connecting.
Have the date of installation confirmed in the in the written
Guarantee.
The producer bears no responsibility for damage to the appliance
or from incorrect use or from defects in the protective systems of
the electrical network (e.g. overvoltage).
Use the appliance after it has been fitted in the cabinet.
Caution! Never dismantle the cover of appliance. An eventual
contact with alive parts means endangering of the user safety.
Caution! During any kind of dismantling or assembly of the
appliance outside its normal use, the electrical supply to it should
be disconnected and secured in the OFF state. When

EN 4
disconnecting the appliance one of the following must be carried
out:
- Switch off the fuse or circuit breaker in the distributor box.
- Pull out the plug from the socket. Do not pull the plug out by its
cable but take hold of the plug itself.
Interference with the appliance or unprofessional service could
lead to a risk of serious injury or damage to health as well as
damage to the appliance itself. Installation and all repairs,
modifications or checks to the appliance should be carried out by
an authorized service technician or similarly qualified person only.
The producer bears no responsibility for personal injuries or
losses caused by incorrect manipulation or unprofessional
interference with the appliance.
A damaged feed cable must only be replaced by a service
technician or other professionally competent person to prevent
dangerous situations arising.
If any fault occurs in the appliance within the guarantee period, do
not repair it yourself. Put the appliance out of service and request
repair from an authorized person competent for such work. The
producer is not responsible for eventual losses arising from failure
to observe the instructions and recommendations given in this
manual.
This appliance is intended solely for domestic use!
Incorrect use could endanger the user.
This appliance should only be used for warming dinner service,
keeping food warm, for preparation of yogurt, and similar uses.
Any other use is not acceptable and could be dangerous. The
producer accepts no responsibility for dropouts or defects arising
as a consequence of unsuitable or incorrect use of the appliance.
Depending on the chosen temperature and duration of operation,
the temperature inside the appliance can reach up to 80 °C. Use

EN 5
oven gloves or a teatowel to remove dishes from the warming
drawer.
WARNING: The appliance self and its accessible parts will be hot
during the use.
Children under the age of 8 should not be allowed near the
appliance except under adult supervision.
Do not sit or lean on the drawer. This could damage the
telescopic fittings.
Maximum load of drawer is 30 kg.
CAUTION! Danger of fire: Do not put synthetic dishes or
flammable objects into the warming drawer. Such dishes or
objects could melt or ignite after the drawer is switched on.
Do not use for other purposes, for instance for room heating. The
high temperatures could cause the ignition of flammable objects
near the appliance.
Never use steam or pressure cleaners for cleaning of the
appliance.
There is a risk of electric shock. The steam could damage the
electrical parts and cause a short circuit. The steam pressure
could permanently damage the surface and parts of the
appliance.
When you stop using the appliance, such as at the end of its
operational life, disconnect it from the mains and remove the feed
cable to ensure the safe state of appliance.
THE PURPOSE OF THE APPLIANCE
The appliance is designed for usual preparation of food in
households and it should not be used for other purposes.
The individual possibilities of its use are fully described in this
manual.

EN 6
DESCRIPTION AND OPERATION OF
APPLIANCE
This appliance is intended for fitting into kitchen units and is designed for
warming dinner service, defrosting food, keeping food warm and for
preparation of yogurts.
Warming is carried out by a convection system which pumps warm air into the
drawer. Thanks to circulation of the air dishes are heated up evenly and
quickly. Even so, dishes in the rear part of the drawer could be hotter than
those at the front.
The control panel includes control sensors with pre-defined programs as well
as a manual mode, which offers a selection temperatures from 4080 °C (in
10°C steps) and automatic switching off at the end of the set warming period
(14 hours).
The appliance will heat correctly only if the drawer is properly closed.
CONTROL ELEMENTS
The sensor control is activated by touching the corresponding symbol on the
control panel with your finger. The control panel should therefore be kept clean
and dry.
Sensor for switching on and off
Heating plates
Heating cups
Keeping food warm
Yogurt preparation
Defrosting
Manual setting
Setting of temperature
Setting of time
Automatic programs
Manual operation

EN 7
Before first use
Clean the appliance according to the instructions in the chapter „Cleaning and
maintenance“ before first use.
Then leave the warming drawer in operation at maximum temperature for at
least two hours. Ensure good ventilation of kitchen during this procedure. The
parts of this appliance are protected with a special coating which can be smelt
during this first heating. This smell and any smoke will disappear after a short
period. It does not mean that the appliance or its connection are in any way
defective.
Capacity
The capacity can differ with the size of dishes used.
Orientation capacity guide
Serving set for 6 persons
6 dinner plates 25.5 cm diam.
6 soup plates 22 cm diam.
6 dessert plates 23.5 cm diam.
1 oval plate width 32 cm
1 serving plate 19.5 cm diam.
1 serving plate 18.5 cm diam.
Maximum load of drawer is 30 kg.

EN 8
THE USE OF WARMING DRAWER
1 - Open the drawer...
2 - Switch ON the drawer by pressing on the touch sensor on/off.
3 - Place the dishes into the drawer.
4 - Select a suitable program or choose the manual operation and set the
temperature and time.
5 - Close the drawer...
At the end of the heating time the heating system will stop and a signal will
sound. The signal will sound continuously for one minute and then a short
signal will sound after every minute. The drawer switches off five minutes after
the selected program finishes.
If you want to interrupt the selected program open the drawer and press the
touch sensor for switching it off. You can then select another program or
prolong the heating duration after opening of the drawer.
Remark
When interrupting an automatic program the warming drawer will switch to
manual operation. The change can not be done in the program Yogurt.
Heating time
Different factors can influence the length of the heating time:
The material and thickness of dishes
The quantity of heated dishes
The method of organization in the drawer
The setting of temperature
Perfect warming-through can therefore last different periods of time. The pre-
set programs are in this regard for orientation only. After a while you will get to
know what is the ideal heating time for your particular dishes.
The dishes in the rear part of the drawer could be hotter as in the front part of
the drawer. Use oven gloves or a kitchen cloth for removing dishes from the
drawer.

EN 9
THE USE OF WARMING DRAWER
The switching the drawer on
The drawer can be switched on by pressing the ON touch sensor.
AUTOMATIC PROGRAMS
Heating plates
Select the program for Heating plates.
This automatic program has a pre-set temperature of 80 °C and a 1 hour
heating time. It is designed for pre-heating of dinner servings. The pre-
heated plates preserve the temperature of the served food.
Heating cups
Select the program for Heating cups.
This automatic program has a pre-set temperature of 60 °C and a 1 hour
heating time. It is designed for pre-heating cups for preparation of warm
drinks such as espresso coffee.
Keeping food warm
Select the program for Keeping food warm.
This automatic program has a pre-set temperature of 60 °C and a 2 hour
heating time. It is designed for keeping cooked food warm in the dish or on
serving plates.
Yogurt
Select the program for Yogurt preparation.

EN 10
This automatic program has a pre-set temperature of 40 °C and a 4 hour
heating time. It is designed for yogurt preparation. This procedure requires
an exact temperature setting and an exactly determined duration, therefore
these values cannot be modified.
Tip: Yogurt preparation
Heat up 1 liter of fresh full-cream milk to a temperature approximately 80 °C
and then let it cool down to 40 °C. Stir into the milk 2 spoons of white yogurt
with living culture. Pour the milk into jars. The jars should be totally clean,
ideally sterilized. Put the jars into the center of the drawer. Don't put the jars
closer than 10 cm from the back wall of the drawer. The air has to circulate
around the jars, leave the gaps between them. Select the program for Yogurt.
The program is complete after 4 hours, then let the yogurt an additional 2 hours
in the drawer without heating. The yogurt will be ready after 10 hours in the
refrigerator where it needs to ripe.
Defrosting
Select the program for Defrosting.
This automatic program has a pre-set temperature of 40 °C and a 2 hour
heating time. It is designed for defrosting frozen food. Put the frozen food
into a deeper dish or plate to catch water released during thawing.

EN 11
MANUAL OPERATION
Select the Manual operation touch senzor.
Select the required temperature by repeatedly pressing the temperature touch
sensor.
A selection of temperatures between 4080 °C are offered in 10 °C steps.
The selected temperature is shown on the temperature display.
Select the required heating time period.
A selection of heating times from 14 hours is offered in 1 hour steps.
The selected time period is shown on the time display.
Child lock
The child lock is used to prevent children interfering with the drawer controls.
You can activate the child lock by pressing the "Manual operation" touch
sensor for 5 seconds.
The sensors will then be inactive. Only the "Manual operation" symbol will be lit
up. The child lock can be deactivated by again pressing the "Manual operation"
touch sensor for 5 seconds.
Switching the drawer off
You can switch the drawer off by pressing the OFF touch sensor.
The drawer switches off automatically at the end of the set heating time.

EN 12
DISPOSAL OF APPLIANCE AND
PACKAGING
The symbol on the product or on its packaging determines
that this appliance should not be given into the domestic
waste. It should be delivered to a collection spot for recycling
of electric and electronic appliances. You can help to prevent
the negative influences on the environment and human
health (which could be caused with inappropriate disposal)
with correct disposal of this appliance. More detailed
information on recycling of this product you can receive at
competent local authority, service for disposal of domestic
waste or in the shop, where you had bought the product.
The packaging materials protect the appliance during transport. By
recycling the packaging it is possible to save raw materials and reduce
waste volumes.
If you dispose of the packaging yourself, ask local authorities for the
location of the nearest collection centre.

EN 13
CLEANING AND MAINTENANCE
Warning
Never use steam cleaners or high pressure cleaners for cleaning of the
appliance.
For removing of inner glass bottom use enclosed wacuum handle. See
picture n.4.
Clean all surfaces with a soft sponge, a drop of detergent and lukewarm
water. Then dry all surfaces with a soft cloth.
Clean front glass panel with cleaning means for glass and soft cloth. Do
not use scraper.
Do not use: Detergents containing soda, acids or chloride, abrasive
detergents (powder or cream) abrasive sponges (e.g. steel wool pads)
or sponges containing residual abrasive detergent.

EN 14
CLAIMS
If there is any defect on the appliance within the guarantee period, do not repair
it self. Apply a claim in the shop in which you bought the appliance or at service
representatives, mentioned in the Guarantee conditions. At applying of claim
observe the text of Guarantee sheet and Guarantee conditions. The claim is
valid with submitted dully filled up Guarantee sheet only.

EN 15
THE CONNECTION OF APPLIANCE TO
THE POWER MAINS
The appliance may only be connected to the electrical network by an
authorized person and in compliance with national standards and regulations.
A device for disconnecting all poles of the appliance should be included in the
circuit before the appliance for disconnecting the appliance from the
network.This obligation is not necessary, when the supply cord is provided with
a plug and this plug can be easily and without obstruction pulled out from the
socket.
The appliance is delivered with a 1.5 mm diameter, three-core cable, type
H05VV-F 3G1,5. The wire ends should be fastened against fraying with
pressed on cable ends.
The appliance must be connected to a mains supply with the correct voltage as
indicated on the rating plate and by means of a supply line of the appropriate
rating.
CONNECTION
1. Clip against cord tearing
2. Wire ends braced with pressed terminal

EN 16
INSTRUCTIONS FOR INSTALLATION
At installation of appliance the following steps should be provided from
point of view of appliance:
The checking of correct connection to electric power net.
Checking the functioning of the heating element, ventilator and regulation
elements.
The demonstration of appliance's all functions, operation and maintenance to
the customer.
IMPORTANT NOTE!
At any manipulation with the appliance, except of normal use, it is necessary to
disconnect the power, e.g. with pulling out of the plug from the socket or with
switching off the main switch in front of the appliance.
This appliance is not designed for operation with help of an external
timer or with a separate system of remote control.
