GOVI arktik 3000 P User manual

3000 P
EN OPERATING MANUAL
The cooling diamond
Trailer refrigeration unit

OPERATING MANUAL - Trailer refrigeration unit
80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
2
Page
Please read this manual before you install and operate
the trailer refrigeration unit.
After reading the operating manual, keep it in a safe
place for future reference.

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
3
Page
1 4
1.1 Disposal of the unit 4
2 5
2.1 Safety messages and safety-alert symbols5
2.2 Other terms and symbols5
2.3 Safety and hazard precautions 6
2.4 Refrigerant-handling precautions8
2.4.1 First aid8
2.4.2 Environmental regulations8
2.5 Intended use9
3 Technical data 10
4 Packing, transport and storage 13
4.1 Packing 13
4.2 Transport 14
4.3 Storage 14
5 15
6 Installation 17
6.1 Installation requirements17
6.2 Additional parts and equipment 17
6.3 Preparatory activities 18
6.3.1 General preparation18

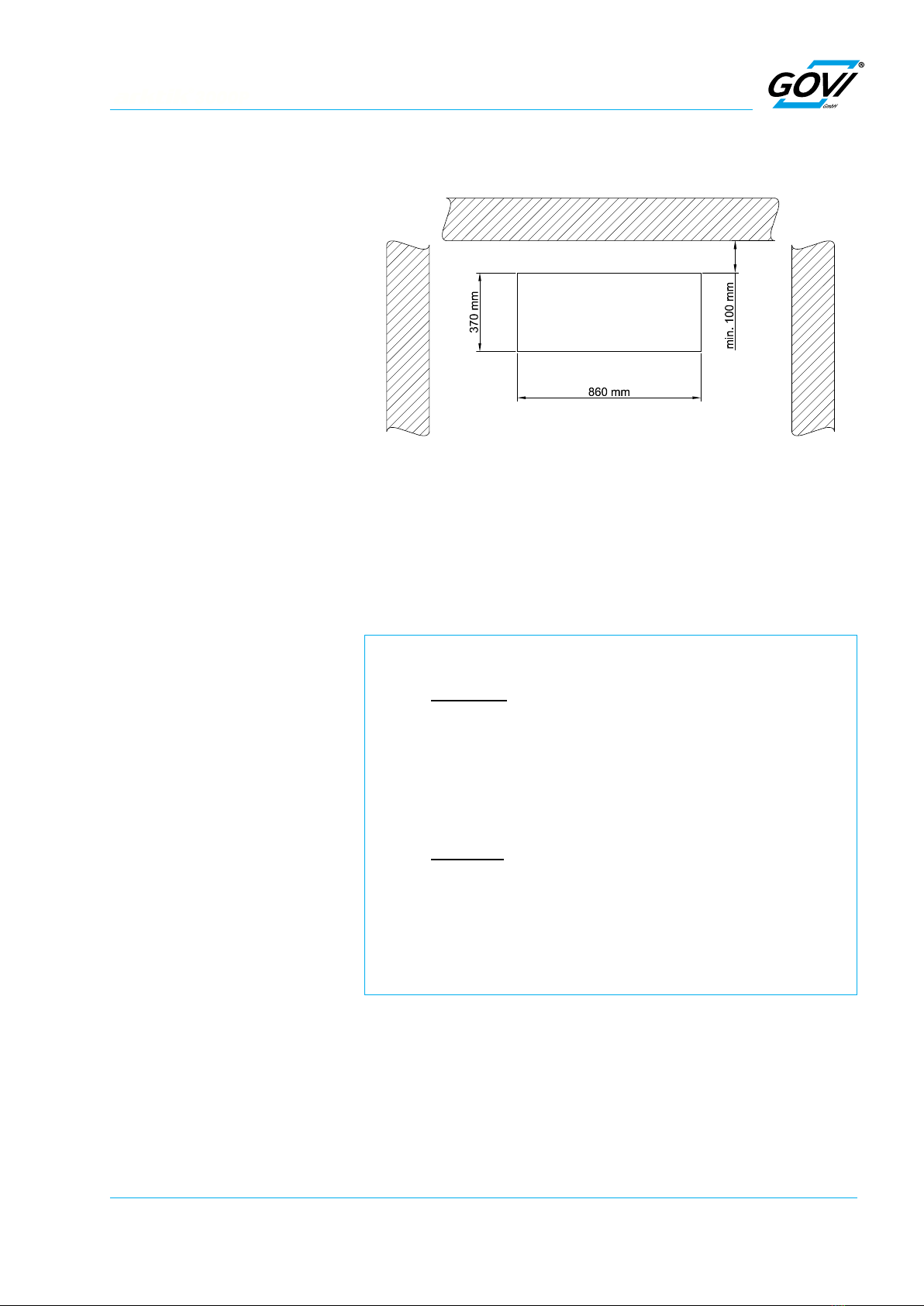

6.3.2 Installation opening of the trailer wall19
6.4 Installation of the trailer refrigeration unit 19
6.5 Installation of accessories22
7 23
8 Commissioning 24
9 Operation 26
9.1 Switching the trailer refrigeration unit on and off 27
9.2 Setting the nominal temperature27
9.3 Switching the light in the refrigerated trailer on and off27
9.4 Manual defrost27
10 Maintenance 28
10.1 Manual defrost during maintenance28
10.2 Cleaning procedure 28
10.2.1 Cleaning procedure inside the refrigerated unit28
10.2.2 Cleaning of external components29
11 Troubleshooting 30
12 Summary 31
13 Appendices 32
13.1 32
13.2 Wiring diagrams 33
13.3 Safety data sheets 34
13.4 Installation checklist 38
13.5 Notes 39
Contents
General points
Safety instructions
System description
Operating elements
Operating manual
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
4
Page
GOVI provides this manual for information purposes only.
The information supplied in this manual should at no time be regarded as
all-inclusive or covering all contingencies. For further information, please
contact your GOVI contact person.
Unauthorised modification or manipulation of the trailer refrigeration unit
will immediately void GOVI’s warranty, obligations, unless GOVI has
granted express written consent in advance.
Use only original spare parts or parts approved by GOVI. Please note
that spare parts and accessories not supplied by GOVI are neither tested
nor approved. GOVI can accept no responsibility or warranty liability for
loss or damage arising from the use of non-original spare parts.
All persons engaged to work on the trailer refrigeration unit as described
in this operating manual must be suitably trained and qualified, and able
to assess the work to be carried out and identify possible hazards.
GOVI shall accept no liability for personal injury or material damage
resulting from unauthorised modification. To ensure the durability of
GOVI products, please follow the instructions in this manual.
1.1 Disposal of the unit
Incorrect dismantling of the trailer refrigeration unit may result in
personal-injury hazard or danger to the environment.
Engage only trained and qualified specialists to disassemble the
trailer refrigeration unit.
Take special care when handling the refrigerant.
The customer is responsible for the proper disposal of the trailer
refrigeration unit.
When you eventually scrap the trailer refrigeration unit, follow the
corresponding local waste-disposal regulations, and engage, if
necessary, the services of a specialist organisation.
1. General points
Designation Material
Structure Sheet steel, ferrous materials
Condenser, evaporator Aluminium, copper
Electrical components Copper, PVC, miscellaneous materials
Compressor Ferrous materials, copper and other materials
Refrigerant (standard) R452A
Refrigerant amount 1750 g
Coating Epoxide compound
Tab. 1-1 List of materials
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
5
Page
2.1
Safety messages and safety-alert symbols
DANGER
Failure to observe these instructions is likely to result in irreversible, or
even fatal, injury.
WARING
Failure to observe these instructions may result in irreversible, or even
fatal, injury.
CAUTION
Failure to observe these instructions may result in personal injury and/
or damage to equipment or the environment.
2.2
Other terms and symbols
“Note” texts do not contain any safety-related items.
Note
Items marked “Note” contain helpful tips, as well as additional
information.
2.
Safety instructions
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
6
Page
2.3
Safety and hazard precautions
WARNING
Electrical hazard
Work on the trailer refrigeration unit only when the main plug
is disconnected.
Make sure the trailer refrigeration unit is not restarted while working
on it by following suitable measures.
Never attempt to plug in or unplug the trailer refrigeration unit from
the power supply when your hands are wet.
WARNING
Electrical hazard
Strictly observe the following safety rules when working on the
trailer refrigeration unit’s electrical system:
• Switch OFF.
• Block the switch to prevent accidental reactivation.
• Disconnect the power supply.
• Connect to earth (ground) and short-circuit.
• Cover or isolate all nearby live components.
Electrical connection of the trailer refrigeration unit must be
carried out by a qualified electrician.
WARNING
Toxic gas hazard
The fluorocarbon refrigerants contained in the refrigeration unit may
produce toxic fumes if exposed to a naked flame or an electrical spark.
These fumes are severe respiratory irritants, potentially capable of
causing death.
The refrigerant tends to displace air and can cause oxygen depletion,
which may result in death by suffocation.
Take special care when working on the trailer refrigeration
unit, particularly in an enclosed or confined space with a
limited supply of fresh air.
WARNING
Fire and explosion hazard from flammable materials.
DO NOT expose to naked flames, electrical sparks or other sources
of ignition. Do not smoke.
Observe fire/explosion-prevention measures.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
7
Page
WARNING
Danger arising from unauthorised modification.
DO NOT drill any extra holes into the trailer refrigeration unit, as this
may damage important components.
Accide ntal drilling to electrical wiring or refrigerant
conduits may cause a fire.
WARNING
Risk of damage to health from leaking refrigerant.
During maintenance or repair work on the refrigerant circuit,
refrigerant emissions may occur. These emissions can be liquid or
gaseous and pose a threat to humans and the environment.
Al way s use suitable personal protective equipment
(including goggles, respiratory mask and protective gloves)
if leaking refrigerant is present.
CAUTION
Burn hazard.
Certain parts of the trailer refrigeration unit (e.g. the condenser,
evaporator and tubes) may still be hot after operation.
Let the components cool off before working on the trailer refrigeration
unit.
CAUTION
Risk of long-term damage to the environment.
The operating materials (refrigerant and refrigerant oil) are NOT
biodegradable. Observe the safety data sheets or operating
instructions supplied with the materials used.
Obs erve the corresponding local environmental
regulations when disposing of items that have been
contaminated with operating materials.
CAUTION
Risk of injury from rotating parts
Keep your distance from rotating fan blades.
Contact with the sharp edges of fan blades can result in injury.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
8
Page
2.4
Refrigerant-handling precautions
Although hydrofluorocarbon refrigerants are classed as “safe”, you
should still observe certain precautions during the handling, installation
and maintenance of the trailer refrigeration unit. Liquid
hydrofluorocarbon refrigerants evaporate rapidly when released into
the atmosphere, and quickly ice up everything that they touch. Skin
contact can lead to severe, frostbite-like injury. Hydrofluorocarbon
refrigerants may produce toxic fumes if exposed to a naked flame or
an electrical spark. These fumes are severe respiratory irritants,
potentially capable of causing death.
2.4.1 First aid
In the event of frostbite, protect the affected area from further injuries,
avoiding contact with the refrigerant and additional measures.
Contact of refrigerant or refrigerant oil with the eyes: In case of
contact with the refrigerant or refrigerant oil, immediately flush eyes
with large amounts of water (for at least 15 minutes) and get prompt
medical attention.
Skin frostbite:
•Remove refrigerant-contaminated clothing and footwear.
•Thoroughly rinse off the refrigerant with abundant lukewarm water.
•DO NOT apply heat (e.g. by rubbing or with a hot-water bottle).
•Seek medical attention immediately. While you are waiting for help to
arrive, cover the affected area as loosely as possible with a large sterile
dressing.
Inhalation of refrigerant:
Seek medical attention immediately and bring the injured person into
the fresh air. Administer artificial respiration if required.
2.4.2 Environmental regulations
GOVI trailer refrigeration units are shipped with a suitable charge of
refrigerant R452A.
If you detect any fault in the refrigerant circuit, or signs of leakage
from the trailer refrigeration unit, have the device examined and
repaired by a qualified specialist. DO NOT allow refrigerant to escape
into the open air. Please read the safety instructions and hazard
warnings in section 2.3 Safety and hazard precautions,as well as
the manufacturer’s data sheet for the refrigerant R452A. Dispose of
defective refrigeration units and drained-off refrigerant in accordance
with applicable environmental regulations.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
9
Page
2.5
Intended use
This trailer refrigeration unit is designed for use in refrigerated trailers
that are not exposed to any explosion or fire hazard. For that
purpose, the trailer refrigeration unit is mounted stationary at the front
wall of the refrigerated trailer by a mechanical fasting system (not
included).
At outside temperatures between -20 °C and +38 °C the trailer
refrigeration unit enables inside temperatures from -20 °C to 10 °C.
•The trailer refrigeration unit is not designed for operation in locations
classed as AP.PE EEx (explosion hazard).
•The trailer refrigeration unit is not designed for use in places exposed
to fire hazard.
•The trailer refrigeration unit is not equipped with reinforced electrical
or mechanical protective elements to withstand aggressive weather
conditions.
Ensure the trailer refrigeration unit is properly ventilated when placing
the trailer. Ensure adequate air circulation and sufficient space for
proper maintenance access. DO NOT expose the trailer refrigeration
unit to direct sunlight. Ensure proper air circulation when placing items
inside the trailer, and be careful not to block the evaporator. DO NOT
place heat-emitting items in the refrigerated unit.
The trailer refrigeration unit is not intended for any use other than as
described above. All other usage shall be considered improper, and is
either prohibited or requires the approval/permission of the manufacturer.
“Intended use” also includes compliance with specified maintenance and
repair-work requirements. See section 10 Maintenance.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
10
Page
TEMPLATE
The trailer refrigeration unit consists of a self-supporting chassis
made of galvanized sheet metal and a front cover made of
coated ABS with standard colour RAL7024.
3. Technical data
Fig. 3-1 Nameplate
The nameplate carries the serial number of the trailer refrigeration
unit, together with other important technical data.
The nameplate is on the right-hand side, near the electrical
connection point.
Always have the serial number of the trailer refrigeration unit to
hand when contacting us, as this will ensure the fast and smooth
processing of your enquiry.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
11
Page

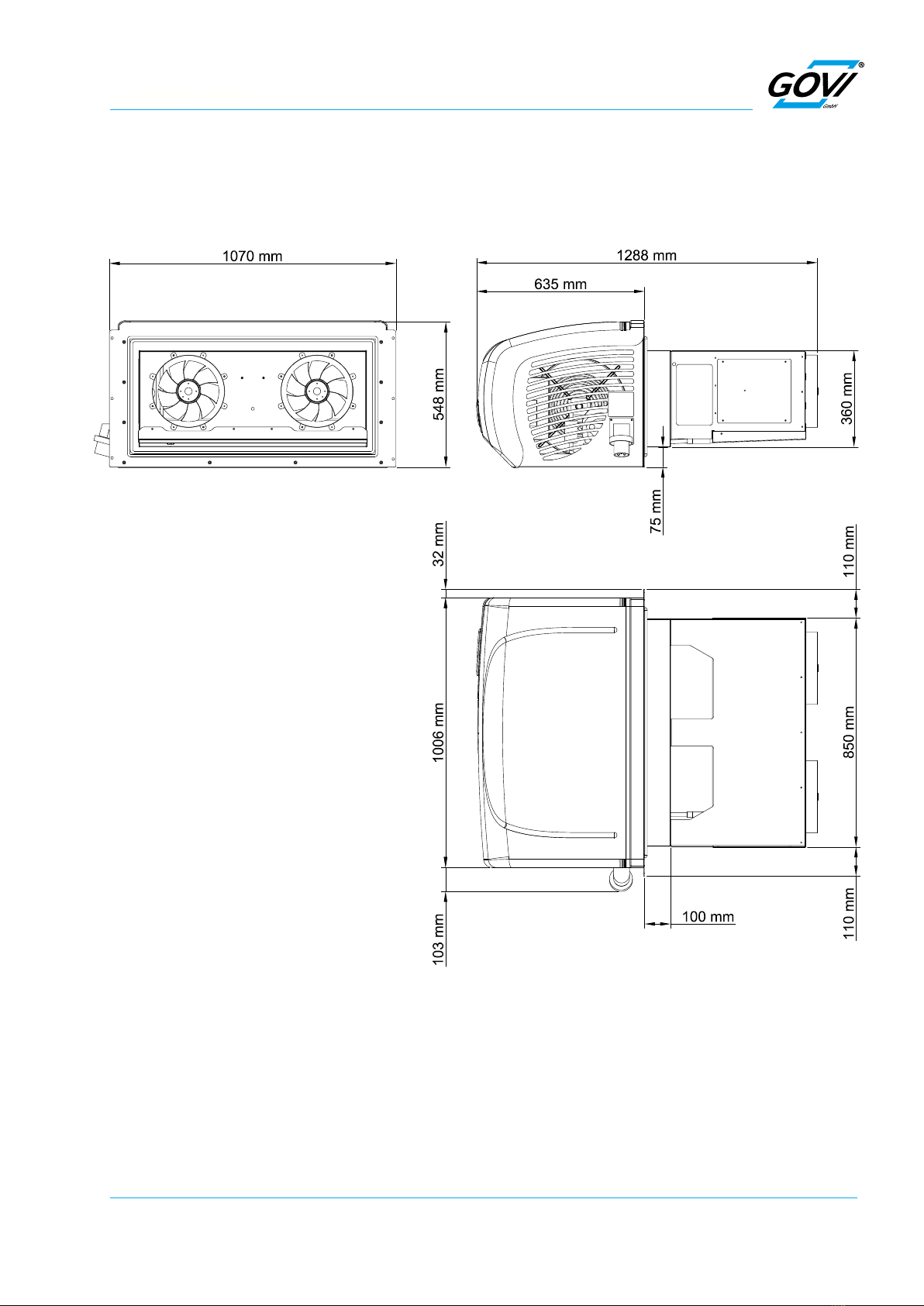

Fig. 3-2 Dimensions
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
12
Page
Tab. 3-1 Technical data
Designation arktik 3000P
Inside temperature of the refrigerated trailer -20 °C to 10 °C
Max. ambient temperature +38°C
Max. room volume 14 m³
Power supply 230 V
Frequency 50 Hz
Refrigeration capacity 2300 / 3800 W
Power consumption 1950 / 2390 W
Current consumption LRA 46 A
Current consumption FLA 13,75 A
Defrosting Hot gas
Air quantity evaporator 2200 m³/h
Air quantity condenser 2250 m³/h
Protection class, digital thermostat side IP54
Refrigerant R452A
Refrigerant amount 1750 g
Weight 124 Kg
Colour RAL 9010 / 7024
The refrigeration capacity is based on the following operating
conditions: Temperature setting -20 °C, 30 °C outside
temperature, relative humidity 50%.
We recommend an insulation with a k value of 0.2 W/m²K.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
13
Page
4.1
Package
The trailer refrigeration unit is secured in a pallet-mounted packing
case for safe transportation.
CAUTION
Refrigerant leaks from damaged equipment can cause skin
injuries and material damage.
In the event of severe external damage to the packing
material and/or the trailer refrigeration unit itself, contact
your local GOVI representative immediately.
DO NOT try to install the trailer refrigeration unit. DO NOT attempt to
start it up.
1. Place the pallet on a flat surface. Examine the packing material and
trailer refrigeration unit for transport damage.
2. Inform the carrier of any damage detected.
3. Take photographs of the damage, and add a corresponding note to
the transport documents.
4. Check accompanying items for completeness.
5. Before disposing of the packing material, check for loose items
forming part of the delivery.
4. Packing, transport
and storage
1. Operating manual
2. Eye bolt
3. Coupling
Fig. 4-1 Accompanying items
1
2
3
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
14
Page
4.2 Transport

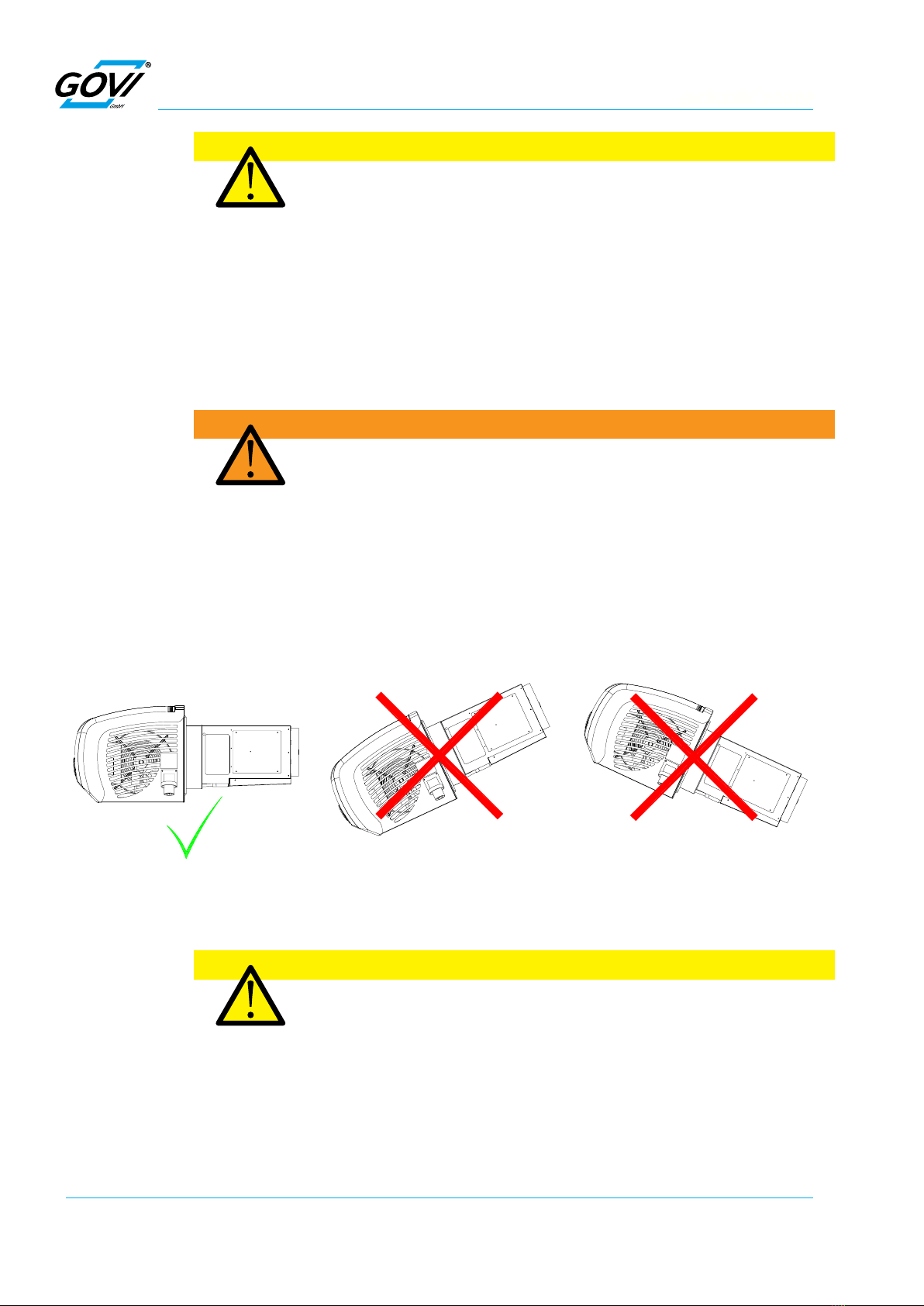

CAUTION
Risk of equipment damage
The trailer refrigeration unit must be transported horizontally.
Leave the trailer refrigeration unit horizontally for at least six hours
before starting it up for the first time.
•Only use suitable lifting equipment for lifting and transport of the
trailer refrigeration unit. For information about the weight see section
3 Technical data.
•Lift the trailer refrigeration unit according tosection 6.4
Installation of the trailer refrigeration unit.
4.3 Storage
Please observe the following points when placing the trailer
refrigeration unit into storage:
•The trailer refrigeration unit must be stored horizontally, seeFig. 4-2.
•The storage temperature must not exceed 60 °C
•DO NOT store the trailer refrigeration unit near corrosive substances
of any kind.
•Use a storage location away from direct sunlight.

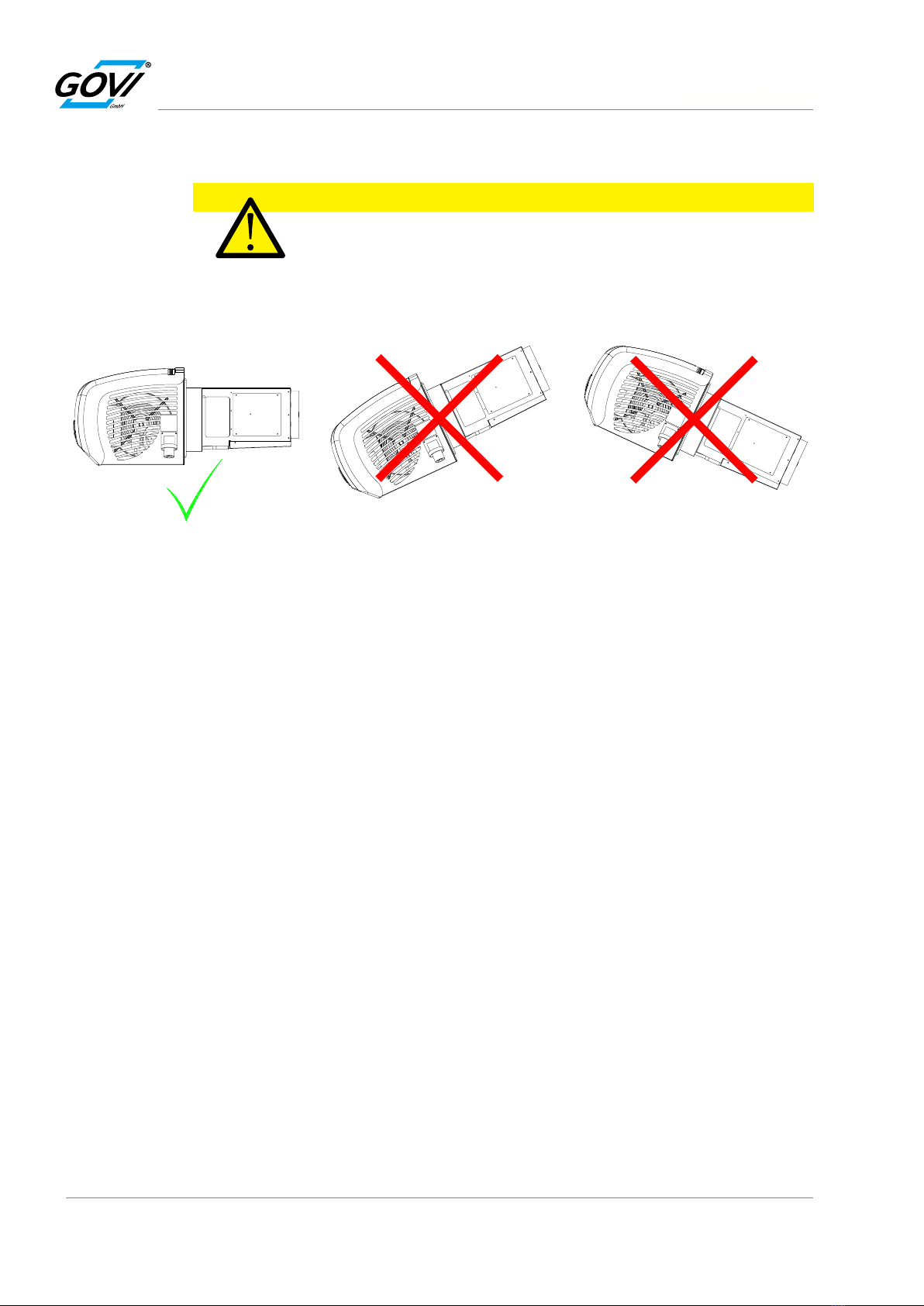

Fig. 4-2 Transport and storage
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
15
Page
5.
System description
Fig. 5-1 Functional diagram
The process is based on the cooling cycle principle: heat transfer
occurs by means of a refrigerant, which absorbs heat in the evaporator
and then releases it in the condenser. All this takes place within a
closed loop. The refrigerant is pressurized by an electrically-driven
compressor, fluidized in the condenser, atomized by means of a
throttle valve and evaporated in the evaporator. The evaporator is
located inside the refrigerated trailer, while the condenser on the
outside.
The trailer refrigeration unit is equipped with a forced-ventilated
condenser and evaporator, axial fans, and electronic temperature
control.
OPERATING MANUAL - Trailer refrigeration unit
1. Compressor
2. High-pressure switch
3. High-pressure test connection
4. Solenoid valve, operation
5. Condenser
6. Filter dryer/Collector
7. Expansion valve
8. Evaporator
9. Solenoid valve, hot-gas defrosting
10. Check valve, hot-gas defrosting
11. Compressor starting regulator
12. Low-pressure test connection

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
16
Page
1 2
1. Main cover
2. Evaporator (with refrigerant
in the system)
3. Air intake (do not obstruct)
4. Air outlet (do not obstruct)
5. Condenser
Fig. 5-2 Overview of the trailer refrigeration unit
Main cover (1)
Evaporator (2) and
condenser (5)
Protection cover and setting
of nominal temperature
Air intake (3)
and air outlet (4)
The main cover (1) covers the components outside the refrigerated
trailer.
In the evaporator (2) heat is absorbed by the refrigerant, which is
released again in the condenser (5).
The protection cover shields the control unit from harsh weather and
impedes unintended changes of the settings. Set the nominal
temperature, see section 9.2 Setting the nominal temperature.
Keep the air intake (3) and outlet (4) clear at all times. They must not
be covered or obstructed.
5
3
4
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
17
Page
6. Installation 6.1
Installation requirements
1. Read through the operating manual carefully in order to carry out
installation correctly.
2. Verify that the trailer refrigeration unit has been delivered according
to your order specifications, and that it is in good condition with no
visible signs of damage.
3. Check to ensure that none of the necessary tools and additional
items are missing, and that they are in proper operating condition.
4. Verify that the installation site of the trailer refrigeration unit provides
a plane surface without unevenness, which may cause vibrations.
5. Ensure also that the supporting elements of the trailer refrigeration
unit are strong enough to support its weight.
6. Make sure that the crane hoist and lifting gear are of the right size to
support the load of the trailer refrigeration unit. For details of its weight,
see section 3 Technical data .
7. NB: Do not connect the power supply of the trailer refrigeration unit
before first completing the installation of the unit and its accessories.
8. Protect the trailer’s walls and/or internal parts to prevent damage by
swarf and alike during the installation process.
6.2
Additional parts and equipment
Because of the wide variety of installation options available, the
trailer refrigeration unit is not shipped with all parts needed for every
possible installation situation. The installer needs to make sure that
the following parts are available. We recommend keeping the
following additional parts ready before starting the installation
process:
6 threaded bolts
of appropriate length and strength. The appropriate length depends
on the thickness of the wall onto which you mount the trailer
refrigeration unit. The bolts must be strong enough to carry the
dynamic weight of the unit.
12 washers  (depending on the threaded bolts)
12 self-locking nuts (depending on the threaded bolts)
1 condensed water drain hose
with an internal 15-mm diameter and suitable length.
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
18
Page
1. Place the refrigerated trailer and trailer refrigeration unit side by side
on a dry and clean flat surface.
2. Make sure that the trailer is in horizontal position.
3. Ensure that the mating surface between the trailer end wall and the
trailer refrigeration unit room is level and free of impurities.
4. Remove all obstacles from the installation area.
5. Prepare all the required installation tools and other equipment and
keep them to hand.
6. Verify that the PU seal (1) at the backside of the trailer refrigeration
unit is available and intact.
1
6.3 Preparatory activities
6.3.1 General preparation
Fig. 6-1
PU seal of the trailer
refrigeration unit
1.PU seal
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
19
Page
6.3.2 Installation opening of trailer wall
7.Prepare the wall opening together with 6 drill holes for the fastening
elements in the middle of the trailer’s front wall. Make sure to be complying
with the minimum dimensions for the trailer refrigeration unit to work
properly, siehe Fig. 6 2.
6.4
Installation of the trailer refrigeration unit
Fig. 6-2 Wall opening
dimensions of the
trailer
Fig. 6-3
Attachment points of
the trailer refrigeration unit
1.Carrying ropes
2.Eye bolts
1
2
Ceiling
Side wall Side wall
OPERATING MANUAL - Trailer refrigeration unit

80.01.100
Copyright by GOVI GmbH 2021. The reproduction of this document or any part thereof is prohibited. We reserve the right to make technical changes in the course of further development.
20
Page
CAUTION
Risk of equipment damage.
Without the main cover, the individual components of the trailer
refrigeration unit are vulnerable to damage during installation.
Leave the main cover during installation.
1. Remove the hexagon head screws, one by one, from the mounting
holes of the main cover on the top of the trailer refrigeration unit. Then
insert in each free hole one eye bolt (2) from the provided accompanying
items, see Fig. 4 1 .
WARNING
Injury hazard.
The weight of the trailer refrigeration unit is approximately
124 kg. Always wear a helmet when lifting and positioning it.
Use only suitable and approved tools.
Use all three lifting points.
2. Attach 3 properly-sized carrying ropes (1) to both eye bolts (2).
CAUTION
Risk of equipment damage.
The trailer refrigeration unit must be transported horizontally.
Leave the trailer refrigeration unit horizontally for at least six
hours before starting it up for the first time.
Fig. 6-4 Mounting alignment
OPERATING MANUAL - Trailer refrigeration unit
