GPT MT 2001 GPS User manual
MT 2001
GPS
GPT ENGINEERING
VIA CADORE 19
20038 SEREGNO (MONZA/BRIANZA) ITALY
PHONES:
+390362231023
FAX:
+390362239002
www.gpt.it

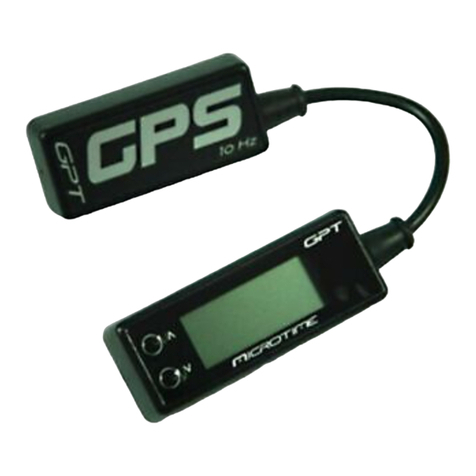

GPS MODULE
General Characteristics
GPS receiver equipped with mouse antenna, prepared to save the nish line position on the track,
Wiring and tting
Is present one connector, 4 poles to connect into device and the power supply wire (to connect at 12
volts (red + black -)
Fit the antenna GPS on vehicle, that must be ABSOLUTELY IN HORIZONTAL POSITION without hurdles
over and around.
Set up and use
On the module is present a button.
Turn On/Off:
ON keep push untill led ash RED
OFF Double quick push and Red led will ash for one second and module turn off.
After turned on, the module will start to seach the Satellite link, and the led colour may vary in follow
ways:
RED FLASHING
Not ready, no GPS signal
Satellite link is operative and ready to work
Finish Line save:
Positioned yr vehicle on the nish line, only when the led on module is GREEN (ashing) keep press
the button until the led becomes BLEU ( need two seconds) now release the button and the led becomes
WHITE (ashing 4 times to save position) The nish line is saved. Note this position don’t change until
another one is stored. So if you normally use the module in same circuit need to save the nish line only
the rst time, but if you change circuit you have to save the new one.
Additional feature: the led change colour in accord to the nish line position, Green you are far from Fi-
nish Line Bleu you are close to Finish Line.
At this time the module is ready to work. Follow the Lap timer instruction to Start/Stop the time keeping,
the functions are the same of infrared version.
MICROTIME COD. MT 2001 GPS
Features:
GPS digital chronometer.
One session for max 60 laps.
Storage all lap time and laps effected.
Automatic memory reset, every new session dolete the old data.
Power supply 12 volts external battery.
Use:
There are present two buttons, one with ARROW UP and another one with ARROW DOWN, for easiness
will call them P1 as ARROW UP and P2 as ARROW DOWN:
Operation with buttons:
Arrow Up : ON / STOP / LAPS / NR LAPS
Arrow Down : START / LAP+
Switch on:
Push P1 will display GPt for 1 second
Release the button will appear M-tIME (rts screen) now the crono it’s ready to start the time
Timekeeping:
Push P2 up to nishing StARt word will appear, remember that all the old laps times will be deleted!!!
At this time the microtime it’s ready to start the timekeeping with the infrared beacon, will start after the
rst transit on the nish line will start the timekeeping tegarding rst lap.
Each lap time stay in display for max 30 seconds (SPOT TIME) in standard version. If is the rst lap time
or the best lap the digits ashing.
At the end of the practice, push P1 will show StOP
Release P1 with show M-Time.
Display the lap time storage:
Push and don’t release P1 to see the laps time. If there aren’t time to show will display no LAP:
If the lap time present show LAPS ashing for 4 seconds, after will display the lap time.
The rst screen is related to the best lap:
With P1 pressed:
Will appear: b mean Best and after the lap time. 1:15.00 as below;
with P1 released:
b mean best, the related track lap (in this case the rst) and the second digit show the total of the
laps (in this example three)
Push P2 to control the lap time
With P2 pressed show LAP XX (xx is the nr. of the laps) LAP 1, LAP etc., if the rst i salso the best
lap will display bEST and lap number
If the lap time it’s the same as the best lap will appear =bST and the lap number
Hold pressed P2 you’ ll scroll the lap time faster, with one stop on the best lap, or stop to the last lap
time.
After to check the best lap at the rts screen, push P2 you’ll see in alternate way the lap nr and the lap
time, qwhen you arrive to the best lap the digit will ash.
Pressing P1 when a lap time is displayed, will appear LAP XX or Best or =bSt will remind you in which
track laps the lap time you controlled was effected.
After controlled last time, press again P2 and come back to the screen b 1:15.00 as we seen bifore
Hold pressed P1 for 4 seconds will show LAPS then, release it you come back to the rst screen M-Time
Quick Functions:
From the rst screen, pressing simultaneously P1 and P2 the crono will turn off, and will show for a
short time OFF on display.
In display lap time mode:
Press simultaneously P1 and P2
While you see the lap time, you come back to the screen related to best lap expl. b 1:15.00
While you see the best lap you come back to the rst screen (M-Time)
NOTE:
The minimum time to keep is 30 seconds (SPOT TIME) for the standard version.
The crono will turn off automatically after 1 minute of inactivity or after 10 minuts in StARt mode.
