Gravely Treker 996122 Owner's manual

Owner/Operator Manual
09650600 2/10
Printed in USA
Models
996122 – 2 x 4 Red
996124 – 2 x 4 Red Turf Tires
996143 – 4 x 4 Red
996144 – 4 x 4 Camouflage
Treker
ENGLISH

GB-2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and Features. . . . . . . . . . . . . . . . . . . . . . . . 13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . 23
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
THE MANUAL
Before operation of unit, carefully and completely read your
manuals. The contents will provide you with an
understanding of safety instructions and controls during
normal operation and maintenance.
All reference to left, right, front, or rear are given from
operator standing in operation position and facing the
direction of forward travel.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making service
inquiries, know the Model and Serial numbers of your unit
and engine.
Numbers are located on the product registration form in the
unit literature package. They are printed on a serial number
label, located on the frame of your unit.
Vehicle Information
Model No. _________________
Date _________________
Serial No. _________________
Engine Serial No. _________________
PRODUCT REGISTRATION
The Gravely dealer must register the product at the time of
purchase. Registering the product will help the company
process warranty claims or contact you with the latest
service information. All claims meeting requirements during
the limited warranty period will be honored, whether or not
the product registration card is returned. Keep a proof of
purchase if you do not register your unit.
Customer Note: If the Dealer does not register your
product, please fill out, sign and return the product
registration card to Gravely or go to www.gravely.com on the
internet.
UNAUTHORIZED REPLACEMENT PARTS
Use only Gravely replacement parts. The replacement of
any part on this vehicle with anything other than a Gravely
authorized replacement part may adversely affect the
performance, durability, or safety of this unit and may void
the warranty. Gravely disclaims liability for any claims or
damages, whether warranty, property damage, personal
injury or death arising out of the use of unauthorized
replacement parts. To locate your nearest Gravely Dealer,
go to www.gravely.com on the internet.
DISCLAIMER
Gravely reserves the right to discontinue, make changes to,
and add improvements upon its products at any time without
public notice or obligation.The descriptions and
specifications contained in this manual were in effect at
printing. Equipment described within this manual may be
optional. Some illustrations may not be applicable to your
unit.
DEALER DELIVERY
Dealer should:
1. Check all controls for proper function.
2. Fill out Original Purchaser Registration Card and
return the card to Gravely.
3. Explain Limited Warranty Policy.
4. Explain recommended lubrication and maintenance.
Advise customer on adjustments.
5. Instruct customer on controls and operation of unit.
Discuss and emphasize the Safety Precautions. Give
customer Owner/Operator, Parts, and Engine
Manuals. Advise customer to thoroughly read and
understand them.
TABLE OF CONTENTS
INTRODUCTION
Serial Number Label
Figure 1 OG1400
© Copyright 2010 Ariens Company

GB - 3
SAFETY ALERTS
Look for these symbols to point out important
safety precautions. They mean:
Attention!
Personal Safety Is Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal words below are
used on decals and in this manual.
Read and understand all safety messages.
NOTATIONS
NOTE: General reference information for proper operation
and maintenance practices.
IMPORTANT: Specific procedures or information required to
prevent damage to unit or attachment.
PRACTICES AND LAWS
Practice usual and customary safe working precautions, for
the benefit of yourself and others. Understand and follow all
safety messages. Be alert to unsafe conditions and the
possibility of minor, moderate, or serious injury or death.
Learn applicable rules and laws in your area, including those
that may restrict the age of the operator.
REQUIRED OPERATOR TRAINING
Original purchaser of this unit was instructed by the seller on
safe and proper operation. If unit is to be used by someone
other than original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any needed safety
training before operation.

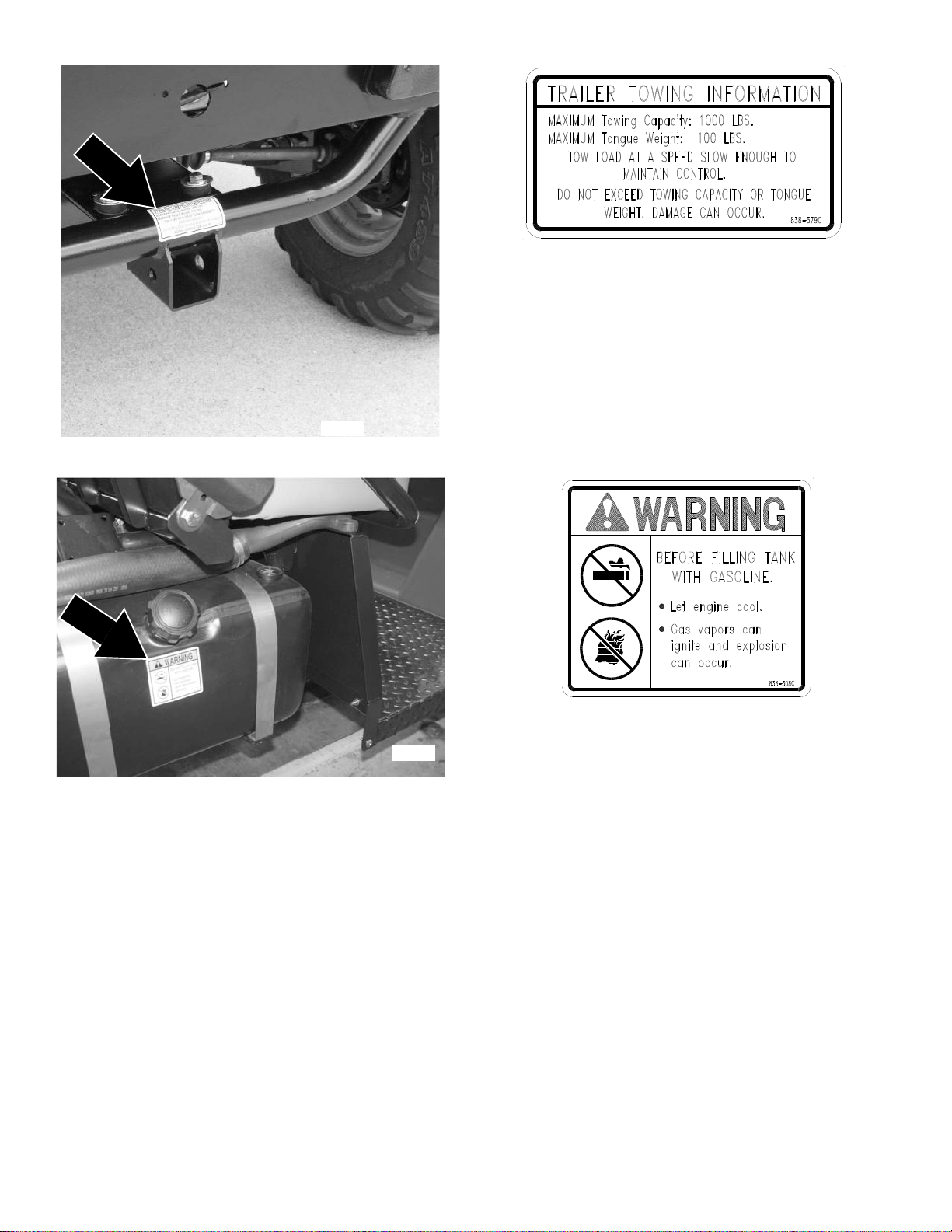

SAFETY DECALS AND LOCATIONS
ALWAYS replace missing or damaged Safety Decals. Refer
to figures below for Safety Decal locations.
1. Keep all safety decals clean and legible.
2. Replace all damaged or missing decals. Order new
safety decals through your Gravely dealer.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component
as specified by Gravely. When ordering new parts or
components, also request corresponding safety
decals.
4. Refer to this section for proper label placement. Install
new decals as follows
• Clean area on which decal is to be placed.
• Spray soapy water on the surface where decal is to be
placed.
• Peel backing from decal. Press firmly on surface, being
careful not to cause air bubbles under decal.
• Squeeze out air bubbles with edge of a credit card.
SAFETY
DANGER: IMMINENTLY HAZARDOUS
SITUATION! If not avoided, WILL RESULT
in death or serious injury.
WARNING: POTENTIALLY HAZARDOUS
SITUATION! If not avoided, COULD
RESULT in death or serious injury.
CAUTION: POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY RESULT in
minor or moderate injury. It may also be
used to alert against unsafe practices.
838-303C
Danger: Battery

GB-4
24691

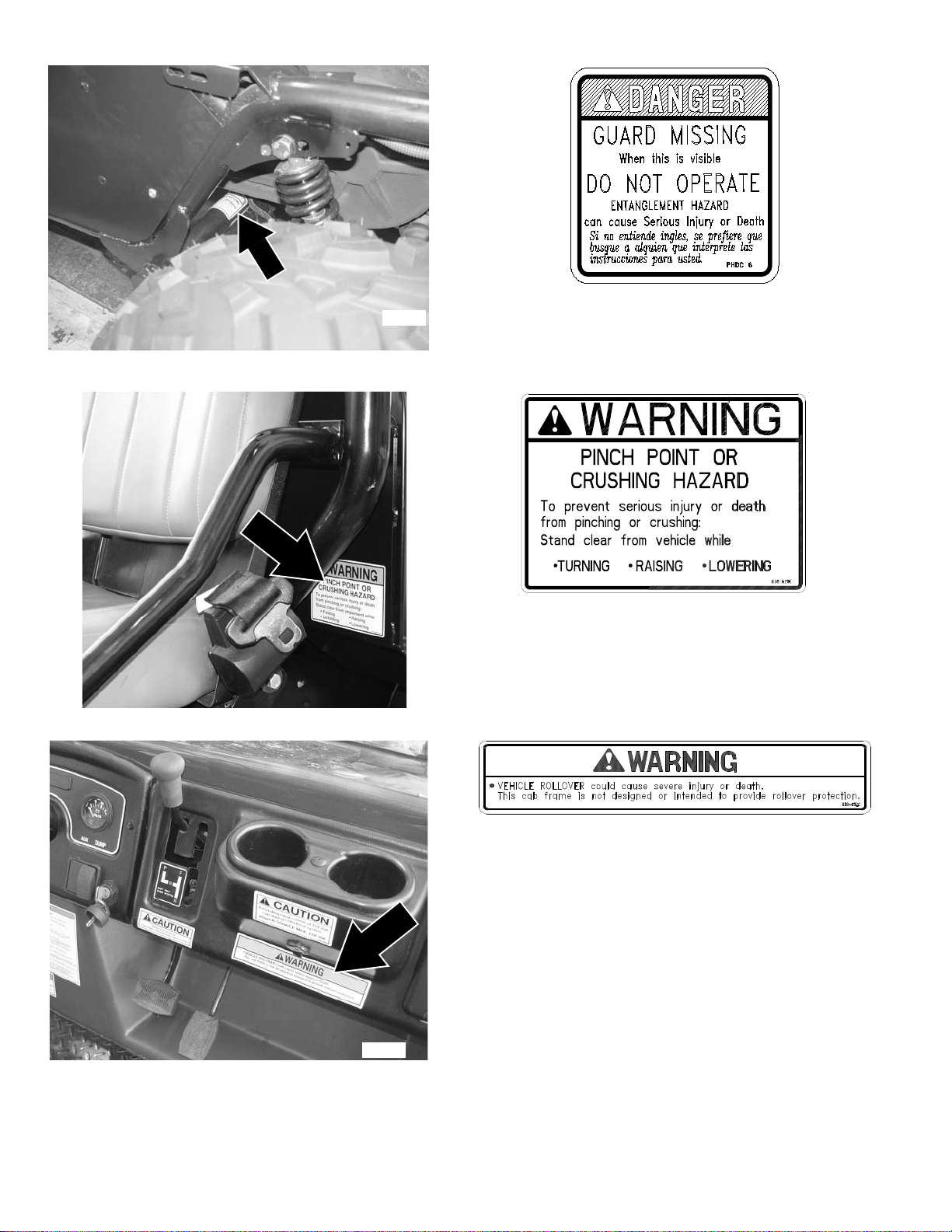

818-543C
Danger: Guard Missing
838-629C
Warning: Pinch Point or Crushing Hazard
24697
838-532C
Warning: Cab Rollover Protection

GB - 5
24697

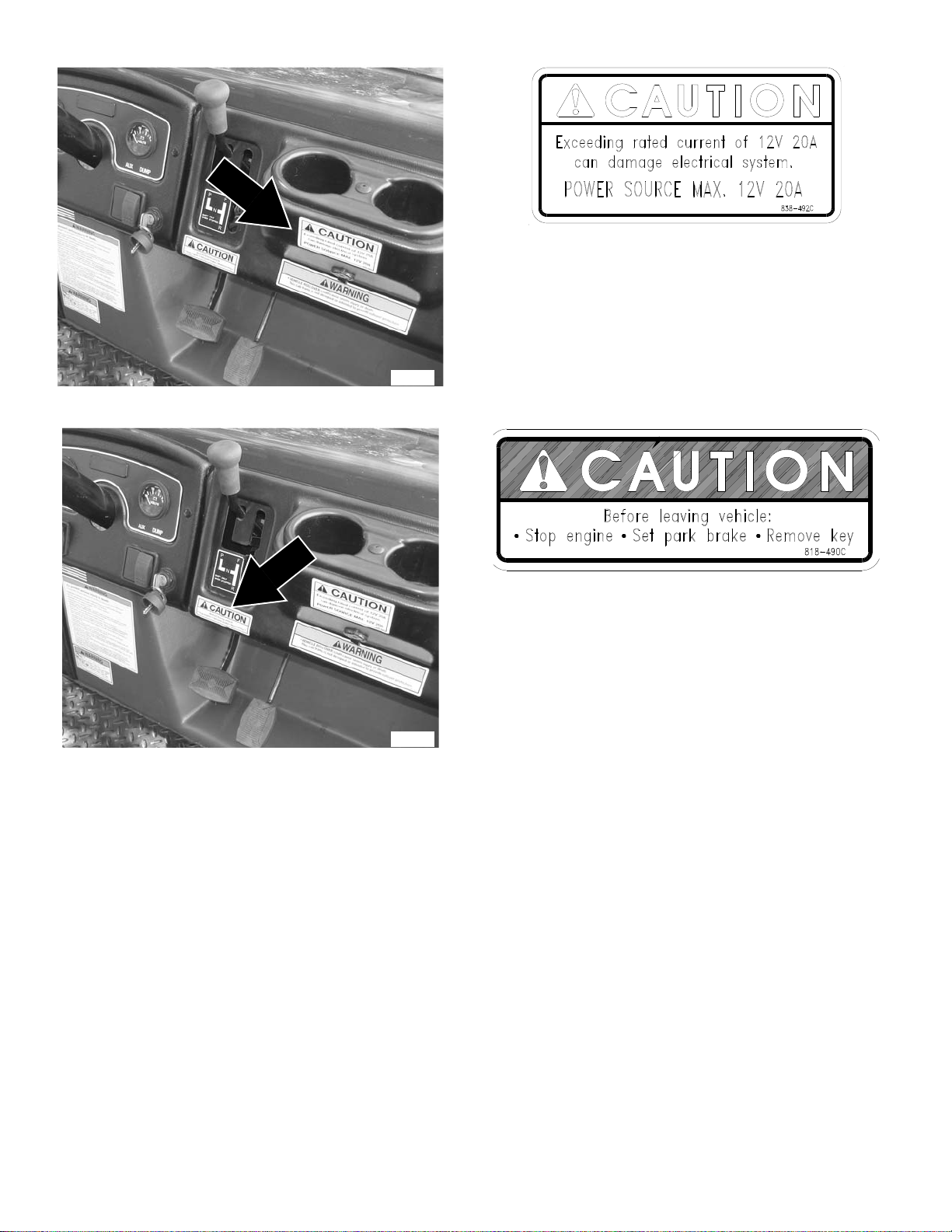

838-492C
Caution: Maximum Power Source
24697
838-490C
Caution: Stop Engine
