Great Dane Scamper HG TCHE48-17KA Setup guide

cWARNING:The Engine Exhaust
from this product contains chemicals known
to the State of California to cause cancer,
birth defects or other reproductive harm.
California Proposition 65 Warning
PC9315
TCU17095
H2
Scamper HG
ILLUSTRATED PARTS LIST
AND TECHNICAL MANUAL
North American Version
Litho in U.S.A.

Table of Contents - 1
TABLE OF CONTENTS
All information, illustrations and
specifications in this manual are based
on the latest information at the time of
publication. The right is reserved to
make changes at any time without
notice.
COPYRIGHT© 2003
Deere & Co.
John Deere Worldwide Commercial and
Consumer Equipment Division
All rights reserved
Previous Editions
COPYRIGHT©
PC9315 - English
Table of Contents
Engine/Traction Deck Assembly................................................................................................................... 2
Top Handles and Control Assembly............................................................................................................. 4
Lower Control Linkage, Top Handle and Fuel Tank Support........................................................................ 6
Transaxles, Park Brake and Controls........................................................................................................... 8
ISO Hydraulic Schematic............................................................................................................................ 10
Engine and Related Components............................................................................................................... 12
Electrical and Related Components – Manual Start................................................................................... 14
Electrical and Related Components – Electric Start................................................................................... 16
Manual Start Logic Chart............................................................................................................................ 18
Electric Start Logic Chart............................................................................................................................ 19
Front Caster Assembly ............................................................................................................................... 20
36" Cutting Deck......................................................................................................................................... 22
48" and 52" Cutting Deck............................................................................................................................ 24
Decals......................................................................................................................................................... 26

Engine/Traction Deck Assembly - 2
ENGINE/TRACTION DECK ASSEMBLY
MX15743
1
2
3
4
5
10
11
13
18
19
20
21
27
12
20
3
24
3
5
6
7
25
26
8912
3
6
14
8
12
2
16
15
12
15
6
3
17
12
23
22

Engine/Traction Deck Assembly - 3
ENGINE/TRACTION DECK ASSEMBLY
NOTES
Ref. No. Part No. Description Qty.
1 D28159 Strip, Rubber (Electric Start) 1
2 D14081 Nut, 5/16-18 Lock 4
3 D14246 Washer, 3/8 SAE Flat 9
4 D14203 Nut, 5/16-18 Center Lock (Electric Start) 2
5 D14013 Bolt, 3/8-16x1 HHCS 7
6 D14127 Bolt, 1/4-20x3/4 HHCS 4
7 D14211 Washer,1/4 Flat 2
8 D14044 Nut, 1/4-20 Nyloc 4
9 D32302 Cover Plate 1
10 D14145 Bolt, 5/16-18x1 HHC 2
11 D24033 Washer, 5/16 SAE Flat 4
12 D24013 Nut, 3/8-16 PTHN 8
13 D35300 Deck, Engine/Traction 1
14 D32301 Bracket, Rear Roller 1
15 D32301 Pivot 2
16 D33302 Roller, Rear 1
17 D38164 Pulley, Tension Idler 1
18 D14018 Bolt, 3/8-16x2-1/4 HHCS 1
19 D24025 Bolt, Gage Wheel – Special 1
20 D18013 Bushing 2
21 D35301 Arm, Idler Weldment 1
22 D28023 Spring 1
23 D38165 Clip, Spring Retainer 1
24 D14144 Bolt, 5/16-18x3/4 HHCS 3
25 D35309 Stand, Battery Weldment (Electric Start) 1
26 D14158 Bolt, 5/6-18x6 HHCS (Electric Start) 2
27 D32309 Tray, Battery (Electric Start) 1

Top Handles and Control Assembly - 4
TOP HANDLES AND CONTROL ASSEMBLY
MX15745
1
2
3
45679
11
13
14
8
15
16
17 18
19
20
21
22 23 24
26
27
28
29
42
31
32
33
16
34
35
37
38
39
40
41
30
43
44
45
8
7
12
7
33
16
30
32
36
8
10
25

Top Handles and Control Assembly - 5
TOP HANDLES AND CONTROL ASSEMBLY
Ref. No. Part No. Description Qty.
1 D14235 Bolt, 5/16-18x2-1/2 Carriage 2
2 D38080 Tube, Grip Handle 2
3 D14150 Screw, 5/16-18x2-1/4 HHC 2
4 D33030 Spacer, 0.75x0.328x0.20 2
5 D38093 Spring, Torsion RH 1
5 D38094 Spring, Torsion LH 1
6 D32353 Latch, RH 1
6 D32354 Latch, LH 1
7 D14081 Nut, 5/16-18 Nylon Hex 6
8 D24020 Bolt, 10-24x1/2 PPHF 6
9 D18090 Key Switch, Recoil Start 1
10 D18091 Key Switch, Electric Start 1
11 D24021 Nut, 8-32 Nyloc 4
12 D24020 Bolt, 8-32x1/2 PPHS 2
13 D12106 Retainer Tab, PTO Switch 2
14 D38005 Switch, Blade Clutch 1
15 D38028 Control Assembly, Throttle Forward/Choke 1
16 D14124 Nut, 10-24 Nyloc 6
17 D24007 Nut, 1/4-20 Hex 2
18 D35065 Weldment, Handle 1
19 D14132 Screw, 1/4-20x1-3/4 HHCS 2
20 D28180 Knob, Speed Control 1
21 D14112 Nut, 1/2-13 Hex 1
22 D35050 Lever, RH Speed Control 1
23 D38095 Spring, Compression 1
24 D35049 Lever, LH Speed Control 1
25 D38077 Washer, Friction 2
26 D14234 Bolt, 3/8-16x2-1/2 CHCS 1
27 D14045 Nut, 1/2-13 2
28 D14004 Washer, 1/2 SAE Flat Stainless 2
29 D33032 Shaft, Pivot 1
30 D14107 Pin, Cotter 3/32x1 4
31 D35066 Bail, OPC RH 1
31 D35067 Bail, OPC LH 1
32 D14246 Washer, 3/8 SAE 4
33 D38085 Switch, Plunger 3
34 D18140 Spring 2
35 D33002 Swivel, Adjuster 2
36 D14013 Screw, 3/8-16x1 HHC 4
37 D24013 Nut, 3/8-16 Cone Loc 4
38 D18046 Knob, Drift Control 1
39 D38097 Bearing, Needle 2
40 D33033 Bearing, Insert 2
41 D14147 Screw, 5/16-18x1-1/2 HHC 2
42 D14006 Pin, Spring Locking 2
43 D35069 Rod, Control 2
44 D35323 Lever, PG RH Traction 1
44 D35324 Lever, PG LH Traction 1
45 D14232 Pin, 1/2x1-1/2 Roll 2

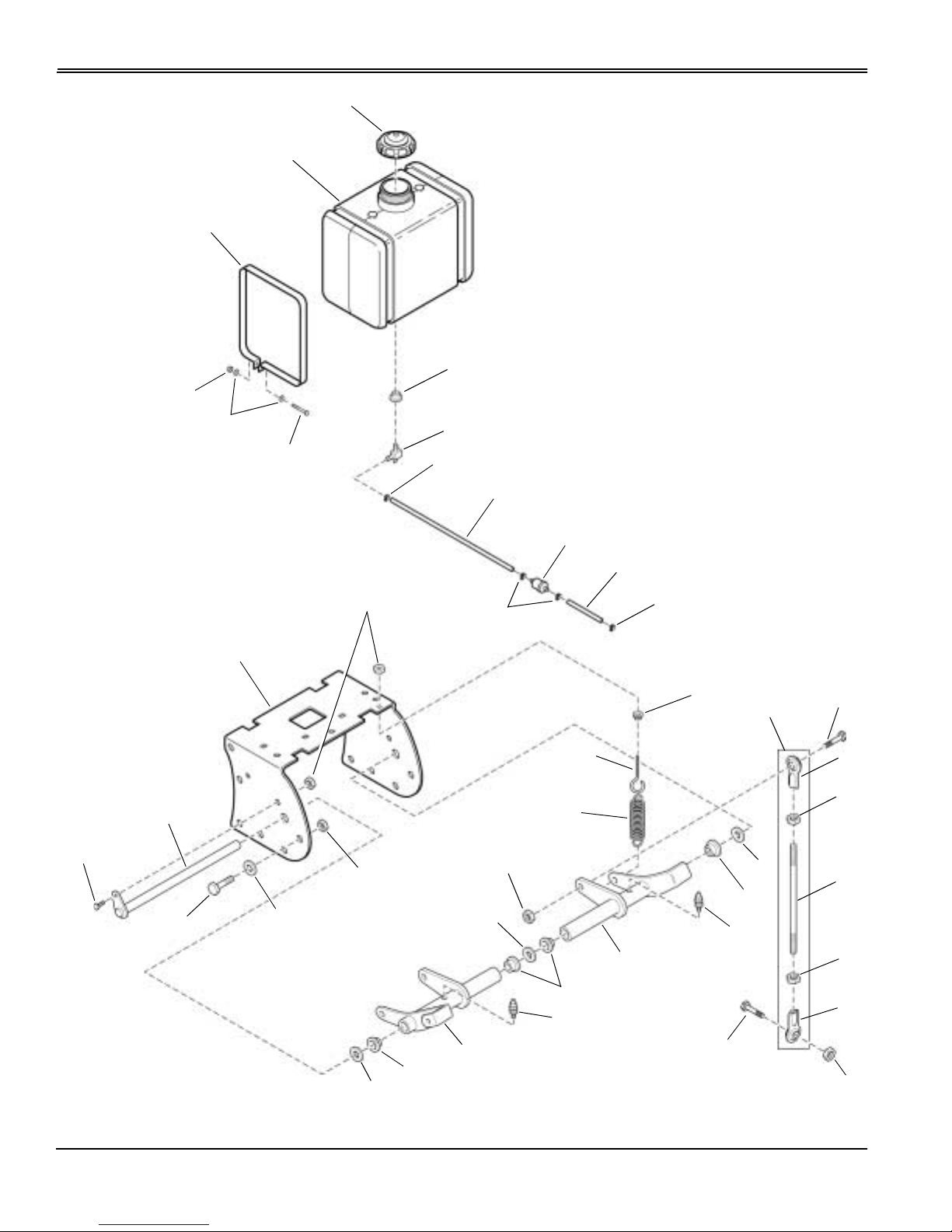

Lower Control Linkage, Top Handle and Fuel Tank Support - 6
LOWER CONTROL LINKAGE, TOP HANDLE AND FUEL TANK SUPPORT
MX15744
1
2
3
4
5
6
7
8
10
31
9
32
33
7
66
9
30
29
28 27
26
11
12
13 14
16
17
18
19
21
22
23
24
22
23
25
22
21
21
20
20
14
15

Lower Control Linkage, Top Handle and Fuel Tank Support - 7
LOWER CONTROL LINKAGE, TOP HANDLE AND FUEL TANK SUPPORT
NOTES
Ref. No. Part No. Description Qty.
1 D32024 Strap, Fuel Tank 2
2 D38036 Fuel Tank 1
3 D18097 Cap, Fuel Tank 1
4 D18144 Grommet, Fuel Pick-Up 1
5 D18098 Valve, Fuel Shut-Off 1
6 D14103 Clamp, Fuel Line Hose 4
* 7 M88753 Hose, SAE J30R7 1
8 D38076 Filter, Fuel 1
9 D14044 Nut, 1/4-20 Nyloc 5
10 D14276 Nut, 1/4-20 Serrated Flange 2
11 D14285 Bolt, 1/4-20x2-1/2 Eye 2
12 D18073 Spring 2
13 D36020 Linkage Assembly 2
14 D14145 Bolt, 5/16-18x1 HHCS 4
15 D38158 Alignaball, 5/16 LH-Thread 2
16 D14287 Nut, 5/16-24 LH-Thread Jam 2
17 D33071 Knob, Lower Adjustment Link 2
18 D14209 Nut, 5/16-24 Hex 2
19 D38157 Alignaball, 5/16 RH-Thread 2
20 D14203 Nut, 5/16-18 Center Lock 4
21 D14248 Washer, Flat 3
22 D18013 Bushing 4
23 D18058 Fitting, Grease Zerk 2
24 D35302 Arm, Lower Control LH 1
25 D35303 Arm, Lower Control RH 1
26 D14010 Nut, 3/8-16 Cone Loc 6
27 D14246 Washer, 3/8 SAE 6
28 D14013 Screw, 3/8-16x1 6
29 D14127 Screw, 1/4-20x3/4 HHC 1
30 D35319 Retainer, Control Arm 1
31 D32307 Bracket, Tank Mount 1
32 D14133 Screw, 1/4-20x2 HHC 1
33 D14211 Washer, 1/4 Flat 4
*NOTE:Fuel line hose is sold in 10' bulk lengths – P/N M88753. Cut to length for service as needed.

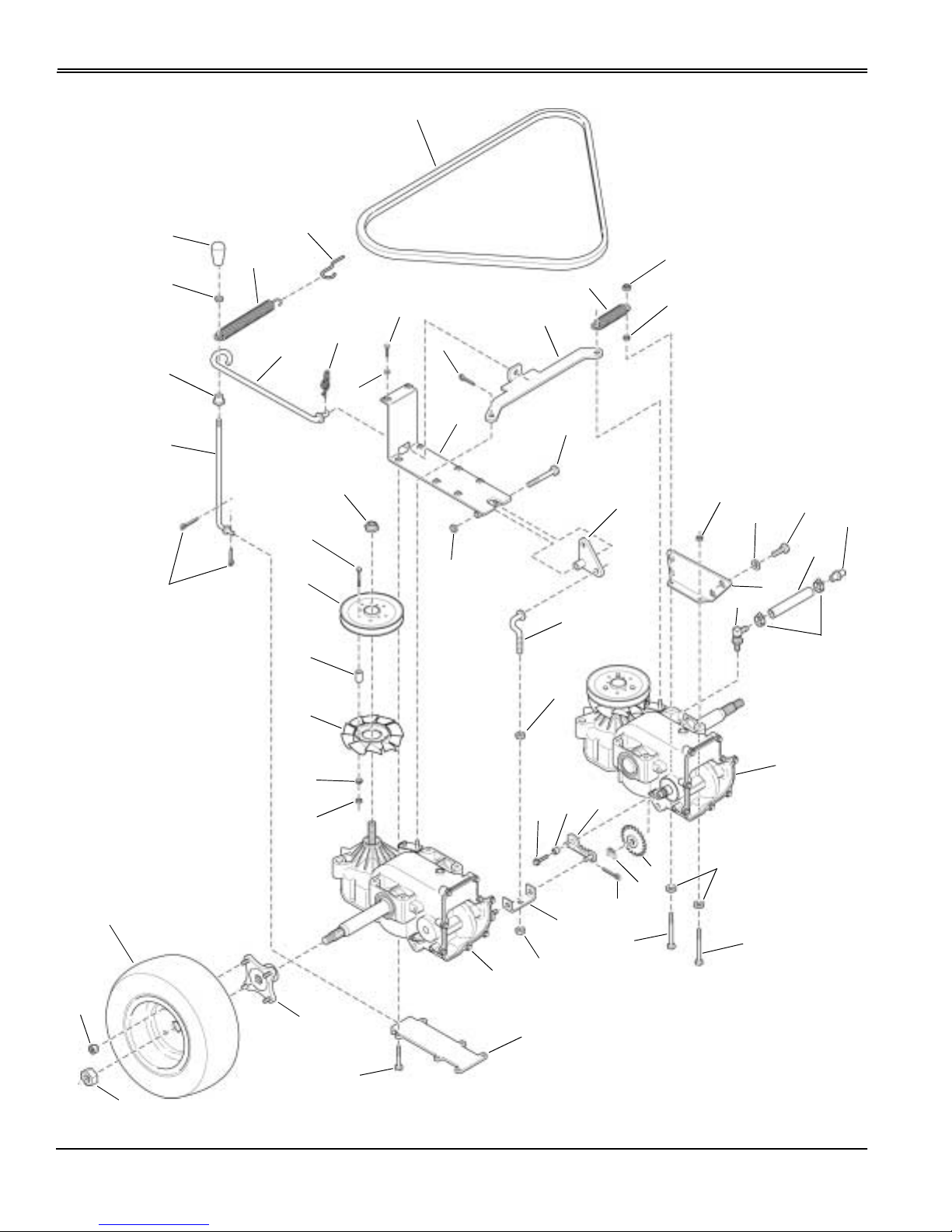

Transaxles, Park Brake and Controls - 8
TRANSAXLES, PARK BRAKE AND CONTROLS
1
2
3
45
6
7
8
9
10
11 12
13
14
15
16
17
18
19 20
21
22
23
24
25
27
29
30
9
32
33
34
35
36
27
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
13
26
19
9
18
31
28

Transaxles, Park Brake and Controls - 9
TRANSAXLES, PARK BRAKE AND CONTROLS
Ref. No. Part No. Description Qty.
1 D18388 Belt, Transaxle Drive 1
2 D38165 Clip, Spring Retainer 1
3 D38135 Spring 1
4 D33068 Brake Control 1
5 D38165 Clip, Wire Lock 1
6 D14114 Washer, 5/16 SAE Flat 6
7 D14145 Screw, 5/16-18x1 HHC 4
8 D35308 Bracket, Stabilizer Weldment 1
9 D14107 Pin, Cotter 3/32x1 5
10 D32325 Bar, Bypass Connector 1
11 D18140 Spring 1
12 D14016 Nut, 5/16-18 Nyloc 1
13 D14205 Nut, 5/16-18 PTFHN 5
14 D14155 Screw, 5/16-18x3-1/2 HHC 1
15 D14203 Nut, 5/16-18 Center Lock 7
16 D35307 Crank, Brake Bell 1
17 D33069 Link, Brake Adjustment 1
18 D14209 Nut, 5/16-24 2
19 D14246 Washer, 3/8 SAE Flat 8
20 D14013 Screw, 3/8-16x1 HHC 8
21 D35318 Mount, Transaxle Weldment 2
22 D24028 Fitting 2
23 TY22503* Oil Hose, 3/8x4-1/4 Vent 2
24 D38186 Vent 2
25 D18379 Clamp, Hose 4
26 D38154** Transaxle Assembly, Right (HG 324-2400R) 1
27 D14151 Screw, 5/16-18x2-1/2 HHC 9
28 D14153 Screw, 5/16-18x3 HHC 1
29 D38177 Brake Rotor †1†
30 D38165 Clip †1†
31 D38178 Brake Pawl †1†
32 D38179 Bushing †1†
33 D38180 Bolt, Brake Pawl †1†
34 D32326 Yoke, Brake Pawl 1
35 D38153** Transaxle Assembly, Left (HG 324-2400L) 1
36 D32314 Bracket, Mounting Tie 1
37 D38181 Hub with Studs †1†
38 D38182 Nut, 3/4-16 †1†
39 D14192 Nut, 1/2-20 Lug 8
40 D38188 Tire Assembly, 16x650-9 2
41 D38175 Nut †3†
42 D38174 Washer, Lock †3†
43 D38170 Fan †1†
44 D38172 Spacer †3†
45 D38171 Pulley, Input †1†
46 D38173 Bolt †3†
47 D38176 Nut †1†
48 D33070 Handle, Brake/Bypass Control 1
49 D33306 Bushing, Brake Step 1
50 D14255 Nut, 3/8-16 Hex Jam 1
51 D38183 Knob, Control Handle 1
*NOTE1:Low pressure vent hose length is for installation reference only – sold in bulk under P/N TY22503.
** NOTE 2: The transaxle assembly includes items 29 through 33, 37, 38 and 41 through 47.
†NOTE3:Quantity listed is per each transaxle.

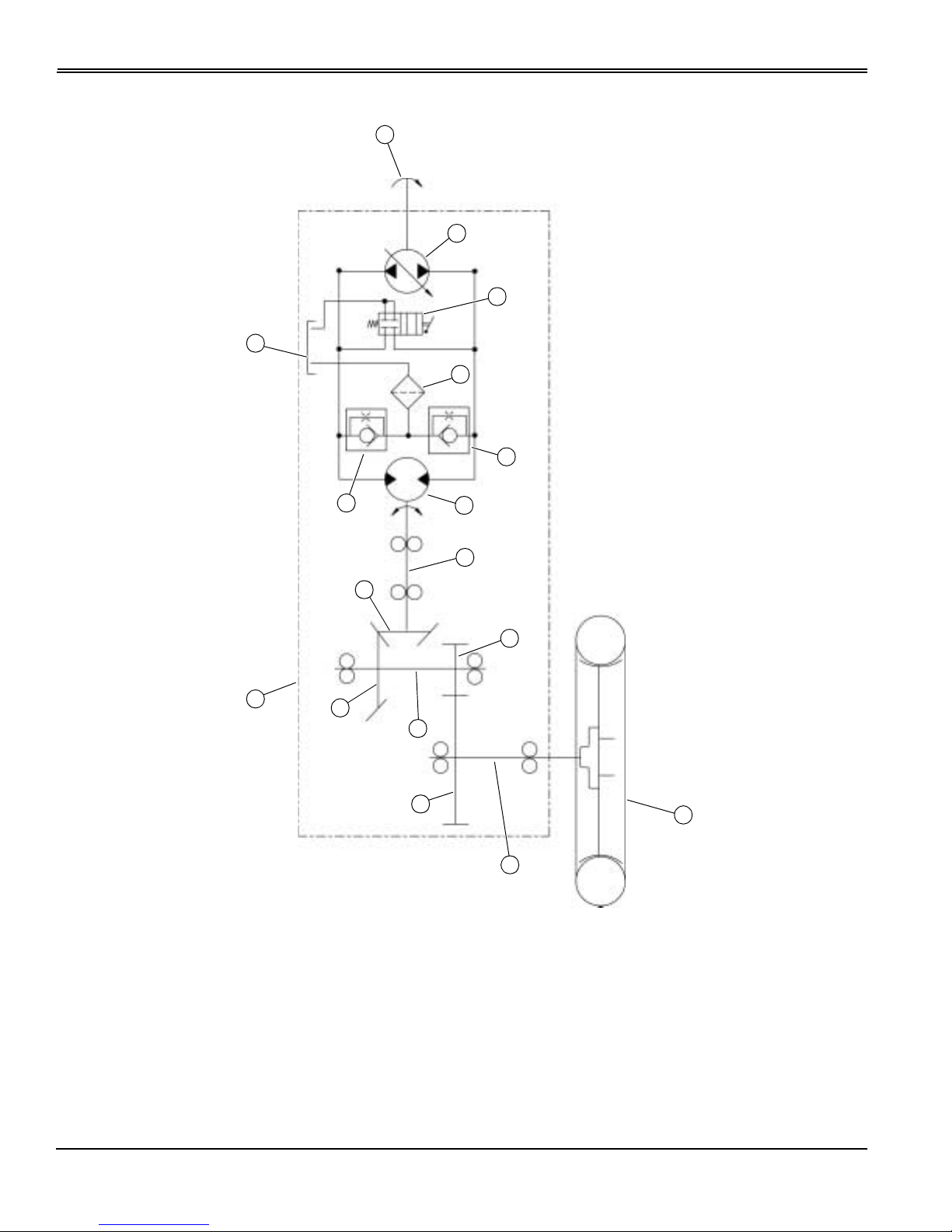

ISO Hydraulic Schematic - 10
ISO HYDRAULIC SCHEMATIC
MX15754
NOTE: Right transaxle shown.
A - Input Shaft
B-PumpBlock
C - Bypass Valve
D - Reservoir/Transaxle Case
E - Oil Filter (not serviceable)
F - Check Valve –
Forward and Reverse
G-MotorBlock
H - Motor Output Shaft
I - Transfer Pinion
J - Transaxle Housing
K - Transfer Gear
L - Transfer Shaft
M - Final Drive Reduction Pinion
N - Final Drive Gear
O - Output Shaft
P - Drive Wheel
P
O
I
JK
M
N
H
G
F
F
D
C
B
A
E
L

Notes - 11
NOTES

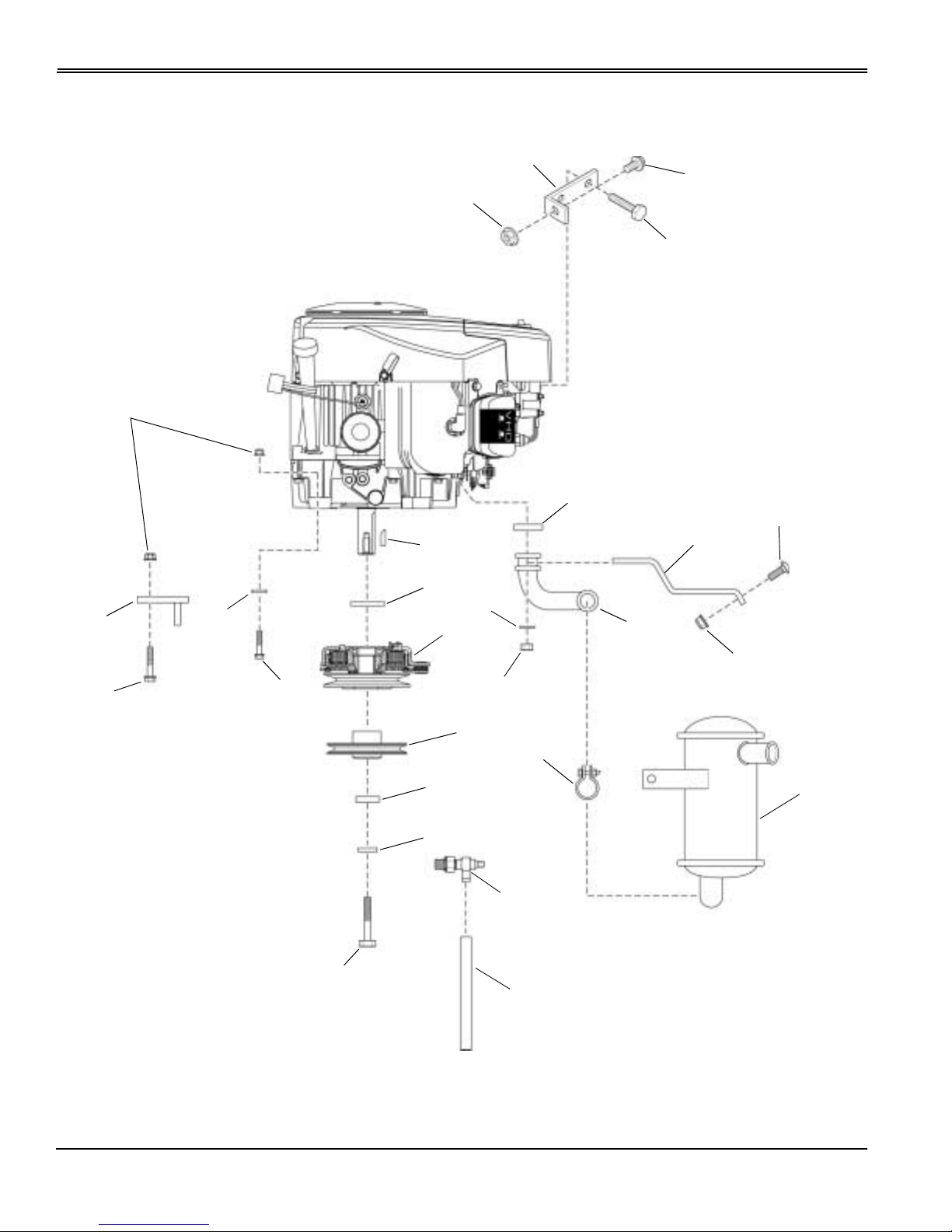

Engine and Related Components - 12
ENGINE AND RELATED COMPONENTS
MX15750
1
23
4
5
67
8
10
11
12
13
14
15
16
17
18
19
20
23
24
26
27
25
9
22
21

Engine and Related Components - 13
ENGINE AND RELATED COMPONENTS
NOTES
Ref. No. Part No. Description Qty.
D18424 Engine, 15hp Recoil / KAWASAKI (FH451-AS14)
D28114 Engine, 17hp Recoil / KAWASAKI (FH500-BS20)
D18341 Engine, 17hp Electric Start / KAWASAKI (FH500-AS21)
* 1 Nut, M8x1.25 1
* 2 Bracket, Muffler 1
* 3 Bolt, M8x1.25x20 PTFHCS 1
* 4 Bolt, M6x1.0x15 PTFHCS 1
* 5 Exhaust Gasket 17hp 2
* 6 Shield, Muffler 1
* 7 Screw, 1
* 8 Nut, 1
* 9 Pipe, Exhaust 1
* 10 Muffler 1
11 M76926 Hose, Oil Drain 1
* 12 Fitting, Oil Drain 1
* 13 Clamp, Muffler 1
* 14 Nut, M8x1.25 HHN 4
* 15 Washer, 8x14x2 Split Lock 4
16 D18145 Key, Shaft 1
17 D14245 Bushing, 1" I.D., 18 Gauge Machinery 1
18 D38155 Clutch, Electric PTO 1
19 D38156 Pulley, Cast Type 1
20 D18056 Spacer 1
21 D14208 Washer, 7/16 Split Loc 1
22 D14286 Bolt, 7/16-20x2 1
23 D14147 Bolt, 5/16-18x1-1/2 HHCS 5
24 D24033 Washer, 5/16 Flat 5
25 D14016 Nut, 5/16-18 Nyloc 7
26 D35321 Bracket, Clutch Anti-Rotation 1
27 D14148 Bolt, 5/16-18x1-3/4 HHCS 2
*NOTE:See authorized KAWASAKI servicing engine dealer for engine related service items. Always reference the
engine model number when ordering parts.

Electrical and Related Components – Manual Start - 14
ELECTRICAL AND RELATED COMPONENTS – MANUAL START
MX15749
15
20
2
1
3
1
23
12
3
4
5
19
18
17
6
7
8
16
14
12
10
11
9
13

Electrical and Related Components – Manual Start - 15
ELECTRICAL AND RELATED COMPONENTS – MANUAL START
NOTES
Ref. No. Ref. Loc. Part No. Description Qty.
1 A, B, L D14233 Bolt, 10-24x3/4 PHCS 6
2 A, B, L D38085 Switch, OPC 3
3 A, B, L D14124 Nut, 10-24 6
4 C D38005 Switch, Blade Clutch 1
5 D D18090 Switch Assembly, Ignition 1
6 E D18052 Relay 1
7 F 57M120 Fuse, 20 AMP 1
8 H D38050 Capacitor 2
9 H D38051 Regulator/Rectifier 1
10 H D14132 Bolt, 1/4-20x1-3/4 1
11 H D14211 Washer, 1/4 Flat 1
12 H D14276 Nut, 1/4-20 Flanged 1
13 H D14044 Nut, 1/4-20 Nyloc 2
14 J D18416 Engine Pig Tail 1
15 D38127 Regulator/Rectifier Harness 1
16 K D38155 Clutch, Electric PTO 1
17 D28082 R-Clip, Wiring 1
18 D14081 Nut, 5/16-18 Nyloc 1
19 D14113 Bolt, 5/16-18x3/4 Carriage 1
20 D38123 Main Chassis Harness 1

Electrical and Related Components – Electric Start - 16
ELECTRICAL AND RELATED COMPONENTS – ELECTRIC START
MX15748
2
1
3
4
5
3
2
1
67
8
9
10
11
12
13
21 6
8
11
12
13
1
3
2
14
15
16 17
18 19
20
18
7
8
22
6

Electrical and Related Components – Electric Start - 17
ELECTRICAL AND RELATED COMPONENTS – ELECTRIC START
NOTES
Ref. No. Ref. Loc. Part No. Description Qty.
1 A, B, M D14233 Bolt, 10-24x3/4 6
2 A, B, M D38085 Switch, OPC 3
3 A, B, M D14124 Nut, 10-24 6
4 C D38005 Switch, Blade Clutch 1
5 D D18091 Switch Assembly, Ignition 1
6 E, K, L D14044 Nut, 1/4-20 Nyloc 3
7 E, K D18052 Relay 2
8 E, K, L D14127 Screw, 1/4-20x3/4 3
9 F, G D28160 Strap, Plastic Tie 2
10 F, G 57M120 Fuse, 20 AMP 2
11 D14113 Bolt, 5/16-18x3/4 Carriage 2
12 D28082 R-Clip, Wire 2
13 D14081 Nut, 5/16-18 Nyloc 2
14 I D28134 Engine Pig Tail 1
15 J D38155 Clutch, Electric PTO 1
16 D28119 Cable, Negative Battery w/Boot 1
17 D14205 Nut, 5/16-18 Flanged 2
18 D28118 Cable, Positive Battery w/Boot 2
19 D14145 Bolt, 5/16-18x1 2
20 TY25221 Battery 1
21 L D28158 Starter Relay 1
22 D38189 Main Chassis Harness 1

Manual Start Logic Chart - 18
MANUAL START LOGIC CHART
MX15753
