Great Outdoors Grill Company 7000 Series User manual

Owner’s Manual and Assembly Guide
FORYOURSAFETY
If you smell gas:
1Shut o gas to the appliance.
2Extinguish any open ame.
3Open lid.
4If odor continues, immediately call
your gas supplier or re department.
FORYOURSAFETY
1Do not store or use gasoline or other
ammable vapors and liquids in the vi -
cinity of this or any other appliance.
2An unconnected liquid propane cylin -
der should not be stored in the vicinity
of this or any other appliance.
AO000102-901
Model 7000
Series
Portable Gas
Barbecue Grill
ASSEMBLER /INSTALLER:
Leave these instructions with the consumer
CONSUMER/USER:
Read all of these instructions, and keep them in a safe place for future reference.

Table of Contents Page Number
Chapter One - INSTALLATION 3
Choosing a Safe Location 4
Portable L.P. Gas Grills 5 - 6
L.P. Gas Dealer Instructions 7
Chapter Two - ASSEMBLY 8
Step 1 ( Identify Parts ) 9

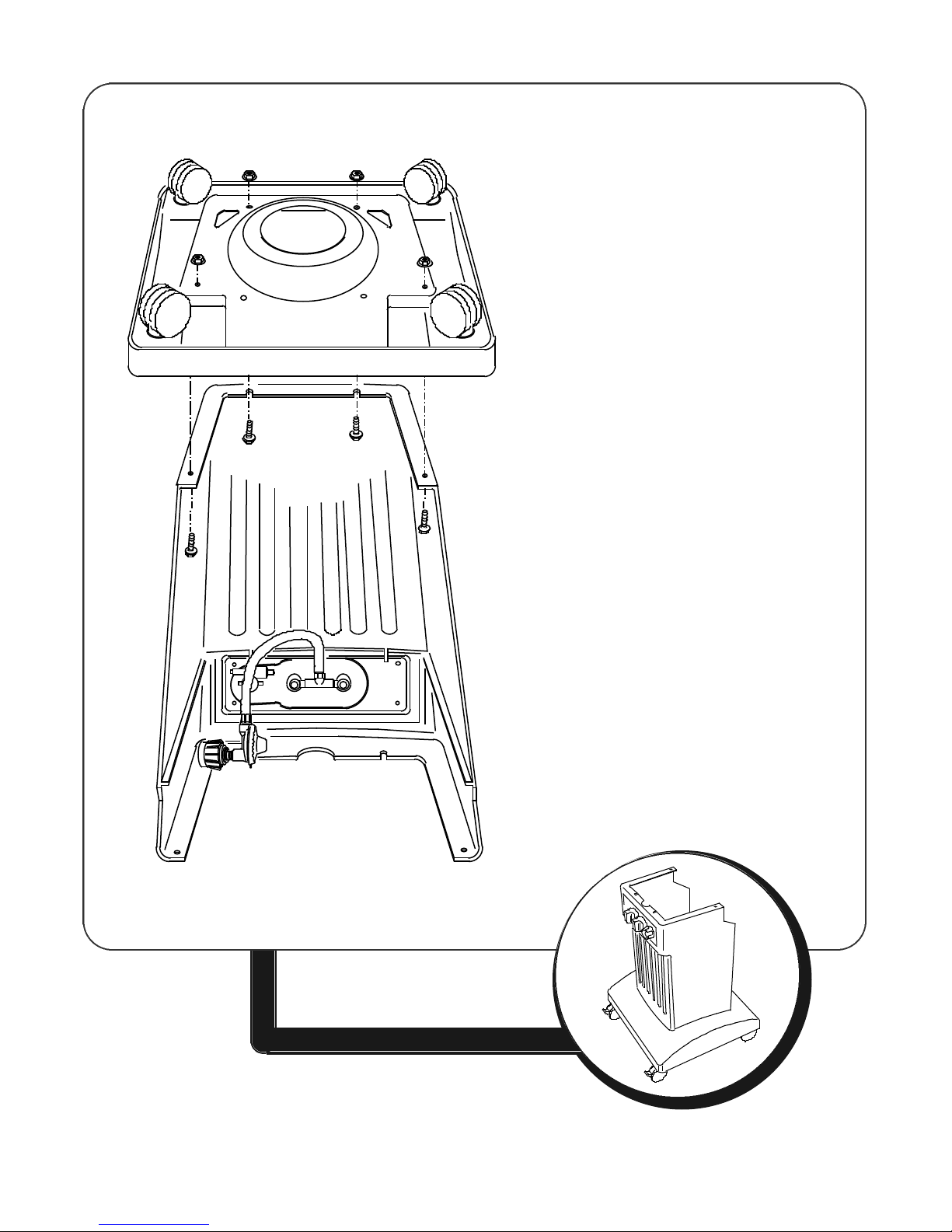

Step 2 ( Assemble Pillar to Base ) 10 - 11
Step 3 ( Attach Grill Bottom ) 12 - 13
Step 4 ( Assemble Grill Lid ) 14 - 15

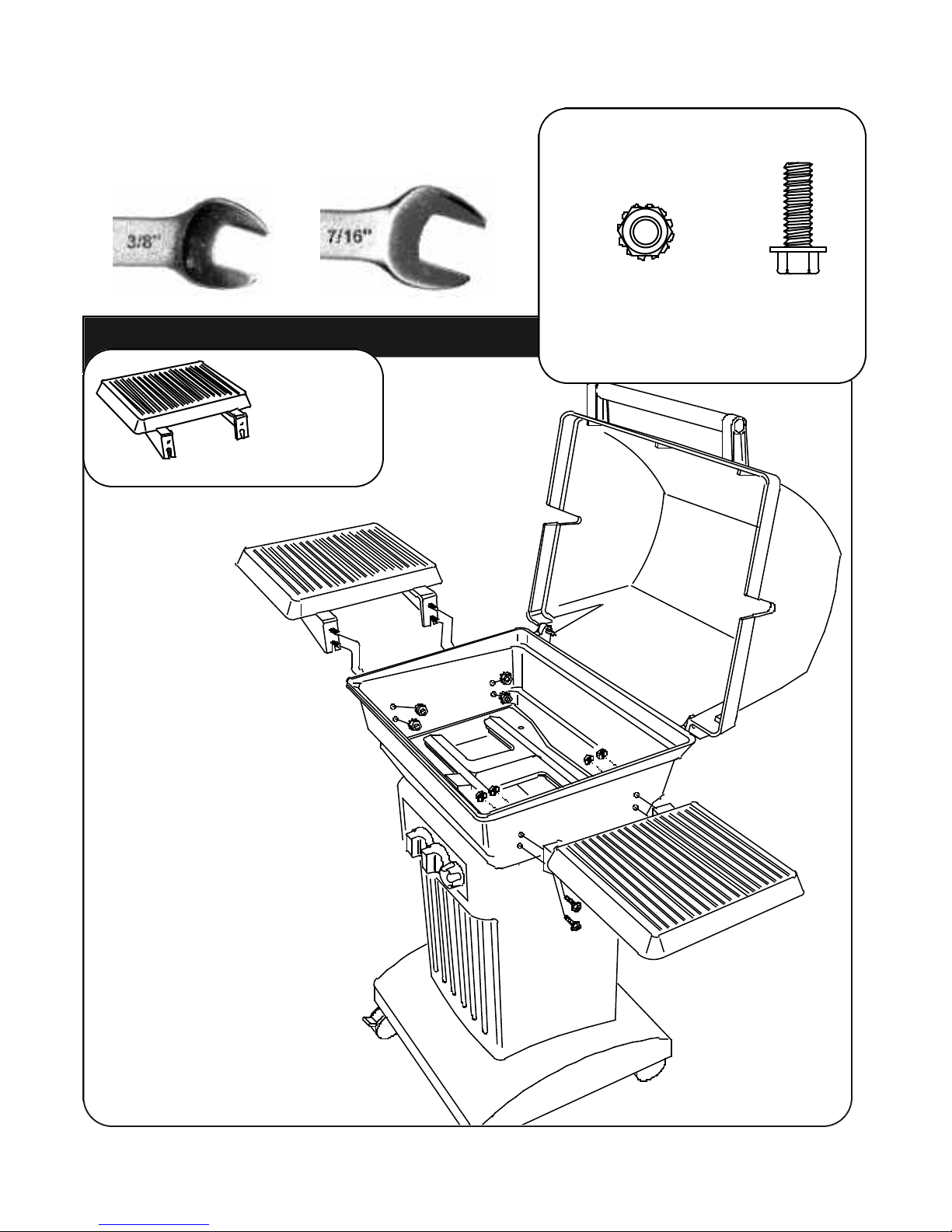

Step 5 (Side Tables ) 16

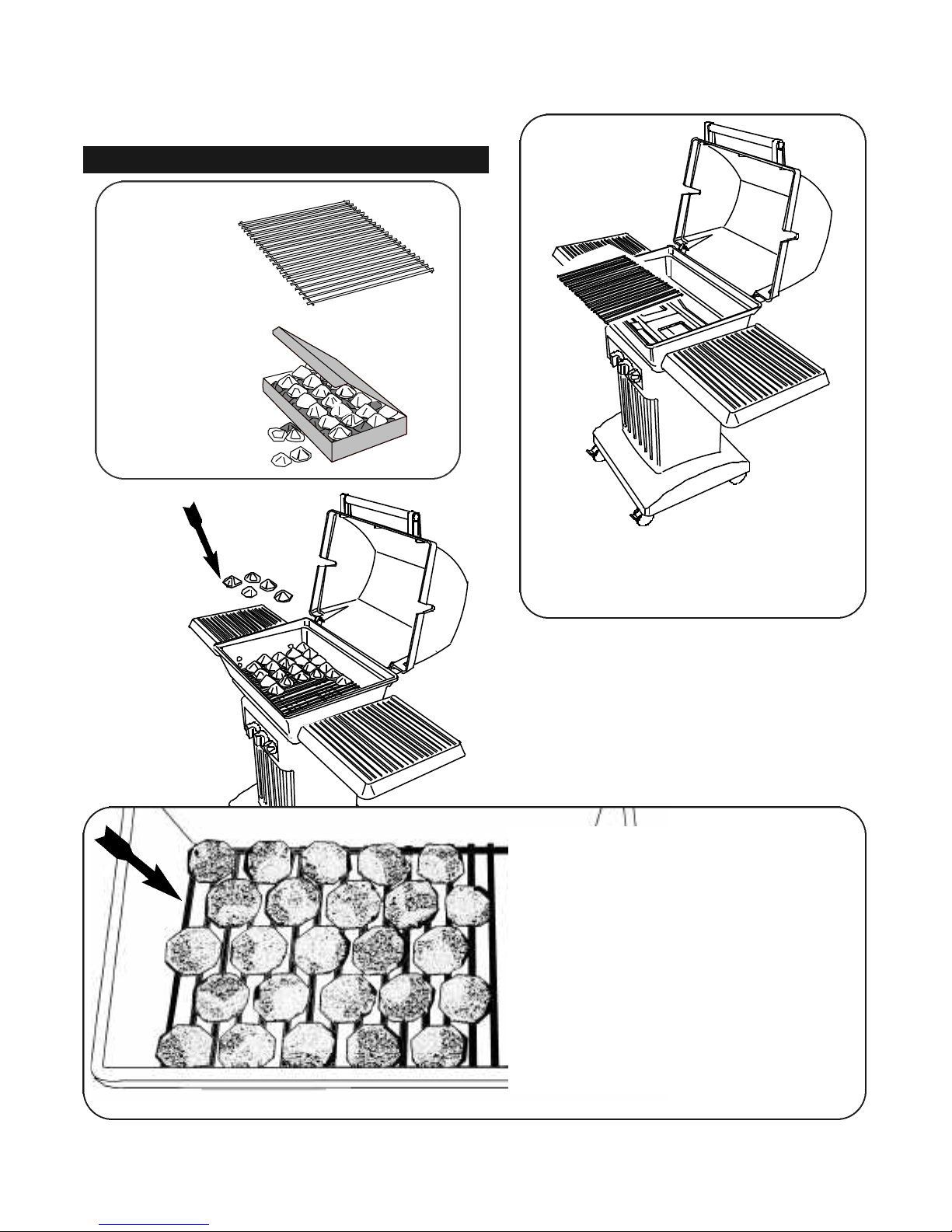

Step 6 ( Rock Grate and Briquettes ) 17

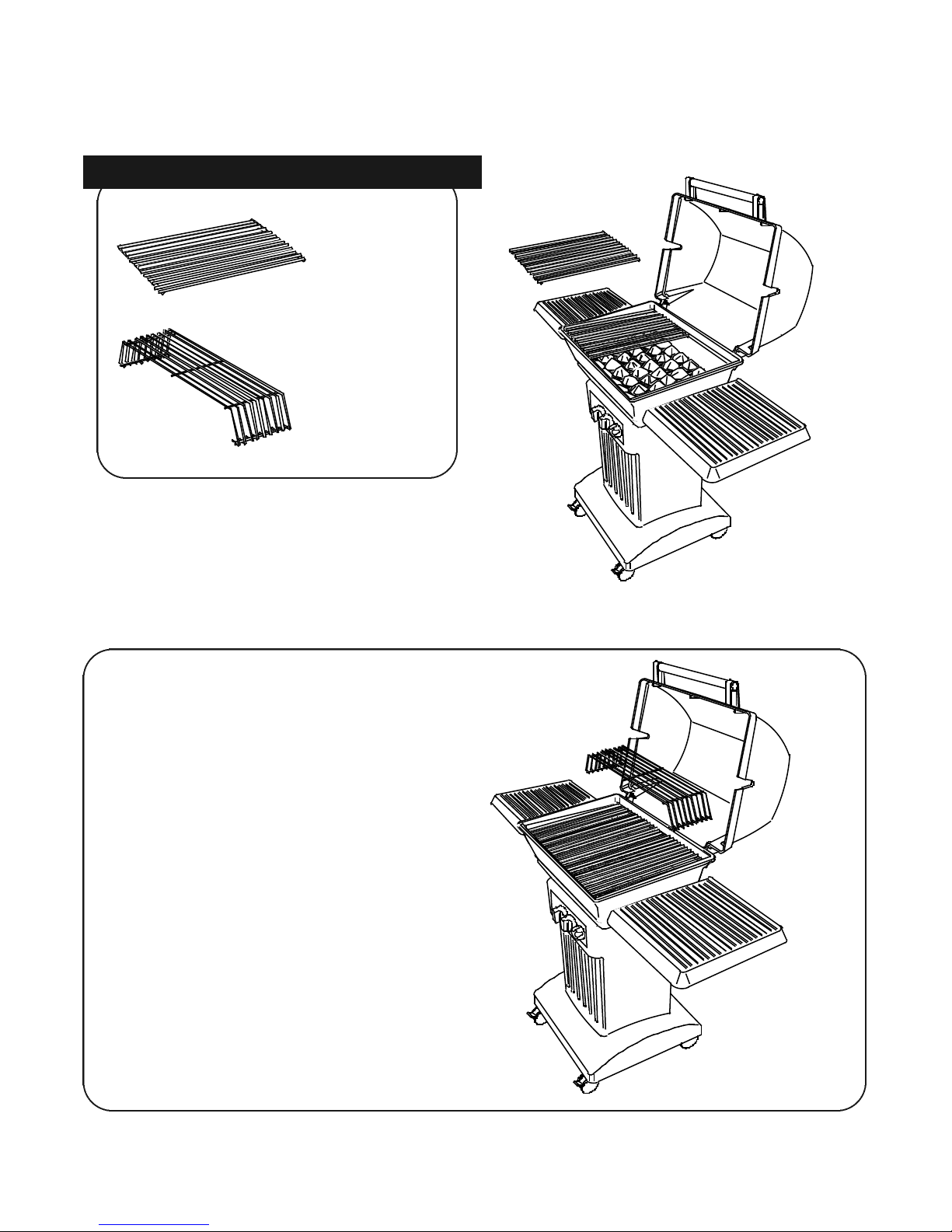

Step 7 ( Cooking Grids ) 18

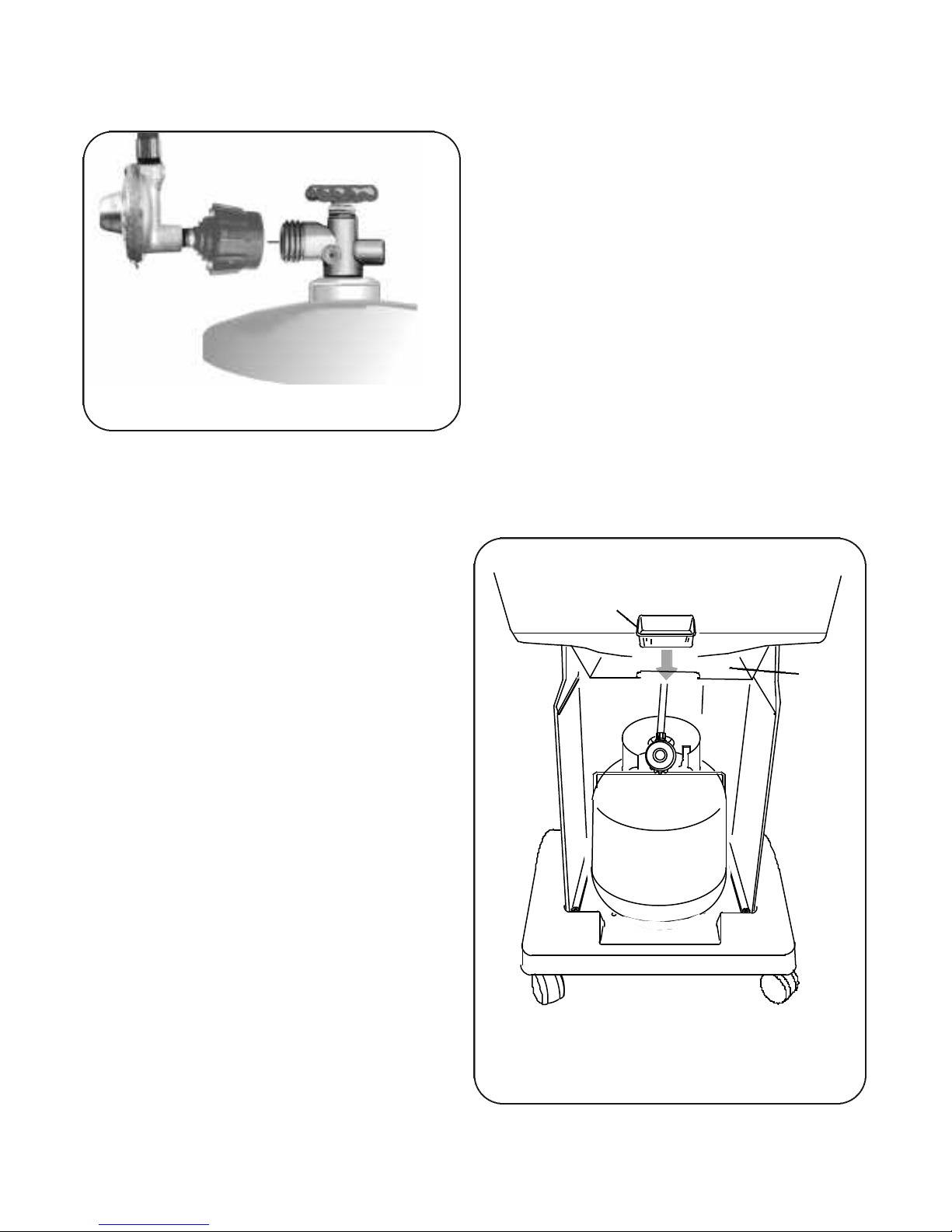

Installing an L.P. Gas Cylinder 19
Connecting an L.P. Gas Cylinder 20
Connecting to Natural Gas (Model 7000N only) 21 - 22
CFM Corporation
2695 Meadowvale Boulevard
Mississauga, Ontario L5N 8A3 Canada
[phone]
www.cfmcorp.com
Service Note: If you are experiencing difficulties or are dissatisfied with your purchase, please contact CFM at
the telephone number listed above prior to returning your grill to the store.
®
Formerly:
Now:

Installation Chapter 1
3
The L.P. Gas Fuel Supply System
Correct Filling and Handling of the
L.P. Gas Fuel Cylinder
Important Information Necessary
to Safely Use a Gas Grill.
Series 7000 Models

The gas fuel used by this product is
highly flammable and must be used in
a responsible and cautious manner.
It is your responsibility to assemble,
operate, and maintain your gas
barbecue grill properly.
If these instructions are ignored, there
is a possibility of a hazardous fire or
explosion which could result in proper-
ty damage, physical injury or death.
1. The gas barbecue grill may only be
used for cooking out-of-doors.
•Do not operate this barbecue in garages,
breezeways, sheds or any enclosed area.
• Operating this or any gas-fired appliance in
an enclosed area can produce a build-up of
carbon-monoxide, which could result in injury
or death.
2. Installation must conform with local
codes or, in the absence of local codes,
with either the National Fuel Gas Code,
ANSI Z223.1, NFPA 54 (USA), or
CAN/CGA-B 149.2, Propane Installation
Code (Canada) and CAN/CGA-B 149.1
Natural Gas Installation Code.
To check local codes, contact your local gas
dealer or gas company listed in the Yellow
Pages for recommended installation proce-
dures and regulations.
3. This appliance is not intended to be
installed in or on a recreational vehicle
and/or boat.
4. Keep the barbecue grill at least 24 inch-
es (61 cm) away from any combustible con-
struction.
•Do not use a grill under a ceiling or cover
where the heat or flame could cause damage.
• Choose a level surface where the grill is not
facing directly into the wind.
• Avoid moving the grill during use.
5. The grill area must be clear and free
from combustible materials, gasoline, and
any other flammable liquids or vapors.
•Do not use lighter fluid or charcoal briquettes
in a gas grill. The flow of combustion and venti-
lation air is not to be obstructed. The ventilation
openings of the cylinder enclosure must be kept
free and clear from other debris.

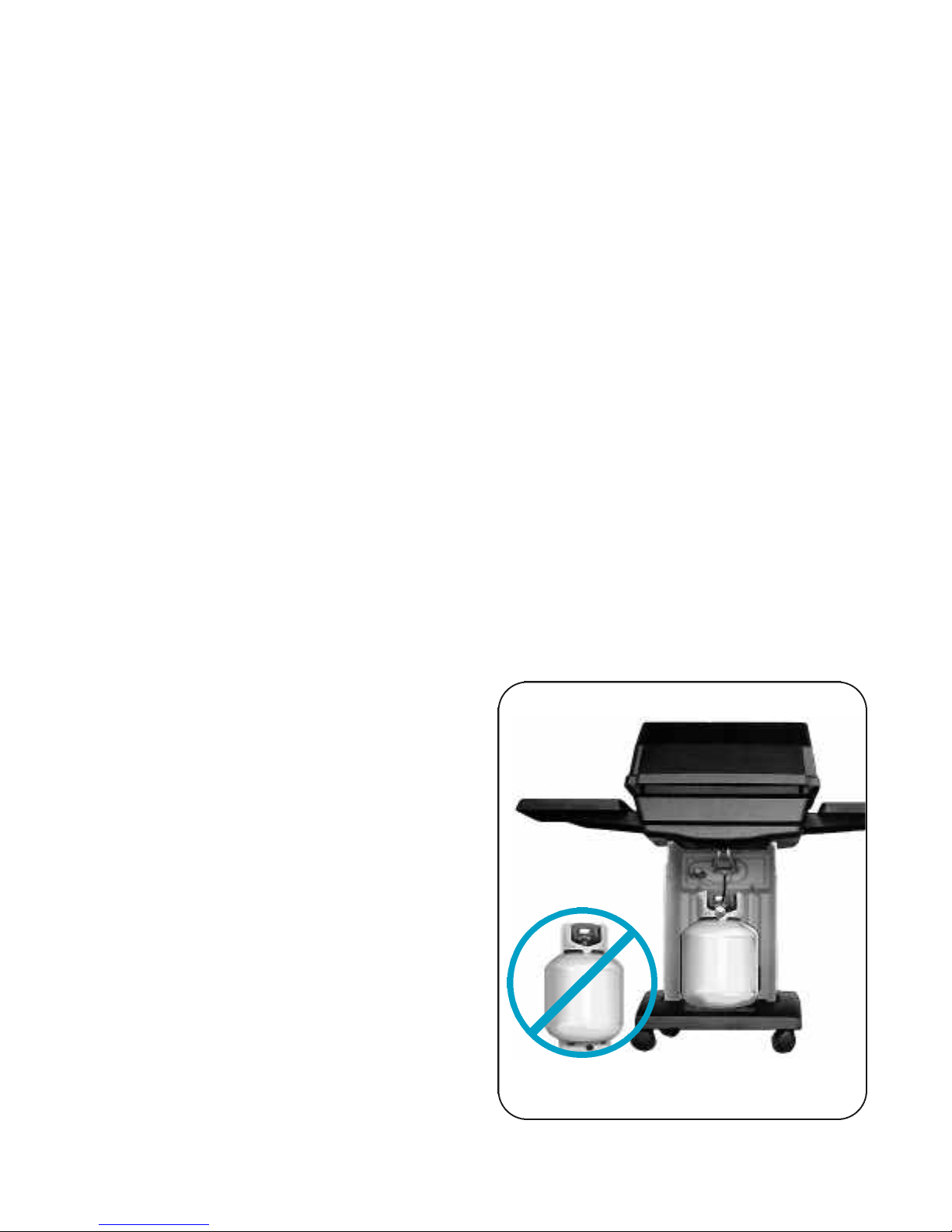

6. Do Not store a spare L.P. gas cylinder
under or near this appliance.
7. NOT FOR USE BY CHILDREN.
Keep children and pets away from hot grill.
•Place your barbecue grill in a location away
from children and pets.
• Do not leave grill unattended when in use.
8. The outside of the barbecue grill will
become hot during use.
• To avoid burns, do not touch any hot grill sur-
face. If necessary, use a protective glove when
operating control knobs, tank shut-off valve, or lid
handle.
•Do not place combustible material, such as
cloth or plastic, on grill surface during use.
• Do not lean on side tables or place more than
15 pounds of weight on a side table.
9. Make sure that the heat shield and drip
pan are in place under the grill bottom.
•Heat and hot drippings from cooking food
could damage the fuel supply system.
Choosing a Safe Location for a Gas Barbecue Grill.
4
!

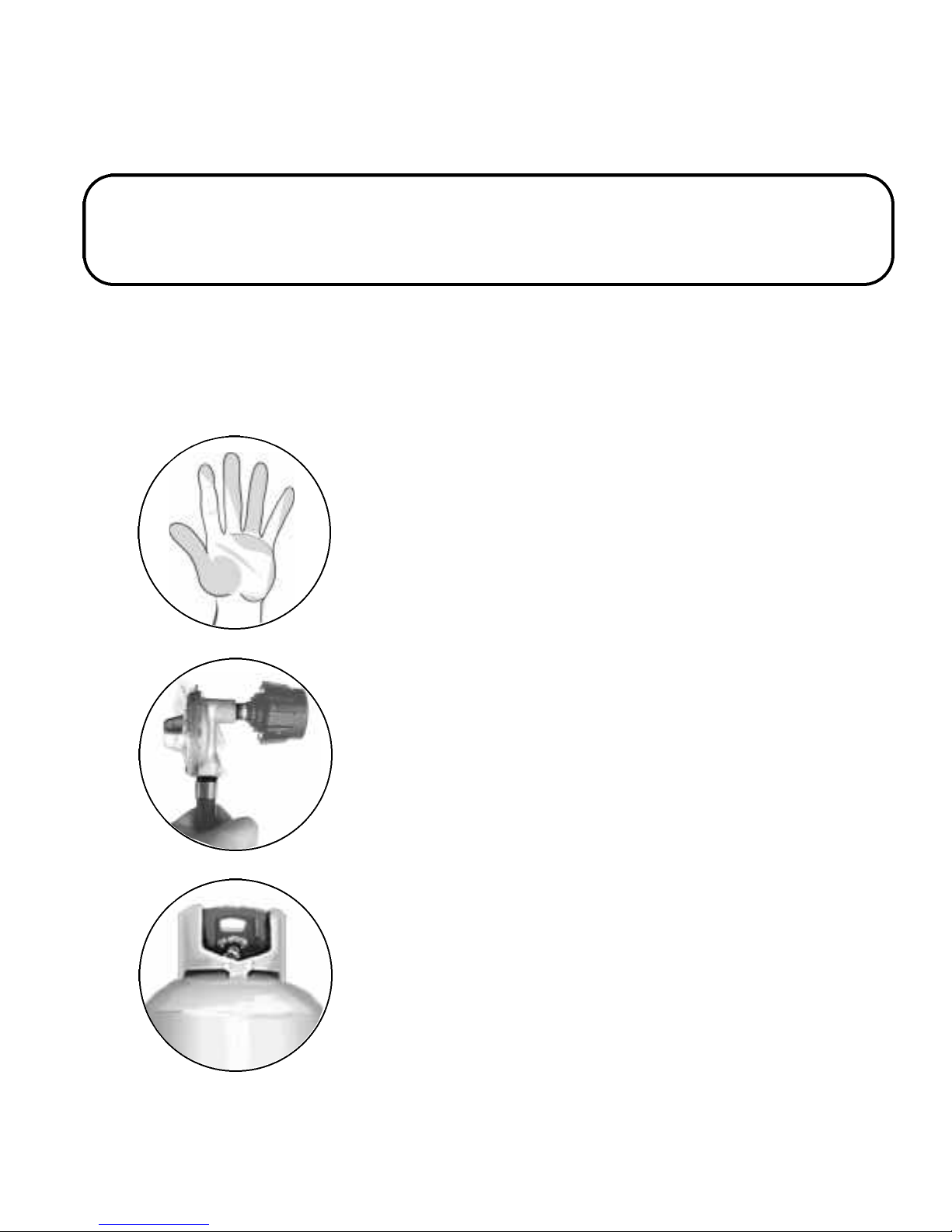

FUEL REGULATOR AND HOSE
The fuel regulator supplied is equipped with a
Type 1 coupling nut. Do not attempt to connect
to any other L.P cylinder not equipped with a
mating Type 1 cylinder valve. This grill is not to
be used with any other cylinder connection
device.
The fuel regulator and hose assembly with the
Type 1 fitting supplied must be used with the
appliance. Do not use a hose and regulator
assembly other than the one supplied with the
grill or a manufacturer’s replacement fuel pres-
sure regulator assembly.
The Type 1 connection system has the follow-
ing features:
1. The system will not allow gas to flow until a
positive connection has been made.
2. The system has a thermal element that will
shut off the flow of gas between 240° F and
300° F.
3. The system has a flow-limiting device which
when activated, will limit the flow of gas to 10
cubic feet per hour.
4. The pressure regulator and hose assembly
provided is factory set at an outlet pressure of
11 inches water column (.4 lb. per sq. inch).
WARNING: Any attempt to adjust the regu-
lator is dangerous and could create a situa-
tion causing personal injury or property
damage. Consult your L.P. gas dealer if you
think the regulator is not working properly.
FUEL-CYLINDER SPECIFICATIONS
Any L.P. gas-supply cylinder used with this grill
must be approximately 12 inches diameter and
18 inches high. The maximum fuel capacity
must be 20 pounds of propane. Full-cylinder
weight should be approximately 38 pounds (43.7
lbs. nominal water capacity).
The L.P. cylinder must have a shut-off valve
terminating in a Type 1 L.P gas-cylinder-valve
outlet. AType 1 compatible cylinder with a Type
1 cylinder valve has a positive seating connec-
tion that does not permit gas flow until a positive
seal has been obtained.
Portable L. P. Gas Barbecue Grills
5
WARNING: Do not use natural gas in an
appliance designed for L.P. gas. Use only liquid
propane (L.P.) gas in an appliance designed for
L.P.gas.
L.P.Gas
Liquid Propane (abbreviated L.P.) gas is
stored under high pressure inside a cylinder and
vaporizes when released. It is important that
there are no leaky connections on the grill’s fuel
supply system.
The L.P. FUELSUPPLY SYSTEM
An L.P. gas grill requires a fuel delivery sys-
tem made up of an L.P gas supply cylinder, a
fuel regulator with hose and a gas-control valve.
L.P. Gas
Cylinder
Type 1 Fuel Regulator
Dual Burner Fuel-Control Valve
Cylinder Control
Valve
Fuel Supply
Hose
Valve Orifice
The L.P. Fuel Supply System
