Great Wall W1410A User manual

Specifications
Model W1410A
Processor Intel® Celeron® Processor N3350,up to 2.4G
Operating System Windows 10 Home
RAM 4GB DDR3
In-built storage 64 GB
HDD/SSD Option Slot to connect 2.5"HDD
Micro SD Slot Support
Screen Size 14.1"
Resolution 1366*768
Screen Type TN
Touch Pad Touch Pad with Multi-Touch functionality
Battery 4776127P-5000mAh 7.4V
Adapter DC 12V,2.0A
Camera 0.3 MP
Speaker Dual Speakers
Headphone/Mic Single 3.5mm Combo Jack for Headphone & Mic
Wi-Fi RTL8723BU
Bluetooth Bluetooth® Ver.4.0
HDMI Mini HDMI Type D 1.4a
LAN Rj45 10/100M LAN port
USB USB3.0*1+USB2.0*2
Dimensions 351*233*19.2 mm
Weight 1400g

Know Your GBook
Front View
1. Camera:Built-in webcam that allow you to capture video,
chat Online, and more.
2. LED Indicators: Power on, Caps Lock and Num Lock
indicator
3. Microphone: Built-in microphone that help you for
Online Audio / Video calling, and more.
4. Keypad: 78 keys keypad including Internet and MM
short keys
5. Touch Pad : Touch Pad with multi touch functionality
6. Display: High quality TN screen allows you to watch
movies, Play Games and more
7. Power ON/OFF: Long press to Power ON / OFF.

Left Side View
1. LED Indication: Red LED indication for charging.
2. Charging port: 3.5mm power connector to charge
your GBook. Use only Adapter that is provided along
with the box.
3. USB 3.0 Port: you can connect any devices (like Mouse,
Keyboard Extn. HDD/SSD etc.)
4. Mini HDMI port: it allow you to connect any external
display device, LikeProjector, LCD Monitor, etc.
(Cable not included)

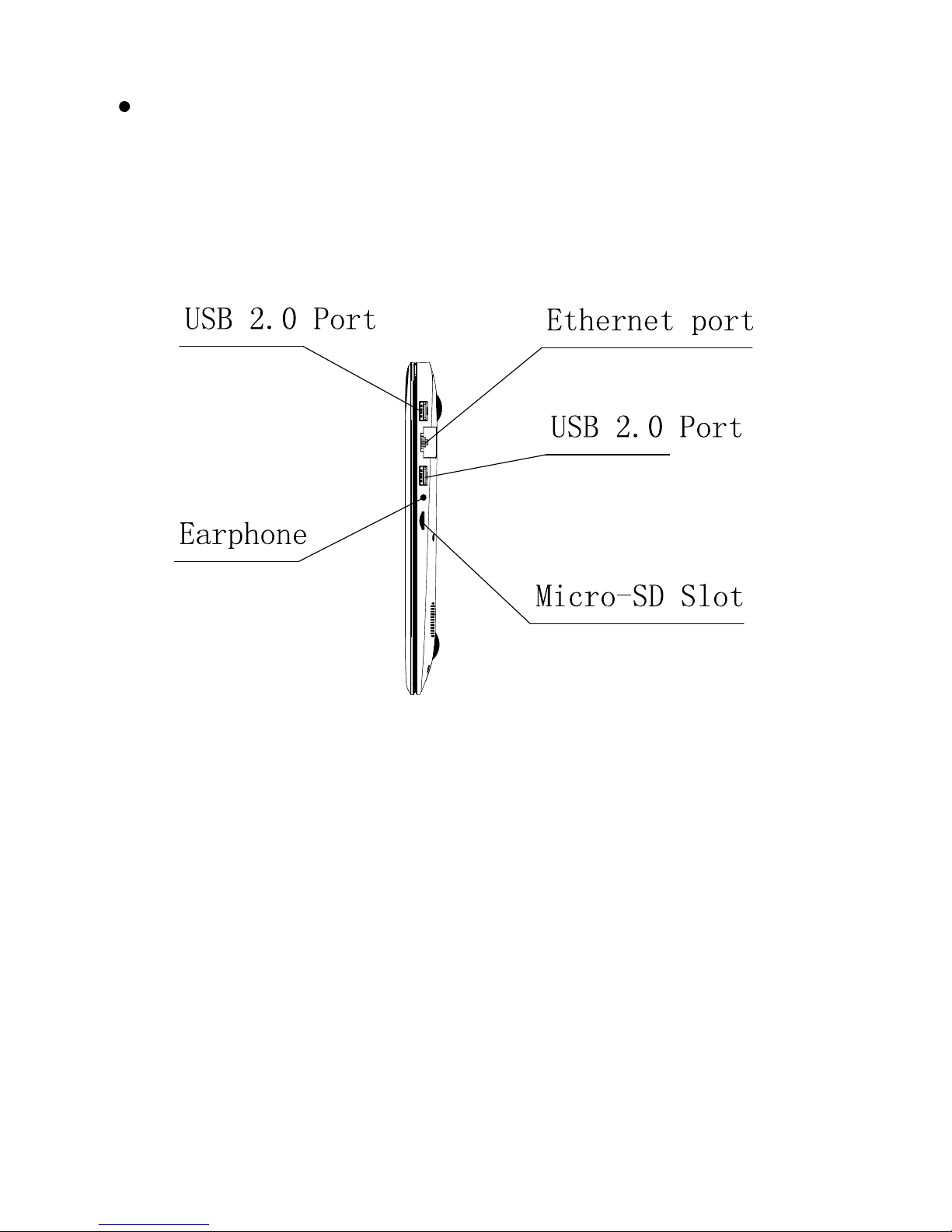

1. USB Port: You can connect any devices (like Mouse,
Keyboard, Extn. HDD / SSD, etc.)
2. Ethernet port: 10/100 based RJ45 port to connect your
device to access the Network.
3. Headphone out Jack: Single/Combo jack for Headset
& MIC
4. Micro-SD slot: expandable up to 128GB
Right Side View

1. Speaker: Dual Speakers with high quality sound allow
you to listen music, watch video, play games, and more.
2. Slot to connect HDD: Expand your storage capacity up to
1TB.
Bottom Side View

A)

Once you login to Microsoft account, it will ask your current
device password, if you have assigned password/pin to your
device then enter and click next, If not just click next. You can
either use your password or you can also use a PIN as a
password.
Once everything is done you can use the default mail app to
check your mails or else you just have to start “Microsoft edge”
browser and enter “Outlook.live.com”, it will directly log you into
your account of Microsoft.
You can also use all the web apps provided by the Microsoft in
your account

.
Here you need to go to “Services & subscriptions” tab.

Product and safety
information
Warning
Use only chargers, and accessories approved for use with
this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
For availability of approved accessories, please check
with your dealer.
Battery and charger information
Your device is powered by a rechargeable Li- Polymer battery.
The battery can be charged and discharged many times, but it
will eventually wear out. When the working and standby times
are noticeably shorter than normal, replace battery. Use only
Greatwall approved batteries, and recharge your battery only
with Greatwall approved chargers designated for this device.
the battery is being used for the first time or if the battery has
not been used for a prolonged period, it may be necessary to
connect the charger, then disconnect and reconnect it to begin
charging the battery. If the battery is completely discharged,it
may take several minutes before the charging indicator appears
on the display

Safety information
1. Please take care not to drop your GBook and to
protect it against sudden impacts.
2. You should avoid using your GBook in any
environment where the air is excessively cold,
excessively hot (-10℃~ 40℃), too humid or too dusty.
Avoid prolong ed exposure to direct sunlight.
3. Take care not to use your GBook in areas with
strong magnetic fields or around a build - up of static
electricity.
4. Do not splash or immerse your GBook with liquid.
If your GBook becomes wet shut it down immediately
and do not use it.
5. If you need to clean your GBook you should use a
clean lint - free soft cloth. Do not use liquids or cleaning
agents.
6. No warranty is offered or implied in respect of your
data in the event of damage or a fault relating to the
use of your GBook. We recommend you keep a
duplicate back-up copy of any important data of
your GBook.
7. Your GBook contains no user - serviceable parts.
Please do not attempt to open the case of your
GBook as doing so could be dangerous and will
invalidate your warranty.
