Green Energy Inverter Eco 7 Troubleshooting guide

Swimming Pool Heat Pump
User and Service manual
11022
Green Energy Inverter heat pump steel 230V Inverter type 07 horizontal
11024
Green Energy Inverter heat pump steel 230V Inverter type 10 horizontal
11026
Green Energy Inverter heat pump steel 230V Inverter type 12 horizontal
11028
Green Energy Inverter heat pump steel 230V Inverter type 16 horizontal
English ● German

INDEX
CO2 Regulation (EU)
P1~P2
ENGLISH
P3~P28
GERMAN
P29~P56

1
Regulation (EU) n° 517/2014 of 16/04/14 on fluorinated greenhouse gases and
repealing Regulation (EC) n° 842/2006
Leak checks
1. Operators of equipment that contains fluorinated greenhouses gases in quantities of 5 tons of CO2, equivalent or
more and not contained in foams shall ensure that the equipment is checked for leaks.
2. For equipment that contains fluorinated greenhouse gases in quantities of 5 tons of CO2equivalent or more, but
of less than 50 tons of CO2equivalent: at least every 12 months.
Picture of the equivalence CO2
1. Load in kg and Tons amounting CO2.
Load and Tons amounting CO2
Frequency of test
From 2 at 30 kg load = from 5 at 50 Tons
Each year
Concerning the Gaz R 410a, 2.39kg amounting at 5 tons of CO2, commitment to check each year.
Training and certification
1. The operator of the relevant application shall ensure that the relevant personnel have obtained the necessary
certification, which implies appropriate knowledge of the applicable regulations and standards as well as the
necessary competence in emission prevention and recovery of fluorinated greenhouse gases and handling safety
the relevant type and size of equipment.
Record keeping
1. Operators of equipment which is required to be checked for leaks, shall establish and maintain records for each
piece of such equipment specifying the following information:
a) The quantity and type of fluorinated greenhouse gases installed;
b) The quantities of fluorinated greenhouse gases added during installation, maintenance or servicing or due to
leakage;
c) Whether the quantities of installed fluorinated greenhouse gases have been recycled or reclaimed, including the
name and address of the recycling or reclamation facility and, where applicable, the certificate number;
d) The quantity of fluorinated greenhouse gases recovered
e) The identity of the undertaking which installed, serviced, maintained and where applicable repaired or
decommissioned the equipment, including, where applicable, the number of its certificate;
f) The dates and results of the checks carried out;
g) If the equipment was decommissioned, the measures taken to recover and dispose of the fluorinated
greenhouse gases.
2. The operator shall keep the records for at least five years, undertakings carrying out the activities for operators
shall keep copies of the records for at least five years.

2
Verordnung (EU) Nr. 517/2014 vom 16/04/14 über fluorierte Treibhausgase und die
Verordnung (EG) zur Aufhebung Nr. 842/2006
Dichtheitsprüfung
1. Die Betreiber von den Geräte, die die fluorierte Treibhausgase in Mengen von 5 Tonnen CO2-Äquivalent oder mehr enthalten und
nicht in Schäumen enthalten, müssen sicherstellen, dass das Gerät auf Dichtheit überprüft wird.
2. Für die Geräte, die fluorierte Treibhausgase in Mengen von 5 Tonnen 5 Tonnen CO2-Äquivalent oder mehr enthalten aber weniger als
50 Tonnen CO2-Äquivalent enthalten: mindestens alle 12 Monate.
Bild der Gleichwertigkeit CO2
1. Belastung von CO2 in kg und Tonnen.
Belastung und Tonnen von CO2
Häufigkeit der Prüfung
Von 2 bei 30 kg Belastung = von 5 bei 50 Tonnen
Jedes Jahr
In Bezug auf die Gaz R410a, 2,39 kg in Höhe von 5 Tonnen CO2, Engagement für die Überprüfung jedes Jahr.
Ausbildung und Zertifizierung
1. Die Betreiber der betreffenden Anwendung sollen dafür Sorge tragen, dass die zuständige Person die erforderliche Zertifizierung
erlangt hat, die die angemessene Kenntnisse der geltenden Vorschriften und Normen sowie die notwendige Kompetenz in Bezug auf
die Emissionsvermeidung und - verwertung von fluorierten Treibhausgasen und der Handhabungssicherheit der betreffenden Typen
und Größe der Ausrüstung beinhaltet.
Aufbewahrung der Aufzeichnungen
1. Die Betreiber von den Geräte, die auf Dichtheit überprüft werden müssen, müssen für jedes Gerät, das die folgenden Angaben
enthält, Aufzeichnungen erstellen und verwalten:
a) Die Menge und Art der installierten fluorierten Treibhausgase;
b) Die Mengen an fluorierten Treibhausgasen, die während der Installation, Wartung oder Service oder aufgrund von Leckagen
hinzugefügt werden;
c) Ob die Mengen der installierten fluorierten Treibhausgase wiederverwandt oder zurückgefordert wurden, einschließlich der Name
und Anschrift der Wiederverwendung oder Rückgewinnungsanlage und gegebenenfalls der Bescheinigungsnummer;
d) Die Menge der fluorierten Treibhausgase wiederhergestellt wird;
e) Die Identität des Unternehmens, das die Ausrüstung installiert, gewartet und gegebenenfalls repariert oder außer Betrieb hat,
gegebenenfalls einschließlich der Nummer des Zertifikats;
f) Datum und Ergebnisse der Prüfung durchgeführt werden;
g) Wenn das Gerät außer Betrieb hat, wurden die Maßnahmen zur Rückgewinnung und Beseitigung der fluorierten Treibhausgase
getroffen.
2. Die Betreiber bewahrendie Aufzeichnungen für mindestens fünf Jahre lang auf, wobei die Unternehmen, die die Tätigkeiten für
die Betreiber ausführen, die Aufzeichnungen für mindestens fünf Jahre lang aufbewahren soll.

3
Green Energy Inverter Swimming Pool Heat Pump
User and Service manual
INDEX
1. Specifications
2. Dimension
3. Installation and connection

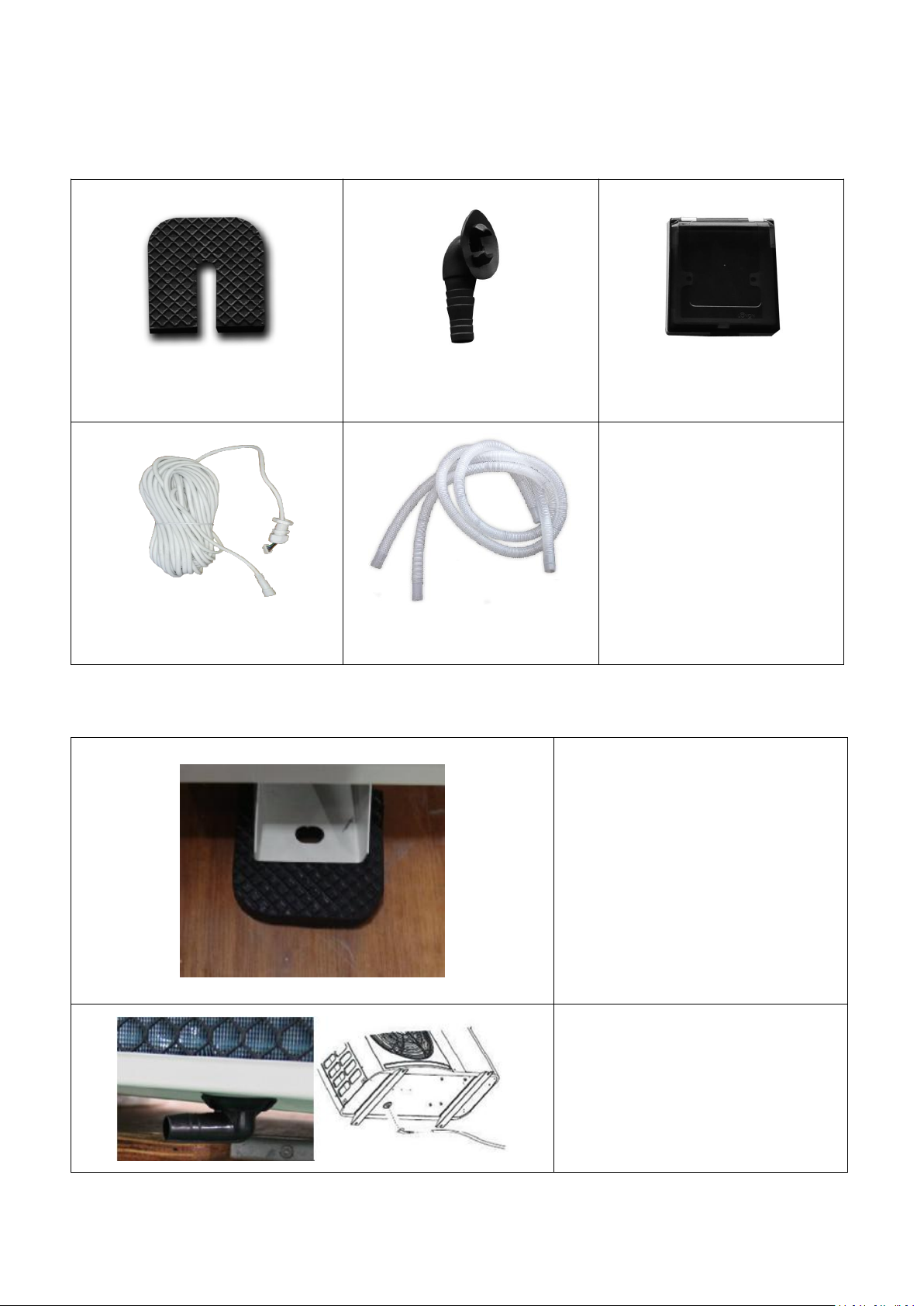

4. Accessories
5. Electrical Wiring

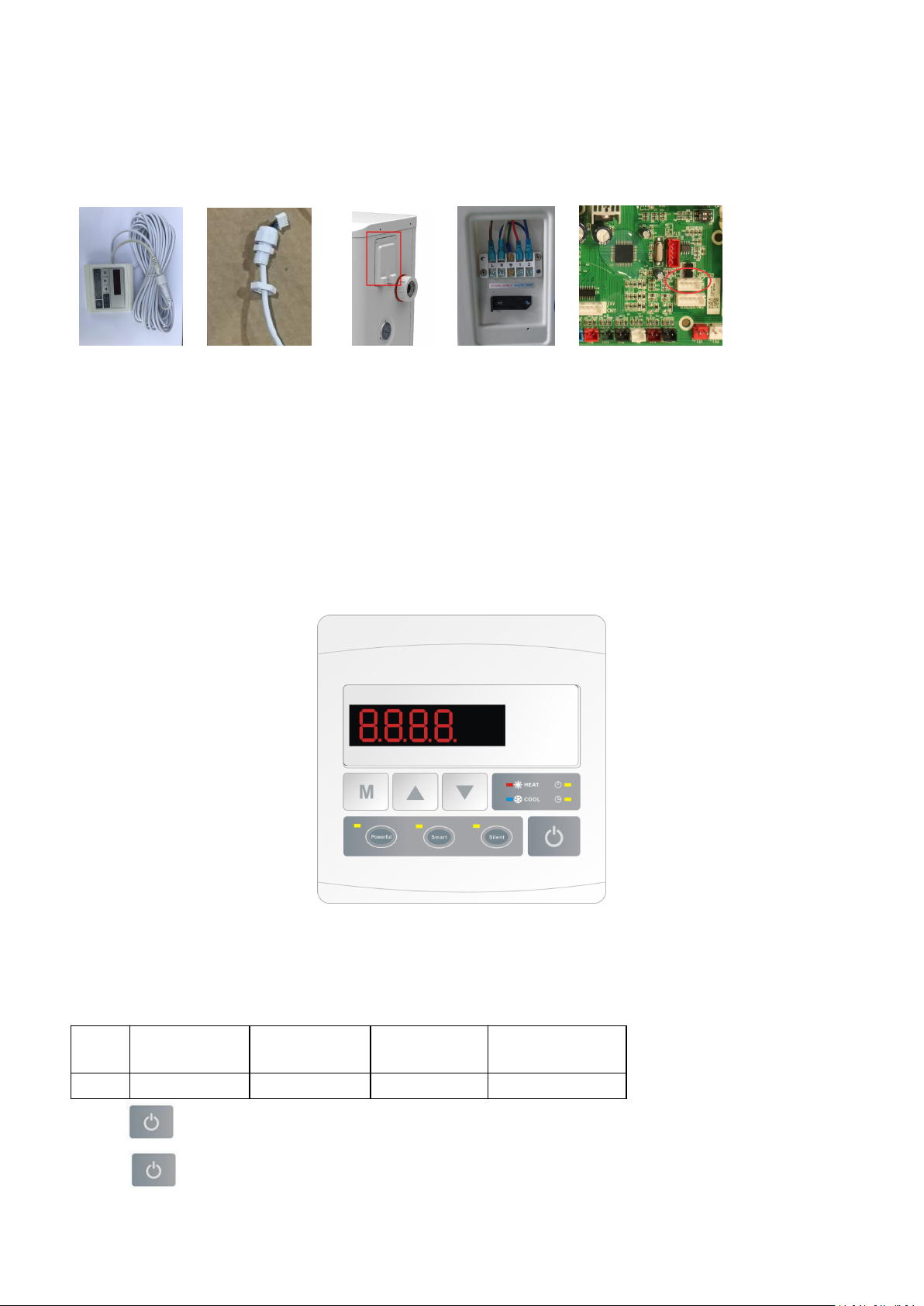

6. Display Controller Operation
7. Troubleshooting
8. Exploded Diagram
9. Maintenance
10. Warranty and returns
Thank you for using Green Energy Inverter swimming pool heat pump for your pool heating, it will heat your pool
water and keep the constant temperature when the air ambient temperature is at -12 to 50℃
ATTENTION: This manual includes all the necessary information with the use and the installation of your
heat pump.
The installer must read the manual and attentively follow the instructions in implementation and maintenance.
The installer is responsible for the installation of the product and should follow all the instructions of the
manufacturer and the regulations in application. Incorrect installation against the manual implies the exclusion of
the entire guarantee.
The manufacturer declines any responsibility for the damage caused with the people, objects and of the errors due
to the installation that disobey the manual guideline. Any use that is without conformity at the origin of its
manufacturing will be regarded as dangerous.
WARNING: Please always empty the water in heat pump during winter time or when the ambient temperature
drops below 0℃, or else the Titanium exchanger will be damaged because of being frozen, in such case, your
warranty will be lost.
WARNING: Please always cut the power supply if you want to open the cabinet to reach inside the heat pump,
because there is high voltage electricity inside.
WARNING: Please well keep the display controller in a dry area, or well close the insulation cover to protect the
display controller from being damaged by humidity.

4
1. Specifications
1.1 Technical data Green Energy Inverter pool heat pumps
Model
Inverter Eco 7
Inverter Eco 10
Inverter Eco 12
Inverter Eco 16
Item No.
11022
11024
11026
11028
* Performance at Air 27℃, Water 26℃, Humidity 80%
Heating capacity
kW
5.5-3.3
9-3.5
12-4.8
15-5.3
Power consumption
kW
1.04-0.43
1.61-0.43
2.14-0.6
2.7-0.66
C.O.P.
7.7-5.3
8-5.6
8-5.6
8-5.5
* Performance at Air 15℃, Water 26℃, Humidity 70%
Heating capacity
kW
4.5-2.4
6.2-2.5
8.2-3.5
11.5-3.8
Power consumption
kW
1-0.43
1.4-0.43
1.86-0.6
2.73-0.66
C.O.P.
5.6-4.5
5.8-4.4
5.8-4.4
5.8-4.2
Compressor type
GMCC/ TOSHIBA
MITSUBISHI
Voltage
V
220~240V/50Hz/1PH
Rated current
A
4.8
6.1
8.2
11.9
Minimum fuse
A
7
10
13
16
Advised pool volume(with
pool cover)
m³
10—25
15—30
20—60
30-100
Advised water flux
m3/h
2.5
2.8
3.7
4.9
Water pressure drop
Kpa
12
12
14
15
Heat exchanger
Twist-titanium tube in PVC
Water connection
mm
50
Fan quantity
1
Ventilation type
Horizontal
Fan speed
RPM
750-870
750-870
550-650
550-650
Power input of Fan
W
80
80
200
200
Noise level(10m)
dB(A)
47-42
47-42
50-46
50-46
Noise level(1m)
dB(A)
50-48
50-48
54-50
54-50
Net Weight
kg
51
60
75
80
Gross Weight
kg
54
63
80
85
Net Dimension
mm
935*360*545
1065*425*703
Packing Dimension
mm
1060*380*595
1135*445*843
* Above data are subjects to modification without notice.

5

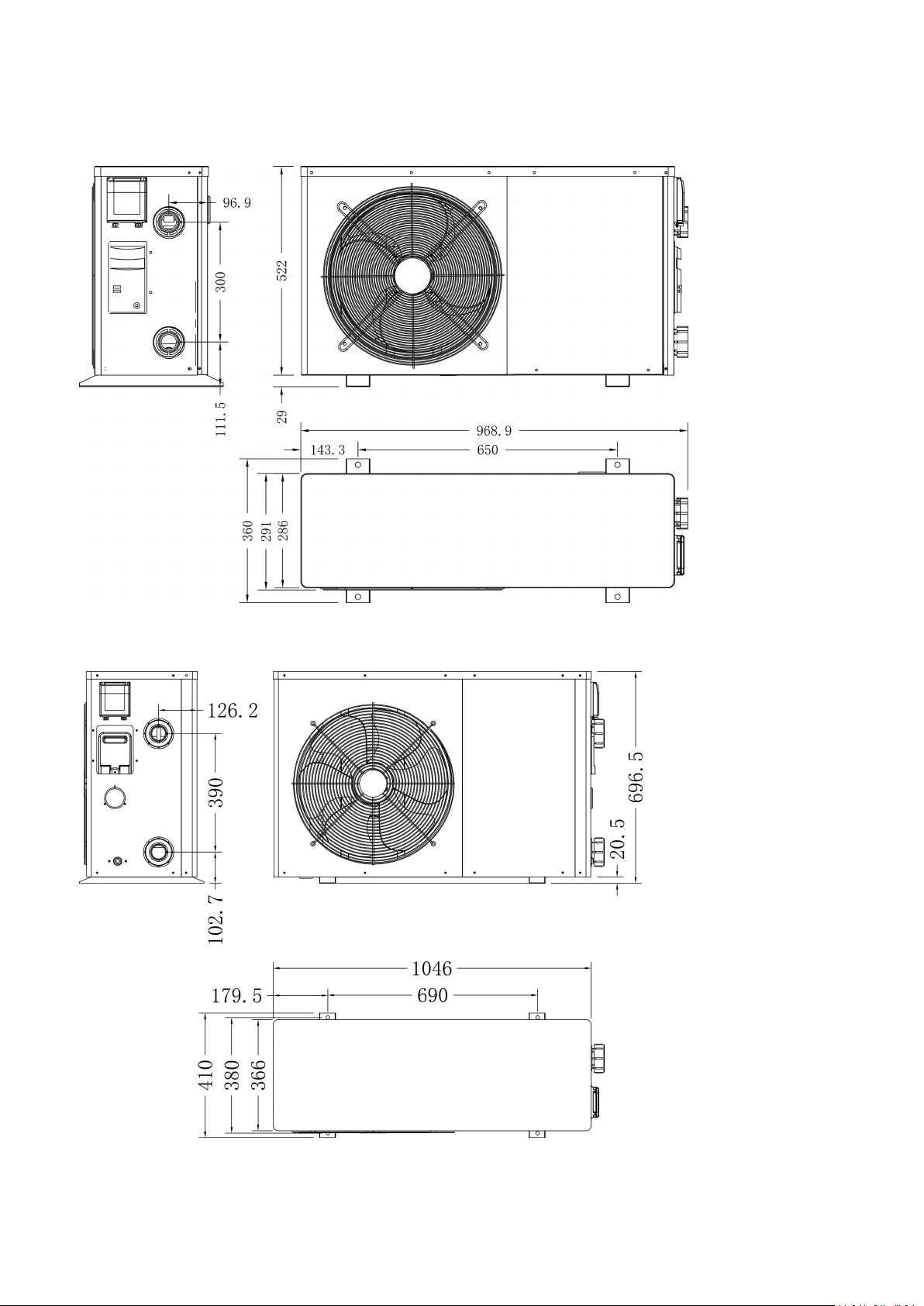

2. Dimension (mm)
Inverter Eco 7/10
Inverter Eco 12/16

6
3. Installation and connection
3.1 Notes
The factory supplies only the heat pump. All other components, including a bypass if necessary, must be provided
by the user or the installer.
Attention:
Please observe the following rules when installing the heat pump:
1. Any addition of chemicals must take place in the piping located downstream from the heat pump.
2. Install a bypass if the water flow from the swimming pool pump is more than 20% greater than the
allowable flow through the heat exchanger of the heat pump.
3. Always place the heat pump on a solid foundation and use the included rubber mounts to avoid vibration
and noise.
4. Always hold the heat pump upright. If the unit has been held at an angle, wait at least 24 hours before
starting the heat pump.

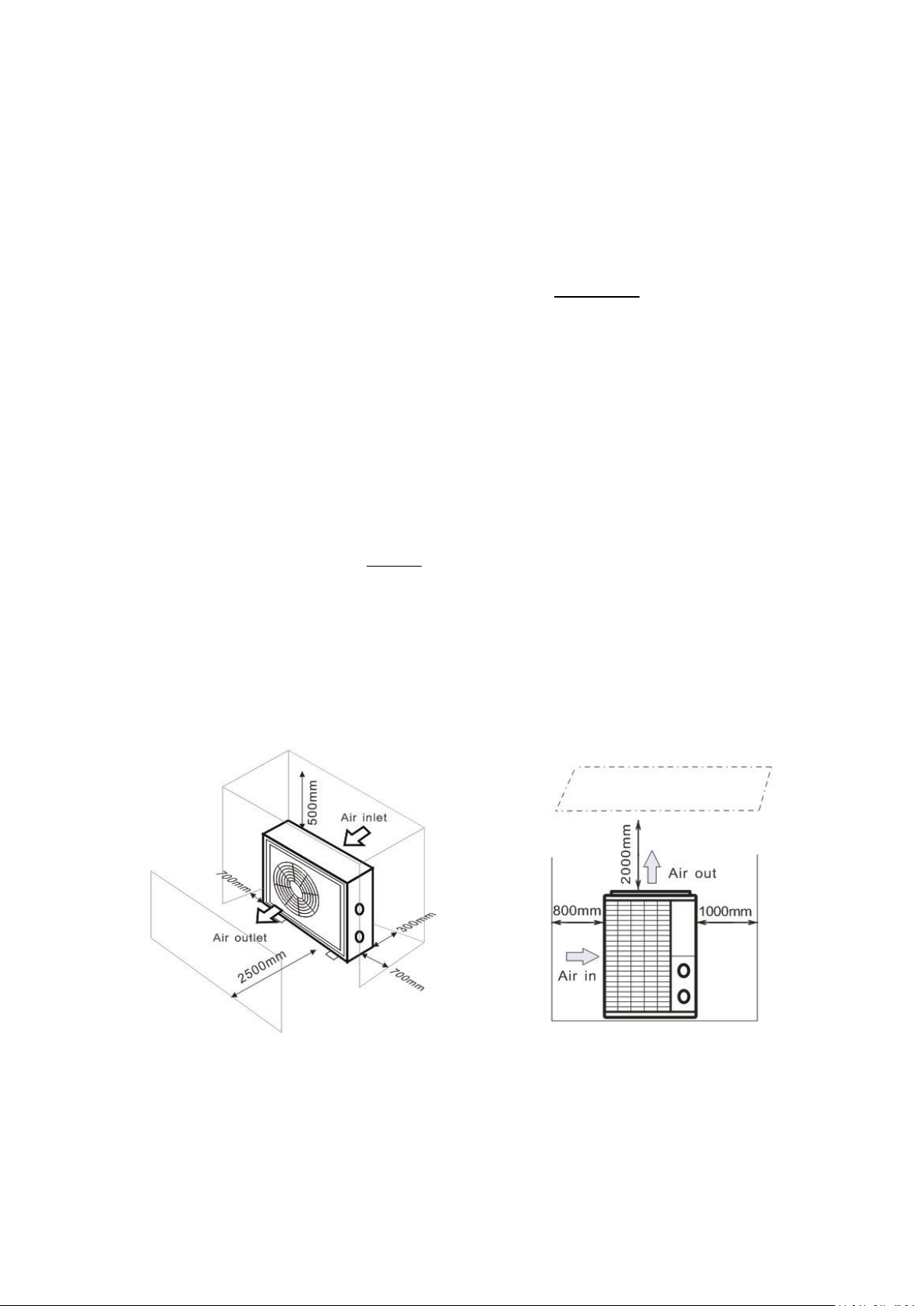

3.2 Heat pump location
The unit will work properly in any desired location as long as the following three items are present:
1. Fresh air – 2. Electricity – 3. Swimming pool filters
The unit may be installed in virtually any outdoor location as long as the specified minimum distances to other
objects are maintained (see drawing below). Please consult your installer for installation with an indoor pool.
Installation in a windy location does not present any problem at all, unlike the situation with a gas heater (including
pilot flame problems).
ATTENTION: Never install the unit in a closed room with a limited air volume in which the air expelled from the unit
will be reused, or close to shrubbery that could block the air inlet. Such locations impair the continuous supply of
fresh air, resulting in reduced efficiency and possibly preventing sufficient heat output.
See the drawing below for minimum dimensions.
3.3 Distance from your swimming pool
The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater
the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat
loss is low for distances up to 30 m (15 m from and to the pump; 30 m in total) unless the ground is wet or the
groundwater level is high. A rough estimate of the heat loss per 30 m is 0.6 kWh (2,000 BTU) for every 5 ºC

7
difference between the water temperature in the pool and the temperature of the soil surrounding the pipe. This
increases the operating time by 3% to 5%.
3.4 Check-valve installation
Note: If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to protect the heat pump
against excessively high chemical concentrations which may corrode the heat exchanger. For this reason, equipment
of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is recommended to
install a check-valve to prevent reverse flow in the absence of water circulation.
Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty.

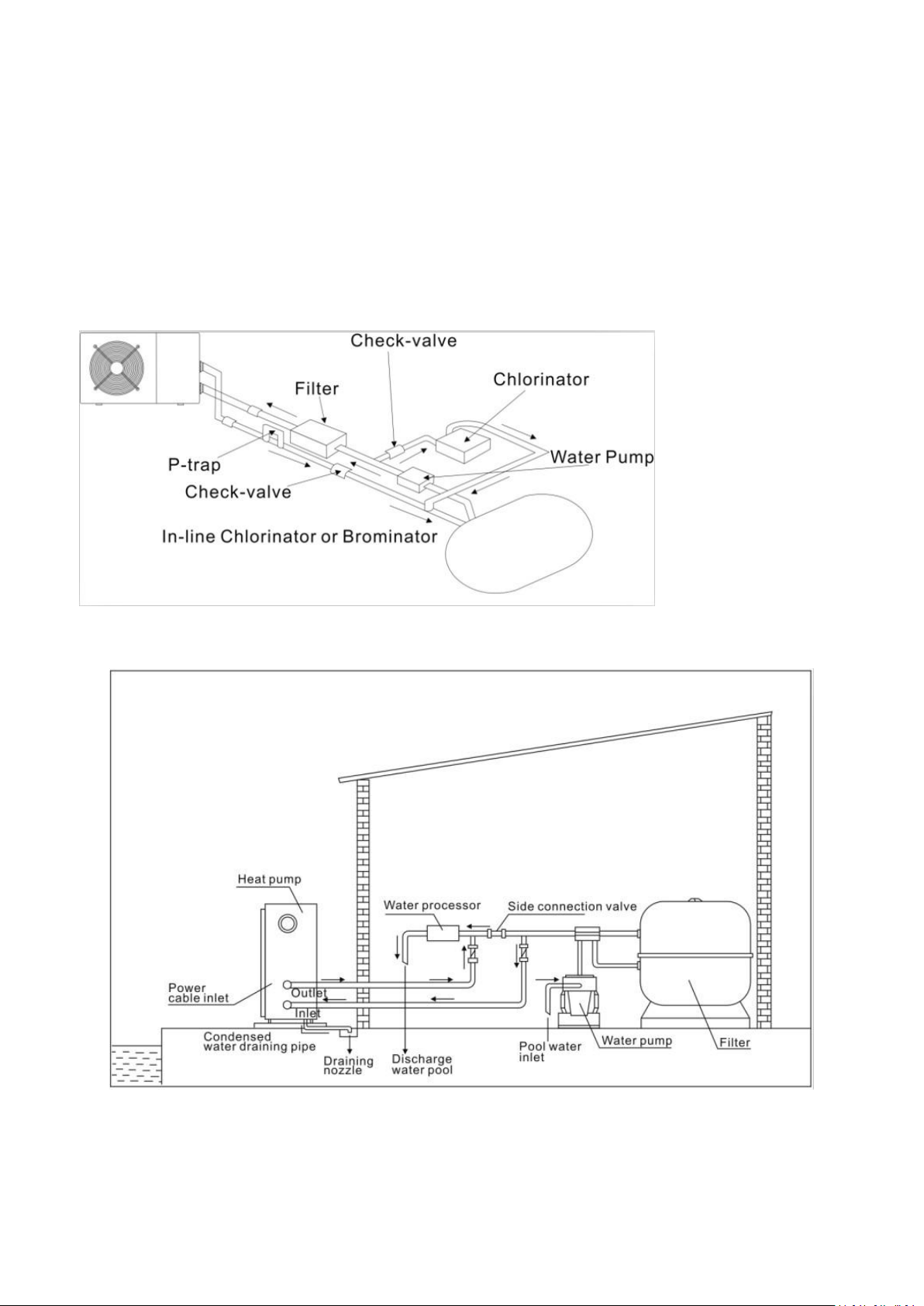

3.5 Typical arrangement
Note: This arrangement is only an illustrative example.

8

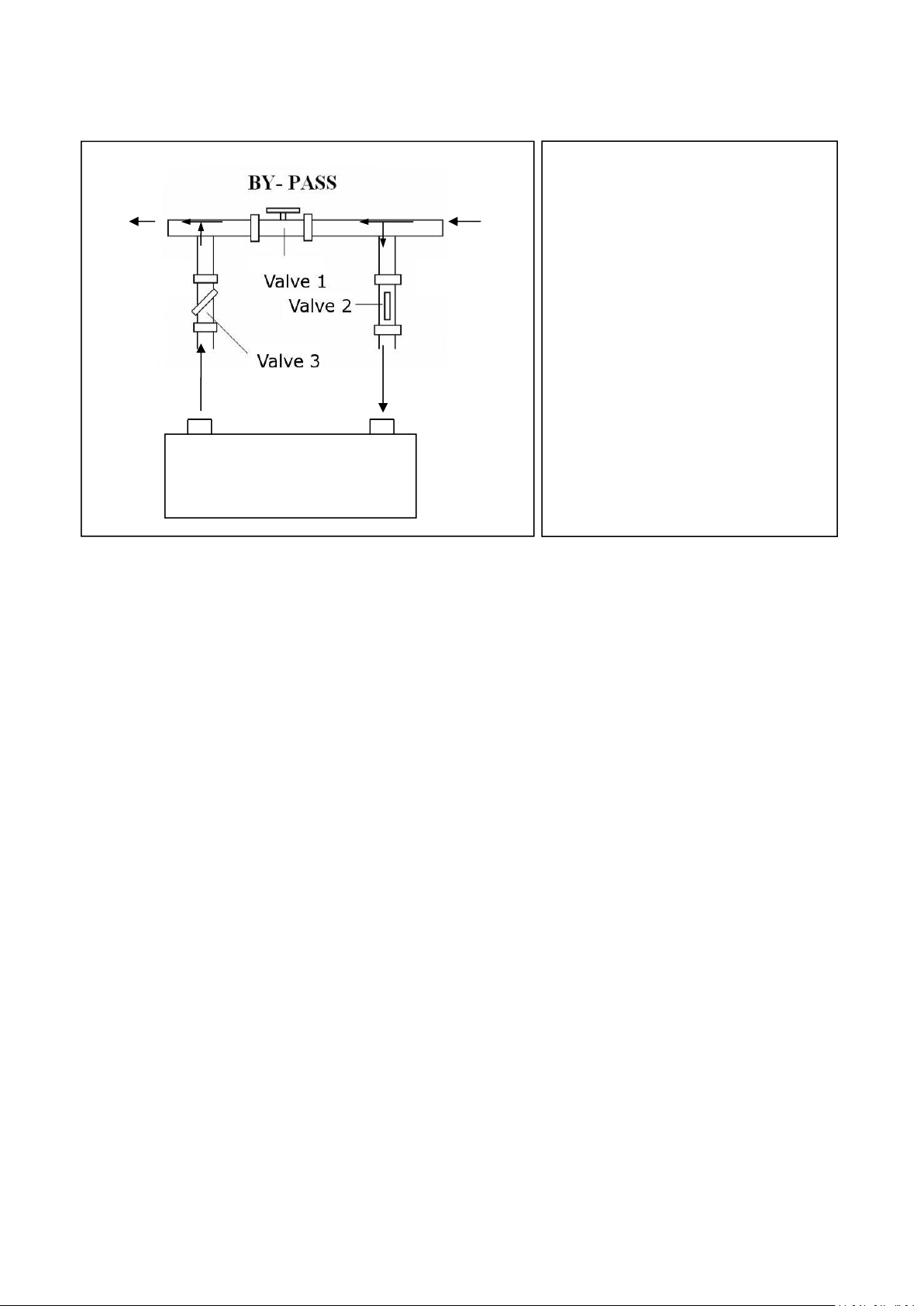

3.6 Adjusting the bypass
How to get the optimum water flow:
Please turn on the heat pump under heating function, firstly close the by-pass then open it slowly to start the heat
pump (the machine can't start running when the water flow is insufficient).
Continue to adjust the by-pass, at the meantime to check the Inlet water temp. & Outlet water temp., it will be
optimum when the difference is around 2 degree.
3.7 Electrical connection
Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only
prevents the flow of electrical current to or from the water in the pool. Earthing is still required for protection
against short-circuits inside the unit. Always provide a good earth connection.
Before connecting the unit, verify that the supply voltage matches the operating voltage of the heat pump.
It is recommended to connect the heat pump to a circuit with its own fuse or circuit breaker (slow type; curve D)
and to use adequate wiring.
Connect the electrical wires to the terminal block marked ‘ POWER SUPPLY ’.
A second terminal block marked ‘WATER PUMP ’ is located next to the first one. The filter pump (max. 5 A / 240 V)
can be connected to the second terminal block here. This allows the filter pump operation to be controlled by the
heat pump.
Note: In the case of three-phase models, swapping two phases may cause the electric motors to run in the reverse
direction, which can lead to damage. For this reason, the unit has a built-in protective device that breaks the circuit
if the connection is not correct. If the red LED above this safety device lights up, you must swap the connections of
two of the phase wires.
3.8 Initial operation
Note: In order to heat the water in the pool (or hot tub), the filter pump must be running to cause the water to
circulate through the heat pump. The heat pump will not start up if the water is not circulating.
After all connections have been made and checked, carry out the following procedure:
1. Switch on the filter pump. Check for leaks and verify that water is flowing from and to the swimming pool.
Out In
Heat Pump
Use the following procedure to adjust
the bypass:
1.Valve 1 wide open. Valve 2 &
valve 3 closed.
2.Slowly open valve 2 & valve 3 by
half, then close the valve 1 slowly
to increase the water flow to valve 2
& valve 3.
3. If it shows ‘ON’or ‘EE3’on
display, it means the water flow into
heat pump is not enough, then you
need adjust the valves to increase
the water flow through the heat
pump.
To pool
From pool

9
2. Connect power to the heat pump and press the On/Off button on the electronic control panel. The unit will
start up after the time delay expires .
3. After a few minutes, check whether the air blowing out of the unit is cooler.
4. When turn off the filter pump , the unit should also turn off automatically , if not, then adjust the flow switch.
Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take
several days to heat the water to the desired temperature. A good swimming pool cover can dramatically reduce
the required length of time.
Water Flow Switch:
It is equipped with a flow switch for protecting the HP unit running with adequate water flow rate .It will turn on wh
en the pool pump runs and shut it off when the pump shuts off. If the pool water level higher than 1 m above or b
elow the heat pump’s automatic adjustment knob, your dealer may need to adjust its initial startup.
Time delay - The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive
contact wear. The unit will restart automatically after this time delay expires. Even a brief power interruption will
trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions during this
delay period do not affect the 3-minute duration of the delay.
3.9 Condensation
The air drawn into the heat pump is strongly cooled by the operation of the heat pump for heating the pool water,
which may cause condensation on the fins of the evaporator. The amount of condensation may be as much as
several litres per hour at high relative humidity. This is sometimes mistakenly regarded as a water leak.
3.10 Operating modes for optimal use
- POWER: Used primarily at the beginning of the season because this mode allows very rapid temperature rise
- SMART: The heat pump has completed its primary task, in this mode; the heat pump is in a position to maintain
the pool water in an energy efficient manner. By automatically adjusting speed of compressor and fan the heat
pump delivers a better return.
- SILENT: In the summer months when the heat output is minimal required, the heat pump in this mode is even
more profitable. Added benefit; when the heat pump heats. It goes with minimal noise load.

10
4. Accessories
4.1 Accessories list
Anti-vibration base, 4 pcs
Draining jet, 2 pcs
Waterproof box, 1 pc
10M Signal wire, 1 pc
Water drainage pipes, 2 pcs
4.2 Accessories Installation
Anti-vibration bases
1. Take out 4 Anti-vibration bases
2. Put them one by one on the bottom of
machine like the picture.
Draining jet
1. Install the draining jet under the
bottom panel
2. Connect with a water pipe to drain out
the water.
Note: Lift the heat pump to install the jet.
Never overturn the heat pump, it could
damage the compressor.

11
Water Inlet & outlet junction
1. Use the pipe tape to connect the water
Inlet & outlet junction onto the heat
pump
2. Install the two joints like the picture
shows
3. Screw them onto the water Inlet &
outlet junction
Cable wiring
1. Connect the power supply wire
through the white hole like the picture
shows.
2. Fix the other side on joints inside the
electric box.
Water pump wiring
1. Connect the water pump wire through
the white hole marked
2. Fix the other side on joints inside the
electric box.

12
5. Electrical Wiring
5.1 SWIMMING POOL HEAT PUMP WIRING DIADRAM
Inverter Eco 7/10/12/16
NOTE:
(1)Above electrical wiring diagram only for your reference, please subject machine posted the wiring diagram.
(2)The swimming pool heat pump must be connected ground wire well, although the unit heat exchanger is
electrically isolated from the rest of the unit .Grounding the unit is still required to protect you against short circuits
inside the unit .Bonding is also required.
Disconnect: A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight of and
readily accessible from the unit .This is common practice on commercial and residential heat pumps. It prevents

13
remotely-energizing unattended equipment and permits turning off power at the unit while the unit is being
serviced.
5.4 Installation of the display deportee
Photo(1) Photo(2) Photo(3) Photo(4) Photo(5)
- The side with plug connects with the control panel (photo1)
- The other side of the signal wire. (photo2)
- Open the wiring panel and put the side without plug through the electrical box. (photo3,4)
- Insert the wiring into the disignated position (code:COM 1 or COM-L) on the PC board. (photo5)
6. Display Controller Operation
6.1 The buttons of LED wire controller
6.2 The keys and their operations
NOTE: Every time, when the heat pump connects to the power, the LED display shows a code for 3 seconds which
indicates the heat pump model.
Model
Inverter Eco 7
Inverter Eco 10
Inverter Eco 12
Inverter Eco 16
Code
1012
1016
1017
1015
6.2.1 button
Press to start the heat pump unit, the LED display shows the desired water temperature for 5 seconds, then

14
shows the inlet water temperature and the operation mode.
Press to stop the heat pump unit and show “OFF”
Notice : During the parameter checking and setting, press the to quick-exit and save the current setting .
Press again to turn on/off the machine.
6.2.2 button
Automatic mode:
Press for 5 seconds to switch to automatic mode.(default:Smart mode)
Press for 5 seconds again to exit automatic mode and switch to heating mode(default:Smart mode)
Note:Under Automatic mode, it is useless to set parameter P1 .
Operation logic of Auto Mode:
Set water temperature
(Tset)
Current water in
temperature
(Tset +2℃)
Current working
mode
After 3 minutes or
above, it will switch to
Tset (eg: 28℃)
Tset +2℃(eg:30℃)
Heating mode
Cooling mode
Tset (eg: 28℃)
Tset-2℃(eg: 26℃)
Cooling mode
Heating mode
6.2.3 and button
Clock/unclock the display:
Hold and for 5 seconds to lock/Unlock the display.
Water temperature setting :
Press or to set the water temperature directly.
Parameter checking :
Press first, then press to check the “ User parameter from d0 to d11
Code
Condition
Scope
Remark
d0
IPM mould temperature
0-120℃
Real testing value
d1
Inlet water temp.
-9℃～99℃
Real testing value
d2
Outlet water temp.
-9℃～99℃
Real testing value
d3
Ambient temp.
-30℃～70℃
Real testing value
d4
Frequency limitation code
0,1,2,4,8,16
Real testing value

15
d5
Piping temp.
-30℃～70℃
Real testing value
d6
Gas exhaust temperature
0℃～C5℃(125℃)
Real testing value
d7
Step of EEV
0～99
N*5
d8
Compressor running frequency
0～99Hz
Real testing value
d9
Compressor current
0～30A
Real testing value
d10
Current fan speed
0-1200 （rpm）
Real testing value
d11
Error code for last time
All error code
Press first, then press to check the “ User parameter from P0 to P7
If needed, press second, then press or to adjust the current parameter.
(for example: Press first, then press to enter parameter P7 checking, and press second, then
press or to adjust the parameter P7 Inlet water temp. Correction from -9 to 9.)
Code
Name
Scope
Default
Remark
P0
Manual defrost
0-1
0
1 Manual defrosting mode, 0 Normal mode
P1
Working mode
0-1
1
1 Heating mode，0 cooling mode
P2
Timer on/off
0-1
0
1 Timer on/off is under function ，0 Timer on/off is out of
function (The setting of P4 and P5 won’t work)
P3
Water pump
0-1
0
1 Always running，0 Depends on the running of compressor
P4
Current time
HH:MM
00：00
0-23:0-59
P5
Timer on
HH:MM
00：00
0-23:0-59
P6
Timer off
HH:MM
00：00
0-23:0-59
P7
Inlet water temp.
correction
-9～9
0
Default setting: 0
NOTE: Under defrosting mode, P0=1.
After defrosting finished, it will be automatic enter Normal mode, P0=0.
6.2.4 System reset function
Press and in 10s, the system will reset and display “0000” on the controller.
6.2.5
Symbol of heating, the light will be on when it is in operation.
When defrosting, the light will flash.
6.2.6
Symbol of cooling, the light will be on when it is in operation.

16
Note: When parameter P1 is on checking/adjusting, and will be flashing at the same time.
When there is on Automatic mode, and will be lighting at the same time.
6.2.7
Symbol of automatic stop, the light will be on when it is in operation.
Note: When parameter P6 is on checking/adjusting, Symbol of automatic stop light will be flash.
6.2.8
Symbol of automatic start, the light will be on when it is in operation.
Note: When parameter P5 is on checking/adjusting, Symbol of automatic start light will be flash.
6.2.9
Press this button, the light will be flash, the heat pump will operate in ‘Full output’ only.
6.2.10
While you choose the Smart, the heat pump will just operate in ‘Small output’ , ‘Medium output’ and ‘Full
output’
When in ‘Small output’, the lamp of Smart is lighting, the lamp of Silent will be flash.
When in ‘Medium output’, the light of Smart will flash.
When in ‘Full output’, the lamp of Smart is lighting, the lamp of Powerful will be flash.
6.2.11
While you choose the Silent , the heat pump will just operate in ‘Medium output’ and ‘Small output’
When in ‘Small output’, the lamp of Silent will flash.
When in ‘Medium output’, the lamp of Silent is lighting, the lamp of Smart will be flash

17
7. Troubleshooting
7.1 Error code display on LED wire controller
Error Code
Malfunction
Reason
Solution
EE 01
High pressure
failure
1. High pressure switch in bad
connection or failure
2. Ambient temperature is too
high
3. Water temperature is too
high
4. Water flow is too low
5. Fan motor speed is abnormal
or fan motor has damaged
1. Check the wiring for high pressure
switch or change a new one
2.Check the water flow or water pump
3. Check the fan motor
4. Check and repair the piping system
EE 02
Low pressure failure
1. Low pressure switch in bad
connection or failure
1. EEV has blocked or pipe
system is jammed
2. Motor speed is abnormal or
motor has damaged
3. Gas leakage
1. Check the wiring for low pressure
switch or change a new one
2. Check the EEV and piping system
Check the motor
3. Through the high pressure gauge to
check the pressure value
EE 03
Water flow failure
1. Water flow switch is in bad
connection
2. Water flow switch is
damaged
3. No/ Insufficient water flow.
1. Check the wiring for water flow switch
2. Change the water flow switch
3. Check the water pump or the
waterway system
EE 04
Over heating
protection for water
temperature (T2) in
heating mode
1. Low water flow
2. Water flow switch is stuck
and the water supply is cut off
3. T2 sensor is abnormal
1. Check the water way system
2. Check the water pump or water flow
switch
3. Check T2 sensor or change another one
EE 05
Exhaust
temperature (T6)
too high protection
1. Lack of gas
2. Low water flow
3. Piping system has been
blocked
4. Exhaust temp. Sensor failure
1. Check the high pressure gauge, if too
low, fill with some gas
2. Check the waterway system and water
pump
3. Check the piping system if there was
any block
4. Change a new exhaust temp. sensor
EE 06
Controller
malfunction
1. Wire connection is not good
or damaged signal wire
2. Controller failure
1. Check and re-connect the signal wire
2. Change a new signal wire
3. Turn off electricity supply and restart
machine
4. Change a new controller
EE 07
Compressor current
protection
1. The compressor current is
too large momentary
2. Wrong connection for
compressor phase sequence
1. Check the compressor
2. Check the waterway system
3. Check if the power in the normal range
4. Check the phase sequence connection
