Green Power EL100 User manual

EL100, EL150U, EL150
&EL150SCPC Axial Fans
Bathroom, Toilets, Utility Rooms and Kitchens
Installation Instructions
Greenwood Air Management Ltd
Greenwood House, Brookside Avenue,
Rustington, West Sussex, BN16 3LF.
Tel: [phone] Fax: [phone]
Email: [email protected]
Web: www.greenwood.co.uk
Environmental
Slotvent
GW logo col_MASTER
Environmental
Slotvent
Elite Instructions.indd 1 16/01/2012 15:43

3
2
NOTES:
�Where an open-flued oil or gas- fuelled
appliance is installed in the kitchen, extract
ventilation can cause the spillage of flue
gases. Care must be taken to ensure
ventilation is reduced as appropriate, as set
out in the building regulations. The guide to
the regulations suggests that the reduced
provision should be an extract rate 20 l/s
(72 m3/h) maximum. Kitchens with solid-fuel
appliances should not have extract fans fitted.
�The fans should not be sited where it would
be subject to a direct source of heat in excess
of 40ºC.
�For window mounting do not install fans in
opening windows. Use the correct thickness
of glass for the size of window (at least 4
mm thick) if in doubt, contact a glazier.
�Aclearance of 75 mm to be allowed on both
sides of fan for the removal of the internal
grille.
Operation

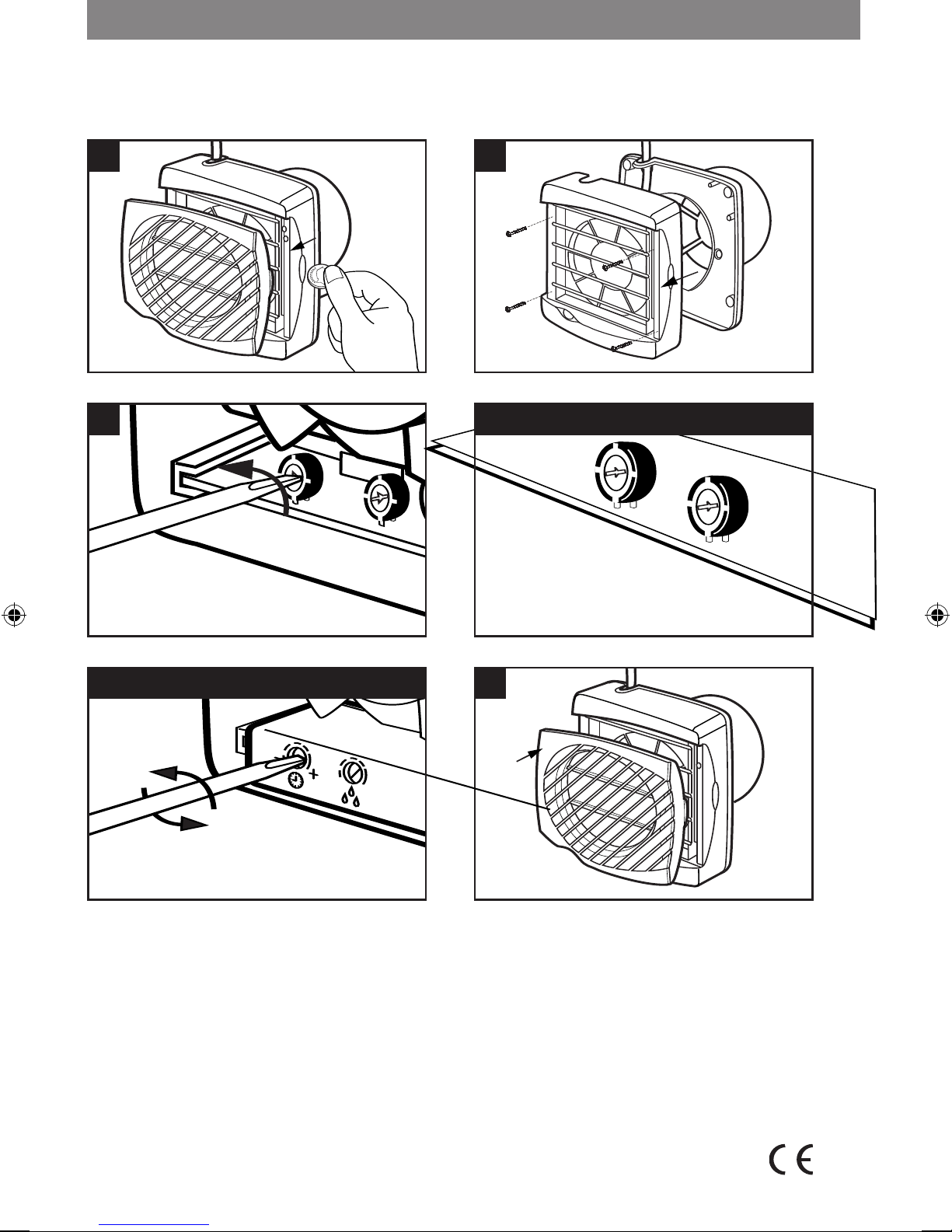

�See Sensor / Timer Adjustments section for further details.
�The Airvac Elite range of fans are fitted with electrical operated anti-backdraught
shutters which have a time delay to open or close.
Read all instructions before
commencing installations
The Airvac Elite range of fans are single and dual speed
axial flow extract fans designed to exceed Building
Regulation requirements for bathroom, toilet, kitchen or
utility room ventilation.
Types of controls and operation as follows:
TYPE EL100, EL150U, EL150
Operation by light switch, remote switch or
remote sensor.
TYPE ‘PC’ AND ‘UPC’
Operation by pull cord.
TYPE ‘TR’
Operation by light switch or remote switch.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘T’
Operation by pull cord, light switch or remote switch.
Integral pull cord will activate the fan for pre-set overrun
timer operation.If wired into room light or remote switch
the fan will operate whilst the switch is on.Switching off
will activate the overrun timer.
TYPE ‘DT’
Automatic operation by light switch or remote switch.
Pre-set delay timer facility allows up to two minutes of
fan operation before the overrun timer is actuated. If fan
is switched off after the delay timer setting the integral
overrun timer will operate the fan for the pre-set time
period.
TYPE ‘HTR’
Automatic operation by light switch or remote switch.
The fans integral humidity sensor will operate the fan
whilst the RH exceeds the pre-set activation point, When
the RH is reduced back to the activation point the linked
overrun timer continues to operate the fan for the pre-set
time period to ensure the RH level is further reduced
within the room to prevent ‘hunting’.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘PIR’
Automatic operation by an integral passive infra-red sensor
which controls the fan by detecting body movement within
7metres. The sensor picks up the movement and the fan
is activated. Once movement ceases the overrun timer will
run for the pre-set time period.
TYPE ‘MA’
Dual speed, automatic operation to slow speed and
manual operation to normal speed.
Integral humidistat operates fan to slow speed whilst the
RH (relative humidity) exceeds pre-set activation point.
When RH is reduced to the pre-set level the linked timer
continues fan at slow speed for the nominated overrun
period, further lowering the humidity level.
Manual operation by remote switch/light switch
operates the fan at normal speed.
Humidistat adjustable 50 – 90% RH.
Adjustable overrun timer (up to 30mins).
TYPE ‘SCPC’
Operation by pullcord or remote switch.
Single speed operation at pre-set rate for use where
open flued gas appliances are present. At installation
the variable speed control is set and sealed to prevent
spillage from gas appliance.
Elite Instructions.indd 2 16/01/2012 15:43

3
2
NOTES:
�Where an open-flued oil or gas- fuelled
appliance is installed in the kitchen, extract
ventilation can cause the spillage of flue
gases. Care must be taken to ensure
ventilation is reduced as appropriate, as set
out in the building regulations. The guide to
the regulations suggests that the reduced
provision should be an extract rate 20 l/s
(72 m3/h) maximum. Kitchens with solid-fuel
appliances should not have extract fans fitted.
�The fans should not be sited where it would
be subject to a direct source of heat in excess
of 40ºC.
�For window mounting do not install fans in
opening windows. Use the correct thickness
of glass for the size of window (at least 4
mm thick) if in doubt, contact a glazier.
�Aclearance of 75 mm to be allowed on both
sides of fan for the removal of the internal
grille.
Operation
�See Sensor / Timer Adjustments section for further details.
�The Airvac Elite range of fans are fitted with electrical operated anti-backdraught
shutters which have a time delay to open or close.
Read all instructions before
commencing installations
The Airvac Elite range of fans are single and dual speed
axial flow extract fans designed to exceed Building
Regulation requirements for bathroom, toilet, kitchen or
utility room ventilation.
Types of controls and operation as follows:
TYPE EL100, EL150U, EL150
Operation by light switch, remote switch or
remote sensor.
TYPE ‘PC’ AND ‘UPC’
Operation by pull cord.
TYPE ‘TR’
Operation by light switch or remote switch.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘T’
Operation by pull cord, light switch or remote switch.
Integral pull cord will activate the fan for pre-set overrun
timer operation.If wired into room light or remote switch
the fan will operate whilst the switch is on.Switching off
will activate the overrun timer.
TYPE ‘DT’
Automatic operation by light switch or remote switch.
Pre-set delay timer facility allows up to two minutes of
fan operation before the overrun timer is actuated. If fan
is switched off after the delay timer setting the integral
overrun timer will operate the fan for the pre-set time
period.
TYPE ‘HTR’
Automatic operation by light switch or remote switch.
The fans integral humidity sensor will operate the fan
whilst the RH exceeds the pre-set activation point, When
the RH is reduced back to the activation point the linked
overrun timer continues to operate the fan for the pre-set
time period to ensure the RH level is further reduced
within the room to prevent ‘hunting’.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘PIR’
Automatic operation by an integral passive infra-red sensor
which controls the fan by detecting body movement within
7metres. The sensor picks up the movement and the fan
is activated. Once movement ceases the overrun timer will
run for the pre-set time period.
TYPE ‘MA’
Dual speed, automatic operation to slow speed and
manual operation to normal speed.
Integral humidistat operates fan to slow speed whilst the
RH (relative humidity) exceeds pre-set activation point.
When RH is reduced to the pre-set level the linked timer
continues fan at slow speed for the nominated overrun
period, further lowering the humidity level.
Manual operation by remote switch/light switch
operates the fan at normal speed.
Humidistat adjustable 50 – 90% RH.
Adjustable overrun timer (up to 30mins).
TYPE ‘SCPC’
Operation by pullcord or remote switch.
Single speed operation at pre-set rate for use where
open flued gas appliances are present. At installation
the variable speed control is set and sealed to prevent
spillage from gas appliance.
32
NOTES:
�Where an open-flued oil or gas- fuelled
appliance is installed in the kitchen, extract
ventilation can cause the spillage of flue
gases. Care must be taken to ensure
ventilation is reduced as appropriate, as set
out in the building regulations. The guide to
the regulations suggests that the reduced
provision should be an extract rate 20 l/s
(72 m3/h) maximum. Kitchens with solid-fuel
appliances should not have extract fans fitted.
�The fans should not be sited where it would
be subject to a direct source of heat in excess
of 40ºC.
�For window mounting do not install fans in
opening windows. Use the correct thickness
of glass for the size of window (at least 4
mm thick) if in doubt, contact a glazier.
�Aclearance of 75 mm to be allowed on both
sides of fan for the removal of the internal
grille.
Operation
�See Sensor / Timer Adjustments section for further details.
�The Airvac Elite range of fans are fitted with electrical operated anti-backdraught
shutters which have a time delay to open or close.
Read all instructions before
commencing installations
The Airvac Elite range of fans are single and dual speed
axial flow extract fans designed to exceed Building
Regulation requirements for bathroom, toilet, kitchen or
utility room ventilation.
Types of controls and operation as follows:
TYPE EL100, EL150U, EL150
Operation by light switch, remote switch or
remote sensor.
TYPE ‘PC’ AND ‘UPC’
Operation by pull cord.
TYPE ‘TR’
Operation by light switch or remote switch.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘T’
Operation by pull cord, light switch or remote switch.
Integral pull cord will activate the fan for pre-set overrun
timer operation.If wired into room light or remote switch
the fan will operate whilst the switch is on.Switching off
will activate the overrun timer.
TYPE ‘DT’
Automatic operation by light switch or remote switch.
Pre-set delay timer facility allows up to two minutes of
fan operation before the overrun timer is actuated. If fan
is switched off after the delay timer setting the integral
overrun timer will operate the fan for the pre-set time
period.
TYPE ‘HTR’
Automatic operation by light switch or remote switch.
The fans integral humidity sensor will operate the fan
whilst the RH exceeds the pre-set activation point, When
the RH is reduced back to the activation point the linked
overrun timer continues to operate the fan for the pre-set
time period to ensure the RH level is further reduced
within the room to prevent ‘hunting’.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘PIR’
Automatic operation by an integral passive infra-red sensor
which controls the fan by detecting body movement within
7metres. The sensor picks up the movement and the fan
is activated. Once movement ceases the overrun timer will
run for the pre-set time period.
TYPE ‘MA’
Dual speed, automatic operation to slow speed and
manual operation to normal speed.
Integral humidistat operates fan to slow speed whilst the
RH (relative humidity) exceeds pre-set activation point.
When RH is reduced to the pre-set level the linked timer
continues fan at slow speed for the nominated overrun
period, further lowering the humidity level.
Manual operation by remote switch/light switch
operates the fan at normal speed.
Humidistat adjustable 50 – 90% RH.
Adjustable overrun timer (up to 30mins).
TYPE ‘SCPC’
Operation by pullcord or remote switch.
Single speed operation at pre-set rate for use where
open flued gas appliances are present. At installation
the variable speed control is set and sealed to prevent
spillage from gas appliance.
32
NOTES:
�Where an open-flued oil or gas- fuelled
appliance is installed in the kitchen, extract
ventilation can cause the spillage of flue
gases. Care must be taken to ensure
ventilation is reduced as appropriate, as set
out in the building regulations. The guide to
the regulations suggests that the reduced
provision should be an extract rate 20 l/s
(72 m3/h) maximum. Kitchens with solid-fuel
appliances should not have extract fans fitted.
�The fans should not be sited where it would
be subject to a direct source of heat in excess
of 40ºC.
�For window mounting do not install fans in
opening windows. Use the correct thickness
of glass for the size of window (at least 4
mm thick) if in doubt, contact a glazier.
�Aclearance of 75 mm to be allowed on both
sides of fan for the removal of the internal
grille.
Operation
�See Sensor / Timer Adjustments section for further details.
�The Airvac Elite range of fans are fitted with electrical operated anti-backdraught
shutters which have a time delay to open or close.
Read all instructions before
commencing installations
The Airvac Elite range of fans are single and dual speed
axial flow extract fans designed to exceed Building
Regulation requirements for bathroom, toilet, kitchen or
utility room ventilation.
Types of controls and operation as follows:
TYPE EL100, EL150U, EL150
Operation by light switch, remote switch or
remote sensor.
TYPE ‘PC’ AND ‘UPC’
Operation by pull cord.
TYPE ‘TR’
Operation by light switch or remote switch.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘T’
Operation by pull cord, light switch or remote switch.
Integral pull cord will activate the fan for pre-set overrun
timer operation.If wired into room light or remote switch
the fan will operate whilst the switch is on.Switching off
will activate the overrun timer.
TYPE ‘DT’
Automatic operation by light switch or remote switch.
Pre-set delay timer facility allows up to two minutes of
fan operation before the overrun timer is actuated. If fan
is switched off after the delay timer setting the integral
overrun timer will operate the fan for the pre-set time
period.
TYPE ‘HTR’
Automatic operation by light switch or remote switch.
The fans integral humidity sensor will operate the fan
whilst the RH exceeds the pre-set activation point, When
the RH is reduced back to the activation point the linked
overrun timer continues to operate the fan for the pre-set
time period to ensure the RH level is further reduced
within the room to prevent ‘hunting’.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘PIR’
Automatic operation by an integral passive infra-red sensor
which controls the fan by detecting body movement within
7metres. The sensor picks up the movement and the fan
is activated. Once movement ceases the overrun timer will
run for the pre-set time period.
TYPE ‘MA’
Dual speed, automatic operation to slow speed and
manual operation to normal speed.
Integral humidistat operates fan to slow speed whilst the
RH (relative humidity) exceeds pre-set activation point.
When RH is reduced to the pre-set level the linked timer
continues fan at slow speed for the nominated overrun
period, further lowering the humidity level.
Manual operation by remote switch/light switch
operates the fan at normal speed.
Humidistat adjustable 50 – 90% RH.
Adjustable overrun timer (up to 30mins).
TYPE ‘SCPC’
Operation by pullcord or remote switch.
Single speed operation at pre-set rate for use where
open flued gas appliances are present. At installation
the variable speed control is set and sealed to prevent
spillage from gas appliance.
32
NOTES:
�Where an open-flued oil or gas- fuelled
appliance is installed in the kitchen, extract
ventilation can cause the spillage of flue
gases. Care must be taken to ensure
ventilation is reduced as appropriate, as set
out in the building regulations. The guide to
the regulations suggests that the reduced
provision should be an extract rate 20 l/s
(72 m3/h) maximum. Kitchens with solid-fuel
appliances should not have extract fans fitted.
�The fans should not be sited where it would
be subject to a direct source of heat in excess
of 40ºC.
�For window mounting do not install fans in
opening windows. Use the correct thickness
of glass for the size of window (at least 4
mm thick) if in doubt, contact a glazier.
�Aclearance of 75 mm to be allowed on both
sides of fan for the removal of the internal
grille.
Operation
�See Sensor / Timer Adjustments section for further details.
�The Airvac Elite range of fans are fitted with electrical operated anti-backdraught
shutters which have a time delay to open or close.
Read all instructions before
commencing installations
The Airvac Elite range of fans are single and dual speed
axial flow extract fans designed to exceed Building
Regulation requirements for bathroom, toilet, kitchen or
utility room ventilation.
Types of controls and operation as follows:
TYPE EL100, EL150U, EL150
Operation by light switch, remote switch or
remote sensor.
TYPE ‘PC’ AND ‘UPC’
Operation by pull cord.
TYPE ‘TR’
Operation by light switch or remote switch.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘T’
Operation by pull cord, light switch or remote switch.
Integral pull cord will activate the fan for pre-set overrun
timer operation.If wired into room light or remote switch
the fan will operate whilst the switch is on.Switching off
will activate the overrun timer.
TYPE ‘DT’
Automatic operation by light switch or remote switch.
Pre-set delay timer facility allows up to two minutes of
fan operation before the overrun timer is actuated. If fan
is switched off after the delay timer setting the integral
overrun timer will operate the fan for the pre-set time
period.
TYPE ‘HTR’
Automatic operation by light switch or remote switch.
The fans integral humidity sensor will operate the fan
whilst the RH exceeds the pre-set activation point, When
the RH is reduced back to the activation point the linked
overrun timer continues to operate the fan for the pre-set
time period to ensure the RH level is further reduced
within the room to prevent ‘hunting’.
When wired into room light or remote switch the fan will
operate whilst the switch is on. Switching off will activate
the overrun timer.
TYPE ‘PIR’
Automatic operation by an integral passive infra-red sensor
which controls the fan by detecting body movement within
7metres. The sensor picks up the movement and the fan
is activated. Once movement ceases the overrun timer will
run for the pre-set time period.
TYPE ‘MA’
Dual speed, automatic operation to slow speed and
manual operation to normal speed.
Integral humidistat operates fan to slow speed whilst the
RH (relative humidity) exceeds pre-set activation point.
When RH is reduced to the pre-set level the linked timer
continues fan at slow speed for the nominated overrun
period, further lowering the humidity level.
Manual operation by remote switch/light switch
operates the fan at normal speed.
Humidistat adjustable 50 – 90% RH.
Adjustable overrun timer (up to 30mins).
TYPE ‘SCPC’
Operation by pullcord or remote switch.
Single speed operation at pre-set rate for use where
open flued gas appliances are present. At installation
the variable speed control is set and sealed to prevent
spillage from gas appliance.
Elite Instructions.indd 3 16/01/2012 15:43

Elite Instructions.indd 4 16/01/2012 15:43

Elite Instructions.indd 5 16/01/2012 15:43

7
6
1
3
5
8
A
Ø
A
2
4
6
Wall Mounting
SEE PAGE 10 FOR WIRING INSTRUCTIONS
ED1 Ø = 125 mm
ED150 Ø = 180 mm
ED1 Ø = 125 mm
ED150 Ø = 180 mm
Ø
EL100/EL150
Ducting
External Grille
7
Make sure rubber cable
grommet is fitted onto
cable before threading
cable through fan
backplate.
Push fit the four screw
cover plugs provided,
with hollow end facing
outwards if fixing to wall
using outer mounting points.
Elite Instructions.indd 6 16/01/2012 15:43

7
6
1
3
5
8
A
Ø
A
2
4
6
Wall Mounting
SEE PAGE 10 FOR WIRING INSTRUCTIONS
ED1 Ø = 125 mm
ED150 Ø = 180 mm
ED1 Ø = 125 mm
ED150 Ø = 180 mm
Ø
EL100/EL150
Ducting
External Grille
7
Make sure rubber cable
grommet is fitted onto
cable before threading
cable through fan
backplate.
Push fit the four screw
cover plugs provided,
with hollow end facing
outwards if fixing to wall
using outer mounting points.
Elite Instructions.indd 7 16/01/2012 15:43

EG1/RAB
Elite Instructions.indd 8 16/01/2012 15:43

Elite Instructions.indd 9 16/01/2012 15:43

11
10
35 mm
25 mm
6 mm
25 mm
3–Wire Connection
2–Wire Connection
1
2
1
2
3
1
3
5
8
2
4
6
Wiring Details for Fan Isolator Only
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
External wiring: Model: AX150 REV
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
External wiring: Model: AX150 REV
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
External wiring: Model: AX150 REV
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
The electrical connections must be carried out
by a qualified electrical engineer in accordance
with Part P of the Building Regulations & IEE
Wiring Regulations.
WARNING: Isolate electricity supply before
starting work.
The fans are double insulated and do not
require an earth connection.
For single units use 3 amp fuse.
When supplied from a 5 amp lighting circuit
no local fuse is required.
Specification: 230 V~50 Hz.
Refer to fan rating label for watts consumption.
Cable Sizes: 2 or 3 core.
0.75 mm2and 1.00 mm2flexible.
INSTALLATION IN AREAS REQUIRING IPX4
PROTECTION:
Mains cable section should be round, with an
outside diameter between 5.5 mm to 8.5 mm.
This will ensure sealing at the cable entry
grommet.
Wiring Diagrams
7
L1 N L
L
N
L1
Rear of block
Front
of block
Elite Instructions.indd 10 16/01/2012 15:43

11
10
35 mm
25 mm
6 mm
25 mm
3–Wire Connection
2–Wire Connection
1
2
1
2
3
1
3
5
8
2
4
6
Wiring Details for Fan Isolator Only
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
External wiring: Model: AX150 REV
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
External wiring: Model: AX150 REV
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
L
N
L
N
L1
X
External wiring for remote switch / light switch:
Models: EL100, EL150U, EL150 & EL150SCPC
Fan
Terminals
Remote /
Light Switch
Light
Optional
L
N
N
LL1
X
External wiring for pull cord operation in parallel
with room light: Models: T
Fan
Terminals
L
N
N
LL1
X
External wiring for operation with room light:
Models: DT, TR, HTR, UHTR & MA
Fan
Terminals
X
External wiring: Model: PIR, PC, UPC & SCPC
1
2
L
N3
Fan
Terminals
L
N
1
2
3
Controller
Terminals
X
External wiring: Model: AX150 REV
L
N
L
N
L1
Fan
Terminals
Light
Switch
Light
Operating
Switch
Light
The electrical connections must be carried out
by a qualified electrical engineer in accordance
with Part P of the Building Regulations & IEE
Wiring Regulations.
WARNING: Isolate electricity supply before
starting work.
The fans are double insulated and do not
require an earth connection.
For single units use 3 amp fuse.
When supplied from a 5 amp lighting circuit
no local fuse is required.
Specification: 230 V~50 Hz.
Refer to fan rating label for watts consumption.
Cable Sizes: 2 or 3 core.
0.75 mm2and 1.00 mm2flexible.
INSTALLATION IN AREAS REQUIRING IPX4
PROTECTION:
Mains cable section should be round, with an
outside diameter between 5.5 mm to 8.5 mm.
This will ensure sealing at the cable entry
grommet.
Wiring Diagrams
7
L1 N L
L
N
L1
Rear of block
Front
of block
External wiring for remote switch / light switch:
Models: EL100, EL150 & EL150SCPC
External wiring for operation with room light:
Models: TR, HTR & MA
External wiring: Models: PC & SCPC
3 Amp Fuse
3 Amp Fuse
Light
optional
Elite Instructions.indd 11 16/01/2012 15:43

12
P570-75 IssD June 2006 05-10-155BP8631
1 2
3
– Timer + – Humid +
4Model: MA only
6
To clean or service fan
�Remove grille: Lever off at side using coin or screwdriver.
�Undo screws (exposed by removal of grille), and pull the fan away from its back plate.
The fan may now be cleaned using a brush or damp cloth. DO NOT IMMERSE IN WATER.
WARNING: On no account should the interior of the fan be cleaned until the unit has been
removed from its back plate or isolated from the mains.
Sensor/Timer Adjustments
Clockwise to
increase and anti-
clockwise to decrease time
or humidity sensor sensitivity.
Clockwise to
increase and anti-
clockwise to decrease time.
90% 50%
5Model: HTR only
Clockwise to increase and anti-clockwise to
decrease time or humidity sensor sensitivity.
Model SCPC adjustments, see additional information supplied with fan.
P570-75 IssD June 2008 05-10-155
MCR 706 IssE January 2012 05-10-155
Elite Instructions.indd 12 16/01/2012 15:43
