62V CORDLESS
LAWN MOWER
Models: GMSM6200 GMPM6200
Operator’s Manual
TOLL-FREE HELPLINE: [phone]

1.1 Lawn Mower Warnings
2
3
GENERAL SAFETY RULES
READ ALL INSTRUCTIONS BEFORE USE.
1
■Do not mow your lawn in the rain. Lawn mowers should not be used in wet or damp
conditions.
■Keep children and bystanders away while operating your mower. By operating away
from bystanders, you are reducing the risk of injury by minimizing potential harm to people
other than yourself. Additionally, you can avoid unwanted distractions which may lead to
unsafe operation.
■Wear proper clothing while operating your machine. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away from moving parts.
■Always wear safety goggles or safety glasses with side shields during lawn mower
operation.
■Only use a Lawn Mower if it is the right tool for the job. Do not use a lawn mower for
any job except that for which it is intended.
■Keep your balance by maintaining a firm stance and footing. Always be sure of your
footing, particularly on slopes or stairs.
Section 1 General Safety Rules......................... 3
Section 2 Parts Diagram................................
..............................
...................................
.....................................
....................................
..................................
............................
...............................
9
Section 3 Technical Details 10
Section 4 Unpacking 11
Section 5 Assembly 12
Section 6 Operation 15
Section 7 Maintenance 20
Section 8 Storing the Mower 22
Section 9
Section 10
Troubleshooting
Limited Warranty Coverage
23
.................... 25
CONTENTS
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER
Please read all of the following before operating your machine. The safety instructions in
this manual are designed to protect your safety and guide your use of the Green Machine®
Cordless Lawn Mower. Failure to read and understand the following information may create
an unsafe workspace which could constitute risk of electric shock, explosions, heavy flying
objects, fire, or chemical reactions. Save all warnings and instructions for future reference.
WARNING! Do not use your lawn mower without the proper safety features
attached.
WARNING! Do not use any accessories other than those recommended in this
manual.
CAUTION: Only use Green Machine®batteries to operate this mower.
KNOW YOUR LAWN MOWER

■Stay alert and entirely focused when operating a power tool. Never use your lawn
mower while under the influence of alcohol or drugs. You should also avoid using your
power tool while you are feeling overly tired or ill.
■Ensure that your tool is always stored inside and out of the reach of children.
■Keep your lawn mower in good shape with regular maintenance. Your lawn mower
will be both more effective and much safer if the blades are properly maintained. Follow
the instructions for lubricating and changing accessories.
■Keep guard in place and in working order.
■Keep hands and feet away from the cutting area during use.
■Objects struck by the lawn mower blade can cause severe injuries to persons. Always
clear your lawn before using a lawn mower. If lawn mower strikes a foreign object, follow
these steps:
■Stop lawn mower. Release the switch.
■Inspect for damage.
■Repair any damage before restarting and operating the lawn mower. Use Green
Machine®recommended replacement blades only.
■Prevent unintentional starting. Ensure the power switch is in the off-position before
connecting to battery pack, picking up or carrying the mower. Carrying the mower with
your finger on the power switch or energizing the appliance that has the power switch on
invites accidents..
■Always switch off and remove your lawn mower’s battery before adjusting, storing,
or cleaning.
■Recharge only with the Green Machine®charger model GMBC6200.
■Power your mower with the Green Machine®batteries only, models GMBA6200-40
or GMBA6200-25.
■Remove all metal jewelry before handling the battery.
■Take special care in storing your battery pack. Keeping your batteries away from other
metal objects such as paper clips, coins, keys, nails, screws or other small metal objects
will ensure safe storage.
■Avoid any contact with liquid discharged from your battery pack. Liquid will only be
discharged from your battery pack in extreme cases, but it is important to be prepared. If
contact accidentally occurs, flush the exposed area with water immediately. If liquid
contacts eyes, seek medical attention.
■Avoid excessive temperatures. If your battery pack overheats to 212°F or more, the
battery is at risk of exploding. Be mindful of lengthy exposure to intense sun or fire.
■Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specified in the instructions. Charging improperly or
at temperatures outside of the specified range may damage the battery and increase the
risk of fire.
■Never charge your lawn mower in damp conditions.
■Have your lawn mower serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
■Do not use a visibly damaged battery pack or appliance.
■Do not attempt to modify or repair your mower or battery pack. Have your lawn mower
serviced by a certified dealer using genuine Green Machine®replacement parts.
■Do not open or mutilate your battery.
■Do not dispose of your battery with general household waste. Check with your local
authority or retailer to determine the best recycling and disposal practices.
4
5
1.2 Battery Lawn Mower Warnings
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

6
7
1.3 Personal Safety
1.4 Slope Operation
1.5 Children
Moving the lawn on a hill or slope can be extremely dangerous and requires extra caution.
If you feel uneasy on a slope, do not mow it. Follow these general safety tips for proper
operation of a lawn mower on a slope or hill:
■Mow sideways across the face of slopes; never up and down. Exercise extreme
caution when changing direction on slopes.
■Watch for holes, ruts, bumps, rocks. or other hidden objects. Tall grass can hide
obstacles, so you should always check thoroughly before cutting on a slope.
■Do not mow on wet grass or excessively steep slopes.
■Do not mow on or near drop-offs, ditches, or embankments.
Tragic accidents can occur if the operator is not alert to the presence of children.
Children are often attracted to the machine and mowing activity in general. Never
assume that children will remain where you last saw them.
■Keep children out of the mowing area and under the watchful care of a responsible
adult other than the operator.
■Be alert and turn the mower off immediately if a child enters the mowing area.
■Never allow children to operate the machine.
■Use extra care when approaching blind corners, shrubs, trees, or other objects
that may block your view of a child.
This product uses lithium-ion (Li-ion) batteries marked with the Call2Recycle seal,
which can be recycled at any US or Canada participating retailer or battery recycling
facility in the Call2Recycle program. To locate a participating retailer or facility
closest to you, please call 877-273-2925 or visit www.call2recycle.org. If you are
unable to locate a participating retailer or facility nearby, please consult your local
waste authority for information regarding available recycling and/or disposal options.
WARNING! This machine is capable of amputating body parts as well as throwing
objects at high speeds. Failure to observe the following safety instructions could
result in serious injury or death.
Please read all of the following before operating your machine.
■Keep clear of the discharge opening at all times. Do not put hands or feet near or
under the machine.
■Only allow responsible adults, who are familiar with the instructions, to operate this
machine.
■Always wear closed-toed shoes when operating your lawn mower.
■Avoid pulling the machine backward unless it is absolutely necessary.
■Never direct discharged grass clippings toward anyone. Avoid discharging clippings
against a wall or other obstruction.
■Stop the blade when crossing gravel surfaces.
■Do not operate the machine without the entire grass catcher, discharge guard, rear
guard, and other safety protective devices in place and working.
■Never leave a running machine unattended.
■Stop the motor and wait until the blade comes to a complete stop before cleaning
the machine, removing the grass catcher, or unclogging the discharge guard.
■Do not operate the machine in low light. Only mow the lawn in daylight or strong
artificial lights.
■Disengage the drive system before starting.
■Stay aware of your machine’s movements and behavior. If the machine should start to
vibrate or behave abnormally, stop the motor and check for the cause immediately.
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

8
9
1.6 Mower Use And Care
■Keep all nuts and bolts tight to be sure the equipment is in safe working condition.
■Never do anything to interfere with the intended function of a safety device or to
reduce the protection provided by a safety device.
■Keep the machine free of grass, leaves, or other debris build up through regular
cleaning.
■Allow the machine to cool before storing.
■If you strike a foreign object, stop and inspect the machine. Repair, if necessary,
before starting.
■Never make any adjustments or repairs with the motor running.
■Check grass catcher components and the discharge guard frequently. Replace only
with manufacturer’s recommended parts.
■Wrap the blade or wear gloves when servicing the mower blades.
■Maintain or replace safety and instruction labels as necessary.

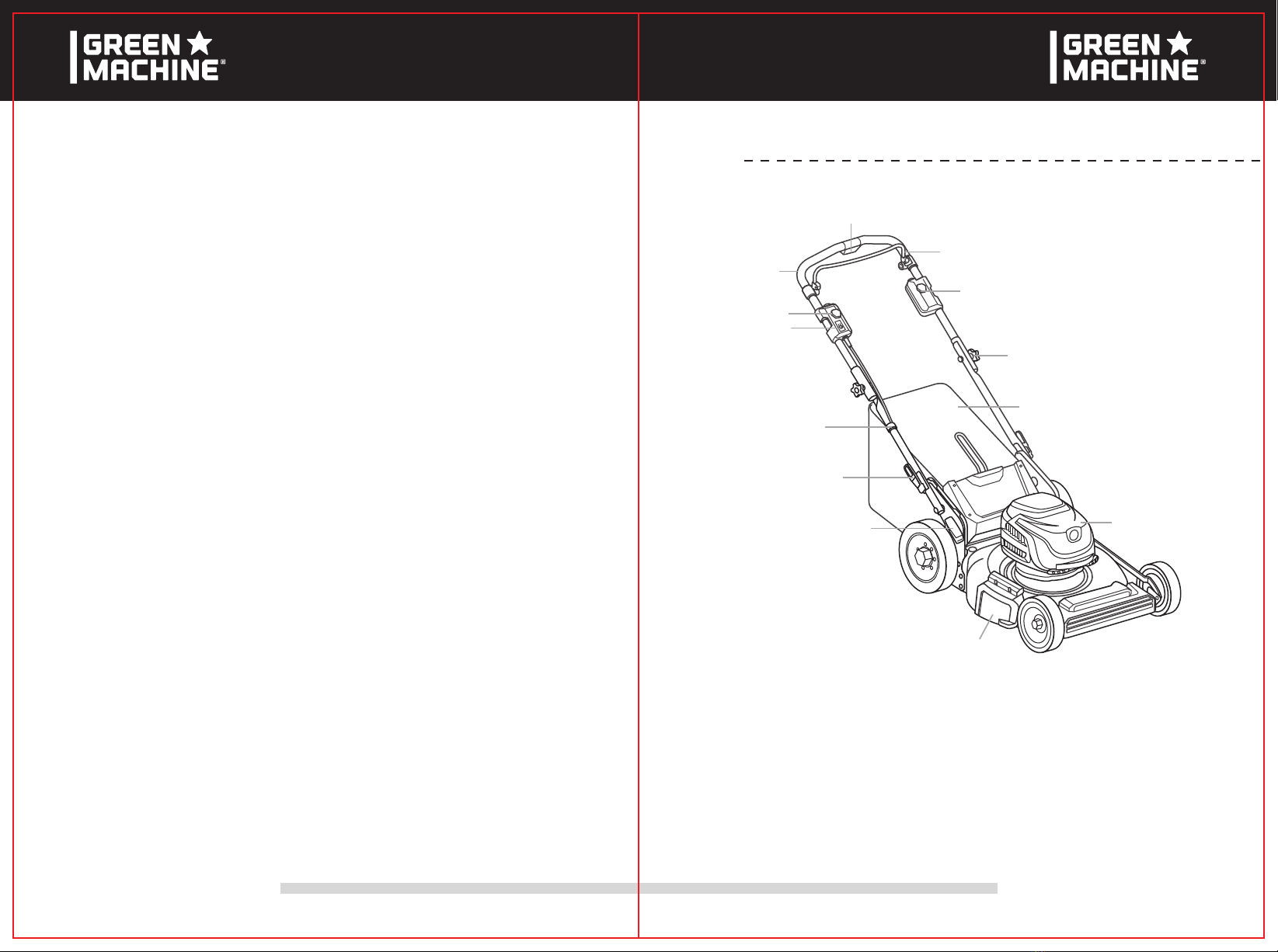

PARTS DIAGRAM
2
Variable Speed Control,
for self-propelled model only
SAVE THESE INSTRUCTIONS
Upper handle
Start button
LED switch
Cable clamp
Quick adjusting lever
Height adjusting lever
Sideward flap
Battery cover
Grass catcher
Locking knob
Self-propel control button,
for self-propelled model only
Brake control bar
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

10
11
Cordless Lawn Mower Model GMSM6200
Voltage 62Vd.c.
No Load Speed 2700RPM
Self-propelled Yes
Self-propel speed:
Blade width 22in 22in
1.12-2.61mph
(1.8-4.2 km/h)
Grass Catcher Capacity: 2.0 Bushels (70 L)
Wheel size 8 in front; 11 in rear
Net Weight 75.8lbs (34.4kg)
Height Adjustment 1.2 – 3.7 in,
6-pt adjustment
GMPM6200
62Vd.c.
2700RPM
No
NA
2.0 Bushels (70 L)
8 in front; 11 in rear
72.0lbs (32.7kg)
1.2 – 3.7 in,
6-pt adjustment
Lithium Battery Model Number GMBA6200-40
Voltage 62 Vd.c.
Capacity 4.0Ah/216Wh
Number of Battery cell 15pcs
Net Weight 3.74lbs (1.7kg)
Battery Charger Model Number GMBC6200
Input 100-120Va.c., 60Hz
Output 62Vd.c,4A
Charging Temperature Range 32 - 104 oF (0-40℃)
3TECHNICAL DETAILS
PACKING LIST
- Green Machine®Lawn Mower
- Side Discharge Deflector
- Grass Catcher Bag
- Locking Knob and Bolt Assembly
- 62V battery pack (2 for Model GMSM6200)
- Battery charger
- Operator’s manual
UNPACKING
4
Follow these unpacking instructions to begin operating your lawn mower
■Carefully remove the tool and all accessories from the carton.
■Inspect the tool carefully to make sure that nothing was damaged during transporta-
tion.
■Once you have confirmed that the tool is complete and working, dispose of all packing
materials using responsible recycling and disposal practices.
■If any parts are damaged or missing, please return the product to the place of
purchase.
■Charge your battery pack fully before operation.
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

12
13

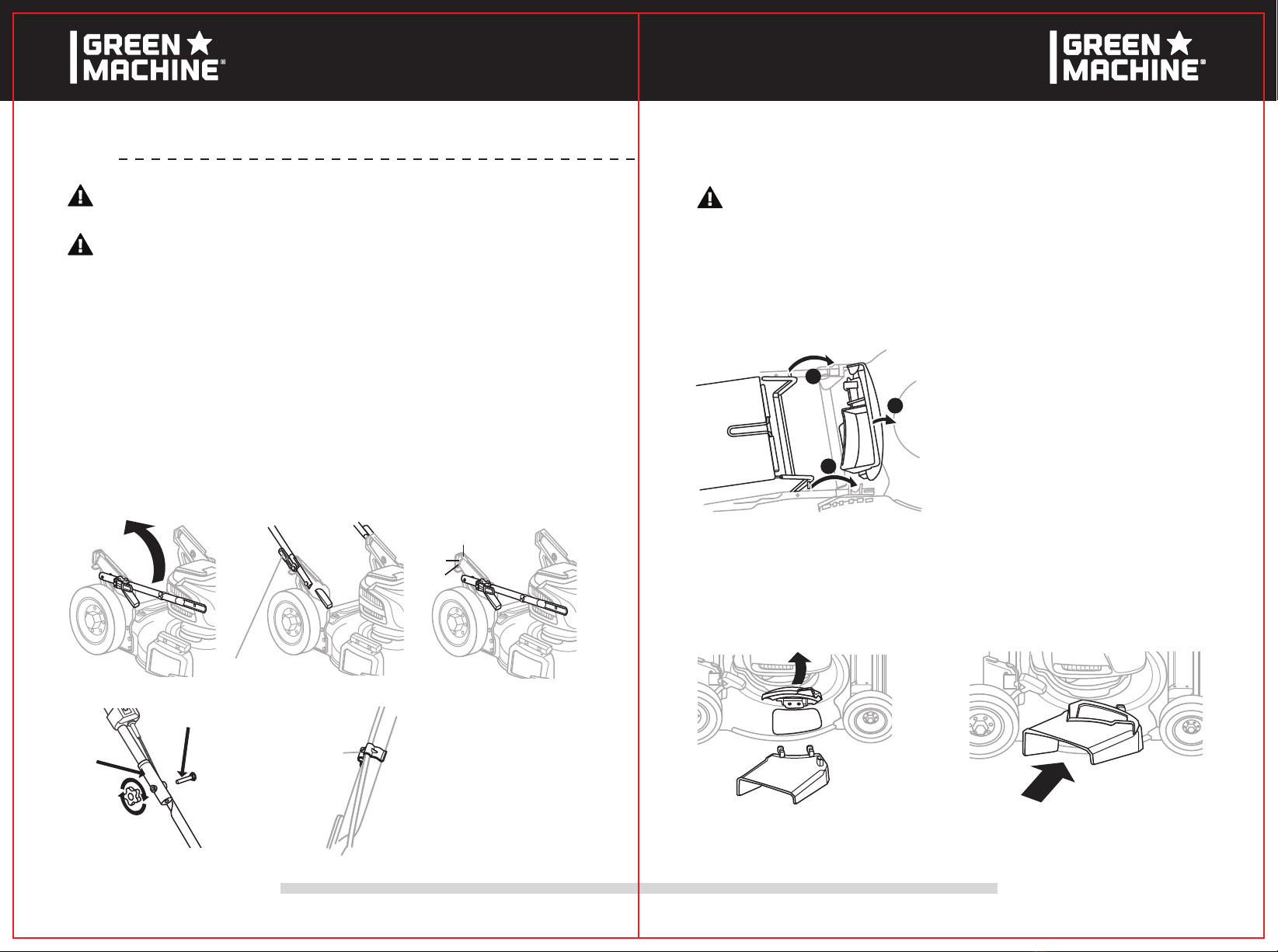

5.1 Assemble The Folding Handle
WARNING! To prevent accidental starting that could cause serious personal injury,
always remove the battery pack from the tool when assembling parts.
WARNING! Do not attempt to modify this tool or create accessories outside of the
recommendations for this mower. Any such alteration or modification is misuse and
could result in a hazardous condition leading to serious injury.
ASSEMBLY
5
1. Press and hold the quick adjusting lever to release the lower handle. Gently pivot
the handle from folding position to working position. (Fig.2A, 2B)
2. There are 3 adjusting heights to be chosen on the lawn mower. Move the lower
handle up and down to adjust to the proper height. Note: The left and right sides of
the lower handle must adjust to the same height. (Fig.2C)
3. Release the quick adjusting lever and continue to pivot the handle until you hear a
click and see the lock pin of both sides locked in position. (Fig.2B)
4. Connect the upper handle and lower handle with bolts and locking knobs. (Fig.2D)
5. Make sure the cable clamp attaches with the correct cable. (Fig.2E)
2A.giF 2B.giF
2D.giF 2E.giF
Quick adjusting
leve
Cable clamp
1
2
3
5.2 Assemblies To Manage Grass Clippings
WARNING! Ensure that motor and blade are stopped.
Grass Catcher
1. Make sure that the mulch door is shut closed.
2. Raise the rear discharge cover (1, Fig 3)
3. Attach the grass catcher by inserting its frame hooks onto slots in the rear of mower
(2, Fig.3).
4. Lower the rear cover.
Side Discharge
1. Remove the grass catcher and store it in a safe place. Lower the rear discharge cover
shut.
2 Open the mulch door. (Fig.4A)
3. Install the side discharge chute under the mulch door by sliding two hooks under the
hinge pin on door assembly (Fig.4B). The mower is now ready for discharge operation.
2
2
1
Fig. 3
Fig. 4A Fig. 4B
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

14
15
6.1 To Attach And Detach The Battery
5.3 Adjusting The Cutting Height
6.2 To Start Or Stop The Mower
Notice: Fully charge the battery before first use.
OPERATION
6
WARNING! Only make this adjustment when the blade is stopped.
WARNING! Keep your feet away from the deck when adjusting height.
Adjust the cutting height to suit your requirements. The middle position is
suitable for most lawns. Raise the wheels for low cut and lower the wheels for a
high cut.
To attach the battery
1. Open the battery door. (Fig. 7A)
2. Insert the battery pack into the battery holder (Fig. 7A). Make sure the latch on the
bottom of the pack snaps into place and that the battery pack is fully seated.
3. Close the battery door.
To detach the battery
1. Lift the battery release button. The battery should automatically disengage from the
locking position (Fig.7B).
2. Remove the battery pack from the product.
1. The height of the blade to the ground can be adjusted to 6 height positions from 1.2
inches to 3.7 inches.
2. To change the cutting height, squeeze the height adjuster lever toward the wheel (1, Fig.6).
3. Move the lever up or down to the desired position (2, Fig.6), release the lever to lock
the wheel in position.(3,Fig.6)
To start the mower
1. Make sure the battery is fully seated.
2. Press the start button (Fig.8, step 1).
3. With the start button depressed, grasp the brake control bar (Fig.8, step 2).
4. Release the start button to start your mower (Fig.8, step 3).
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
Battery
release
button
Fig. 7A Fig. 7B
Mulching Function
1. Remove the side discharge chute and store in a safe place.
2. Close the mulch door. The mower is now ready for mulching. (Fig.5)
Fig. 5
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER
1
3
Fig. 6

16
17
6.3 To Engage Variable-Speed Self-Propel Controls
6.4 To Turn On LED Headlights
6.5 Mower-Status Indicator
CAUTION: The blade starts turning as soon as the motor is started.
WARNING! The blade continues to rotate after the motor switch is off.
NOTE: The self-propel system is independent of the blade rotation. You can use the
self-propel to move your mower without the blade running. To do so, press the self-pro-
pel control button and grasp the brake control bar. Slide the variable speed control
lever to desired speed. To turn the self-propel off, release the brake control bar.
NOTE: When the variable speed control lever is pushed all the way to the OFF position,
the self-propel function will stop (Fig.9B).
Your lawn mower comes equipped with LED headlights to increase vision in poor light.
Notice that the headlights are not intended to replace proper lighting. You should
always use your lawnmower in daylight or very bright synthetic lighting.
■The LED headlights are located on the front of the battery cover (Fig.10A).
■To turn on the lights, press the LED switch on the switch box (Fig.10B).
■To turn off the headlights, press the LED switch again.
The mower is equipped with a mower status indicator which displays the charge of the
battery pack and the working status of the mower (Fig.11)
Self-Propel
Control Button
Variable Speed Control Lever
Variable Speed
Control Lever
Fig. 8
Fig. 9A
Fig. 9B
To stop the mower
Fully release the brake control bar. The blade will stop in 3 seconds.
The Green Machine®mower model GMSM6200 is equipped with variable-speed,
self-propel capability. This capability is designed to make mowing easier and more
efficient. However, proper knowledge of its use is necessary to ensure safe mowing.
1. When your mower is running, press the self-propel control button. This will make the
lawnmower move forward automatically when cutting. (Fig.9A)
2. To increase the speed, slide the variable speed control lever to the right, toward the
hare. To decrease the speed, slide the same lever to the left, toward the tortoise.
(Fig.9B)
Fig. 10A Fig. 10B
Fig. 11
LED Headlights
LED switch
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

18
19
6.6 Mowing Tips
6.7 Mulching Tips
6.8 Safety Precautions
Note: The power indicator will show green if the mower is in normal hand-push working
condition, self-propel working condition, or if the LED headlight is on.
■Release the brake control bar to turn off the mower blade when crossing any graveled
areas.
■Set the mower to the highest cutting height when mowing on uneven ground or in tall
growth.
■For effective mulching, do not cut wet grass; it tends to stick to the underside of the
deck, preventing the proper mulching of grass clippings. The best time to mow grass is
in the late afternoon, when the grass is dry and the newly cut area will not be exposed
to direct sunlight.
■For the best mulching performance, set the cutting height to remove approximately
one-third of the grass length. If the grass is overgrown, it may be necessary to increase
the cut height to make it easier to mow and to prevent overloading the motor.
■Slow your cutting pace in tall or thick grass conditions. For mulching extremely thick
or tall grass, it is advisable to first cut at a high cut-height setting, and then re-cut to the
final cut height.
■Always make sure that the blade is sharp before cutting.
■Always make sure the deflector and/or the grass catcher is in the correct position.
■Always stop the motor before removing the grass catcher or adjusting the height of
cutting position.
■Before mowing, remove all foreign objects from the lawn which may be thrown by the
machine. While mowing, stay alert for any foreign objects which may have been missed.
■Only lift the rear of the mower while it is off and the blades have stopped.
■Never place your hands underneath the under pan or into the rear discharge chute
while the motor is running.
■Before you begin, verify that the lawn is free of stones, sticks, wires, and other objects
which could damage the lawn mower or motor.
■For best results, do not mow in circles. Travel back and forth across the lawn, creating
a grid of cut grass.
■When cutting thick grass, reduce your walking speed in order to allow for a more
effective cut and a proper discharge of the clippings.
■To maintain a healthy lawn, cut off only one-third or less of the total length of the
grass.
NOTICE! A sharp blade will greatly enhance the performance of the mower,
especially when cutting tall grass. Make sure to check the sharpness of the blade
before mowing.
WARNING! If you strike a foreign object, stop the motor and remove the battery.
Thoroughly inspect the mower for any damage, and repair the damage before
restarting the mower. Excessive vibration of the mower during operation is an
indication of damage.
MOWER STATUS INDICATOR MEANING SUGGESTED ACTION
Red Flashing Light
Steady Yellow Light
Temperature Indicator
Flashing Yellow
Steady Green Light
Mower Overloaded Raise the cutting height
and restart the mower.
Low battery Stop the mower and
charge the battery.
Mower Failed to Start Call customer service
center.
No action needed.
Mower is overheated
Mower is working
properly.
Remove the battery from
the mower and move it to
the shade to cool down.
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

20
21
7.1 Cleaning The Mower
7.2 Servicing The Blade
7.3 Lubrication
The underside of the mower deck should be cleaned after each use. Grass clippings,
leaves, dirt, and other debris will accumulate over time, causing rust and corrosion.
Remove any build-up of grass and leaves on or around the drive shaft (only
GMSM6200) and motor fan. Do not use water to clean debris.
IMPORTANT NOTE: Periodically inspect the blade adapter for cracks, especially if you
strike a foreign object.
To remove, sharpen or replace the blade:
1. Turn off the mower and wait for the blade to stop rotating. Remove the battery.
2. Turn the mower on its side.
3. To remove the blade, unscrew the bolt with a suitable wrench, remove the blade and
store the bolt, washer, blade adapter with a flat key in a safe place for later reassembly
(Fig.12A)
4. The blade can be re-sharpened by removing it and either grinding or filing the cutting
edge keeping as close to the original bevel as possible. It is extremely important that
each cutting edge receives an equal amount of grinding to prevent an unbalanced
blade.(Fig.12B)
Improper blade balance will result in excessive vibration causing eventual damage to
the engine and mower. Be sure to carefully balance blade after sharpening.
The blade can be tested for balance by balancing it on a round shaft screwdriver.
Remove metal from the heavy side until it balances evenly.
5. When replacing the blade, use genuine Green Machine®replacement part, PN
2105200362.
6. To reassemble, place the blade adapter with the flat key to the shaft. Make sure that
the cutting edges face in the direction of the motor rotation. The bolt must be torqued
to 25-30N.m.(Fig.12C/Fig.12D)
For best results, you should lubricate your machine at least once a season. Lubricate
with light oil as directed below:
■Lubricate the height adjustment joint.
■Lubricate the bearings of the wheels.
■Lubricate the shaft holding the blade.
MAINTENANCE
7
WARNING! To avoid serious personal injury, always remove the battery pack
from the mower before cleaning or performing any maintenance.
WARNING! When servicing, use only manufacturer’s recommended replacement
parts and accessories. To ensure safety and reliability, all repairs should be
performed by a qualified service technician.
WARNING! Always remove the battery pack when servicing or transporting the
mower.
WARNING! Do not spray the unit with water. Instead, wipe the mower clean with
a damp cloth.
WARNING! Remove the battery from the machine before servicing the blade.
WARNING! Protect hands by using heavy gloves or a rag to grasp the cutting
blades when necessary.

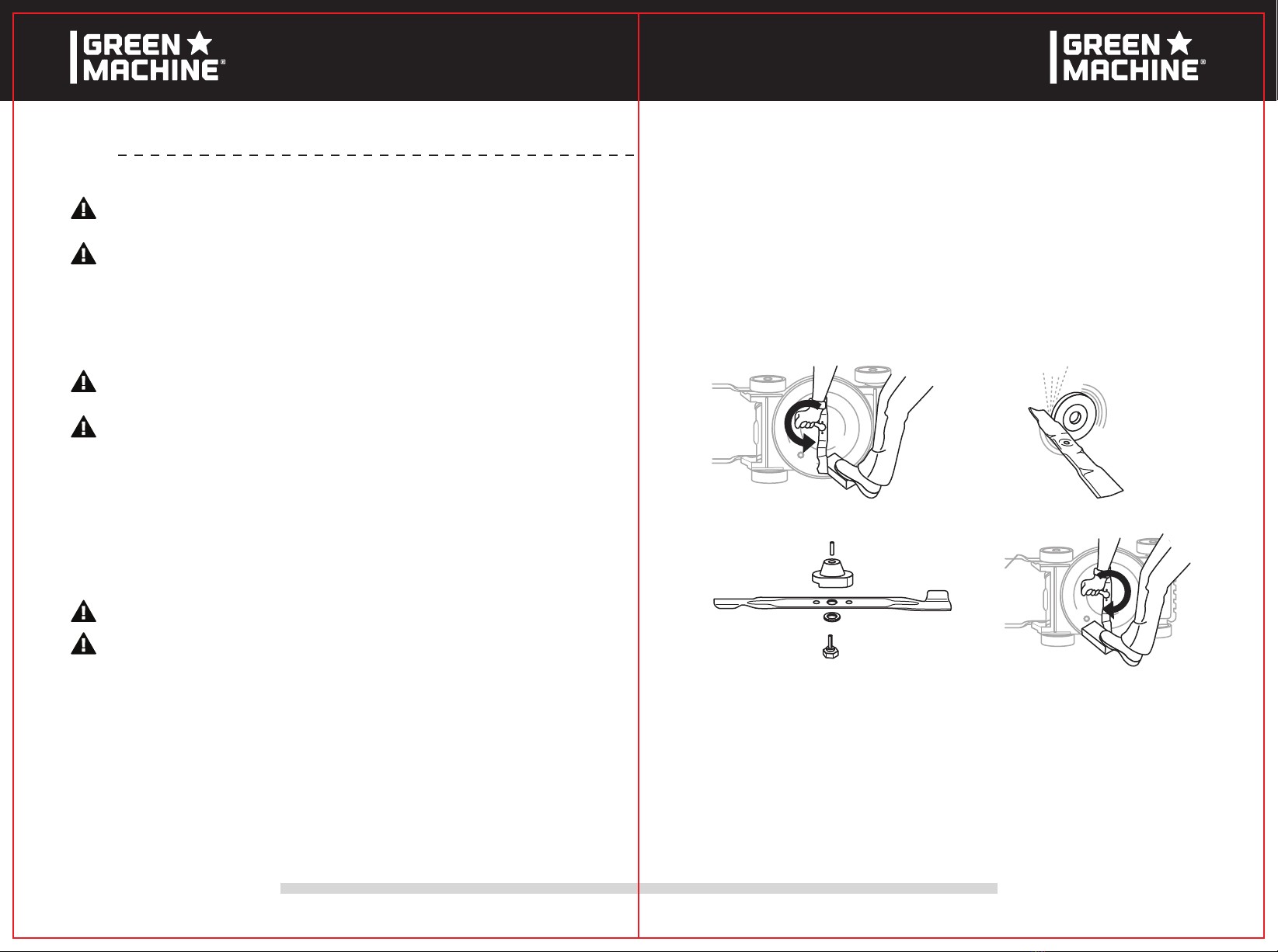

Fig. 12A
Fig. 12C
Fig. 12B
Fig. 12D
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

22
23
STORING THE MOWER
8WARNING! If the mower tips over from the upright position, mower damage or
personal injury may result. Always keep the mower stable and out of the reach of
children. If possible, lay it flat for storage.
When your lawn mower is not in use, it will be necessary to follow proper safety proce-
dures for storage. The following steps should be taken in order to prepare the lawn mower
for storage:
1. Remove the battery pack from the mower and store it at room temperature in a dry
location.
2. Clean the mower as previously described in the maintenance section.
3. Inspect the blade and replace or sharpen it if required.
4. Lubricate the mower.
5. Store the mower in a dry, clean location. Do not store it next to corrosive materials,
such as fertilizer or rock salt.
6. Store the mower in a covered, enclosed space, that is cool and dry and out of the reach
of children.
7. Do not cover the lawn mower with a solid plastic sheet. Plastic coverings trap
moisture around the mower, which causes rust.
The handle assembly can be folded away completely for storage:
1. Remove the grass catcher.
2. Move the cutting-height adjustment lever toward the front and set it to the “1” position.
3. Press and hold the quick adjusting lever with one hand to release the handle.
Gently pivot the handle from working position to the folding position of the mower.
(Fig. 13A)
4. Release the quick adjusting lever and continue to pivot the handle until you see the
lock pin of both sides engage in the locked storage position. You should hear a click
when the handle is in the correct position. (Fig.13B)
5. In a locked position, the lower handle will engage the locking button, which will
prevent starting.
6. Store the mower flat or upright (Fig.13C)
Note: The LED headlights can still be powered on in storage position.
WARNING: Before performing any maintenance or cleaning work, first remove the
battery.
WARNING: Always protect your hands by wearing heavy gloves or wrapping the
cutting edges when performing any maintenance on the mower blade.
WARNING: If you cannot fix your lawn mower using the following table, take your
machine to a specialist company or a customer service center.
9TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The mower fails
to start
The mower cuts
unevenly
The battery pack has
insufficient charge.
Charge the battery pack.
The battery pack is not fully
inserted.
Attach the battery pack to the
mower until fully seated.
The battery pack or the mower
is too hot
Allow the battery pack or the mower
to cool down.
The mower deck is clogged
with grass and/or other debris.
The blade is dull.
The grass-cutting height is not
set properly.
Move the height adjusting lever
to a suitable place.
The blade is assembled
incorrectly.
Reassemble the blade, following
the “SERVICING THE BLADE”
section in this manual.
Sharpen or replace the blade.
Clean the mower deck and make sure
that the blade can move properly.
Fig. 13A Fig. 13B Fig. 13C
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER
Locked
position
Locking
button

24
25
WARRANTY PERIOD
Item Consumer Use Commercial Use
Garden Tool
Battery and Charger
5 years 1 year
3 years 45 days
LIMITED WARRANTY COVERAGE
10
The manufacturer warrants that it will repair or replace, free of charge, any failure
due to defects in materials or workmanship or both occurring during the applicable
warranty period, subject to the exclusions and limitations set forth in the following
paragraphs. Limited warranty coverage only applies to Green Machine products that
are purchased from an authorized Green Machine®retailer located in the United
States, U.S. territories or Canada. This warranty is effective for and is subject to the
time periods and conditions stated below. For warranty service, purchaser must
make the product available to the nearest Authorized Service Dealer, which can be
found by contacting the help line at 800-541-7027.
Persons Covered This Limited Warranty
This warranty is valid for the original retail purchaser from the date of initial retail
purchase and is not transferable.
"Consumer Use"
“Consumer Use” means personal residential household use by a retail consumer.
"Commercial Use"
"Commercial Use" means uses for commercial, income producing purposes. This
warranty is void if the product has been used for rental purposes.
The mower does
not mulch properly
Grass catcher is
not filling up with
grass
Wheel drive does
not function
Lawn mower
vibrates in excess
during use
Wet grass clippings are sticking
to the underside of the deck.
Allow the lawn to dry before
mowing.
The cutting height is too low. Raise the cutting height.
The cutting height is too high. Lower the cutting height.
The grass is wet.
The blade is blunted or
damaged.
The grill is dirty.
The mower’s belt and/or gears
are damaged.
Damaged or broken wheels.
The cutting blade is loose. Tighten the outer nut.
Balance the blade set according
to the “SERVICING THE BLADE”
section of this manual.
The cutting blade is bent. Replace the blade.
Raise the cutting height.
Contact the service center. Do
not attempt to make this repair
on your own.
The motor shaft is bent.
The cutting height is too low.
The cutting blade is
unbalanced.
Check the drive wheels for
damage, performing maintenance
if necessary.
Check the belt and gears,
performing maintenance if
necessary.
Clean the grill on the grass
catcher.
Sharpen or replace the blade.
Allow the lawn to dry before mowing.
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER

26
27
GREEN MACHINE 62V CORDLESS LAWN MOWER GREEN MACHINE 62V CORDLESS LAWN MOWER
What are the limits on Manufacturer’s Liability?
A. THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE OR MISUSE OF,
OR INABILITY TO USE THE PRODUCT INCLUDING INCIDENTAL, SPECIAL, CONSEQUEN-
TIAL OR SIMILAR DAMAGES OR LOSS OF PROFITS, OR FOR ANY CLAIM BROUGHT
AGAINST PURCHASER BY ANY OTHER PARTY.THERE ARE NO EXPRESS WARRANTIES
OTHER THAN THOSE SET FORTH HEREIN. ANY WARRANTY IMPLIED BY STATE LAW
(WHETHER OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR OTHERWISE)
SHALL BE EFFECTIVE FOR ANY ORODUCT ONLY FOR THE DURATION OF THE APPLICA-
BLE LIMITED WARRANTY PERIOD LISTED ABOVE. SOME STATES OR JURISDICTIONS DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE OR JURISDICTION TO JURISDICTION. PLEASE DO NOT RETURN
THIS PRODUCT TO THE PLACE OF PURCHASE.
B. This warranty applies only to products which have been properly assembled, adjust-
ed, operated, and maintained in accordance with the instructions furnished.
C. This warranty does not apply to any product which has been subjected to alteration,
misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of
the product.
D. This warranty does not cover normal wear of parts or damage resulting from any of
the following: negligent use or misuse of the product, use on improper voltage or
current, use contrary to the operating instructions, disassembly, repair or alteration by
anyone other than an authorized service dealer. Further, the warranty does not cover:
Acts of God, such as fire, flood, hurricanes and tornadoes.
Duties of the Consumer
A. Keep the original sales receipt for the length of the limited warranty time period as
proof of purchase. Proof of purchase is required to obtain warranty. Manufacturer
reserves the right to request a copy of the receipt to verify limited warranty coverage in
the event a warranty repair is made to the product.
B. Use reasonable care in the maintenance, operation, and storage of the product as
explained in the operators manual.
C. Transportation charges on product or parts submitted for repair or replacement under
this warranty must be paid by the purchaser unless such repair or replacement is
requested by the manufacturer.
Duties of the Manufacturer
A. Any defective product or part covered by this limited warranty will be repaired or
replaced at the option of the Manufacturer.
B. Product failures covered by this limited warranty will be scheduled and repaired
according to the normal workflow of the Authorized Service Dealer to whom the product
is delivered for service depending upon the availability of replacement parts or
products.

CORTADORA DE CÉSPED
INALÁMBRICA 62V
Modelos: GMSM6200 GMPM6200
Manual del Operador
LÍNEA DE AYUDA GRATUITA: [phone]
ADVERTENCIA: Para reducir el riesgo de lesiones, el usuario debe leer y
comprender el manual del operador antes de usar este producto. Guarde estas
instrucciones para referencia futura.

1.1 Advertencias de Cortadora de Césped
2
3
REGLAS GENERALES DE SEGURIDAD
LEA TODAS LAS INSTRUCCIONES ANTES DE SU USO
1
■No corte el césped bajo la lluvia. Las cortadoras de césped no deben usarse en
condiciones mojadas o húmedas.
■Mantenga a los niños y transeúntes alejados mientras opera su cortadora de
césped. Al operar lejos de los transeúntes, está reduciendo el riesgo de lesiones al
minimizar el daño potencial a otras personas además de usted. Además, puede evitar
distracciones no deseadas que pueden provocar un funcionamiento inseguro.
■Use ropa adecuada mientras opera su máquina. No use ropa suelta o joyas. Mantenga
su cabello, ropa y guantes alejados de las piezas móviles.
■Utilice siempre gafas de seguridad o anteojos de seguridad con protección lateral
durante el funcionamiento de la cortadora de césped.
■Utilice una cortadora de césped únicamente si es la herramienta adecuada para el
trabajo. No utilice una cortadora de césped de césped para ningún trabajo que no sea
para el que está diseñada.
■Mantenga el equilibrio manteniendo una postura y un pie firmes. Asegúrese siempre
de pisar, especialmente en pendientes o escaleras.
Sección 1 Reglas Generales de Seguridad ............... 3
Sección 2 Diagrama de Partes..........................
..............................
.................................
.....................................
....................................
................................
.....................
......................
9
Sección 3 Detalles Técnicos 10
Sección 4 Desempaque 11
Sección 5 Ensamble 12
Sección 6 Operación 15
Sección 7 Mantenimiento 20
Sección 8 Almacenando la Cortadora 22
Sección 9
Sección 10
Resolución de Problemas
Cobertura de Garantía Limitada
23
................ 25
CONTENIDO
CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE
Por favor lea todo lo siguiente antes de operar su máquina. Las instrucciones de seguridad
de este manual están diseñadas para proteger su seguridad y guiarlo con el uso de la
Cortadora de Césped Inalámbrica Green Machine®. No leer y comprender la siguiente
información puede crear un espacio de trabajo inseguro que podría constituir un riesgo de
descarga eléctrica, explosiones, objetos voladores pesados, fuego o reacciones químicas.
Guarde todas las advertencias e instrucciones para futura referencia.
ADVERTENCIA: No use su cortadora de césped sin los dispositivos de seguri-
dad adjuntos.
ADVERTENCIA: No use ningún accesorio diferente a aquellos recomendados
en este manual.
PRECAUCIÓN: Use solo las baterías Green Machine®para operar esta
cortadora de césped.
CONOZCA SU CORTADORA DE CÉSPED

4
5
1.2 Advertencias de Cortadoras de Césped de Baterías
■Manténgase alerta y completamente concentrado cuando opere una herramienta
eléctrica. Nunca use su cortadora de césped bajo la influencia de alcohol o drogas.
También debe evitar usar su herramienta eléctrica cuando se sienta demasiado cansado
o enfermo.
■Asegúrese de que su herramienta esté siempre guardada dentro y fuera del alcance
de los niños.
■Mantenga su cortadora de césped en buen estado con un mantenimiento regular.
Su cortadora de césped será más eficaz y mucho más segura si las cuchillas se
mantienen adecuadamente. Siga las instrucciones para lubricar y cambiar accesorios.
■Mantenga la guarda o protección en su lugar y en funcionamiento.
■Mantenga las manos y los pies alejados del área de corte durante el uso.
■Los objetos golpeados por la cuchilla de la cortadora de césped pueden causar
lesiones graves a las personas. Limpie siempre el césped antes de usar una cortadora
de césped. Si la cortadora de césped golpea un objeto extraño, siga estos pasos:
■Detenga la cortadora de césped. Suelte el interruptor.
■Inspeccione por daños.
■Repare cualquier daño antes de reiniciar y operar la cortadora de césped. Utilice
únicamente cuchillas de repuesto recomendadas por Green Machine®.
■Evite un arranque involuntario. Asegúrese de que el interruptor esté en la posición de
APAGADO antes de conectarlo al paquete de baterías, levantar o transportar que su
cortadora de césped. Llevar que su cortadora de césped con el dedo en el interruptor o
dar energía a herramientas eléctricas que tienen el interruptor encendido puede provo-
car accidentes.
■Siempre apague y retire la batería de su cortadora de césped antes de ajustar,
almacenar o limpiar.
■Recargue solo con el cargador Green Machine®modelo GMBC6200.
■Energice su cortadora de césped únicamente con las baterías Green Machine®,
modelos GMBA6200-40 o GMBA6200-25.
■Quítese todas las joyas de metal antes de manipular la batería.
■Tenga especial cuidado al almacenar el paquete de baterías. Mantener las baterías
alejadas de otros objetos metálicos como clips, monedas, llaves, clavos, tornillos u otros
objetos metálicos pequeños garantizará un almacenamiento seguro
■Evite cualquier contacto con el líquido que se escurra del paquete de baterías. El
líquido solo se escurrirá del paquete de baterías en casos extremos, pero es importante
estar preparado. Si el contacto ocurre accidentalmente, lave el área expuesta con agua
inmediatamente. Si el líquido entra en contacto con los ojos, busque atención médica.
■Evite las temperaturas excesivas. Si su paquete de batería se sobrecalienta a 212
°F o más, la batería corre el riesgo de explotar. Tenga en cuenta la exposición prolon-
gada al sol intenso o al fuego.
■Siga todas las instrucciones de carga y no cargue la batería o la herramienta fuera
del rango de temperatura especificado en las instrucciones. La carga incorrecta o a
temperaturas fuera del rango especificado puede dañar la batería y aumentar el riesgo
de incendio.
■Nunca cargue su cortadora de césped en condiciones de humedad.
■Lleve que su cortadora de césped sea reparada por un técnico calificado que utilice
solo piezas de repuesto idénticas. Esto garantizará que se mantenga la seguridad de la
herramienta eléctrica.
■No utilice una batería o un aparato que esté visiblemente dañado.
■No intente modificar o reparar su cortadora de césped o el paquete de baterías.
Haga que su cortadora de césped sea reparada por un distribuidor certificado utilizando
piezas de repuesto originales de Green Machine®.
■No abra ni mutile su batería.
CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE

6
7
1.3 Seguridad Personal
Este producto utiliza baterías de iones de litio (Li-ion) marcadas con el sello Call2Re-
cycle, que se pueden reciclar en cualquier tienda minorista o instalación de reciclaje
de baterías participante de los Estados Unidos o Canadá. Para ubicar un minorista
participante o una instalación más cercana a usted, llame al 877-273-2925 o visite
www.call2recycle.org. Si no puede localizar un minorista participante o una
instalación cercana, consulte a la autoridad local de desechos para obtener
información sobre las opciones disponibles de reciclaje y desecho.
ADVERTENCIA: Esta máquina es capaz de amputar partes del cuerpo y de
lanzar objetos a altas velocidades. El incumplimiento de las siguientes instruc-
ciones de seguridad podría provocar lesiones graves o la muerte.
Por favor lea todas las siguientes antes de operar su máquina.
■Manténgase alejado de la abertura de descarga en todo momento. No coloque las
manos ni los pies cerca o debajo de la máquina.
■Solo permita que adultos responsables, que estén familiarizados con las instruc-
ciones, operen esta máquina.
■Siempre use zapatos con punta cerrada cuando opere su cortadora de césped.
■Evite tirar de la máquina hacia atrás a menos que sea absolutamente necesario.
■Nunca dirija los recortes de césped descargados hacia nadie. Evite descargar
recortes contra una pared u otra obstrucción.
■Detenga la cuchilla al cruzar superficies de grava.
■No opere la máquina sin el recogedor de césped completo, el protector de descarga,
el protector trasero y otros dispositivos de protección de seguridad en su lugar y
funcionando.
■Nunca deje una máquina en funcionamiento sin supervisión.
■Detenga el motor y espere hasta que la cuchilla se detenga por completo antes de
limpiar la máquina, quitar el recogedor de césped o desatascar la protección de
descarga.
■No opere la máquina con poca luz. Solo corte el césped a la luz del día o con luces
artificiales fuertes.
■Desactive el sistema de transmisión antes de comenzar.
■Sea consciente de los movimientos y el comportamiento de su máquina. Si la máqui-
na comienza a vibrar o se comporta de manera anormal, detenga el motor y verifique la
causa de inmediato.
CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE
■No deseche la batería con la basura doméstica general. Consulte con su autoridad
local o minorista para determinar las mejores prácticas de reciclaje y eliminación.

8
9
1.6 Uso Y Cuidado De La Cortadora De Césped
1.4 Operación en Pendientes
1.5 Niños
Mover la cortadora en una colina o pendiente puede ser extremadamente peligroso y
requiere de precaución adicional. Si usted se siente inquieto en una pendiente, no la
llegue a podar. Siga estos consejos de seguridad generales para una operación apropia-
da de la cortadora de césped en una pendiente o colina:
■Corte de lado a lo largo de la cara de las pendientes; nunca hacia arriba y abajo. Tenga
mucho cuidado al cambiar de dirección en las pendientes.
■Esté atento a los hoyos, surcos, baches, rocas u otros objetos ocultos. La hierba alta
puede ocultar obstáculos, por lo que siempre debe revisar detenidamente antes de cortar
en una pendiente.
■No corte césped mojado o pendientes excesivamente empinadas.
■No corte en o cerca de desniveles, zanjas o terraplenes.
Pueden ocurrir accidentes trágicos si el operador no está alerta a la presencia de niños.
Los niños a menudo se sienten atraídos por la máquina y la actividad de corte en gener-
al. Nunca asuma que los niños permanecerán donde los vio por última vez..
■Mantenga a los niños fuera del área de corte y bajo la vigilancia de un adulto
responsable que no sea el operador.
■Esté alerta y apague la cortadora de césped inmediatamente si un niño ingresa al
área de corte.
■Nunca permita que los niños operen la máquina.
■Tenga mucho cuidado al acercarse a esquinas ciegas, arbustos, árboles u otros
objetos que puedan bloquear la vista de un niño.
■Mantenga todos los tornillos y tuercas apretados para asegurarse de que el equipo
esté en condiciones de trabajo seguras.
■Nunca haga nada que interfiera con la función prevista de un dispositivo de seguridad
o para reducir la protección proporcionada por un dispositivo de seguridad.
■Mantenga la máquina libre de césped, hojas u otros residuos acumulados mediante
una limpieza regular.
■Deje que la máquina se enfríe antes de guardarla.
■Si golpea un objeto extraño, deténgase e inspeccione la máquina. Repare, si es necesa-
rio, antes de comenzar.
■Nunca realice ajustes o reparaciones con el motor en marcha.
■Revise los componentes del recogedor de césped y la protección de descarga con
frecuencia. Reemplace solo con las piezas recomendadas por el fabricante.
■Envuelva la cuchilla o use guantes cuando le dé mantenimiento a las cuchillas de la
cortadora de césped.
■Mantenga o reemplace las etiquetas de seguridad e instrucciones según sea necesario.
DIAGRAMA DE PARTES
2
Control de velocidad variable,
solo para modelo autopropulsados
GUARDE ESTAS INSTRUCCIONES
Botón de
arranque
Interruptor
LED
Abrazadera
del cable
Palanca de
ajuste rápido
Palanca de ajuste
de altura
Guarda de descarga lateral
Cubierta de
batería
Recogedor de césped
Perilla de bloqueo
Botón de control de autopropulsión,
solo para el modelo autopropulsado
Barra de control de freno
CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE

10
11
Modelo de Cortadora de
Césped Inalámbrica GMSM6200
Voltaje 62Vd.c.
Velocidad sin Carga 2700RPM
Autopropulsión Si
Velocidad de autopropulsión:
Ancho de cuchilla 22 pulgadas 22 pulgadas
1.12-2.61mph
(1.8-4.2 km/h)
Capacidad del Recogedor de Césped:
2.0 Bushels (70 L)
Tamaño de Llanta 8 en frente; 11 en la
parte trasera
8 en frente; 11 en la
parte trasera
Peso Neto
Ajuste de Altura 1.2 – 3.7 in, Ajuste
de 6 partes
1.2 – 3.7 in, Ajuste
de 6 partes
GMPM6200
62Vd.c.
2700RPM
No
NA
2.0 Bushels (70 L)
Número de Modelo de Batería de Litio
GMBA6200-40
Voltaje 62 Vd.c.
Capacidad 4.0Ah/216Wh
Número de Célula de Batería 15 piezas
Peso Neto
Número de Modelo del Cargador
de Baterías
GMBC6200
Voltaje de Entrada 100-120Va.c., 60Hz
Voltaje de Salida 62Vd.c,4A
Rango de Temperatura de Carga 32 - 104 oF (0-40℃)
3DETALLES TÉCNICOS
LISTA DE EMPAQUE
- Cortadora de Césped Green Machine®
- Deflector de Descarga Lateral
- Bolsa Recogedora de Césped
- Ensamble de Perno y Perilla de Bloqueo
- Paquete de batería de 62V (2 para el Modelo GMSM6200)
- Cargador de batería
- Manual del operador
DESEMPAQUE
4
Siga las siguientes instrucciones de desempaque para empezar a operar su cortadora
de césped
■Retire con cuidado la herramienta y todos los accesorios de la caja.
■Inspeccione la herramienta con cuidado para asegurarse de que no haya ningún
daño durante el transporte.
■Una vez que haya confirmado que la herramienta está completa y funcionando,
deseche todos los materiales de embalaje utilizando prácticas responsables de recicla-
je y eliminación.
■Si falta alguna pieza o está dañada, devuelva el producto al lugar de compra.
■Cargue la batería completamente antes de la operación.
75.8lbs (34.4kg) 72.0lbs (32.7kg)
3.74lbs (1.7kg)
CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE CORTADORA DE CÉSPED INALÁMBRICA 62V GREEN MACHINE
