Greenwald digicoin II: User manual

INSTRUCTIONS FOR
REMOTE PROGRAMMER
Greenwald Industries
INS. 2491 • REV. A

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 32 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A
greenwaldindustries.com • Customer Service: 800-221-0982
Greenwald Industries
212 Middlesex Avenue
Chester, CT 06412

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 3
Button Function Overview:
Long Press: Hold F button for >= 2 seconds
Quick Press: Quickly press F button without holding it down
Press and Hold: Press and hold F button until running lights are displayed
Remote will start in running mode (LED display will be blinking)
To enter the main menu, Press and hold (Long Press >=2 sec) the F button
To scroll through the menu Quick Press the + or - button
To choose a menu function Quick press the F button
To make a selection within a menu function Press the + or - button
To set programming Press and hold the F button
To escape (go back) through a menu, Press and hold (Medium Press <=1 sec) the F button
until screen returns to previous selection
1.75"
tH
5.25"
image not to scale
INCREASE
DECREASE
FUNCTION
PN# 46-1001 • INS. 2491 REV. A
REMOTE PROGRAMMER
Greenwald Industries
EN21111

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 54 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A
This page intentionally left blank

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 5
INSTRUCTIONS FOR REMOTE PROGRAMMER
Table of Contents
tH
TEACH - Coin Training
Add a new coin or token.................................................................................... 6-7
PL
PULSES - Set Pricing
Adjust number of pulses to control pricing......................................................8
Co
COIN OUTPUT
Chooses output pin (1 or 2) ..................................................................................9
to
TOLERANCE - Adjusts coin/token acceptance
Ensure slugs are not accepted............................................................................10
En
ENABLE
Activate or deactivate a channel.......................................................................11
rS
RESET CHANNEL
Reset a specied channel to the factory default ...........................................12
rC
RECOVERY
Reset all settings to factory defaults ................................................................13
REMOTE CONTROL FUNCTIONS FLOW CHART
Overview .................................................................................................................14
greenwaldindustries.com • Customer Service: 800-221-0982
Greenwald Industries
212 Middlesex Avenue
Chester, CT 06412
PN# 46-1001

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 76 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A

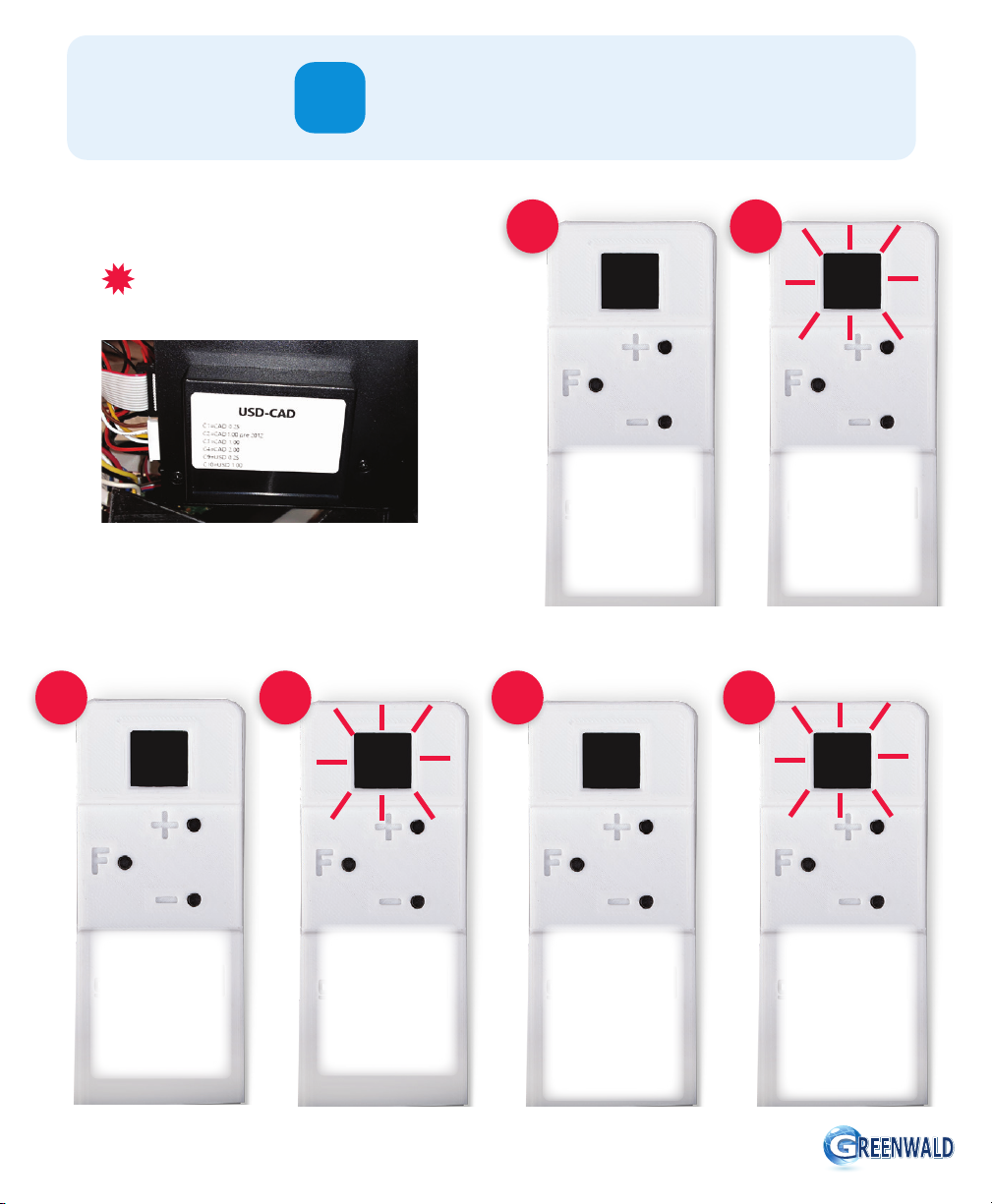

Factory set channels are shown on the
sticker on the digicoin II unit
TEACH Coin Training
Add a new coin or token
digicoin II coin drops are preprogrammed to
accept coins of varying types and denominations.
Be sure to select an unused channel for a
new coin or token unless you want to
override an existing channel. tH CH
Long press the F
button to enter
the tH Menu
Quick press the F
button (CH will
be blinking).
Quick press the F
button again
tH
1 2
c1
Press the + or -
buttons to select
desired channel
(c1-c16)
3
PL 2Co
Quick press the
F button to set
pulses (PLwill be
blinking )
Quick press the F
button to select
the number of
pulses, use the + or
- button to choose
(1-99). Quick press
the F button to
conrm
Quick press the F
button to select
the coin output.
Choose 01 or
02 using the +
or - button. Quick
press the F button
to enter coin drop
mode for training.
4 5 6

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 7
En YE En
Quick press the F
button to conrm
the channel
selection.
Quick press the
F button again
Use the + or -
button to choose
NO or YE.
Quick press the F
button to select.
Press and hold the
F button to conrm.
Display will return
to running lights.
Coin is now
trained and
enabled
c1
Use the + or -
button to select
the same channel
previously chosen
in step 3.
00
Drop 6 coins.
Display will count
up to 06 and
return to tH.
(coins will drop
into the return
slot)
7
EnEn CH c1
Press + to go to
the En menu to
enable the coin
you just trained.
Quick press the F
button to enter
the select channel.
mode (CH will
be blinking)
Quick press the F
button to select
the channel
(c1-c16) mode
8 9 10
11 12 13 14

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 98 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A
The digicoin II can be
programmed to emit a
number of pulses that
coincide with the price
determined for a particular
coin or token.
PLPL CH c1
Long press the F
button to enter
the main menu
and press + to
enter the PL
menu
c1 PL 1PL
Quick press the F
button to enter
the select channel.
mode (CH will be
blinking)
Quick press the F
button to enter
select channel
(c1-c16) mode.
Use the + or - to
select the channel
Use the + or -
button to scroll
to the desired
channel (c1-c16).
Quick press the F
button to select
the channel.
(PL will be blinking)
Quick press the F
button to enter the
numbered pulse
choices.
Use the + or -
button to choose
the number of
pulses. Quick press
the F button to
conrm.
Press and hold the
F button to set the
pulse choice.
Display will return
to running lights.
PULSES - Set Pricing
Adjust number of pulses to control pricing
PL
123
4 5 6 7

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 9

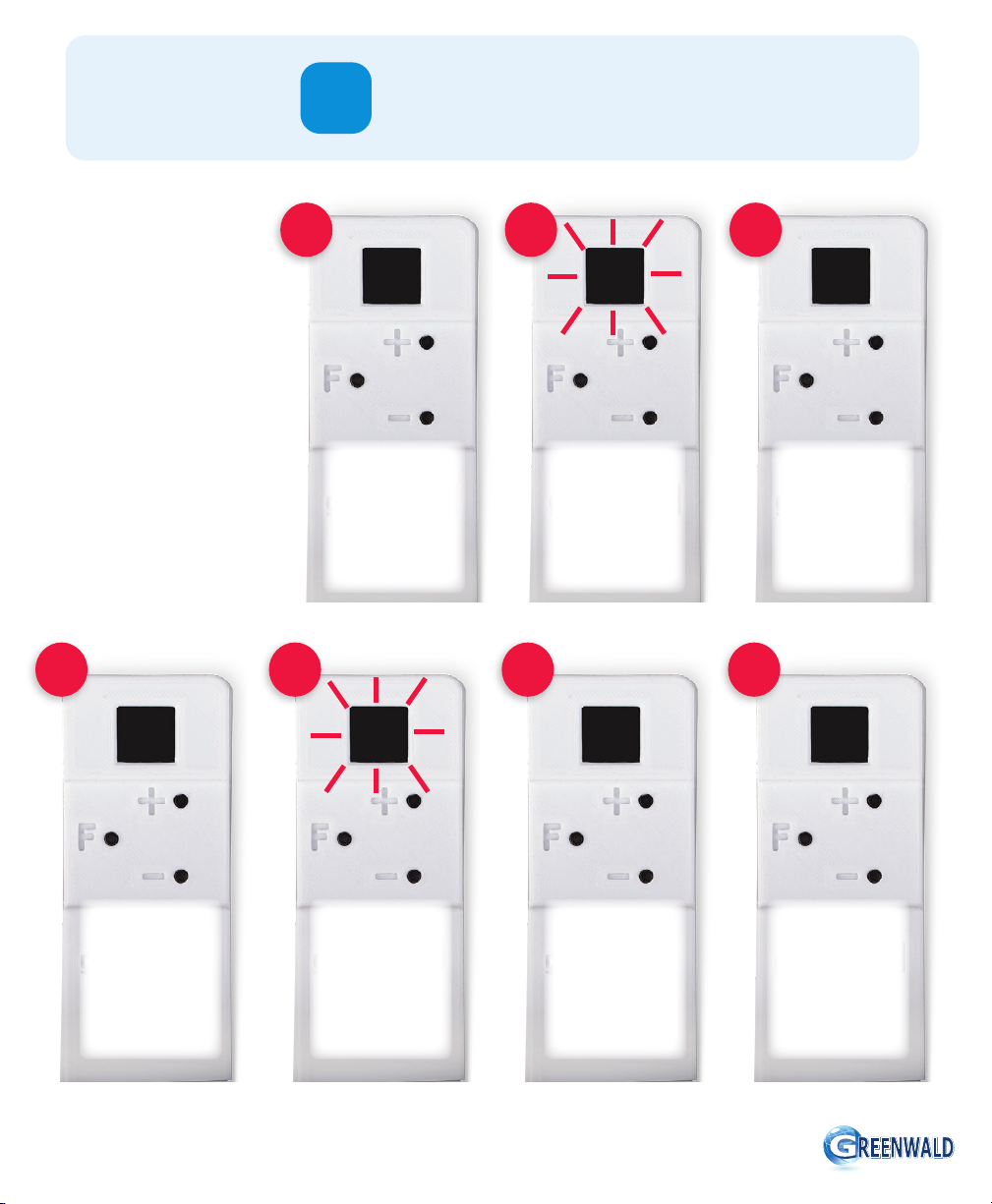

The digicoin II has two
output ports. Either port
can be assigned to each
programmed coin channel.
CoCo CH c1
Long press the F
button to enter the
main menu and
press + or - to enter
the Co menu.
Co 02 Co
Quick press the F
button to enter
select channel (CH
will be blinking )
Quick press the F
button then use
the + or - button to
choose the desired
channel (c1-c16)
Quick press the F
button to select the
channel.
Co will blink
Quick press the F
button to enter.
Use + or - to
choose output pin
01 or 02.
Quick press the F
button to select.
Press and hold the
F button to set the
output pin choice..
Display will return
to running lights.
1
4 5 6
2 3
COIN OUTPUT
Chooses output pin (1 or 2)
Co

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 1110 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A
c1
Use the + or -
button to choose
the desired channel
(c1-c16)

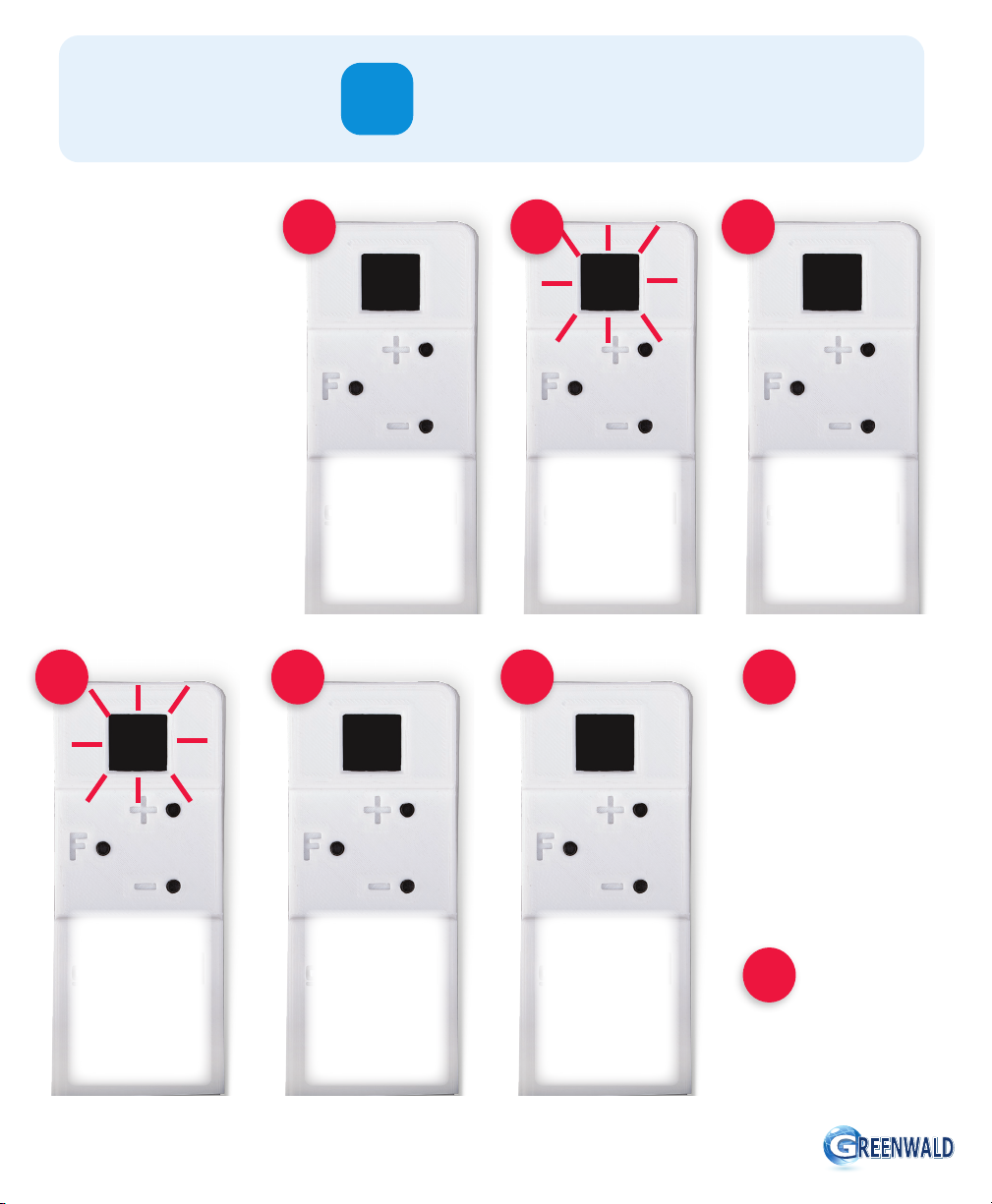

The acceptance of a coin is
governed by 6 tolerances
t1 = Diameter (low)
t2 = Diameter (high)
t3 = Mag 1 (low)
t4 = Mag 1 (high)
t5 = Mag 2 (low)
t6 = Mag 2 (high)
Tolerance levels can be set in the
range of 0-15
Larger tolerance numbers are
less restrictive
Smaller tolerance numbers are
more restrictive
toto CH
to
Long press the
F button to enter
the main menu
and press +
to enter the
to menu
t1 02
Quick press the F
button to enter
the select channel.
(CH will be blink)
Quick press the F
button to select
channel (c1-c16)
After choosing
desired channel,
quick press the F
button (to will
start blinking)
Quick press the F
button. Use the +
or - button to scroll
to the desired
tolerance (t1-t6)
Quick press the F
button to enter
the tolerance
1-16). Quick press
the F button
again to enter the
numbered choice.
Repeat steps 4 and 5 until
you cycle through all 6
tolerances and complete
the menu. The factory set
tolerances will be displayed
as you go through each
tolerance. (You simply need to
conrm each of the settings
for t1-t6 even if you do not
want to change them.)
Press and hold the F button
to conrm. Display will return
to running lights.
1
3 4 5 6
7
2 3
TOLERANCE
Adjusts coin/token acceptance
to

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 11

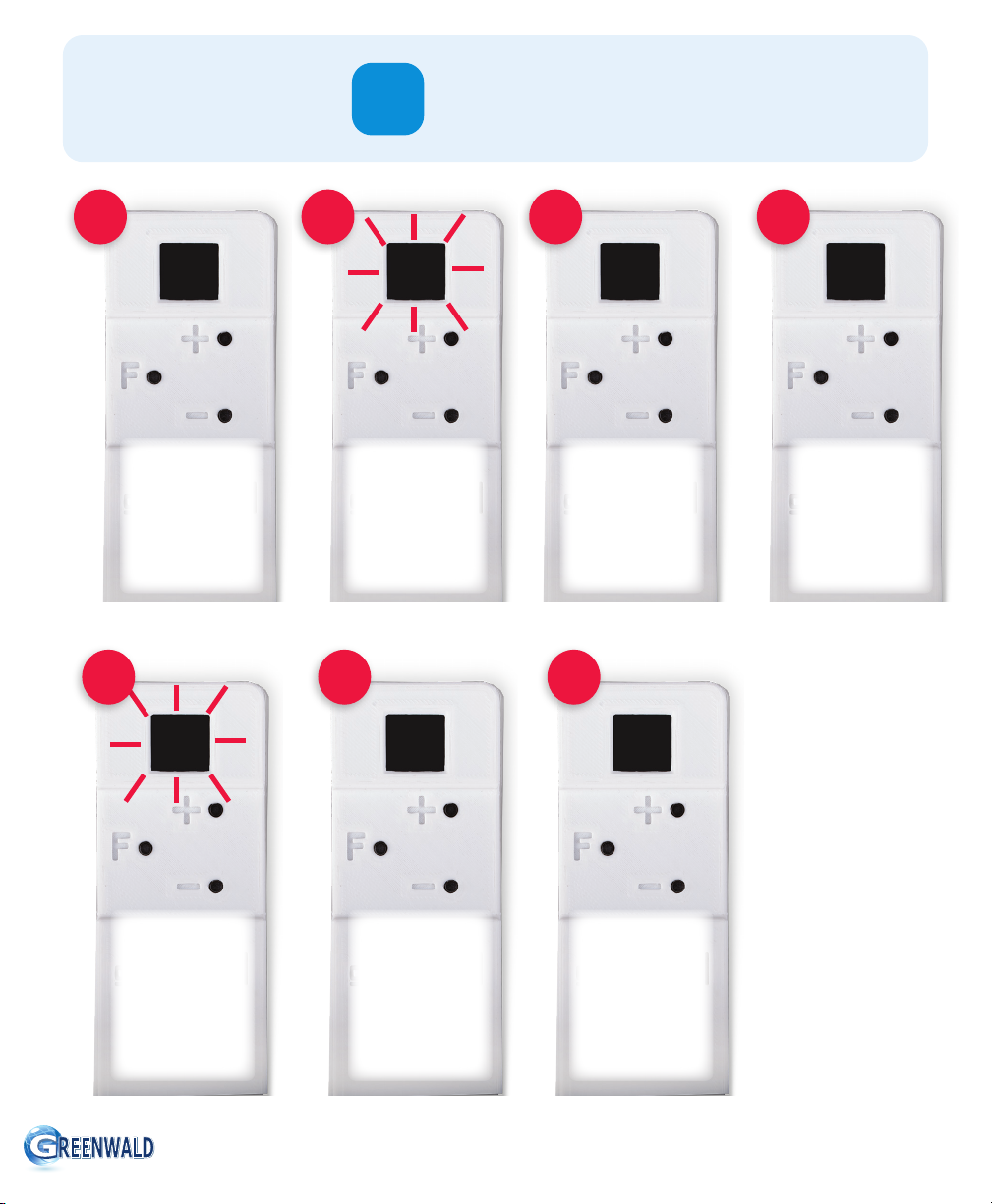

EnEn CH c1
Long press the F
button to enter
the main menu
and press +
to enter the
En menu
c5
En YE En
Quick press the F
button to enter
the select channel.
mode (CH will
be blinking)
Quick press the F
button to select
the channel
(c1-c16) mode
Use the + or -
button to select
the desired
channel (c1-c16)
you want to enable
or disable.
Quick press the F
button to conrm
the channel
selection.
Quick press the
F button again
Use the + or -
button to choose
NO or YE.
Quick press the F
button to conrm
Press and hold the
F button.
Display will return
to running lights.
1234
5 6 7
ENABLE
Activate or deactivate a channel
En

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 1312 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A
Allows for a specied
channel reset without
changing adjustments
made to other channels.
rSrS CH c1
Long press the F
button to enter
the main menu.
Press + to go to
rS menu.
Quick press the
F button.
rS YE rS
CH will be blinking.
Quick press the F
button to enter
the select channel
(c1-c16) mode
Use the + or -
button to scroll
to the desired
channel (c1-c16).
Quick press the F
button.
rS will be blinking.
Quick press the F
button to select
the channel.
Use the + or -
button to choose
NO or YE.
Quick press the F
button to conrm.
Press and hold the
F button.
Display will return
to running lights.
123
4 5 6
RESET CHANNEL
Reset a specied channel to the factory default
rS

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 13

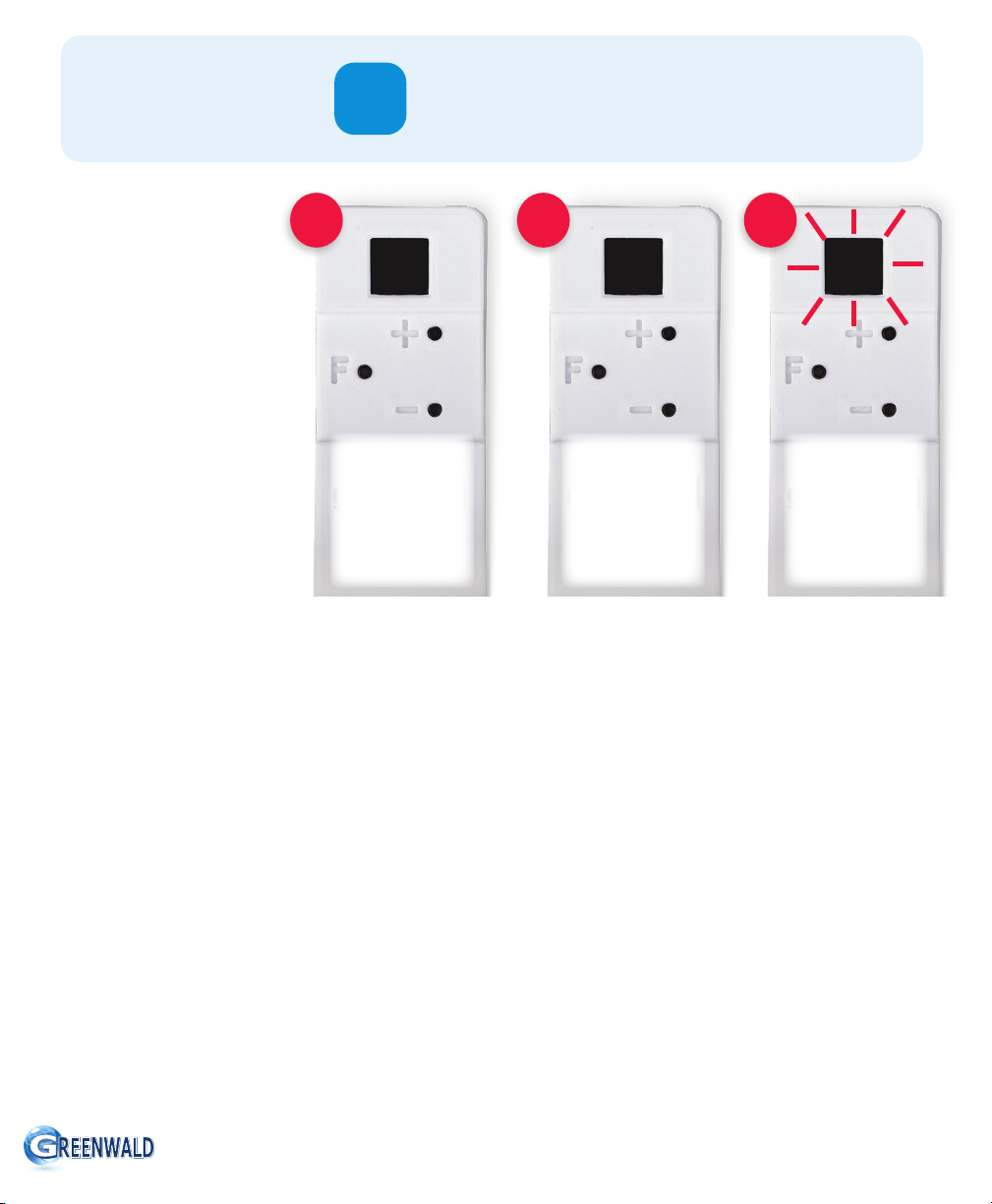

Completely reset the digicoin II
to factory defaults.
rCrC YE ----
--
--
Long press the F
button to enter the
main menu. Press +
to go to rC menu.
Quick press the
F button.
Use the + or -
button to choose
NO or YE.
Quick press the F
button to conrm
Display will
change to
running lights.
123
RECOVERY
Reset all settings to factory defaults
rC

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 1514 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A
digicoin II remote functions ow chart
tH
PL
Co
tO
En
rs
rC
Teach
Select Channel
Select Channel
Select Channel
Select Channel
Select Channel
Select Channel
Set Pulses
Change Pulses
Change Output Pin
Change Tolerance
Set Coin Output Drop 6 Coins
Pulses
Coin
Output
Reset
Channel
Recovery
(Factory)
Tolerances
Enable
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
Function
(Esc)
c1-16
c1-16
c1-16
c1-16
c1-16
c1-16
Yes, No
Select Item
t1
t3
t5
t2
t4
t6
+ -
+ -
+ -
+ -
+ -
+ -
-
+ -
+ -
+ -
+ -
+ -
Yes, No
Yes, No
1-99
1-99
1, 2 00-05
(Blink)
1, 2
0-15
+

Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 15
Notes
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________

greenwaldindustries.com • Customer Service: 800-221-0982
Greenwald Industries
212 Middlesex Avenue
Chester, CT 06412
INS. 2491 REV. A • EN21-111
Table of contents
