Grizzly G5346 User manual

Introduction
Delivering 7000 RPM and a maximum torque of
230 ft/lbs., this 1⁄2" Impact Wrench is an excellent
choice for anyone seeking professional qual-
ity and performance. This pressure adjustable
wrench offers forward and reverse at you finger-
tips and rubber bumpers for protection. Sockets
not included.
Inventory
A. Air Impact Wrench ...................................... 1
Operation
Tool requires 90 PSI to operate correctly.
To improve tool lifespan, use a filter/lubricator/
regulator as shown in Figure 2. Otherwise, lubri-
cate daily with a couple drops of pneumatic tool oil
directly into the air fitting as shown in Figure 3.

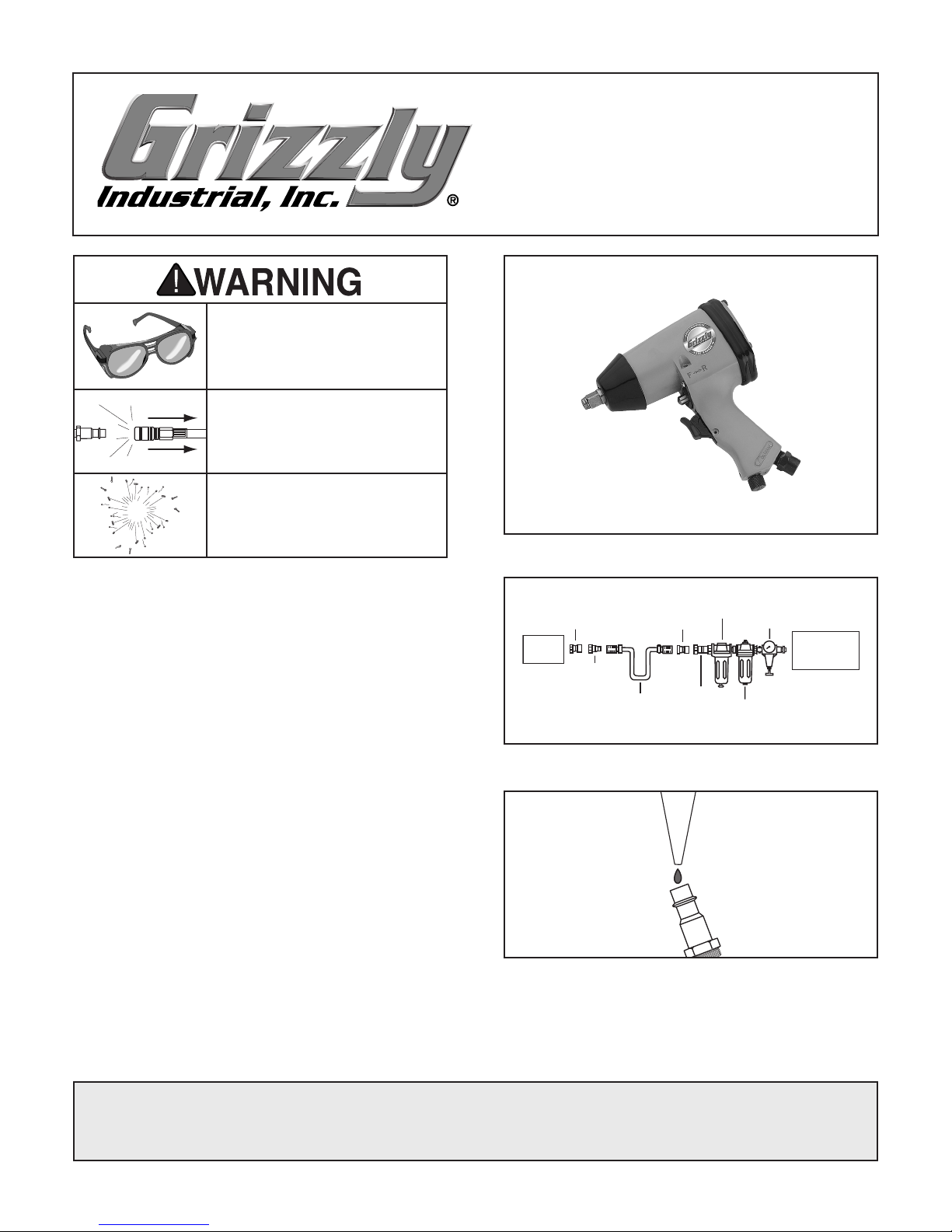

MODEL G5346
1⁄2" AIR IMPACT
WRENCH
INSTRUCTION SHEET
Figure 1. Model G5346.
Figure 3. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: [phone].
COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#PC8045 PRINTED IN TAIWAN
EYE INJURY HAZARD!
Always wear safety glasses
during use to prevent
serious personal injury!
INJURY HAZARD!
Always disconnect tool from
air to prevent unexpected
operation during service!
EXPLOSION HAZARD!
Never exceed 120 PSI!
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 2. Installing your tool.

G5346 Parts Breakdown and List














































REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P5346001 HOUSING 24 P5346024 CYLINDER
2 P5346002 VALVE BUSHING 25 P5346025 ROTOR
3 P5346003 REVERSE VALVE 26 P5346026 ROTOR BLADE
4 P5346004 TRIGGER 27 P5346027 REAR END PLATE
5 P5346005 PIN 28 P6001 BALL BEARING 6001
6 P5346006 VALVE STEM 29 P5346029 FRONT END PLATE
7 P5346007 AIR INLET 30 P5346030 PIN
8 P5346008 BALL SEAT 31 P5346031 COMPRESSION SPRING
9 P5346009 COMPRESSION SPRING 32 P5346032 PIN
10 P5346010 STEEL BALL 33 P5346033 GASKET
11 P5346011 COVER 34 P5346034 REAR COVER
12 P5346012 AIR REGULATOR 35 P5346035 SCREW
13 P5346013 O-RING 36 P5346036 SPRING WASHER
14 P5346014 COMPRESSION SPRING 37 P5346037 FRONT RUBBER
15 P5346015 OIL SEAL 38 P5346038 EXHAUST DEFLECTOR
16 P5346016 SCREW 39 P5346039 SCREW
17 P5346017 BUSHING 40 P5346040 SCREW
18 P5346018 ANVIL 41 P5346041 ANVIL COLLAR
19 P5346019 HAMMER CAGE 42 P5346042 O-RING
20 P5346020 HAMMER PIN 43 P5346043 RUBBER
21 P5346021 HAMMER DOG 44 P5346044 SCREW
22 P5346022 DRIVE CAM 45 P5346045 OIL SEAL
23 P5346023 PIN
