Gronomics USMP 28-28 User manual

WWW.gronomics.com East Bethel, MN USA 763-753-7374
Umbrella Stand w/Mounting Plate
(28” x 28” x 16”H) Assembly Instruction
Continued
Parts List
ITEM QTY. PART # DESCRIPTION
11 USMP Umbrella Stand/Mounting Plate
24 RSS14-212ZY GRK RSS Screws, 1/4” x 2-1/2”
32
3/8” x 2-3/4”
w/Nut Bolt, 3/8” x 2-3/4”, w/Nut
Packaged & Inspected by:Date:
The Umbrella Stand/Mounting Plate can be used with
the PTBT 39-39 - Picnic Table Bar Top, purchased
separately.
If any pieces are missing or replacement parts are
required, contact Gronomics at 1-855-299-6727.
NOTE: It is recommended to place a protective layer
between the ground and the pieces during assembly.
This will help prevent damage to the pieces.

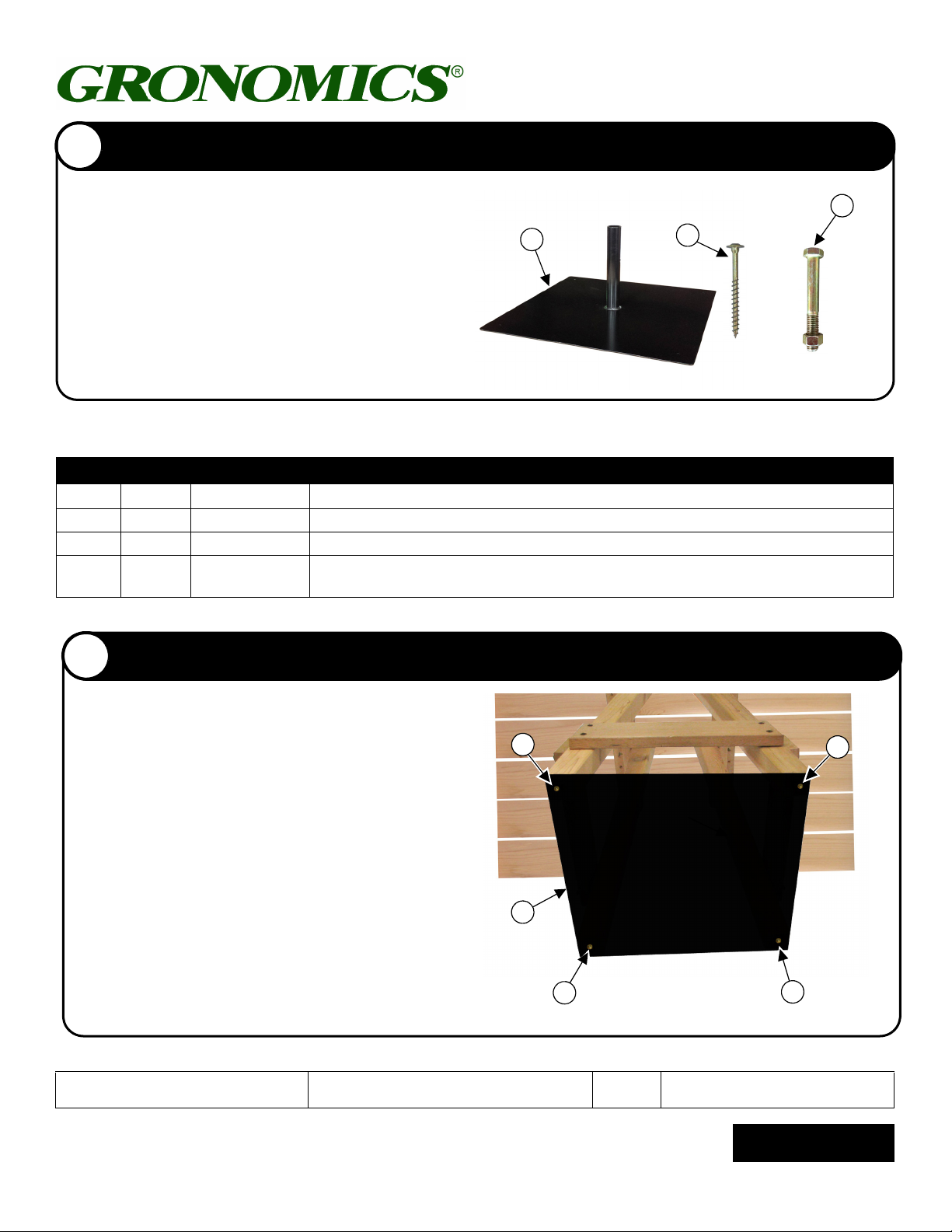

Parts Identification Item #: USMP 28-28
1
12
Torx® T25
3
Assembly
2
Lay the Picnic Table Bar Top on its side.
NOTE: Make sure to lay something underneath the table
to prevent scratching the wood.
Align the Umbrella Stand w/Mounting Plate (Item 1) with
all four legs of the Picnic Table Bar Top.
Install four 1/4” x 2-1/2” screws (Item 2) in the pre-drilled
holes on the mounting plate.
1
22
22

WWW.gronomics.com East Bethel, MN USA 763-753-7374
Assembled product will look as shown.
NOTE: Be careful when moving the table and stand to
avoid scratching patio or deck surface.
Finished Assembly
3
If using the umbrella with a 42” high table, raise the
umbrella to proper height and install a bolt 3/8” x 2-3/4”,
w/Nut (Item 3) into the hole on the umbrella stand.
Raise Umbrella
4
3
