Precautions
1．Never disassemble the video camera without authorization.
Never disassemble the screws or protection cover to avoid electrical
shock.. No part inside the machine can be repaired by the users
themselves.
Related maintenance and repair work shall be carried out by qualified
maintenance persons.
2．Use your video camera carefully.
Never use the video camera at random. Protect the camera from being
impacted and vibration. The video camera may be damaged if it is used
or stored in an improper way.
3．Never let the video camera get wet in the rain or be used in moist
place.
The indoor spherical video camera is designed for indoor use, so set it in
a place not under rain or moist. It should be maintained by the qualified
maintenance person after cutting off the power. Moisture may damage
the camera and cause electric shock.
4．Never use strong cleanser with polishing property when cleaning the
camera body.
Wipe the camera with dry and soft cloth when it gets dirt. If the dirt is
serious, slightly wipe it off with neutral cleanser. While wiping, be
careful not to scratch the round protection housing. Then, wipe out the
remainder of the cleanser with dry cloth.
5．Never aim at the sun with the video camera
Never aim at the bright object with the video camera. The video camera
should not be aimed at the sun or other very bright objects not matter
whether it is in use or not. Otherwise, the image may be faint or have
halation.
6．Never aim the camera at strong light or expose under the light
source for a long time.

3
If the spot light source such as shooting light forms a facula on the
display screen, the CCD color filter of the camera may be fading.
7．Don't install the video camera upside down.
This video camera is designed to be installed on the ceiling or wall. If
installing the camera upside down, e. g., on the floor, the camera may
fail.
8．Never use the video camera in conditions exceeding the temperature
and humidity limit or the power supply specification.
Never use this device in the extreme environment of high temperature
and humidity. Never put it near the radiator, stove or other equipments
that generate heat.
9．Don't install the video camera near the air outlet of the air
conditioner.
In the following conditions the lens may get mist due to water vapor
condensation.
(a) Rapid change between high and low temperatures due to the
from-time-to-time on and off state of the air conditioner.
(b) Rapid change between high and low temperatures due to the
from-time-to-time opening and close of the door.
(c) Used in an environment that easily makes the glasses get mist.
(d) Used in a room full of smoke or dust.
When the lens gets mist due to water vapor condensation, take off the
housing and wipe the surface with a piece of soft cloth to remove all the
moist.
10．Consumables
Parts with contacts such as the lens driving motor, cooling fan motor,
and built-in sliding rings may be worn out after long time of use. For the
replacement and maintenance of these parts, please consult the nearby
maintenance center.
11．Don’t aim the video camera at the same object for a long time.

It may burn a shadow of the object on the screen of the CRT.
1.0 Installation
1.1 Indoortype Structure
1.2 Indoor ceiling installation:
(1)Use the dimension provided by the Note: If the ceiling installation is out
manufacturer mark out the position of the line, drill the line holes on the
of the 3 installation screws on the ceiling, but no hole is necessary if it
ceiling as shown in the figure below. is out of the line on the side.
4

(3) Fix the base plate of the video (4) Install the spherical housing on the
camera on the ceiling plate with base plate of the video camera
3screws. accordingtothefigureandthen,
pushthedecorationringupinto
the slot.
1.3 Indoor boom installation
clamp screw
(1) Connect the installation base plate A1
(A1) to the fixity with screw driver;
turn on the connecting tube (B2); and
then, turn tight the clamp screw and turn B2
on the flange connecting sleeve (C3) and clamp
turn tight the clamp screw.
(2) Connect the base plate of the spherical C3 upward
device to the spherical flange with the 3
supplied screws according to the figure.
Note: all the wiring should reach at the
plane of the base plate after passing
through the flange. Connect the spherical
flange and (C3) with the supplied M5 screws
5

and wrench as shown in the following figure.
Turn on the housing after the installation.
1.4 The installation of the wall support of the indoor spherical
(1) Fix the wall support to the fixity with screws. (2) Connect the bottom
spherical device plate with the spherical flange with the 3 supplied screws
according to the figure. Note: all the wiring should pass through the flange
outlet. (3) Connect the spherical flange and the wall support with the supplied
M5 screws and wrench. Turn on the housing after the installation.
1.5 Indoor embedded installation:
(1) Drill a hole on the ceiling according (2)Install the spherical device on the
to the dimension on the drawing. telescopic embedded support with
3screws.
翻
6

7
decoration ring
(3)Install the embedded support into
the installation holes and adjust the three
pressing legs to fix the embedded support.
(4)Install the decoration ring on the spherical device.
1.6 The selection of the accessories of the indoor installation
Ceiling installation support Indoor wall installation support
Telescopicembedded Extendedsupportfor
installation support indoor wall installation

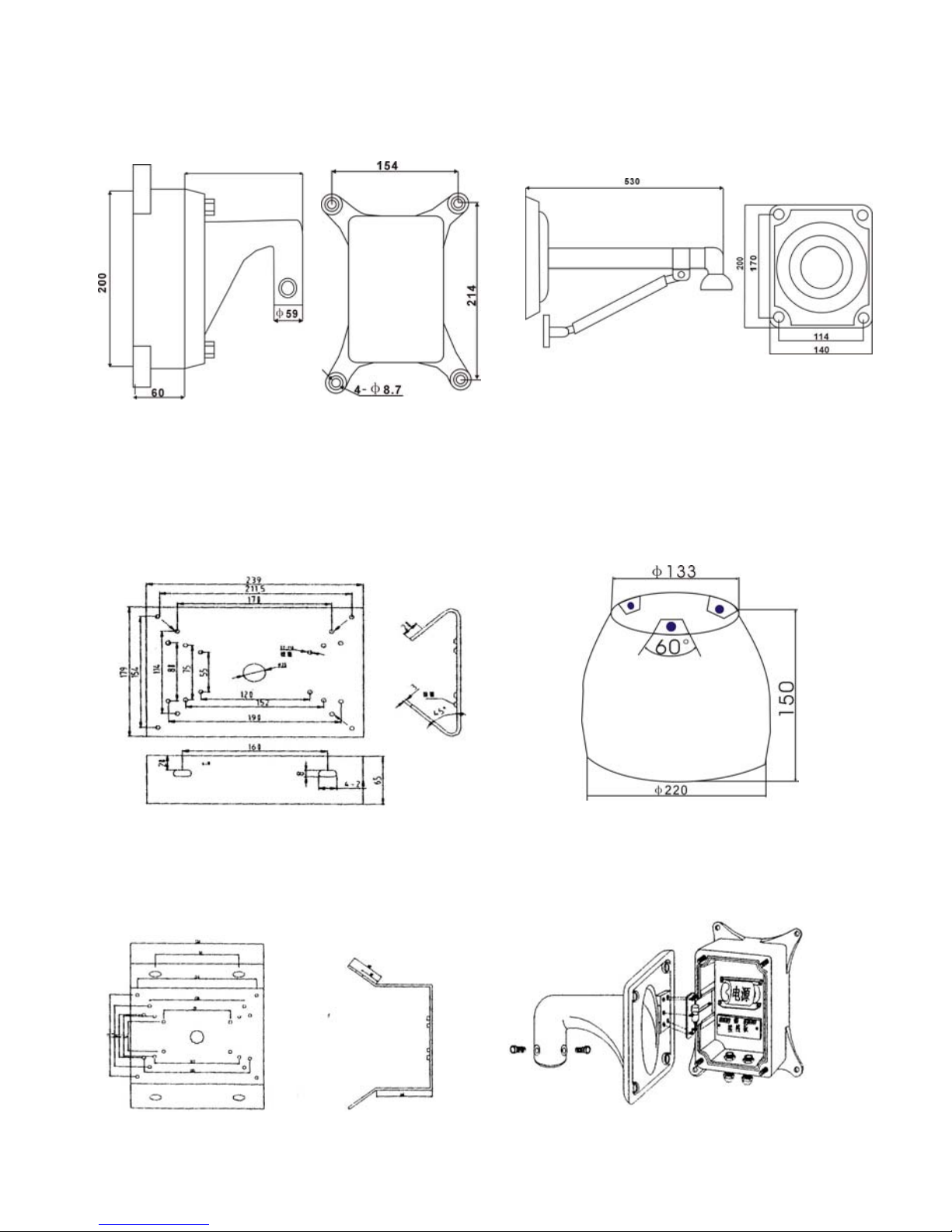

2.0 Outdoortype Configuration
2.1 Outdoor installation
8
Outdoor wall installation
Outdoor power supply box
(1)Connect the outdoor wall installation
connection box to the fixity with screws
and connect the wall support with hinges.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws
and wrench. Note:all the wires should reach
at the connection box through the support.
(3)Plug all the plugs of all the wiring into the
corresponding sockets in the connection box.
(4)Close the box cover and tighten up the four lock nuts.
(5) Disassemble transparent case with the supplied
wrench. Select the protocol and address codes and install the transparent case.

Outdoor box without power supply
(1) Connect the outdoor wall support to the fixity.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws
and wrench. Note: all the wires should reach
at the connection box through the support.
(3)Disassemble transparent case with the supplied
wrench. Select the protocol and address codes
and install the transparent case.
(4)Connect the wires according to the requirement.
Outdoor suspension installation
Outdoor suspension installation without power supply
(1)Connect the outdoor boom with the fixity
with screws (there is special installation drawing
for the boom and support). Note: all the wiring
should reach at the connection place through the support.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws
and wrench.
(3)Disassemble transparent case with the supplied
wrench. Select the protocol and address codes
and install the transparent case.
(4)Connect the wires according to the requirement.
9

Outdoor suspension installation with power supply
(1) Connect the outdoor wall connection box
to the fixity with screws and connect the wall
support with hinges.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws and wrench.
Note: all the wires should reach at the connection
box through the support.
(3)Plug all the plugs of all the wiring into the
corresponding sockets in the connection box.
(4)Close the box cover and tighten up the four
lock nuts.
(5) Disassemble transparent case with the supplied
wrench. Select the protocol and address codes and
install the transparent case.
Outdoor pole installation
Outdoor pole installation without power supply box
(1)Tighten the outdoor pole installation
pole to the fixity with screws. Connect the
wall support to the pole support with the four
supplied screws.
Note: all the wires should reach at the connection
place through the support.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws
and wrench.
(3)Disassemble transparent case with the supplied
wrench. Select the protocol and address codes
10

and install the transparent case.
(4)Connect the wires according to the requirement.
Outdoor pole installation with power supply box
11
(1) Tighten the pole anchor ear with the fixity.
Connect the power box with four screws and
connect the wall support with hinges.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws and wrench.
Note: all the wires should reach at the connection
box through the support.
(3)Plug all the plugs of all the wiring into the
corresponding sockets in the connection box.
(4)Close the box cover with four lock nuts.
(5)Disassemble transparent case with the supplied
wrench. Select the protocol and address codes
and install the transparent case.
Outdoor wall corner installation
Outdoor wall corner installation without power supply box
(1)Connect the outdoor wall corner support
to the fixity with screws. Connect the wall
corner support with four screws.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws and wrench.
Note: all the wires should reach at the connection
place through the support.
(3)Disassemble transparent case with the supplied
wrench. Select the protocol and address codes
and install the transparent case.

(4)Connect the wires according to the requirement.
Outdoor wall corner installation with power supply box
(1)Connect the wall corner support with four
12
screws. Connect the power supply box with
four screws and connect the wall support
with hinges.
(2)Connect the wall support and the outdoor
spherical with the supplied M5 screws
and wrench. Note: all the wires should reach
at the connection box through the support.
(3)Plug all the plugs of all the wiring into the
corresponding sockets in the connection box.
(4)Close the box cover with four lock nuts.
(5)Disassemble transparent case with the supplied
wrench. Select the protocol and address codes
and install the transparent case.
2.2 The selection of the accessories of the outdoor installation
Outdoor suspension bracket Outdoor wall bracket

Power supply adaptor box + wall bracket Outdoor extended wall bracket
13
180
Polebracket Sunshield
Wall corner bracket Wall bracket + power supply adaptor box
3
3 .0 Operation mode

3.0 Operation mode
This intelligent spherical video camera can be connected to keyboard or
special control equipment via RS485. The process of up and down and left and
right movement of the video camera, and the lens zooming can be remote
controlled.
3.1 Technical parameters
The technical parameters of the high speed indoor/outdoor spherical integrated
video camera
Video output:1.0Vp-p
Left and right rotation range:360° continuous rotation
Left and right speed:0.5°-260°/second
Up and down rotation range:0-90°
Up and down speed:0.5°-90°/second
Communication:RS485
Controlled rotation range:up and down, left and right 80
preset positions (see page 21)
Left and right line scanning:on/off (see page 25)
Patrol inspection track:4 pieces( Pelco-D Protocol )
(seepage25)
Operation temperature:0℃- 40 (indoor)℃
Power:about10W
14

15
weight:about 1.5kg (indoor)
Dimension:φ135×190mm (H) (indoor)
Outdoor power supply:AC24V
indoor power supply:DC12V
Operation temperature:-30℃- +50 (outdoor)℃
Power:about 10W + (20W heating) (outdoor)
Dimension:φ200×310mm (H) (outdoor)
Weight:about 3kg (outdoor)
Note: the main difference between the indoor and outdoor spherical devices is
the outdoor and heating power.
In and out door integrated high speed spherical video camera
Configuration sheet of the spherical video camera
10X 22X
Effective pixel 542(H)×493(V) 811(H)×508(V)
Image inductor 1/4-inch CCD image Sensor
Video output 1.0Vp-p 1.0Vp-p
Horizontal definition 450TVL 480TVL
Signal to noise ratio ≥50dB ≥52dB
The lowest illumination Typical: 1.5 Lux/50IRE
Star light mode:0.05Lux/50IRE
Typical:1.0Lux/F1.6
Star light mode:0.03Lux/F1.6
Aperture Automatic/Manual
Focusing Automatic/Manual
Focal length F4.2(W)~42(T)mm F3.9~F85.8mm
Magnification 10x optical, 10x digital 22x optical, 10x digital
White field balance automatic Automatic/Manual
Backlight compensation On/off On/off

3.2 Connection method
Precautions
The following connections should be carried out by qualified technical
personnel or the installation personnel under the condition meeting the local
regulations.
1. Video output
2.GreenRS485A+
16
3.Yellow RS485B-
4.AC24V power supply introduce
blue AC24VN
brown AC24V L
5. Checkered wire connect group
6.Camera

Note: After the power supply is connected, the device can conduct the
self-diagnosis (including shaking, pitching, zooming, and focusing, once
each).
The connection mode of indoor spherical device:
1.Video output
2.R 2.RS485 Communication line green+
3. RS485 Communication line yellow-
4.DC12V introduce
17
5.Camera
Note: After the power supply connected, the device can do the self-diagnosis
(including shaking, pitching, zooming, and focusing, once each).
3.3 Address code setting
The address of this spherical device is set with a ten-figure code dialing
switch as shown in the left figure. The specific setting method is as
follows.
Protocol and address code dialing switch position

18

Note: the control line can be connected in parallel with several high
speed spherical video cameras, but with the 10th place of the code dialing
address of the furthest one at ON to connect one 120Ωcompensation resistor.
Thus, its control distance is far and also needs the operation mentioned above
as shown in the right figure.
The 10th place of the code dialing is at ON position, while other code
dialing switches should be put at the corresponding positions according
to the address numbers.
3.4 The protocol code setting
The protocol of this spherical device can be selected through a
five-figure code dialing switch as shown in the right figure. The specific
code dialing mode of the protocol is as follows:
2400
19
