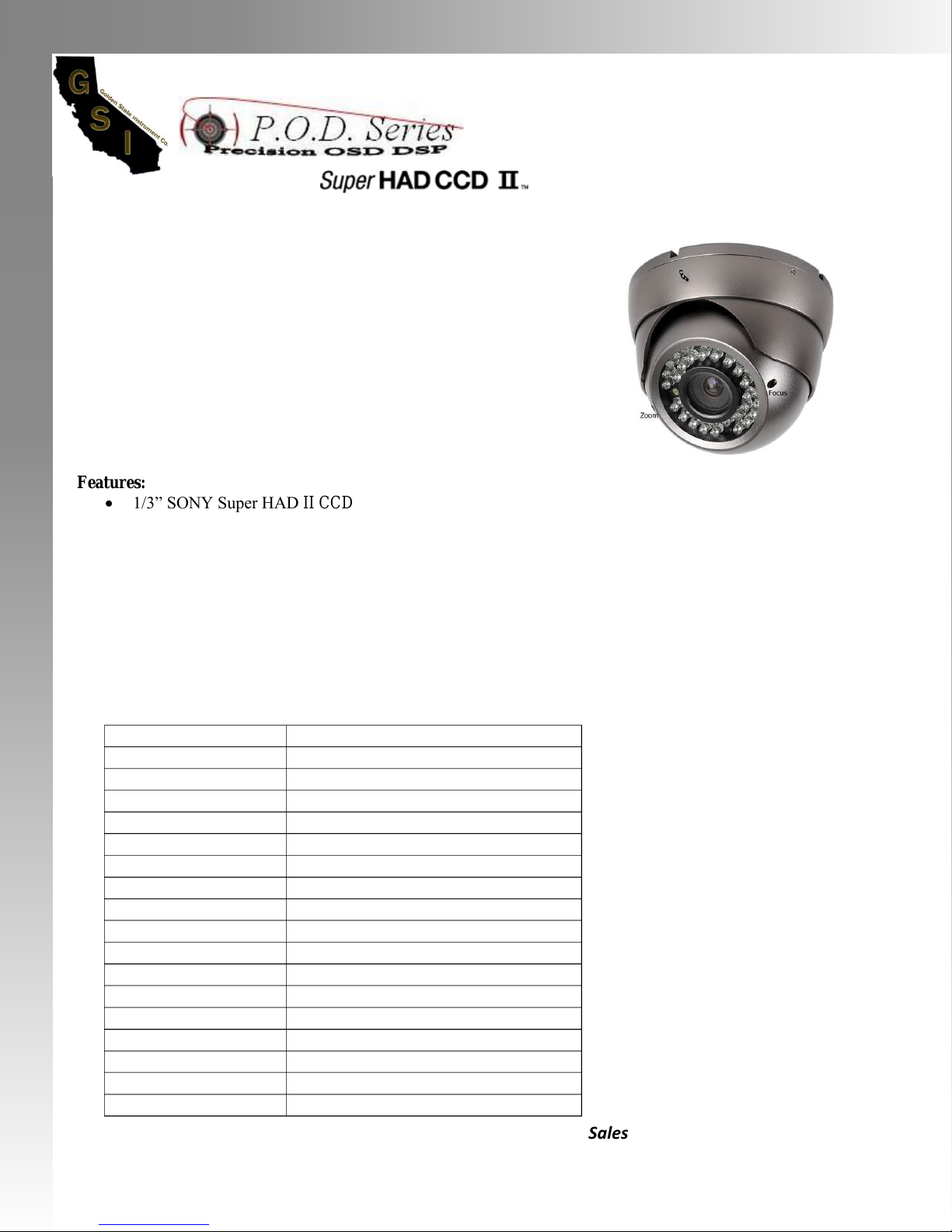

GSi GS-405 IRVC User manual

Infrared LED Dome Camera
GOLDEN STATE INSTRUMENT CO.
GS-405 IRVC
Vandal Dome X-Y-Z Axis Mount
4-9mm External Varifocal Lens
550 TVL Day/Night Color Camera
Features:
1/3” SONY Super HAD II CCD
High 550 TVL Color Resolution
Super BLC (Back Light Compensation)
DWDR (Digital Wide Dynamic Range)
HLC (High Light Compensation)
4-9mm Varifocal Lens (External Controls)
36 IR LED’s (65-100ft Illumination)
Built-in new 20 bit DSP (Digital Signal Processing)
Specifications:
3002 Dow Ave Suite 228
Tustin, CA 92780 USA
www.goldenstateinst.com
Sales : 800-227-2330
Tech Support: 888-808-0909
Email : [email protected]
This camera uses P.O.D. (Precision OSD DSP) technology. This
technology enables the user to precisely fine tune all the camera
functions according to the application. No matter what the
conditions are, you will be able to achieve optimum picture quality.
Using Sony Super HAD II CCD with Sony’s HQ1 DSP this camera
achieves amazing low light performance and color reproduction.
With an Ultra High 550 TVL of color resolution gives this camera
superior image quality unmatched by others. The 3 axis mount
makes this a very versatile camera that can be placed on ceilings or
walls with very little effort. DWDR (Digital Wide Dynamic
Range) provides excellent picture under tough lighting conditions.
Signal System
NTSC
Image Sensor
1/3” SONY Super HAD II
Series
P.O.D.
Effective Pixels
768(H) x 494(V)
Scanning System
2:1 Interlace
Scanning Frequency (V)
59.94Hz
Resolution
Ultra High 550 TVL
Min. Illumination
0.01 LUX (LED Off) | 0 LUX (LED On)
Light Compensation
DWDR, BLC, HLC
S/N Ratio
More than 52dB (AGC OFF)
Shutter Speed
1/60 ~ 1/1000,000 sec.
Video Output
1.0 Vp-p (75Ω)
Sync System
Internal
Voltage
12VDC
Power Consumption
120 mA (LED’s OFF) | 500mA (LED’s ON)
Dimensions
4.75” Diameter 4.5” Height
Weight
1.8 lbs
Operating Temperature
-20°C to 50°C
Vandal Proof Ball Glove Dome
X-Y-Z, 3 Axis Mount
12VDC
OSD (On Screen Display) Menu Controls
Turbo AGC (Automatic Gain Control)
DNR (Digital Noise Reduction)
Sharpness and Mirror Functions
IP66 Weather Rating
WARNING:
Do Not Point Camera Directly
into the sun.
Do Not cut video or power
wires
Observe Correct Voltage and
Polarity
Failure to Observe Warnings
May Void Warranty

Operating Instructions:
LENS
▪DC/VIDEO ▪MANUAL
EXPOSURE
▪SHUTTER ▪BRIGHTNESS ▪AGC ▪DWDR
WHITE BAL.
▪ATW ▪AWC ▪MANUAL ▪FIXED
BACKLIGHT
▪OFF ▪BLC ▪HLC
DAY & NIGHT
▪AUTO ▪COLOR ▪B/W ▪EXT
SPECIAL
CAM TITLE, MOTION, PRIVACY, PARK LINE,
IMAGE ADJ (LENS SHAD, 2DNR, MIRROR,
FONT COLOR, CONTRAST, SHARPNESS,
DISPLAY, NEG IMAGE)
RESET
Reset to Factory Default
EXIT
Save and Exit
LENS
DC, Video or Manual
EXPOSURE:
SHUTTER
You can select Fixed, Manual, FLK
AGC (AUTO GAIN CONTROL)
Automatically adjusts the gain
DWDR
Digital Wide Dynamic Range for tough lighting
conditions
White Balance
Use White Balance to adjust the screen color
ATW, AWB, MANUAL, or one of the pre-defined
FIXED settings
BLC (Back Light Compensation)
Enables a user to select a desired area on a picture and
view that area more clearly, and also adjust the Ratio
HLC (High Light Compensation)
Blacks out bright lights from affecting picture for
example Car Headlights at night
DAY/NIGHT
You can display pictures in color or black and white
2DNR
Digital Noise Reduction
OSD (On Screen Display) Menu
OSD Controls
SET: Push Middle Enter OSD
Menu/Select Option
UP: Moves Cursor Up
DOWN: Moves Cursor Down
LEFT: Moves Cursor Left/ Change
selected item parameters
RIGHT: Moves Cursor Right/ Change
selected item parameters
MIRROR
Horizontal Reverse
SHARPNESS
Adjust the clarity of your image
CONTRAST
Adjust the contrast of the image
CAM TITLE
Enter the title to display on the screen
MOTION DET
Feature that allows you to be alerted of moving
objects on the screen
PRIVACY
Mask an area you want to hide on the screen
(Bathroom Entrances etc.)
LANGUAGE
Select a preferred supported language
EXIT
Save settings and exit OSD
