Häfele HH-MWB25 User manual

INSTRUCTION MANUAL
MICROWAVE OVEN
MODEL:HH-MWB25
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
Sp ecifications
Model:
HH-MWB25 / AG925B8Z
Rated Voltage:
230V~50Hz
Rated Input Power(Microwave):
1450W
Rated Output Power(Microwave):
900W
Rated Input Power(Grill):
1000W
Oven Capacity:
25L
Turntable Diameter:
315mm
External Dimensions:
595x400x388mm
Net Weight:
Approx. 18.5kg

3
IMPORTANT SAFETY INSTRUCTIONS
W ARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions , including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.Children shall not
play with the appliance.Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils that are suitable for use in microwave
oven.
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,

4
keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated

5
surface, and do not cover any vents on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27. Accessible parts may become hot during use.
Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a

6
temperature-sensing probe.)
31.WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the
decorative door open.(for ovens with a decorative door.)
33.Surface of a storage cabinet can get hot.
34.The microwave oven is intended for heating food and
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE

7
To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard Improper
use of the grounding can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire extension cord.
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled inor tripping over a
longer cord.
2.If a long cord set or extension
cord isused:
1)The marked electrical rating
of the cord set or extension cord
should beat least as great as
the electrical rating ofthe
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top ortabletop
where it can be pulled on
by children or tripped over
unintentionally.

8
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon ina bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
compentent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

9
Mat erials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts
of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Browning dish
Dinnerware
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic
wrap
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Mat erials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with May cause arcing. Transfer food into
microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause arcing and could cause a fire in the oven.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.

10
SETTING UP YOUR OVEN

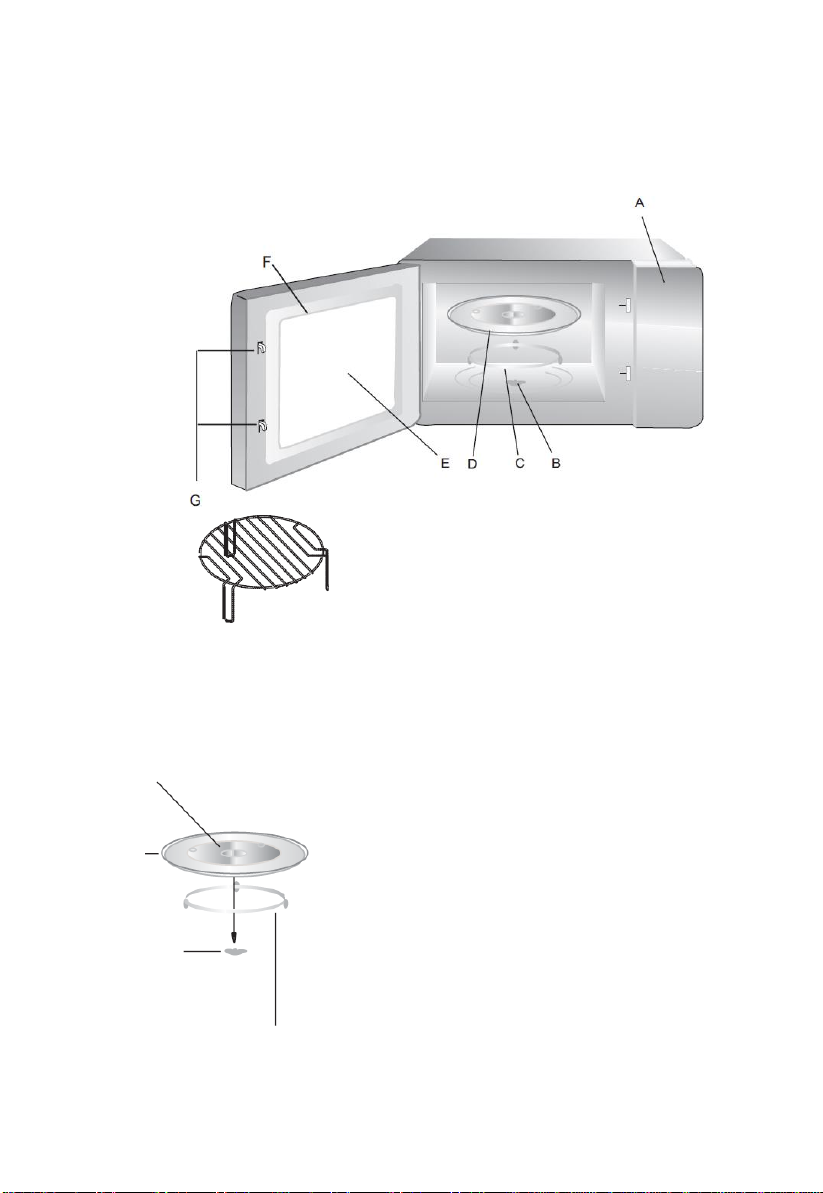

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Grill Rack( Only be used in grill function
and be placed on the glass tray )
A)
Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Turntable Installation
Hub(underside)
Glass tray
Turntable shaft
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable ringassembly

11
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-
mounted cupboard(at lease 55cm deep and 85cm off the
floor).
5.The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
6.The mains voltage must correspond to the voltage
specified on the rating plate.
7.The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is no
longer to accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at lease 3mm.
8.Adapters, multi-way strips and extension leads must not
be used. Overloading can result in a risk of fire.
The accessible surface may
be hot during operation.

12
Installation Instructions
Please Read the Manual Carefully Before Installation
Please note
Electrical connection
The ovens fitted with a plug and must only be connected to a properly
installed earthed socket. The socket must only be installed and the
connecting cable must only be replaced by a qualified electrician, and in
accordance with the appropriate regulations.
If the plug s no longer accessible following installation, an all –pole
isolating switch must be present on the installation side with a contact gap
of at least 3 mm.
The fitted cabinet must not have a back wall behind the appliance.
Minimum installation height: 85 cm.
Do not cover ventilation slots and suction holes.
Note:Do not trap or bend the power cable.

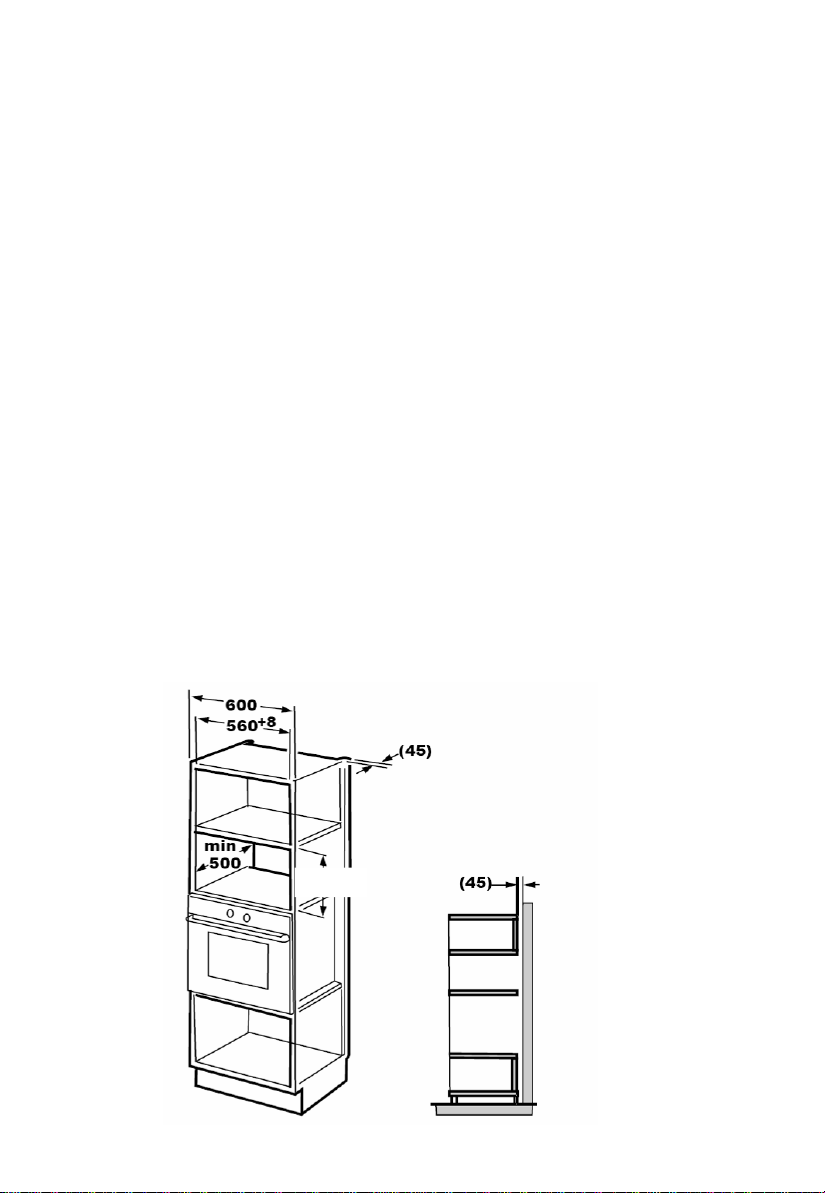

A. Built-in furniture
380+2

13
Screw
Bracket

15
B.Prepare the cabinet
1.Read the instruction on the BOTTOM CANINET TEMPLATE , put the template
on the bottom plane of cabinet.
2.Make the marks on the bottom plane of cabinet according to marks "a" the
template.
3.Remove the bottom cabinet template and fix the bracket with screw .

15
5. Open the door, fix the oven to the cabinet with Screw , at the installation hole.
Screw
Installation Hole

16
Operation Instructions
1. Clock Setting
When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.
1) Press " Kitchen Timer/Clock " twice to select clock function, the hour figures will flash.
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " Kitchen Timer/Clock ", the minute figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " Kitchen Timer/Clock " to finish clock setting. ":" will flash, and the time will light.
N
ot e: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " Stop/Clear ", the oven
will go back to the previous status automatically.
2. Microwave Cooking
Press " Microwave/Grill/Combi." once, the screen will display "P100". Press
" Microwave/Grill/Combi. " repeatedly or turn "
" to choose the power you want, and
"P100", "P 80", "P 50", "P 30"
,"P 10" ,"G" ,"C-1" or "C-2" will display for each
added press. Then press " Start/+30Sec./Confirm " to confirm, and turn " " to set
cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to
start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven as the following steps.
1) Press " Microwave/Grill/Combi. " once, the screen displays "P100".
2) Press " Microwave/Grill/Combi." once again or turn " " to choose 80%
microwave power.
3) Press "
Start/+30Sec./Confirm
" to confirm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press "
Start/+30Sec./Confirm " to start cooking .

17
Note: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes

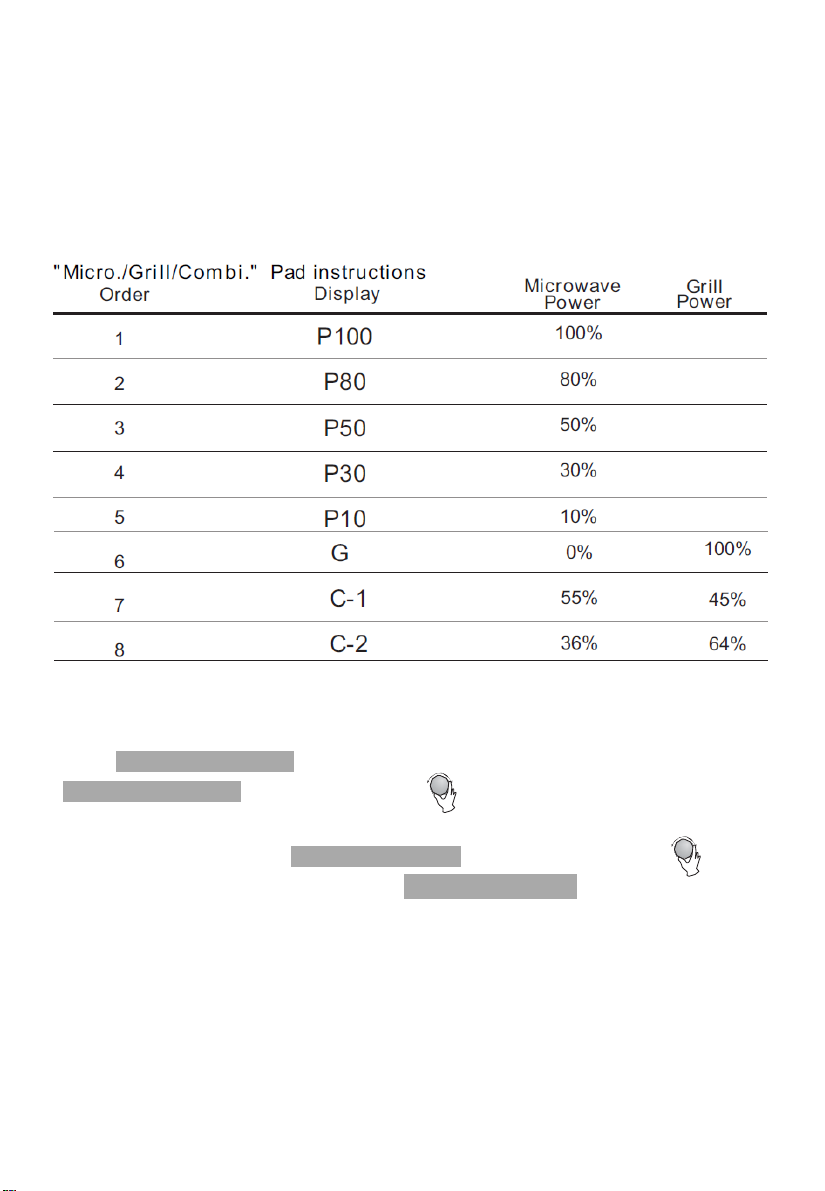

3. G rill or Combi . Cooking
Press " Microwave/Grill/Combi." once, the screen will display "P100". Press
" Microwave/Grill/Combi. " repeatedly or turn " " to choose the power you want, and
"P100", "P 80", "P 50", "P 30"
,"P 10" ,"G" ,"C-1" or "C-2" will display for each
added press. Then press " Start/+30Sec./Confirm " to confirm, and turn " " to set
cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to
start cooking.
Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook
for 10 minutes, you can operate the oven as the following steps.

18
1) Press " Microwave/Grill/Combi. " once, the screen displays "P100".
2) Press " Microwave/Grill/Combi. " for times or turn " " to choose combi. 1 mode.
3) Press "
Start/+30Sec./Confirm " to confirm, and the screen displays "C-1".
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press "
Start/+30Sec./Confirm " to start cooking.
Note:If half the grill time passes, the oven sounds twice, and this is normal. In order
to have a better effect of grilling food, you should turn the food over,
close the door, and then press" Start/+30Sec./Confirm
If no operation, the oven will continue working. " to continue cooking.
4. Q uick St a rt
1) In waiting state, Press " Start/+30Sec./Confirm " to start 30 seconds cooking with
100% power, each added press will increase 30 seconds cooking time up to 95
minutes.
2) In microwave, grill, combination cooking or time defrost state, each press of
" Start/+30Sec./Confirm " can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100%
microwave power, then press "
Start/+30Sec./Confirm " to start cooking.
5. De frost By W eight
1) Press " Weight/Time Defrost " once, and the oven will display "dEF1".
2) Turn " " to select the weight of food from 100 to 2000 g.
3) Press "
Start/+30Sec./Confirm " to start defrosting.
6. Defrost By T ime
1) Press " Weight/Time Defrost " twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
3) Press "
Start/+30Sec./Confirm " to start defrosting. The defrost power is P 30, and
it cannot be changed.

19
7. Kitchen Timer
(1) Press " Kitchen Timer/Clock " once, the screen will display 00:00.
(2) Turn " " to enter the correct time. (The maximum cooking time is 95 minutes.)
(3) Press " Start/+30Sec./Confirm " to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times.
If the clock has been set (24-hour system), the screen will display the current time.
Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.
8. Auto Menu
1) Turn " " right to choose the menu, and "A-1" to "A-8" will display, which
means pizza, meat, vegetable, pasta, potato,fish,beverage and popcorn.
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " " to choose the default weight as the menu chart.
4) Press " Start/+30Sec./Confirm " to start cooking.
Example: If you want to use "Auto Menu" to cook fish for 350g.
1) Turn " " clockwise till "A-6" displays.
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " " to select the weight of fish till "350" displays.
4) Press " Start/+30Sec./Confirm " to start cooking.

20
The menu chart:
Menu
Weight
Display
A-1
Pizza
200 g
200
400 g
400
A-2
Meat
250 g
250
350 g
350
450 g
450
A-3
Vegetable
200 g
200
300 g
300
400 g
400
A-4
Pasta
50g(with 450 ml cold water)
50
100g(with 800 ml cold water)
100
A-5
Potato
200 g
200
400 g
400
600 g
600
A-6
Fish
250 g
250
350 g
350
450 g
450
A-7
Beverage
1 cup(120 ml)
1
2 cups(240 ml)
2
3 cups(360ml)
3
A-8
Popcorn
50 g
50
100 g
100
