Operating instructions
Hager witty charging stations for electric vehicles
XEV1R22T2x, XEV1K22T2x,
XEV1K07T2x

02 witty charging station
Table of contents
01 Die Ladestation............................................................................................................................... 03
02 LED-Anzeigen im Normalbetrieb ................................................................................................. 04
03 Bedienung ....................................................................................................................................... 05
03.01 Wichtige Sicherheitshinweise .................................................................................................05
03.02 Sicherheitshinweise zum Laden .............................................................................................05
03.03 Elektrofahrzeug laden .............................................................................................................06
04 Anhang............................................................................................................................................. 08
04.01 LED-Anzeigen bei Störungen .................................................................................................08
04.02 Wartungs- und Pflegehinweise...............................................................................................09
04.03 Technische Daten ...................................................................................................................10
04.04 Zubehör ..................................................................................................................................10
04.05 Technischer Support...............................................................................................................11
04.06 Entsorgung .............................................................................................................................11

03
The charging station
witty charging station
01 The charging station
1
2
3
4
5
6

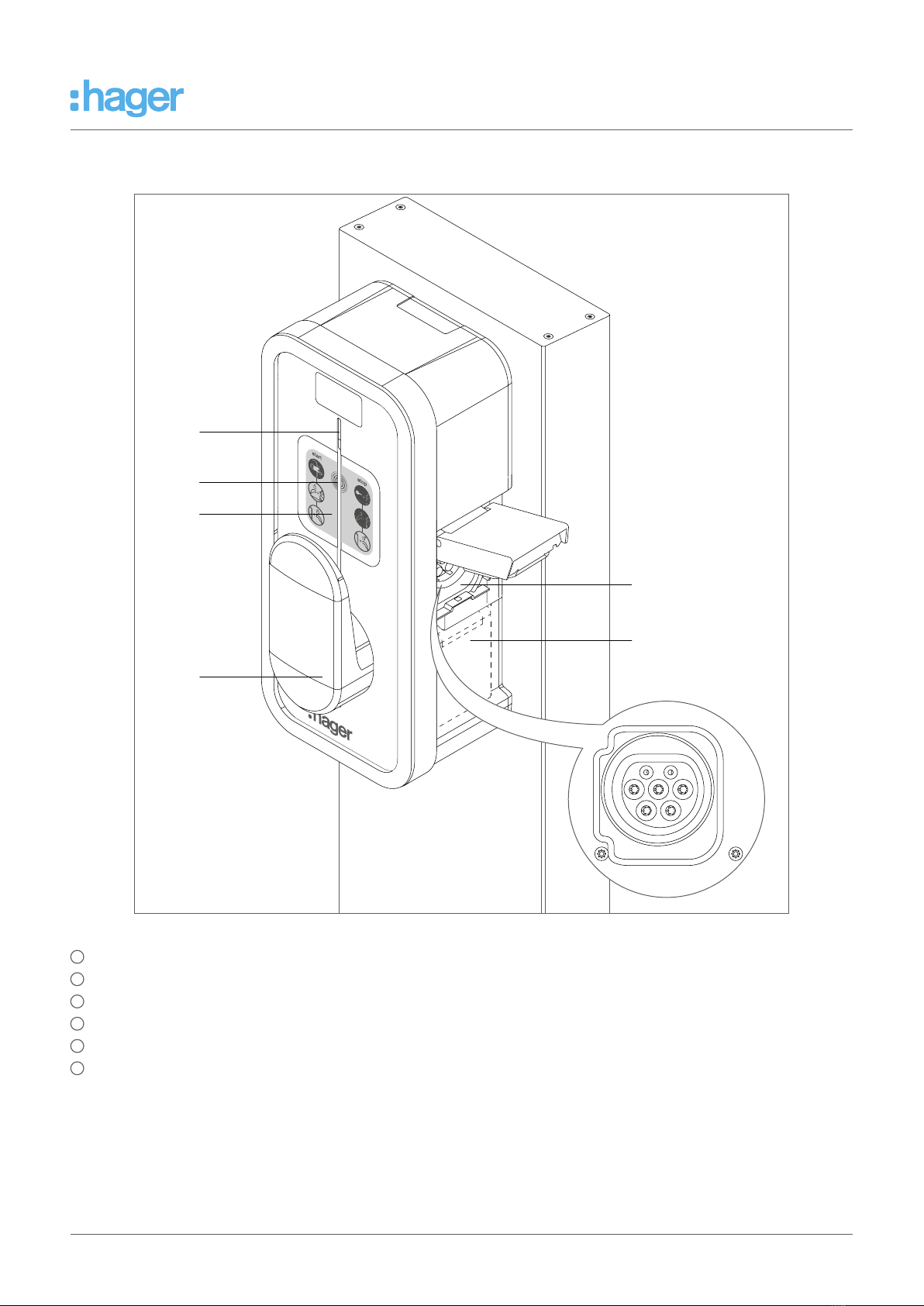

Fig. 1: Exterior view of the witty solar charging station
1 LED display (strip light)
2 RFID reader
3 Charging operation instructions sticker
4 Type T2/T2S charging socket, Mode 3[1]
5 Type TE/TF charging socket, Mode 2[2]
6 Cable holder (optional accessory)
[1] The Mode 3 T2/T2S socket outlet/plug is a standardised connecting device for charging stations and electric vehicles.
[2] Mode 2 TE/TF socket outlet, version-dependent and not available in all markets. The additional socket outlet must only be used to charge batteries for bicycles
or scooters, for example.
4

04
LED displays in normal operation
witty charging station
02 LED displays in normal operation
LED display Signal Cause LED display Signal Cause
O − The charging station is not
switched on/not receiving
power
2 x − The RFID card has not
been recognised, repeat the
procedure
On − The RFID card is being
checked, and confirmed
during teach-in process, or
− There is a communication
problem with a connected
server
− The charging operation is in
progress (max. power)
− There is a local
communication problem
with the Ethernet/WiFi
− The charging station is
reserved[3]
− The charging station is ready
or the charging operation is
complete
− The charging operation is
not complete, the electric
vehicle is waiting[3], or
− The WiFi hotspot/coupling
mode is enabled[3]
2 x − The RFID card has been
accepted, the charging
station is waiting for the
electric vehicle to be
connected/disconnected
− The charging operation is
in progress and is being
monitored and optimised
to protect against overload
(Solar Mode)[3]
− The charging operation has
been interrupted by the
charging station or
− The charging station
is waiting for RFID
authentication
Table 1: LED displays in normal operation
[3] Not applicable to all charging stations (version-dependent)!

nn
05
Operation
Important safety information
witty charging station
03 Operation

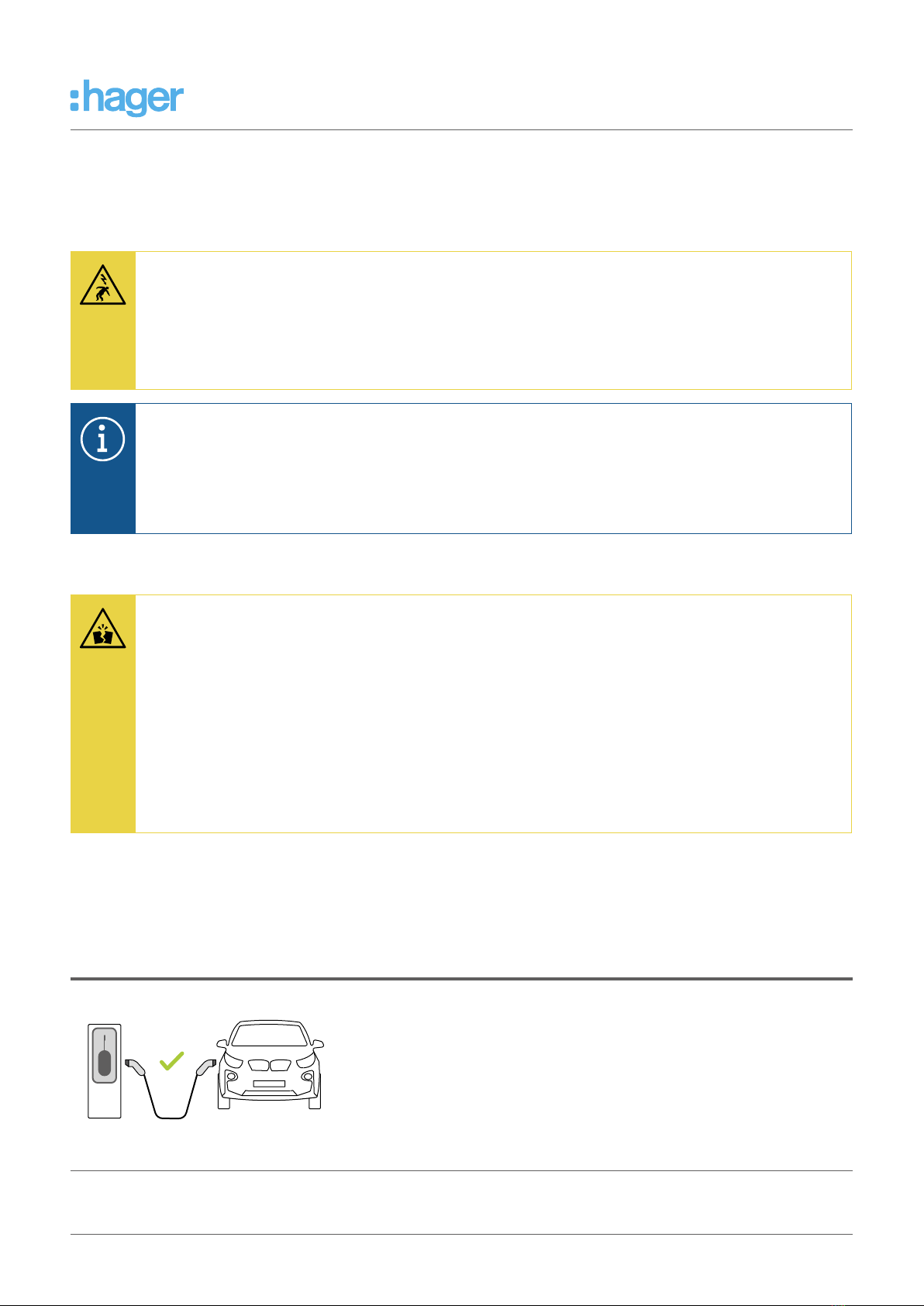

03.01 Important safety information
Danger
Touching live parts can result in an electric shock.
An electric shock can lead to death.
•Never touch the inside of the charging station’s socket outlet(s).
•Keep children away from the charging station and connected charging cables.
Liability is excluded for electric vehicles with no galvanic separation!
HagerEnergy will not accept any liability for damage or failures caused by the charging of
electric vehicles that do not possess galvanic separation between the direct current side
(storage battery in the vehicle) and the alternating current side (building power network).
03.02 Safety information for charging
Caution
Moisture or humidity can damage the charging station!
Prohibited environmental conditions may damage the device.
•The permitted temperature and humidity parameters must always be complied with,
and sucient ventilation and cooling must be provided (see Technical data).
•Protect the device and charging plug from snow, rain and dirt.
•Never expose the device to a high level of air humidity over a long period of time.
•Cover the charging cable plugs with the protective cap after use.
•Check the charging plug regularly for corrosion damage.
Before each charging operation, always check for:
− any damage to the charging cable or charging plug contacts. Do not use any charging cable
that is damaged. There is the risk of an electric shock!
− any damage to the vehicle’s socket outlet. Never connect the charging cable to any vehicle
socket outlet that is damaged.
≤ 10 m
•Only use accessories and charging cables
that are specified by the manufacturer and
comply with EN 62196-1, EN 62196-2 and EN
50620.
•Always unwind the charging cable fully to
avoid overheating.
•Only use a charging cable up to a maximum
of 10 m in length.

ee
06
Operation
Charging the electric vehicle
witty charging station
•Do not extend the charging cable using cou-
plings or adapter cables or in any other way.
•Never allow the charging cable to become
stretched whilst a charging operation is in
progress.
•Always make sure that the charging cable
does not get kinked or twisted and that there
is no risk of anyone tripping over it.
•Do not drive over the charging cable or other-
wise put any weight on it.
When the charging operation is complete:
•Always remove the charging cable from the
vehicle first. When doing so, never pull the
plug out of the socket outlet by the cable and
only pull gently.
•Carefully wind the charging cable back up for
the next charging operation.
03.03 Charging the electric vehicle
Starting the charging operation using an RFID card
[4]
[5]
Fig. 2: Starting the charging operation

ee
07
Operation
Charging the electric vehicle
witty charging station
The LED display 1is lit up green. The charging station is ready for operation.
The vehicle is unlocked using the central locking.
1 Hold the RFID card in front of the reader 2.[4]
The LED display 1flashes white a few times.
2 Plug the charging plug into the electric vehicle’s socket outlet.
3 Plug the charging plug into the charging station’s socket outlet.
The charging station and electric vehicle plugs lock automatically.
The charging operation starts. The LED display pulses green[5]. The electric vehicle is being
charged.
The LED display turns green when the charging operation has been completed.
Ending the charging operation
Fig. 3: Ending the charging operation
The LED display is green. The charging operation has been completed.
1 Unlock the electric vehicle using the central locking.
The charging socket on the vehicle is unlocked.
2 Pull the charging plug out of the electric vehicle’s socket outlet.
3 Pull the charging plug out of the charging station’s socket outlet and stow it away.
Information
In the event of a mains breakdown or a loss of voltage to the charging station, the
mechanical interlock of the charging plug in the charging station is automatically unlocked.
The plug can be pulled out of the charging socket.
[4] In some variants of the charging station, the charging operation can also be started freely (without an RFID card
).
[5] In some product variants or charging modes, the LED flashes blue.

ss
08
Appendix
LED displays for faults
witty charging station
04 Appendix
04.01 LED displays for faults
Caution
Critical errors can damage the charging station.
•In the event of a critical error, which is indicated by a permanent red light, turn the
charging station o for 2 minutes to reset the error.

ss
09
Appendix
LED displays for faults
witty charging station
LED display Signal Causes Solutions
1 x − The charging cable connected to the Mode 3 socket
outlet is defective or not compatible, or
− There has been a failure due to a short circuit, the
exchange of control signals between the charging
station and the electric vehicle has been interrupted
•Replace the charging cable.
2 x − The RFID card has not been recognised •Repeat the procedure.
•Have the RFID card enabled.
− The vehicle has not been recognised •Replace the charging cable.
If the problem persists:
•Check the vehicle and charging station
connections.
•Contact the vehicle dealer.
3 x − The vehicle’s power consumption is too high, or
− The temperature in the device is too high
(ventilation), or
− There is a communication error between the electric
vehicle and charging station
•Disconnect the charging station from the
electric vehicle, ventilate if necessary,
and
•Repeat the charging operation.
If the problem persists:
•Contact the vehicle dealer.
3 x / 8 x [6] − A rated fault current of 6 mA DC has been detected •Contact the vehicle dealer.
4 x − There is a local communication problem with the
Ethernet/WiFi[6]
•Check the network connections.
•Ensure that a DHCP router is available in
the network.
− There is a communication error with the internal
energy meter, the charging station is not compatible
with the vehicle
•Use a compatible charging station.
5 x − The charging operation has been interrupted due to
the temperature being too high
− Shorten the charging operation, as the power supply
via the house connection is insucient
− The protection switch for the Mode 2 socket outlet
current circuit has been triggered
[2]
•Correct the fault.
6 x − The charging station cannot connect to the vehicle
correctly. The charging operation cannot be started.
•Replace the charging cable.
If the problem persists:
•Contact Hager Technical Support if
necessary.
− The RFID reader has failed
− The hardware is defective or incorrectly connected/
configured
•Contact the charging station installer.
•Contact Hager Technical Support if
necessary.
There is a critical error, such as:
− The RFID reader has failed, or
− The hardware is defective or incorrectly connected/
configured
•Arrange for a qualified electrician to
identify and remedy the fault.
•Contact Hager Technical Support if
necessary.

ss
10
Appendix
Maintenance and care instructions
witty charging station
LED display Signal Causes Solutions
− The electric vehicle is being charged in emergency
operation.[3]
•Find the cause of the fault and remedy it.
•Contact the vehicle dealer if necessary.
2 x [6] − There is a local communication problem with the
Ethernet/WiFi
− There is no connection to the energy management
controller (EMC) flow[3]
•Check the network connections.
•Ensure that a DHCP router is available in
the network.
•Reconnect the charging station to the
EMC flow (see the XEM470 guide or flow.
hager.com).[3]
Table 2: LED displays for faults
[2] Mode 2 TE/TF socket outlet, version-dependent and not available in all markets. The additional socket outlet must only be used to charge batteries for bicycles
or scooters, for example.
[3] Not applicable to all charging stations (version-dependent)!
[6] LED signalling varies, version-dependent!
04.02 Maintenance and care instructions
Qualified electrician
Electrical devices may only be installed, assembled, repaired and dismantled by a trained
and certified qualified electrician in accordance with the relevant installation standards,
guidelines, regulations, directives, safety and accident prevention regulations of the coun-
try.
The charging station is maintenance-free.
However, we recommend the following approximately once a year:
•Check the housing of the charging station for defects and external damage.
If you find any damage, stop using the device for charging and contact a qualified electrician.
•Clean the housing with a dry or slightly damp cloth.
•With the charging cable disconnected, clean the charging cable and dirty contacts with a dry
cloth.
Maintenance instructions
Never use harsh cleaning agents, water or steam jet cleaners, and never submerge the
charging cable in liquids.
•Check that the residual current circuit breaker is functioning correctly (see device instructions).
•Check the electrical switching and safety equipment in the house distribution board for visual de-
fects.

aa
11
Appendix
Technical data
witty charging station
04.03 Technical data
Note
Subject to changes
The current PDF document at hager.com is always binding!
Permitted environmental conditions
Operating temperature -25°C – +50°C
Relative humidity 5 % ... 95 %
Protection IP 55, IK 10
Electrical properties
Voltage 230 V~ (single-phase version) -15 %/ +10 %
400 V (three-phase version) -15 % / +10 %
Frequency 50/60 Hz +/- 1%
Current consumption in standby mode 1.7 W
Max. charging current/charging capacity of Mode 3 T2/T2S
connection (version-dependent)[1]
32 A - 7 kW (1-phase)/ 32A - 22 kW (3-phase)
Max. charging current/charging capacity of Mode 2 TE/TF
connection (version-dependent)[2]
10 A – 2300 W
Mechanical properties
Maximum carrying capacity of cable holder (accessories) 7 kg
Dimensions: Height x width x depth 549 x 250.5 x 173 mm
WiFi [3]
Frequency range 2.4 ... 2.4835 GHz
Transmitting power 100 mW
RFID
Frequency range 13.553 ... 13.567 MHz
Transmitting power 42 dBµA/m (at 13.56 MHz)
Vehicle compatibility identifier
04.04 Accessories
Accessory product Order number
Cable holder for charging station XEVA100
RFID cards for standard users (set of 20) XEVA400
RFID cards for administrators (set of 3) XEVA410
RFID cards for witty flow charging stations with WiFi hotspot (set of 20)[3] XEVA420
1-phase charging cable for Mode 3 T2/T2 20 A, 5 m/ 7.5 m [7] XEVA711/ XEVA712
1-phase charging cable for Mode 3 T2/T2 32 A, 5 m/ 7.5 m [7] XEVA713/ XEVA714

tt
12
Appendix
Technical Support
witty charging station
Accessory product Order number
3-phase charging cable for Mode 3 T2/T2 20 A, 5 m/ 7.5 m XEVA731/ XEVA732
3-phase charging cable for Mode 3 T2/T2 32 A, 5 m/ 7.5 m XEVA733/ XEVA734
[1] The Mode 3 T2/T2S socket outlet/plug is a standardised connecting device for charging stations and electric vehicles.
[2] Mode 2 TE/TF socket outlet, version-dependent and not available in all markets. The additional socket outlet must only be used to charge batteries for bicycles
or scooters, for example.
[3] Not applicable to all charging stations (version-dependent)!
[7] Not available in all countries!
04.05 Technical Support
Support
The employees are happy to answer to any questions that arise and can oer solutions.
Please provide the following information:
− Name of the installation engineer
− Serial number/order number of the charging station
− Problem description
Support can be found at:
Hager distribution company
Zum Gunterstal
66440 Blieskastel, Germany
T+49 6842 945 0
F+49 6842 945 4625
[e-mail]
04.06 Disposal
Correct disposal of this product
(Waste Electrical & Electronic Equipment).
(Applicable in the European Union and other European countries with separate collection systems).
The identification shown on the product or its documentation indicates that it should not be disposed
of with other household waste at the end of its working life. To prevent possible harm to the environ-
ment or human health, please dispose of this device separately from other types of waste. This helps
you to promote sustainable reuse of material resources.
Private consumers are asked to contact the dealer from whom they purchased the product, or their
local administration, to obtain information on how to dispose the product in an environmentally-friendly
manner. Commercial consumers are asked to contact their suppliers and to check the general terms
and conditions of business of the purchasing agreement. This product should not be mixed with other
commercial waste for disposal.

13 witty charging station

10.2023
6LE009376A
HagerEnergy GmbH
Ursula-Flick-Straße 8
49076 Osnabrück
Germany
T [phone]
F [phone]
[e-mail]
hager.com
