HAI OMNISTAT RC-122 User manual

O M N I S T A T
ELECTRONIC COMMUNICATING THERMOSTAT
Owner's Manual
RC-122 Two Stage Heat/Cool
2 Stage Heat / 2 Stage Cool
With Energy Efficient Control
Document Number 13R00-17
January, 1997
:
DAY
P
COOL
AUTO
Hold Prog Mode Fan
OMNISTAT

Copyright © 1997 Home Automation, Inc.
All Rights Reserved

CONTENTS
INTRODUCTION ..................................1
DESCRIPTION ....................................1
MAINTENANCE ...................................1
ENERGY EFFICIENT CONTROL ......................2
OPERATION .....................................3
DISPLAY ........................................5
FILTER REMINDER ................................7
ANTICIPATION ...................................7
SETTING THE CURRENT TIME AND DAY ...............8
PROGRAMMING ..................................9
SETTING TIME SCHEDULES .........................10
DAY/NIGHT MODE ................................11
SYSTEM MODE ...................................11
AUTOMATIC TIME UPDATE .........................12

This thermostat is Listed by Underwriter's Laboratories and
UL Canada.
This thermostat has been tested and found to comply with the
requirements of the European Union for Electromagnetic
Interference, Electromagnetic Immunity and Safety under the
applicable EMI and Low Voltage Directives and Standards.
This thermostat has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules.
This product generates and can radiate radio frequency
energy. Due to its low power design, it is unlikely to
interfere with radio and TV communications. If it is
suspected of doing so, the user is encouraged to try to correct
the problem by reorienting the receiver's antenna, moving the
receiver away from the product, or consulting an experienced
radio/TV technician for help.
FCC

INTRODUCTION
Thank you for purchasing your new RC-122 two stage electronic
communicating thermostat. Your thermostat will provide you with
comfort, convenience, and energy savings for years to come.
We hope that you take a few moments to become familiar with all of
the features of this fine product by reviewing this manual. Please
keep this manual on file for future reference.
DESCRIPTION
The RC-122 is a precision digital thermostat specifically designed for
two stage systems. It has the capability of being controlled both
locally and by remote control. It offers programmability, stand alone
operation, and robust, optically isolated communications with
automation systems, utility control systems, and personal computers.
There are several items which can be configured at the time of
installation. These items have a check box ( ) for your installer to
indicate which features are used in your system.
As an EPA ENERGY STAR Partner, Home Automation, Inc. has
determined that this thermostat meets the ENERGY STAR
guidelines for energy efficiency.
MAINTENANCE
Your new thermostat is maintenance free. There is no battery to
install or replace. If necessary, clean unit carefully with a mild soap
solution on a soft cloth.
1

ABOUT TWO STAGE UNITS...
Two stage systems have two "speeds" of heating and cooling.
"Stage 1" is similar to "low speed" and "stage 2" is similar to "high
speed". In most cases, stage 1 is sufficient to heat or cool the
building, but from time to time, due to hot or cold weather, stage 2 is
needed to keep the building comfortable.
This thermostat will control both stages of heating or cooling as
needed to meet the heating and cooling needs of the building. It is
usually preferable to use stage 1 only, since it is the most efficient
mode of operation for the heating and cooling equipment. Stage 2
should be used only when necessary.
ENERGY EFFICIENT CONTROL
Using the programmable or remote control features of your
thermostat, you can save energy costs by setting back the thermostat
during unoccupied times. This reduces the energy loss from indoors
to outdoors. When recovering from the set back, (heating or cooling
the building to a comfortable temperature after being at an energy
saving temperature) the thermostat will use the most energy efficient
mode of the heating and cooling equipment, as long as it can heat or
cool at an acceptable rate.
This thermostat has microprocessor intelligence that continually
monitors the performance of the system and uses stage 2 only when
necessary. If it determines that stage 1 is able to heat or cool at a rate
of 5 degrees per hour or better, stage 2 will not be used. If stage 1 is
unable to heat or cool at this rate, the thermostat will use stage 2 as
needed. Under these conditions, stage 1 will run continuously and
stage 2 will cycle on and off as needed.
2

OPERATION
To take advantage of all the benefits and features offered by your
thermostat, we recommend that you start by becoming familiar with
its operation.
Note:To check your desired setting without changing it, press the
up or down arrow key (∧or ∨)once.
AUTO
4
ModeHold
2
Prog
3
Fan
5
1
DAY
COOL
:
P
6
7
OMNISTAT
1- Display
The Display is used to show current time, temperature, outdoor
temperature (optional), mode, and to give useful information that
will guide you through normal operation of your thermostat.
2- Hold
Press the Hold key to set the system into Hold mode. In Hold
mode, the thermostat will not change its settings by program.
When hold mode is first turned on, the RC-122 will use stage 2
to get to the new setting as quickly as possible. Once the
temperature is at or very near the setting, or if the temperature is
already near the setting, the RC-122 will resume energy efficient
operation.
3

3- Prog
Press the Prog (programming) key to set the current time and day
(hours, minutes, day of week), and to program the temperature
time schedules for the MORN, DAY, EVE, and NITE periods.
4- Mode
Press the Mode key to set the thermostat mode to Off, Heat,
Cool, or Auto.
In Off mode, the heating and cooling systems are both off and do
not respond to changes in temperature settings.
In Heat mode, the heating system responds to maintain your
desired heating setting.
In Cool mode, the cooling system responds to maintain your
desired cooling setting.
In Auto mode, your thermostat will automatically switch between
heat and cool to maintain your desired heating and cooling
settings.
5- Fan
Press the Fan key to set the system fan to Fan Auto or Fan On.
In Fan Auto mode, the fan runs only when the system calls for
heating or cooling.
In Fan On mode, the fan runs continuously.
6- Down Arrow (∨)
Press the Down Arrow key to lower the desired temperature.
7- Up Arrow (∧)
Press the Up Arrow key to raise the desired temperature.
4

DISPLAY
The following icons will be displayed during normal operation:
1- Temperature Display
Shows the current temperature, desired temperature, or heating
and cooling settings.
2- Time Display
Shows the current time of day.
3- DESIRED
DESIRED is displayed when the temperature display shows the
desired temperature setting.
4- OUTSIDE
OUTSIDE will be displayed when the temperature display shows
the outdoor temperature. The outdoor temperature will be
displayed every 4 seconds.
FAN AUTO
10 9876
11
12
13
MORN
DAY
EVE
NITE
REMOTE
HOLD
HEAT
OFF COOL
1
::
2
OUTSIDE
DESIRED
A
4
5
3
5

5-


The Top


is displayed when Stage 1 of the heating or cooling
system is running.
The Bottom


is displayed when Stage 2 of the heating or
cooling system is running.
6- COOL
COOL is displayed when the system is in Cool mode.
7- AUTO
AUTO is displayed when in automatic changeover mode.
8- HEAT
HEAT is displayed when the system is in Heat mode.
9- FAN
FAN is displayed when the fan is set to run continuously.
10- OFF
OFF is displayed when the system is in the Off mode.
11- REMOTE
REMOTE is displayed when the last command received by the
thermostat was sent by a remote system.
12- Period Indicators
MORN, DAY, EVE, or NITE is displayed when scheduled
temperature changes are made by the thermostat programs.
13- HOLD
HOLD is displayed when the system is in Hold mode.
6

FILTER REMINDER
Your thermostat logs the amount of time your heating and cooling
system has been running and gives you a reminder when it's time to
replace your filter.
" F I L t"will be displayed every four seconds in the place of the
time display when it is time to change you filter. To clear the
reminder, press the Prog key. The display will return to normal in 10
seconds. Don't forget to change your filter!
ANTICIPATION
Your thermostat has a sophisticated control system designed to keep
you comfortable while saving energy. Part of the control system is a
feature called "anticipation", which anticipates the need to turn the
system on or off before the temperature is actually at the setting.
As humans, we perceive temperature as a combination of heat in the
air and heat radiated from the walls and surroundings. The
thermostat also measures a combination of air and wall temperature.
When heating, the air temperature rises faster than the wall
temperature. The thermostat will turn the heat off briefly to prevent
overheating the air while the wall temperature catches up. Your
comfort is assured without overshooting the heat setting, which
wastes energy.
In summer, the thermostat will periodically run the cooling system to
circulate the air and remove humidity when the temperature is close,
but not above the cool setting. You will be more comfortable at a
higher cool setting, which saves energy.
Remember to allow some time for the thermostat to adapt to a new
setting.
7

SETTING THE CURRENT TIME AND DAY
To set or change the current time and day, press and release the Prog
key. The hour will blink.
1. Use the arrow keys (∧-∨) to change the hour.
2. Press the Prog key to advance to minutes.
3. Use the arrow keys (∧-∨) to change minutes.
4. Press the Prog key to advance to day of week.
5. Use the arrow keys (∧-∨) to set the day of week
(1=Monday - 7=Sunday).
Press the Mode key when complete, or simply wait 8 seconds for the
display to return to normal.
:: P
OFF
:: P
OFF
:: P
OFF
DAY
8

PROGRAMMING
Your thermostat may be programmed to adjust the heating and
cooling settings up to 4 times per day (MORN, DAY, EVE, NITE).
You can setup a temperature time schedule for weekdays, Saturday,
and Sunday.
To enter programming mode, press the Prog key 4 times.
When in programming mode:
1. The item that is being programmed will flash.
2. The up arrow key (∧) is used to increase the value.
3. The down arrow key (∨) is used to decrease the value.
4. The Prog (>) key is used to advance to the next item.
5. The Hold (<) key is used to return to the previous item.
6. To exit programming mode, press the Mode key.
The thermostat will automatically exit programming mode after 20
seconds of no key activity.

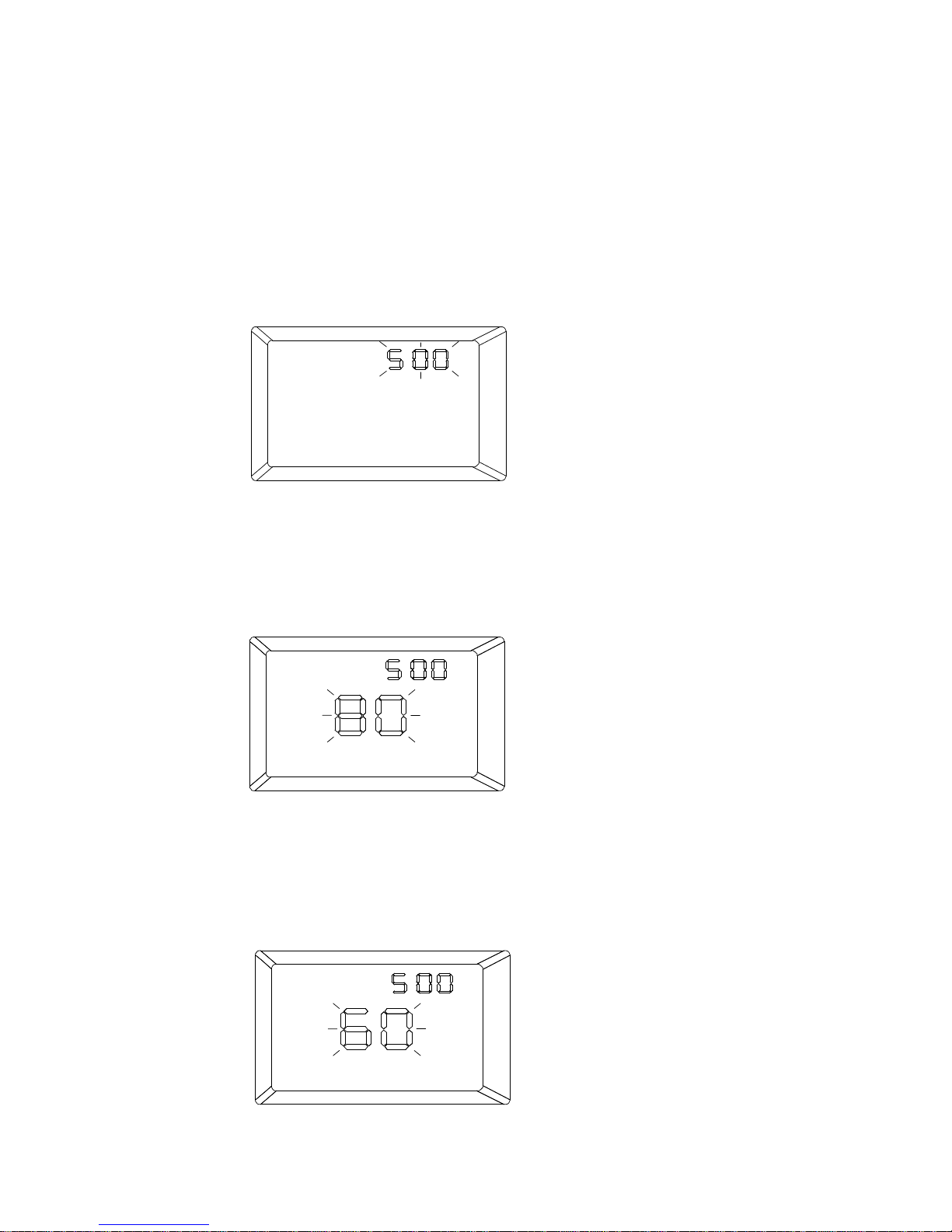

When programming a time for the Morning, Day, Evening, or Night
period, the time will be increased or decreased in 15 minute
increments. If the up arrow is pressed at 11:45 PM, or the down
arrow is pressed at 12:00 AM, the time display will be blank,
indicating that no scheduled temperature changes will be made for
that period.
Your thermostat will follow a set of time scheduled programs on
weekdays (Monday-Friday), on Saturday, and on Sunday. This will
allow you to have different heating and cooling settings on Saturday
and Sunday, than you normally would have for weekdays (Monday -
Friday). When programming the time schedules, the weekday time
schedule is programmed first. The Saturday time schedule is
programmed second, and the Sunday time schedule is programmed
last.
9

SETTING TIME SCHEDULES
To view or change the programming time schedules of your
thermostat, press and the Prog key four times. The weekda yMORN
time will flash.
1. Use the arrow keys ( ∧- ∨) to change the scheduled time for the
displayed period ( MORN, DAY, EVE, o rNITE).
2. Press the Prog key to advance to the next item.
3. Use the arrow keys ( ∧- ∨) to change the desired cool setting.
4. Press the Prog key to advance to the next item.
5. Use the arrow keys ( ∧- ∨) to change the desired heat setting.
::
A
MORN DESIRED
MORN
COOL
DESIRED
::
A
MORN DESIRED
::
A
HEAT
10

6. Press the Prog key to advance to the next period.
11

Repeat steps 1-6 for the
DAY
,
EVE
, and
NITE
periods. Afterwards,
repeat steps 1-6 for 4 daily periods on Saturdays (Day 6), and 4
daily periods on Sundays (Day 7). The temperature display will
show "6" for Saturdays, and "7" for Sunday times.
Note: If Programming Mode is not being used and Day/Night Mode
is being used, only the Weekday - DAY and NITE settings can
be programmed.
DAY/NIGHT MODE
Your thermostat can be configured to change its temperature settings
from "DAY" to "NITE" when commanded from a remote location.
If so, the thermostat will use the weekday "DAY" and the weekday
"NITE" settings.
"REMOTE" and either "DAY" or "NITE" will be displayed when a
command is sent from a remote location. You can use the arrow keys
(∧-∨) to override the temperature settings, or press the Hold key to
prevent any future remote changes.
Follow the procedure shown in Programming Mode, to change the
programmed DAY and NITE settings.
SYSTEM MODE
Your thermostat can be connected to an automation system or
personal computer. With network software, the remote system can
send commands to the thermostat to change mode, cool setting, heat
setting, status of fan and hold, and other items.
"REMOTE" will be displayed when a command is sent from the
automation system or personal computer. You can use the arrow
keys (∧-∨) on the thermostat to change the temperature settings.
When the temperature settings are changed at the thermostat,
"REMOTE" will no longer be displayed. Press the Hold key to
prevent thermostat programs or the remote system from changing
temperature settings. "HOLD" will be displayed at the thermostat.
12

AUTOMATIC TIME UPDATE
The thermostat time will automatically be updated by the connected
automation system.
POWER OUTAGES
The thermostat will restart the heating/cooling system 3 to 8 minutes
after the electricity comes back on. All settings and programs are
stored permanently, and will not be affected by a power outage.
CLOCK
The thermostat clock is maintained for approximately 25 minutes
during an electrical outage.
13

TIME SCHEDULES
The table below shows the time schedules that are currently set into
your thermostat. There is a blank table at the bottom that can be
used to plan changes to the current schedule.
WEEKDAYS SATURDAYS SUNDAYS
MORN 6:00 AM 8:00 AM 8:00 AM
COOL 78 78 78
HEAT 70 70 70
DAY 8:00 AM
COOL 85 85 85
HEAT 62 62 62
EVE 6:00 PM
COOL 78 78 78
HEAT 70 70 70
NITE 10:00 PM 11:00 PM 10:00 PM
COOL 82 82 82
HEAT 62 62 62
WEEKDAYS SATURDAYS SUNDAYS
MORN
COOL
HEAT
DAY
COOL
HEAT
EVE
COOL
HEAT
NITE

COOL
HEAT

TWO YEAR LIMITED WARRANTY
Home Automation, Inc. (HAI), warrants this product against defects in
material and workmanship, under normal use and service, for a period of
two (2) years from the date of purchase by the consumer.
During the warranty period, HAI will repair or replace, at its option, any HAI
thermostat that fails due to defect.
This warranty does not cover the cost of removal or reinstallation of any
thermostat. This warranty does not cover failure caused by damage
to the thermostat while in your possession (other than damage
caused by defect or malfunction), or by its improper installation,
including failure to follow the written installation and operation
instructions, alterations, misuse, or abuse. The remedies provided for
in this warranty are the sole and exclusive remedies therefor. In no event
shall HAI be liable for incidental expenses or consequential loss or
damages.
Any implied warranties, including warranties of merchantability and
fitness for particular use or purpose is limited to a period of two (2)
years from purchase date.
This warranty gives you specific legal rights, and you may have other legal
rights, which vary from state to state. Some limitations may not apply to
you.
For warranty and repair service,
Within Continental United States, send defective unit carefully
packaged, postage prepaid, along with description of trouble and return
address to:
Home Automation, Inc.
Service Department
5725 Powell Street, Suite A
New Orleans, LA 70123
Outside of Continental United States:
Contact an Authorized Distributor for repair/replacement instructions.
For Customer Service or Technical Support
Call us at [phone]
Monday - Friday, 9:00 a.m. to 5:00 p.m. Central time
