Haicom HI-605X Product information sheet

Easy Manual

HI-605X is a multi-functional and cost-efficient communication platform ideal
for all AVL applications. It integrates most recent high sensitivity GPS chipset
and quad-band (850/900/1800/1900) GSM communication module with powerful
microcontroller into a compact/ lightweight size.
HI-605X is secured in a solid enclosure for simple installation without sweat and
hassle. Nevertheless, not only it provides user with real time GPS location and
accurate vehicle status all the time on server, but also it allows user to command
vehicle remotely by one-click on computer. In a word, HI-605X accomplishes
advanced implementation of convenient fleet management, enhanced vehicle
safety, simultaneous emergency response, and merchandise/ package
transportation, etc... Unlimited advantages are available with HI-605X
extensive
applications.
Quad band 850/900/1800/1900 MHz GSM system External SiRF Star III high
performance GPS receiver External GSM active antennas Advanced
communication via SMS/TCP/UDP/HTTP
Program and control the tracker from the OTA (Over the Air)
web tracking platform and also USB configurations.
Build in motion sensor for power saving.
Support emergency/ over speed/ motion/ power lost alarm**
Real time location reports on preferred interval and vehicle status monitoring.
Premium functions: Fast GPS Fixed/ Geo-Fencing/ Hands free Kit/
Anti-Theft/ Data Logger function - 250,000 records or more.
Low battery alarm and battery voltage status**
Optional SOS button.
Minimum GPRS sending interval 10 seconds and interval adjustable.
** Only available with the version with build in battery

HI-605X Characteristics
Items
ItemsItems
Items Specification
SpecificationSpecification
Specifications
ss
s
Power Supply DC +9V - +28V
Backup Battery (Optional) 550mAh
Normal power consumption 85mA/h
Dimension 116mm x 55mm x 24mm
Operating temperature -20℃ to 55℃
Humidity 5% to 95% Non-condensing
Frequency GSM 900/1800/1900Mhz
GPS Chipset latest GPS SIRF-Star III chipset
GPS Sensitivity -159DB
GPS Frequency L1,1575.42 MHz
C/A Code 1.023MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec. , average
Hot start 1 sec. , average
Warm start 38sec. , average
Cold start 42 sec. , average
Altitude Limit 18,000 meters (60,000 feet) max.
Velocity Limit 515 meters / second (1000 knots ) max
Interface One input and one output

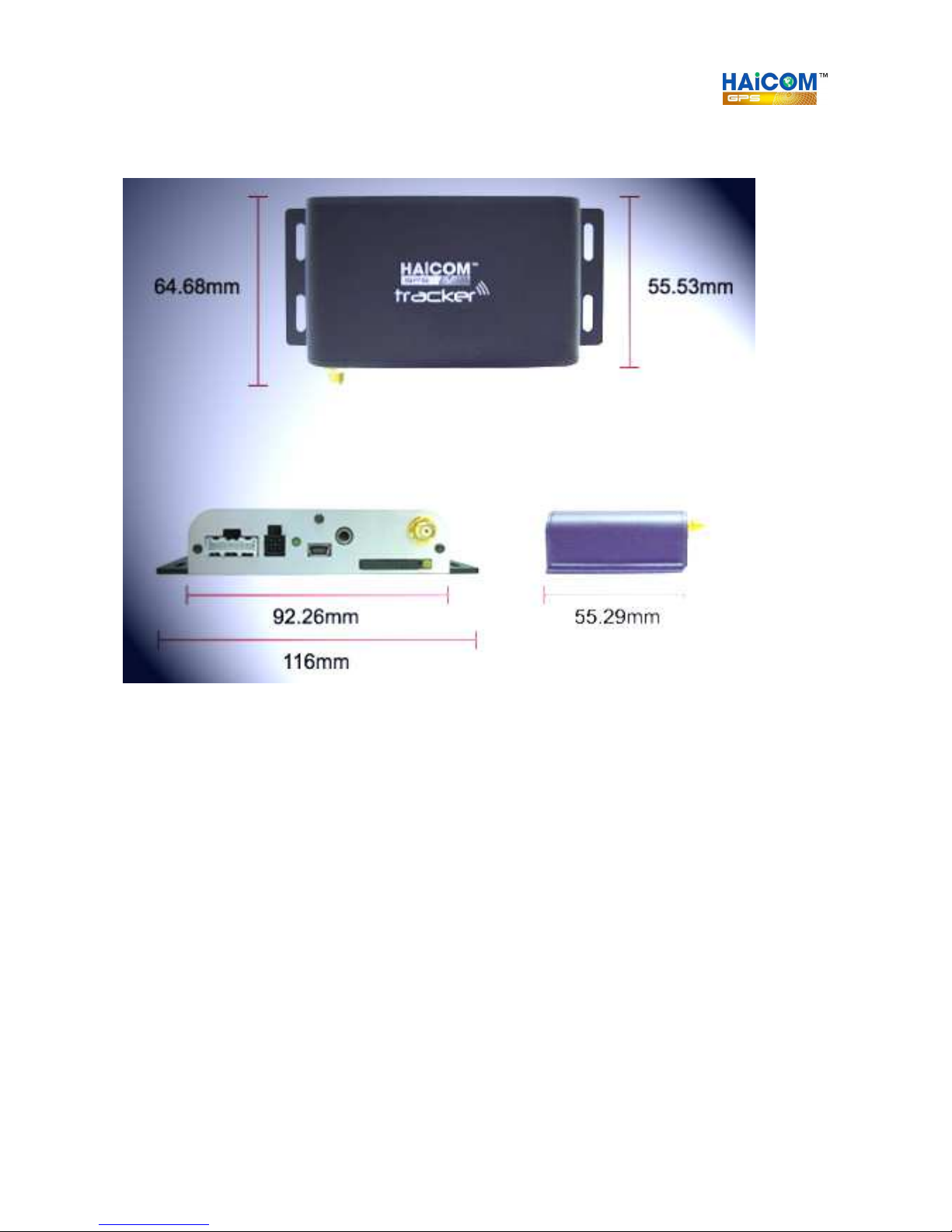

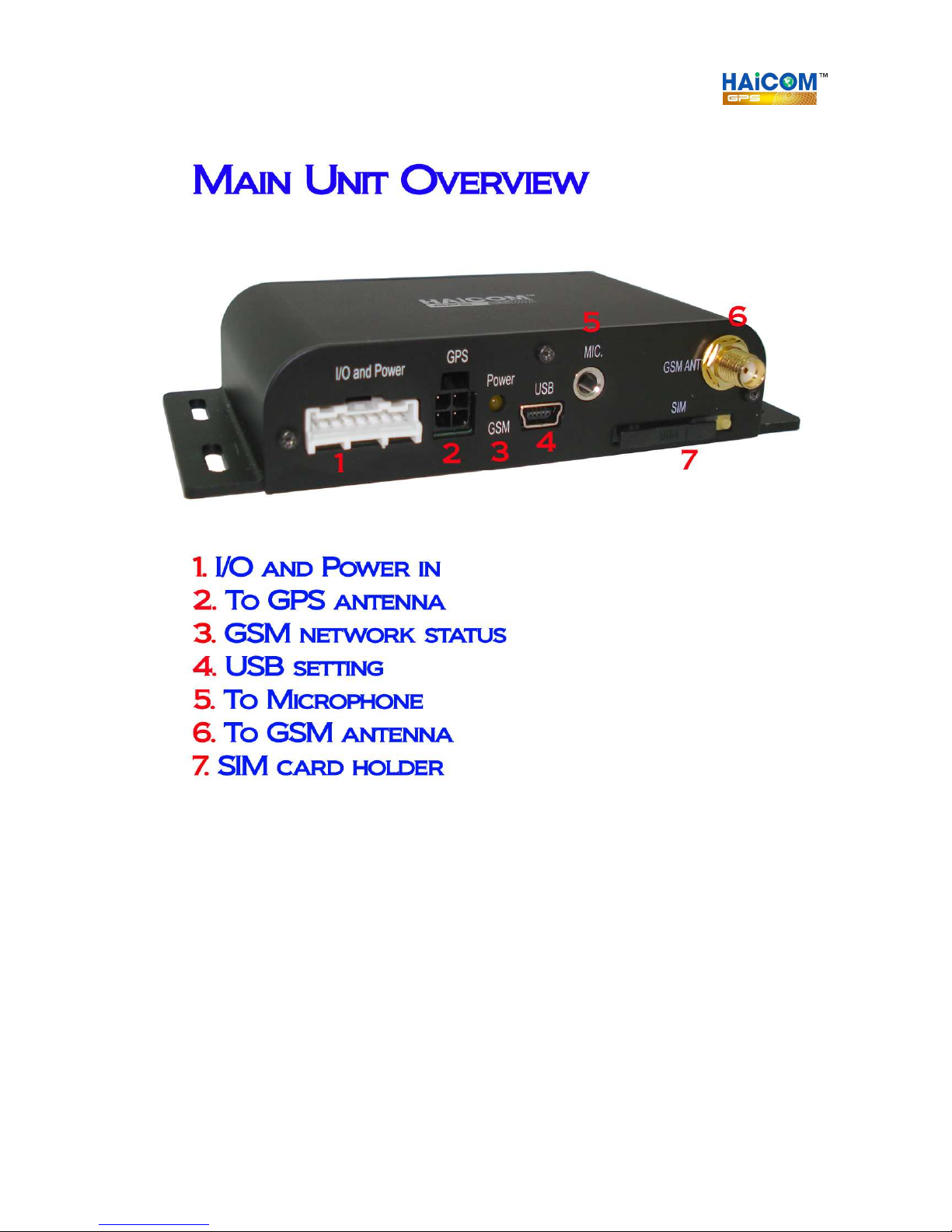

Dimensions

Getting Started
1. Push in the yellow part with a pen to release the SIM card holder.
2. Place the local SIM card on the holder.
(Make sure to disable the SIM card pin code requirement. Do this from your
mobile phone.)
Close the tray. Note the tray does not quiet sit flush with the unit when closed.
2. Connect the GSM antenna and GPS receiver to HI-605X

Setting up
For the initial set up from the retail box, you will need to use the set up program
from the inclusive small CD and perform the set up from your computer.

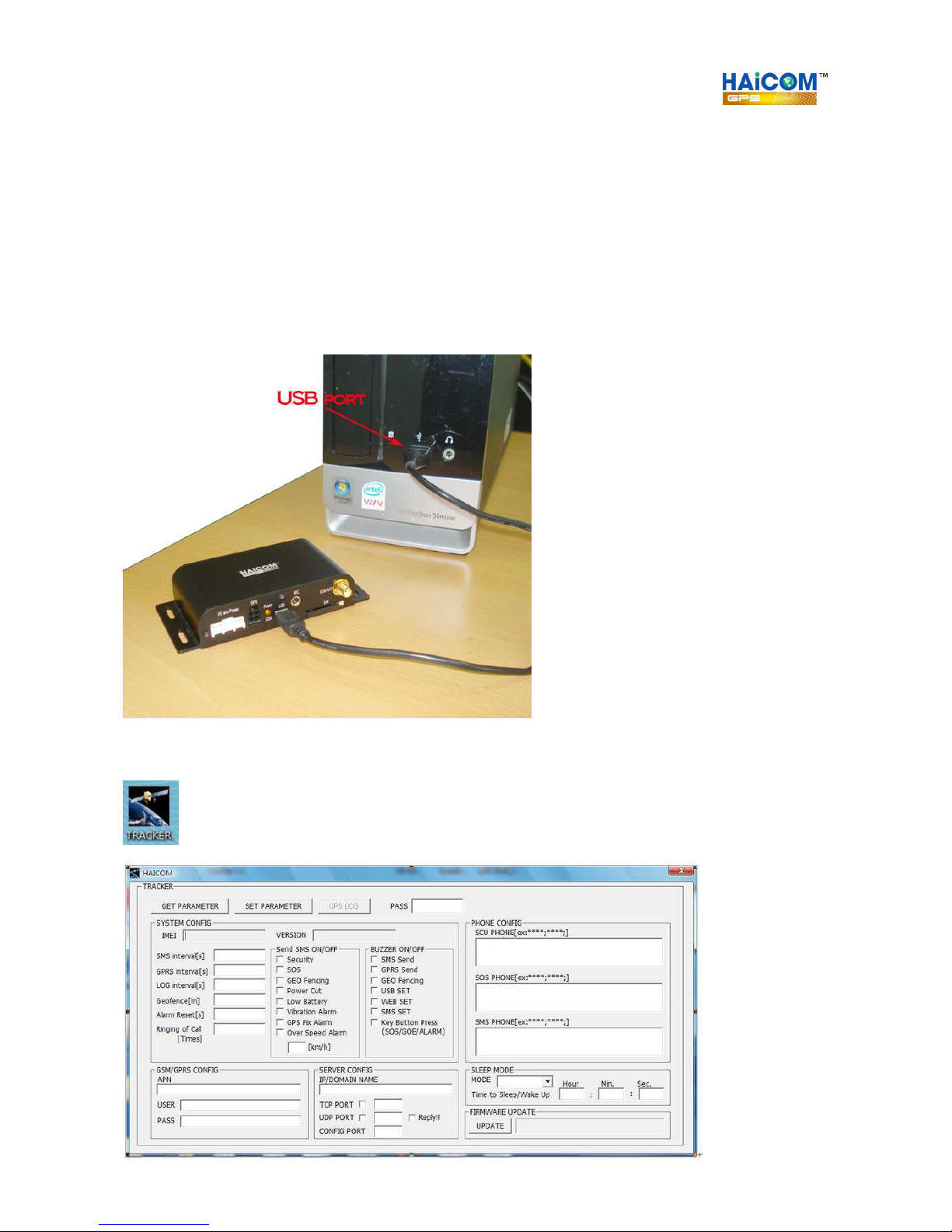

1. Connect the mini USB to the computer port.
Connect the HI 605X to the USB cable. The HI-605X will initially show all
lites illuminated.

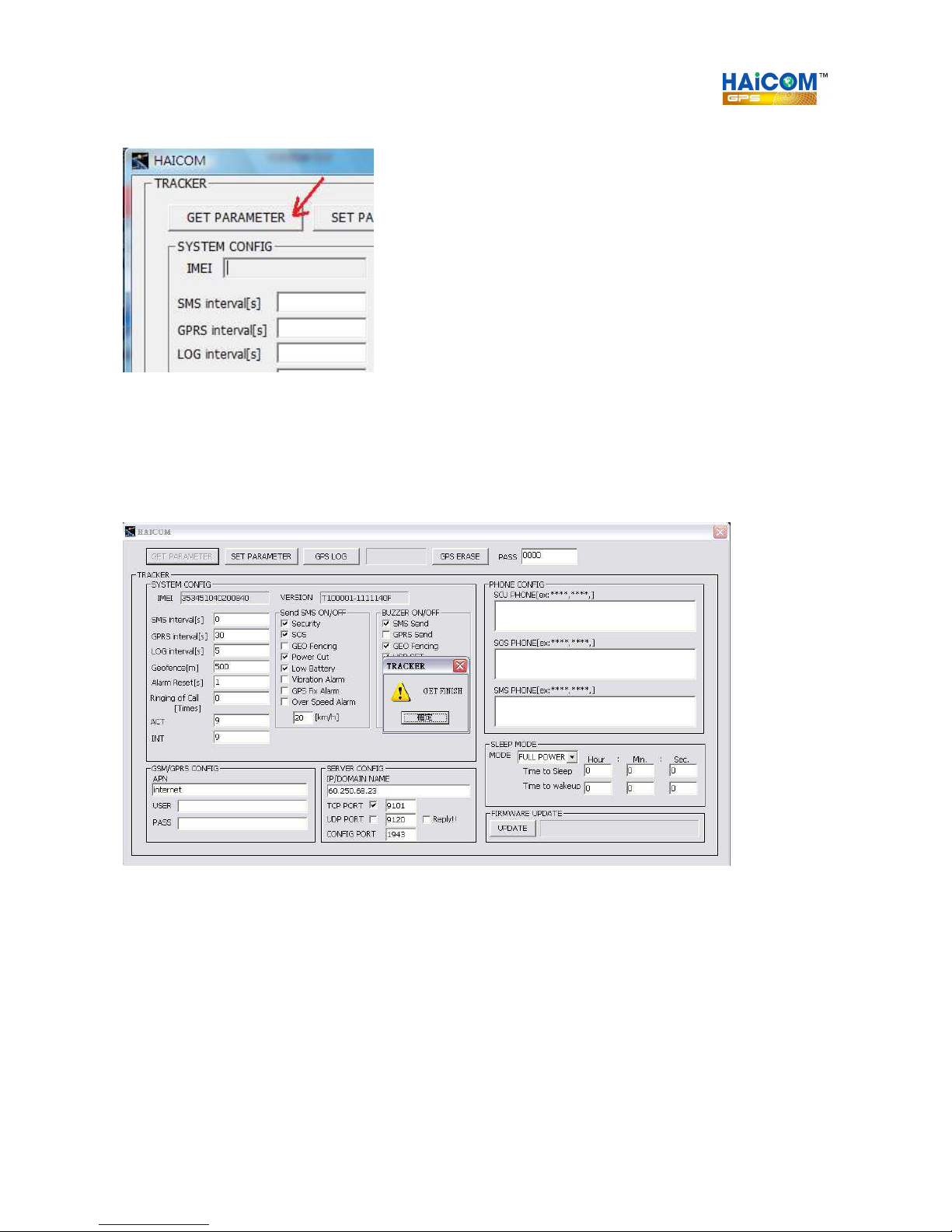

2. Open the tracker set up program by double clicking on “tracker.exe”

3. Click “Get Parameter”
4. Amessage will show “Get Finish” and all the trackers current set up will
appear.
Please double check with your local telecomm service provider to make sure the
SIM card APN (Access Point Name) and fill in and program to the tracker.

Initial computer set up reminder:
On factory defaults, the basic set up was done.
As soon as you plug in the computer and get parameter, the computer will
automatically get and show the tracker imei # on the program.
You will double check with your SIM card telecomm service provider for the

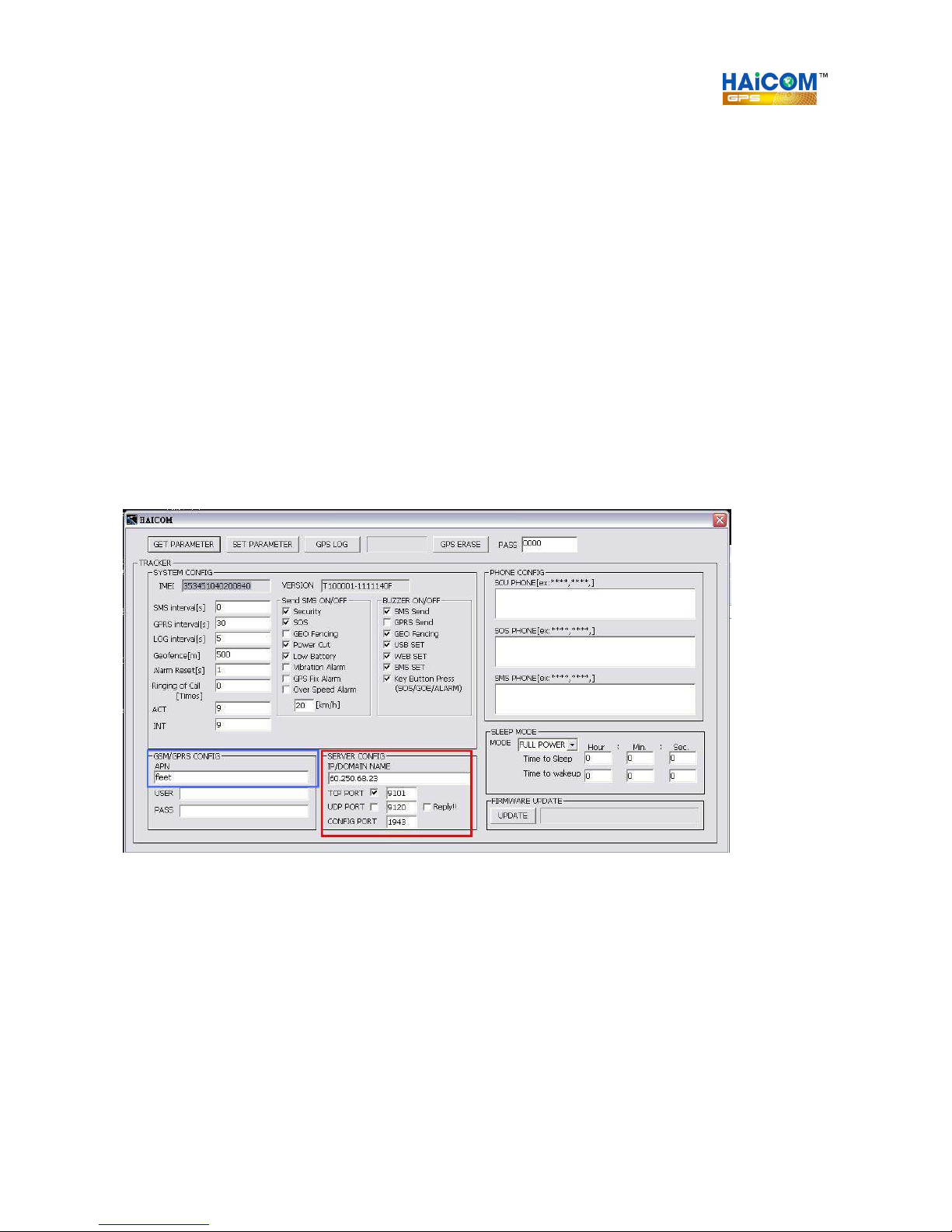

correspondent APN (Access Point Name) and key in to the APN section (like the
below blue block). The APN could be for instances, “ internet “, “ web. Vodafone
“ or any name.
Also, please double check if the IP and port settings (the below red block) was
correctly set up. (for use with Haicom GPRS web tracking:
http://www.tracking.haicom.com.tw:8090/Default.aspx )
The above settings are the must to make the tracker to start sending data back
to our server and show on the platform. The rest of selections will be set up
depend on individual user’s preferences.

X series trackers
User guides for USB settings and SMS features
1. USB Settings :
A. Press to get the tracker current settings
B. Press to save the settings changed
C. Press to download the GPS data logger records
D. Press to delete and clean out the GPS logger records. To avoid the records capacity too full (the
full capacity is about 257,000 points) and slow down the download time, the records deleting is
recommended after download the GPS data logger.
E. The Password is for the security purposes and the SMS commands can be used after the
password verification.
F. Press to re-flash all settings back to defaults
G. The tracker’s imei#
H. The current firmware version. The file name is based on the data of the generating.
I: The parameter settings for different functions:

1. The continue SMS sending time interval to certain preset phones. The setting is
recommended to set more than 10 (s), 10 seconds, and set “ 0 “ means switch off this function.
2. The continue GPRS GPS coordinates sending time interval to the server. The setting is
recommended to set more than 15 (s), 15 seconds, and set “ 0 “ means switch off this function.
3. The GPS data logger recording time interval. The setting is recommended to set more than 3
(s), 3 seconds, and set “ 0 “ means switch off this function.
4. The geo-fencing setting range (in diameter) The setting is recommended to set more than
500 (m),
500 meters.
5. To temporary disable all the alert functions. The setting is recommended to set less than 300
(s), 300 seconds. During the time, all the alert features will be disabled.
6. The ringing times after the voice tapping function activated.
7. The motion sensor sensitivity. The setting is recommended to set between 21 to 24, The less
the number, the higher the sensibility.
8. The speed limit alert function. The alert will shown after the tracker speed higher than the
speed ( in kilometer per hour)
J: The on/off settings for the alert functions:
1. Turn on or off for the vehicle anti-thief alarm function
2. Turn on or off for the SOS button alarm function
3. Turn on or off for the geo fencing alarm function. The function here is only for testing and
the function will be switched off once the geo fencing function activated (only one time)
4. Turn on or off the alarm when the tracker external power cut off.
5. Turn on or off the alarm when the tracker battery voltage power lower than 3.6V (battery
low)
6. Turn on or off for the motion sensor alarm function. The function here is only for testing and
the function will be switched off once the motion sensor function activated (only one time)
7. Turn on or off for the GPS in 3D fixed inform function. The function here is only for testing
and the function will be switched off once the GPS 3D fixed function reported (only one time)
8. Turn on or off for the over speed alarm function. The function here is only for testing and
the function will be switched off once the over speed function activated (only one time)
K: The settings for the tracker buzzer sound or silent:
1. Buzzer sound or silent every time when the SMS coordinates sending
2. Buzzer sound or silent every time when the GPRS coordinates sending
3. Buzzer sound or silent when the geo fencing alarm sent
4. Buzzer sound or silent when the USB set up completed
5. Buzzer sound or silent after receiving the settings from the web tracking site
6. Buzzer sound or silent after receiving the settings from the phone SMS command

7. Buzzer sound or silent when press the buttons (only available for the HI-602X and the optional
car kit box)
L: Set up the APN (Access Point Name) from the SIM card telecomm service provider
M: Set up the IP/Domain address of the tracking server for the GPRS data to send to
1. Can set up either the IP or the domain name
2. Set up the server receiving data protocol and port (Set TCP if the server protocol is TCP)
3. Set up the server receiving data protocol and port (Set UDP if the server protocol is UDP)
4. Set up the two-way configuration port between the server and the tracker. User can also set
as “ 0 “ to disable the GPRS function (under this mode, the SMS and the data logger functions
still keep on working) User can also set as “ 1 “ to switch off both the server alarm control
function and the two-way configuration function (under this mode, the GPRS coordinates
sending functions still keep on working)
N: Set up the telephone numbers which will receive SMS from all the alarm functions activated and
the tapping voice (except for the SOS)
O: Set up the telephone numbers which will receive SMS when the SOS alarm functions activated
and the tapping voice
P: Set up the telephone numbers which will receive SMS with the continue coordinates and the
tapping voice
Q: Set up the sleeping mode and the times:
1. Full power: Keep on sending coordinates none stop. Highest power consumption and no
need to set up the times.
2. GPS Off: The tracker GPS function will be switched off (based on the ‘Time To Sleep’
colume time) after the tracker no moved. Under this mode, the tracker still stand by to take
the commands from the phone SMS or from the web tracking set up) As soon as the tracker
moved again, the GPS function will start to work again. Under this mode, the tracker
power consumption will be less.
3. All Off: The tracker all functions, GPS, GSM, etc. will be switched off (based on the ‘Time
To Sleep’colume time) after the tracker no moved. Under this mode, the tracker will not be
able to take any commands from the phone SMS or from the web tracking set up) As soon
as the tracker moved again, all the functions will start to work again. Under this mode, the
tracker power consumption will be lowest.
4. Weak Up: The tracker all functions, GPS, GSM, etc. will be switched off (based on the
‘Time To Sleep’ colume time) regardless of the tracker motion sensor moved or not. Under
this mode, the tracker will not be able to take any commands from the phone SMS or from
the web tracking set up) After the finish the sleep time (based on the ‘Time To Weak UP’

colume time) the tracker will switched on again to work normal. The automatic sleep and
weak up will be cycled continuesly base on the settings. The mode is suitable for the
condition that the user only need to know the tracker updated locations in some fix time
and let the tracker go sleeping mode (switched off) to save power consumption. The ‘Time
To Sleep’set up is recommended to set no less than 3 minutes so that the tracker GPS have
enough time to let the GPS get 3D fixed. In this way, the tracker can send the updated real
time location (GPS 3D fixed location) back to the server.
R: Firmware update: After the firmware updated, delete the GPS log data in the tracker is
recommended to make sure the tracker internal memory stay in complete.

Terms Explanations
System Config:
1. IMEI: Tracker imei #
2. Version: Tracker firmware version
3. SMS intervals[s]: Interval of tracker send real time position with Google
map hyperlink via SMS
4. GPRS interval[s]: Interval of tracker send real time position to the server
via GPRS
5. LOG interval[s]: Interval of tracker data logging
6. Geofence [m]: Send warning when tracker out of the Geofencing range
7. Alarm Reset[s]: Time of all the security functions temporary disabled
8. Ringing of Call[Times]: Tracker ringing time when user call

SMS Command for X seris
Code
Format Function
100 #0000,100 Request all setting values back
151 #0000,151,0000000000,0000000000,0000000000 Set Security Phone Number.(10 Max.)
152 #0000,152,0000000000,0000000000,0000000000 Set SOS Phone Number (10Max.)
153 #0000,153,0000000000,0000000000,0000000000 Set SMS Phone Number (10 Max.)
154 #0000,154 Get Security Phone Setting

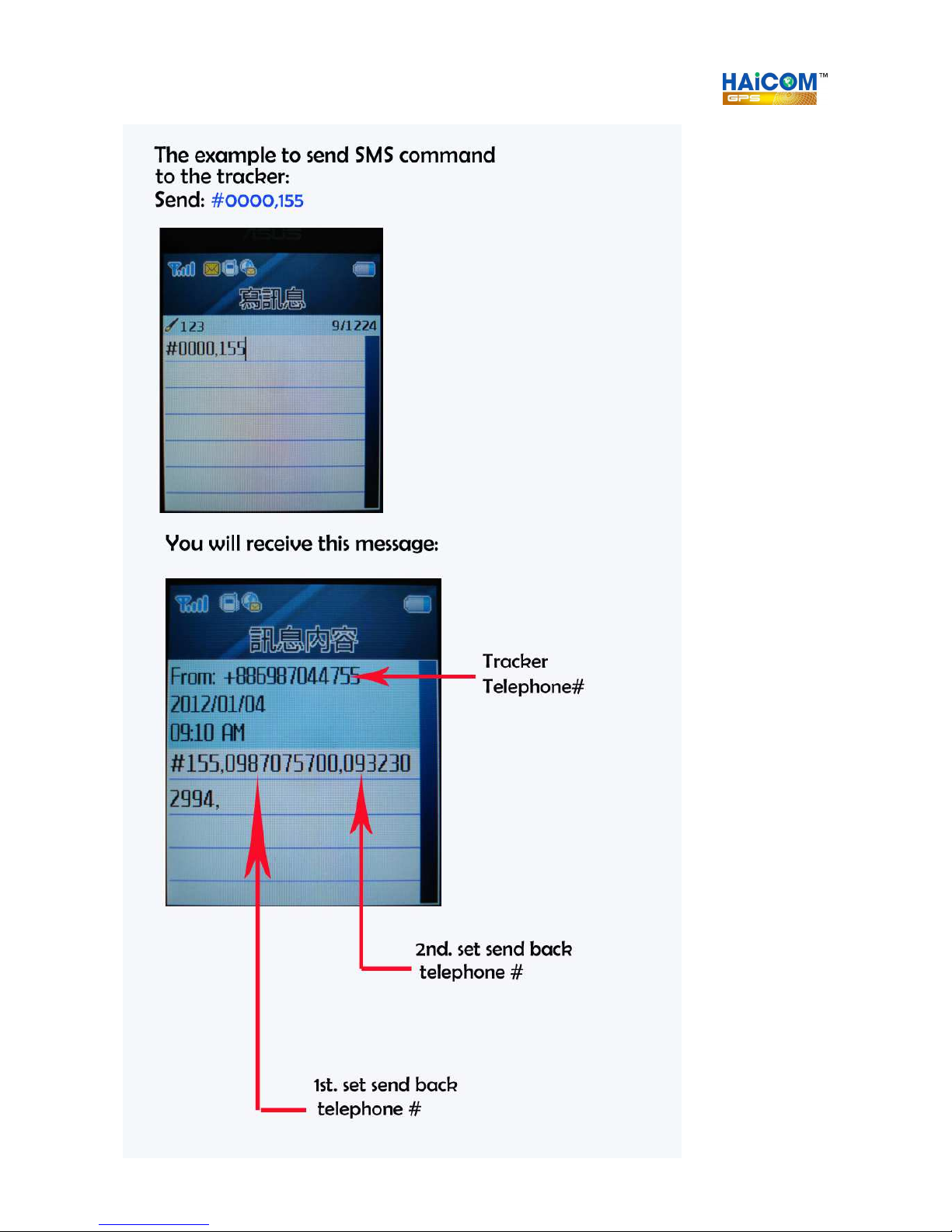

155 #0000,155 Get SOS Phone Setting
156 #0000,156 Get SMS Phone Setting
200 #0000,200,APN,USER,PASS Set APN
201 #0000,201 Get APN Setting
210 #0000,210,IP,TCP port,UDP port,config port,protocol select
#0000,210,60.250.68.23,9101,9120,1943,0
Set IP and Port
211 #0000,211 Get IP and Port Value
250 #0000,250,SMS,GPRS,LOG,Geo,Alarm,Ring,Speed,Sensor
#0000,250,0,30,0,500,60,0,20,10
Set Interval and Parameter
251 #0000,251 Get Interval Setting
300 #0000,300,Buglar,SOS,PWCUT,LBAT
#0000,300,0,1,1,1
Set Event
301 #0000,301 Get Event Setting
350 #0000,350,SMS_Send,GPRS,GEO,USB,WEB,SMS_Set,KEY
#0000,350,0,0,0,1,1,1,1
Set Buzzer
351 #0000,351 Get Buzzer Setting
400 #0000,400,Mode,Hour1,Minute1,Second1,Hour2,Minute2,Second2
#0000,400,1,0,5,0,0,0,0
Set Power Saving Mode
401 #0000,401 Get Power Saving Mode Setting
01 #0000,01,Pass,Pass
#0000,01,0000,0000
Set Password

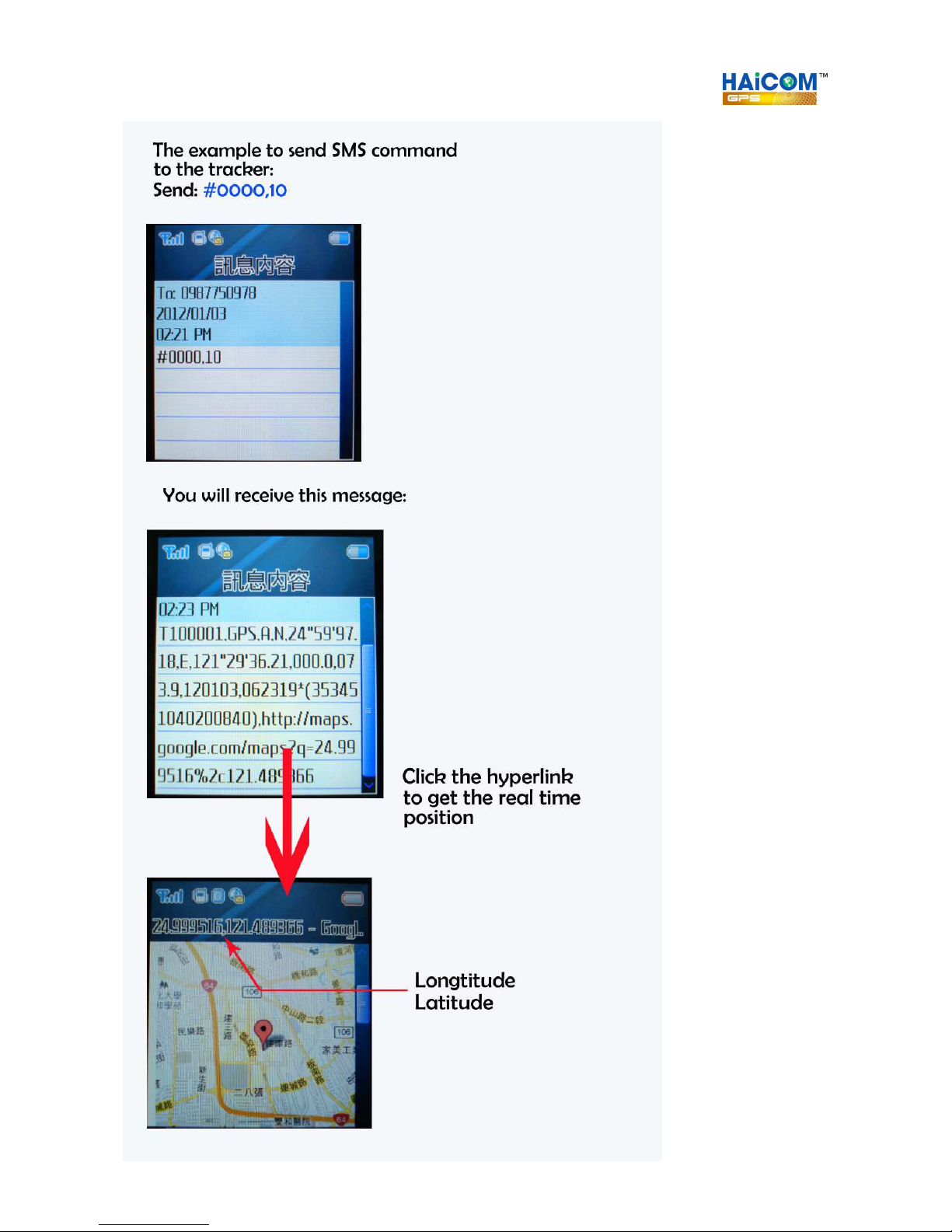

10 #0000,10 Get GPS Data
11 #0000,11,Phone Number Talking Permitted
12 #0000,12,1 Relay #1 On/Off
13 #0000,13,1 Relay #2 On/Off
14 #0000,14 Tracker Reset
15 #0000,15 Inform Tracker send TX000 to Server
16 #0000,16,1 Set GEO Fencing Activate
17 #0000,17,1 Set GPS Fixed Alarm Activate
18 #0000,18,1 Set Moving Alarm Activate
19 #0000,19,1 Set Over Speed Alarm Activate
