USER'S INSTRUCTIONS
HFZ-136 AA
HFZ-136 AA6
HFZ-136

Thank you for buying this under counter freezer. To ensure that you get the best results from your
new freezer, please take time to read through these simple instructions in this booklet.
Please ensure that the packaging material is disposal of in accordance with the current
environmental requirements.
If the appliance is visibly damaged, do not connect it to the power supply, contact the store from
where you purchased the appliance.
ELECTRICAL CONNECTION (UK ONLY)
For your safety please read the following information.
Warning: This appliance must be earthed.
The appliance must be connected to a 220 - 240 volts 50 cycle AC supply by means of a three pin
socket, suitably earthed and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved
to BS1362.
If the mains plug is unsuitable for the socket outlet in your home or is removed for any other
reason, then the cut off plug should be disposed of safely, do not insert the cut off plug into a
mains outlet to prevent the hazard of electric shock. Remove the fuse before disposal.
There is a danger of electric shock if the cut off plug is inserted into any 13-amp socket outlet.

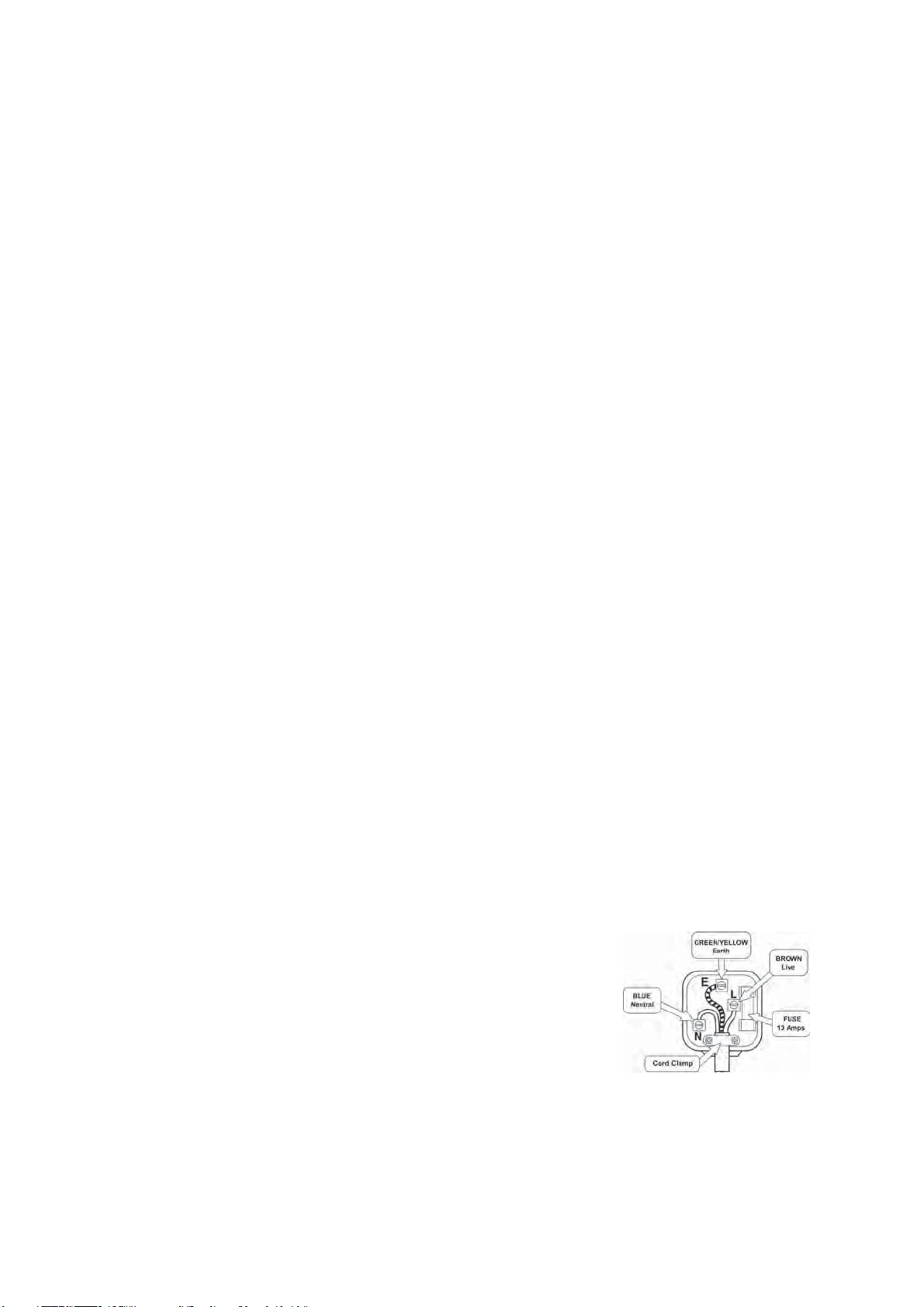

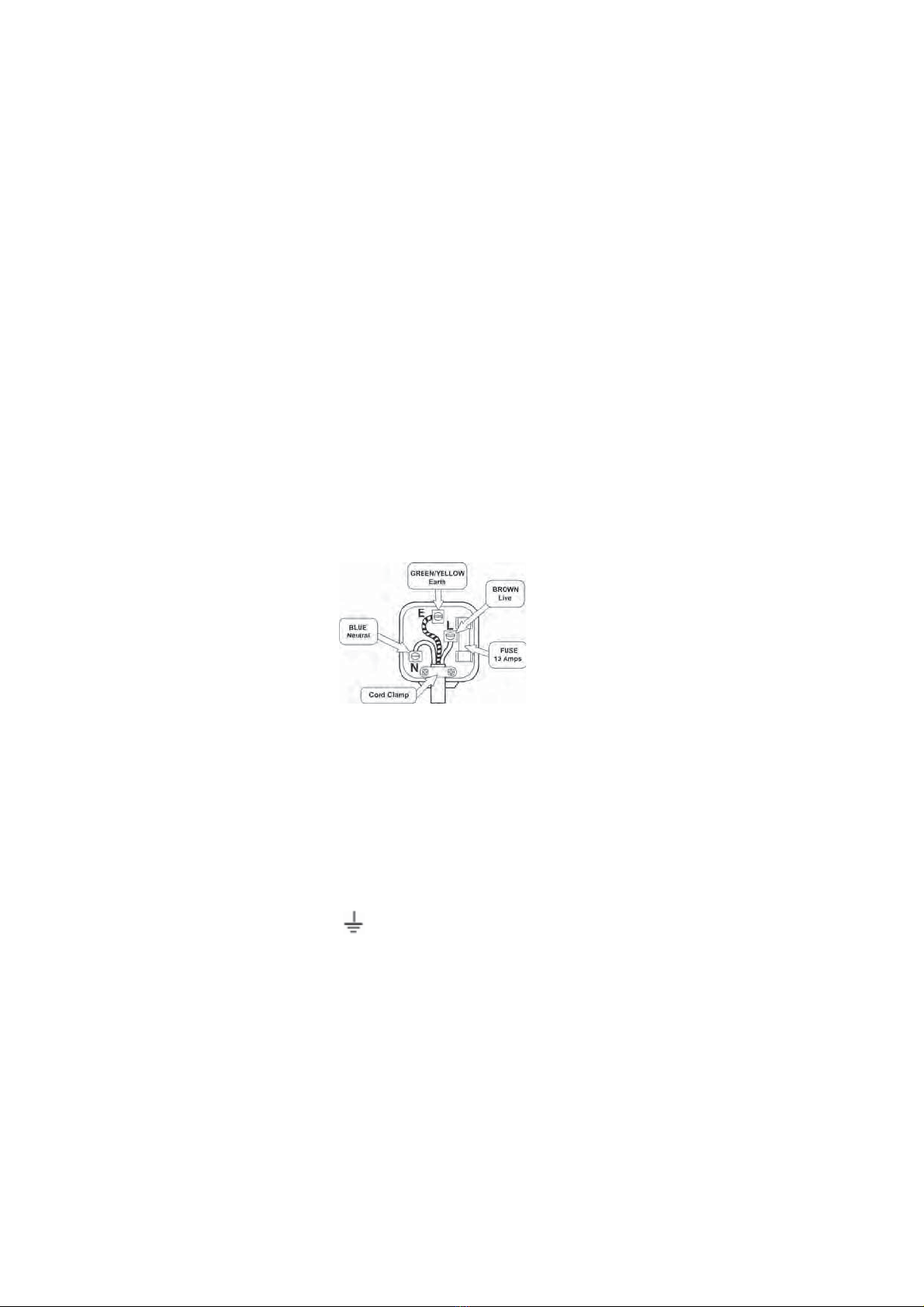

How to wire a 13 amp plug:
Important
The wires in the mains lead on this appliance are colored in accordance with the following code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug
proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with the
letter E or with the earth symbol or colored green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the mains cord is firmly secured under the cord clamp.
Warnings:
Keep ventilation openings, in the appliance enclosure or in the built in structure,
clear of obstructions.
Do not use mechanical devices or other means to accelerate the defrost process,
other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical devices inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
1

THANK YOU FOR PURCHASING THIS HAIER PRODUCT
This booklet contains the information you will require to install and operate your new
appliance.
It is important and worthwhile spending time to fully read this booklet so you will
understand how to operate the appliance safely and efficiently.
Please keep this booklet in a safe place so that you can refer to it when required.
Safety information
This information is provided in the interest of your safety. Please read the following
carefully before carrying out the installation or use of the appliance.
If you are discarding an old freezer or refrigerator with a lock / catch fitted to the
door, ensure that it is left in a safe condition to prevent the entrapment of young
children when playing.
As old refrigeration equipment may contain CFC’s which will damage the ozone
layer, when disposing of any refrigeration equipment please contact your local waste
disposal department for advice on the correct method of disposal
This appliance must only be used for its intended purpose i.e. the freezing and storage
of domestic edible foodstuffs and should not be used for any other purpose
If the mains cable becomes damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person to avoid a hazard.
Installation
Position the appliance and allow to stand for two to three hours before it is turned on
for the first time to allow the system to settle. Do not position next to any heat source
e.g. cooker, boiler or in direct sunlight etc.
A clearance of 10 cm must be left between the sides of the appliance and any adjacent
cabinets or walls to allow for adequate air circulation. The appliance is not designed
for recessed installation (“building in”).
Install on a good firm level surface, and any unevenness of the floor should be
corrected prior to installation, slight unevenness can be overcome by adjusting the
front feet.
NOTE: If the appliance is positioned on a carpet, soft floor covering you should re-
adjust the front feet once the appliance has had time to settle.
2

IMPORTANT SAFETY INFORMATION
This appliance must be used on the electric voltage shown on the rating plate
on the base of this appliance, failure to use the correct voltage will render the
guarantee VOID.
This appliance is intended for domestic use only, any other use may invalidate
the warranty and might be dangerous.
This appliance is intended for indoor use only, do not use outdoors.
Accessible surfaces may get hot during operation, use handles and knobs at all
times.
To protect against electric shock do not immerse cord, plugs, or appliance in
water or other liquid.
Do not attempt to dislodge food when product is in operation.
Unplug from outlet when not in use and before cleaning. Remove food before
cleaning the appliance.
If the mains lead becomes damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified person with a lead of the same type and
rating to avoid a hazard.
Do not operate the appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any way. Consult the retail
store where you bought the appliance for advice.
The cooling circuit must not be damaged in any way.
Do not insert over sized food as this could cause a hazard.
Do not let cord hang over edge of the surface, or touch hot surfaces.
Do not place appliance on or near hot surfaces, or in direct sunlight.
Extreme caution must be used when moving an appliance.
Always attach a plug to appliance, then plug cord in the wall outlet. To
disconnect, turn the switch OFF, then remove the plug from wall outlet.
A short power-supply cord is provided to reduce the risk of a tripping
hazard.
3

Description of the Appliance
Control Unit
Storage Drawers
Control Unit
Adjustable Foot Door
handle
4

T his appliance is des igned for
domes tic us e only, specifically for the
storage of edible foods tuffs .
T his appliance is designed to operate in
ambient temperatures (surrounding air
temperature) between 16 and 32
If these temperatures are exceeded i.e.,
colder or warmer, the appliance will not
operate correctly. S hould the ambient
temperatures be exceeded for long periods,
the temperature in the freezer will ris e
above -18 C and food spoilage may occur.
Before Use
Remove all securing tapes.
W a s h the ins ide of the a pplia nc e with luke wa rm
wa ter with a little bica rbona te of s oda a dde d ( 5ml
to 0. 5 litre of wate r). D o not use s oa p or
detergent as the s mell may linger. Dry the
appliance thoroughly.
To S tart the Appliance
1. Allow the appliance to s tand for 2 hours
after installation.
2. P lug in the appliance and s witch on at the
mains supply.
3. T urn the thermos ta t control to the required
s etting. The MEDsetting is us ually s uitable
for normal operation (see thermostat control).
4. Leave the appliance for approximately 4
hours for the c orre c t tempe ra ture to be
reached before placing food ins ide.

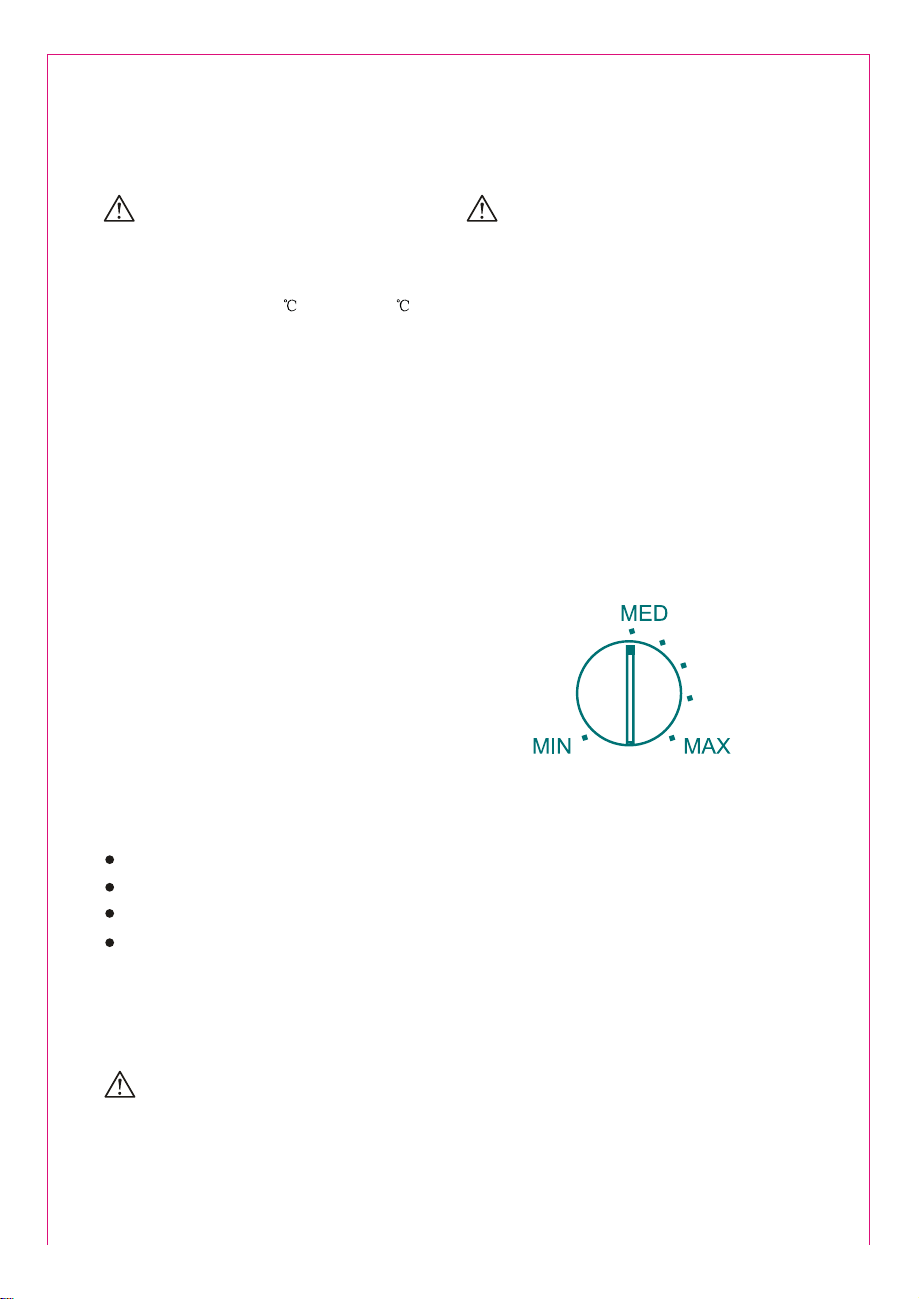

Thermostat Control
The thermostat control situated in the control
panel regulates the temperature of the freezer
c ompa rtme nt.
P osition "Min" - C old
R oom temperature
How often the door is opened
How much food is stored
P os ition of the a pplia nce
To determinethe correct temperaure control
setting, all these factors have to be considered
USING THE APPLIANCE
Do notuse detergents, abrasive
powders, highly perfumed cleaning
products, wax polishes or products
containing alcohol.
P osition "Max" - C oldes t
T he temperature will be affected by:
the compre ss or will work continous ly.
and some experimentation may be necessary
D o not a llow c hildre n to ta mpe r with the
c ontrols or pla y with the produc t.
5

INSTALLATION
SITTING OF THE APPLIANCE
Do not keep your appliance in a room where the temperature is likely to fall below 16ºC
(61ºF) at night, especially in winter, as it is designed to operate in ambient temperatures
between +16and +32ºC (61 and 90ºF). At lower temperatures the appliance may not
operate, resulting in a reduction in the storage life of the food.
Do not place the appliance near cookers or radiators or in direct sunlight, as this will
cause extra strain on the appliance’s functions. If installed next to a source of heat or
fridge, maintain the following minimum clearances.
Choose a well-ventilated location with no less than 10cm clearance around the freezer.
Place the freezer in a location with a firm base. In order to prevent vibration and
excessive noise. Level the freezer by adjusting the two front feet.
DO NOT PLACE THIS PRODUCT IN AN EXCESSIVELY COLD OR HUMID AREA S U C H A S A
GARAGE OR CELLAR ETC.
WAIT2 TO 3 HOURS BEFOREPLUGGINGIN AND SWITCHING ON THIS PRODUCT.THE COOLANT
FLUID NEEDS TIME T O SETTLE.
DO N O T STOR E F O O D IN T H E FREEZER U N T I L IT HAS BEENRUNNING FOR
AT LEAST 2 HOURS.
UNDER NO CICUMSTANCES MUST THE COOLANT CIRCUIT BE DAMAGED.
THIS PRODUCT IS INTENDED FOR DOMESTIC USE ONLY, ANY OTHER USE MAY
INVALIDATE THE WARRANTY AND MIGHT BE DANGEROUS
If you are discarding an old appliance with a lock or catch fitted to the door, ensure that it is
left with the door catch disabled to avoid child entrapment when playing.
We suggest you contact your local authority for information on the correct and safe
method of disposal.
Dispose of all packaging in an environmentally friendly way.
Your freezer is suitable for the long-term storage of commercially frozen foods and can be
used to freeze and store fresh food.
If there is a power failure, do not open the door. Frozen food should not be affected if the
failure lasts for less than 12 hrs. If the failure is longer, then the food should be checked
and either eaten immediately or cooked and then re-frozen.
NOISES INSIDE THE FREEZER
If you have not owned a freezer before, you may notice that it makes some rather unusual
noises. Most of these are perfectly normal, but you should be aware of them!
6

GURGLING, WHOOSHING
These noises are caused by circulation of refrigerant in the cooling system. It has become
more pronounced since the introduction of CFC free gases. This is not a fault and will not
affect the performance of your freezer.
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
SHOPPING FOR FROZEN FOODS
Your Freezer is 4 star.
When you are buying frozen food, look at the Storage Guidelines on the packaging. You
will be able to store each item of frozen food for the period shown against the 4 star
rating. This is usually the period stated as ‘Best Before’, on the front of the packaging.
CHECK THE FREEZER TEMPERATURE
Check the temperature of the frozen food cabinet in the shop where you buy your frozen
foods. It should show a temperature lower than -18°C.
CHOOSE PACKS CAREFULLY
Take a quick look at the frozen food package and make sure it is in perfect condition.
PURCHASE FROZEN FOOD LAST
Always buy frozen products last on your visit to the supermarket.
KEEP FROZEN FOODS TOGETHER
When you are going around the supermarket and when you are travelling home, if you
keep all the frozen foods together they will help to keep each other cold.
STORE FOOD STRAIGHT AWAY
Don’t buy frozen food unless you can freeze it straight away. Special insulated bags can
be bought from most supermarkets and hardware shops. These keep frozen food cold for
longer.
FREEZING FRESH FOOD
Prepare the food to be frozen in small portions for ease of freezing and eventual thawing.
Wrap the food in purpose-made polythene or aluminium foil, if possible airtight. Make a
note of the date of freezing on the wrap and place it in the freezer drawer. The thermostat
setting does not need to be altered when freezing food.
7

TO THAW FROZEN FOODS
1. Cover food loosely.
2. Thaw at room temperature. Don’t forget that thawing in a warm area encourages the
growth of bacteria.
3. Always make sure there are no ice crystals in the food before cooking, particularly
with meat. These crystals indicate that the food is not fully thawed. They result in lower
temperatures when cooking. Lower cooking temperatures may not destroy bacteria.
4. Cook food as soon as possible after thawing.
5. Drain off and throw away any liquid lost during thawing.
THAWING FROZEN VEGETABLES
For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be
added directly to boiling water or steam cooked. Frozen sauces and soups can be put into
a saucepan and heated gently until thawed.
OVEN THAWING FROZEN FOODS
Many microwaves and ovens have thaw settings. To avoid bacterial build up, only use
these if you intend to cook the food immediately afterwards.
SAFETY TIPS
Never re-freeze anything that has thawed out unless you cook it again, to kill off harmful
bacteria. Never re-freeze thawed shellfish.
FREEZING FRESH FOOD (TIPS)
Use quality food and handle it as little as possible. Freeze food in small quantities, it
freezes faster, takes less time to thaw and enables you to eat it in the quantity you need.
First, estimate the amount of food you will be freezing. Use the Thermostat Control Dial
to make your freezer colder (about -30° C), it will therefore freeze quicker and keep in
the goodness. However you should use it sparingly to conserve energy.
PROLONGED OFF PERIODS
If the refrigerator is not in use for a long period of time, proceed as follows:
Disconnect the refrigerator from the main supply by removing the plug from the socket.
Clean and dry the inside as instructed under the heading of cleaning the appliance.
Leave the door open to prevent any unpleasant smells from building up while the
appliance is not in use.
If there is a power failure for a short time keep the door closed check the contents of the
refrigerator every so often.
8

POWER FAILURE
If there is a power failure for a short time less than 12hours keep the door
closed Frozen food should not be affected if the failure lasts for less than 12
hours.
Extra protection can be given by covering the appliance with two or three thick
blankets.
If a long power failure is anticipated, try to get the foodstuff into another appliance or
cold store, if possible.
If the power cut is longer than 12hrs then check the content of the freezer.
If the food has defrosted, cook and refreeze the food or it should be eaten
immediately. Never refreeze food that as been defrosted.
CLEANING AND MAINTENANCE
Before any cleaning or maintenance is carried out you must disconnect the appliance
from the mains supply by removing the plug, never remove the plug by pulling on the
mains cord. Remove the plug by pulling on the plug itself.
It is recommended that when cleaning the appliance, both the inside and outside, can be
cleaned using warm water and a little bicarbonate of soda. Use 1 teaspoon to 1.2 liters
of water
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax
polishes or cleaning products containing bleach or alcohol.
External Cleaning, wash the outer cabinet with warm soapy water.
Do NOT use abrasive products. There are sharp edges on the underside of the product
so care should be taken when cleaning.
Once or twice a year dust the compressor at the back of the appliance, with a brush or
Vacuum cleaner, as an accumulation of dust will affect the performance of the
appliance and Cause excessive electricity consumption.
Warning:
The refrigerating system must not be damaged at any time.
DEFROSTING THE FREEZER
The freezer will need defrosting periodically (when the frost is more than 3mm thick).
Turn the temperature control to “MIN” and unplug from the mains socket.
Hold the plug itself. Do not remove the plug by pulling on the mains cord.
Remove all the frozen food and wrap in thick blankets to retain the cold or move it to
another freezer.
Leave the freezer door open with a suitable container under the front to catch the
water as the frost melts.
When the freezer is fully defrosted, clean the inside (see the section on cleaning and
maintenance). Then close the door and connect to the mains, now set the temperature
control to your required setting (usually the “MED” setting).
Leave the freezer running for approximately 2hours before re-introducing the frozen
food.
9
