Haier BD-103GC User manual

CAUTION
READ THIS MANUAL CAREFULLY TO
DIAGNOSE TROUBLE CORRECTLY
BEFORE OFFERING SERVICE .
Chest Freezer
SERVICE MANUAL
Features:
1.Deep and quick freezing.
2. Square cabinet and square lid.
3. Mechanical temperature control with power indicator.
4. High pressure foam cover for efficient Temperature preservation.
5. Eximious water disposal device.
6. Wide climate zone design.
MODEL: BD-103GC
Haier Grou
p

CONTENTS
CONTENTS……………………………………………………………………………………..
SAFTY PRECAUTIONS……………………………………………………………………….
SPECIFICATIONS………………………………………………………………………………
INATALLATION AND ACCESSORY PARTS……………………………………………
PARTS IDENTIFICATIONS…………………………………………………………………….

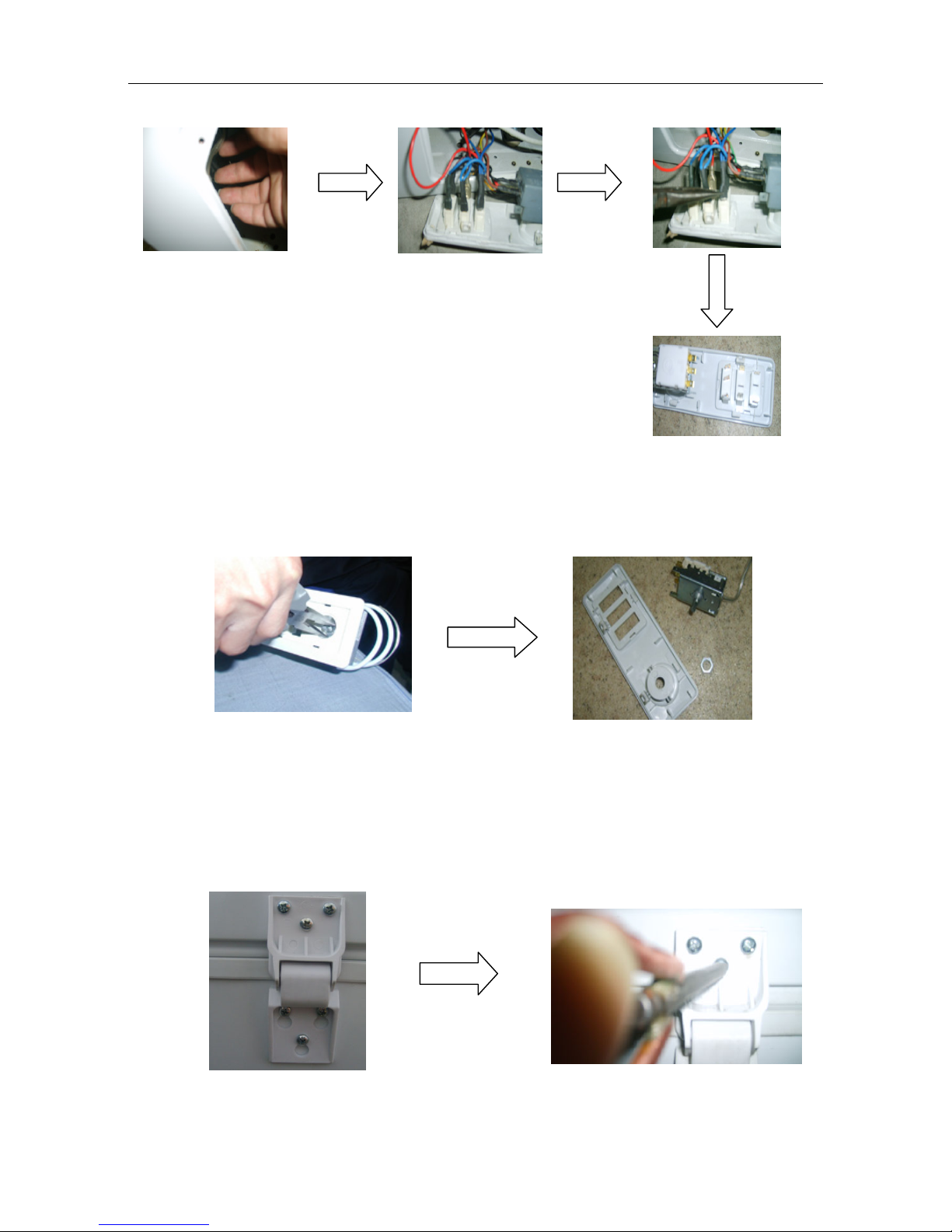

DISASSEMBLY…………………………………………………………………………………
FUNCTION SCHEDULE………………………………………………………………
SYSTEM FLOW CHART………………………………………………………………………..
SYSTEM FLOW SCENOGRAPH…………………………………………………….

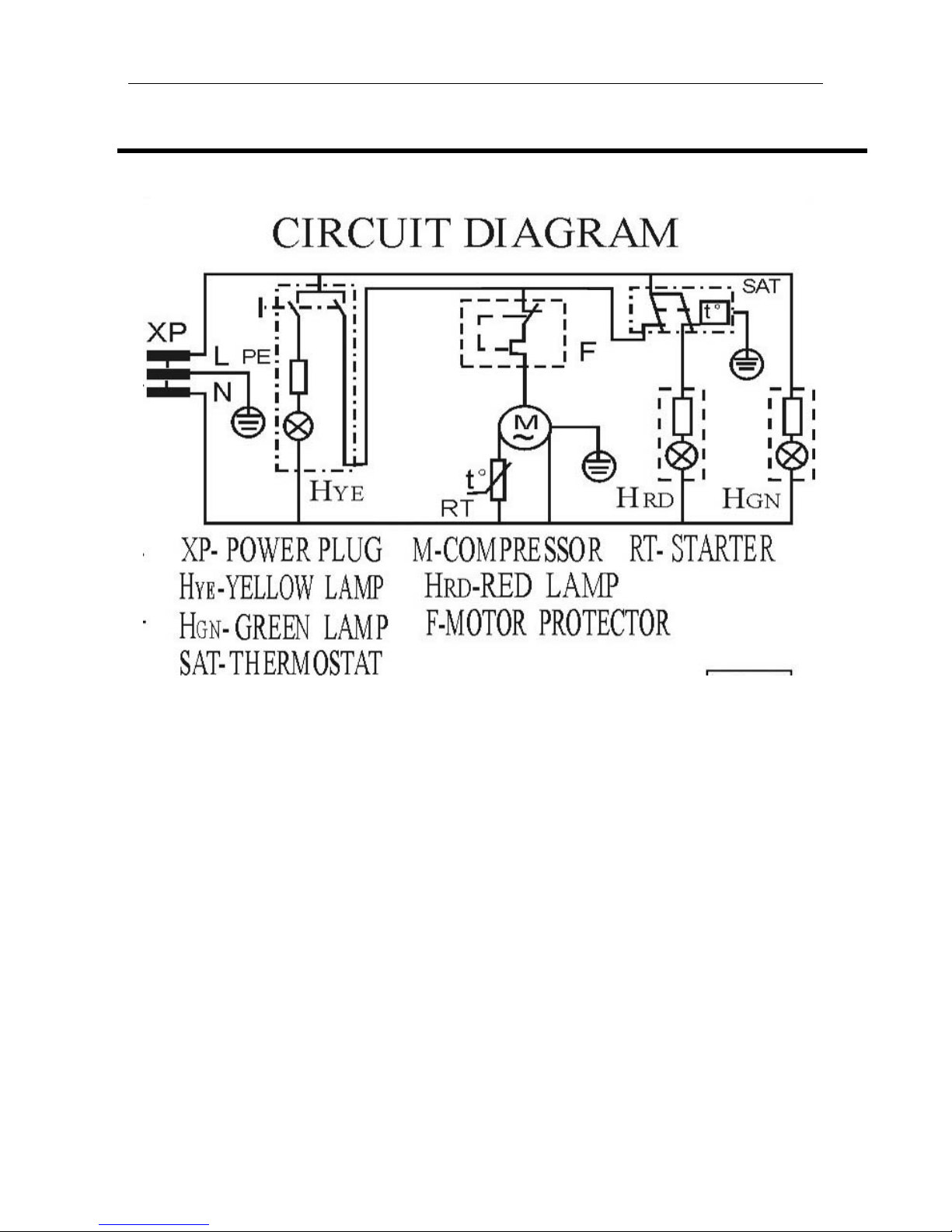

CIRCUIT DIAGRAM……………………………………………………………………………
1.Brief principle diagram……………………………………………………………………
2.Connect diagram…………………………………………………………………………..
NORMAL PROBLEMS ………………………………………………………………
TROUBLE SHOOTING…………………………………………………………………………...
1.Compressor doesn’t start…………………………………………………………………..
2.Poor cooling………………………………………………………………………………..

SAFTY RECAUTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the
following:
1. Use this appliance only for its intended purpose as described in this
uses and care guide.
2. This freezer must be properly installed in accordance with the
installation section. Instructions before it is used, See grounding
instructions in the installation section.
3. Never unplug your freezer by puling on the power cord, Always
grasp the plug firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged, Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the
connector end.
5. Unplug your freezer before cleaning or before making any repairs,
Note: If for any reason this product requires service, we strongly,
recommend that a certified technician perform the service.
6. If your old freezer is not being used, we recommend that you remove
the door and leave the shelves in place; this will reduce the
possibility of danger to children.
7. This freezer should not be recessed or built-in an enclosed

Cabinet. It is designed for freestanding installation only
8. Do not operate your freezer in the presence of explosive fumes.
9. Do not refreeze foods, which have been thawed completely.
9. Do not use any electrical device or any sharp instrument in
defrosting your freezer.
10.
WARNING : Keep ventilation Openings,in the appliance enclosure or in
the built-in structure,clear of obstruction.
WARNING : Do not use mechanical devices or other means to accelerate
the defrosting process other than those reconnended by the manufacturer
WARNING : Do not damage the refregerant circuit
WARNING : Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by
the manufacturer

SPECIFICATIONS
CHEST FREEZERS New!!!
Superfast freeze function.
Adjustable temperature control with power
indicator.
High pressure and microbiological foam filled
door for energy conservation.
convenient water drain.
Hi-temp indicator.
castors.
External controls.
0%HFC, 0%CFC.
Comply with RoHS.
Type Model BD-103GC
Commercial brand Haier
Product description Chest Freezer
Type of appliance (FS=free standing / BI= built-in) FS
Energy efficiency class C
Climate class (N=16-32℃ST=16-38℃T=18-43℃) ST
Freezer star rating */***
Approvals (VDE / TÜV / IMQ / NF / ÖVE / DEMKO etc.) CE/GS
Certifications -
Key features
Gross capacity l 104
Total net capacity l 103
Freezing capacity（kg/24h）kg/24h 9
Energy consumption/year kWh/year 240
Max storage time at breackdown h 13
Defrosting (Manual-Automatic) Manual
Kindofcoolant (R134a/R600a) R600a
Foaming components (R141b/C-P) C-P
Technical data
Voltage / frequency V/Hz 220-240~ / 50
Input power / currency W /A 75/0.8
Lenght of cable / incl. plug cm 150/155
Temperature range (from>to) °C ≤-18
DIN 8950 resp. 8953 -
Energy consumption / year kWh/year 240
Energy consumption (EN153) per 24 h kWh/24 h 0.66
Cooling system: (K=Compressor / A=Absorbtion) K
Maximum noise level dB(A) 45

Aesthetics
Door Flat
Chest straight edges
Colours:
Cabinet white
Top white
Door glass -
Door frame white
Fascia panel / Handle (w/b/g/s) white/white(pocket)
Inside door/-drawers (W=white T=transparent) -/-
Equipment & accessories
Product classification (Super eco/Eco/Standard) Standard
Lid (Number/Handle/Lock) 1/●(pocket)/-
Type of lid (Hinge/Counter balanced/Sliding) Hinge(plastic )
Inside walls (Stainless steel/Aluminium/Synthethic
mat.) Aluminium
Insulation Lidthikness cm 7
Wallsthikness cm 6.5
Baskets number n°
1 (metal)
Defrostdrain ●
Interior light -
Calendar -
Adjustable thermostat ●
Fastfreezelamp (yellow) ●
Onlight (green) ●
Breakdown light (red) ●
Fast freeze switch ●
Freezer temperature warning indicator (LED / by sound) -
Thermometer (Outside / In partition) -
Maximum loading level marking -
Adjustable feet (front / rear) n° -(unable adjustable
feet)
Mobility wheels (front / rear) n° -
Flush back skin evaporator -
Product net dimensions
Unitdimensions (H / W / D) cm 84.5/57/55
Height with open lid cm 134.5
Net weight kg 31
Packing dimensions & loadability
Packingdimensions (H / W / D) cm 89/62.5/58.5
Gross weight kg 34
20 ' container load pcs 76
40 ' container load pcs 152
40 ' High cube container load pcs 227

INATALLATION AND ACCESSORY PARTS
Unpacking Your Freezer
1.Remove all packaging material; this includes the foam base and all
adhesive tape holding the freezer accessories inside and outside.
2.Inspect and remove any remains of packing, tape or printed materials
before powering on the freezer.
Adjusting Your Freezer
1.Your freezer is designed for freestanding installation only. It should not be
recessed or built-in.
2.Place the freezer on a floor strong enough to support it fully loaded.
3.When moving the freezer, never tilt it more than a 45-degree angle. This
could damage the compressor and the sealed system.
4.If the freezer is tilted let it stand in an upright position for at least 24 hours
prior to plugging. This is to allow the refrigerant to settle.
·Proper Air Circulation
zTo assure your freezer works at the maximum efficiency it was designed
for, you should install it in a location where there is proper air circulation,
zPlumbing and electrical connections.
zThe following are recommended clearances around the freezer:
Sides…………..2”(50mm)
Top. ……………2”(50mm)
Back…………..2”(50mm)

zDo not over fill freezer for proper internal air circulation.
Electrical Requirement
zMake sure there is a suitable power Outlet with proper grounding to
power the freezer.
zAvoid the use of cutting off the third grounding , this is a dangerous
practice since it provides no effective grounding for the freezer and may
result in shock hazard.
Install Limitations
zDo not install your freezer in any location not properly insulated or heated
e.g. garage etc,
zSelect a suitable location for the freezer on a hard even surfaces away
from direct sunlight or heat source e.g. radiators, baseboard heaters,
cooking appliances etc, Any floor unevenness should be corrected.
Operating Your Freezer
Once the freezer is in its proper place, plug it in an electrical outlet having
230 volts.
Set the temperature, on the temperature contrail knob.”min”being the
warmest and “max”being the coldest. Initially set the temperature
on”medium”. Place food inside the freezer After using the freezer for 24
hours set the freezer to your desired setting.
In case you unplug your freezer or experience an electrical outage, allow 5

Minutes before plugging it back in.
(Note: If the freezer has been placed in a horizontal or tilted position for any
period of time wait 24 hours before plugging the unit in.)
Food Storage Basket
Your Freezer has 1 or 2 removable basket. It allows you to store food more
accessibly or you can remove it if not needed.
Defrosting and Draining The Freezer
·Defrost whenever the frost becomes 5MM thick. Never use a sharp or
metallic instrument to remove the frost as it may damage the cooling
coils.(A punctured coil will void the warranty)
·unplug the unit. For draining, place a tray beneath the outer drain plug.
Pull out the drain dial and rotate it so that the arrow points down ward.
This will let the water flow out into the tray.
·Remove the drain plug from the inside of the freezer. Defrosting
usually takes a few hours. To defrost faster keep the freezer door open.
When done, push the drain dial in and turn the arrow to the up position.
Re-plug the drain plug inside the freezer compartment. Note: monitor
the container under the drain to avoid overflow.
·Wipe the interior of the freezer and replace the electrical plug in the
electrical outlet.
·Rest the temperature control to the desired setting.

PARTS IDENTIFICATIONS
