SERVICE MANUAL
LED TV
Chassis
MSD6488
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING
LE43U6500U
Model No.

1-1. Table of Contents
1. General Information...........................................................................
1-1. Table of Contents
1-3. Important Notice
1
Chapter 1: General Information
1
3
1-2. General Guidelines
1-4. How to Read this Service Manual
3
6
6SHFL¿FDWLRQV....................................................................................
Service Manual
Model No.:
- 01 -
3. Location of Controls and Components...........................................
3-1. Board Location
3-2. Main Board & AV Board
3-3. Power board
4. Disassemble and Assemble..........................................................

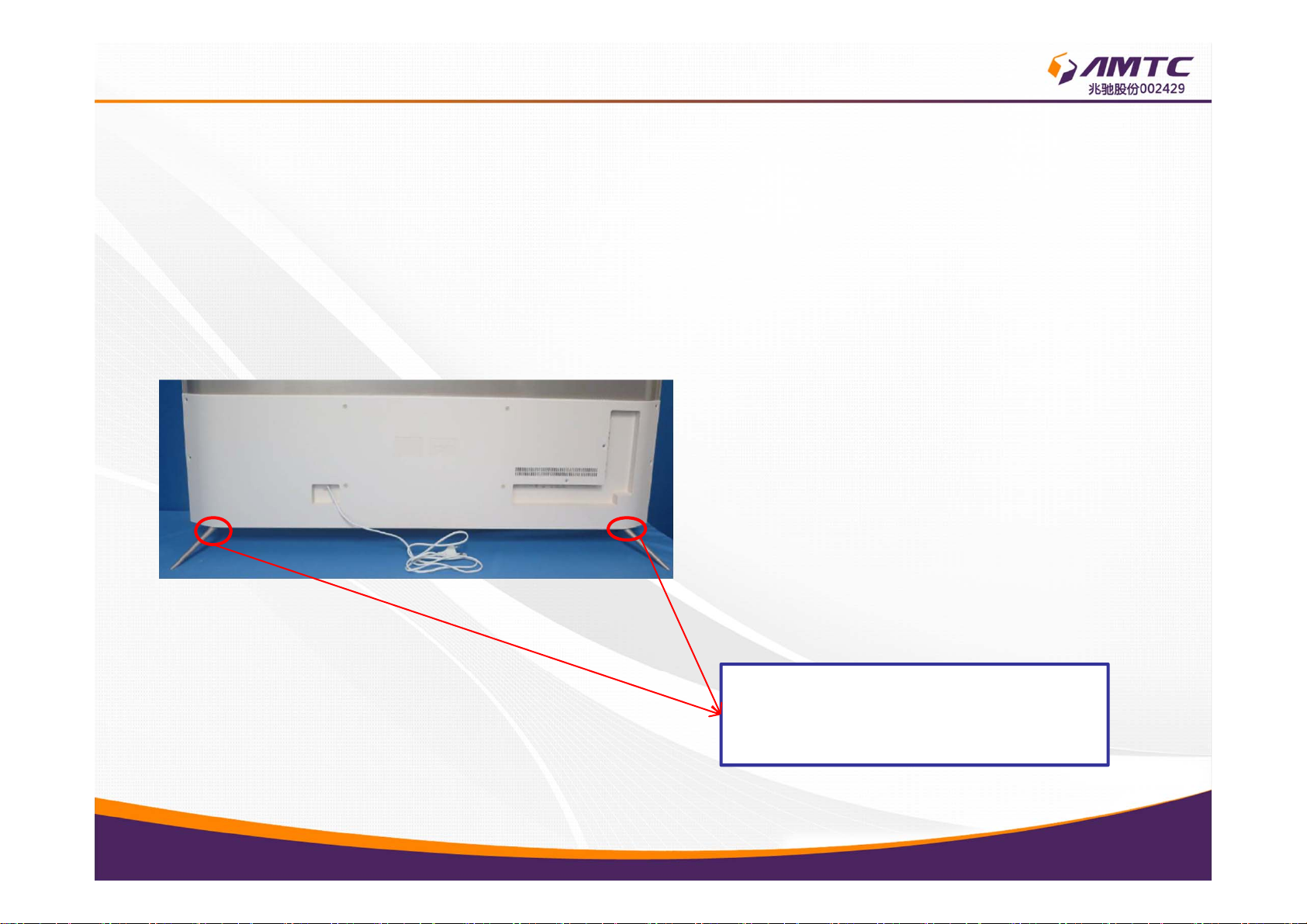

4-1 Remove the Pedestal
6
88
8
8
11
14
14
4-2 Remove the Back Cover 14
4-3 Remove the Adhesive Tape 14
4-4 Remove the Main Board 15
4-5 Remove the Speaker 15

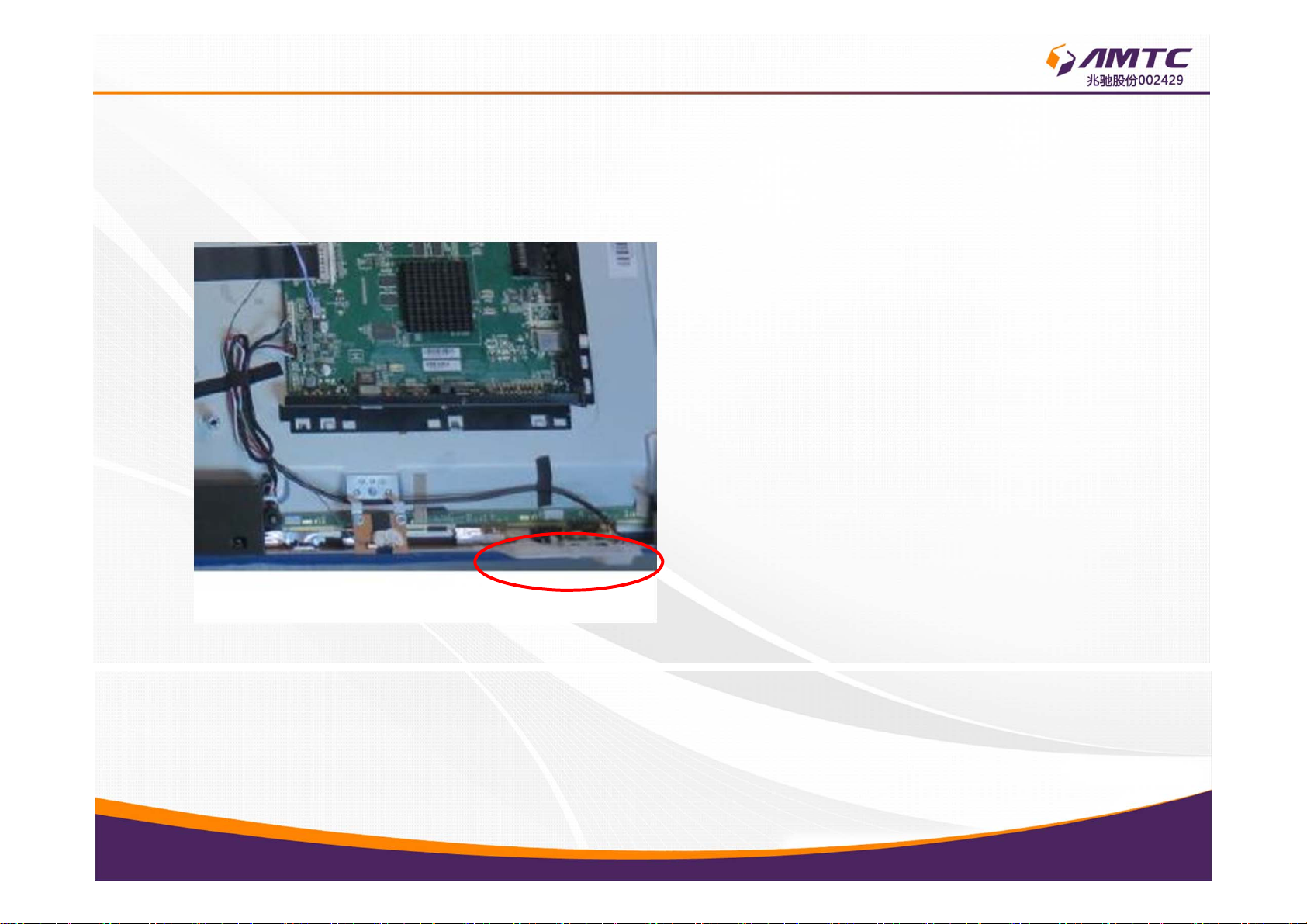

4-6 Remove the Remote Control Board 16
5. Installation Instructions..…....………………...........………….........17
5-1 External Equipment Connections 17
5-2 HDMI Connections 21
6. Operation Instructions....…....………………...........………….........24
6-1 Front Panel Controls
6-2 Back Panel Controls
6-3 Universal Remote Control
23
24
25
7. Electrical Parts…....………………...........…………......................... 26
7-1. Circuit Diagram
7-2. Wiring Connection Diagram
26
31
3-4. LCD Panel 13

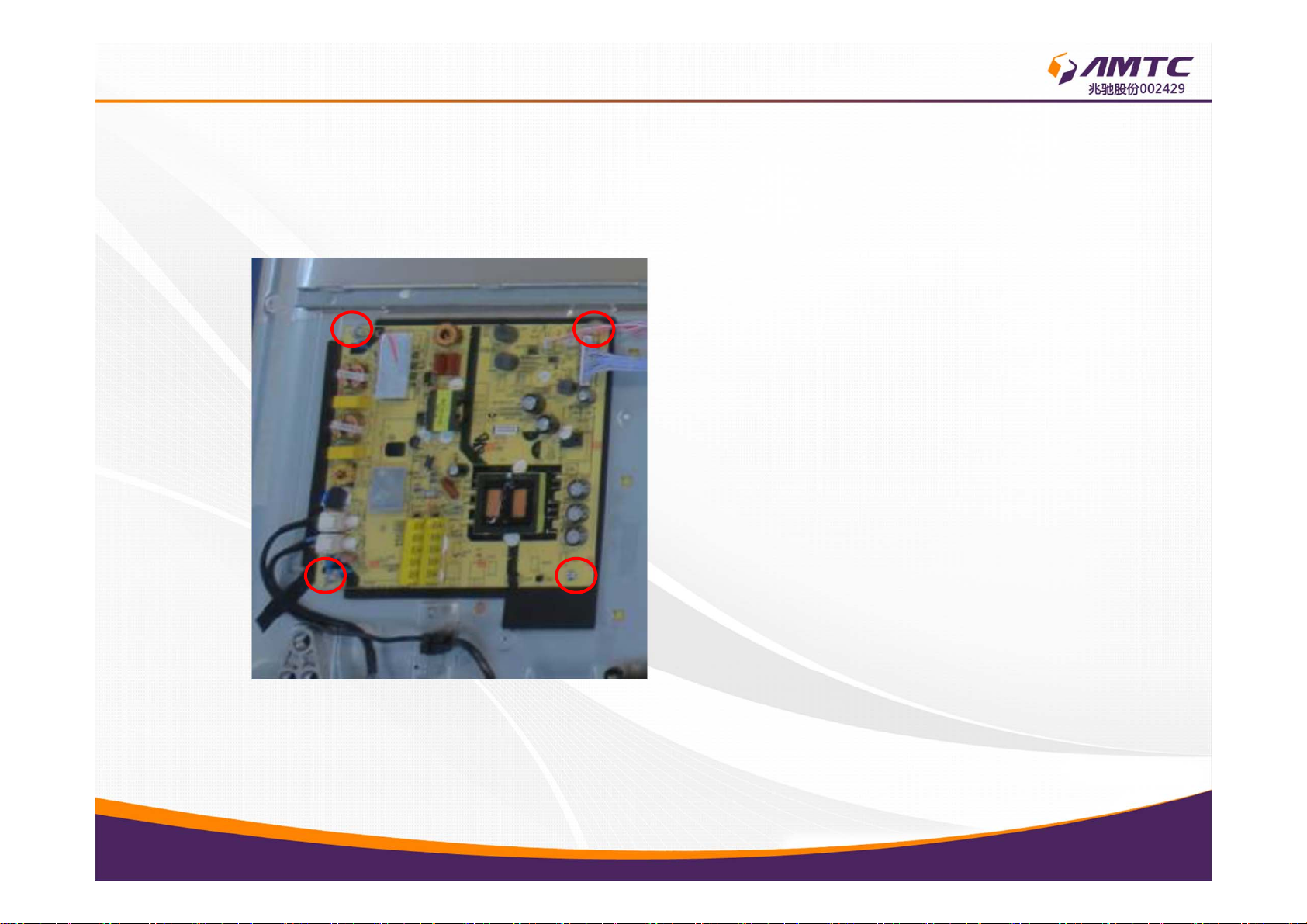

4-6 Remove the Power board 16

Service Manual
Model No.:
- 02 -
9. Trouble-shooting………….............................................................. 38
9-1. Simple Check 38
9-2. Main Board Failure Check
9-3. Panel Failure
39
46
8-1. How to enter into the factory model
8-2. How to update software
35
36
8. Measurements and Adjustments........…………............................ 32
8-3. How to enter into the Hotel Model 37

1-2. General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts
which have been overheated or damaged by the short circuit.
After servicing, see to it that all the protective devices such as insulation barriers, insulation
papers shields are properly installed.
After servicing, make the following leakage current checks to prevent the customer from
being exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive
1-3. Important Notice
1-3-1. Follow the regulations and warnings
Most important thing is to list up the potential hazard or risk for the service personnel to
open the units and disassemble the units. For example, we need to describe properly
how to avoid the possibility to get electrical shock from the live power supply or charged
electrical parts (even the power is off).
This symbol indicates that high voltage is present inside.It is dangerous to
make any king of contact with any inside part of this product.
This symbol indicates that there are important operating and maintenance
instructions in the literture accompanying the appliance.
1-3-2. Be careful to the electrical shock
7RSUHYHQWGDPDJHZKLFKPLJKWUHVXOWLQHOHFWULFVKRFNRU¿UHGRQRWH[SRVHWKLV79VHWto rain or excessive moisture. This TV must not be exposed to dripping or splashing water,
DQGREMHFWV¿OOHGZLWKOLTXLGVXFKDVYDVHVPXVWQRWEHSODFHGRQWRSRIRUDERYHWKH791-3-3. Electro static discharge (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatically Sensitive (ES) Devices. The following
techniques should be used to help reduce the incidence of component damage caused by
electros static discharge (ESD).
1-3-4. About lead free solder (PbF)
This product is manufactured using lead-free solder as a part of a movement within the
consumer products industry at large to be environmentally responsible. Lead-free solder
must be used in the servicing and repairing of this product.
8VHWKHJHQHZLQJSDUWVVSHFL¿HGSDUWVSpecial parts which have purposes of fire retardant (resistors), high-quality sound
(capacitors), low noise (resistors), etc. are used.
When replacing any of components, be sure to use only manufacture's specified parts
shown in the parts list.
Safety Component
Ɣ&RPSRQHQWVLGHQWL¿HGE\PDUNKDYHVSHFLDOFKDUDFWHULVWLFVLPSRUWDQWIRUVDIHW\Service Manual
Model No.:
- 03 -

1-3-6 Safety Check after Repairment
- 04 -
Service Manual
Model No.:
&RQ¿UPWKDWWKHVFUHZVSDUWVDQGZLULQJZKLFKZHUHUHPRYHGLQRUGHUWRVHUYLFHDUHSXWin the original positions, or whether there are the positions which are deteriorated around
the serviced places serviced or not. Check the insulation between the antenna terminal or
external metal and the AC cord plug blades. And be sure the safety of that.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power source before;
a. Removing or reinstalling any component, circuit board module or any other receiver
assembly.
b. Disconnecting or reconnecting any receiver electrical plug or other electrical
connection.
c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic
capacitors may result in an explosion hazard.
2. Test high voltage only by measuring it with an appropriate high voltage meter or other
voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage
probe.
Do not test high voltage by "drawing an arc".
5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this
service manual might be equipped.
8VHZLWKWKLVUHFHLYHURQO\WKHWHVW¿[WXUHVVSHFL¿HGLQWKLVVHUYLFHPDQXDOCAUTION: 'RQRWFRQQHFWWKHWHVW¿[WXUHJURXQGVWUDSWRDQ\KHDWVLQNLQWKLVUHFeiver.
3. Do not spray chemicals on or near this receiver or any of its assemblies.
4. Unless specified otherwise in this service manual, clean electrical contacts only by
applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or
comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume)
isopropyl alcohol (90%-99% strength).
CAUTION:7KLVLVDÀDPPDEOHPL[WXUH8QOHVVVSHFL¿HGRWKHUZLVHLQWKLVVHUYLFHPDQXDOOXEULFDWLRQRIFRQWDFWVLVQRWUHTXLUHGCapacitors may result in an explosion hazard.
6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless
all solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before
connecting the test receiver positive lead.
Always remove the test receiver ground lead last. Capacitors may result in an explosion
hazard.
9. Remove the antenna terminal on TV and turn on the TV.
10. Insulation resistance between the cord plug terminals and the eternal exposure metal
should be more than Mohm by using the 500V insulation resistance meter.
11. If the insulation resistance is less than M ohm, the inspection repair should be required.
If you have not the 500V insulation resistance meter, use a Tester. External exposure
metal: Antenna terminal Headphone jack

Service Manual
Model No.:
- 05 -
Electrostatically Sensitive (ES) Devices
1-3-7. Ordering Spare Parts
1. Immediately before handling any semiconductor component or semiconductor-
equipped assembly, drain off any electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commercially available discharging wrist
strap device, which should be removed to prevent potential shock reasons prior to applying
power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly
on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
'RQRWXVHIUHRQSURSHOOHGFKHPLFDOV7KHVHFDQJHQHUDWHHOHFWULFDOFKDUJHVVXI¿FLHQWto damage ES devices.
7. Immediately before removing the protective material from the leads of a replacement
ES device, touch the protective material to the chassis or circuit assembly into which the
device will be installed.
CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other
safety precautions.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
Some semiconductor (solid-state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive (ES) Devices.
Examples of typical ES devices are integrated circuits and some field-effect transistors
and semiconductor "chip" components. The following techniques should be used to help
reduce the ncidence of component damage caused by static by static electricity.
4. Use only an anti-static type solder removal device. Some solder removal devices not
FODVVL¿HGDVDQWLVWDWLFFDQJHQHUDWHHOHFWULFDOFKDUJHVVXI¿FLHQWWRGDPDJH(6GHYLFHV6. Do not remove a replacement ES device from its protective package until immediately
before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive material).
8. Minimize bodily motions when handling unpackaged replacement ES devices.
(Otherwise harmless motion such as the brushing together of your clothes fabric or the
OLIWLQJRI\RXUIRRWIURPDFDUSHWHGÀRRUFDQJHQHUDWHVWDWLFHOHFWULFLW\VXI¿FLHQWWRGDPDJHan ES device.)
Please include the following informations when you order parts. (Particularly the Version
letter)
1. Model number, Serial number and Software Version
The model number and Serial number can be found on the back of each product and the
Software Version can be found at the Spare Parts List.
2. Spare Part No. and Description
<RXFDQ¿QGWKHPLQWKH6SDUH3DUWV/LVW

- 06 -
Service Manual
Model No.:
1-3-8. Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of
products, which may differ from your products in some way.
1-4. How to Read this Service Manual
Using Icons:
,FRQVDUHXVHGWRDWWUDFWWKHDWWHQWLRQRIWKHUHDGHUWRVSHFL¿FLQIRUPDWLRQ7KHPHDQLQJRIeach icon is described in the table below:
Note:
A “note” provides information that is not indispensable, but may nevertheless be valuable
to the reader, such as tips and tricks.
Caution:
A “caution” is used when there is danger that the reader, through incorrect manipulation,
may damage equipment, loose data, get an unexpected result or has to restart(part of) a
procedure.
Warning:
A “warning” is used when there is danger of personal injury.
Reference:
A “reference” guides the reader to other places in this binder or in this manual, where he/
VKHZLOO¿QGDGGLWLRQDOLQIRUPDWLRQRQDVSHFL¿FWRSLF

Service Manual
Model No.:
- 07 -
6SHFL¿FDWLRQVModel LE43U6500U
Screen Size 55 inch
Aspect Ratio 16:9
Resolution*
Response Time (ms) 6.5 (GRAY TO
GRAY)
Angel of View 176o
Color Display 16.7M
No. of Preset Channels
OSD Language English
Color System NTSC
Audio System DK, BG, I, M, L, L'
Audio Output Power
(Built-in) (W) 10W×2
Audio Output Power
(outer) (W) No
Total Power Input (W) 198W
Voltage Range (V)
Power Frequency (Hz) 50~60Hz
Net Weight (KG) 17.7
Gross Weight (KG) 18.2
Net Dimension (MM)
Packaged Dimension
(MM)
AC 100-240V
Cable :1-135
Air: 2-69 (ATV&DTV)
1463x71x845 mm
1463x260x890mm

- 08 -
Service Manual
Model No.:
3. Location of Controls and Components

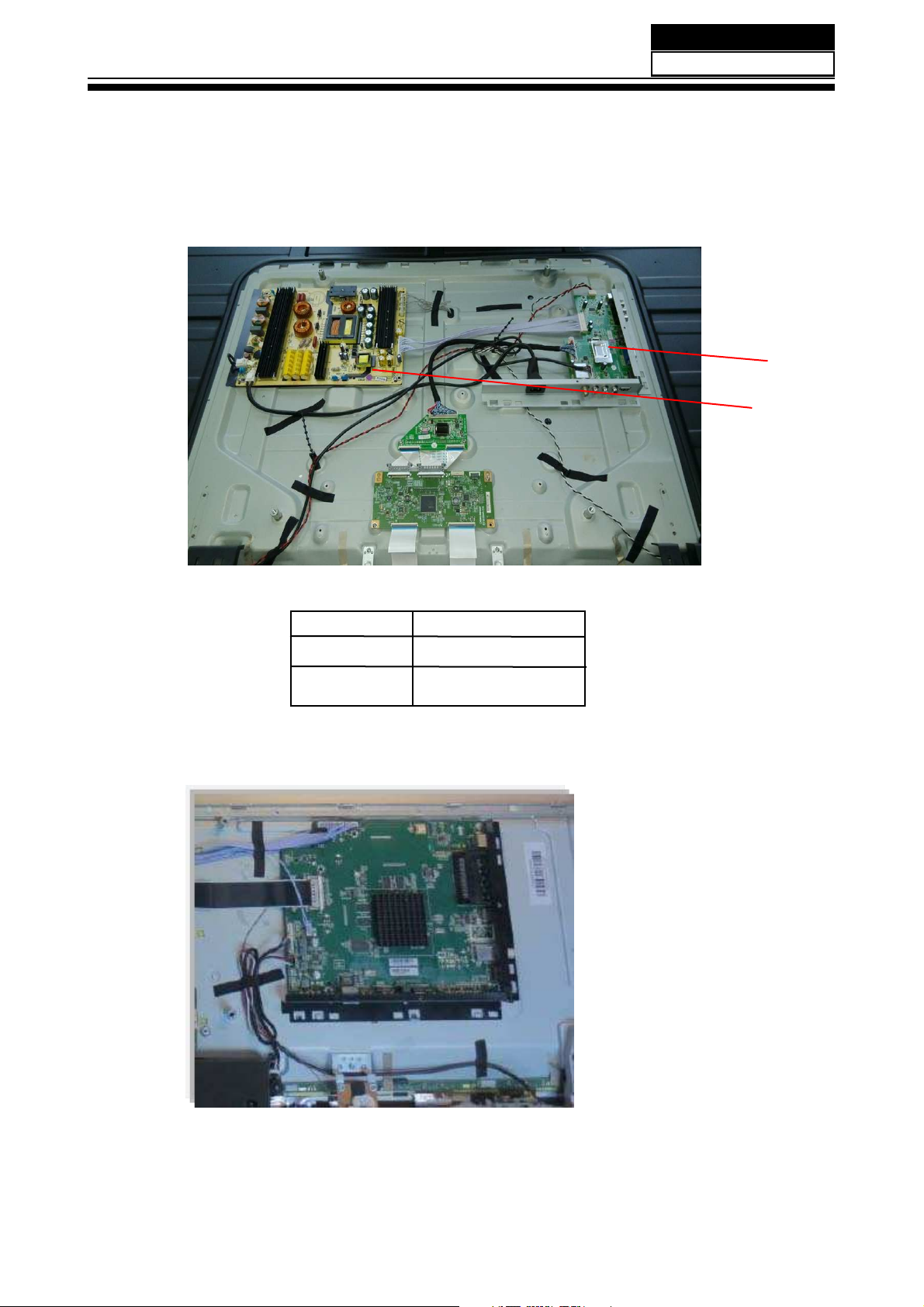

3-1 Board Location
No. Description
3-2 Main Board
A Board
ABoard Mainboard
BBoard Power Supply
B Board

Service Manual
Model No.:
- 09 -
3-2-1 Function Description:
Main Board
Process signal which incept from exterior equipment then translate into signal that panel
can display.
3-2-2 Connector denition
Main board connector
Power connectors (J16)
Pin number Signal name
1 GND
2
3
4 +5V
5 POWER ON/OFF
6 +5VSTB
7 +5V
8 +5V
9 GND
10 GND
11 GND
12 +12V
13 +12V
Notes:
J16-Pin 3: Backlight on/off:
The system can turn on or turn off the backlight of TFT LCD Panel through the power
supply unit path.
J16-Pin 6: System power on / standby
System board will use this pin to control system power.
J16-Pin 2: Control the luminance of backlight
The system can generate the PWN signal to control the strength of TFT LCD Panel’s
backlight through this connector
BL-ON/OFF
J16
BL-ADJUST

- 10 -
Service Manual
Model No.:
Keypad and remote connector (J2)
Speaker connector (J17)
Pin number Signal name Description
1 RSPK+ RSPK+
2 RSPK- RSPK-
3 LSPK- LSPK-
4 LSPK+ LSPK+
Pin number Signal name Description
1
LED_R LAMP RED
2
LED_G LAMP GREEN
3
4
IR REMOTE CONTROL
5
GND GND
6
5V POWER FOR REMOTE
7
KEY1
KEY0
10
GND
8
9
NC
STANDBY

3-3. Power Board
3-3-1 Function Description:
Supply power for Main board, Panel.
3-3-2Connectordefinition
Service Manual
Model No.:
- 11 -
CON201
Pin number Signal name
1
GND
2
GND
3
4 +5V
5 POWER ON/OFF
6 +5VSTB
7 +5V
8 +5V
9 GND
10 GND
11 GND
12 +12V
13 +12V
NC

3-4. LED Panel
- 12 -
Service Manual
Model No.:
V650HP1-PS6

Service Manual
Model No.:
- 13 -
1) Keep the NC Pin and don’t connect it to GND or other signals.
3-4-1.Connector de finition
Pin Name Description Note
1 N.C. No Connection (1)
2 SCL EEPROM Serial Clock (for local dimming demo function)
3 SDA EEPROM Serial Data (for local dimming demo function)
(11)
4 TST_AGE Aging Mode (10)
5 L/R_O Output signal for Left Right Glasses control (9)
6 N.C. No Connection (1)
7 SELLVDS Input signal for LVDS Data Format Selection (2)(6)
8 N.C. No Connection
9 N.C. No Connection
10 N.C. No Connection
(1)
11 GND Ground
12 CH1[0]- First pixel Negative LVDS differential data input. Pair 0
13 CH1[0]+ First pixel Positive LVDS differential data input. Pair 0
14 CH1[1]- First pixel Negative LVDS differential data input. Pair 1
15 CH1[1]+ First pixel Positive LVDS differential data input. Pair 1
16 CH1[2]- First pixel Negative LVDS differential data input. Pair 2
17 CH1[2]+ First pixel Positive LVDS differential data input. Pair 2
(8)
18 GND Ground
19 CH1CLK- First pixel Negative LVDS differential clock input.
20 CH1CLK+ First pixel Positive LVDS differential clock input.
(8)
21 GND Ground
22 CH1[3]- First pixel Negative LVDS differential data input. Pair 3
23 CH1[3]+ First pixel Positive LVDS differential data input. Pair 3
24 CH1[4]- First pixel Negative LVDS differential data input. Pair 4
25 CH1[4]+ First pixel Positive LVDS differential data input. Pair 4
(8)
26 2D/3D Input signal for 2D/3D Mode Selection(Frame sequence mode) (3) (7)
27 L/R Input signal for Left Right e e frame s nchronous (4)(7)
28 CH2[0]- Second pixel Negative LVDS differential data input. Pair 0 (8)

Service Manual
Model No.:
29 CH2[0]+ Second pixel Positive LVDS differential data input. Pair 0
30 CH2[1]- Second pixel Negative LVDS differential data input. Pair 1
31 CH2[1]+ Second pixel Positive LVDS differential data input. Pair 1
32 CH2[2]- Second pixel Negative LVDS differential data input. Pair 2
33 CH2[2]+ Second pixel Positive LVDS differential data input. Pair 2
34 GND Ground
35 CH2CLK- Second pixel Negative LVDS differential clock input.
36 CH2CLK+ Second pixel Positive LVDS differential clock input.
(8)
37 GND Ground
38 CH2[3]- Second pixel Negative LVDS differential data input. Pair 3
39 CH2[3]+ Second pixel Positive LVDS differential data input. Pair 3
40 CH2[4]- Second pixel Negative LVDS differential data input. Pair 4
41 CH2[4]+ Second pixel Positive LVDS differential data input. Pair 4
(8)
42 LD_EN Input signal for Local Dimming Enable (5)(6)
43 N.C. No Connection (1)
44 GND Ground
45 GND Ground
46 GND Ground
47 N.C. No Connection (1)
48 VCC +12V power suppl
49 VCC +12V power suppl
50 VCC +12V power suppl
51 VCC +12V power suppl

3.Disassemble and Assemble
3.1 Remove the Pedestal：
1.Lay down the unit so that Back-
Cover faces upward
2.Remove the screw from the
Back-Cover indicated with Fig.1
3.Then remove the pedestal
(Fig .1) Parts number ：209030414Z1
Specification：4*14PM

3.Disassemble and Assemble
(Fig .1)
1.Remove the screw indicated with
Fig.1
3.5 Remove the IR board ：

3.Disassemble and Assemble
(Fig .1)
1.Remove the screw indicated with
Fig.1
3.6 Remove the Power board ：

4 .Factory Mode adjustment
4.1.1 How to enter Factory Menu
Press Menu and 8893
Press EXIT to exit the Factory Menu

4 .Factory Mode adjustment
