Haier LET32T1000HFM User manual

LED LCD TV RECEIVER
USER MANUAL
Please read this manual carefully before using
your television and keep this manual in a good
place for future reference.
MODEL:
LET32T1000HFM

02 Introduction
03 Remote Control
Main Parameter …………………………………………………………………
Control Panel ……………………………………………………………………
Rear/Side Sockets ………………………………………………………………

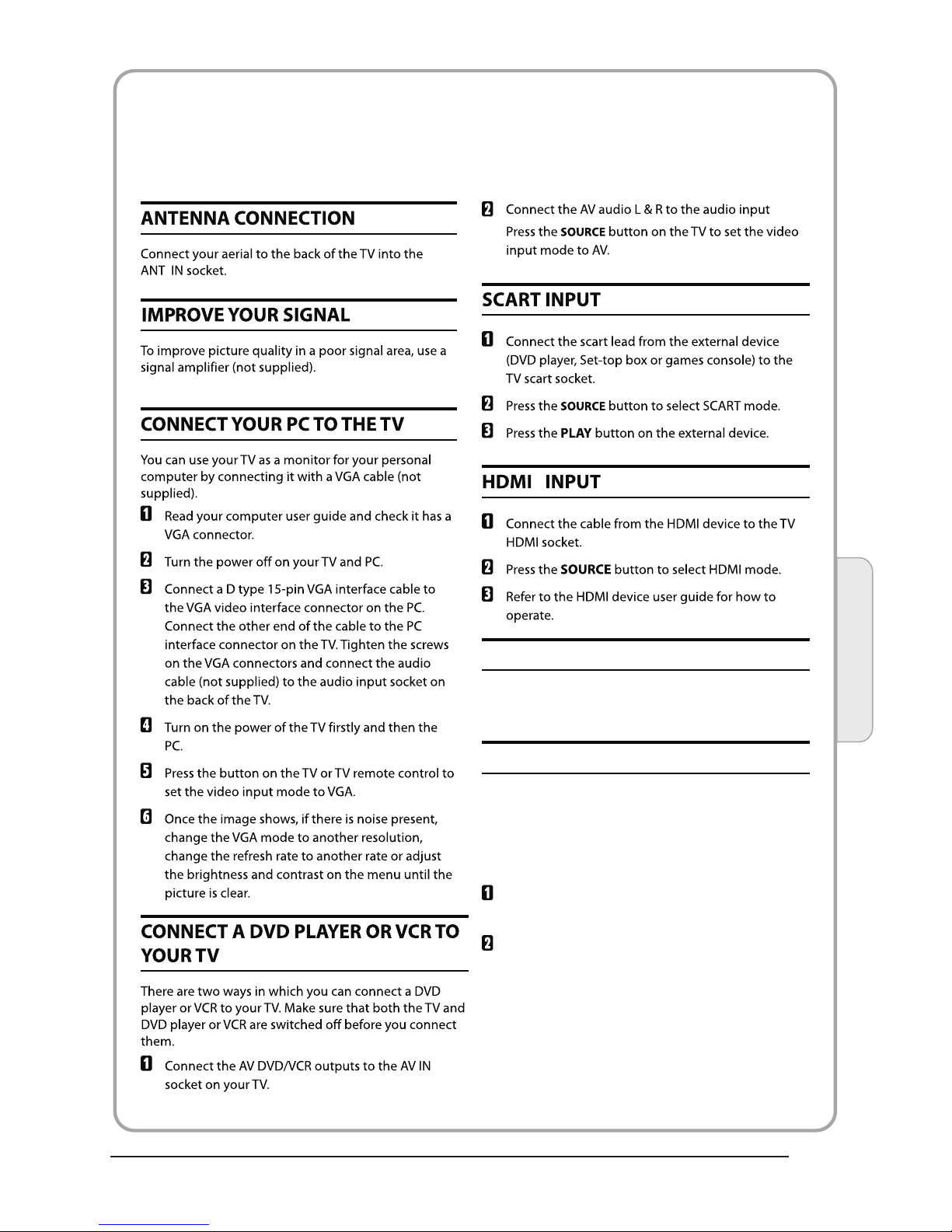

Connecting your TV ………………………………………………………………
Remote Control …………………………………………………………………
05 Trouble shooting
Trouble shooting ………………………………………………………………
04 Operation

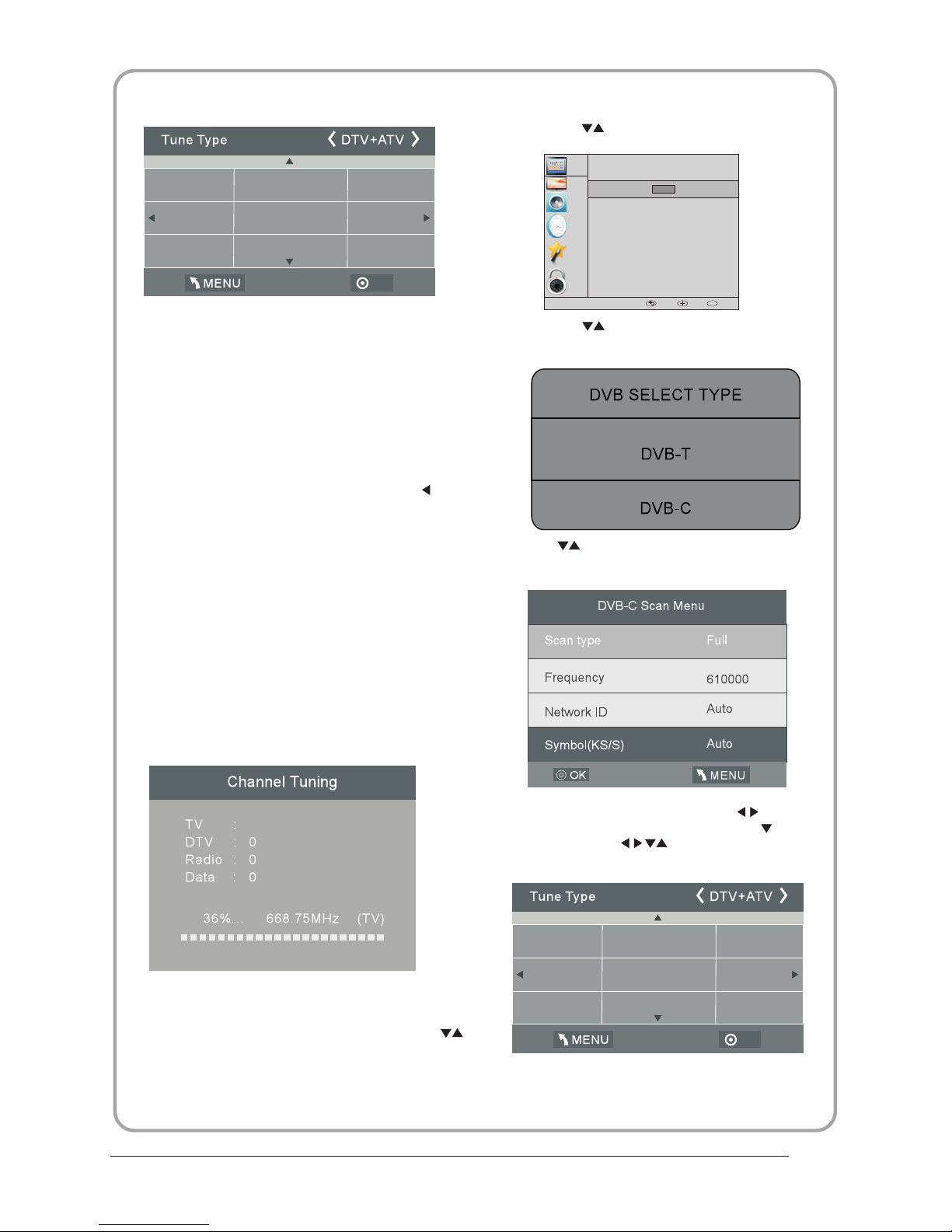

Installation Guide …………………………………………………………………
01 Safety and warnings
Welcome …………………………………………………………………………
Important information ……………………………………………………………

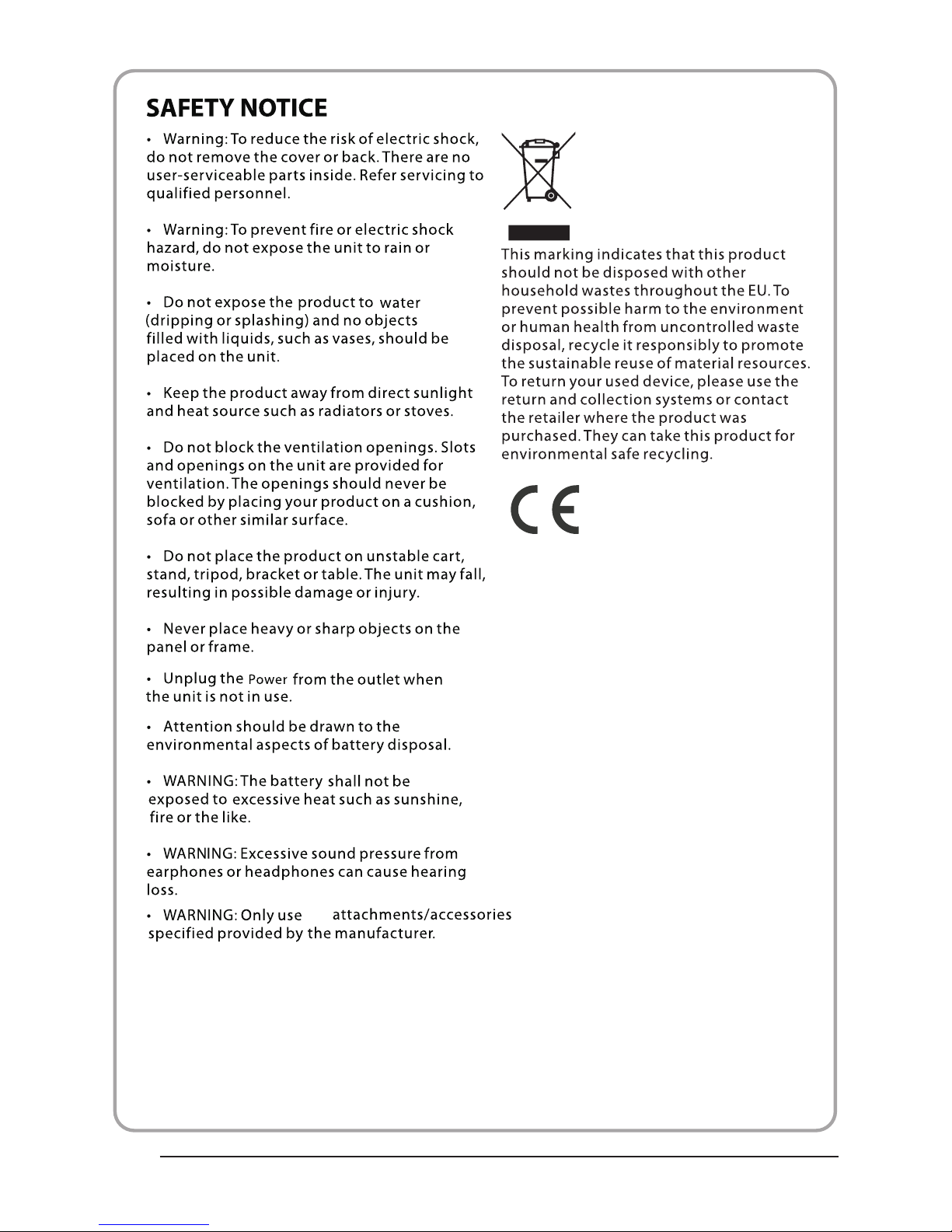

Safety notice ……………………………………………………………………
Warnings and cautions …………………………………………………………
Specification ……………………………………………………………………
P.05
P.09
P.09
P.10
P.12
P.25
P.14
P.02
P.02
P.03
P.04
P.26

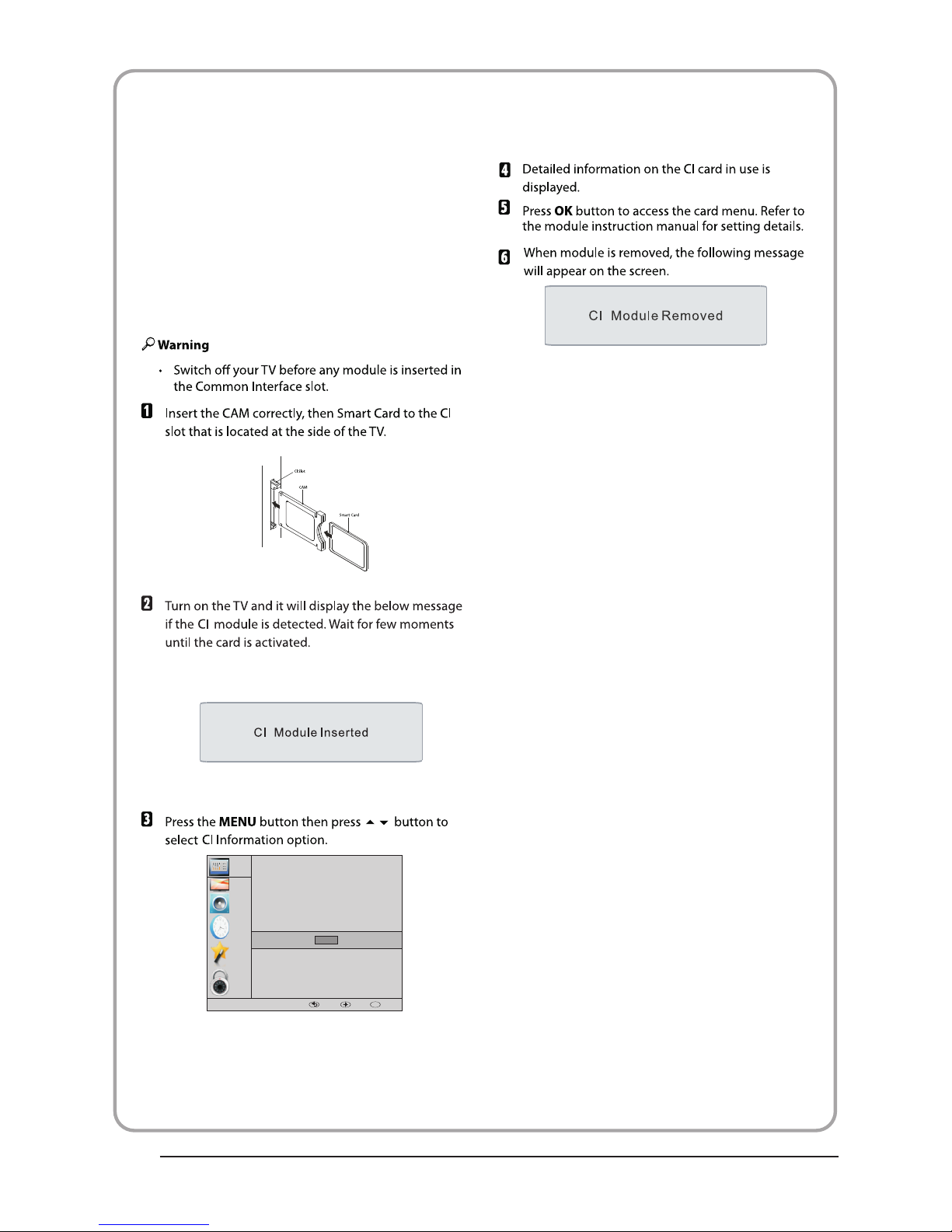

Common interface ………………………………………………………………… P.11
Base Stand Assembly Instruction …………………………………………… P.07
Wall Mounting Installation Guidelines ……………………………………… P.08

P.02
Thanks for buying this 32" LED LCD TV . This guide will help you set up and begin using your TV.
IMPORTANT INFORMATION
READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.
FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN
THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF
CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.
THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR
SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE
THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT
DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

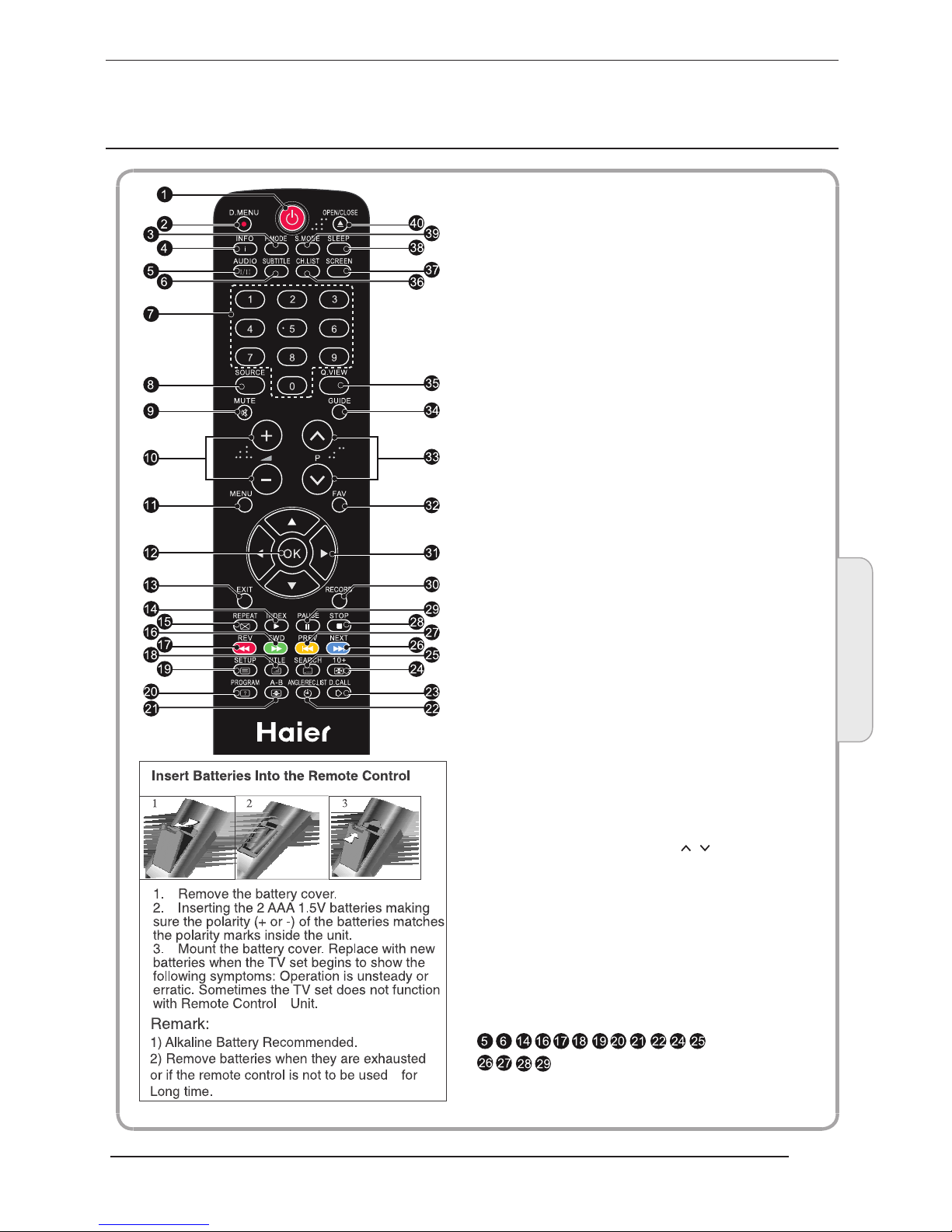

Now you can get started!
32" Full HD 1080P Digital
Remote control
AAA ba x2
Instruction Manual
Quick start guide
ttery
YPbPr Connect Cable x1
LED LCD TV
Stand

P.03
the

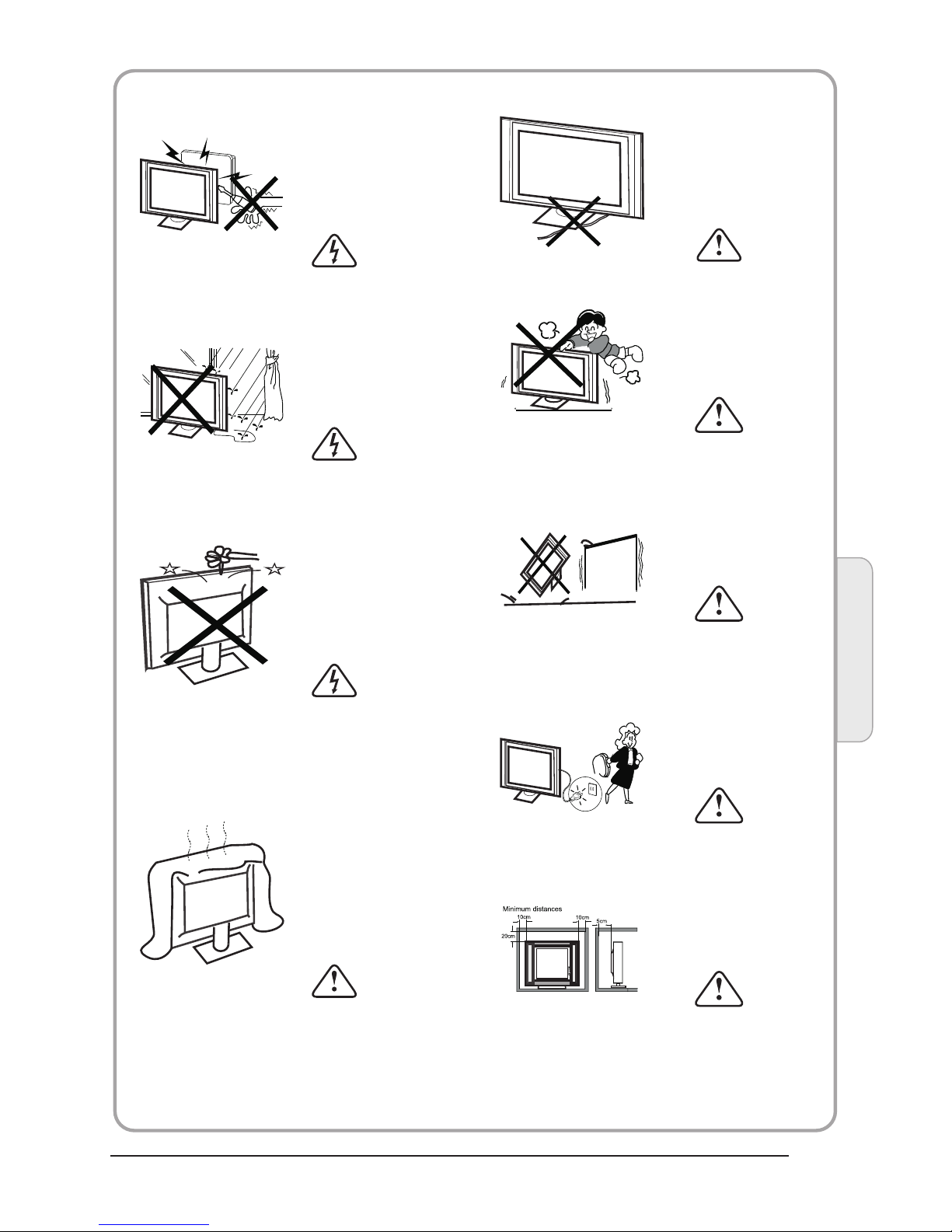

WARNINGS AND CAUTIONS
Warning
High voltages are used in the operation
of this television receiver. Do not remove
the cabinet back from your set. Refer
servicing to qualified service personnel.
Warning
To prevent fire or electrical shock
hazard, do not expose the television
receiver to rain or moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings.
Never spill any kind of liquid on the
television receiver.
Caution
Do not block the ventilation holes in the
back cover. Adequate ventilation is
essential to prevent failure of electrical
components.
Caution
Do not trap the power supply cord under
the television receiver.
Caution
Never stand on, lean on, or suddenly push
the television or its stand. You should pay
special attention to children. Serious injury
may result if it should fall.
Caution
Do not place your television on an unstable
cart, stand, shelf or table. Serious injury to
an individual , and damage to the
television, may result if it should fall.
Caution
When the television receiver is not
used for an extended period of time, it
is advisable to disconnect the AC power
cord from the AC outlet.
Dim:5 15*320m m(不包括 底座）
Caution
If the television is to be built into a
compartment or similar enclosure, the
minimum distances must be maintained.
Heat build-up can reduce the service life of
your television, and can also be dangerous.
P.04
01
Safety and warnings

Introduction
INSTALLATIONCAUTION
*Locate the TV in the room where light
does not strike the screen directly.
*Total darkness or a reflection on the
picture screen can cause eyestrain. Soft
and indirect lighting is recommended for
comfortable viewing.
*Allow enough space between the TV and
the wall to permit ventilation.
*Avoid excessively warm locations to
prevent possible damage to the cabinet or
premature component failure.
*Do not cover the ventilation openings
when using theTV.
Main parameter
Main features
02
P.05
4 NICAM；
3 HDMI interface and SCART
Interface；
5 T；ime-shift
High luminance, wide viewing
angle；
2
Used as Television, display terminal,
PC display；
1
Panel
TV System PAL-B/G、I、D/K
SECAM- B/G 、D/K、L、 L
Video Signal System PAL/SECAM
Input Power Voltage AC 100-240V 50/60Hz
Power consumption
Audio Output Power （THD 7%）2x8W
Signal Input Analog RGB(PC) x1; PC audio x1
High-Definition Multimedia Interface (HDMI)x2
Video Input x1
Audio Input x1
YPb Prx1
SCARTx1
75W
32
'
CI x 1
USB x 1
RF Co-Ax x 1
Standby Power consumption <0.5W
Horizontal definition（TV line）Composite Video input >=350
YPbPr >=400
Signal output Headphone x 1
S/PDIF x 1
Never tamper with any components inside
the TV, or any other adjustment controls not
described in this manual. All LED-TV's are
high voltage electrical equipment.
When you clean dust or any water drops off
the SCREEN or CABINET or around any of
the buttons or connectors, the power cabled
should be removed from the power socket.
Wipe the TV with a soft, dry, dust free cloth.
During thunderstorms, unplug the power
cable and aerial / antenna cable to prevent
damage to your TV and any other devices
connected to it.
All repairs to this TV should only be
performed by qualified TV service
personnel.

PRESET MODE
PC
P.06
02 Introduction
3
5
6
1024x768
1280x1024
60
60
1
640x480 60 31.47
2
800x600 60 37.88
48.36
63.98
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
4
1360x768 60 47.7
1920x1080 60 66.64

INSTALLATION NOTES
Locate the TV in a room where light does not strike the screen directly. Total darkness
or a reflection on the screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or
premature component failure.
Please don’t rotate the TV!

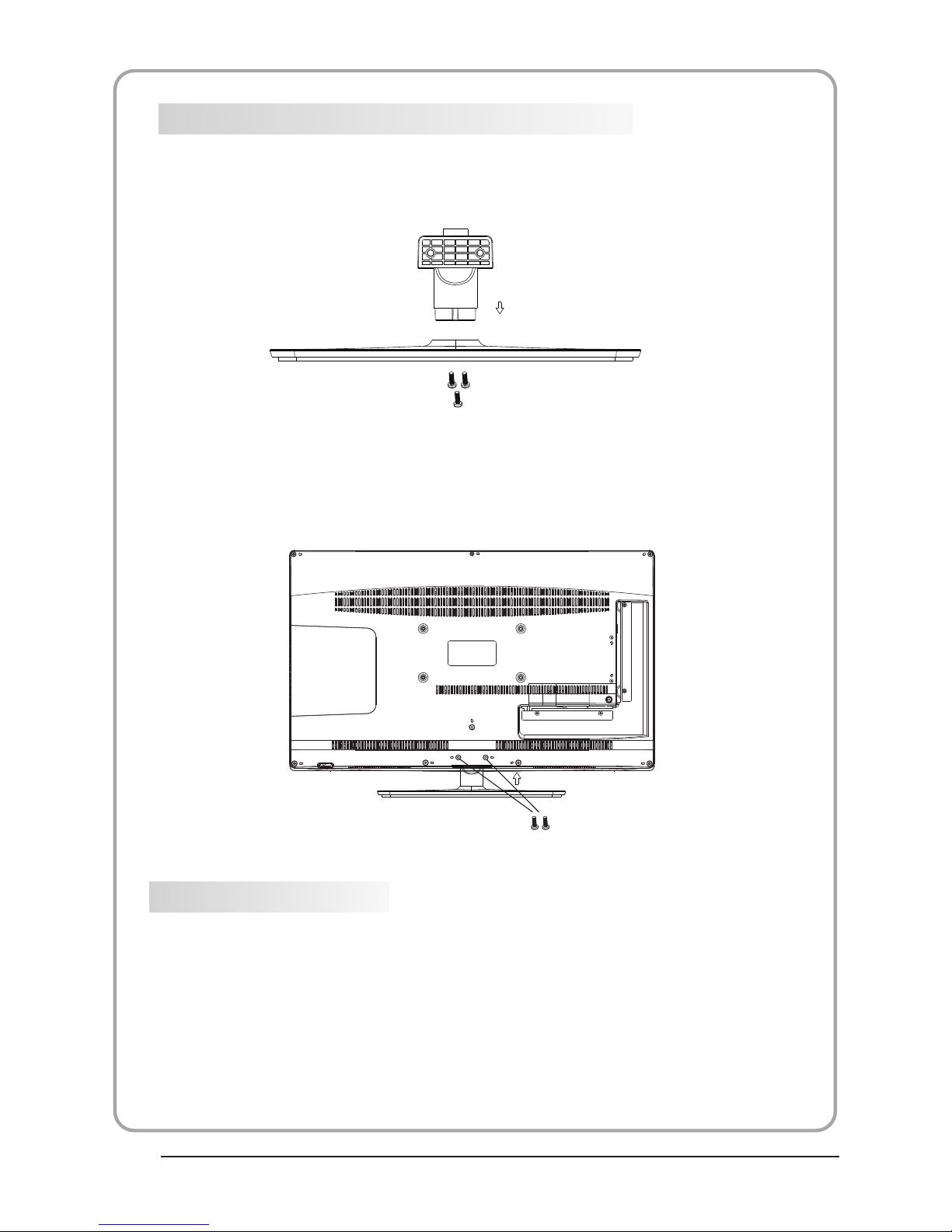

Base Stand Assembly Instruction
1. Insert the stand support pillar into the stand as the arrow indicated
direction, and then fastened with three screws.
2. Insert the stand Ass'y into back cover as the arrow indicated direction,
and then fastened with two screws.
32"
P.07

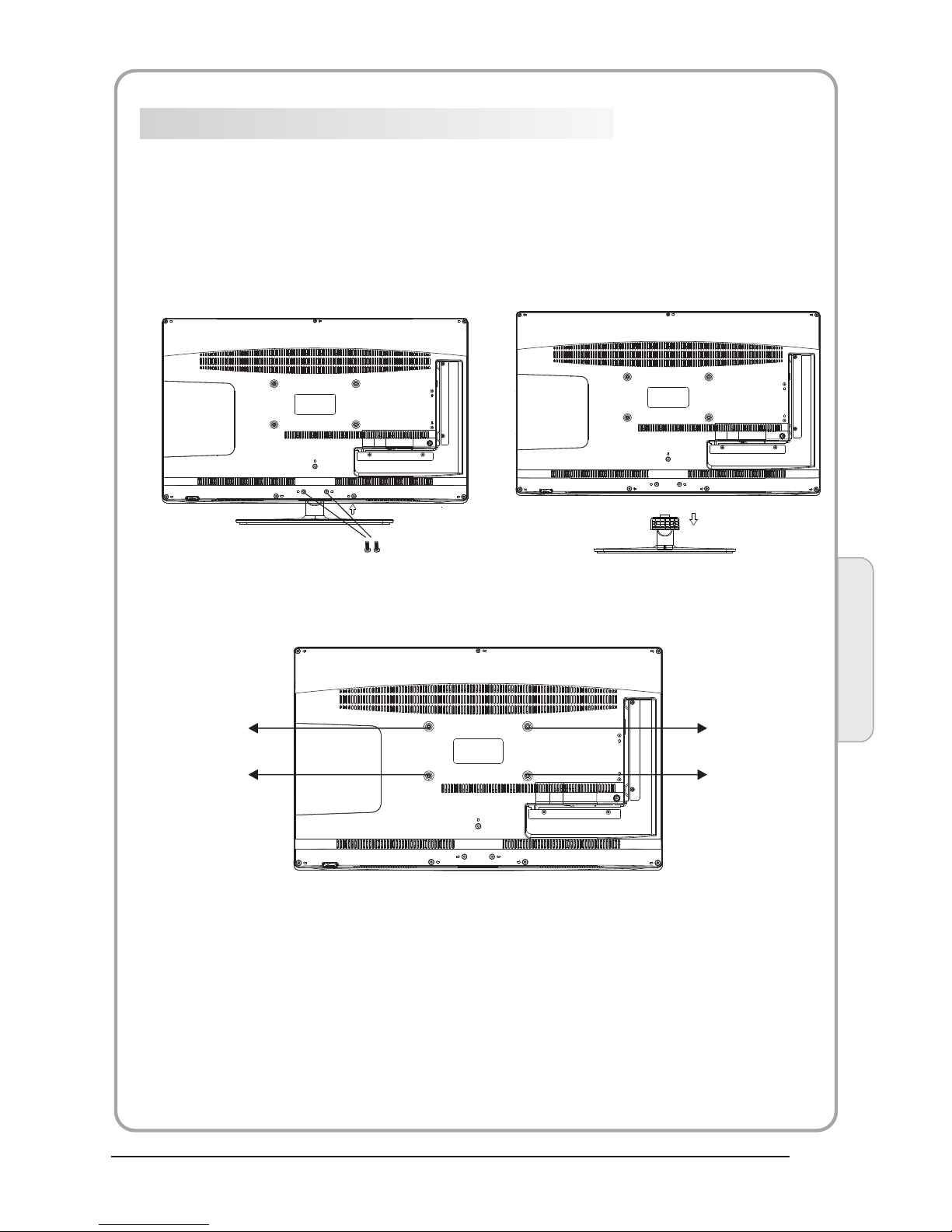

WALL MOUNTING INSTALLATION GUIDELINES
This television can be wall mounted as follows:
1.Place the LED LCD Television onto a solid surface. Please place some soft material
over the front of the screen to protect it from any damage.
2.Remove the screws from the lower part of the television, where the base joins to the
TV, and take away the stand (put the stand somewhere safe for future use).
3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
P.08
02 Introduction
32"
M6X13
M6X13
M6X13
M6X13

P.09

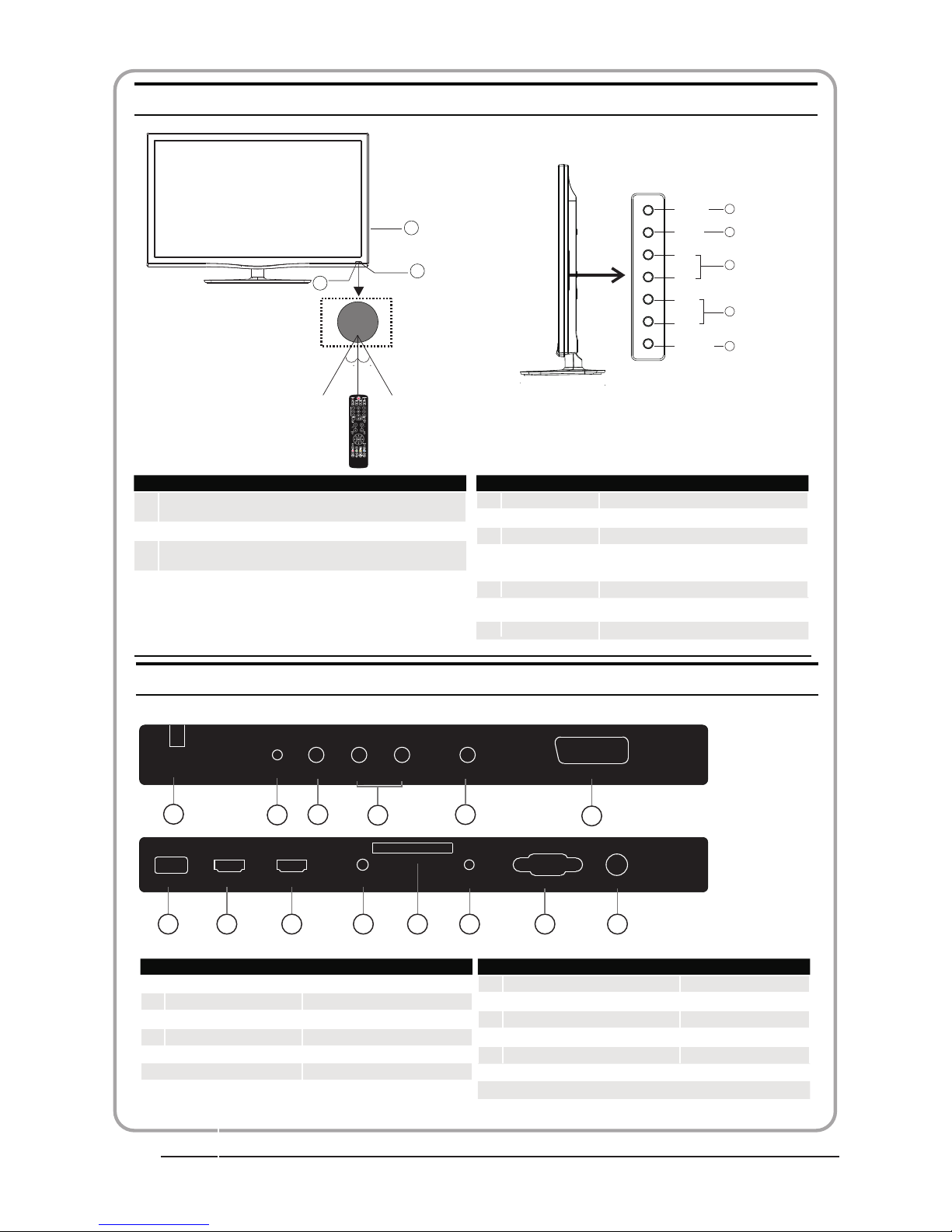

Rear/Side Sockets
1
YPbYr
2
input
3
4
input
5digital audio output
input
8
9
HDMI2 input
10
AC Power Source
11
12
13
input
6
input
S/PDIF
HDMI1
COMMON INTERFACE(CI)
PC AUDIO
input
analogue audio output
input
SCART
HEADPHONE
L/R AUDIO
VIDEO
7
input
USB
input
VGA
input
AC-INPUT
100-240V~ 50/60Hz YPbPr VIDEO L R SPDIF OUTPUT SCART
USB HDMI2 HDMI1 HEADPHONE PC AUDIO VGA RF
COMMON INTERFACE (CI)
2 3
146
5
7 8 9 11 12 13 1410
14 input
RF

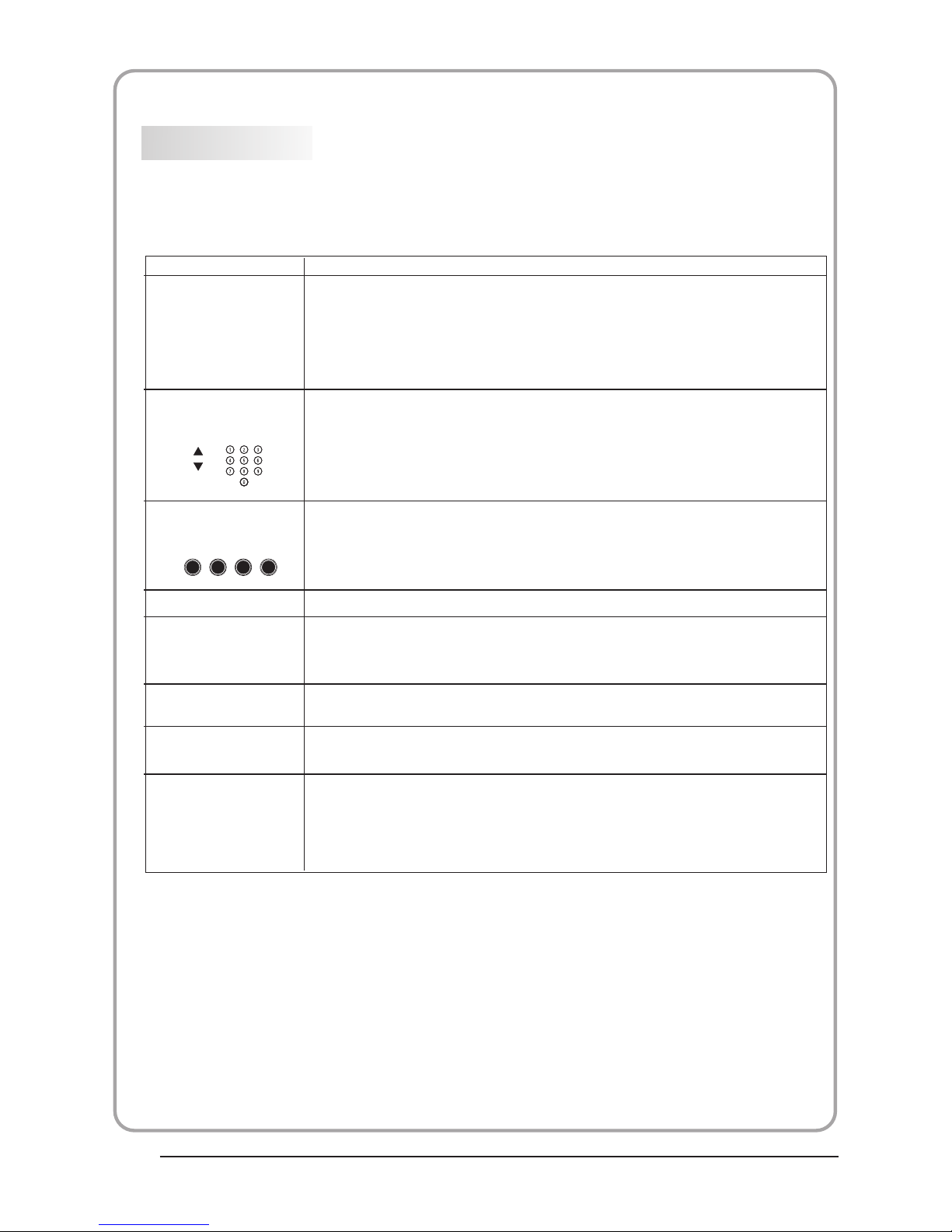

Front control panel
1
2
3
Remote control sensor.
Indicator LED:
BLUE: POWER ON. RED: STAND BY.
Key board.
1SOURCE
Display the input source menu.
MENU Display main MENU.
3
4
CH+/CH- In TV mode,press CH+ or CH- to change
the channel up and down.
In MENU, press CH+ or CH- to select items .
STANDBY
2
VOL+/VOL- Adjust sound level.
In MENU,adjust the item that you Selected.
5
3
1
2
30 3 0
ME NU
CH +
CH -
VO L+
VO L-
2
SO URC E 1
3
4
STAND BY 5
