OPERAITON THEORY OF MICROWAVE OVEN
1. Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the
nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating
purpose. The key component of magnetron of microwave oven will transform the energy of electricity to
microwave and huge energy of microwave field is established under the closed cavity. So the molecule of
food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way.
2. There is 3 properties of microwave, that is
a) Absorbability: the microwave can cause the excess vibration of molecule of various food so as to obtain
the heating purpose. But the infiltration ability is largely depend on the size, thickness and properties of
the food.
b) Penetrability: microwave can penetrate through ceramics, glass, temperature-resistant plastics. It is
required to use the containers whose material have good microwave penetrability to achieve best heating
result. Please see the below utensils guide.
c) Reflectivity: microwave would be reflected by the metal wall of interior cavity so as to establish an
even magnetic field, thus can preven t the overheating of partial area.
INSTALLATION OF MICROWAVE OVEN
1) To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm,
the side to the wall should be at least 5cm, the free distance above the top surface at least 20 cm.
2) The appliance should be operated with the rear side placed against a wall.
3) Do not place any objects on the top of microwave oven.
4) The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance
or noise may occur.
5) The appliance must be positioned so that the plug is accessible.
6) The microwave oven is intended to be used freestanding and shall not be placed in a cabinet.
7) To keep the microwave oven at a distance from the wall, it is necessary to install a distance limiter.
8) 15amp power plug to be used
2

3

Technical parameters
+,/(*&)1400 900 1000 1300 2450 28230V
Model
Microwave
power
consumption Volume
input
power
output
power
Voltage/
Frequency
~/50Hz
Grill
power
Convection
Convection Convection
power
Grill combi 1 Grill combi 2 combi 1 combi 2
1330 998 1337 1297
4

PRODUCT INTRODUCTION
Waveguide cover
Fig.1
Notes:
1. Door interlock ensures the oven can only be activated when the door is properly closed, which would
prevent microwave radiation.
2. Control panel is illustrated in next page (the control panel is subject to change without prior notice).
3. Do not remove the Waveguide cover during cleaning (see Fig.1).
4. Glass turntable turns to make food are heated evenly.
5. Grill rack is used to place the roasting food
6. LCD will show the clock time, cooking mode and left operation time, which depends on the current set
mode.
Instant.Start
Stop.Clear
Preset.Clock
Grill.Combi
Conv.Combi Auto Cook
Micro Power
Auto Defrost Time Weight
Temp
5

6

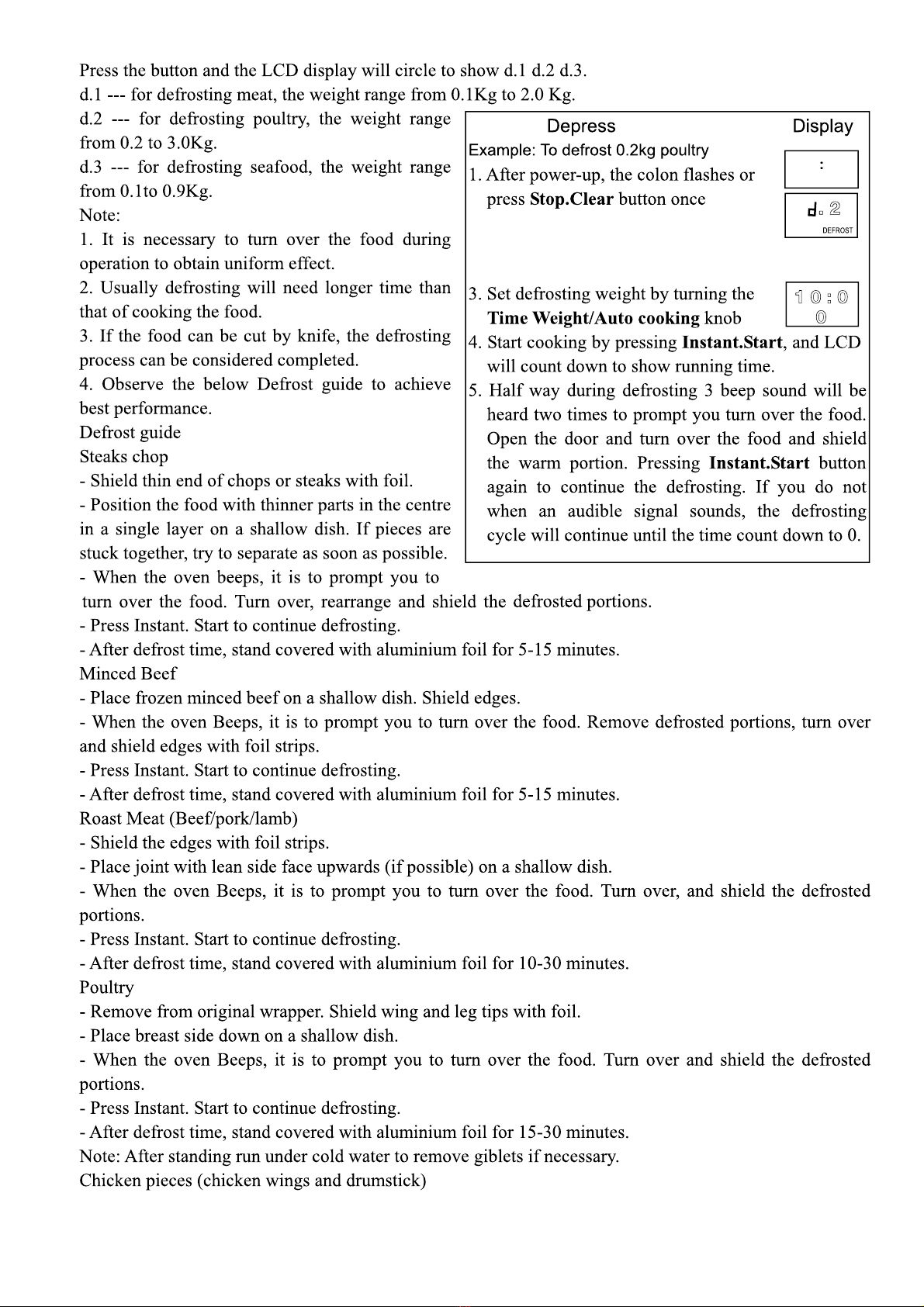

To set child lock, depress and hold Stop.Clear button about 3 seconds until LCD appears OFF.
To cancel child lock, depress and hold Stop.Clear button about 3 seconds until LCD appears colon.
6.Microwave cooking
Press Micro Power button, LCD will cycle to show 100P 80P 60P 40P 20P
100P--- High power, 100% microwave power.
Applicable for quick and thorough cooking, such
as meat, vegetable
80P --- Medium High power, 80% microwave
power. Applicable for medium express cooking,
such as eggs, fish, congee, rice, soup
60P --- Medium power, 60% microwave power.
Applicable for steaming food
40 P --- Medium Low power, 40% microwave
power. Applicable for defrosting food
20P --- Low power, 20% microwave power.
Applicable for keeping warm
1. After power-up, the colon flashes or
press Stop.Clear button once
2. Select the desired microwave power by
depressing Micro Power button
consecutively
3. Set the cooking time by turning the
Time. weight/ Auto cooking knob
4. Press Instant.Start to start, and LCD will count
down to show running time.
You may change the cooking time during cooking.
And it is recommend to turn the food halfway, after
you turn the food. Press Instant.Start button once
to…
:
1 0 : 0
0
80P
POWERƵƵƵƵDepress Display
Example: To cook at 80P for 10 minutes.
NOTE:
1) The max time which can be set is 60 minutes
and 00 seconds.
2) Never use the Grill rack during microwave
cooking.
3) Never operate the oven empty.
4) If you turn the food during operation, press the Instant.Start button once and the preset cooking
procedure will continue.
5) If you intend to remove the food before the preset time, you must press Stop.Cancel button once to
clear the preset procedure to avoid unintended operation of next time use.
7

7.Convection/CombinationGrill/Combination
Press this button LCD Display will cycle to
show C…C.1…C.2…G…G.1…G.2
A) Convection/Combination
C---Convection, convection unit will be
energized during entire operation time. In this
mode, hot air is circulated throughout the oven
cavity to brown and crisp foods quickly and
evenly.
C.1 --- Combination of convection and
microwave cooking. The combination of these
two cooking methods produces juicy meats, as
well as tender poultry, with the right browning
and crispness. Meats and poultry are best when
cooked directly on the rack. A shallow dish can
be placed below the food if gravy is to drop.
C.2 --- Same as above C1, except more
microwave cooking time. This is suitable for
cooking large size poultry utilizing the
penetration ability of microwave.
Temperature setting
Select operating temperature by different task,
Temperature
includes 100ć, 140ć, 180ćˈ200ćand
230ć.
For defrosting, set at 100ć.
For baking, set the oven at 140ćor 180ć.
For grill poultry, set at 180-230ć.
In combination mode, the cooking temperature
you set can't exceed 180ćas the oven cannot
be heated to the temperature higher than 180ć.
Preheating
1. In the convection mode, preheating is usually
required so as to obtain best result. But
preheating is not recommended to use in
combination mode.
Example: To cook with convection function C. at
180ćfor 20 minutes
Depress Display
1. After power-up, the colon flashes or
press pause cancel button once
2. Press Conv. Combi/Grill. Combi
button consecutively to select desired
menu
3. Select convection temperature by turning
Auto Defrost+ or Time Weight Temp-
knob
4. Press Instant. Start button confirm it
5. Set cooking time or preheating time. In
most case the oven has to be preheated
to preset temperature before placing
food in order to achieve best result.
turn Auto Defrost or Time Weight Temp koob
to set the cooking time
Or you may skip this step
The oven would be well heated within the
Default preheating time-15 minutes
6. Press Instant. Start button start cooking or
7. The temperature is rising constantly
during preheating period and LED will
show as follows while temperature
changes
The oven will be heated from 100ć.
Once the oven has reached the 100ć
will go steady and the oven temperature
is approaching 140ć…
Once the oven has reached the 180ć
the numbers will go steady and the
preheating process can be considered
terminated.
8. When cooking program is ended, the integrated
cooling fan will automatically start running for 30
seconds while the lamp is illuminated. This is
intended to prolong the lifetime of electronic part.
:
c
C
180
C
P - h
Cƽƽƽ1 0 : 0 2
180
C
1 1 : 1 0
180
C
1 7 : 3 0
C
180
140
2 0 : 0 0
C
180100
180
180
2 0 : 0 0
C
180
1 5 : 0 0
C
180
2. The preheating temperature must be always
higher than oven temperature. For instance, the
oven has been operated at 230ć, then you would
like the oven to be operated at 180ć, in this
case LCD displays . You must reset
the temperature or wait the oven to cool down.
Err2
Notes:
1. The oven should not be used without the turntable in place, and the turntable should never be restricted
otherwise it cannot rotate. You may remove the turntable when preheating the oven.
8

9

2. Select the food kind by turning
Time. Weight/ Auto Defrost knob and
press Instant/ Start to confirm
10

- Shield the exposed bone with foil.
- Place chicken pieces on a shallow dish.
- When the oven beeps, it is to prompt you to turn over the food. Turn over, rearrange and shield the
defrosted portions.
- Press Instant. Start to continue defrosting.
- After defrost time, stand covered with aluminium foil for 5-30 minutes.
11
9. Auto cooking
1. After power-up, the colon flashes or
press Stop.Clear button once
2. Choose the appropriate menu by pressing
Auto cook button
3. Turn the knob to set auto cooking menu
4. Start cooking by pressing Instant.Start ,
and LCD will count down to show running
time.
The oven has default cooking menu for simple
operation. When the LCD flash colon, turn the
Time Weight/Auto Cooking knob and LCD will
cycle to show
Choose the appropriate menu according to the
food type and weight and strictly observe the
directions of below table, otherwise the cooking
effect will be largely influenced.
A - 01、A - 02 ... A - 11

Note:
1. The cook time above is based on the food which of the room temperature of 20-25ć. Results will va
for the food in different temperature.
2. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation
has been found to the factor noted on above menu, you can adjust the cooking time for best result.
14

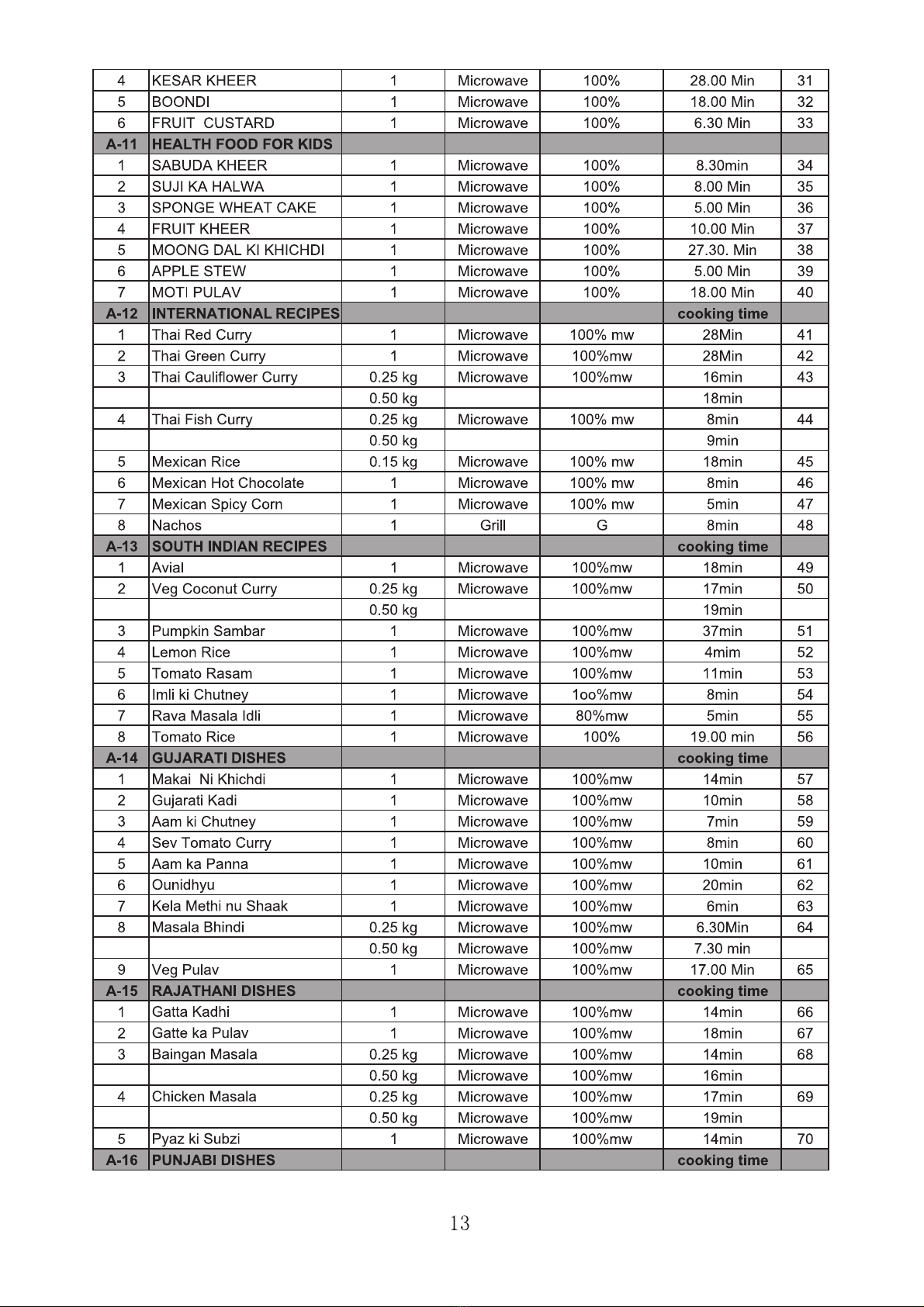

1Khoya Mattar 1 Microwave 100%mw 16min 71
2Keema Mattar 1 Microwave 100%mw 17min 72
3Methi Mattar Malai 1 Microwave 100%mw 15min 73
4Veg Makhanwala 0.25 kg Microwave 100%mw 17min 74
0.50 kg Microwave 100%mw 19min
5Paneer Makhani 1 Microwave 100%mw 10min 75
6Navratna Korma 1 Microwave 100%mw 18min 76
7Paneer Masala 1 Microwave 100%mw 10min 77
8 Paneer Butter Masala 0.25 kg Microwave 100%mw 17.30 Min 78
0.50 kg Microwave 100%mw 21.00 Min
97niM00.8wm%001evaworciM1iboGoolA9
emitgnikoocSEHSIDILAGNEB71-A
1Mustard Chicken 0.25 kg com-2 G.2 17min 80
0.50 kg com-2 G.2 19min
2Prawn Malai Curry 0.25 kg Microwave 100%mw 9min 81
0.50 kg Microwave 100%mw 11min
3Bhapa Mach 0.25 kg Microwave 100%mw 8min 82
0.50 kg Microwave 100%mw 10min
4Chholar Dal 1 Microwave 100%mw 28min 83
5Pudina Fish 1 Microwave 80%mw 7min 84
6Shukto 1 Microwave 100%mw 18min 85
7Tomato Chutney 1 Microwave 100%mw 10min 86
emitgnikoocSEHSIDNAIRTHSARAHAM81-A
1Coconut Rice 1 Microwave 100%mw 18min 87
2Masala Rice 1 Microwave 100%mw 18min 88
3Stuffed Capsicum 0.25 kg Microwave 100%mw 6min 89
0.50 kg Microwave 100%mw 8min
4Rice Kheer 1 Microwave 100%mw 12min 90
5seviyachi Kheer 1 Microwave 100%mw 10min 91
6Veg Kalvan 1 Microwave 100%mw 16min 92
7Veg Kolhapuri 0.25 kg Microwave 100%mw 18Min 93
0.50 kg Microwave 100%mw 21Min
emitgnikoocRENROC
EKAB91-A
NOC1teltucgeV1 200c preheat 10min 12min 94
NOC1ikkitikoolA2 12min 95
3 Reshmi paneer tikka 1 CON 14min 96
4 hara bhara kabab 1 CON 12min 97
5 Chicken hawaian pizza 1 CON 12min 98
6 Cheese chilli toast 1 CON 10min 99
emitgnikoocnaelCnomeL02-A
001nim5wm%001evaworciM1naelCnomeL

Example: Now it is 12:00 clock, if you hope that the microwave oven will automatically start
cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20
Depress Display
1. Set the current time
0 : 0 0
AUTOCOOKING
Depress
Display
1.1 Depress
Preset. Clock button
1.2 turning
Weight /Auto
C
,sruohtesotnottub gnikoo
and hours will be flashed
1.3 Depress Preset. Clock button again
1.4 turning
Weight / Auto
C
,setunimtesotnottub gnikoo
and minutes will be flashed
1.5 Depr
ess Preset. Clock or waiting for 5 seconds,
and the numbers will go steady.
1 2 : 0 0
AUTOCOOKING
1 2 : 0 0
AUTOCOOKING
1 2 : 0 0
AUTOCOOKING
2. Set the cooking menu and time
2.1 Select cooking power by pressing
Micro. Power button
2.2 turning
Time Weight / Auto
Cooking
to set cooking time
2.3 To return to current clock. Hold Clock
for 3 seconds, then a short beep
sound will be heard
3. Set the time you expect to start. Repeat
the steps of 1.2, 1.3, 1.4
4. Depress
Preset. Clock button to
confirm the delayed menu. Now the
program has been activated. And the menu will be
Started at 14:20
5. You may check the preset starting time
by depressing
Preset. Clock button
9 : 3 0
POWERƵƵƵƵƵ
1 4 : 2 0
AUTOCOOKING
1 2 : 0 0
AUTOCOOKING
1 4 : 2 0
AUTOCOOKING
1 0 0 P
POWERƵƵƵƵƵ
Note: Delayed function is not applicable for Auto cook and Auto Defrost.
10. Automatic starting (delayed function)
If you do not want the menu be started immediately, you can preset the cooking menu and time and the
preset menu will be automatically started at your set time. The setting will consist of 2 steps: 1. Setting the
current clock; 2. Setting the cooking menu and time.
11. Multi-sequence cooking
To obtain best cooking result, some recipes call for different cook and time. You may program
your personalized menu as follow:
Example: You want cook food with 100P microwave for 3 minutes then grill food for 9 minutes.
This is 2 sequence setting.
Depress Display
1. 100P microwave for 3min
1.1 Press Micro Power button to select
menu
1.2 Turning Time Weight /Auto
cooking to set cooking time
When microwave power cooking is finished, microwave oven will begin grilling operation automatically.
Note: Max 4 sequence can be set per time repeat the steps 1.1, 1.2 if you like to set more.
Depress Display
2. Grill food for 9min
2.1 Press button to select menu
2.2 Turning Time Weight / Auto
Cooking to set cooking time
3. Start cooking by pressing
1 0 0 P
POWERƵƵƵƵƵ
3 : 0 0
POWERƵƵƵƵƵG
3 : 0 0
POWERƵƵƵƵƵGRILL
9 : 0 0
15

MICROWAVE COOKING TIPS
1) Arranging food
Place thicker areas toward outside of dish and the thinner meat in the center and spread
them evenly. Do not overlap if possible.
2) Cooking time
Start cooking with the shorter period of time and extend it according to the actual need.
Overcooking may result in smoking and burning.
3) Cover foods before cooking refer to the recipe
Use paper towels, microwave plastic wrap or a cover to cover food so that prevent
spattering and help foods to cook evenly. (Helps keep oven clean).
4) Partial shielding of food
Use small pieces of aluinium foil to cover thin areas of meats or poultry to avoid overcooking.
5) Stir foods
From outside to center of dish once or twice during cooking, if possible.
6) Turn foods
Foods such as chicken, hamburgers or steaks should be turned over once during cooking.
7) Rearrange foods
Please change the positions of food in half way during cooking such as: from top to
bottom and from the center of the dish to the outside.
8) Allow standing time
After cooking ensure adequate standing time. Remove food from oven and stir if possible.
Cover for standing time which allows the food to finish cooking without overcooking.
9) Check for doneness
Observe the food color and hardness to determine whether the food is cooked. Doneness
signs include:
-Steams throughout food, not just at edge part.
- Joints of Poultry move easily.
- Pork and poultry show no evidence of blood.
- Fish is opaque and flakes easily with a fork.
10) Condensation
It is a normal case of microwave cooking. The humidity and moisture of food will influence
the amount of moisture in the oven. Generally, covered foods will not cause as much
condensation as uncovered foods. Ensure that the ventilation openings are not blocked.
11) Microwave safe plastic wrap
For cooking food with high fat content, do not bring the wrap in contact with the food as it
may melt.
12) Microwave safe plastic cookware
Some microwave safe plastic cookware are not suitable for cooking foods with high fat
and sugar content.
16

Method:
1 In a microwave safe bowl {with lid}, add all mix ingredients and mix well.
2 Set the auto cook menu.& press start.
A-5 SOUP
1.TOMATO SOUP
Ingredients:
1 Cup Tomato puree
3 Cups Water or as required
2 tbsp Butter
2tbsp Corn flour (mix in ½ cup water)
Sugar,Red chill powder,salt,pepper- to taste
1 tbsp Fresh cream(for garnish)
Method : 1) In a microwave safe bowl (with lid),add all ingredient and mix well.
2) Set the auto cook menu&press start, stir in between.
3) Garnish with fresh cream.
4) Serve Hot.
2.PALAK SOUP.
Ingredients:
1 ¼ Cup palak (cook & paste)
1 onion (cook & paste)
2 cup water or as required
1 cup milk
2tbsp corn flour (mix in ½ cup water)
1tbsp butter
18

Sugar,garlic,gingerpaste,, pepper,lemon juice,jeera powder &salt - to taste
For garnish-
1-2 tbsp cream .
Method:
1.In a microwave safe bowl (without lid),add all ingredient and mix well.
2) Set the auto cook menu&press start, stir in between.
3) Garnish with fresh cream.
4) Serve Hot.
3.SWEET CORN SOUP
Ingredients: ½ Cup Sweet corn cream style or 1 fresh corn (grated)
3 cups water
3tbsp Corn flour (mix in ½ cup water)
1 tbsp Soya Sauce
Sugar, Salt,Black pepper to taste
1tbsp coriander leaves (chopped)
Method : 1. In a microwave safe bowl add all ingredient and mix well.
2.Set the auto cook menu&press start.stir in between.
3.Serve Hot.
A-6 SNACKS
1.OPNE GRILL SANDWICH
Ingredients:
Bread 1 Slices
Butter 1tbsp
Tomato Sauce 3-4 tbsp
19

Onion 1 (chopped}
Tomato 1 {chopped}
Capsicum 1 ( chopped}
Cheese 200 gms {grated )
Salt ,pepperTo taste
Method:
1 Apply little butter on both the sided of bread.
2 Spread sauce on one side of the bread and Put the vegetables .
3 Sprinkle grated cheese on top and set the auto cook menu&press start.
2. UPMA
Ingredients : 1 Cup Suji (roasted)
1 Onion (chopped)
1 tbsp Fresh Coconut grated(for the garnish)
1 tomato chopped
1 tbsp coriander leaves
2 tbsp oil
5-6 Curry Leaves
A pinch of hing,
1 tbsp roasted peanuts
2 ½ Cup water as required
green chillies paste to taste
sugar,Salt to taste
Method : 1) In a microwave safe bowl, add all ingredients and mix well
2) Set the auto cook menu &press start stir in between.
3) garnish with fresh coconut & Serve Hot.
20
