EN WARNING:Risk of fire/flammable mate-
rial. The symbol indicates there is a risk of re
since flammable materials are used. Take care
to avoid causing a re by ingiting flammable
material.
DE WARNUNG: Brandgefahr/ brennba-
res Material. Das Symbol weist auf Brandge-
fahr hin, da brennbare Materialien verwen-
det werden. Verhindern Sie die Entstehung von Bränden, die durch
entflammbare Materialien verursacht werden.
FR ATTENTION: Risque d’incendie ou de mati ères inammables.
Le symbole montre qu’il y’a le risque de maté riaux inflammables sont
utilisés. Prendre soin d’éviter de provoquer un incendie en ingérant
des matières inflammables.
IT ATTENZIONE: Rischio di incendio/materiale infiammabile. Il
simbolo indica il rischio di incendio nel caso di utilizzo di materiali in-
ammabili. Fare attenzione ed evitare l‘insorgere di incendi a causa
della caombustione di materiali inammabili.
ES ADVERTENCIA: Riesgo de incendio o mate rial inamable. El
símbolo indica que existe riesgo de incen dio, dado que se utilizan
materiales inflamables. Se debe procurar evitar incendios medi ante
la combustión de materiales inflamables.
PT ADVERTÊNCIA:Risco de incêndio/material inflamável. O sím-
bolo indica que existe um risco de incêndio uma vez que são usados
materiais inflamáveis. Ter cuidado para evitar provocar um incêndio
por acender material inflamável.
NL WAARSCHUWING: Brandrisico / brandbaar materiaal. Het sys-
teem geeft aan dat er een brandrisico bestaat aangezien brandbaar
materiaal wordt gebruikt. Zorg ervoor dat er geen brand wordt ver-
oozaakt door brandbaat materiaal te ont steken.
PL OSTRZEŻENIE:Ryzyko pożaru/materiał łatwopalny. Symbol
wskazuje, że istnieje ryzyko pożaru, ponieważ używane są materiały
łatwopalne. Dbaj o to, aby uniknąć pożaru poprzez zapale nie
łatwopalnego materiału.
RO AVERTISMENT: Risc de incendiu/material inamabil. Simbolul
indică că există risc de incendiu deoarece sunt folosite materiale infla-
mabile. Aveți grijă și evitați incendiile aprinzând mate riale inflamabile
2

Nebezpečí vzniku požáru
CZ VAROVÁNÍ: Nebezpečí Požáru/ Hořlavého Materiálu. Symbol
označuje riziko požáru, protože byly použity hořlavé materiály. Dbejte
na to, aby nedošlo ke vzniku požáru zapálením hořlavého materiálu.
HU FIGYELEM: Tűz / gyúlékony anyag veszélye. A szimbólum azt
jelzi, hogy tűzveszély áll fenn, mivel gyúlékony anyagokat használnak.
Ügyel jen arra, hogy ne tegyen rá tűzveszélyes gyú lékony anyagot.
EL ΠΡΟΣΟΧΗ: Κίνδυνος φωτιάς/εύφλεκτο υλικό. Το σύμβολο υποδεικνύει
ότι υπάρχει κίνδυνος φωτιάς επειδή χρησιμοποιούνται εύφλεκτα υλικά.
Προσέχετε να αποφεύγετε την πρόκληση φωτιάς από ανάφλεξη εύφλεκτου
υλικού.
3

GB
Refrigerator-Freezer
HFW7819EWMP
User Manual

Thank You
GB
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
oce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.
2

GB
Content
1- Safety information..................................................................................................................... .4
2- Intended use............................................................................................................................... .8
3- Product description .................................................................................................................. .9
4- Control panel..............................................................................................................................10
5- Use................................................................................................................................................11
6- Energy saving tips.....................................................................................................................20
7- Equipment..................................................................................................................................21
8- Care and Cleaning.....................................................................................................................25
9- Troubleshooting........................................................................................................................28
10- Installation................................................................................................................................31
11- Technical Data.........................................................................................................................34
12- Customer Service ..................................................................................................................35
3

1- Safety information
GB
Before switching on the appliance for the rst time read the follow-
ing safety hints!:
WARNING!
Before rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Wait at least two hours before installing the appliance in order to
ensure the refrigerant circuit is fully ecient.
▶Handle the appliance always with at least two persons because it
is heavy.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a space of at least 10 cm above and around the appliance.
▶Never place the appliance in a damp area or location where it
might be splashed with water. Clean and dry water splashes and
stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶Keep ventilation openings in the appliance or in the in-built struc-
ture clear of obstruction.
▶Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
▶The appliance is operated by a 220-240 VAC/50 Hz power sup-
ply. Abnormal voltage uctuation may cause the appliance to fail
to start, or damage to the temperature control or compressor, or
there may be an abnormal noise when operating. In such case, an
automatic regulator shall be mounted.
▶Use a separate earthed socket for the power supply which is easy
accessible. The appliance must be earthed.
▶Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.
▶Do not use multi-plug adapters and extension cables.
▶Ensure that the power cable is not trapped by the refrigerator. Do
not step on the power cable.
▶Do not damage the refrigerant circuit.
4

GB
1- Safety information
WARNING!
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶If cool gas or other inammable gas is leaking in the vicinity of the
appliance, turn o the valve of the leaking gas, open the doors
and windows and do not unplug a plug in the power cable of the
refrigerator or any other appliance.
▶Notice that the appliance is set for operation at a specic am-
bient range between 10 and 43°C. The appliance may not work
properly if it is left for a long period at a temperature above or be-
low the indicated range.
▶Do not place unstable articles (heavy objects, containers lled
with water) on top of the refrigerator, to ovoid personal injury
caused by falling or electric shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant, the
bottle rack, may be pulled away, or the appliance may topple.
▶Openandclosethedoorsonly with the handles. Thegapbetween
the doors and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your
ngers. Open or close the refrigerator doors only when there are
no children standing within the range of door movement.
▶Do not store or use inammable, explosive or corrosive materials
in the appliance or in the vicinity.
▶Do not store medicines, bacteria or chemical agents in the ap-
pliance. This appliance is a household appliance. It is not recom-
mended to store materials that require strict temperatures.
▶Never store liquids in bottles or cans (besides high percentage
spirits) especially carbonated beverages in the freezer, as these
will burst during freezing.
▶Checktheconditionof food ifa warmingin thefreezerhastakenplace.
5

1- Safety information
GB
WARNING!
Daily use
▶Do not set unnecessarily low temperature in the refrigerator
compartment. Minus temperatures may occur at high settings.
Attention: Bottles can burst.
▶Do not touch frozen goods with wet hands (wear gloves). Espe-
cially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the formation
of frost blisters. FIRST aid: keep immediately under running cold
water. Do not pull away!
▶Do not touch the inside surface of the freezer storage compart-
ment when in operation, especially with wet hands, as your hands
may freeze onto the surface.
▶Unplug the appliance in the event of a power interruption or be-
fore cleaning. Allow at least 5 minutes before restarting the appli-
ance, as frequent starting may damage the compressor.
▶Do not use electrical devices inside the food storage compart-
ments of the appliance, unless they are of the type recommend-
ed by the manufacturer.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance. Allow at least 5 minutes be-
fore restarting the appliance, as frequent starting may damage
the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not scrape o frost and ice with sharp objects. Do not use
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic parts.
▶Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the man-
ufacturer.
▶If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualied persons in order to
avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by your-
self. In case of repair please contact our customer service.
6

GB
1- Safety information
WARNING!
Maintenance / cleaning
▶Eliminate the dust on the back of the unit at least once in the year
to avoid hazard by re, as well as increased energy consumption.
▶Do not spray or ush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves with hot water. Sudden tem-
perature change may cause the glass to break.
WARNING!
The appliance contains the ammable refrigerant ISOBUTANE
(R600a). Make sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
injuries or ignite. If a damage has occurred, keep away open re
sources, thoroughly ventilate the room, do not plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse immedi-
ately it under running water and call immediately the eye specialist.
Refrigerant gas information

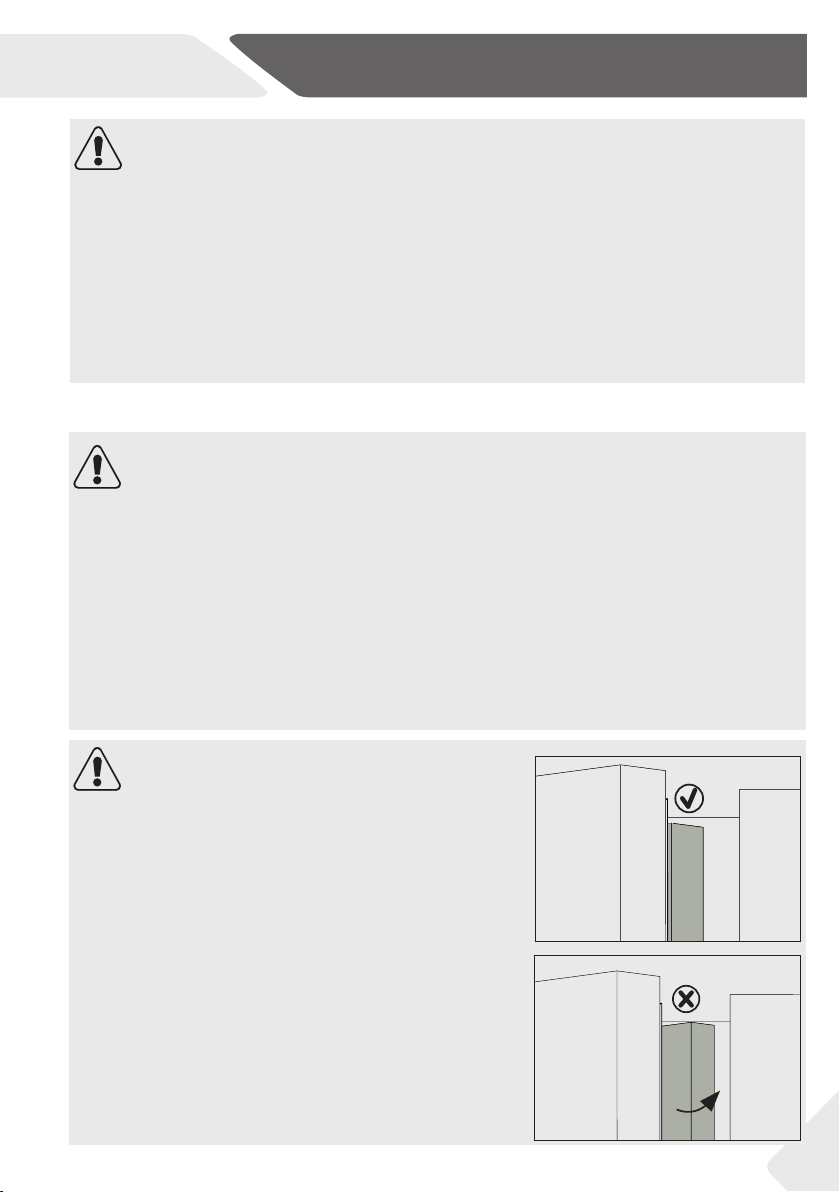

CAUTION!
When you close the door, the vertical door beam on
the left door should be bent inside (1).
If you try to close the left door and the vertical door
beam is unbent (2), you should bend it rstly, other-
wise the door beam will hit the xing shaft or right
door. Thus a damage to the door beam or a leak will
occur.
There is a heating thread inside the vertical door
beam. The temperature of the surface will rise a lit-
tle, which is normal and won´t aect the function of
refrigerator.
1
2
7

2- Intended use GB
2.1 Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively
for use in dry-interior house-holds. It is not intended for commercial or industrial use.
-
ards and loss of warranty claims.
2.2 Accessories

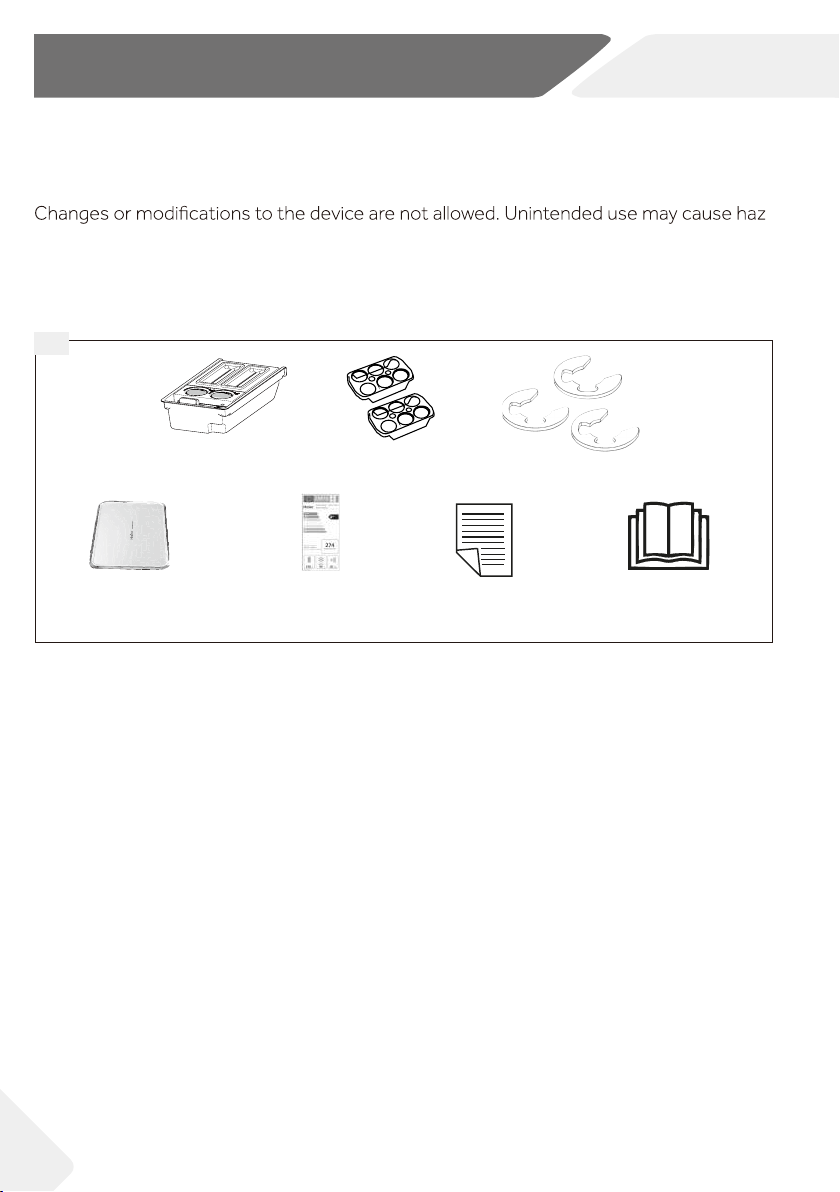

Check the accessories and literature in accordance with this list (Fig.:2.2):
Energy lable
2 egg trays
User manual
Warranty card
3 spacers
Ice maker with
ice scoop
Fresher pad
2.2
8

GB 3-Productdescription
A: Refrigerator compartment
1 Rating plate and QR code
2
3 Water kettle
4 Glass shelf and Wine rack
5 O.K.-temperature indicator (optional)
6 Door rack
7 Panel of My Zone drawer
8 Door beam
9 Air duct (with ABT)
10 Door rack
11 Cover of Fresh Box
12 Fresh Box
16 Freezer box
17 Upper freezer storage drawer
18
Pre-Freezing tray
19
Fresher Pad
20 Lower freezer storage drawer
21 Adjustable feet
22 Ice maker
23 Freezer drawer handle
B: Freezer compartment
B
8
10
11
13
9
12
14
15
23
3
4
7
19
18
20
16
A
21
1
2
5
6
22
17
3
13 Panel of Humidity Zone
14 Humidity Zone drawer
15 MyZone drawer
9
Picture of appliance (Fig. 3)
The kettle keeper

4- Control panel GB

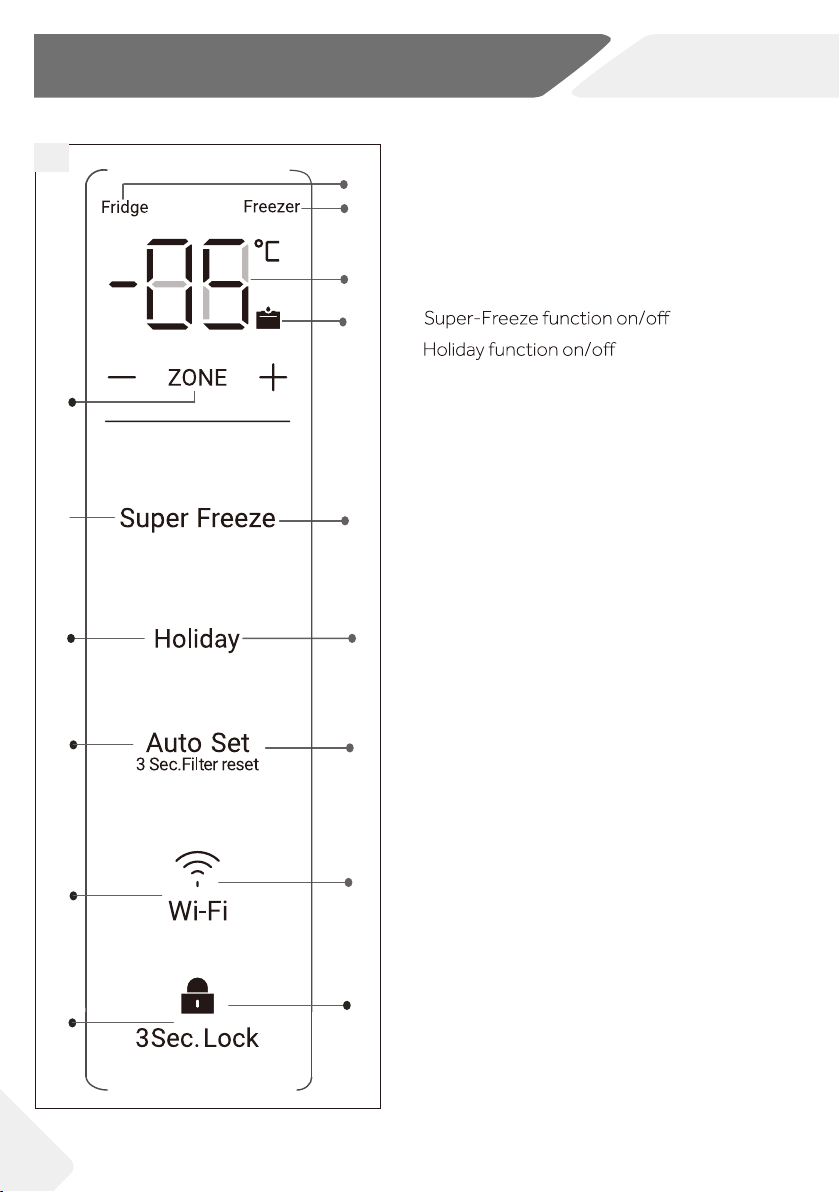

Control panel (Fig. 4)
Keys:
A
B
C
D
E
F Panel lock/unlock
Indicators:
a
Temperature fridge &freezer compartment
b
Water filter changed warning
c
Holiday function
d
Auto intelligence function
e
Super-Freeze function
f
Panel lock
a
e
b
d
g
A
B
C
D
f
c
4
10
E
F
Fridge&Freezer temperature mode swithover
Wi-Fi setting
Auto mode and water filter warning on/off
g
Wi-Fi function
h
i
Fridge compartment selected
Freezer compartment selected
h
i

GB 5- Use
▶Remove all packaging materials, keep them out of children`s reach and dispose
them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
▶After the appliance has been levelled and cleaned, wait for at least 2 hours before
connecting it to the power supply. See Section INSTALLATION.
▶Precool the compartments at high settings before loading with food. The functions
Super-Freeze help to cool down the compartments quickly.
▶The refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see MANUAL ADJUSTING MODE.
Notice: Presettings
▶The appliance is preset to the recommended temperature of 5°C (refrigerator) and
- 18°C (freezer). Under normal ambient condition you need not to set a temperature.
▶The presetting function for the My Zone drawer is “Fruits and Vegetables”. for the
HumidityZone drawer “High humidity”
▶When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
11
The appliance is in operation as soon as it is connected to the power supply.
5.4 Standby-mode
be automatically locked. It lights up automatically by touching any key or opening the door/
drawer.
5.2 Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly

5- Use GB
5.7 Select the working mode
You may need to select one of the following two ways to set the appliance:
The temperature cannot be adjusted, if any other function (
Super-Freeze, Hoilday
is activated or the display is locked. The corresponding indicator will
5.7.2 Manual adjusting mode
If you want to manually adjust the temperature of the appliance in order to store a particu-
lar food, you can set the temperature via a temperature adjusting key:
12
5.6 Door/drawer opening alarm
When one of the refrigerator doors or one of the freezer drawers is opened for more than
1 minute, the door/drawer opening alarm will sound. The alarm can be silenced by closing
the door/drawer. If the door/drawer is left open for more than 7 minutes, the light inside
5.7.1 Holiday mode
1. Unlock the panel by touching key “F” if it is locked
(Fig. 5.5).
2. Touch key “C” (Holiday) (Fig. 5.7.1-1).
3. Indicator “f” illuminates and the function is acti-
vated (Fig. 5.7.1-2).
By repeating the above steps or selecting an other
function and this function can be switched off again.
Fuzzy
5.7.1-1 5.7.1-2
Notice: Panel lock
The control panel is automatically blocked against
activation if 30 seconds no key is touched. For any
settings the control panel must be unlocked.
▶Touch key “F” for 3 seconds to block all panel ele-
ments against activation (Fig. 5.5). The related indi-
cator “f” is now displayed.
▶For unlocking touch again the key.
5.5 Lock/unlock panel
5.5
WARNING!
During the Holiday function no goods must be stored in the refrigerator compartment.
The temperature of + 17 ° C is too high for storing food.
Auto set)

GB 5- Use
T
▶Ambient temperature
▶Frequency of door opening
▶Amount of stored foods
▶Installation of the appliance
13
5.7.2.1 Adjust the temperature for fridge
1. Unlock the panel by touching key “F” if it is locked
(Fig. 5.5).
2. Touch key “A” (ZONE) to select the fridge compart-
ment,Indicator”a”illuminates and fridge compartment
is activated(Fig. 5.7.2-1).
The actual temperature in the fridge compartment
is displayed (Fig. 5.7.2-2).
3. Touch sequentially key “+” or “-” until the desired
value of temperature is flashing(Fig. 5.7.2-3).
A signal will sound at each key touch. The tempera-
ture increases in sequences of 1°C from a minimum
of 1°C to a maximum of 9°C. The optimum tem-
perature in the fridge is 5 °C. Colder temperatures
mean unnecessary energy consumption.
4. -
- ZONE +
5.7.2-3 5.7.2-2
5.7.2.2 Adjust the temperature for freezer
1. Unlock the panel by touching key “F” if it is locked
(Fig. 5.5).
2.
3. Touch sequentially key“b” (Freezer) until the desired
A signal will sound at each key press. The tempera-
ture increases in sequences of 1°C from -14°C to
-24°C. The optimum temperature in the freezer is
-18°C. Colder temperatures mean unnecessary en
ergy consumption.
4. Touch any key except “+” or “-” (Freezer) to confirm,
5.7.2-4
5.7.2-5
5.7.2-1
“+” and”-”
Touch key “A” (ZONE) to select the freezer compart
ment,Indicator”a”illuminates and freezer compart-
ment is activated(Fig. 5.7.2-4).
The actual temperature in the freezer compartment
is displayed (Fig. 5.7.2-5).
or the setting confirms automatically after 5seconds.
Displayed temperature stops flashing.
- ZONE +
- ZONE + - ZONE +

5- Use GB
then operated at the previously set temperature.

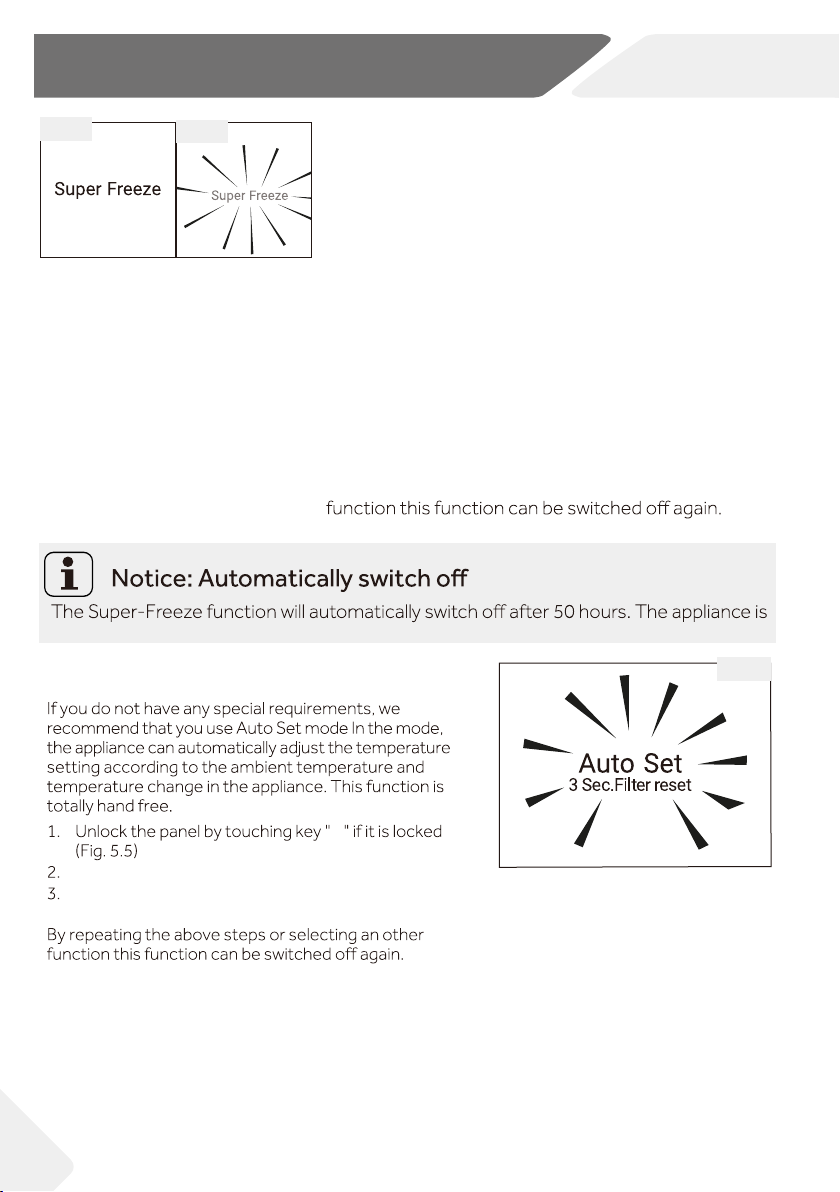

5.8 Super-Freeze function
Fresh food should be frozen as quickly as possible to
the core. This preserved the best nutritional value, ap-
pearance and taste. The Super-Freeze function ac-
celerates the freezing of fresh food and protects the
goods already stored from undesirable warming. If
you need to freeze a large amount of food once, it is
recommended to set the Super-Freeze function on
ahead for 24h before the usage of frozen room. When
the function starts, the temperature is nearly -24 °C to
-30°C.
1. Unlock the panel by touching key ““F” if it is locked
(Fig. 5.5).
2. Touch key “B” (Super-Freeze) (Fig. 5.9.-1).
3. Indicator “e” illuminates and the function is acti-
vated (Fig. 5.9.-2).
By repeating the above steps or selecting an other
5.8-1 5.8-2
14
5.9 Auto set mode
5.9
F
Touch key”D“(Fig.5.5)
Indicator”g“illuminates and the function is
activated (Fig.5.9)

GB 5- Use
Notice: 0 °C Fresh
at temperatures lower than 0 °C. So “immediately cut” meat should be stored in My -
Zone drawer, with temperatures min. 0°C.
15
5.11 My Zone drawer
The fridge compartment is equipped with a MyZone drawer. In accordance with the food’s
storage demands, the most suitable function can be selected to get the optimal nutri-
tional value of the foods Following functions are available:
5.11.3 Function 0 °C Fresh
Thisfunction setsthe temperature in theMy Zonedrawerto 0°C.Suitabletostore offresh food
Notice: Fruits & Veg function
Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits and vegetables such
as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should
not be stored in the MyZone drawer .
5.11.1 Function Cheese
The appliance provides the chamber for precious food with mild and dry fresh air via intel-
the food for a long time. This function is suitable to store dry food with low water content
5.11.2 Function Fruits & Veg
This function is suitable to store fruits and vegetables like apples and carrots.
IN APP PAIRING PROCEDURE
Step 1 wnload the hOn app on the stores
Step 2
5.10 Wi-Fi mode setting
App
hOn
Step 3 Follow pairing instructions in
the hOn App

5- Use GB
Notice: MyZone drawer
▶One of the three functions of the MyZone compartment must always be activated
▶When you chose “0°C Fresh“ or “Cheese” set the temperature of the refrigerating
compartment in the middle level (5°C), in order to preserve your food in the optimal
storage environment.
Notice: Panel lock
The control panel of MyZone and HumidityZone drawer is automatically blocked
against activation if door is open. For any settings the control panel must be unlocked.
16
5.11.4 Select function for MyZone drawer
The function can be selected by using the separate pa-
nel (Fig. 5.11.4-1) which is located at the drawer cover.
1. If indicator “n” illuminates the panel is locked and
must be unlocked by touching key “N” (3 Sec.Lock)
for 3 seconds (Fig. 5.11.4-2). A buzzer sounds and
2. Touch corresponding key “K/L/M” of desired func-
tion. After a few seconds corresponding indicator
“k/l/m” illuminates .and the function is activated.
3. Lock the panel by touching key “N” (3Sec. Lock) for
3 seconds. A buzzer sounds and indicator “n” turns
on (Fig. 5.11.4-3).
Cheese Fruits & Veg 0°C Fresh 3Sec. Lock
K N
M
k l m n
5.11.4-1
3Sec. Lock
3Sec. Lock
5.11.4-2 5.11.4-3
5.12 HumidityZone drawer
The fridge compartment is equipped with a HumidityZone drawer. Appropriate de-poly-
thene module enhance the freshness preservation by removing the ripener.
Following functions are available:
5.12.1 Select function for HumidityZone drawer
The humidity in this drawer can be adjusted by using
the separate humidity control panel (Fig. 5.12.1) which
is located at the drawer cover.
The steps are the same as describe in chapter 5.11.4
but only by using the panel for HumidityZone.
High Hum.Low Hum. Mid Hum. 3Sec. Lock
G J
I H
g h i j
5.12.1
Function Recommended food
Low Hum. Dry fruit and other dry foodwith low water content like like butter, fats
and oils, bread or chocolate.
Mid Hum. Pears, grapes cherries etc.
High Hum. Cabbage, mushrooms etc.
L
H I
