Haier HWM200-B1678S User manual

MODEL
Please read this manual carefully before
operating your washing machine and retain
it for future reference.
HWM200-B1678S
WASHING MACHINE
OWNER’S MANUAL
0030516499
Automatic Top Loading

CONTENTS
Product overview
Safety precautions
Installation & adjustment
Before washing
Operation
Cleaning or Maintenance
Packing list
Specification
1
2
2
2
5
5
5
6
6
9
10
10
11
9
10
15
18
19
Description of symbols
Safety warning
Balance washing machine
Install the botton plate
Usage the drain hose
Inlet pipe connection
Check the following before washing
Usage of the detergent
Loading your laundry

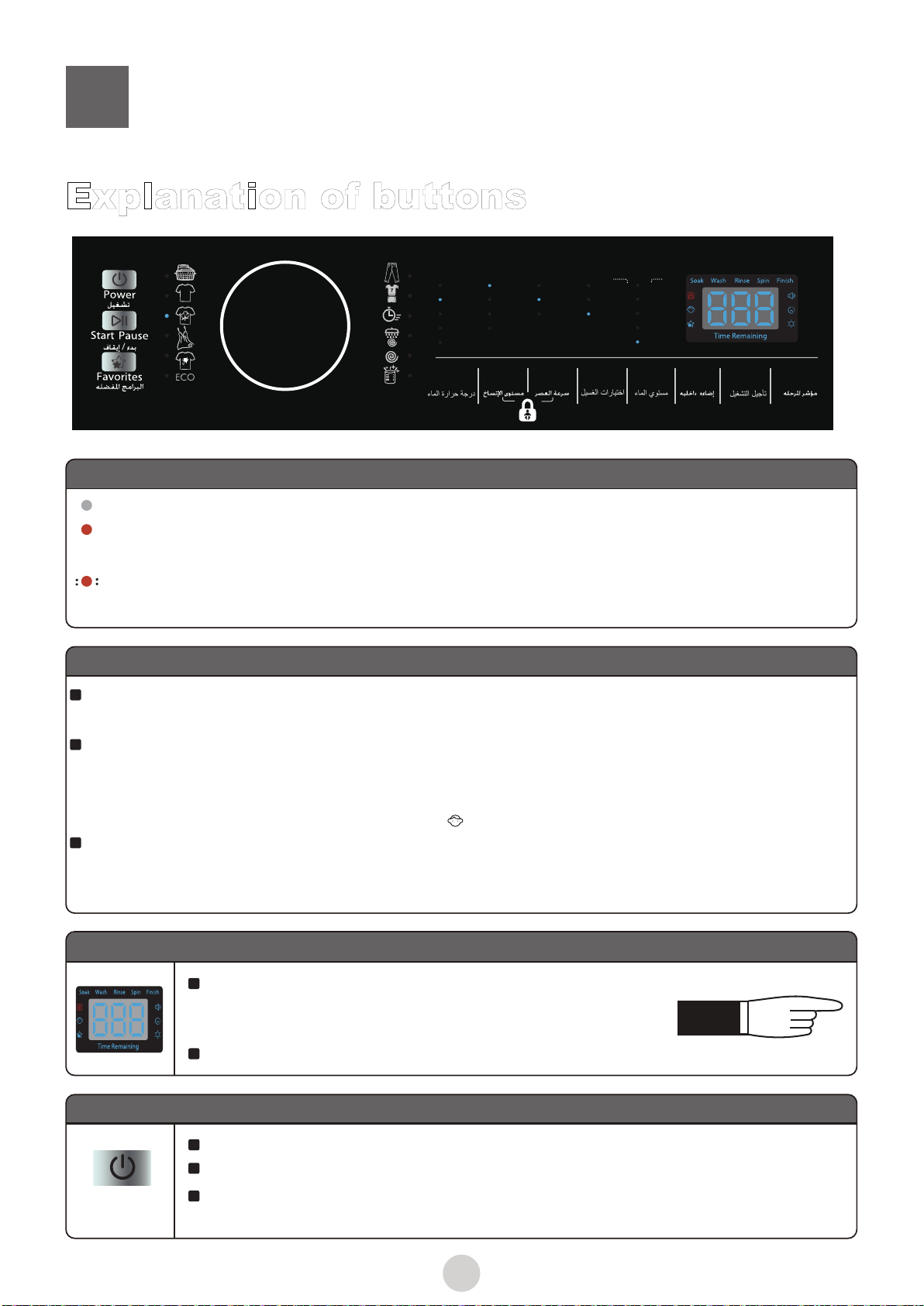

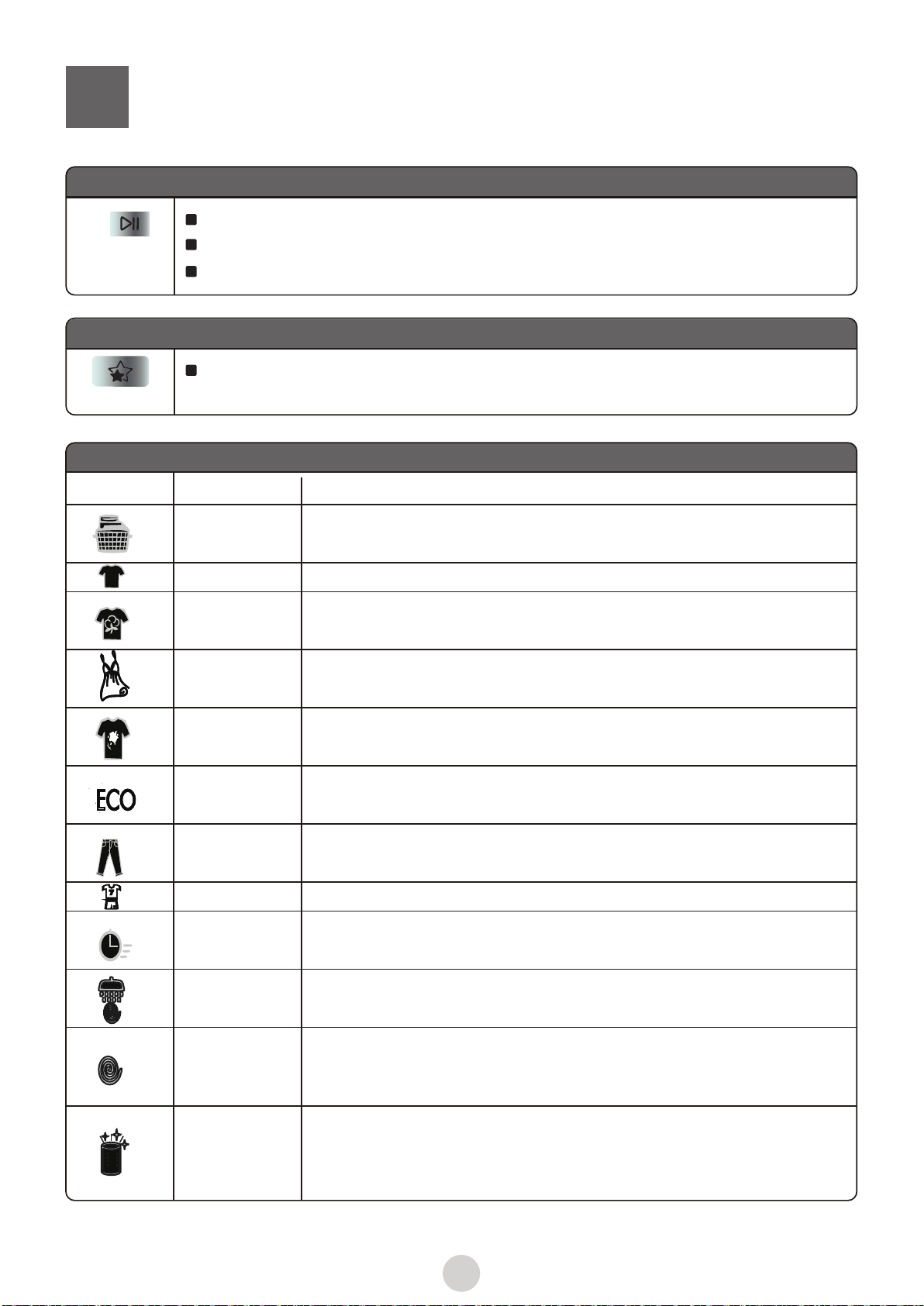

Explanation of buttons

Product overview
Outer tub cover Detergent box
Top lid component
Inner tub
Pulsator
Cabinet
Base frame
Control panel seat
Power cord
Drain hose joint
Back cover
Hook
Cold water valve
Back panel
Hot water valve
Screw cover
Lint filter
Fixed foot
(2 pieces）
Adjustable foot
(2 pieces）
(In order to facilitate users to take
and put clothes, the top lid of the
washing machine is designed as
hovering type)

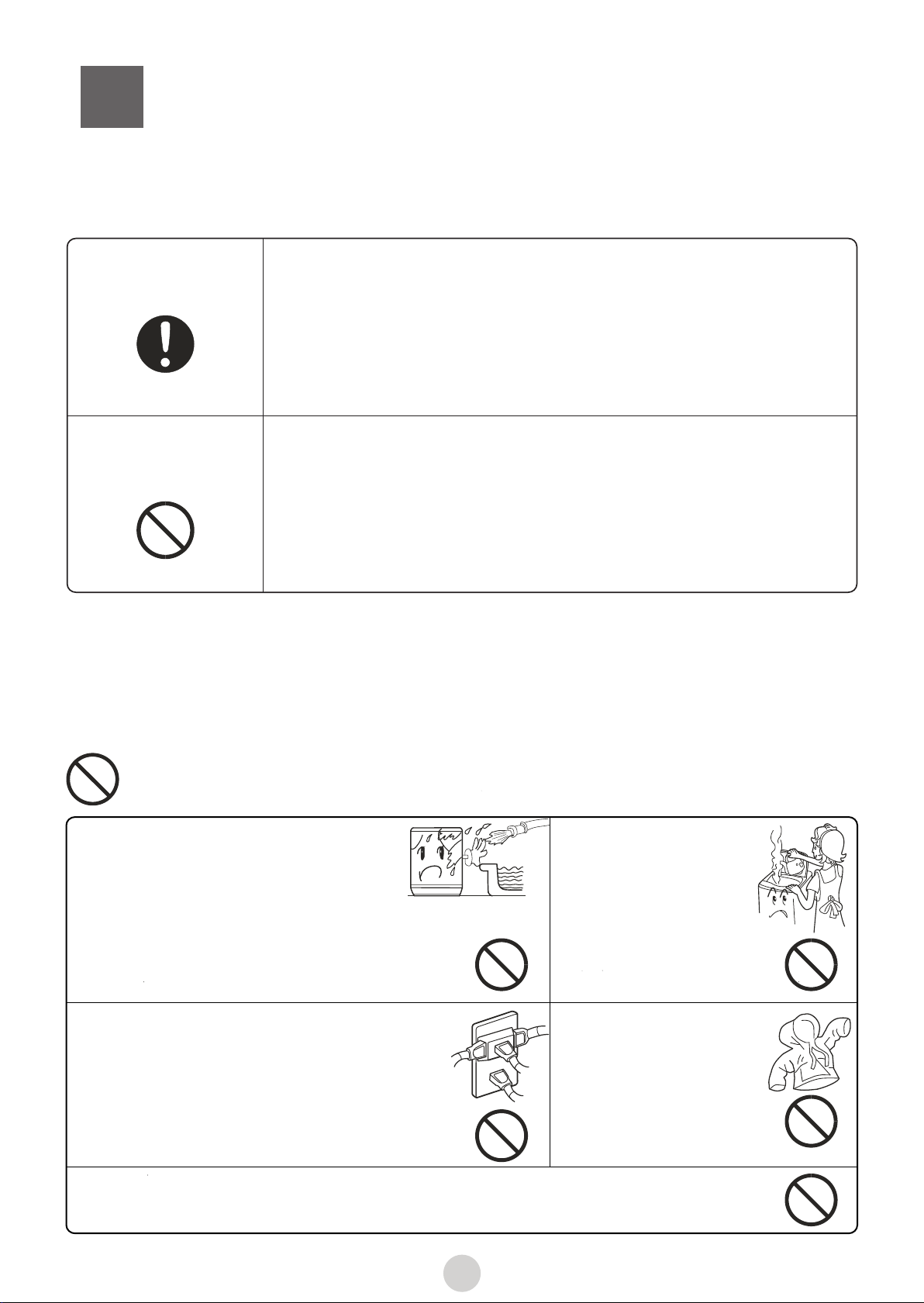

Description of symbols
Warning sign
Forbidden sign
Safety warning
Contents marked with this symbol are related to the safe use of
the product and the personal safety of the user.
Please operate in accordance to the contents of this manual,to
avoid harm to the user or damage to the machine itself.
Contents marked with this symbol indicate operations or actions
that should not be undertaken by the user.
Performing of such actions may result an injury to the user or
damage to machine itself,and void warranty.
Please check power socket condition to ensure it has been earthed correctly prior to
installation to ensure your safety
Safety precautions
2
Forbidden
50
If you are using an extension cord or
a portable electrical outlet device
(not recommended), ensure that it
is positioned so that it does not come
into contact with water or moisture.
The openings must not be obstructed by a carpet
Do not install this appliance in a
damp or wet environment. Do not
leave wet laundry on the Control
Panel or spray water directly on to
this appliance as this may cause the
washer to malfunctionor cause an
electrical fault.
Do not wash
waterproof clothing
as this may affect
load balance during
spin cycle(s).
Do not connect to hot
water higer than
50°C temperature.

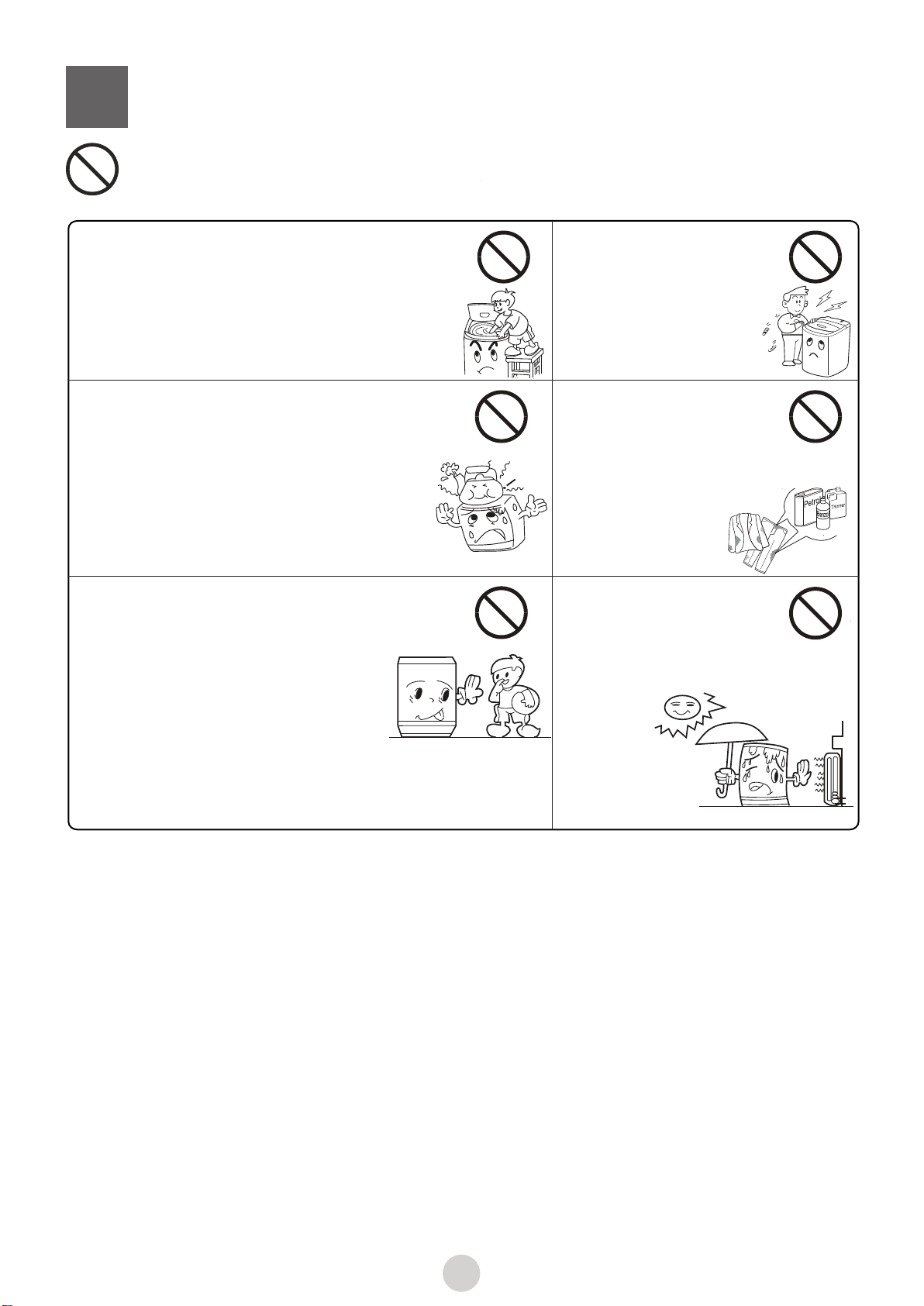

Safety precautions
Forbidden
3
This appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or
instruction by a person responsible
for their safety.Children should be supervised to
ensure that they do not play with the appliance.
Do not take apart,
repair or alter the
machine by
yourself.
Do not attempt to move washing or place
hands inside washing machine while in
operation.Please ensure children are
supervised around machine to avoid
harm.
Do not leave hot or heavy items on lid
or control panel as this may cause
damage to the washer or make the
washer unsafe to operate.
Do not wash laundry
with chemicals or other
volatile materials(such as
petrol,solvents or thinners)
as this may cause
damage to the
machine.
Keep washer away
from heat sources
such as heater,
stoves or direct sunlight.

Safety precautions
4
If power cord or other parts of this machine become damaged or faulty, please
contact a electrician to have it repaired.Do not attempt repairs by yourself as this may
cause personal harm or void warranty.
Smart hinge
Smart hinge prevents sudden closing of the door.Door is heavy,be careful while
closing of the door.
Do not let your hands or any other material to caught
below door. It might cause injury or damage.
Door closing time is dependent on ambient temperature.
Higher the ambient temperature,lower the door closing
time and vice versa. Smart Closing Door performs best
when lid is closed from full open condition.
A separate, earthed power socket is
required for the power supply.
Hold the plug（not the electric cable）when
unplugging the washing machine.
Do not insert or remove the power plug with
wet hands.
The power plug should be accessible after
the machine installation.
Ensure the plug is removed and the taps
turned off in the followng cases.Power
failure, cleaning, moving,installation and
when the washing machine is not in use.
The new hose-sets supplled with the
appliance are to be used and that old
hose-sets should not be rensed.
The rated washing capacity,spinning
capaciy.The max.rhe min.inlet
water pressure refer to the below,
model specification part.
This appliance is intended to be used in
household and similar application such as:
1,staff kitchen areas in shops,office and
other working environments;
2,farm houses;
3,by clients in hotels,motels and other
residential type environments;
4,bed and breakfast type environments;
5,areas for communal use in blocks of flats
or in launderettes.
If the supply cord is damaged, it
must be replaced by the manufacturer,
its service agent or similarly qualified
persons in order to avoid a hazard.
CAUTION:If this appliance is supplied
from a cord extension set or electricel
portable outlet device ,the cord extension
set or electricel portable outlet device
must be positioned so that it is not
subject to splashing or ingress of
moisture.
The washing machine’s lid can be opened during water extraction, that it takes 15s
or more for complete stop of water-extracting chamber tub. The new hose-sets
supplied with the appliance are to be used and that old hose-sets should
not be reused

Do not install this machine on an incline greater than 2°. Installing machine on an angle
or on rough ground will result in unstable running or stoppage of the machine. Please
adjust it by the following method:
Please install and adjust the machine according to the directions contained in this
manual.It is very important to follow these directions for the safe operation of the
machine,and to ensure your machine operates correctly.
Installation & Adjustment

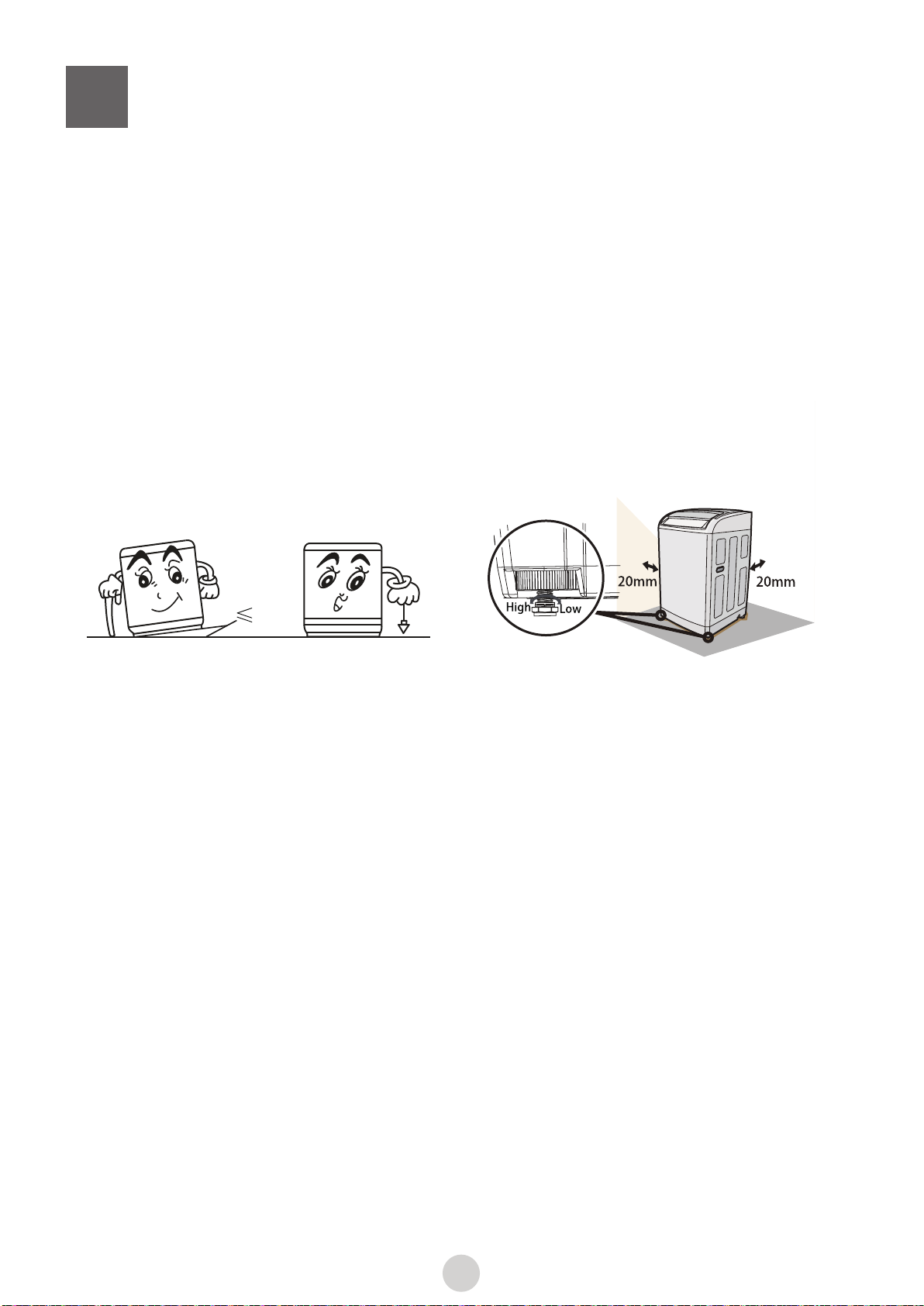

Balance washing machine
1.Confirm it is level;
2.Lift up the side of the machine slightly and twist the adjustable leg.Note: The distance
between the washing machine and wall should be at least 20mm.
2°
5

Installation & Adjustment
Usage the drain hose
Inlet pipe connection
The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
Confirm the water faucet
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid
leakage.
The exit end face of the faucet
water faucet,suitable water faucet, not suitable
6
The drainage shall be smooth with the drain hose.
1,First connect the drainage hose to the connection
point on the lower right side of the cabinet, and fasten
with drainhose clamp (provided).
2,Connect drain hose guide on to the outside of
drainage hose. To guide the drain hose over the
tub or standpipe, the bracket MUST be fitted
to the drain hose.
0.8mh
1.2m
Drain hose
clamp
Drain hose joint
1,The height of the standpipe or tub should be
between 0.8 - 1.2 m.
2,To avoid syphoning, the drain hose should not
extend more than 20 mm from the end of the guide.
Ensure drainage hose is held in place to avoid
leaks or spills.
Bracket

Installation & Adjustment
Connection between the water inlet hose and the washer
1.Do not take off the water absorption cushion.
Please check if the cushion is dropped or
damaged before each usage.If it happens
please contact our after-sale department
immediately.
2.Put the nut of the water inlet hose on the
valve jointer.
3.Fasten the nut. Swing it gently to confirm if it’s suitable.
nut of the water inlet hose
jointer of the water inlet valve
water absorption cushion
7
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
1.Connect the water inlet hose to the water tap. You may have
to use pliers to tighten the coupling. Do not over tighten as this may
cause damage to the valve or hose fittings.
2. Connect the other ends to their respective cold and hot water inlet valves
Nut of the water inlet hose
to Joiner of the water inlet valve Water absorption cushion
3. Fasten each hose on the washing machine and ensure a tight connection.

Installation & Adjustment
8
Check the inlet hose connections
1.Swing the hose gently to confirm that the hose is
securely fastened.
2.After installation, open the tap to check for leaks.
slider till a click sound is heard.

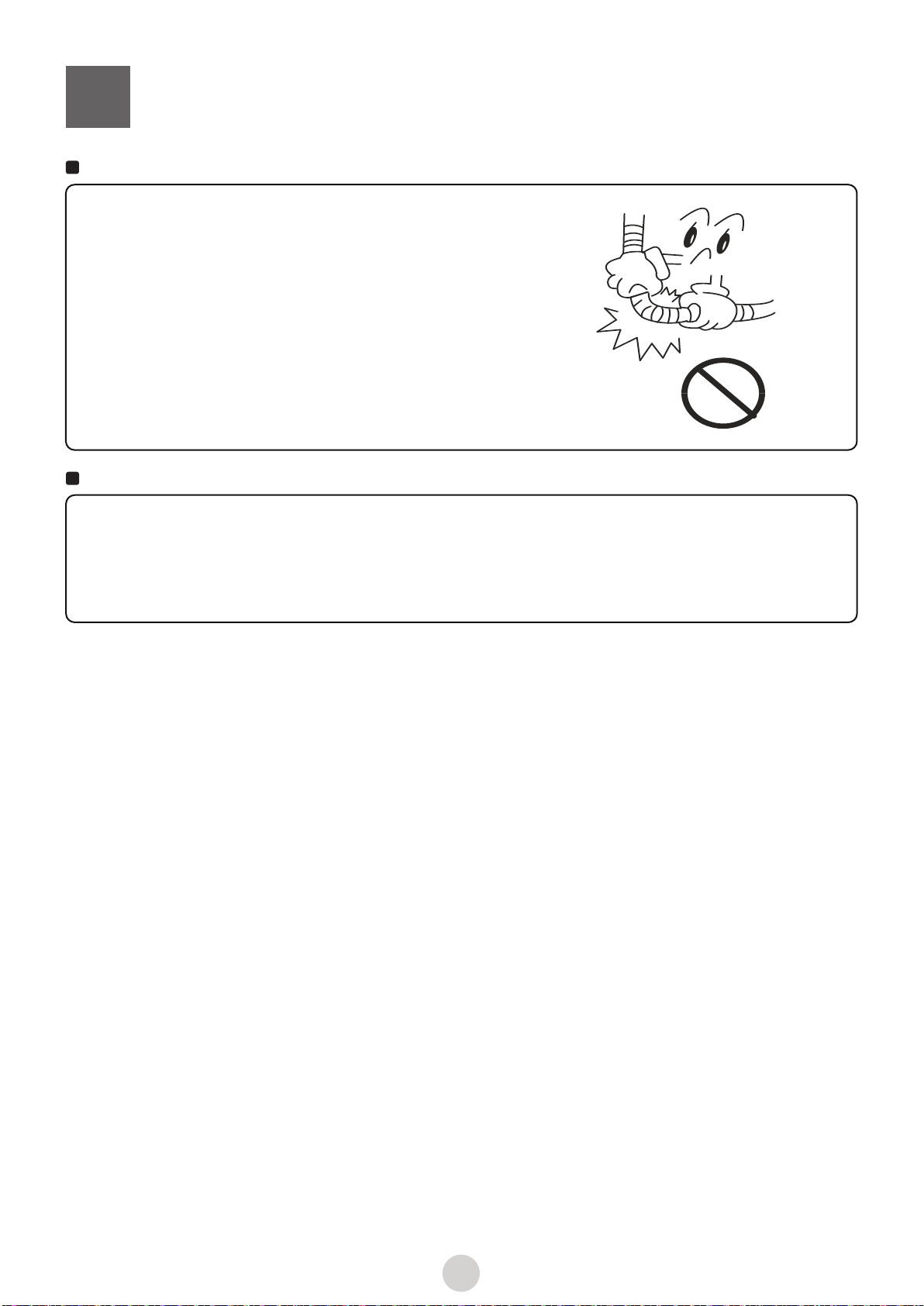

Removing the water inlet hoses
1.Turn off the water taps.
2.Loosen each connection at water taps and washer.
3.Do not bend the hose unduly.
4.Periodically check the hose connections are firm
at both ends. This is to ensure the connections
remain watertight over time.
3.Carefully remove each hose separately, as they may
contain residual water.

Check the following before washing
Before washing
Clear the pockets
and take out loose
items such ascoins,
sand,hairpina etc.
a. Check if the laundry has any special washing instructions.
b. Divide the laundry into colour fast and non-colour fast items.
c. Separate items that do not absorb water easily and wash by hand.
d. For heavily soiled items,please first remove loose dirt,then apply detergent directly
(as per instructions on pack) to the stain before washing.
e. For those items that may attract lint or are furry or fluffy,please turn inside out before
washing.
f. Do not put laundry soiled with chemicals or solvents into the washing machine.
Tie any long straps
or strings,fasten
buttons and close
zippers.
The weight of the
laundry shall not
exceed the rated
capacity of your
machine,loosen the
laundry before
placing it evenly in
the tub.
When the machine is
running,buttons may
cause noise.
To reduce the noise,
turn clothes inside
out or place them in
a laundry bag.
9
Preparation before washing
1.Connect the water inlet hose. Open the water faucet.
2.Confirm that the washing machine is earthed reliably.
Then insert the power plug into the receptacle. The earth
terminal shall not link to gas pipeline and faucet water
pipeline.
3.Put up the drain hose.
0.8m 1.2 m

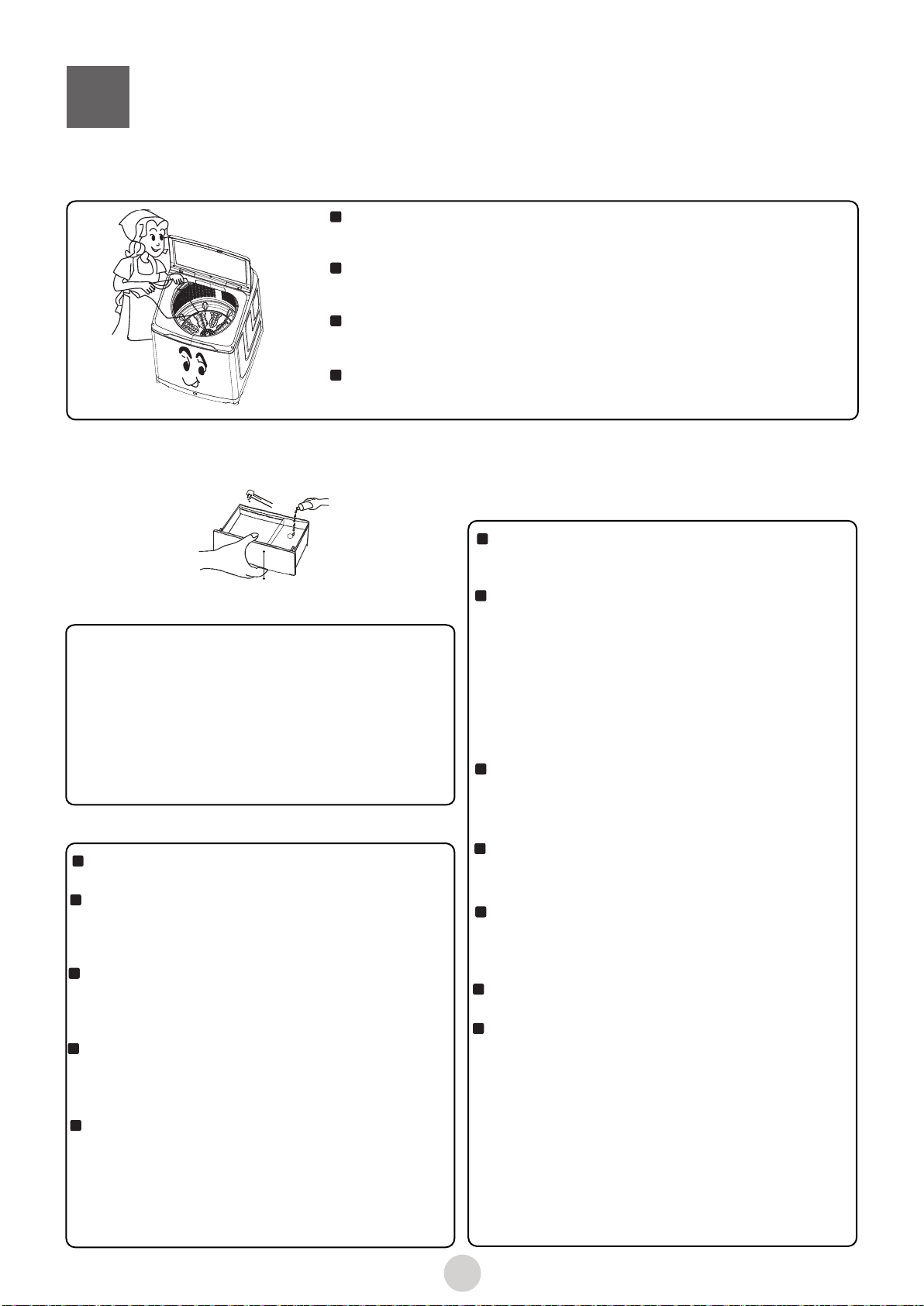

Usage of the detergent
The rated washing capacity refers to the largest dry
weight of a load that can be washed.
The thickness, size and type of clothes will influence the
actual capacity.
Do not select more than water level “Max” for clothes
less than 2.0kg, to avoid splashing of water.
It is recommended that low suds/high efficiency washing
powder is used.
Operation
Loading your laundry
10
How to use liquid detergent
Put the liquid detergent box on the right of
the detergent box. See the above figure.
Before washing put the liquid detergent into
the liquid detergent box directly as
indicated the above figure.The usage and
dose of the liquid detergent as per the
specifications of liquid detergent.
How to use softener
Dissolve directly inside the washing
machine:(not applicable for fuzzy and
reserve program)
Quick dissolving of washing powder:
Please add suitable washing powder
as per the laundries quantity,the set
water level and water quantity.
1.Prepare warm water fo 30°C and container.
2.Add washing powder while stirring to dissolve
it completely.
1.Add some water (select
"low" water level
).
2.Add washing powder.Run for about 30s to fully
dissolve the Powder.Then push the
"Start/Pause"
button.
3.Put in laundries.Select suitable water level.Push
the "Start/Pause" button again.
The usage and dose of the softener as
per the specifications of softener.
After that,please close the detergent box
refer to the following list for the usage of
the detergent:selection of the water level,
water quantity and dosage of detergent.
After the softener is put in,please don't
place for a long time otherwise softener
may solidify and cause flowing not
smooth.
Before washing put the softener into the
detergent box directly.See the above
figure.The softener will put into the
washer when the last rinsing.
If you select "Quick Wash" program,it
is suggested to use liquid detergent
instead of washing powder to
guarantee the washing effect.
It is not recommended to use
rich-foam washing powder
Washing powder with poor quality or
long-time storage may get caked.
Please clean the detergent box duly
in usage.
It is suggested to add washing powder
into the box.directly under fuzzy program
and reserve program.
How to use washing powder
Detergent box
Washing powder inlet
Softener inlet
When water pressure is too low, it is possible
that softener cannot be washed away effectively,
and softener would be agglomerated after a
period of time. Please clean the softener box in
time. It is recommended to pour the softener into
the basket directly after water is filled at the last
rinse.
Note: If a manufacture specifies only the use of a
low-sudsing or high-efficiency type detergent, then
detergent for drum type machines shall be used
irrespective of the type of machine under test.
Otherwise the detergent type to be used shall be
chosen according to the type of clothes washing
machine under test , as follows.

Operation
Explanation of buttons
11
Push down the Power button,set the desired washing procedures,after setting, push
down the “Start/Pause” button, then hold the “Soil Level” button and “Spin Speed”
button, The digitron displays “CL”, the child lock function is activated.All of the buttons
are locked and can not make selection. “ ”is light.
Child Lock function
Release the child lock function: push down “Soil Level” button and “Spin Speed”
button at the same time for more than 3 seconds. After three beep sound, the child
lock function is release.
The function is intended for children safety and preventing the washing program from
accidental changes by children.
Indicator display
Off
On:Indicates the program is about to run and indicates the seleced cycle and
options
Flashing:Indicates the program is running and indcates the selected cycle and
options
Page 15
During working , it displays the remained reserve
time (minute).In case of trouble, it displays the
abnormal symbol (see to page 15)
During reserve, it displays the remained reserve time (hour).
Digital tube
Push the " Power " button 3s to switch on the power.
Under power-on mode, push it 3s to switch off the power.
If the "Start/Pause" button is not pushed, the machine will switch off the
power automatically after 5 minutes.
"Power
" button
Power
10
8
6
4
2
9
7
5
3
1
Wash
Temp Soil
Level
Spin
Speed
Wash
Option
Cycle
Signal
Delay
Wash
Water
Level Inner
Lighting
/
Shining Lighting
Pre Soak
Extra Rinse
Fabric
Softener
Hot High
Low
No Spin
Ex Heavy
Heavy
Normal
Light
Warm
Cool
Cold
Tap Cold
Wh

Operation
12
After the power is switched on, press it to start the machine.
During working, push it to pause.
During pause, push this button to restart and go on working.
Favorites
Normal
White
Casual
Delicates
Heavy
Eco wash
Jeans
Sportswear
Spin
Tub Clean
Program
Use this cycle for normally soiled cottons and mixed fabric
loads.
Use this cycle for heavily soiled durable white fabric.
Quick wash
Rinse&Spin
Start
Pause
"Start/Pause" button
The washing machine will set to the favorite program including "wash,
rinse,spin" automatically last time.
"Favorites" button
"Program" select
Application
Use this cycle to wash light soiled,dark or hightlydyed natural
fabrics,such as cotton that may be susceptible to dye loss.
Use this cycle to wash lightiy soiled garments and delicate
clothes that need gentle washing.
Use this cycle to wash durable,full load,suitable for towels,
children clothes,workerwear.
Use this cycle to wash normally soiled mixed fabric loads and
to save energy with cooler wash water.
Use this cycle to wash large items sush as comforters,
sleeping bags and blankets.
Use this cycle to wash sportswear.
Express wash suitable for a small amount of slightly polluted
clothes
Use this cycle to relax wrinkles,remove excess detergent,
and refresh clean garments.
Use this cycle to remove water from clean clothes for
certain delicate and cotton clothes that you do not wish
to put into the dryer,this is an ideal cycle.
Use this cycle once a month to keep the inside of the washer
clean. See the Care and Cleaning Guide section for step by step by
step instructions toclean the Wash Tub.
Wh

Operation
13
"
Wash Temp
" button
A spin speed setting will automatically be selected with the wash cycle.
Use this button to change the default setting.
"Spin Speed" button
Spin
Speed
For best results,follow your garment label instructions and use the
warmest water temperature that is safe for your fabric.
Use this button to select a wash temperature;in any cycle,the cold
inletvalve is opened.
Hot: the hot inletvalve is opened for all time during entire inflowing;
Warm: much hot for all time during entire inflowing;
Cool: some hot water is received during;
Cold: little hot water is received during entire inflowing;
Tap Cold: the cold water inletvalve is opened only and no hot water
during entire inflowing.
Wash
Temp
Use this button to fine tune your wash cycle based on the soil level of
your laundry. Adjusting this setting will result in longer or shorter wash
time.
"Soil Level" button
Soil
Level
Not all selections are available for all cycles.
NOTE:The whites cycle automatically selects the extra rinse option.
Fabric softener
Extra Rinse
Pre Soak
The pre-soak indicator will light when pre-soak is selected, and it will add additional time
depending on the soil level selection.
Use this button to select or deselect the extra rinse option.
Turn this feature on when using the fabric softener dispenser. This will ensure that the selected
wash cycle is optimized for a rinse additive. At the start of the final rinse,fabric softener will be
released into the wash load as the disperser is flushed with water.
"Wash Option" button
Wash
Option

14
Operation
The washing machine can detect the laundries automatically.After
detection,it will set the water level to suitable value automatically.You can
also set water level by yourself.After the machine is started,it will not set
water level automatically.You shall puse the Start/Hold Button to make
new setting.
During operation of sock,wash and rinse program,you can push down the
water level button to add water.When you release the button,or it reaches
the button,or it reaches the overflow water level,the machine will stop
adding water.
The water level decided may be different from actual value because of
the different moisture level of the lanudries.
"Water Level" button
Water
Level
Press the button,the lamp of inner tub is light.
"Inner Lighting" button
Inner
Lighting
Press the button again,the lamp of inner tub is closed.
The LED above the button indicates that the Delay Wash feature has
been selected. The Start/Pause must be selected to begin the countdown.
The LED indicator will be lighting during the delay function is operating.
One button press after 24 hours will cancle the delay wash feature.
You can also cancel the delay wash feature by turning off power to
the washer with the power button.
The delay wash indicator light on,the delay wash feature has been
selected.The Start/Pause must be selected to begin the countdown.The
delay wash indicator on that the delay function is operating.
Delay
Wash
"Delay Wash" button
Use this button to adjust the volume of control of control panel beeps
and the end-of setting.
"Cycle Signal" button
Cycle
Signal

Remove
The lint filter must be used during washing.
It must be cleaned in time after each using.
Clean the detergent box and set it on the
control panel seat.
1.The method of dismantle: Push it up
aslant and gently.
2.The method of clean: Use a brush and
duster cloth to clean it, then flush it with
water.
3.The method of install : Install it upwards
and aslant and push it in.
1.Push down the spring piece of the top lint
filter to make the claws out of the filter
cover, and then pull out the lint filter to get
it down.(figure 1).
2.Pull the back of the lint filter, and then you
can get down it off the front cover of the
lint filter.(figure 2).
3.Sweep the lint in the lint filter.
4.Put the back of the lint filter into the front
cover.
5.Put the lint filter into filter cover, and make
it tight.
6.Make sure the lint filter well installed, or it
can influence your use.
Down
Install
Dismantle
Down
Up
Up
The front cover of the lint filter
The back cover of the lint filter
Dismantle
Install
The mehods of dismantle and install lint filter
as follows:
Remove the power plug before carrying out any cleaning or maintenance.
Clean the lint filter(s) and detergent box after each wash,otherwise it may influence
you using the machine.
15
Cleaning or Maintenance
Maintenance
The filter at the water inlet valve may
become blocked by impurities in the
water supply.Clean it with a plastic
bristled brush every two months.
If the cabinet is dirty,wipe it with a damp cloth
Do not wash directly with water.
1.After washing cycle has finshed,turn off the water faucet.(If needed,you can remove
the water inlet hose).
2.Do not store water in the washing machine for a long period without completing a
wash cycle.Drain the water completely after each wash.
3.Hang up the power cord and drain hose.
4.Wipe up any drops of water on the surface of the machine and inside the tub.Leave
the lid open for about 1 hour after each wash to evaporate any residual water.
Wipe with a neutral detergent(please check
directions on detergent bottle firse).
Do not wipe machine with thinners,petrol,
alcohol or other hash solvents.
Figure 1 Figure 2

Redistribute the load evenly.
Push the Start/Pause button
once.
Level the machine.
The display shows E4.
The display shows FA.
Is the water tap closed or
has the water supply been
interrupted?
Is the water inlet valve
blocked?
Is the water pressure too
low?
Open the water tap. Push
the Start/Pause button once.
Clean the water inlet valve
then push the Start/Pause
button once.
Use after the water pressure
is normal.
The water level sensor has
failed.
The machine
does not work.
Will not
wash
Will not
spin
There are abnormal
sounds inside the machine.
Is the machine level?
Has the laundry been placed
unevenly in the machine?
Are there any foreign objects
inside the bowl?
Level the machine.
Redistribute the load evenly.
Close the top lid.
Remove the foreign object.
Is the power plug inserted
tightly?
Is the top lid closed?
Is the laundry distributed
unevenly in the machine?
Insert the power plug tightly.
Close the top lid.
Redistribute the laundry.
Is there a power failure?
Is the power plug inserted
tightly?
Has the water level reached
preset position?
Wait for the power supply
to be restored.
Insert the power plug tightly.
Wait for the water to fill to
the preset level
Trouble-shooting
16
If there is a fault or the machine dose not operate correctly,remove the power plug before
checking the machine.Using diagnostic list below,please check if the machine requires a
repair.If a repair is required,please contact our customer care team,do not try to fix it by
yourself.
The machine does not drain
or drain slowly.The display
shows E1.
The machine stops running
The display shows E2.
The machine does not drain
or drain slowly.The display
shows E3.
Has the laundry been placed
unevenly in the machine?
Is the machine level?
Is the drain hose blocked?
The top lid is not closed.
Remove the blockage.Push
the Start/Pause button once.
Close the top lid.Push the
Start/Pause button once.
Problem Possible causes What to do
Please contact Customer
Care.
Is the drain house set too
low?
The height of the end of
the drain house should be
between 0.8m-1.2m.
Is the drain pump
ineffective? Contact Customer Care.

Is the door lock broken?
Communication failure
between display board and
motor driver.
The display shows E9.
The display shows E8.
The display shows F2.
Communication failure
between show board and
power board.
The display shows FC.
The water tap leaks.
Is the water inlet hose loose? Fasten the inlet hose.
Please contact Customer
Care.
Over flow Error
Please contact Customer
Care.
Please contact Customer
Care.
Trouble-shooting
Common occurrences
17
The spinning is intermittent after it starts.
Problem Possible causes What to do
Reddistribute the load evenly.Close the top
lid.
Select spin program,but it does not work.
There maybe water in the drain hose when
first used.
It maybe residual water after performance
inspection by the factory.
The program is setting the drain time,there
will be a pause before the spin program
starts.
Please contact Customer
Care.
Situation Cause
When the power plug is inserted,computer
boar indicator is switched on. and the
machine starts working.
It is the special resume function. In the
care of power plug is loose during washing,
the machine can save the running program,
and resume the program after the program
again.
