Haier XQB42-62 User manual

Names of the parts.............the 2nd cover
Safety precautions .......................1
Installation and adjustment ..................3
Install the water inlet hose............5
Preparation before washing .............7
Put in the laundries .........................8
Put in the detergent .......................9
Use the operation buttons ................10
Close the top lid ........................14
Finish washing ............................14
Disposal after washing ....................15
Trouble shooting Answer to questions.....16
Packing list ...................................17
Specifications.........................the back cover
Contents
Before using
Using process
Please read this manual carefully before using.
Please retain it attentively for future reference.
User's manual
Full Automatic Washing Machine
XQB42-62
Please check if the power receptacle is earthed
reliably before usage to guarantee your safety.
The manufacturer is not responsible for any
risks occurred owing to disobey these
stipulations.

Meaning and description of the symbols
Honourable users,
Thank you for choosing our products.
Our products integrate high-tech, precision,frontier science.To facilitate
using it, please read this manual carefully and operate this machine
according to it.
Before Using
Before Using
Names of the parts
the end connecting to
the water inlet hose jointer
the end connecting to
the washing machine
jointer connecting the
water inlet hose and
the water faucet
Warning sign
Forbidden sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
bottom plate
(one)
water inlet hose
(one)
Water inlet
hose jointer
(one)
ST4X16
tapping screws
(eight)
back cover
Cabinet Drain hose
Control panel film
Control panel
Pulsator
Inner tub
Top lid
Cabinet handle
Lint filter
(Installed by user)
Adjustable foot
Power line
Detergent box
Sop mat
water valve
Power switch
fixed foot (3)

Before Using
Before Using

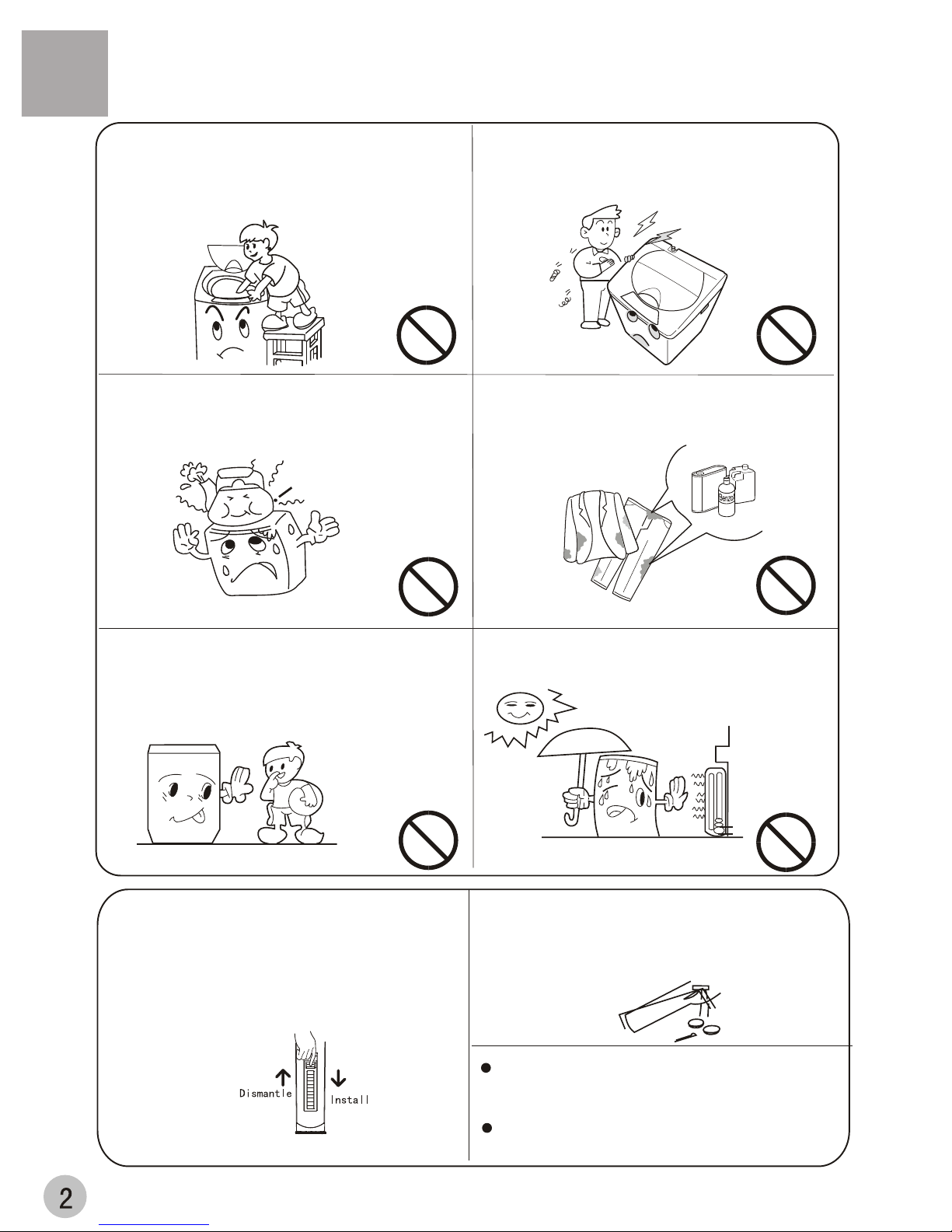

Safety precautions
Please insert the power cord into special rece-
ptacle with rated voltage.If the power cord is
three-phase wire,please use three-phase rec-
eptacle.The earthing terminal of the receptacle
must be earthed reliably.If it is two-phase wire,
please guarantee that the earthing wire is ear-
thed reliably.If possible ,please adopt electric
leakage protector.
Do not damage the power cord,bend ,extend,twist,bind or alter it by force.Do not press or
nip it with weight.If the power cord or the power plug is bad, or the power plug becomes
flexible,to avoid risk it is required to have it replaced by the technicians of our special
shop or the after-sale service department. Keep the pin of the power plug clean,if the
power plug is polluted with dust,please wipe with dry cloth carefully.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins-
ert or pull out the power plug.
In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.
Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use the plug any more.
Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations in spinning.
Do not use water hotter above 50 C .
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Not put wet laundries on the control panel.
soft items
The ventilation holes
at the bottom

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Do not let the children
climb the washing machine.
Petrol
Thinner
.
To prevent your laundries and washing
machine from damage,be sure to take
out all of the foreign materials from your
pocket,such as coins,buttons,sand or
hairpins etc.
Before washing,please check if the water
tap is open ,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming was-
hing powder
Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
the local after-sales service department of
our company.

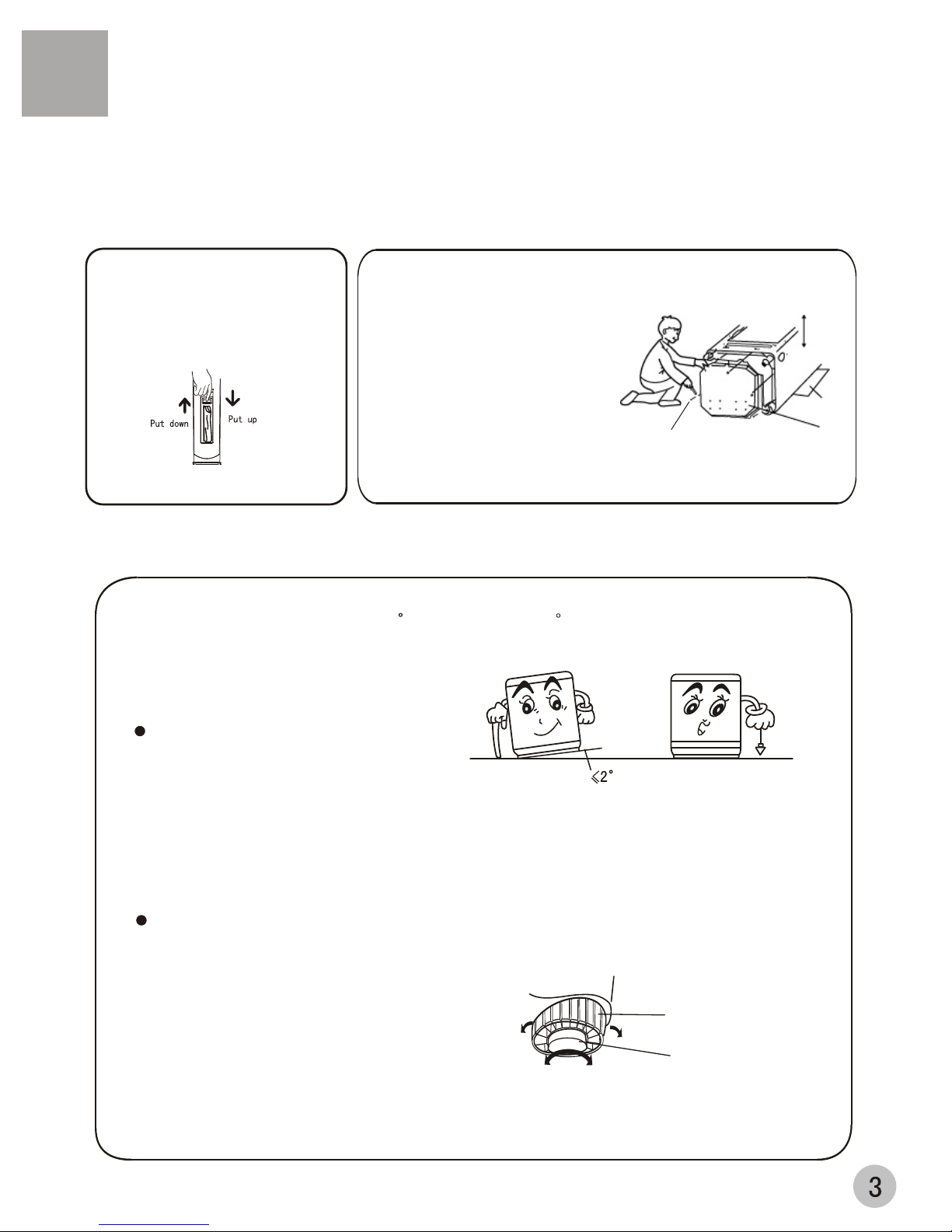

Install the bottom plate
After you open the package,
please lean the washing
machine gently down on soft
items ( like the towel cloth,
blanket, etc. ). Install the
bottom plate to the bottom of
the machine with the eight
screws by a cross screwdriver,
then lift the machine up gently.
See to the figure:
Before Using
Before Using
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.Press downward to
assmble.
2.Pull upward to detach.
Install the lint filter
The washing machine shall be more than 20mm away from the wall.The largest
allowed slope of the shank base of the machine is 2 . The slanting or rough
ground will result in unstable running or stoppage of the machine. Please adjust
it with following methods:
Confirm it's horizontal:
Adjust the adjustable foot:
Adjust the installation position
1.To twist the adjustable foot, please first lift up the side of the foot slightly, loosen
the adjustable nut, and twist the foot.
2.Fasten the nut after adjustment.
Loosen Fasten
High Low
adjustable nut
adjustable foot
Screw
Front
Bottom plate
Soft items
Back
Hang the lead line to check if it is
horizontal.

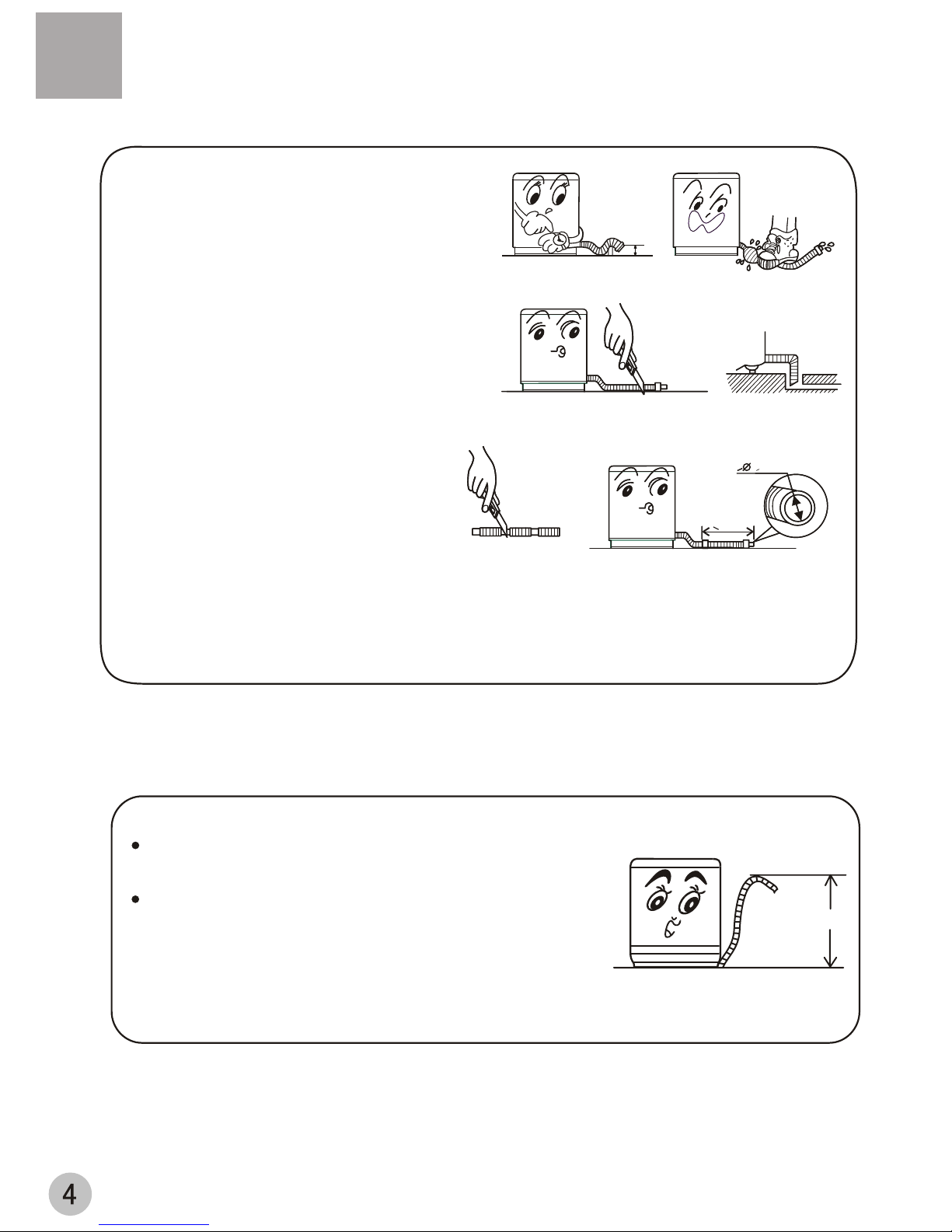

1. The height of the drain hose shall be less than
10 Cm, or the drainage will not be smooth , and cost
such long time that machine may stop at mid way.
2. Do not step on or press the drain hose.
3. If the drain hose is too long , cut it at mid point.
To make smooth drainage, cut the front end of the
hose into slope.
4. If extra drain hose is needed, please make
separate purchase. The inner diameter of the
extra hose shall not less than 30 mm, and the
length shall not exceed 1.5m.
If the extra hose is too long, cut it either at
A or at B point.
Remarks: during operation, be sure to put down the drain hose to ground to ensure that the recycled
water can flow out. Otherwise it will result in incomplete recycled water drainage, and unable to spin etc.
Usage of the lower drain hose
Before Using
Before Using
The drainage shallbe smooth withthe drain hose.
<10cm
> 30mm
<1.5m
AB A
Useage the drain hose
Before using , hang up the drain hose on suitable location.
Do not put down the drain hose on the ground.
<1.2m
Confirm the end of drain hose is higher than the level
of tub . If not the siphon will being .

Water tap,suitable Water tap,not suitable
It is required that the front end shall be longer than 10mm.
The outlet end surface of the tap shall be flat and smooth. If not please file it to
avoid leakage.
3.Loosen the screw till the water tap can be accessed. Put the jointer of the water
inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer
can not be set on the water tap, please loosen the four screws and take out the
bushing in the jointer. See to the figure3.)
2.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
Remarks: Before twisting the fastening nut, the thread is 4mm above the
upper surface of the nut. After twisting the fastening nut, the thread is 2mm
above the upper surface of the nut. See to Figure 6.
5.Take off the nameplate. Twist the fastening nut as per the indication of the figure.
See to Figure 5.
4.Fasten the four screws evenly. See to Figure 4.
>10mm
Outlet end surface
Nut
About 4mm before twisting
About below 2mm after twisting
Screw
Screwdriver Mark label
bushing
Figure 2
Figure 5
Figure 1
Figure 4
Figure 3
Figure 6
Slider
Water inlet pipe jointer
Water inlet pipe
Locking lever
Before Using
Before Using
Install the water inlet hose
Confirm the water tap
Connection between the water inlet hose jointer and
the water tap
1.Use the new water inlet hose provided with the machine to connect to the water
faucet.Old hose sets should not be reused.

1.Do not take off the water absorption
cushion. Please check if the cushion
is dropped or damaged before each
usage. If it happens please contact
our after-sale department immediately.
2.Put the nut of the water inlet hose on
the valve jointer.
3.Fasten the nut. Swaying it gently to
confirm if it's suitable.
1.Close the water tap.
2.Press the locking lever. Push down the slider. Then
pull off the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the tap to prevent
damaging the fixing screw.
1.Push down the slider. Insert the
water inlet hose into the jointer.
2.Hang the lock lever to the jointer.
Release the slider till a click
sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the water inlet hose
Jointer of the water inlet valve
Slider
Jointer of the
water inlet hose
Locking lever
Before Using
Before Using
Connection between the water inlet hose and the
washing machine
Connection between the jointer of the water inlet
hose and the water inlet hose
Check the connection between the jointer of the
water inlet hose and the water tap
Take down the water inlet hose
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
tap, and the installation of the
water inlet hose are firm, so as to
prevent dropping from improper

Confirm if
there's special
requirment for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.

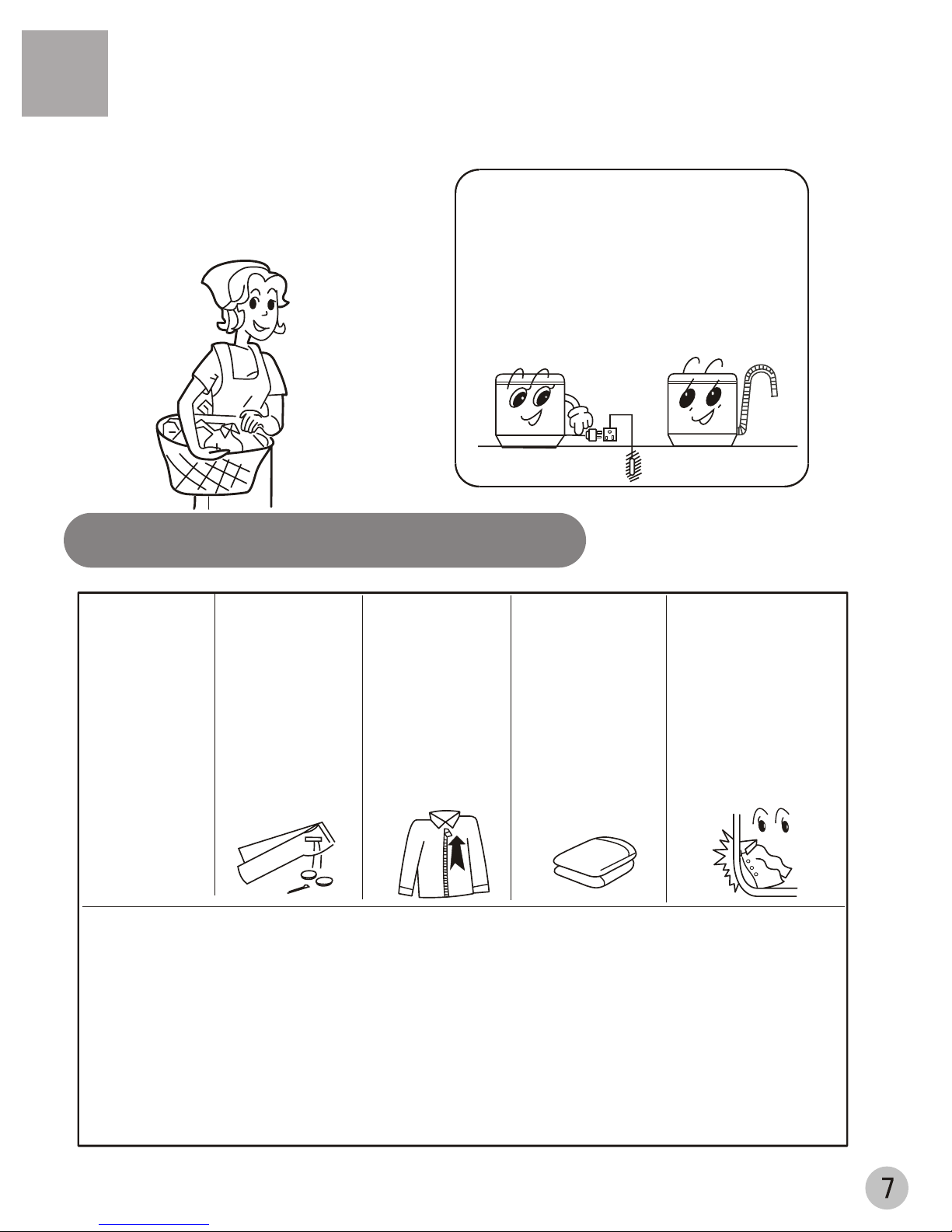

Preparation before washing
1.Connect the water inlet hose and open
the water tap .
2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
3.Put up the drain hose.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
1 Preparation before washing
Pay attention to followings before washing the laundries
a.Please check if the laundries are applicable for washing.
b.Separate those not colorfast from other laundries.
c.For laundries not waterabsorbing,please put them into water with hands.
d.For laundries with much soil,please remove the soil first.You can add detergent on the
part with serious soil directly.It is much easier to remove the soil by that mean.
e.For laundries likely to get lint ball or with long fiber,please first turn the inside out before
putting them into the water.
f.Do not put the laundries polluted with chemicals directly into the washing machine.
g.For those small laundries ,laundries likely to be twisted or worn,and woolen laundries,
please put them into mesh bag before wasing.

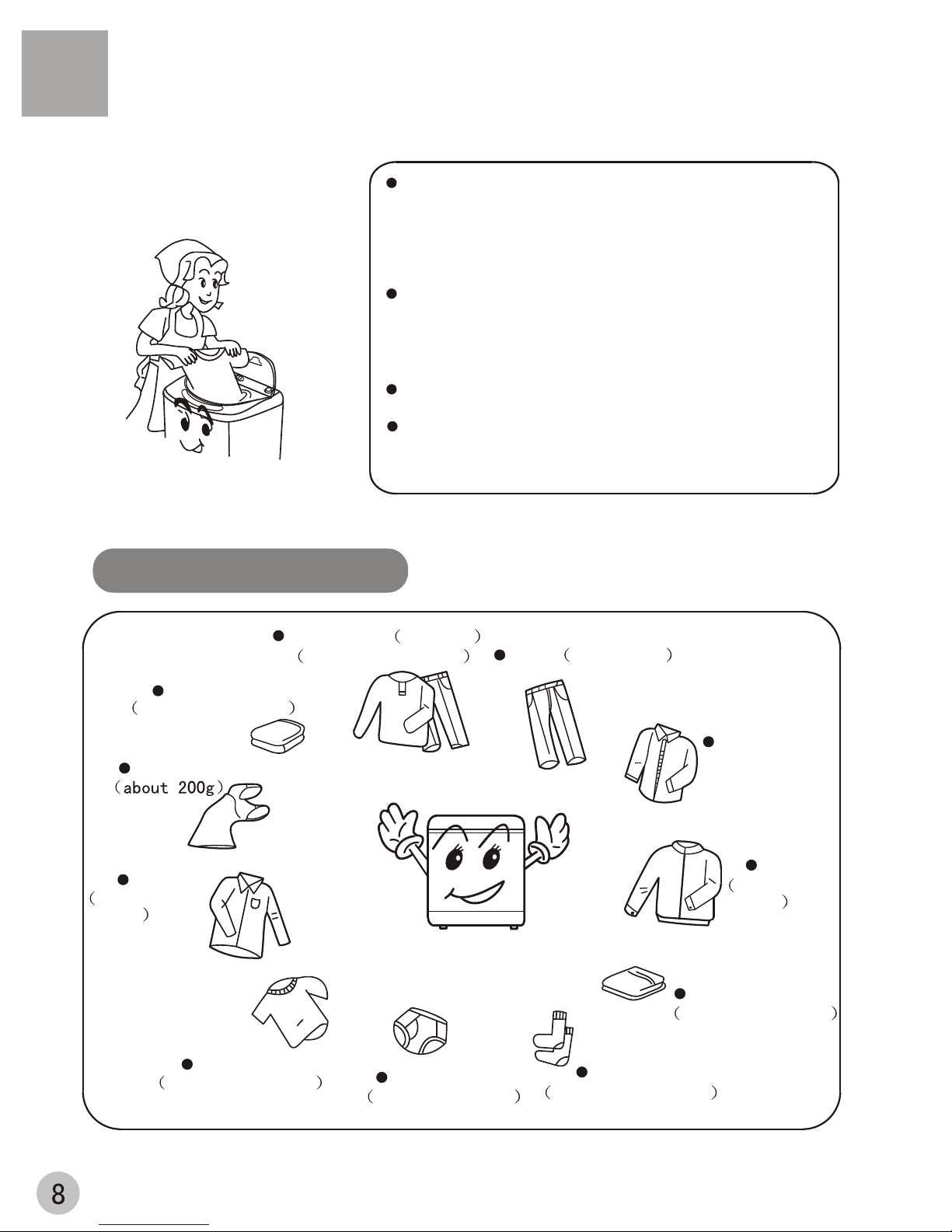

Reference weight of the laundries:
working suit up,down
jeans about 800g
The capacity of washing and spinning of the
machine refer to the largest weight of the standard
laundries under dry condition that can be washed
or spinned in one time. One time washing quantity
shall be lower than the rated capacity. The largest
capacity of this machine is 4.2kg.
The thickness, size, type of the cloth will influence
the actual washing capacity. It is suitable for one
time washing to put in reasonable amount of
laundries and the laundries can be turned round in
washing.
Do not select "High" water level for laundries less
than 1.0kg, so as to avoid splashing of water.
To wash thin laundries like the stocking, silk etc.,
please first put them into washing mesh bag (which
can be purchased separately) before wash.
shirt jacket
single bed sheet
Socks
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
2 Put in the laundries
cotton,about 1120g
blending coat
(about 800g)

How touse the whitener
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on
laundries with color or pattern as
they are prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before use.

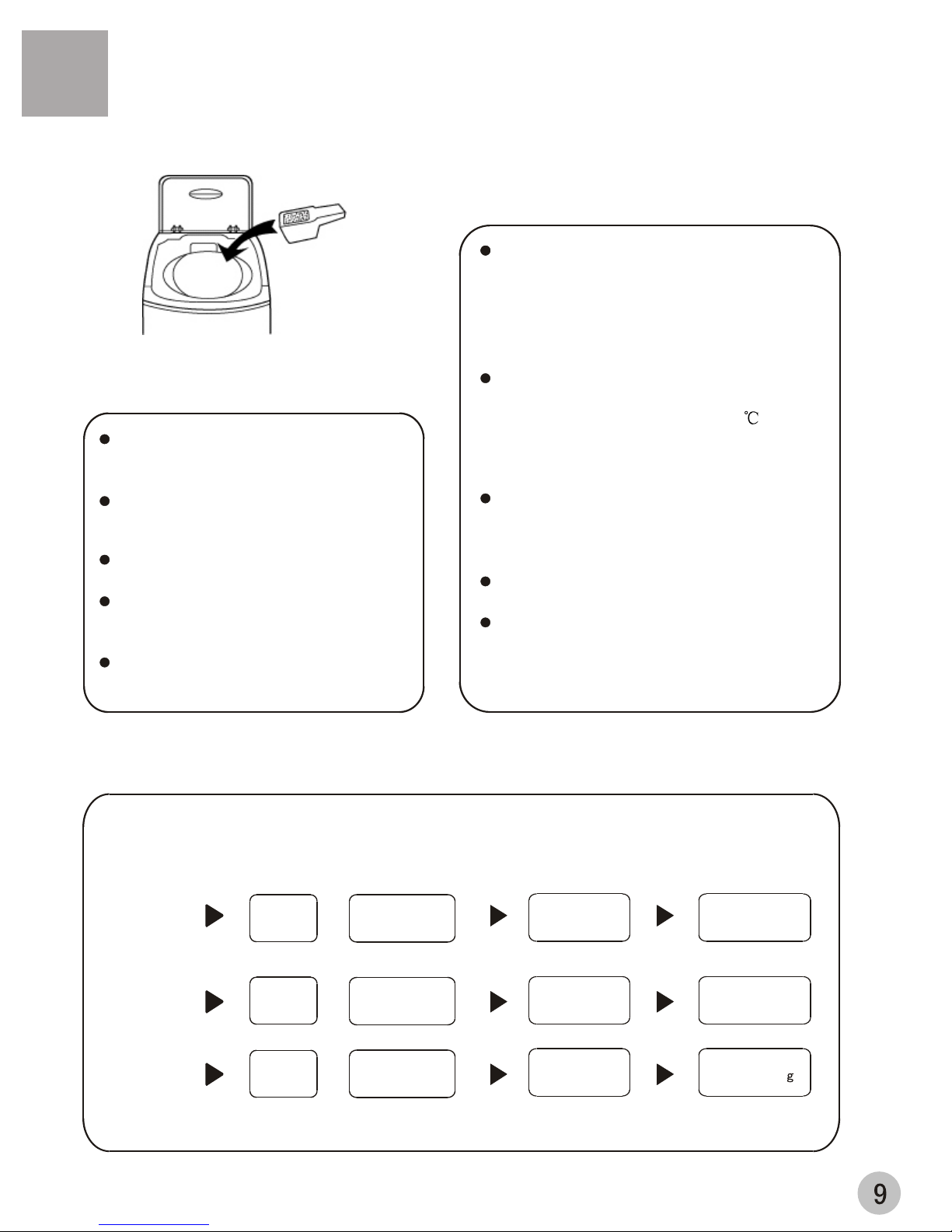

Standard usage quantity of the detergent and water
quantity
How to use the washing
powder
Direct dissolved in the machine
1.Fill water to "Low" water level.
2.Add the power. Run for 30 seconds
to dissolve it completely.
3.Put in the laundries. Select
suitable water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 and a
container.
2.Add the powder while stirring to
fully dissolve it.
The powder is more prone to pollute
the laundries than the detergent.
Therefore please use it with proper
quantity.
It is suggested not to use high
sudsing detergent.
Different washing powders have
different dosage. Please refer to the
usage manual of the washing powder
for the details.
Using process
Using process
3 Put in the detergent
Above 2.5
1.0~2.5
Below 1.0
Medium
Low
About 36L About 48g About 30g
About 30L About 40g About 25g
About 21L About 28g About 17.5
High
Laundries
quantity(kg)
Water level Water quantity Common powder
(Add 40g in each
30L water)
Concentrated
powder
(Add 25g in each
30L water)

a.
Using process
Using process
4 Use the operation buttons
Description of the function of the buttons

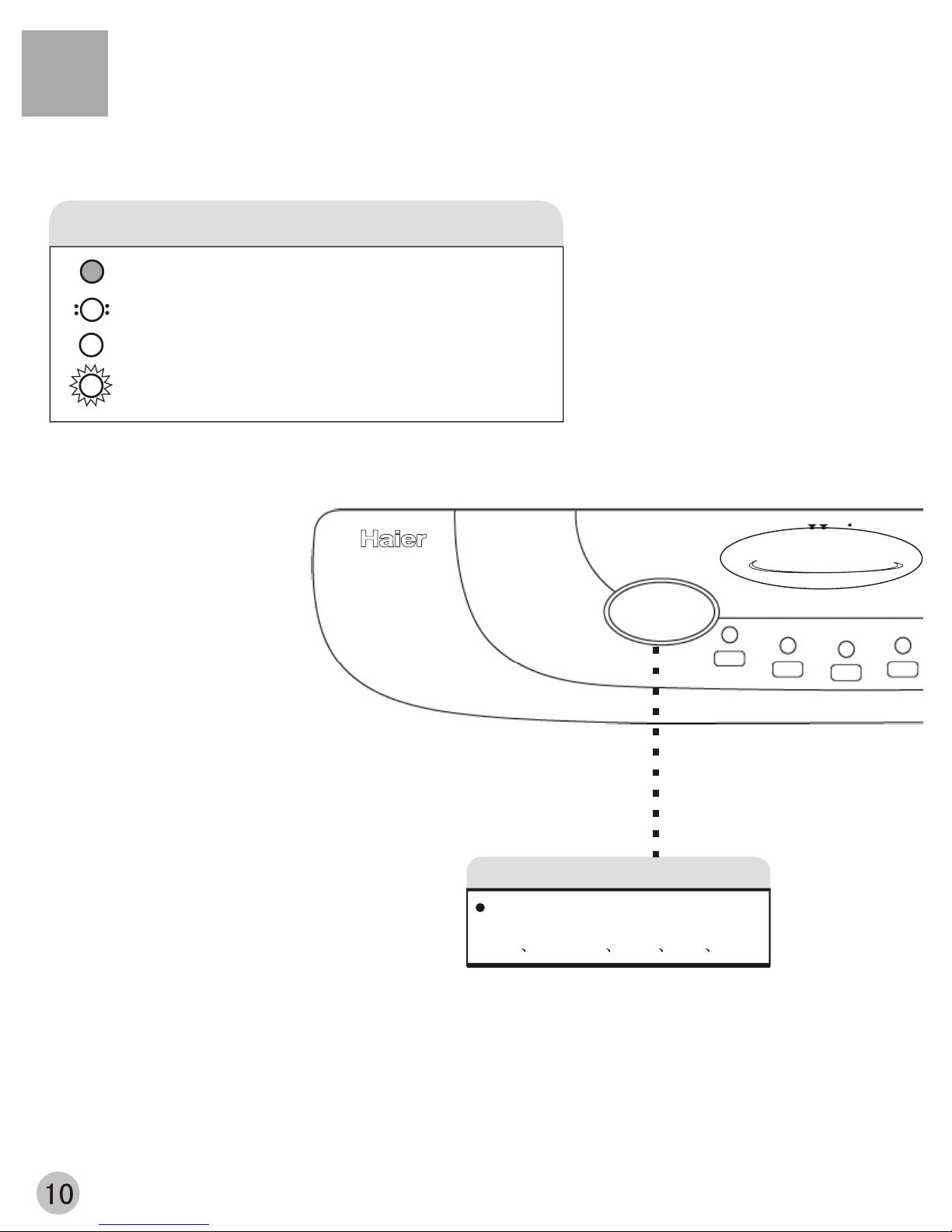

Mode and meaning of the indicator light
Flashing: indicate the running program
Flashing rapidly: indicate abnormal condition
On: indicate the program about to run, or
indicate the selected mode
PROGRAM
QUICK TWICE
WASH WASH SOAK
one or more one out of the five procedure
programs are available for your option:
quick twice-wash wash rinse spin.
Procedure selection
Two button twice-wash
Two button twice-wash

Using process
Using process
SPIN
START
PAUSE
After the power is switched on, push it to start the machine
start/pause botton "Power switch" button
Push the "On/Off" button to switch on the power.
During pause, push it to resume working.
During working, push it to pause working.
When the power is on, push it again to switch off
the power.
1.Push the power button to switch on the power. If the machine is idle
for 10 minutes, the power will be switched off automatically.
2.In usage, please first push the "Power switch" button, then push the
"Procedure selection" button. After selection, adjust the water level.
Finally push the "start/pause" button to start the machine.

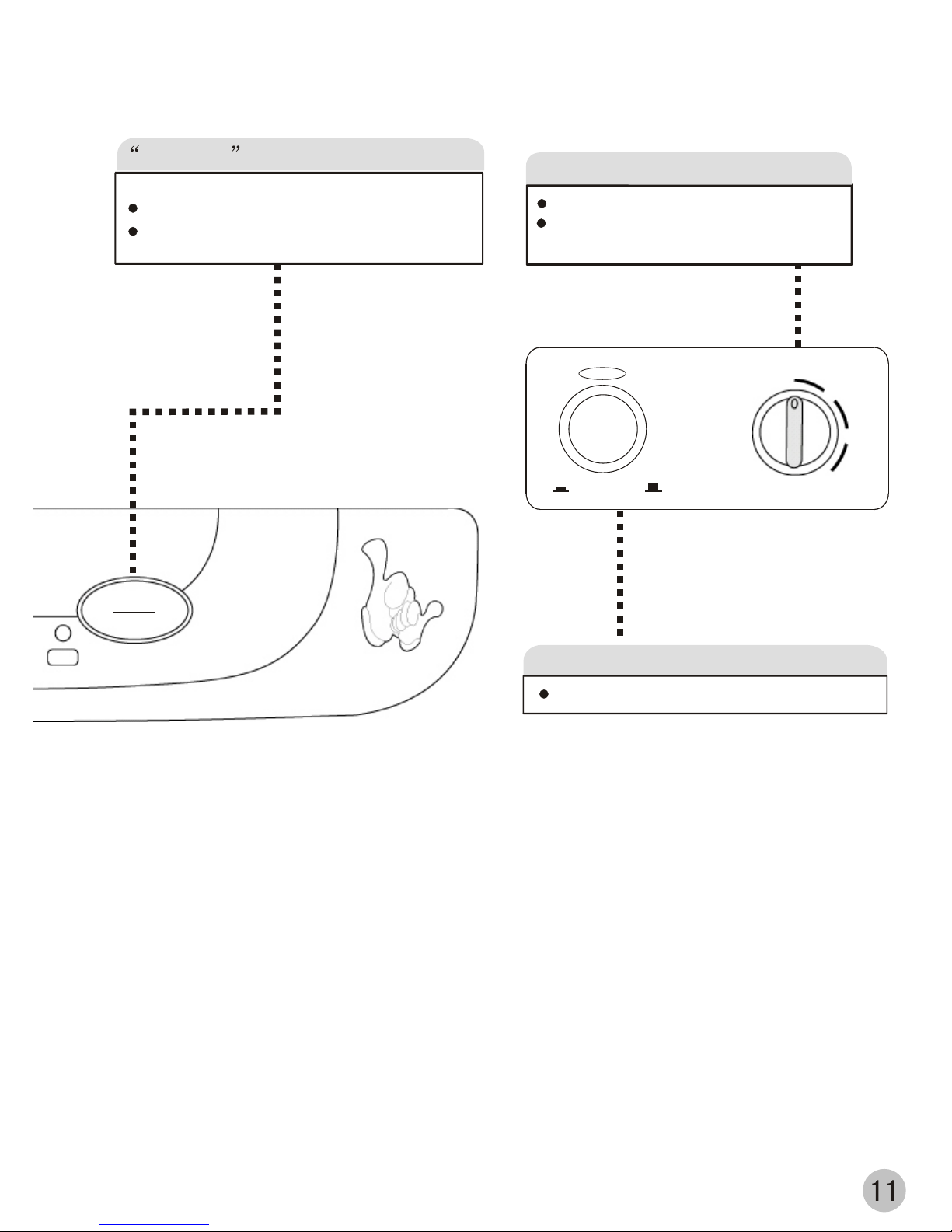

WATER LEVEL SWITCH
Description:
POWER SWITCH
AUTO-OFF
ON OFF
HIGH
MEDIUM
LOW
Select or adjust the water level.
"Water Level Selection" button

Using process
Using process
b. Operating procedure and explanations for the
buttons
Press the "PROGRAM"button to select the suitable
procedure program.
After switching on the power, the machine will set to standard program automatically including "wash-rinse-spin".
To select other program, push the "Procedure selection" button to select one or more programs among "quick wash"
“twice wash" "wash" "rinse" "spin". Refer to the "Procedure selection method" for the selection.
PROGRAM
Page 13
Push the "Power switch" button to switch on the power.
Two button twice-wash
Two button twice-wash
PROGRAM START
PAUSE
QUICK TWICE
WASH WASH SOAK
SPIN

Using process
Using process

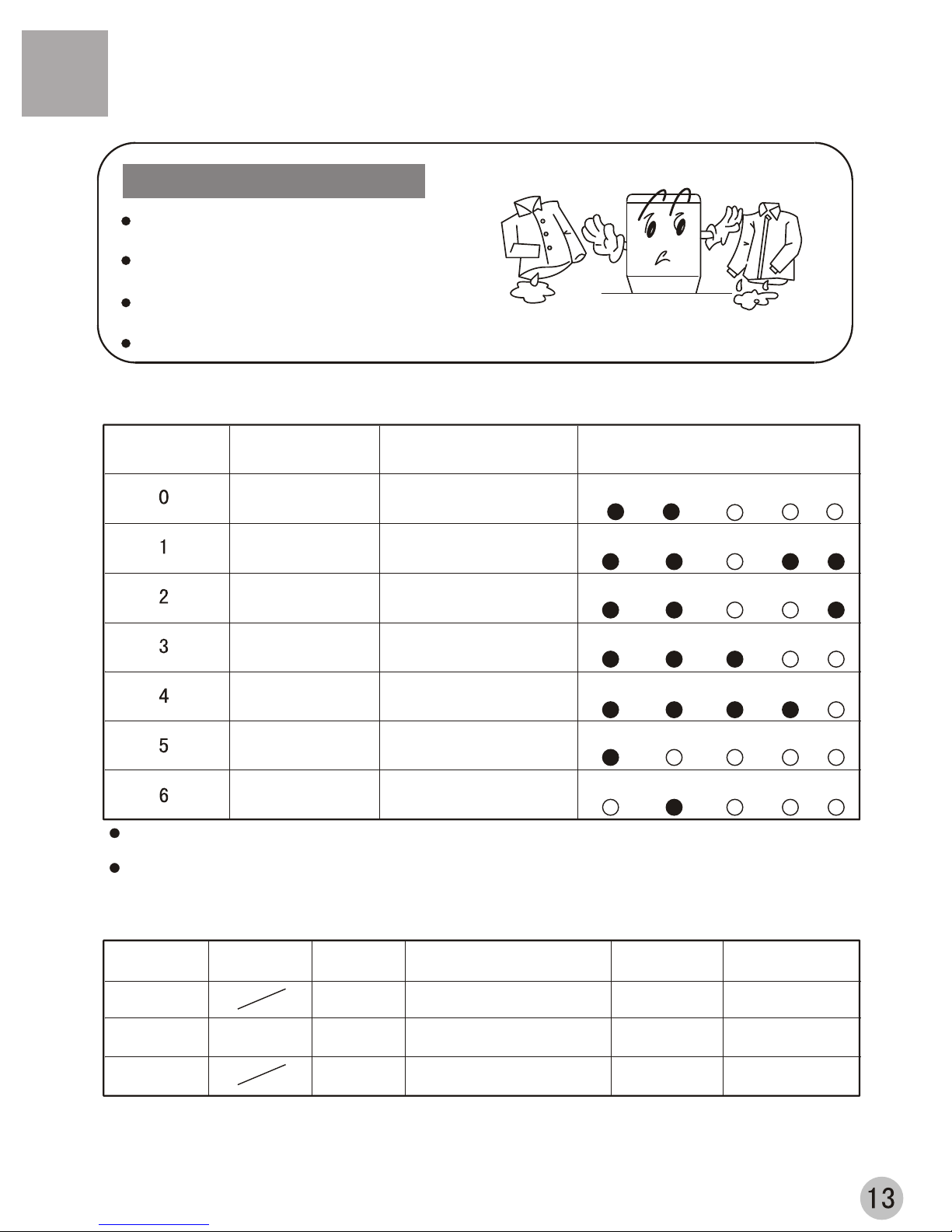

Selection method of the procedure programs
Time list of each program (minute)
Times of pushing
the "Process
Selector" button
Selected procedure
program
Applicable procedure Contents (the lighted indicators
indicate the programs about to run)
Wash, rinse, spin
(standard program)
Rinse, spin
Spin
(spin after drain)
Wash (the washing
liquid remains in
the tub)
Wash, rinse ( the
rinsing liquid remains
in the tub)
When the common laundries
need washing , rinsing and
spinning
Wash rinse spin
Wash rinse spin
Wash rinse spin
Wash rinse spin
Wash rinse spin
Wash rinse spin
Wash rinse spin
Twice wash, wash,
rinse, spin
Repeat using the washing
liquid
Repeat using the washing
liquid
When the laundries need
rinsing and spinning after
manual washing
When the laundries need
only spinning after manual
washing (first drain then spin)
If the laundries are very dirty,
or the sleeve and collar are
dirty, first soak then wash
Even there's no water in the tub, the
spinning will start after a certain period.
Do not use the "Twice wash" program
for the woolen laundries.
Wash the laundries that are prone to
lose colors separately from other laundries.
The pulsator will not rotate unless the water is filled to selected water level.
Attention
Speedy wash, wash,
rinse, spin
When quickly wash the
light dirty laundries.
Speedy
wash
Speedy
wash
Speedy
wash
Speedy
wash
Speedy
wash
Speedy
wash
Speedy
wash
Twice
wash
Twice
wash
Twice
wash
Twice
wash
Twice
wash
Twice
wash
Twice
wash
If you push the "Process Selector" button for 7 times, it will resume the original mode, and
it will circulate like that.
If you select the "Speedy wash" program, you have to set the full procedure of wash, rinse
and spin. The procedure cannot be selected.
Program Soak (min) Wash (min) Rinse (min/time) Spin (min) Total time (min)
Standard About 12 About 4 About 42
Twice wash About 25 About 24 About 4 About 82
About 6 About 4 About 25
Rinse twice with stored
water, about 3
Rinse twice with stored
water,about 3
Rinse once with stored
water, about 3
Speedy wash

Using process
Using process
* Total time: including the normal water inlet time, drain time, excluding the power off time. The
total washing time may be influenced by the water inlet pressure and water level.
* Spin time: the time from intermittent running to finishing
* When selecting " Twice wash " program, first soak for about 20 minutes, pre-wash for about 8
minutes, then soak for about 5 minutes, then do washing, rinsing and spinning. The wash time
in the list includes the pre-wash time
5 Close the top lid 6 The washing is finished
3.Adjust the "water level selection" knob to select suitable water level
Three water levels available according to the laundries quantity: High; Medium; Low.
Page 9
If you open the top lid, the machine
will stop working before spinning
Start
Pause
After the water inlet as per the preset water level, in case additional water quantity is
required, please first set the button to the "Reset", push and hold it to perform automatic
water inlet. When it reaches the suitable water level, you can turn it to the needed water
level.
After the water inlet under set water level, if higher water level is needed, please first turn
the knob to " Reset ", then turn back to needed water level. The washing machine will
fill water to the new water level.
4 Press the "Start/Pause" button
It beeps to indicate
the finishing of
washing
When the washing is finished, The power will be
switched off automatically about 10 minutes after the
finishing of the washing.

Using process
Using process
Disposal after washing
After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time (about 1 hour),
then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
The filter screen of the water inlet
valve is likely to be blocked by
foreign materials and influence the
water inlet. Please clean it with
brush every two months.
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol, alcohol
etc.
Thinner
Alcohol
Petrol

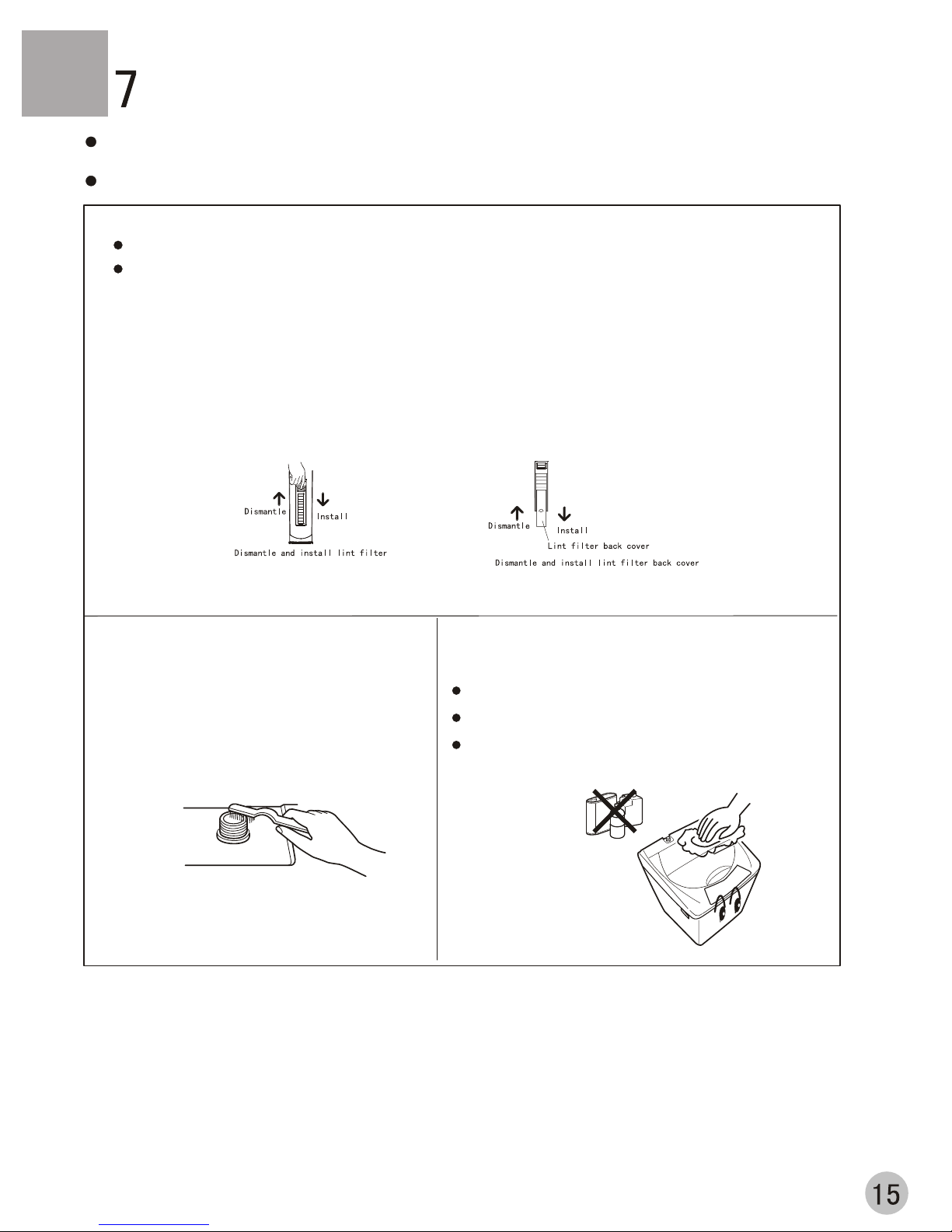

The lint filter must be used during washing.
It must be cleaned in time after each using
Lint filter:
1.Rotate the inner tub with hand till the lint filter reaches
the position convenient for you to take it off. Pull it up to
dismount.
2.Push it down to install.
3.Clean the filter screen after washing.

Trouble shooting Answer to question
It is the water remained in the factory
inspection of performance.
Phenomenan The reason How to settle
Common phenomena
Phenomena Explanation
Balance the laundries to avoid slanting.
The program is setting the drain time. Some
time is needed before it starts spinning.
It is because that the laundries are slanting
to one side, and the safety switch acts. After
water inlet and stirring, the slanting will be
removed and the spinning will work.
(If there's breakdown, please pull off the power plug before checking) The following phenomena
are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real
breakdowns, please come to the special maintenance department or after-sale service department
of our company. Do not repair it by yourself.
In spinning, the machine stops
running. (The "wash" "rinse"
"spin" indicator flash quickly)
The draining does not work,
or the speed of draining is
too slow ( the indicators of
"rinse" "spin" flash)
The safety switch acts. The
spinning can not work (the
indicators of "wash" "rinse"
flash quickly)
The program pauses after
about 8 minutes of water
inlet (the indicators of "wash"
"spin" flash quickly)
The machine does not act.
There's abnormal sound
inside the machine.
The water faucet leaks.
The top lid is not closed.
Is the drain hose put down?
Is the drain hose blocked
by foreign material?
Is the jointer screw of the
water inlet hose is loose
or twisted awry?
Is there power failure?
Is the power plug loose?
Is the machine slanting?
Are the laundries slanting
in spinning?
The water faucet is not open.
The water pressure is too low
and the current is too small.
The water inlet valve is
blocked.
Are the laundries put
slantingly?
Is the machine slanting?
Fasten the jointer screw
properly.
Close the top lid.
Put down the drain hose.
Open and close the top lid once.
Clean the foreign material.
Open and close the top lid once.
Re-order the laundries.
Close the top lid.
Level the machine in right position.
Open and close the top lid once.
Open the water faucet. Push
the "Start/Pause" button.
Clean the water inlet valve.
Push the "Start/Pause" button.
Wait for the normal water
pressure before use.
Use it when the power is on.
Insert the power plug tightly.
Level the machine properly.
Re-order the laundries.
The spinning is intermittent when it starts.
In the final spinning, it stops and displays
"Rinse", and starts water inlet.
There may be some water flowing out of
the drain hose in the first use of the machine.
Push the "Process selector" button to
select "Spin", but it doesn't work.

Packing list
Name
User's manual
Certificate of qualification
Post card
Certificate of warranty
Quantity
One
One
One
One
One
Storage position
Inside the document bag
Inside the document bag
Inside the document bag
Inside the document bag
Inside the accessory bag
Between the upper cushion of the
washing machine package and the
upper seal of the package carton
Computerized Automatic
washing machine
Components of the
water inlet hose
Inside the accessory bag
Eight
Tapping screws ST4x12-A
Bottom plate One
One
After-sales service
Honorable users:
Thank you for using Haier series washing machine. We will offer you following services
according to the stipulation in the Act on Protection of Consumers' Rights and Interests by
evidences of your Guarantee certificate and invoice:
1. Three years' guarantee for the whole machine on our account.
2. The following cases are not included in above guarantee:
(1) Those damaged by improper transportation, handling, using and maintenance by users.
(2) Those decomposed by self.
(3) Those with altered invoice or without invoice and guarantee certificate.
(4) Those damaged by outer reasons such as abnormal voltage, fire, etc.
(5) Those not used according to the operating handbook and the notice on the labels of the
machine cabinet.
(6) Those used outside family (such as public machines, those used for business purpose,
those used as accessories of automobiles and ships, etc.).
If you meet any difficulty in use please call the local after-sales service department
according to the certificate of warranty. We will offer sincere services for you.
Remarks:
Future changes on the structure and technical data of this model are not to be informed to
the users.
If extra water inlet hose and drain hose are needed, following components are available
for purchase: (1) water inlet hose (0.5m, 1m) (2) drain hose
(3) washing bag

Specification
Specification
Model XQB42-62
Rated voltage frequency 220V ~ 50Hz
Rated washing / spinning capacity 4.2kg (weight of standard dry cloth)
Water level/Water quantity (about) High/36L, Medium/30L, Low/21L
Max water consumption
Injection pressure 0.03Mpa-0.78Mpa
Rated washing power 325W
Rated spinning power 255W
Weight About 29kg
Dimension L 555 mm W 510 mm H 870 mm
About 108L(High water level; Standard program)
