Hamilton Beach HBMIS4515 User manual

2.6 cu. ft. Glass door beverage center/
Curtis International Ltd.
HBMIS4515Model No.
This glass door beverage center/bottom freezer
combo is for residential use only.
bottom freezer combo

Safety Precautions..................................................................................... 3
Parts And Features................................................................................... 5
Cooler Compartment (Upper)
Starting and running the unit
Troubleshooting........................................................................................ 11
Care And Maintenance
............................................................................ 11
How To Install ........................................................................................... 6
How To Operate .......................................................................................6
................................................................... 7
............................................................... 8
................................................................... 8
Temperature Control ............................................................................... 8
............................................................................................ 9
Freezer Compartment (Bottom)
.......................................................................................... 10
How To Clean
Light Control ........................................................................................ 9
Door Reversing
Congratulations, you have acquired a high-quality Hamilton Beach glass door
beverage center/bottom freezer combo. This unit is packed with features that you
will find convenient to use. Please follow the safety precautions and operating
instructions provided in this easy-to-use manual. Please take the time to read it,and
save these instructions for future use. Please also remember to record the series
number. The series number is located on the top of the unit next to the motor. Save
your receipt by stapling it to this manual for convenient access.
Product Specifications .............................................................................. 13
Warranty....................................................................................................
14

3
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the following:
1. Use this appliance only for its intended purpose as described in this use
and care guide.
3. Never unplug your glass door beverage center/bottom freezer combo by
pulling on the power cord. Always grasp
5. Unplug your glass door beverage center/bottom freezer combo before
cleaning or before making any repairs.
If for any reason this product requires service, we strongly
6. Do not use any electrical device or any sharp instrument in
defrosting your glass door beverage center/bottom freezer combo.
7. If your old glass door beverage center/bottom freezer combo is not being
used, we recommend that you remove the doors. This will reduce the
possibility possibility of danger to children.
8. After your glass door beverage center/bottom freezer combo is in operation,
do not touch the cold surfaces in the glass door beverage center/bottom
freezer combo compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9. Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No.69
reads:"...You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40F".
4. Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
2. This glass door beverage center/bottom freezer combo must be properly
installed in accordance with the installation instructions before it is used.
See grounding instructions in the installation section.
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
Safety Precautions

4
10. This glass door beverage center/bottom freezer combo should not be recessed
or built-in an enclosed cabinet. It is designed for freestanding installation only.
11. Do not operate your glass door beverage center/bottom freezer combo in the
presence of explosive fumes.
propellant in this appliance.
13. WARNING: keep ventilation openings clear of obstruction.
14. WARNING: do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by
the manufacturer.
15. WARNING: do not damage the refrigerant circuit.
16. WARNING: All refrigeration products contain refrigerants, which under
federal law must be removed prior to product disposal. If you are getting
rid of an old refrigeration product, check with a qualified disposal company
for instructions.
Staple your receipt to your manual.
You will need it to obtain warranty service.
DANGER: Risk of child entrapment. Before you throw away your old
glass door beverage center/bottom freezer combo:
* Take off the doors.
* Leave the shelves in place so that children may not easily climb inside.
Save These Instructions
For Future Reference Please
...Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can.

5
Parts And Features
1. Internal LED Light
(On ceiling of cooler)
2. Temperature Control
Dial & Light Switch
3. Cooler Compartment Shelf
(3 Pieces)
4. Freezer Compartment
Shelf
5. Glass Door For Cooler
6. Door For freezer
2
5
6
1
3
4

4
6
How To Install
How To Operate
• Install the unit in a convenient location away from extreme heat and cold. This
unit should be far away from the heating source, and is prevented from direct
sunlight. Allow sufficient clearance between the unit and sidewall so the door will
open without obstruction. This unit is designed for free-standing installation only,
not for recessed installation.
• Select a space with strong level floor. Not recommended for carpeting or other soft
/ uneven surfaces.
• Allow 5 inches of space between the unit’s side,rear and the wall. In addition,
sufficient clearance (160°) should be maintained to allow the door to open properly
and completely.
• The appliance must be correctly connected to the power supply, 115V/60Hz,
certainly grounded. Do not under any circumstance cut or remove the third (ground)
prong from the power cord. Any questions concerning power and/or grounding
should be directed toward a certified electrician or an authorized service center.
This unit is not designed to be installed in an RV or used with an inverter.
• Do not use an extension cord.
• This unit should be placed without packages in horizon. It is not allowed to slant
over 45°during the transportation.
• Avoid locating the glass door beverage center/
bottom freezer combo in moist areas.
• Wines should be laid on the shelves in sealed containers to avoid leakage.
• Do not overload.
• Do not open the door unnecessarily or leave the door ajar.
• Do not cover the shelf with any material such as aluminium foil as this will impede
air circulation within the cabinet.

4
7
Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance. The cooler compartment can be loaded with bottled wine or canned
beverage or beer.

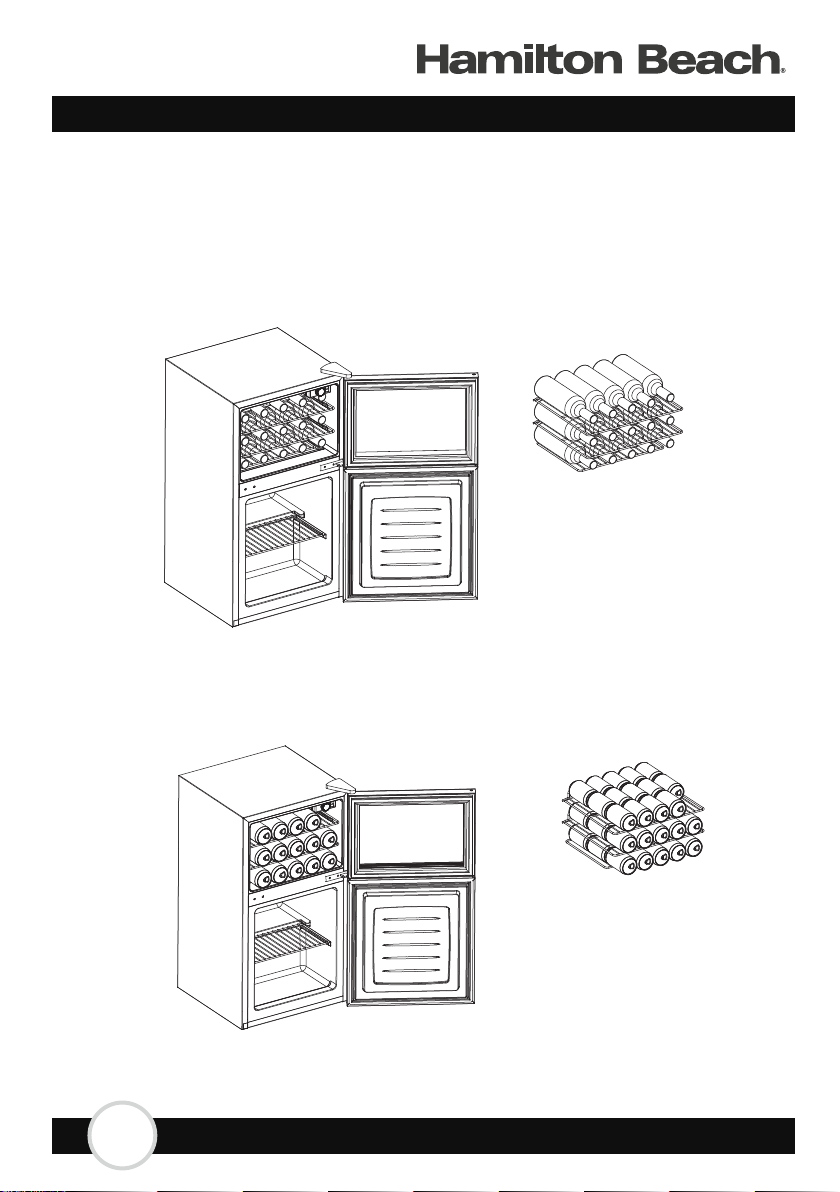

Please place the wine bottles reference to following figure to get maximum loading:
For canned beverage or drink, please see the following figure to get maximum loading:
Cooler Compartment (Upper)

4
8
• This compartment is designed for the long-term storage of frozen food. Storage
time period is up to three months.
• The storage life of frozen foods varies and the recommended storage time should
not be exceeded.
• Place frozen food into the freezer as quickly as possible after purchase. If there are
instructions on the package, carefully follow these instructions regarding storage time.
Notes: Do not store can food or food stored in glass containers in the freezer
compartment.
Freezer Compartment (Bottom)
Important: If the unit is brought in from outside in the winter season, give it a few
hours to warm up to room temperature before plugging it in.
And also after transportation and moving of the unit, please wait for a least 4 hours
then to plug on the unit.
1. Remove the packaging material.
2. Clean the unit thoroughly. Wipe the outside with a soft dry cloth, the interior with a
clean moist cloth.
3. Insert the power supply cord into the socket to start the unit.
4. Suggest to put wines or beverages into the cooler compartment and put the food
into freezing compartment after at least two hours after the power on.
Starting and running the unit

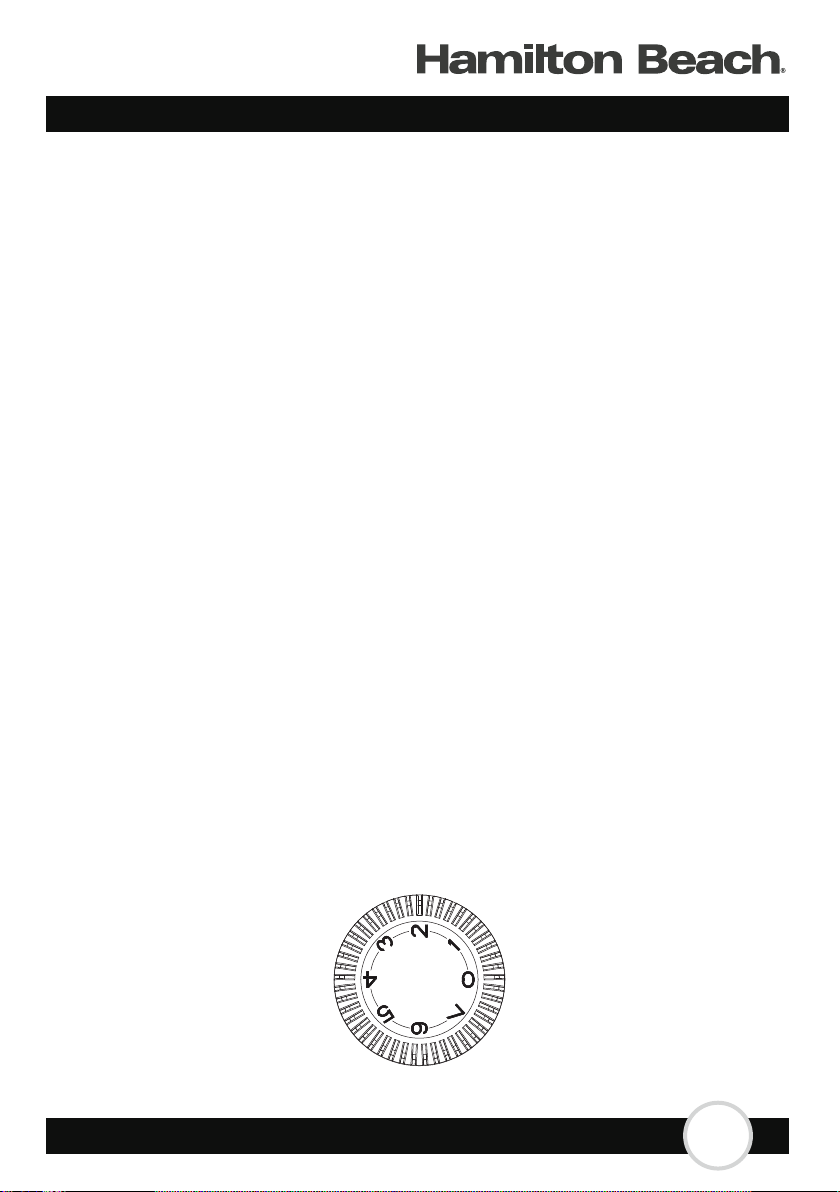

Temperature inside the cabinet is controlled by the thermostat. And the digits showed
near the knob do not mean the real temperature inside. The bigger the number is, the
more refrigeration is. And “0” means the switch off.
When you adjust to the seventh gear, there may be a certain amount of condensed
water. When this happens, it is recommended to adjust the temperature to the fourth
gear to run.
Temperature Control

4
9
The unit has built in with the LED light in the cooling compartment. Use the power
switch beside the thermostat dial to turn on or turn off the LED light.
Note: Wait 3-5 minutes before restarting if you unplug the glass door beverage center/
bottom freezer combo. The unit may fail to operate properly if restarted too quickly.
Light Control
Door Reversing
WARNING: Follow all steps when reversing the door swing. Failure to follow
these instructions, leaving off parts, or overtightening screws, can lead to the door
falling off and result in injury and property damage.
Bottom
Hinge
Bottom
Hinge
Hinge
Pin
Hinge
Pin
Turn
Hinge and
Cover Hinge and
Cover
Plug
Buttons
Center
Hinge
Center
Hinge
Plug
Buttons
Turn

4
10
How To Clean
WARNING: Before maintenance or clean to the unit, be sure to unplug the unit first.
Prohibit to pour down the water or let the whole unit submerge in the water, it will wet
the inside electrical parts.
Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on
any surface.
Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for
periodic waxing, use silicon wax.
Refrigeration Section: Wash shelves and other removable parts in warm sudsy water,
rinse and dry. Wash interior with baking soda solution (3 tablespoons to I liter of water)
or warm sudsy water, rinse and dry.
Magnetic Door Seals: Wash with warm sudsy water.
1. Ensure the unit is unplugged before starting door reversal.
2. Remove the 2 plug buttons on the left side on top of the cabinet.
3. Remove the plastic hinge cover by prying from the back and pulling forward.
4. Remove the 2 screws from the top hinge.
5. Lift the cooler door up and off the center hinge (right side). Set the cooler door on
a nonscratching surface with the outside up.
6. Open the freezer door and remove the center hinge by removing the 2 screws.
Lift the hinge to remove.
7. Lift the freezer door off of the bottom hinge. Set the
freezer door on a non-scratching surface with the
outside up.
8. Lay the refrigerator on its back to access the bottom hinge.
9. Remove the bottom hinge by removing the 3 screws. Lift the
hinge to remove.
10. Remove the hinge pin on the bottom hinge and
reinstall on the opposite side of the hinge.
IMPORTANT: Do not clean your unit with flammable fluids. The fumes can create a
fire hazard or explosion.

4
11
Care And Maintenance
Troubleshooting
• The unit should be cleaned on a regular basis. (See: “HOW TO CLEAN”)
• It is necessary to have an adequate ventilation space around the unit in order to
attain proper performance, dissipation of heat, maintain efficiency, and low power
consumption. Clearance of minimum 5 inches should be maintained at the rear and
sides of the unit and 8 inches at the top of the unit.
• Do not modify the power cord under any circumstance to allow the unit to be plugged
into a non-grounded outlet. To avoid heat damage to the power cord, please ensure
that it does not come in proximity or in direct contact with the compressor of the unit.
• Please avoid installing the unit in a location where the appliance will come in contact
with water or moisture to minimize rusting of metal parts.
• The unit should not be installed near any heat source or in a location where it will
come in direct contact with the sunlight.
• The components, if need to be replaced, should be replaced with like components,
and should be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard and minimize the risk of possible ignition
due to incorrect parts or improper service.
When the unit is not in use for a prolonged period
• Remove the plug from the outlet.
• Remove all contents from the unit.
• Dry the interior and leave the door open for a few days.
When the unit does not work
• Check if there is a power failure.
• Check if the power plug is plugged into the power outlet.
• Check that the fuse has not blown in main supply circuit.
When you wish to move the glass door beverage center/
bottom freezer combo
• Secure all movable parts and contents. (Package them separately if necessary.)
• Transport the fridge only in an upright position. In any other position you may damage
the compressor.
Before calling service, please follow the checklist below. This may save you an expensive
service call.

12
When the condensate water overflows inside the unit and onto
the floor
• Check that the drain pipe and the drain hose are not clogged.
• Check that the drain pan is housed properly.
When condensation forms on the outside of the unit
• Condensation may form on the outside when the humidity level is high such as during a
wet season. This is the same result as the condensation formed when chilled water is
poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.
If the glass door beverage center/bottom freezer combo starts
making any unusual noises
• Is it wobbling? Re-level it and check if it now operates normally.
• Have any objects fallen behind the fridge? If so, remove them and check if operation is
now normal.
• Are any containers inside the fridge vibrating or resonating? If so, rearrange them then
check to see if operation has returned to normal.
If the unit seems too warm inside
• Check to see that the door is closing properly and the door seal is not damaged.
• Check that the interior circulation is not obstructed by having too many goods stored.
(The fridge is overloaded)
• Did you store anything hot, without first cooling it to room temperature?
• Is there sufficient clearance around all sides and above the fridge?
• Do you set the temperature too high?

MODELNO.
CAPACITY OF COLLER IN CU FT INTERIOR SIZE (IN.) (WxDxH)
SHELF MATERIAL
TEMPERATURE CONTROL TYPE
TEMPERATURE RANGE COLLER IN FAHRENHEIT AND CELSIUS
PRODUCT WIDTH (IN.)
DEPTH (LESS DOOR) (IN.)
PRODUCT DEPTH (IN.)
PRODUCT HEIGTH (IN.)
POWER CORD LENGTH (IN.)
BPA FREE (YES/NO)
REFRIGERANT TYPE
MAXIMUM POWER CONSUMPTION IN AMPS
OPERATION NOISE dBA
YES
R600a
1A/90W
42
HBMIS4515
1.34/15.1X14.2X10.2
STEELWIRE
MECHANICAL THERMOSTAT
40°F~61°F(4°C-16°C)
CAPACITY OF FREEZER IN CU FT AND INTERIOR SIZE (IN.) (WxHxD)
TEMPERATURE RANGE FREEZER IN FAHRENHEIT AND CELSIUS
1.31/13.5X13.4X15.4
17.5
16.1
DEPTH WITH DOOR OPEN 90 DEGREES (IN.) 35.4
18.1
33.3
71
-4°F~14°F (-20°C~-10°C)
4
13
PRODUCT SPECIFICATIONS

To make a warranty claim, please email [email protected] or call 1-800-968-9853.
This product is warranted to be free from defects in material and workmanship for a
period of one (1) year from the date of original purchase. During this period, your
exclusive remedy is repair or replacement of this product or component found to be
defective, at our option; however, you are responsible for all costs associated with
returning the product to us. If the product or component is no longer available, we will
replace with a similar one of equal or greater value. Prior to a replacement being sent,
the product must be rendered inoperable or returned to us.
1 Year warranty
This warranty does not cover glass, filters, wear from normal use, use not in conformity
with the printed directions., or damage to the product resulting from accident,
alteration, abuse, or misuse. This warranty extends only to the original consumer
purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is
required to make a warranty claim. This warranty is void if the product is used for other
than single-family household use or subjected to any voltage and waveform other than
as on the specified rating on the label (e.g., 115V~60Hz).
We exclude all claims for special, incidental, and consequential damages caused by
breach of express or implied warranty. All liability is limited to the amount of the
purchase price. Every implied warranty, including any statutory warranty or condition
of merchantability or fitness for a particular purpose, is disclaimed except to the extent
prohibited by law, in which case such warranty or condition is limited to the duration of
this written warranty. This warranty gives you specific legal rights. You may have other
legal rights that vary depending on where you live. Some states or provinces do not
allow limitations on implied warranties or special, incidental, or consequential damages,
so the foregoing limitations may not apply to you.
ATTACH YOUR PROOF OF PURCHASE HERE, PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you contact the Support Team:
Name, address and telephone number.
Model number and serial number.
A clear, detailed description of the problem.
Proof of purchase including dealer or retailer name, address and date of purchase.
For faster service, locate the model, type, and serial numbers on your appliance.
CURTIS INTERNATIONAL LTD
7045 BECKETT DRIVE, UNIT 15
MISSISSAUGA, ONTARIO
L5S 2A3
414

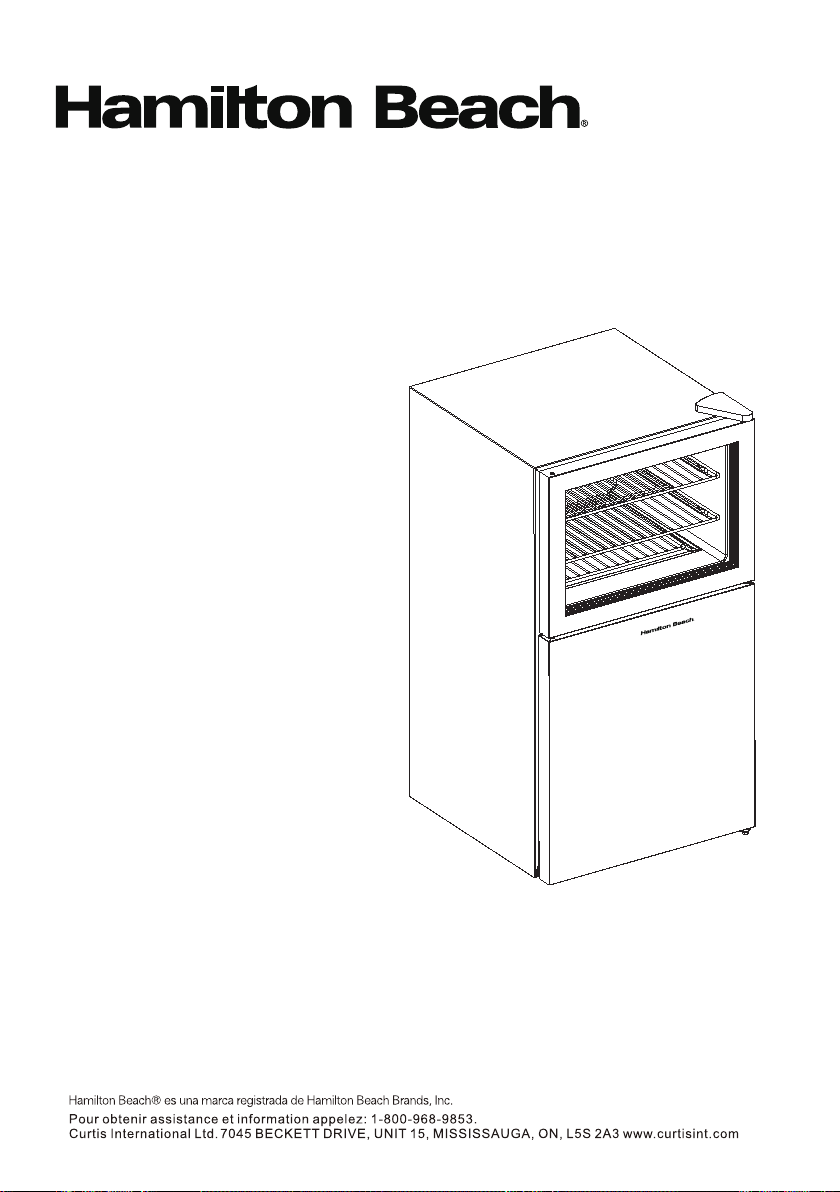

2.6 cu. ft. Combo centre de boissons à porte vitrée/
congélateur inférieur
Modèle No.
Le manuel du propriétaire
Ce combo centre de boissons à porte vitrée/congélateur
inférieur est réservé à un usage résidentiel.
Il n'est pas destiné à être utilisé dans
des environnements commerciaux.
A LIRE AVANT
UTILISATION
HBMIS4515
utilisé sous licence par Curtis International Ltd.

Felicitaciones,usted ha adquirido un combo centre de boissons à porte vitrée/
congélateur inférieur de alta calidad marca Hamilton Beach. Esta unidad está repleta
de funciones convenientes. Por favor,siga las precauciones de seguridad e
instrucciones de funcionamiento de este manual de uso fácil. Tómese el tiempo
para leerlo, y guarde estas instrucciones para uso futuro. Por favor, también recuerde
registrar el número de serie. El número de serie se encuentra en la parte superior
de la unidad junto al motor. Guarde su recibo engrapado a este manual para facilitar
el acceso.
Instructions de securite importantes......................................................... 3
Pieces et caracteristiques ........................................................................ 5
Compartiment refroidisseur (supérieur)
Démarrage et fonctionnement de l'unité
Guide de dépannage
................................................................................ 11
Entretien et entretien
............................................................................... 11
Comment installer..................................................................................... 6
Comment opérer .......................................................................................6
....................................................7
.......................................................8
................................................... 8
Contrôle de la température ...................................................................... 8
.............................................................................. 9
Compartiment congélateur (inférieur)
.................................................................................... 10
Comment nettoyer
Contrôle de la lumière
..................................................................................... 9
Inversion de porte
Spécifications du produit.......................................................................... 13
Garantie....................................................................................................
14

3
Lisez toutes les instructions avant d'utiliser cet appareil. Lorsque vous
utilisez cet appareil, respectez les consignes de securite de base y
compris les suivantes:
1. Utilisez cet appareil uniquement pour I'usage auquel il est destine
comme indique dans ce manuel d'utilisation et d'entretien
2. Cet appareil doit etre installe proprement et conformement aux instruc-
tions d'installation avant d'etre utilise. Consultez les instructions de
mise a terre dans la section d'installation.
3. Ne debranchez jamais votre combo centre de boissons en verre/congélateur
inférieur convertible en tirant sur le cordon d'alimentation'. Saisissez la fiche
fermement et tirez tout droit de la prise murale.
4. Reparez ou remplacez immediatement, toutes les cordes electriques qui
sont devenues frangees ou autrement endommagees.N 'utilisez pas un
cable representant des craquelures ou des abrasions a la longueur du
cordon, de la fiche ou de I'extremite du connecteur.
5. Debranchez votre combo centre de boissons à porte vitrée/congélateur inférieur
avant de le nettoyer ou avant de le reparer. Note: Si pour n'importe quelle raison
cet appareil exige un service de reparation, nous recommandons avec force
qu'un technicien certifie execute le service.
6. N'utilisez aucun dispositif electrique ou aucun instrument aigu pour degriver votre
combo centre de boissons à porte vitrée/congélateur inférieur convertible.
7. Si vous n'utilisez plus votre combo centre de boissons en verre/congélateur
inférieur convertible, nous vous recommandons de retirer les portes. Cela reduira
les risques d'accident aux enfants.
8. Apres avoir mis en marche votre d'ac-cident aux enfants, ne touchez pas
aux surfaces froides specialement si vos mains sont movillees ou humides.
La peau peut adherer aux surfaces extremement froides.
9. Ne congelez pas de nouveau la nourritue qui a ete degelee complete-
ment. Le service des Etats Unis d'Agriculture dans le bulletin de
Maison et Jardin NO 69 lisent ".... ous pouvez sans risque congeler
de nouveau la nourriture degelee si elle contient des cristaux de glace
ou si la temperature est restee froide au dessous de 40degres F.
securite importantes
Instructions de

4
"La viande hachee, le volaille,ou le poisson degeles, qui ont n'importe
quelle odeur ou couleur ne doivent pas etre congeles de nouveau ou
manges. La glace degelee doit etre jetee. Si I'odeur ou la couleur de
n'importe quelle nourriture est incertaine, jetez la. ll peut etre dan geureux
de manger cette nourriture.
"Meme une decongelation partiale et recongelati peuvent reduire la
qualitee de la nourriture, particulierement, les fuits, les vegetables et les
plats prepares en avance. La qualitee de la viande rouge est moins
affectee que celle que d'autres nourritures. Utilisez la nourriture qui a ete
recongelee au plus tot possible pour garder sa qualite.
10. Ce combo centre de boissons à porte vitrée/congélateur inférieur ne doit pas etre
encastre ou incorpore dans un placard enclos. ll est concu pour une installation
11. N'operez pas votre unite en presence des fumees explosives.
12. Ne stockez pas de substances explosives telles que des aérosols contenant des
substances inflammables. propulseur dans cet appareil.
Agrafer le ticket de caisse au guide.II devra être présenté pour tout
service après-vente sous garantie.
*Enlevez les portes.
*Laissez les étagères en place de sorte que les enfants ne puissent
pasfacilement s'élever à I'intérieur.
Veuillez conserver ces instructions
DANGER:Risque d'occlusion d'enfant. Avant que vous jetiez votre
vieux combo centre de boissons à porte vitrée/congélateur inférieur :
13. AVERTISSEMENT: maintenir les ouvertures de ventilation dégagées de toute
obstruction.
14. AVERTISSEMENT: n'utilisez pas d'appareils électriques dans la réserve
de nourriture compartiments de l’appareil, à moins qu’ils ne soient du type
recommandé par le fabricant.
15. AVERTISSEMENT: ne pas endommager le circuit de réfrigérant.
16. AVERTISSEMENT: Tous les produits de réfrigération contiennent des
réfrigérants qui, en vertu de la loi fédérale, doivent être éliminés avant
l'élimination du produit. Si vous vous débarrassez d'un ancien produit de
réfrigération, consultez une entreprise d'élimination qualifiée pour obtenir
des instructions.
sans encastrement.

5
Pieces et caracteristiques
1. Lumière LED interne
(Au plafond du refroidisseur)
2. Cadran de contrôle de la
température nterrupteur
3. Étagère du compartiment
réfrigéré (3 pièces)
4. Étagère du compartiment
congélateur
5. Porte vitrée pour glacière
6. Porte Pour congélateur
2
5
6
1
3
4

4
6
Comment Installer
Comment opérer
• Installez l'appareil dans un endroit pratique, loin de la chaleur et du froid extrêmes.
Cet appareil doit être éloigné de la source de chauffage et à l'abri de la lumière directe
du soleil. Laissez suffisamment d'espace entre l'appareil et la paroi latérale pour que
la porte s'ouvre sans obstruction. Cette unité est conçue pour une installation
autonome uniquement, pas pour une installation encastrée.
• Sélectionnez un espace avec un sol solide et plat. Non recommandé pour les
moquettes ou autres surfaces molles/inégales.
• Laissez 5 pouces d'espace entre le côté, l'arrière et le mur de l'appareil. De plus, un
dégagement suffisant (160°) doit être maintenu pour permettre à la porte de s'ouvrir
correctement et complètement.
• L'appareil doit être correctement connecté à l'alimentation électrique, 115V/60Hz,
certainement mise à la terre. Ne coupez ou ne retirez en aucun cas la troisième
broche (terre) du cordon d'alimentation. Toute question concernant l'alimentation
et/ou la mise à la terre doit être adressée à un électricien certifié ou à un
centre de service agréé. Cet appareil n'est pas conçu pour être installé dans un
camping-car ou utilisé avec un onduleur.
• Ne pas utiliser de rallonge.
• Cet appareil doit être placé sans colis à l'horizon. Il n'est pas permis d'incliner plus
de 45° pendant le transport.
• Évitez de placer le combo centre de boissons à porte vitrée/congélateur inférieur dans
des zones humides.
• Les vins doivent être déposés sur les étagères dans des contenants scellés pour
éviter les fuites.
• Ne pas surcharger.
• N'ouvrez pas la porte inutilement et ne la laissez pas entrouverte.
• Ne couvrez pas l'étagère avec un matériau tel que du papier d'aluminium, car cela
empêchera la circulation de l'air dans l'armoire.
