Hammer HS 950 User manual

User manual
Edge sanders
HS 950
(Translation)
Keep this manual handy and in good condition for continual reference!
Dok.ID: 504032-901_02 • Englisch • 2019-01-24
Download your local language
http://fg.am/ba-manuals
DE EN FR
PL SVROIT
DA
NL
ESCZ FI
HU RU

2
Edge sanders
HS 950
Attention!: The machine must be inspected immediately upon arrival. If the machine has been damaged du-
ring transport, or if any parts are missing, a written record of the problems must be submitted to the forwar-
ding agent and a damage report compiled. Also be sure to notify your supplier immediately.
For the safety of all personnel, it is necessary to study this manual thoroughly before assembly and operati-
on. This manual must be kept in good condition and should be considered as part of the machine. Furthermo-
re, the manual must be kept to hand and within the vicinity of the machine so that it is accessible to operators
when using, maintaining or repairing the machine.
Note: Year of construction
The machine number of this machine will be printed on the cover sheet of this operating manual.
The final two digits of the machine number show the year of construction of this machine.
e.g. XXX.XX.XXX.19 -> year of manufacture 2019
© FELDER KG
KR-FELDER-STR.1
A-6060 Hall in Tirol
Tel.: [phone] / 45 0 90
Fax: [phone] / 45 0 99
Email: [e-mail]
Internet: www.hammer.at
Hammer A product of the FELDER GROUP!

3
Edge sanders
HS 950
Content
Content
1 General .......................................................................................................... 6
1.1 Symbol legend ...............................................................................................................6
1.2 Information about the manual ..........................................................................................6
1.3 Liability and warranty .....................................................................................................7
1.4 Copyright ......................................................................................................................7
1.5 Warranty notice .............................................................................................................7
1.6 Spare parts ...................................................................................................................7
1.7 Disposal ........................................................................................................................8
2 Safety ............................................................................................................ 9
2.1 Intended use ..................................................................................................................9
2.2 Manual contents ............................................................................................................9
2.3 Making changes and modifications to the machine...........................................................10
2.4 Responsibilities of the operator .......................................................................................10
2.5 Personnel requirements ..................................................................................................10
2.6 Work safety ................................................................................................................10
2.7 Personal protective equipment ........................................................................................11
2.8 Machine hazards .........................................................................................................11
2.9 Other risks ..................................................................................................................12
3 Declaration of Conformity ............................................................................. 13
4 Technical specifications .................................................................................. 14
4.1Dimensions and weight ..................................................................................................14
4.2 Electrical connection .....................................................................................................14
4.3 Drive motor .................................................................................................................15
4.4 Noise emission ............................................................................................................15
4.5 Particle emission ..........................................................................................................15
4.6 Chip extraction ............................................................................................................16
4.7 Operation and storage conditions ..................................................................................16
4.8 Sanding unit ................................................................................................................16
5 Setting up the machine .................................................................................. 18
5.1 Overview ....................................................................................................................18

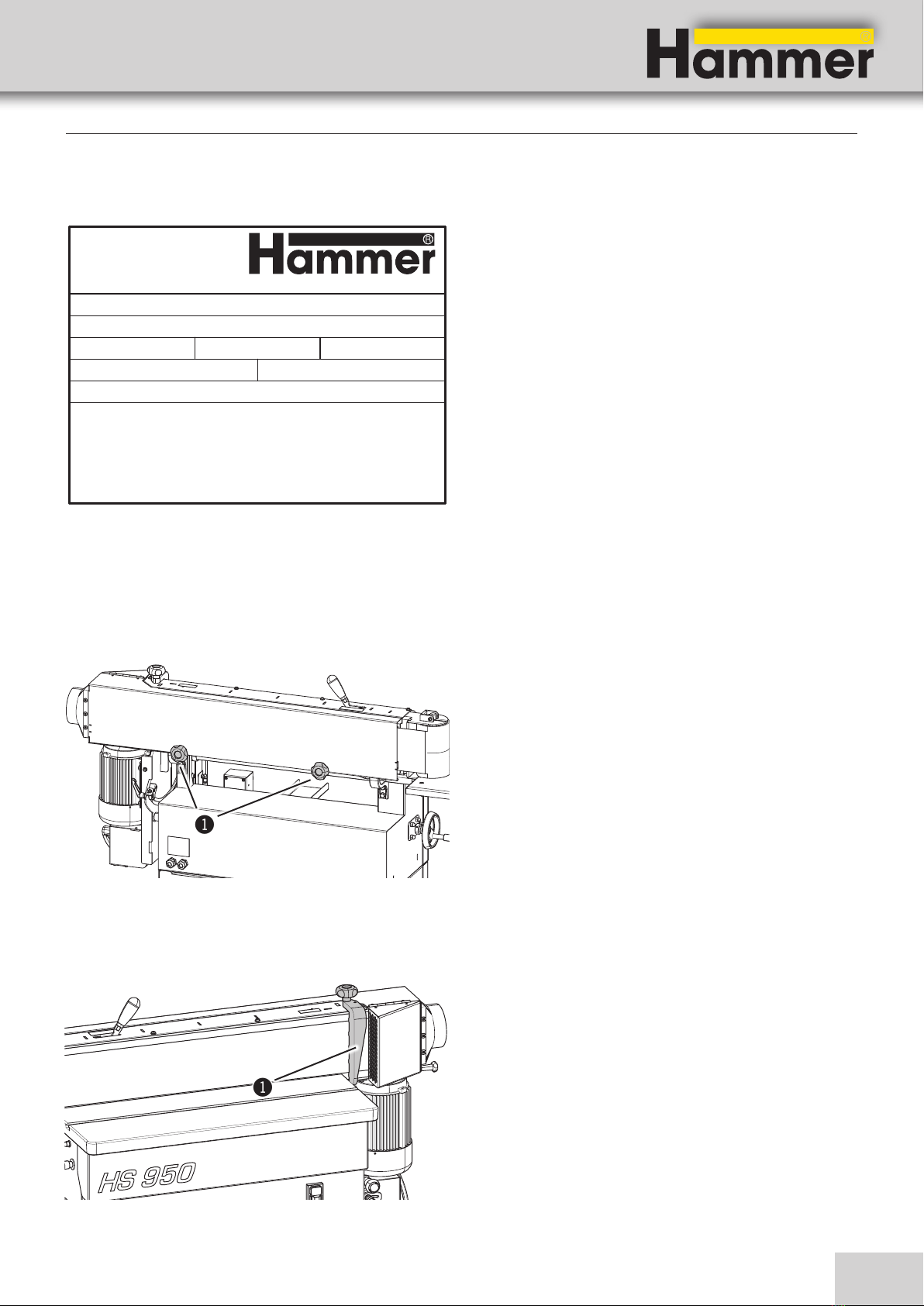

5.2 Data plate ........................................................................................................................ 19
5.3 Safety devices .............................................................................................................19
5.3.1 Rear cover abrasive belt .................................................................................................. 19
5.3.2 Infeed fence ................................................................................................................... 19
5.4 Operation and display elements ....................................................................................20
6 Transport, packaging and storage ................................................................. 22
6.1 Safety instructions ........................................................................................................22
6.2 Transport .....................................................................................................................22
6.2.1 Transport locking device .................................................................................................. 23
6.2.2 Transport with a crane ..................................................................................................... 23
6.2.3 Transport with a forklift truck............................................................................................. 24
6.2.4 Transport with a pallet jack .............................................................................................. 24
6.3 Transport inspection ......................................................................................................25
6.4 Packaging ...................................................................................................................25
6.5 Storage .......................................................................................................................25

4
Edge sanders
HS 950
7 Setup and installation ................................................................................... 26
7.1 Safety instructions ........................................................................................................26
7.2 Setup ..........................................................................................................................26
7.3 Machine assembly .......................................................................................................27
7.3.1 Assemble machine frame ................................................................................................. 27
7.3.2 Assembly - Adjustment handle / Oscillating range adjustment clamp ..................................... 28
7.3.3 Assembly - Rear cover abrasive belt .................................................................................. 29
7.3.4 Assembly - Infeed fence ................................................................................................... 29
7.3.5 Assembly / Setting - side working table ............................................................................. 29
7.4 Chip extraction ............................................................................................................31
7.5 Electrical connection .....................................................................................................32
8 Making adjustments and preparations ........................................................... 34
8.1 Safety instructions ........................................................................................................34
8.2 Sanding belt ................................................................................................................34
8.2.1 Sanding belts ................................................................................................................. 34
8.2.2 Storing the sanding belts .................................................................................................. 34
8.3 Fitting the sanding belt ..................................................................................................35
8.3.1 Centering the sanding belt - Height adjustment ................................................................... 35
8.4 Height adjustment of the working table / additional table .................................................36
8.5 Angle adjustment of the sanding unit ..............................................................................36
8.6 Sanding belt oscillation on/off .......................................................................................37
8.7 Extending the machining area (long workpieces) ..............................................................37
9 Operation .................................................................................................... 38
9.1 Safety instructions ........................................................................................................38
9.2 Switching on the machine .............................................................................................39
9.3 Switching off the machine / Emergency-stop ....................................................................39
9.4 Working techniques ......................................................................................................40
9.4.1 Working position ............................................................................................................ 40
9.4.2 Authorised working techniques ......................................................................................... 40
9.4.3 Prohibited working techniques .......................................................................................... 40
9.4.4 Grinding at the front of the machine .................................................................................. 41
9.4.5 Sanding with tilted unit .................................................................................................... 41
9.4.6 Face grinding at 0° ......................................................................................................... 42
9.4.7 Grinding of long workpieces ............................................................................................ 42
9.4.8 Grinding on the roller ..................................................................................................... 42
10 Service ....................................................................................................... 44
10.1 Safety instructions ......................................................................................................44
10.2 Maintenance schedule ................................................................................................44
10.3 Maintenance work .....................................................................................................45
10.3.1 Lubricating the height adjustment .................................................................................... 45
Content

5
Edge sanders
HS 950
Content
11 Faults ......................................................................................................... 46
11.1 Safety instructions ......................................................................................................46
11.2 What to do if a fault develops .....................................................................................46
11.3 What to do after rectifying the fault ..............................................................................46
11.4 Faults, causes and repairs ...........................................................................................47
11.4.1 Machine faults .............................................................................................................. 47
11.4.2 Belt guidance faults ....................................................................................................... 47
11.4.3 Sanding imperfections ................................................................................................... 48
11.5 Set the spring tension - belt tension ..............................................................................48
11.6 Adjusting the angle - Sanding module inclination ...........................................................49
12 Electrical circuit diagram ............................................................................ 50
13 Spare parts ................................................................................................ 52

6
!
Edge sanders
HS 950
Note:
This symbol marks tips and information which should be observed to ensure efficient and failure-free operation
of the machine.
Attention!: Risk of material damage!
This symbol marks instructions which, if not observed, may lead to material damage, functional failures and/
or machine breakdown!
Warning!: Risk of injury or death!
This symbol marks instructions that must be followed in order to avoid harm to one‘s health, injuries, perma-
nent impairment or death!
1 General
1.1 Symbol legend
Important technical safety instructions in this manual are
marked with symbols.
These instructions for work safety must be followed.
In all these particular cases, special attention must be
paid in order to avoid accidents, injury to persons or
material damage.
Warning!: Danger! Electric current!
This symbol warns of potentially dangerous situations relating to electric current. Not observing the safety
instructions increases the risk of serious injury or death. All electrical repairs must be carried out by a qualified
electrician!
1.2 Information about the manual
This manual describes how to operate the machine
properly and safely. Be sure to follow the safety tips and
instructions stated here as well as any local accident
prevention regulations and general safety regulations.
Before beginning any work on the machine, ensure that
the manual, in particular the chapter entitled “Safety”
and the respective safety guidelines, has been read in its
entirety and fully understood. This manual is an integral
part of the machine and must therefore be kept in the
direct vicinity of the machine and be accessible at all
times. If the machine is sold, rented, lent or otherwise
transferred to another party, the manual must accompany
the machine.
General

7
Edge sanders
HS 950
General
1.3 Liability and warranty
The contents and instructions in this manual have been
compiled in consideration of current regulations and
state-of-the-art technology as well as based on our
know-how and experience acquired over many years.
This manual must be read carefully before commencing
any work on or with this machine. The manufacturer
shall not be liable for damage and/or faults resulting
from the disregard of instructions in the manual. The text
and images do not necessarily represent the delivery
contents. The images and graphics are not depicted on
a 1:1 scale. The actual delivery contents are dependent
on custom-build specifications, add-on options or recent
technical modifications and may therefore deviate from
the descriptions, instructions and images contained in
the manual. Should any questions arise, please contact
the manufacturer. We reserve the right to make technical
modifications to the product in order to further improve
user-friendliness and develop its functionality.
1.4 Copyright
This manual should be handled confidentially. It is
designated solely for those persons who work on or with
the machine. All descriptions, texts, drawings, photos
and other depictions are protected by copyright and
other commercial laws. Illegal use of the materials is
punishable by law.
This manual, in its entirety or parts thereof, may not
be transferred to third parties or copied in any way or
form, and its contents may not be used or otherwise
communicated without the express written consent of the
manufacturer.
Infringement of these rights may lead to a demand for
compensation or other applicable claims. We reserve all
rights in exercising commercial protection laws.
1.5 Warranty notice
The guarantee period is in accordance with national
guidelines. Details may be found on our website,
www.felder-group.com
1.6 Spare parts
Use only genuine spare parts supplied by the manufac-
turer.
Attention!: Non genuine, counterfeit or faulty spare parts may result in damage, cause malfunction or comple-
te breakdown of the machine.
If unauthorised spare parts are fitted into the machine,
all warranty, service, compensation and liability claims
against the manufacturer and their contractors, dealers
and representatives shall be rejected.
Note: A list of authorised genuine spare parts can be found at the end of this operating manual.

8
Edge sanders
HS 950
General
1.7 Disposal
If the machine is to be disposed of, separate the compo-
nents into the various materials groups in order to allow
them to be reused or selectively disposed of. The whole
structure is made of steel and can therefore be dis-
mantled without problem.
This material is also easy to dispose of and does not pol-
Attention!: Used electrical materials, electronic components, lubricants and other auxiliary substances must be
treated as hazardous waste and may only be disposed of by specialised, licensed firms.
lute the environment or jeopardise public health. Interna-
tional environmental regulations and local disposal laws
must always be complied with.

9
!
Edge sanders
HS 950
Safety
2 Safety
At the time of its development and production, the
machine was built in accordance with prevailing
technological regulations and therefore conforms to
industry safety standards.
However, hazards may arise should the machine be
operated by untrained personnel, used improperly or em-
ployed for purposes other than those it was designed for.
The chapter entitled “Safety” offers an overview of all
the important safety considerations necessary to optimise
safety and ensure the safe and trouble-free operation of
the machine.
To further minimise risks, the other chapters of this
manual contain specific safety instructions, all marked
with symbols. Besides the various instructions, there are
a number of pictograms, signs and labels affixed to the
machine that must also be heeded. These must be kept
visible and must not be removed.
2.1 Intended use
2.2 Manual contents
All those appointed to work on or with the machine must
have fully read and understood the manual before
commencing any work. This requirement must be met
even if the appointed person is familiar with the
operation of such a machine or a similar one, or has
been trained by the manufacturer. Knowledge about the
contents of this manual is a prerequisite for protecting
personnel from hazards and avoiding mistakes so that
the machine may be operated in a safe and trouble- free
manner. It is recommended that the operator requests
proof from the personnel that the contents of the manual
have been read and understood.
The machine described in this manual is intended solely
for processing wood and similar machinable materials.
This includes all wood based panel material (e.g. Chip-
board, OSB panels, MDF, Plywood etc.), even if they are
laminated or edged with plastic or a light metal.
This information can be taken from the relevant safety
sheets
The term “proper use” also refers to correctly observing
the operating conditions as well as the specifications and
instructions in this manual.
The machine may only be operated with parts and
original accessories from the manufacturer.
Attention! Any use outside of the machine‘s intended purpose shall be considered improper and is therefore
not permitted. All claims regarding damage resulting from improper use that are made against the manufactu-
rer and its authorised representatives shall be rejected. The operator shall be solely liable for any damage that
results from improper use of the machine.
Attention! Risk of material damage!
Machining materials other than wood is only permitted with the express written consent of the manufacturer.
Operational safety is guaranteed only when the machine is used for the intended purposes.

10
Edge sanders
HS 950
2.3 Making changes and modifications to the machine
In order to minimise risks and to ensure optimal perfor-
mance, it is strictly prohibited to alter, retrofit or modify
the machine in any way without the express consent of
the manufacturer. All the pictograms, signs and labels af-
fixed to the machine must be kept visible, readable and
may not be removed. Pictograms, signs and labels that
have become damaged or unreadable must be replaced
promptly.
Safety
2.4 Responsibilities of the operator
This manual must be kept in the immediate vicinity of
the machine and be accessible at all times to all persons
working on or with the machine. The machine may only
be operated if it is in proper working order and in safe
condition. The general condition of the machine must be
controlled and the machine must be inspected for visible
defects every time before it is switched on. All instruc-
tions in this manual must be strictly followed without
reservation.
Besides the safety advice and instructions stated in this
manual, it is necessary to consider and observe local
accident prevention regulations, general safety regula-
tions as well as current environmental stipulations that
apply to the operational range of the machine.
The operator and designated personnel are responsible
for the trouble-free operation of the machine as well as
for clearly establishing who is in charge of installing,
servicing, maintaining and cleaning the machine.
Machines, tools and accessories must be kept out of the
reach of children.
2.5 Personnel requirements
Only authorised and trained personnel may work on and
with the machine. Personnel must be briefed about all
functions and potential dangers of the machine. “Spe-
cialist staff“ is a term that refers to those who – due to
their professional training, know-how, experience, and
knowledge of relevant regulations – are in a position to
assess delegated tasks and recognise potential risks. If
the personnel lack the necessary knowledge for wor-
king on or with the machine, they must first be trained.
Responsibility for working with the machine (installation,
service, maintenance, overhaul) must be clearly defined
and strictly observed. Only those persons who can be
expected to carry out their work reliably may be given
permission to work on or with the machine. Personnel
must refrain from working in ways that could harm
others, the environment or the machine itself. It is absolu-
tely forbidden for anyone who is under the influence of
drugs, alcohol or reaction-impairing medication to work
on or with the machine. When appointing personnel to
work on the machine, it is necessary to observe all local
regulations regarding age and professional status. The
user is also responsible for ensuring that unauthorised
persons remain at a safe distance from the machine.
Personnel are obliged to immediately report any irregu-
larities with the machine that might compromise safety to
the operator.
2.6 Work safety
Following the safety advice and instructions given in this
manual can prevent bodily injury and material
damage while working on and with the machine. Failure
to observe these instructions can lead to bodily injury
and damage to or destruction of the machine. Disregard
of the safety advice and instructions given in this manual
as well as the accident prevention regulations and gene-
ral safety regulations applicable to the operative range
of the machine shall release the manufacturer and their
authorised representatives from any liability and from all
compensation claims.

11
Edge sanders
HS 950
Safety

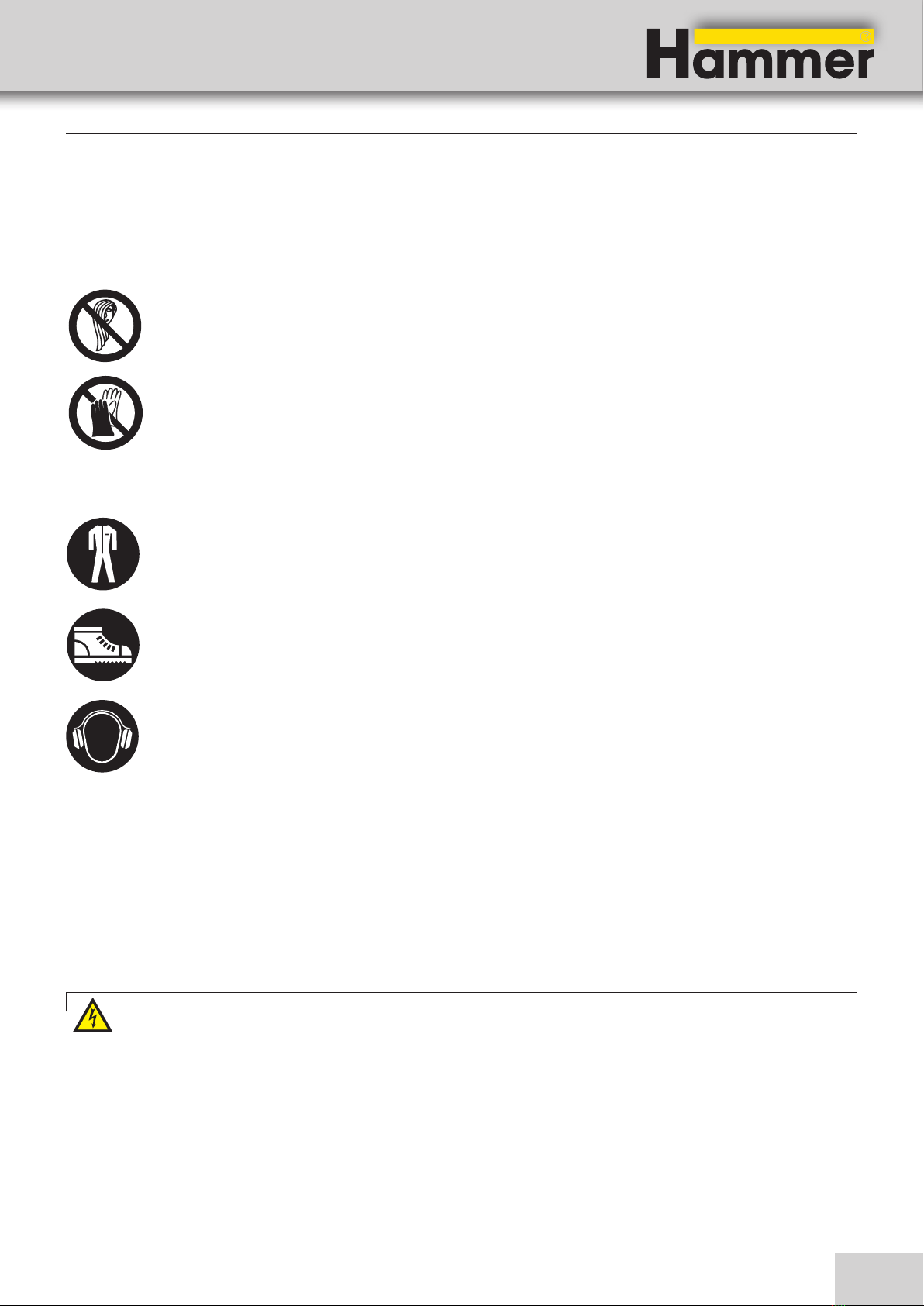

2.7 Personal protective equipment
When working on or with the machine, the following
must be strictly observed:
Protective clothes
Sturdy, tight-fitting clothing (tear-resistant, no wide sleeves, no jewellery (rings, bracelets, necklaces, etc.)).
Persons with long hair who are not wearing a hairnet are not permitted to work on or with the machine!
It is prohibited to wear gloves while working on or with the machine.
When working on or with the machine, the following must always be worn by personnel:
Protective footwear
To protect the feet from heavy falling objects and to prevent slipping on slippery surfaces.
Hearing protection
To avoid hearing damage.
2.8 Machine hazards
The machine has undergone a hazard analysis. The
design and construction of the machine are based on the
results of this analysis and correspond to state-of-the-art
technology.
The machine is considered operationally safe when used
properly.
Nevertheless, there are some remaining risks that must be
considered.
The machine runs at high electrical voltage.
Warning! Danger! Electric current!: Electrical energy can cause serious bodily injury. Damaged insulation
materials or defective individual components can cause a life-threatening electrical shock.
• Before carrying out any maintenance, cleaning and
repair work, switch off the machine and ensure that it
can not be accidentally switched on again.
• When carrying out any work on the electrical equip-
ment, ensure that the voltage supply is completely
isolated.
• Do not remove any safety devices or alter them to
prevent them from functioning correctly.

12
Edge sanders
HS 950
Safety
2.9 Other risks
Warning! Risk of injury!: Even if the safety measures are complied with, there are still certain associated risks
that must be considered when working on the machine:
• Risk of injury from workpieces or other workpiece
parts jamming in the machine or being ejected.
• Risk of injury due to crushing.
• Risk of injury from workpiece kickback.
• Hearing damage as a result of high noise levels.
• Health impairments due to the inhalation of airborne
particles, especially when working with beech and
oak wood.
• Accidental hand contact with the operating sanding
belt.
• The workpiece tipping due to insufficient workpiece
support.
• Danger of an accident resulting from the unprotected
part of the running sanding belt.
• Risk of injury resulting from the upper sanding belt
edge in the unprotected parts.

13
Hall in Tirol, 01.01.2017
Edge sanders
HS 950
EG-Declaration of Conformity
According to Machine Guidelines 2006/42/EG
We hereby declare that the machine indicated below, which corresponds to the design and construction of the model
we placed on the market, conforms with the health and safety requirements as stated by the EC.
Manufacturer: FELDER KG
KR-FELDER-STR.1
A-6060 Hall in Tirol
Product designation: Edge sanders
Make: Hammer
Model designation: HS 950
The following EC guidelines were applied: 2006/42/EG
2014/35/EU
2014/30/EU
This EC Declaration of Conformity is valid only if the CE label has been affixed to the machine.
Modifying or altering the machine without the express written agreement of the manufacturer shall render the
warranty null and void.
The signatory of this statement is the appointed agent for
the compilation of the technical information.
3 Declaration of Conformity
Declaration of Conformity
Johann Felder, Managing Director FELDER KG
KR-FELDER-STR.1 A-6060 Hall in Tirol

14

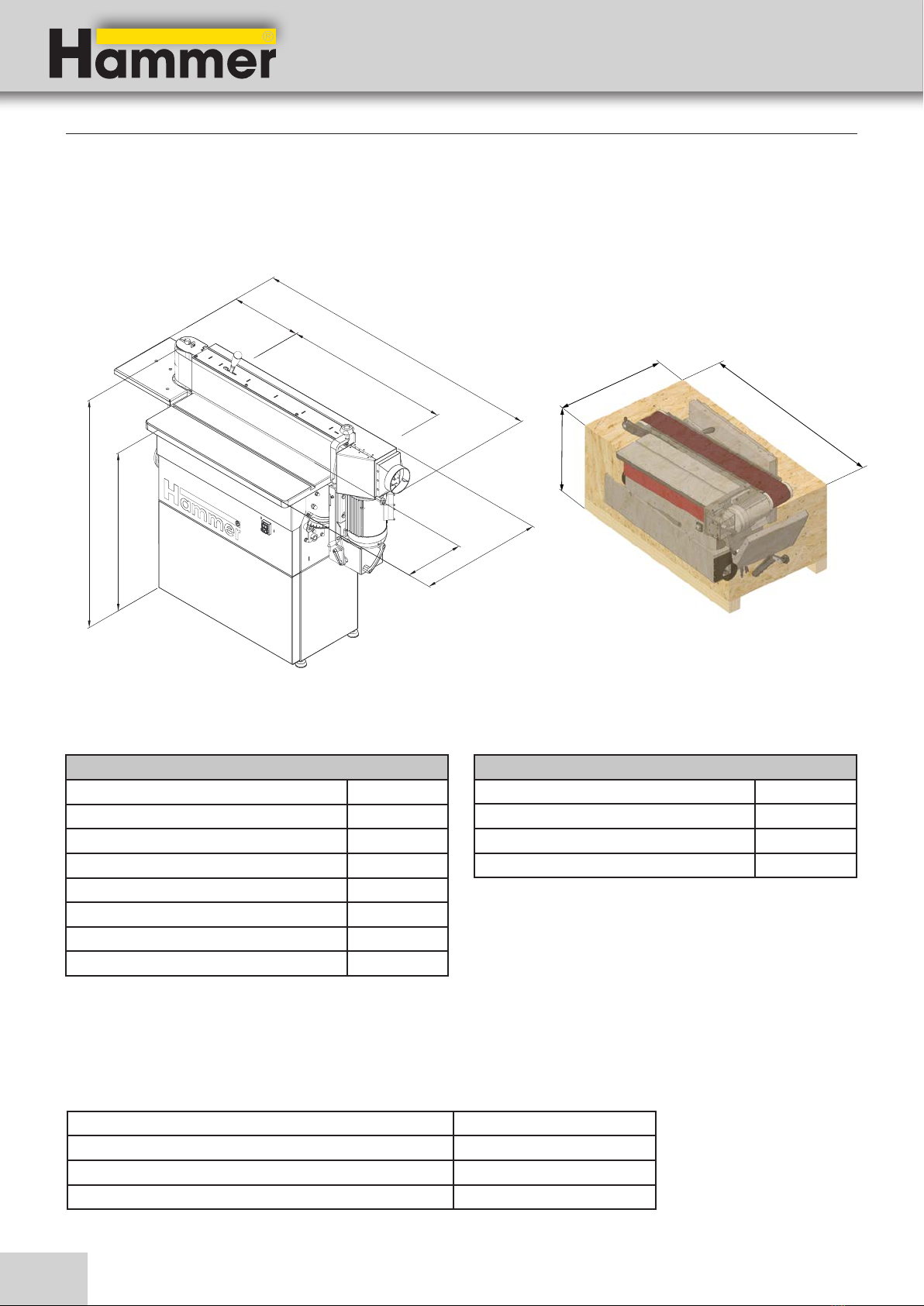

B
D
A
FE
C1
C
L
B
H
Edge sanders
HS 950
Machine
Total length (A) 1540 mm
Overall width (B) 530 mm
Total height (C) 1235 mm
Working height (C1) 930 mm
Machine table width (D) 300 mm
Length: Machine table (E) 855 mm
Length - side working table (F) 337 mm
Weight 165 kg
Machine including packaging
Length (L) 1430 mm
Width (B) *) 775 mm
Height (H) 636 mm
Weight 200 kg
*)The transport width measures under 800 mm. This makes it possible to transport the machine through doorways.
4 Technical specifications
Technical specifications
4.1Dimensions and weight
Fig. 4-1: Dimensions and weight
4.2 Electrical connection
mains voltage according to specification plate ±10%
Safeguarding see circuit plan
Power supply cord (H07RN-F) 3 x 2,5 mm²/ 5 x 2,5 mm²
Triggering characteristic C

15
Edge sanders
HS 950
4.3 Drive motor
Alternating-current motor Three-phase current motor
Motor voltage 1x 230 V 3x 400 V
motor frequency 50/60 Hz 50 Hz
Motor power S6-40 %*)2,2 kW 2,2 kW
System of protection IP 55 IP 55
The actual values can be found on the data plate.
Technical specifications
*) S6 = 10 minute operation under load and intermittent service; 40% relative operating factor
i.e. the motor may be run at the nominal capacity for 4 minutes and afterwards must run idle for 6 minutes.
4.4 Noise emission
The specified values are emission values and therefore
do not represent safe workplace values. Even though a
relationship exists between particle emission and noise
emission levels, an inference cannot be made about
whether additional safety measures need to be imple-
mented. Factors which can significantly affect the emis-
sion level that presently exists at the workplace include
duration of the effect, characteristics of the workspace,
and other ambient influences.
The permissible workplace values may also differ from
country to country. Nevertheless, this information is provi-
ded to help the operator better assess hazards and risks.
Depending on the location of the machine and other
specific conditions, the actual noise emission values may
deviate significantly from the specified values.
It is recommended to use protective ear equipment, this is
however not a substitute for properly sharpened tools or
the correct operating speed.
An allowance must be made to compensate for tole-
rances with the specified emission values K = 4 dB (A).
Emission values at the workplace according to EN ISO 11202
Idle 83,1 db
Working 82,8 db
4.5 Particle emission
The working areas of this machine comply to BGI 739-1
and are classed as dust reduced.
The maximum concentration level of 2 mg/m³ of inhala-
ble dust in the air will not be exceeded.
This is certified by the blue label “BG Wood Particle
Tested”.
This only applies if the conditions that are specified in
the section >Extraction< are adhered to.
See chapter entitled >Setup and installation<

16
Edge sanders
HS 950
4.8 Sanding unit
Sanding
sanding roller Ø 110 mm
Sanding belt 2515 x 150 mm
Sanding belt inclination 0–90°
Sanding belt speed 17 m/s (50 Hz)
10 m/s (60 Hz)
Vertical traversing distance 0–150 mm
Oscillating range 5 mm
Oscillating frequency 90 /min (60 Hz)
75 /min (50 Hz)
Technical specifications
4.6 Chip extraction
Extraction connection
Diameter 120 mm
Vacuum, min. 1310 Pa
Volume flow, min. 814 m³/h
4.7 Operation and storage conditions
Operating/room temperature +10 bis +40 °C
Storage temperature –10 bis +50 °C

17
Edge sanders
HS 950
Technical specifications

18
&
%
$
!
#
"/
(
)
BL
BM
BN
BO
Edge sanders
HS 950
!Machine framel
"Sanding unit (tiltable from)
#Vacuum connector
$Machine table
%side working table
&Drive motor
/Infeed fence
(On/Off switch
)Rear cover abrasive belt
BL extraction flap (tiltable from)
BM Handwheel - Height adjustment
BN sanding belt oscillation
BO mitre fence (Accessories)
Setting up the machine
5 Setting up the machine

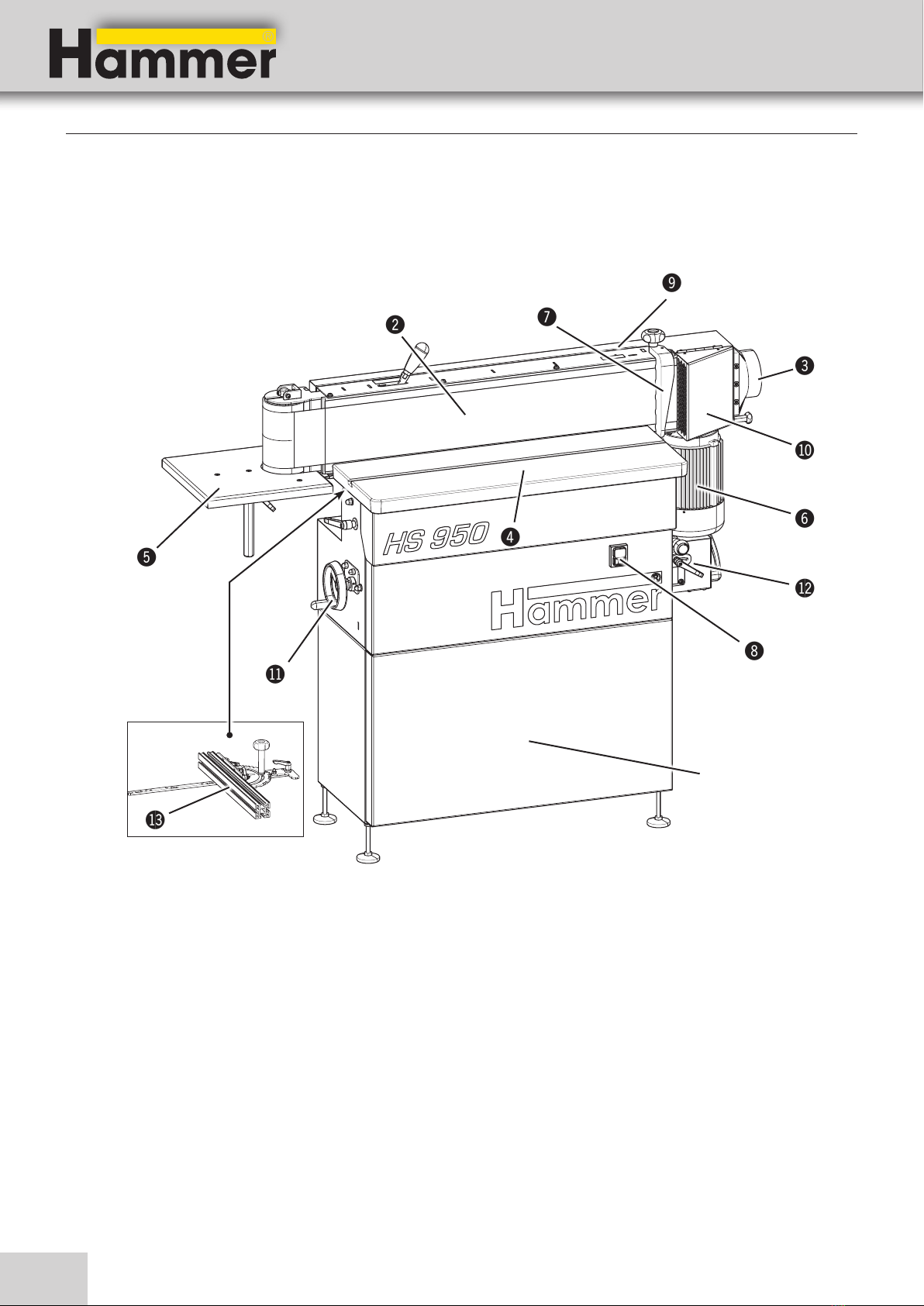

5.1 Overview
Fig. 5-1: Overview

19
KR-FELDER-STR.1
A - 6060 HALL in Tirol
AUSTRIA
Tel.: [phone] / 45 0 90
Tax.: 0043 (0)5223 / 45 0 99
Motordaten:
Baujahr / year of constr. / annee de constr. :
A:KW:
HZ:PH:V:
NR. :
TYPE :
[email protected] / www.hammer.at
!
!
Edge sanders
HS 950
The back cover prevents contact with the rotating abra-
sive belt.
The back cover is fixed to the machine with clamping
screws.
!Clamping screw
Setting up the machine
The data plate displays the following specifications:
• Manufacturer information
• Model designation
• Machine number
• Voltage
• Phases
• Frequency
• Motor power
• Power supply
• Year of construction
• Motor specifications
Fig. 5-2: Data plate
5.2 Data plate
5.3 Safety devices
5.3.1 Rear cover abrasive belt
Fig. 5-3: Rear cover abrasive belt
5.3.2 Infeed fence
Fig. 5-4: Infeed fence
The workpiece stop prevents workpieces from being
thrown backwards.
!Infeed fence

20
90
80
85
BL BM
BO
!
"
$
#
/
%
&
)
*
BN
Edge sanders
HS 950

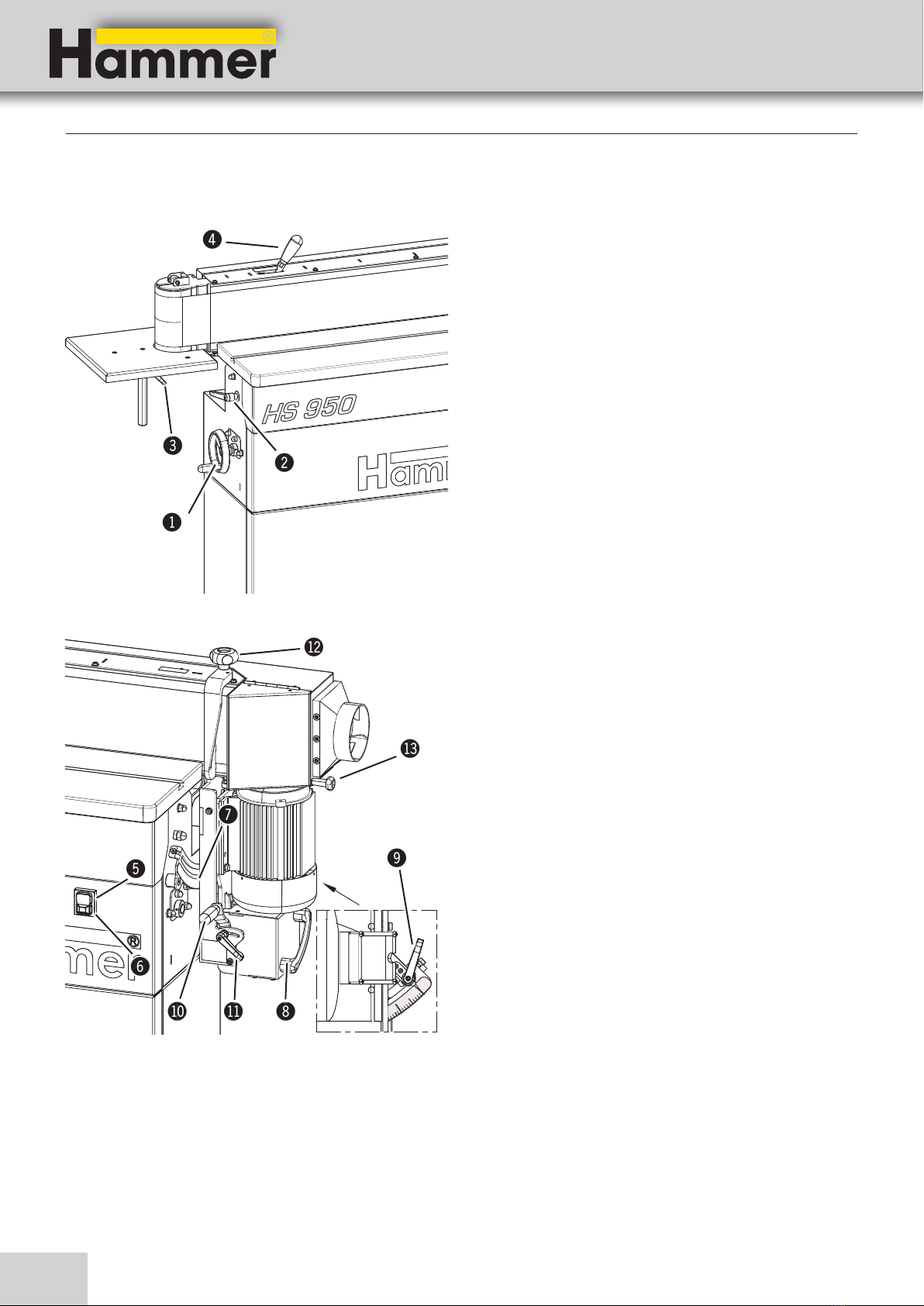

!Handwheel - Height adjustment
Height adjustment (Work bench)
"Clamping lever
Clamp - Height adjustment (Work bench)
#Clamping lever
Clamp - Height adjustment (side working table)
$Chuck lever - Changing the sanding belt
Tool free handling when changing the sanding belt
%Green push button
Switching on the machine
&Red push button
Emergency stop and switching off the machine
/Scale - Sanding module inclination
Angle display 0°-90°
(Hand grip
Sanding module inclination
)Clamping lever - Sanding module inclination
angle adjustment clamp
BL Adjustment handle - Oscillating sanding
Adjustment - Oscillating range
BM Clamping lever - Oscillating sanding
Oscillating range adjustment clamp
BN Clamping lever - Infeed fence
End stop clamping
BO Clamping lever - extraction flap
Extending the machining area (long workpieces)
5.4 Operation and display elements
Setting up the machine
Fig. 5-5: Operation and display elements
Fig. 5-6: Operation and display elements
