THANK YOU
Thank you for choosing Hampton Bay!
USE AND CARE GUIDE
Santa Maria 13ft. x10ft. Roof Style Garden House
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8.00 a.m. - 6.00 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Model #5LGZ6526-V4
to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
garden house.

2
Table of Contents
Safety Information
Warranty
Table of Contents........................................................2
Safety Information.......................................................2
Warranty ...................................................................... 2
One Year Frame and Fabric Limited Warranty............................ 2
Pre-Assembly ............................................................3
Planning Assembly... ................................................................3
Hardware Included.................................................................. 3
Package Contents ....................................................................4
Assembly ....................................................................5
................................................................ 2
What Is Covered
What Is Not Covered ................................................................ 2..
.... ..
ONE YEAR FRAME AND FABRIC LIMITED WARRANTY
WHAT IS COVERED
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
You may contact our customer service department with any questions by phone at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Care Instructions
Before using, wipe with a clean, dry cloth. Do not use bleach or solvents. Treat the frame with liquid wax for maximum protection against
UV light and salty, damp air. Wash the canopy with a mild solution of soap and water, rinse thoroughly, air dry completely.
Please properly tighten all hardware and perform periodic inspections during usage for cracked welds or loose nuts or bolts.
Care Instructions... ................................................................ 2..
WARNING: Keep all ame and heat sources away from this tent fabric. This tent is made with fabric that meets CPAI-84 specication for
ame resistance. It is not re proof. The fabric will burn if left in continuous contact with any ame source. The application of any foreign
substance to the tent fabric may render the ame-resistance properties ineffective.
WARNING: This garden house Gazebo is NOT a permanent structure and is designed for sunshade and privacy and must be used under
normal weather conditions. We recommend removal of the fabric canopy in windy conditions as gazebos catch wind similar to umbrellas. You
must however completely disassemble the unit prior to any severe weather conditions such as thunderstorm, hurricane, and/or heavy wind and
rain. Failure to remove the fabric canopy or disassemble the unit will cause the gazebo to have structure damage or even structural collapse.
CAUTION:Always install on level ground utilizing tie down cords and ground stakes. DO NOT PERMANENTLY ANCHOR THE UNIT TO A WOOD
DECK OR CONCRET SURFACE.
CAUTION: Garden house fabrics are water resistant but not water proof and may leak during precipitation. Fabrics will fade from direct
exposure to sunlight.
CAUTION: Keep all children and pets away from assembly area.
Begin assembly not less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, clothes line or electrical wires.
Some parts may contain sharp edges, wear protective gloves if necessary. At least two or more people are recommended for safe assembly.
We warrant the frame and fabric to be free of manufacturing defects to the original purchaser for one year.

3 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Assembly
PLANNING ASSEMBLY
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity
AA Bolt (M6x16) 52
BB Bolt (M6x35) 8
CC 4
DD 12
FF GG
Bolt cap
Nut
EE
HH
Hex wrench
It will take two people about 30 minutes to complete the assembly process.
AA BB
II
DD
EE
CC
JJ
Part Description Quantity
8
4
4
1
1
HH
FF
II
Wrench
GG
Anchor
Guy rope
Ground stake
Bolt (M6x82)
64 JJ
KK Plastic clip 48
HH

4
Pre-Assembly(continued)

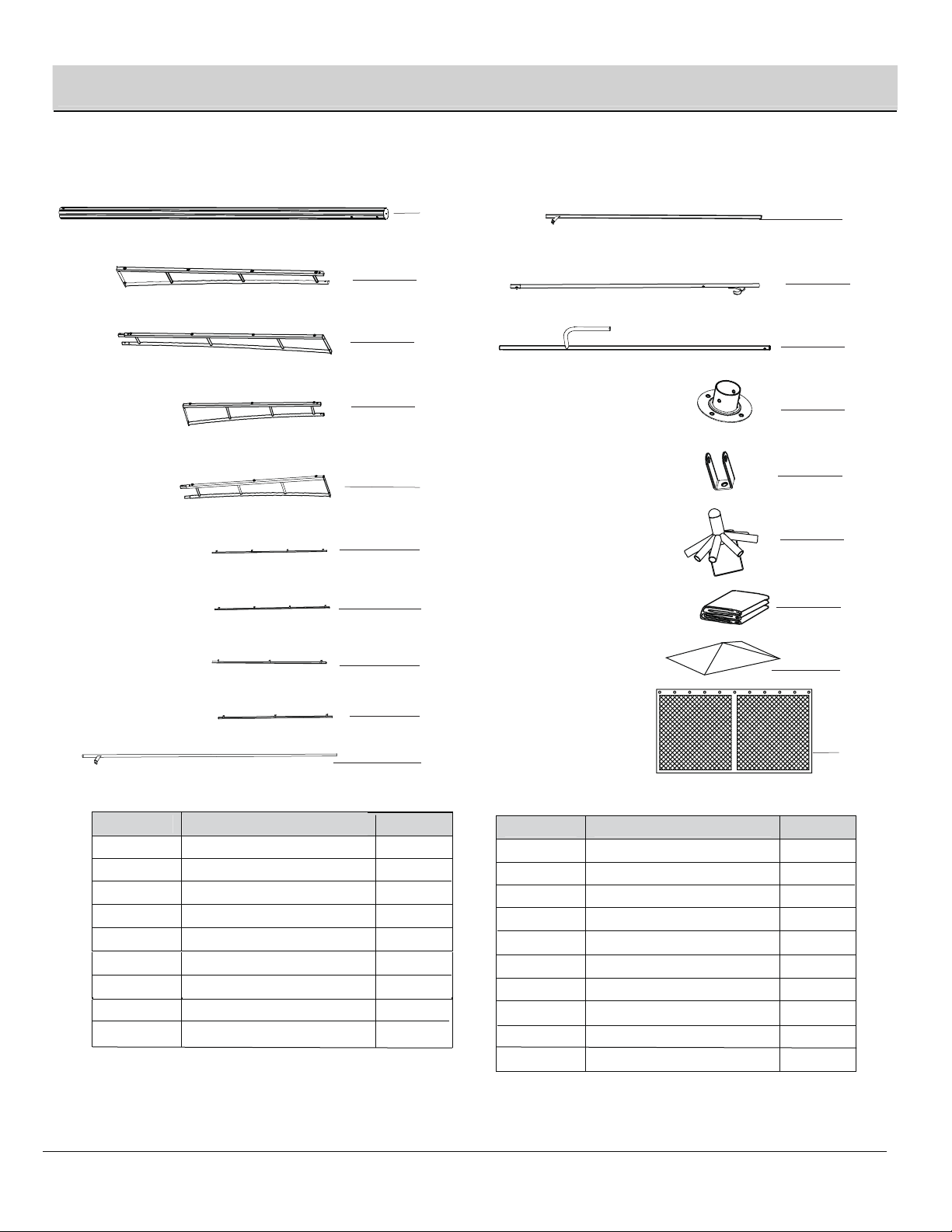

PACKAGE CONTENTS
Part Description Quantity
A
Left long beam
4
Post
2
C
2
D
Left short beam 2
E
Right long netting rail
2
F
Right short beam
2
Right long beam
G
2
Long middle roof tube 2
H
B
A
B
C
D
E
F
G
H
I
L
M
N
Part Description Quantity
I
Vent hub
2
4
K
1
L
4
M
Post base
N
Bracket
4
Lower corner roof tube
4
J
Left long netting rail
O
P
Q
R
Short middle roof tube
Right short netting rail 2
Left short netting rail 2
Upper corner roof tube
O
P
Vent cover
1
1
Main canopyQ
R
4
SNetting panel
S
J
K

5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly
1 Attaching the post bases
□Attach one post base (N) to each post (A) with one bolt (CC) and one nut (DD) using hex wrench (II) and wrench (JJ).
A
A
DD
N
CC

Assembly (continued)
6

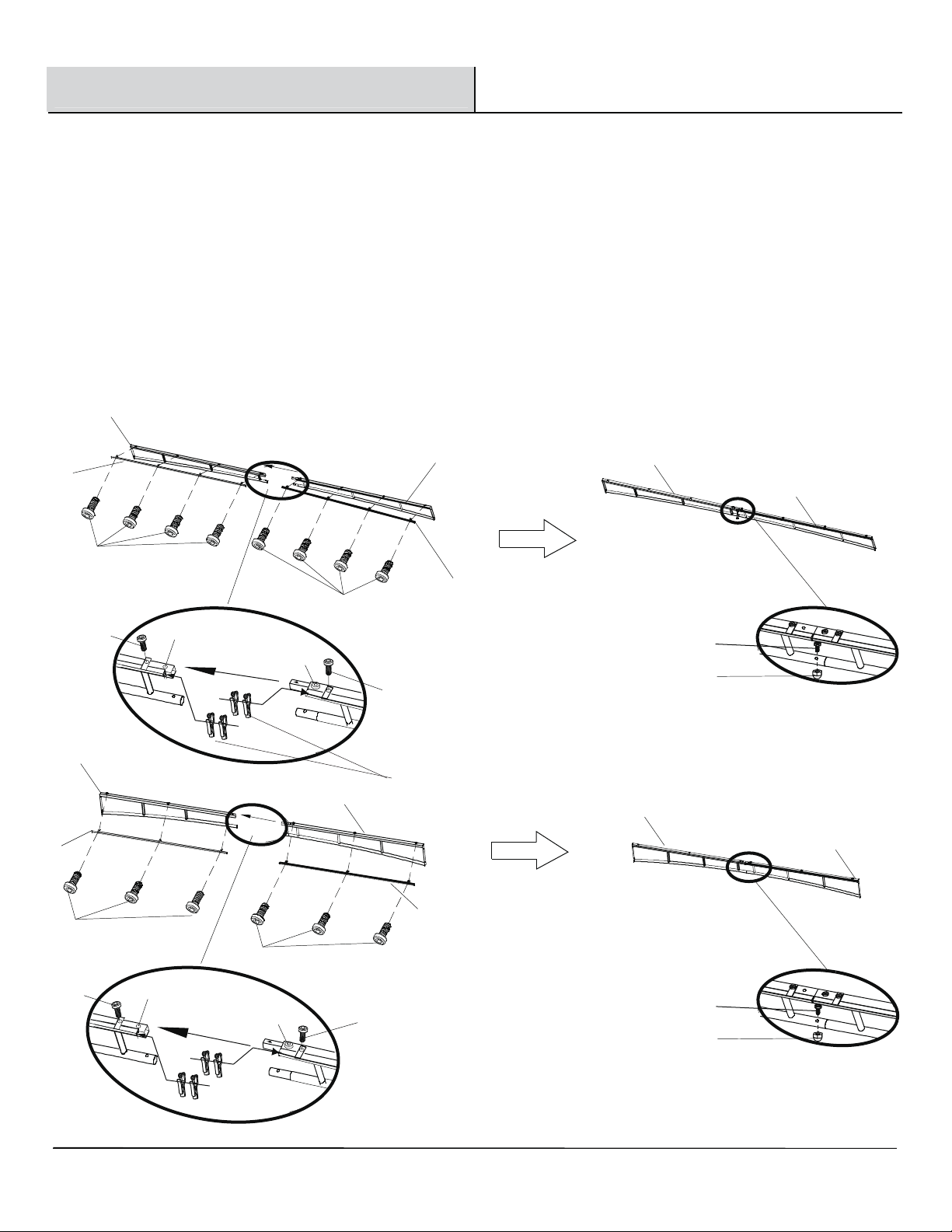

2 Assembling beams and netting rails
□Snap beam (C) into beam (B) and secure them with one bolt (BB) and one nut (DD) from below, using hex wrench (II) and wrench (JJ).
□Repeat this for the remaining long beams (B,C) and short beams (D,E).
B
FC
G
AA
AA
AA
AA
D
E
B
C
I
H
BB
D
E
DD
□Attach neting rail (F) to beam (B), netting rail (G) to beam (C), netting rail (H) to beam (D), netting rail (I) to beam (E) with bolts (AA), using
hex wrench (II).
AA
BB
DD
AA
Pre-installed
Keep it empty
until step 5.
AA
AA
Pre-installed
Keep it empty
until step 5.
5pcs
5pcs
7pcs
7pcs
Insert seven plastic clips (KK) into each long netting rail (F/G).
Insert ve plastic clips (KK) into each short netting rail (H/I).
□
□
KK

Assembly (continued)
7

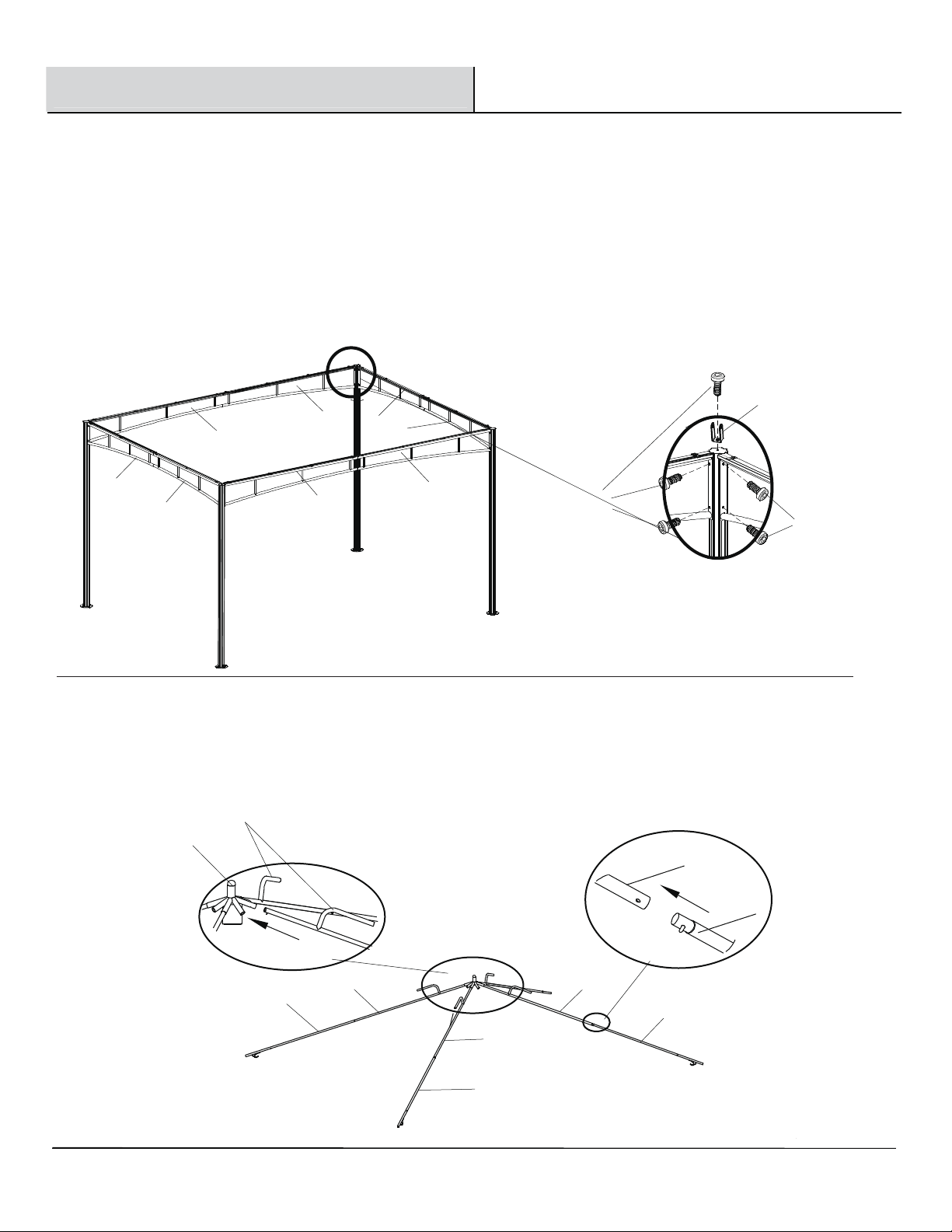

4 Assembling the corner roof tube
□Snap one lower corner roof tube (L) into each upper corner roof tube (M).
Snap the other end of each corner roof tube (M) into the receivers M of vent hub (P).
3 Setting up the main frame
□Please have a free standing ladder ready for ease of assembly.
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTONfor further assistance.
□Use two bolts (AA) to attach the B side of the assembled long beams to the outside right corner post (A) and two bolts (AA) to attach the
C side of the assembled long beams to the outside left corner post (A). (See illustration below)
□
Use two bolts (AA) to attach the D side of the assembled short beams to the outside right corner post (A) and two bolts (AA) to attach the
E side of the assembled long beams to the outside left corner post (A). (See illustration below)
□Repeat the above procedures until the frame is up.
□Attach one bracket (O) onto the top of each post (A) with one bolt (AA) using hex wrench (II).
□
BC
EB
C
E
D
DAA
AA
O
M
L
LM
P
L
M
M
M
L

Assembly (continued)
8
5 Attaching the roof frame
□With a person on the ladder at the center of the main frame, place the roof frame onto the top of the main frame.
□Match corner roof tube (L) to the brackets (O) located at the top of each post (A). Secure them with bolt (BB) and nut (DD) using
hex wrench (II) and wrench (JJ).
L
O
DD
BB
□Snap long middle roof tubes (J) into the receivers J of vent hub (P) and secure the other end to the right short beam (D) with one
bolt (AA) using hex wrench (II).
□Snap short middle roof tubes (K) into the receivers K of vent hub (P) and secure the other end to the right long beam (B) with one
bolt (AA) using hex wrench (II).
AA
J
K
AA
K
J
JK
P
D
B

Assembly (continued)
9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
6 Attaching the main canopy and the vent cover
□Identify the long side and the short side of the main canopy (Q), gently place the main canopy (Q) over roof frame.
□Pull the canopy down to each corner until all corner roof tubes (L) and middle roof tubes(J,K) t well into the pockets on canopy.
□From under the main canopy (Q) gently place vent cover (R) over corner roof tubes (M). Pull the vent cover (R) down
to each corner until all roof tubes (M) t well into the pockets on vent cover (R).
□Using the hook and loop straps secure the vent cover (R) and the main canopy (Q) to the roof frame.
Q
R
L
J/K

Assembly (continued)
10

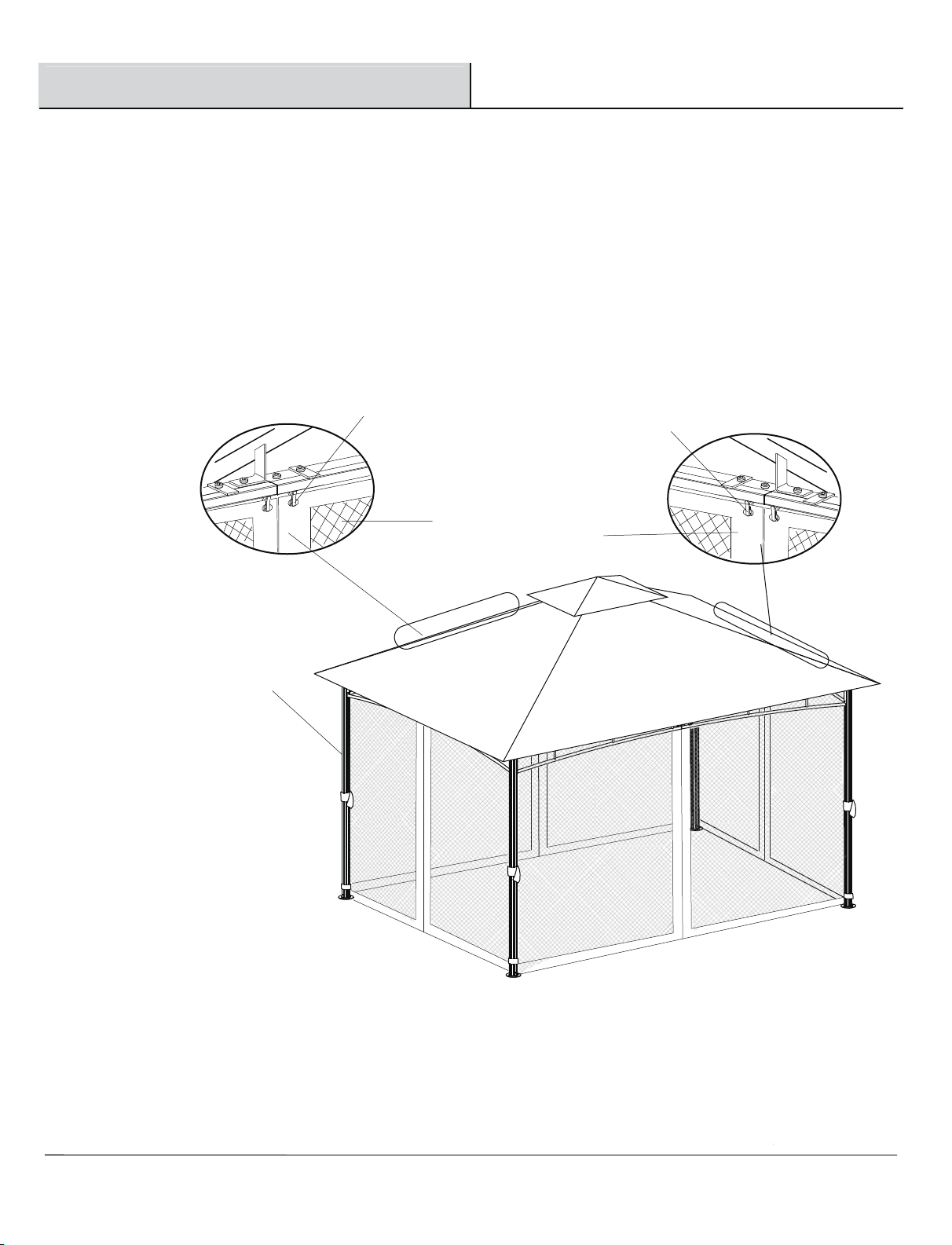

7 Hanging the nettings
□Find the short and long side of each netting panel (S).
Attach the long and short sides of each netting panel to the plastic clips (KK) from the inside corners of the main frame.
Secure each netting panel (S) to the posts (A) using the small tie back on the outside of the netting panels.
With netting panels pulled to each corner, secure the netting panels to the corner post with the large tie back on the inside of
the netting panels.
SS
KK KK
A
□
□
□

Assembly (continued)

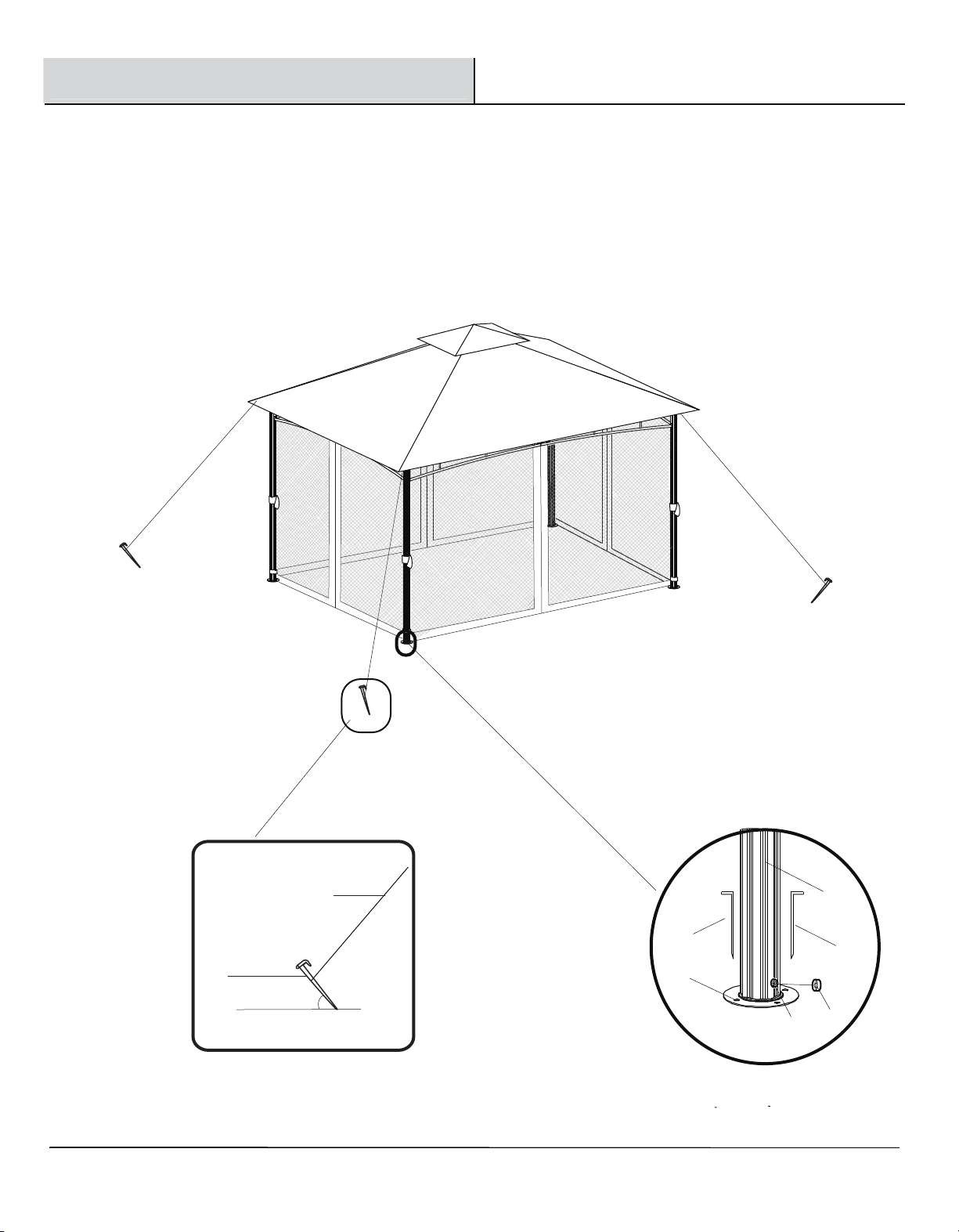

8 Anchoring the garden house
□Adjust the location of each post (A) until all posts (A) are standing comletely upright on level ground. Hammer two ground stakes (FF)
through the holes on each post base (N) into the ground.
11
□Measure out from post to the longest possible distance to best use the length of the guy rope (GG) and secure anchor (HH) to ground
at 45 degress.
□Cover all the bolts (AA, BB and CC) with bolt covers (EE).
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
HH
45。
GG
FF
FF
A
N
EE
CC

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8.00 a.m. – 6.00 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
