HAMPTON BAY GSS00224BW User manual

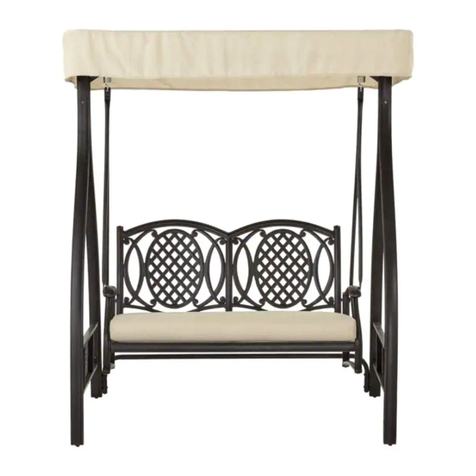

2 PERSON STEEL SLING SWING WITH CANOPY
Item # 1002 060 499
Model # GSS00224BW
USE AND CARE GUIDE
THANK YOU
y through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m.,EST, Monday - Friday, 9 a.m. - 6 p.m.,EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM

2
Table of Contents
Warranty ........................................................................2
What is Covered ...................................................................... 2
What is Not Covered ................................................................ 2
Planning Assembly .................................................................. 3
HardwareIncluded .................................................................. 3
. 10.....................................................gninaelCdnaeraC
Warranty
noitamrofnIytefaS
PRODUCT CAUTION
This swing was made for the explicit purpose of providing outdoor functions and isnot tobe used as a toy. Thisproductisintended for
normal outdoor use; however, themanufacturer recommends storing and / or covering this swing when any formidable/ severe weather is
he product.
Children under the age of 10 near the product, should be supervised by a competent adultat all times. Thisproduct is NOT intended for
commercial use and will void the warranty.
ylbmessA 5
Package Contents................................................................... 4
Safety Information .......................................................2
Product Caution .................................................................... 2
WARNING: Weightlimit for the swing chair is 225 lbs
(102.06 kg) for each seat.
WARNING: Please keep children outof the assembly
area before assembly.
CAUTION: Do not locate theproduct near any
heat source.
!
Safety Warnings ..................................................................... 2
Table of Contents..........................................................2 Pre-Assembly ................................................................3
WARNING: This swing unit is heavy, and may require
two adults for safe assembly.
SAFETY WARNINGS
WARNING: Do not shake from sidetoside when using
the product.
1 YEAR FRAME WARRANTY AND
WHAT IS COVERED
We warrant the frame to be free of manufacturing defects to the original purchaser for one years, and a one year limited warranty for fabric.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
is warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.
1 YEAR FABRIC LIMITED WARRANTY
........................................................................
CAUTION: Never use this product as a support, do not
!
shake, lean or climb on the swing at any time.

3
Pre-Assembly
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
NOTE: More than one person may be required to
assemble this product.
HARDWARE INCLUDED
Part Description
Quantity
AA M8x95 combination bolt, washer and nut
BB
M8x40 Combination bolt
CC M6x65 Combination bolt, washer and nut
DD M6x50 Combination bolt, washer and nut
EEDDCCBBAA
HHGG
EE
M5x30 bolt
NOTE: Hardware not shown to actual size.
FF
FF
GG
HH
Hook
Hex Wrench
Wrench
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
4+1
4+1
4+1
12+1
6+1
2
1
1

4
Pre-Assembly (continued)
PACKAGE CONTENTS
Part
Description
Quantity
ATop bar
B Front leg
C Back leg
DBack support bar
ESeat
F
G
Back
Arm
1
1
1
1
2
2
2
HSide bar & short swing pipe
I Long swing pipe
Curved bar
J
Support bar
K
Canopy
L
Screw knob
M
NGround bumper
2
1
3
4
4
2
2
A
B
H
D
F
E
G
H
I
K
J
L
M
N
C

5
1
l
Assembly
Attach two sets of the legs (B & C) to the top bar (A) using M8x95 combination bolts, washers and nuts (AA).
Attach the two side bars (H) to the legs (B & C) using M6x50 combination bolts, washers and nuts (DD).
Attach the back support bar (D) to the back legs (C) using M6x50 combination bolts, washers and nuts (DD).
Tighten all of the bolts using the hex wrench (GG) and the wrench (HH).
Assemble the ground bumpers (N) onto the legs (B & C).
Assembling the swing frame
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
AA
DD
DD
DD
DD
A
B
C
C
B
H
D
N
N
N
N
DD
H

6
2
Assembly (continued)
Attach the seat (E) to the arms (G) using M8x40 combination bolts (BB).
Attaching the seat and backtothe arms
NOTE: Fullytighten all bolts using thehex wrench (GG) and the wrench (HH).
Attach the back (F) to the arms (G) using M6x65 combination bolts, washers and nuts (CC).
2X
BB
BB
CC
E
F
G
G
CC
BB
BB
G
E
F

3
l
7
Attach the long swing pipes (I) and the short swing pipes (H) to the arms (G) using M6x50 combination bolts, washers and nuts (DD).
Connect the top of the two swing pipes (H and I) by using the hooks (FF).
Once all of the bolts are in place, fully tighten the bolts.
Attaching the long swing pipesand the short swing pipes to the arms
Assembly (continued)
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
2X
2X
DD
DD
DD
DD
FF
IH
H
I
G
G
FF
E
F

4
8
Attaching the seat to the swing frame
Attach the assembled seat frame to the swing frame using the hooks (FF).
Assembly (continued)
FF
A

5
l
9
Assembling the top frame
Attach the support bars (K) to the curved bars (J) using M5x30 bolts (EE).
Tighten all of the bolts on the top frame before placing the canopy.
Assembly (continued)
J
K
K
EE
L
J
Velcro
J
NOTE: Please pay attention to the direction of the top curved bars (J).
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

6
l
10
Attaching the top frame to the top bar
Attach the top frame to the top bar (A) using the screw knobs (M) on both sides.
Adjust the angle of the top frame and fully tighten the screw knobs (M) in the clockwise direction.
Assembly (continued)
Care and Cleaning
For best results, clean the swing with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt
particles that may accumulate.
Do not clean with abrasive materials, bleach, or solvents.
Store the swing in a dry, sheltered place when not in use.
Keep the swing away from , extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
M
M

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m.,EST, Monday - Friday, 9 a.m. - 6 p.m.,EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
