Hantech 10474164 User manual

Local air conditioner
EN
Condizionatore d‘aria locale
IT
MÍstnÍ KlimatizačnÍ zařizenÍ
CZ
Climatizare local
RO
Lokales Klimagerät
DE
Lokale airconditioner
NL
Climatiseur local
FR
Lokal luftkonditionering
SE
Miestny klimatizačný prÍstroj
SK
Artikelnummer: 10474164(DE)
10474166(CH)
OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNGEN

– 2 –
The refrigerant used in mobile air conditioners is the environmentally friendly
hydrocarbon R290.This refrigerant is odorless, and compared to the alternative
refrigerant, the R290 is an ozone-free refrigerant, and its eect is very low.
Please read the instructions before use and repair.
The drawings provided in this manual may not be the same as the physical
objects. Please refer to the physical objects.
Table of Contents
1. Attention Matters ..........................................................................................................................3
2. Features and Components .......................................................................................................5
3. Control Setting..............................................................................................................................7
4. Protection function .................................................................................................................... 9
5. Installation and adjustment..................................................................................................... 9
6. Drainage Instructions................................................................................................................. 11
7. Maintenance.................................................................................................................................. 12
8. Unit Storage ................................................................................................................................. 13
9. Troubleshooting.......................................................................................................................... 13
10. Addendum .................................................................................................................................20

– 3 –
1. Attention Matters
Warning matters:
Do not use means to accelerate
the defrosting process or to clean,
other than those recommended by
the manufacturer.
The appliance shall be stored
in a room without continuously
operating ignition sources (for
example: open flames, an operating
gas appliance or an operating
electric heater.).
Do not pierce or burn.
Be aware that refrigerants may not
contain an odour.
Appliance shall be installed,
operated and stored in a room with
a floor area larger than 12 m2.
Keep any required ventilation
openings clear of obstruction.
Servicing shall be performed
only as recommended by the
manufacturer.
The appliance shall be stored in
a well-ventilated area where the
room size corresponds to the room
area as specified for operation.
Any person who is involved with
working on or breaking into a
refrigerant circuit should hold a
current valid certificate from an
industry-accredited assessment
authority, which authorises their
competence to handle refrigerants
safely in accordance with an industry
recognised assessment specification.
Servicing shall only be performed
as recommended by the equipment
manufacturer. Maintenance and
repair requiring the assistance of
other skilled personnel shall be
carried out under the supervision
of the person competent in the use
of flammable refrigerants.
All working procedure that aects
safety means shall only be carried
by competent persons.
Notes:
ÛThe air conditioning is only suitable
for indoor use, and is not suitable
for other applications.
ÛFollow local grid interconnection
rules while installing the air
conditioning and ensure that it is
properly grounded. If you have any
question on electrical installation,
follow the instructions of the
manufacturer, and if necessary, ask a
professional electrician to install it.

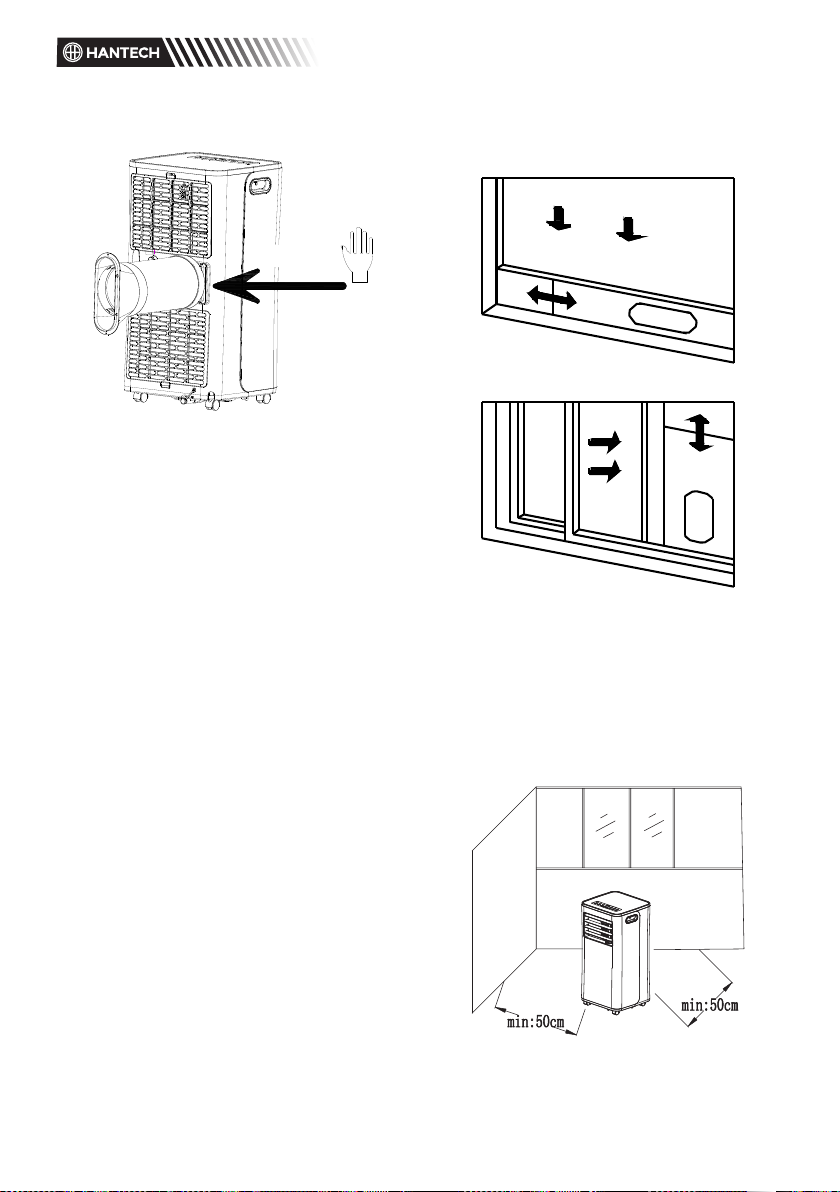

ÛPlace the machine in a fl at and dry
place and keep a distance of above
50cm between the machine and
the surrounding objects or walls.
ÛAfter the air conditioning is
installed, ensure that the power
plug is intact and fi rmly plugged
into the power outlet, and place
the power cord orderly to prevent
someone from being tripped or
pulling out the plug.
ÛDo not put any object into the
air inlet and outlet of the air
conditioning. Keep the air inlet and
outlet free from obstructions.
ÛWhen drainage pipes are installed,
ensure that the drainage pipes are
properly connected, and are not
distorted or bended.
ÛWhile adjusting the upper and
lower wind-guide strips of the air
outlet, pluck it with hands gently to
avoid damaging wind-guide strips.

– 4 –
ÛWhen moving the machine, make
sure that it is in an upright position.
ÛThe machine should stay away from
gasoline, flammable gas, stoves and
other heat sources.
ÛDon’t disassemble, overhaul and
modify the machine arbitrarily,
otherwise it will cause a machine
malfunction or even bring harm
to persons and properties. To
avoid danger, if a machine failure
occurs, ask the manufacturer or
professionals to repair it.
ÛDo not install and use the air
conditioning in the bathroom or
other humid environments.
ÛDo not pull the plug to turn o the
machine.
ÛDo not place cups or other objects
on the body to prevent water or
other liquids from spilling into the
air conditioning.
ÛDo not use insecticide sprays or
other flammable substances near
the air conditioning.
ÛDo not wipe or wash the air
conditioning with chemical solvents
such as gasoline and alcohol.
When you need to clean the air
conditioning, you must disconnect
the power supply, and clean it with
a half-wet soft cloth. If the machine
is really dirty, scrub with a mild
detergent.
ÛThe appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning
and maintenance shall not be made
by children without supervision.
The appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning
and maintenance shall not be made
by children without supervision.
The appliance shall be installed in
accordance with national wiring
regulations.
Do not operate your air conditioner
in a wet room such as a bathroom
or laundry room.
Transportation, marking and storage
for units
ÛTransport of equipment containing
flammable refrigerants Compliance
with the transport regulations
ÛMarking of equipment using signs
Compliance with local regulations
ÛDisposal of equipment using
flammable refrigerants Compliance
with national regulations
ÛStorage of equipment/appliances
The storage of equipment
should be in accordance with the
manufacturer’s instructions.
ÛStorage of packed (unsold)
equipment Storage package
protection should be constructed
such that mechanical damage to
the equipment inside the package
will not cause a leak of the
refrigerant charge.
The maximum number of pieces of
equipment permitted to be stored
together will be determined by
local regulations.

– 5 –
2. Features and Components
Features
Brand new appearance, compact
structure, smooth line, simple and
generous shape.
Functions of refrigeration,
dehumidification, air supply and
continuous drainage.
Outdoor interface is set high to
facility assembly and keep the
smooth flow of the heat pipe.
LED displays the control panel,
beautiful and fashionable, with
high-quality remote control.
It adopts a user-friendly remote
control design.
Air filtration capability.
Timing switch function.
Protection function of automatically
restarting the compressor after
three minutes, a variety of other
protection functions.
The Max operation temperature for
the air conditioner Cooling:
35/24 OC; heating:20/12 OC;
Temperature operation range:
7-35 OC.

– 6 –
Component
Exhaust Pipe Assembly
Window Sealing
Plate Assembly
9
10
12
11
13
14
1
3
4
5
87
2
1Top cover 8Base plate
2Control panel 9EVA Filter
3Hand 10 Continuous Drainage Hole
4Air outlet Lourcer 11 Wrapping Post
5Front Housing 12 Air Vent
6Rear Housing 13 CON Filter
7Caster 14 Drainage Hole
6

– 6 – – 7 –
3. Control Setting

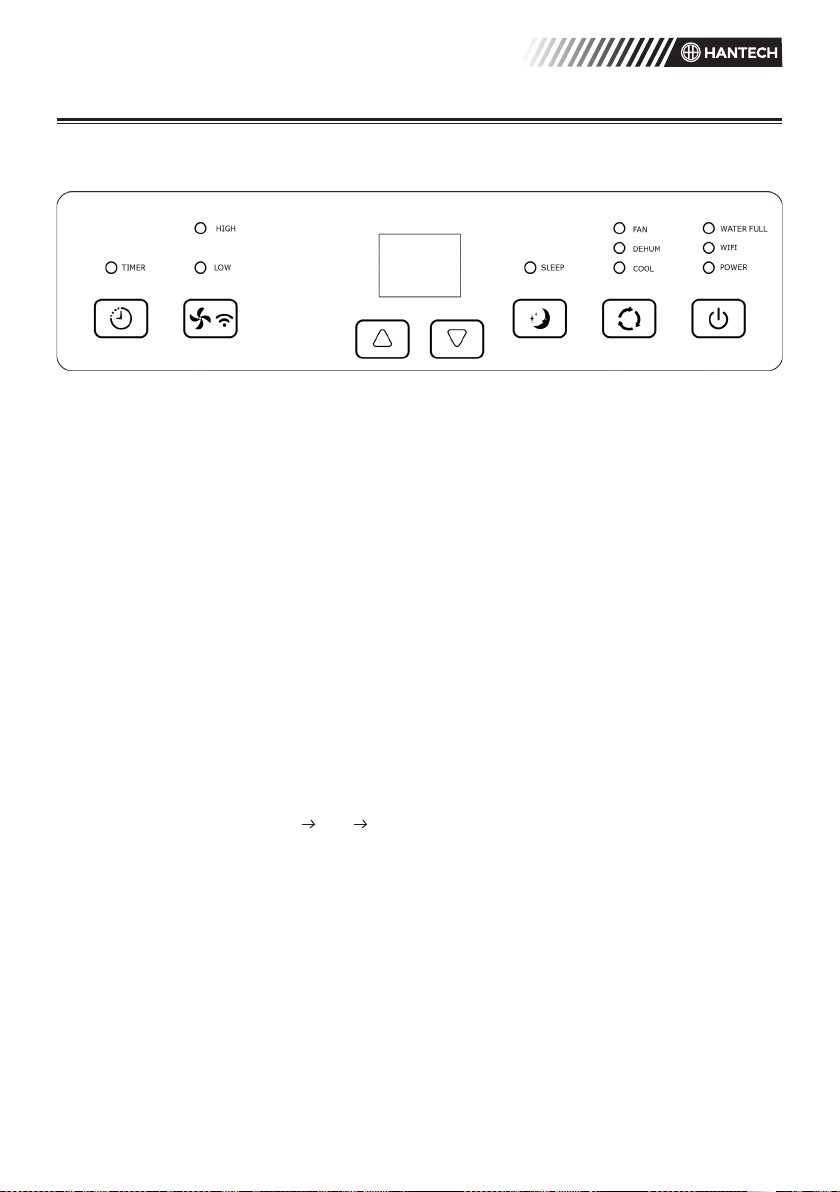

Control panel operation instructions
Operation interface:
1. Timer Key 5. Down Key
2. Fan Speed Selection Key 6. Sleep Key
3. Up Key 7. Mode Selection Key
4. Display 8. Power Key
1. When the machine is powered on
for the first time, the buzzer will
play power-on music, and then
the machine will get into standby
status.
2. Power Key: press the key to turn
on and turn o the machine. In the
case of power on, press the key to
turn o the machine; in the case of
power o, press the key to turn on
the machine.
3. Mode Selection Key: In the case
of power on, press the key to
switch between cooling fan
dehumidifying mode.
4. Up Key and Down Key: press the
two keys to change the setting
temperature or setting time,
operate as follows: While setting
temperature, press up key or
down key to select the required
temperature (not available in fan or
dehumidifying mode). While setting
time, press up key or down key to
select the required time.
5. Wind Speed Selection Key:
In cooling and fan mode, press
the key to select high,low wind
speed operation. But limited
by anti-cold conditions, under
certain conditions, it may not run
according to the set wind speed.
In dehumidifying mode, pressing
the key is invalid, and the fan will
forcibly choose low wind speed
operation.
6. Timing Key:
In the case of power on, press the
key to close timing; in the case of
power o, press the key to open
timing.
Press the key, when the timing
symbol flashes, press up and down
key to select the required timing
value.
Timing values can be set in 1-24
hours and the timing value is
adjusted up or down by one hour.
7. Sleep Mode: In the cooling
Mode,Press the UP and Fan Key to
turn on the sleep mode,then the
unit will work on Energy-Saving
and quiet type.

– 8 –
Operation instructions of remote
control
The remote control Panel is as
follows:
1
2
7
3
4
6
8
5
Instructions of key operation of the
high-quality remote control are as
follows:
1. Power: Press the key to turn on
or turn o the machine.
2. Timer: press the key to set
timing.
3. Down: press the key to reduce
temperature and timing set value.
4. Mode: press the key to
switch between cooling, fan,
dehumidifying mode.
5. Up: press the key to increase
temperature and timing set value.
6. Fan: press the key to select high,
low wind speed.
7. Sleep Mode: Press the key to
turn on the sleep mode.
8. oC & oF Change: Press to
change oC and oF display.
Information on the App “Smart Life
- Smart Living”
The Smart Life - Smart Living app is
available for android and iOS. Scan the
corresponding QR code to get directly
to the download.
NOTE:
Depending on the provider, there may
be costs involved in downloading the
app.
App StoreGoogle Play
Information on How to Use the App
This appliance allows you to operate
the appliance via your home network.
A prerequisite is a permanent Wi-Fi
connection to your router and the free
app “Smart Life - Smart Living”.
You can easily access all functions of
the appliance via the app. Since the
app constantly improved, we cannot
provide a more detailed description
here.
We recommend disconnecting the
appliance from the power supply when
you are away from home to prevent
unintentional switching on while you
are on the road!
System Requirement for Use of the App
iOs 8.0 or higher
Android 4.4 or higher
Commissioning via the App
1. Install the “Smart Life - Smart
Living” app. Create a user account.

– 8 – – 9 –
2. Activate the Wi-Fi function in the
settings of your appliance.
3. Place the air-conditioning appliance
within a distance of around 5
meters of your router.
4. Press and hold the button for
about 3 seconds. The Wi-Fi
indicator light flashes rapidly.
5. Launch the app and select “+”.
6. Select the “air conditioner” menu
and follow the instructions on the
display.
7. Once the appliance has been
connected successfully, the
Wi-Fi indicator light will be solid.
Now you can operate the appliance
using the app.
NOTE:
The appliance can only be operated
with 2.4 GHz routers. 5 GHz routers
are not supported.
The appliance is equipped with
only one network connection. It
cannot be turned o.
4. Protection function
1. Frost Protection Function:
In cooling, dehumidifying or
economic power saving mode, if
the temperature of the exhaust
pipe is too low, the machine will
automatically enter protection
status; if the temperature of the
exhaust pipe rises to a certain
temperature, it can automatically
revert to normal operation.
2. Overflow Protection Function:
When water in the water pan
exceeds the warning level, the
machine will automatically sound
an alarm, and the “FULL” indicator
light will flash. At this point, you
need to move the drainage pipe
connecting the machine or the
water outlet to sewer or other
drainage area to empty the water
(details see DrainageInstructions at
the end of this chapter). After the
water is emptied, the machine will
automatically return to the original
state.
3. Automatic Defrosting (cooling
models have this function):
The machine has automatic
defrosting function.Defrosting can
be achieved through four - way
valve reversing.
4. Protection Function of the
Compressor:
To increase the service life of the
compressor, it has a 3-minute delay
booting protection function after
the compressor is turned o.
5. Installation and adjustment
Installation
Warning: before using the mobile air
conditioning, keep it upright for at
least two hours. The air conditioning
can be easily moved in the room.
In the moving process, ensure that
the air conditioning is in the upright
position and the air conditioning
should be placed on a flat surface. Do
not install and use the air conditioning
in the bathroom or other humid
environments.

– 10 –
1. Install the heat pipe assembly (as
shown in Fig.1)
PUSH
Figure 1
Take out the outer connector
assembly and the exhaust pipe
assembly, and remove the plastic
bags;
Insert the heat pipe assembly (the
end of the exhaust joint) into the
back panel vent slot (push to the
left) and complete the assembly
(as shown in figure 1).
2. Installation of window sealing plate
components.
Half open the window, and mount
the window sealing plate assembly
to the window (as shown in Fig.2
and Fig.3).Components can be
placed in horizontal and vertical
direction.
Pull various components of the
window sealing plate assembly
open, adjust their opening distance
to bring both ends of the assembly
into contact with the window
frame, and fix various components
of the assembly.
3. Install the window sealing plate
assembly.
Notes: the flat end of the exhaust pipe
joints must be snapped into place. 2)
The pipe cannot be distorted nor has
substantial turning (greater than 45 °).
Keep the ventilation of the exhaust
pipe not blocked.
Figure 2
Figure 3
4. Install the body
 Move the machine with installed heat
pipe and fittings before the window,
and the distance between the body
and walls or other objects shall be
least 50 cm (as shown in Fig.4).
Figure 4

– 10 – – 11 –
Elongate the exhaust pipe and snap
the flat end of the exhaust pipe
joints into the hole of the window
sealing plate assembly (as shown in
Fig.5 and Fig.6) .
Notes:
The flat end of the exhaust pipe
joints must be snapped into place.
The pipe cannot be distorted nor
has substantial turning (greater
than 45 °). Keep the ventilation of
the exhaust pipe not blocked.
Figure 5
Figure 6
Important notice:
The length of the exhaust hose shall
be 280~1,500mm, and this length is
based on the specifications of the air
conditioning. Do not use extension
tubes or replace it with other dierent
hoses, or this may cause a malfunction.
Exhaust host must be not blocked;
otherwise it may cause overheating.
6. Drainage Instructions
This machine has two drainage
methods: manual drainage and
continuous drainage.
1. Manual drainage:
When the machine stops after the
water is full, turn o the machine
power and unplug the power plug.
Notes: Please move the machine
carefully, so as not to spill the water
in the water pan at the bottom of
thebody.
Place the water container below
the side water outlet behind the
body.
Unscrew the drainage cover and
unplug the water plug, the water
will automatically flow into the
water container.

– 12 –
Notes:
Keep the drainage cover and the
water plug properly.
During drainage, the body can be
tilted slightly backwards.
If the water container cannot hold
all the water, before the water
container is full, stu the water
outlet with the water plug as soon
as possible to prevent water from
flowing to the floor or the carpet.
When the water is discharged, stu
the water plug, and tighten the
drainage cover.

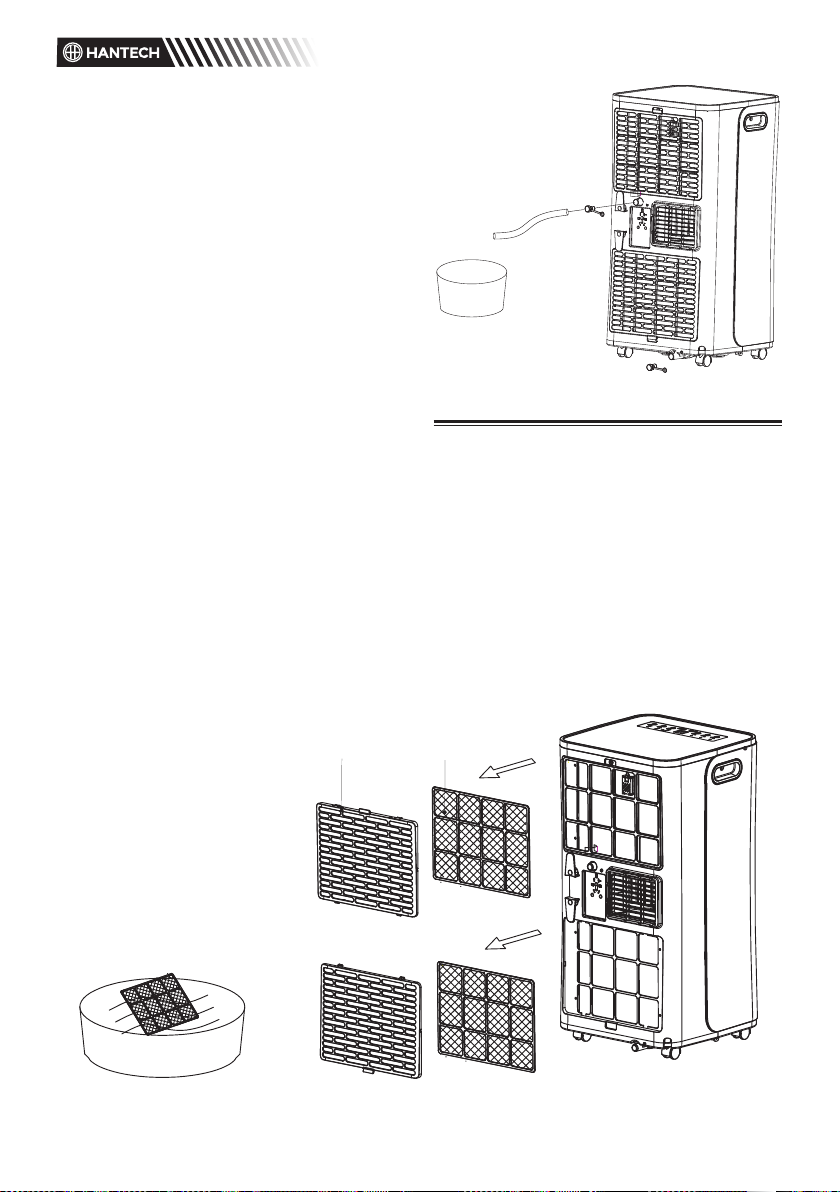

2. Continuous drainage (Optional)
(only applicable to dehumidifying
mode), as shown in figure:
Unscrew the drainage cover, and
unplug the water plug.
Set the drainage pipe into the
water outlet.
Connect the drainage pipe to the
bucket.
Filter Frame Air Filter
7. Maintenance
Cleaning: before cleaning and
maintenance, turn o the machine and
unplug the plug.
1. Clean the surface:
Clean with surface of machine
with a wet soft cloth. Don’t use
chemicals, such as benzene,
alcohol, gasoline, etc; otherwise,
the surface of the air conditioning
will be damaged or even the whole
machine will bedamaged.

– 12 – – 13 –
2. Clean the filter screen:
If the filter screen is clogged with
dust, and the eectiveness of the
air conditioning is reduced, be sure
to clean the filter screen once every
two weeks.
3. Clean the upper filter screen frame:
Unscrew one screw fixed by EVA
filter net and back shell with
screwdriver, and take out EVA filter
net.
Put the EVA filter screen into
warm water with neutral detergent
(about 40 oC / 104 oF ) and dry it in
the shade after rinsing clean.
8. Unit Storage
1. Unscrew the drainage cover, unplug
the water plug, and discharge the
water in the water pan into other
water containers or directly tilt the
body to discharge the water into
other containers.
2. Turn on the machine, adjust it
to low-wind ventilation mode,
and maintain this state until the
drainage pipe becomes dry, so
as to keep the inside of the body
in a dry state and prevent it from
mildewing.
3. Turn o the machine, unplug the
power plug, and wrap the power
cord around the wrapping post;
install the water plug and the
drainage cover.
4. Remove the exhaust pipe and keep
it properly.
5. Cover the air conditioning with a
plastic bag. Put the air conditioning
in a dry place, keep it out of the
reach of children, and take dust
control measures.
6. Remove batteries of the remote
control and keep them properly.
Note: ensure that the body is placed
in a dry place and keep all machine
components properly.
9. Troubleshooting
Information on servicing
1. Checks to the area:
Prior to beginning work on systems
containing flammable refrigerants,
safety checks are necessary to ensure
that the risk of ignition is minimised.
For repair to the refrigerating system,
the following precautions shall be
complied with prior to conducting
work on the system.
2. Work procedure:
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
3. General work area:
All maintenance sta and others
working in the local area shall be
instructed on the nature of work being
carried out. Work in confined spaces
shall be avoided. The area around
the workspace shall be sectioned o.
Ensure that the conditions within the
area have been made safe by control
of flammable material.
4. Checking for presence of
refrigerant:
The area shall be checked with an
appropriate refrigerant detector
prior to and during work, to ensure
the technician is aware of potentially
flammable atmospheres. Ensure that
the leak detection equipment being
used is suitable for use with flammable
refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.

– 14 –
5. Presence of fire extinguisher:
If any hot work is to be conducted
on the refrigeration equipment or
any associated parts,appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder
orCO2 fire extinguisher adjacent to the
charging area.
6. No ignition sources:
No person carrying out work in
relation to a refrigeration system
which involves exposing any pipe
work that contains or has contained
flammable refrigerant shall use any
sources of ignition in such a manner
that it may lead to the risk of fire or
explosion. All possible ignition sources,
including cigarette smoking, should
be kept suciently far away from the
site of installation, repairing, removing
and disposal, during which flammable
refrigerant can possibly be released
to the surrounding space. Prior to
work taking place, the area around
the equipment is to be surveyed to
make sure that there are no flammable
hazards or ignition risks. “No Smoking”
signs shall be displayed.
7. Ventilated area:
Ensure that the area is in the open
or that it is adequately ventilated
before breaking into the system or
conducting any hot work. A degree of
ventilation shall continue \during the
period that the work is carried out.
The ventilation should safely disperse
any released refrigerant and preferably
expel it externally into the atmosphere.
8. Checks to the refrigeration
equipment:
Where electrical components are
being changed, they shall be fit
for the purpose and to the correct
specification. At all times the
manufacturer’s maintenance and
service guidelines shall be followed. If
in doubt consult the manufacturer’s
technical department for assistance.
The following checks shall be applied
to installations using flammable
refrigerants:
–The charge size is in accordance
with the room size within which
the refrigerant containing parts are
installed;
–The ventilation machinery and
outlets are operating adequately and
are not obstructed;
–If an indirect refrigerating circuit is
being used, the secondary circuit
shall be checked for the presence of
refrigerant;
–Marking to the equipment continues
to be visible and legible. Markings
and signs that are illegible shall be
corrected;
–Refrigeration pipe or components
are installed in a position where
they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are
constructed of materials which
are inherently resistant to being
corroded or are suitably protected
against being so corroded.
9. Checks to electrical devices:
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the
circuit until it is satisfactorily dealt
with. If the fault cannot be corrected
immediately but it is necessary to
continueoperation, an adequate
temporary solution shall be used. This
shall be reported to the owner of the
equipment so all parties are advised.

– 14 – – 15 –
Initial safety checks shall include:
That capacitors are discharged: this
shall be done in a safe manner to
avoid possibility of sparking;
That there no live electrical
components and wiring are
exposed while charging, recovering
or purging the system;
That there is continuity of earth
bonding.
Repairs to sealed components
1. During repairs to sealed
components, all electrical supplies
shall be disconnected from the
equipment being worked upon
prior to any removal of sealed
covers, etc. If it isabsolutely
necessary to have an electrical
supply to equipment during
servicing, then a permanently
operating form of leak detection
shall be located at the most critical
point to warn of a potentially
hazardous situation.
2. Particular attention shall be paid
to the following to ensure that by
working on electrical components,
the casing is not altered in such a
way that the level of protection is
aected. This shall include damage
to cables, excessive number of
connections, terminals not made
to original specification, damage
to seals, incorrect fitting of glands,
etc.
Ensure that apparatus is mounted
securely.
Ensure that seals or sealing
materials have not degraded
such that they no longer serve
the purpose of preventing the
ingress of flammable atmospheres.
Replacement parts shall be in
accordance with the manufacturer’s
specifications.
NOTE: The use of silicon sealant may
inhibit the eectiveness of some
types of leak detection equipment.
Intrinsically safe components do not
have to be isolated prior to working on
them.
3. Repair to intrinsically safe
components
Do not apply any permanent inductive
or capacitance loads to the circuit
without ensuring that this will not
exceed the permissible voltage and
current permitted for the equipment
in use.
Intrinsically safe components are
the only types that can be worked
on while live in the presence of a
flammable atmosphere. The test
apparatus shall be at the correct
rating. Replace components only with
parts specified by the manufacturer.
Other parts may result in the ignition
of refrigerant in the atmosphere from
a leak.
4. Cabling
Check that cabling will not be subject
to wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental eects. The
check shall also take into account the
eects of aging or continual vibration
from sources such as compressors or
fans.
5. Detection of flammable refrigerant
Under no circumstances shall
potential sources of ignition be used
in the searching for or detection of
refrigerant leaks. A halide torch (or any
other detector using a naked flame)
shall not be used.
6. Leak detection methods
The following leak detection methods
are deemed acceptable for systems
containing flammable refrigerants.

– 16 –
Electronic leak detectors shall be used
to detect flammable refrigerants, but
the sensitivity may not be adequate,
or may need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area.) Ensure that
the detector is not a potential source
of ignition and is suitable for the
refrigerant used. Leak detection
equipment shall be set at a percentage
of the LFL of the refrigerant and
shall be calibrated to the refrigerant
employed and the appropriate
percentage of gas (25 % maximum) is
confirmed.
Leak detection fluids are suitable for
use with most refrigerants but the use
of detergents containing chlorine shall
be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work.
If a leak is suspected, all naked flames
shall be removed/ extinguished.
If a leakage of refrigerant is found
which requires brazing, all of the
refrigerant shall be recovered from
the system, or isolated (by means of
shut o valves) in a part of the system
remote from the leak. Oxygen free
nitrogen (OFN) shall then be purged
through the system both before and
during the brazing process.
7. Removal and evacuation
When breaking into the refrigerant
circuit to make repairs – or for
any other purpose – conventional
procedures shall be used. However,
it is important that best practice
is followed since flammability is a
consideration. The following procedure
shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;
Open the circuit by cutting or
brazing.
The refrigerant charge shall be
recovered into the correct recovery
cylinders. The system shall be
“flushed” with OFN to render the unit
safe. This process may need to be
repeated several times. Compressed
air or oxygen shall not be used for
this task. Flushing shall be achieved
by breaking the vacuum in the system
with OFN and continuing to fill until
the working pressure is achieved,
then venting to atmosphere, and
finally pulling down to a vacuum.
This process shall be repeated until
no refrigerant is within the system.
When the final OFN charge is used,
the system shall be vented down
to atmospheric pressure to enable
work to take place. This operation is
absolutely vital if brazing operations
on the pipe-work are to take place.
Ensure that the outlet for the vacuum
pump is not close to any ignition
sources and there is ventilation
available.
8. Charging procedures
In addition to conventional
charging procedures, the following
requirements shall be followed.
Ensure that contamination of
dierent refrigerants does not
occur when using charging
equipment. Hoses or lines shall be
as short as possible to minimise the
amount of refrigerant contained in
them.
Cylinders shall be kept upright.
Ensure that the refrigeration system
is earthed prior to charging the
system with refrigerant.
Label the system when charging is
complete (if not already).
Extreme care shall be taken not to

– 16 – – 17 –
overfill the refrigeration system.
Prior to recharging the system it
shall be pressure tested with OFN.
The system shall be leak tested on
completion of charging but prior to
commissioning. A follow up leak test
shall be carried out prior to leaving the
site.
9. Decommissioning
Before carrying out this procedure,
it is essential that the technician
is completely familiar with the
equipment and all its detail. It is
recommended good practice that
all refrigerants are recovered safely.
Prior to the task being carried out,
an oil and refrigerant sample shall be
taken in case analysis is required prior
to re-use of reclaimed refrigerant.
It is essential that electrical power
is available before the task is
commenced.
a) Become familiar with the equipment
and its operation.
b) Isolate system electrically.
c) Before attempting the procedure
ensure that:
Mechanical handling equipment is
available,if required, forhandling
refrigerant cylinders;
All personal protective equipment
is available and being used
correctly;
The recovery process is supervised
at all times by a competent person;
Recovery equipment and cylinders
conform to the appropriate
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated
on the scales before recovery takes
place.
g) Start the recovery machine and
operate in accordance with
manufacturer’s instructions.
h) Do not overfill cylinders. (No more
than 80 % volume liquid charge).
i) Do not exceed the maximum
working pressure of the cylinder,
even temporarily.
j) When the cylinders have been
filled correctly and the process
completed, make sure that the
cylinders and the equipment are
removed from site promptly and all
isolation valves on the equipment
are closed o.
k) Recovered refrigerant shall not be
charged into another refrigeration
system unless it has been cleaned
and checked.
10. Labelling
Equipment shall be labelled stating
that it has been de-commissioned and
emptied of refrigerant. The label shall
be dated and signed. Ensure that there
are labels on the equipment stating
the equipment contains flammable
refrigerant.
11. Recovery
When removing refrigerant from
a system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely.
When transferring refrigerant into
cylinders, ensure that only appropriate
refrigerant recovery cylinders are
employed. Ensure that the correct
number of cylinders for holding the
total system charge is available. All
cylinders to be used are designated
for the recovered refrigerant and

– 18 –
labelled for that refrigerant (i.e.
special cylinders for the recovery
of refrigerant). Cylinders shall be
complete with pressure relief valve
and associated shut-o valves in
good working order. Empty recovery
cylinders are evacuated and, if
possible, cooled before recovery
occurs.
The recovery equipment shall be in
good working order with a set of
instructions concerning the equipment
that is at hand and shall be suitable for
the recovery of flammable refrigerants.
In addition, a set of calibrated
weighing scales shall be available and
in good working order. Hoses shall be
complete with leak-free disconnect
couplings and in good condition.
Before using the recovery machine,
check that it is in satisfactory working
order, has been properly maintained
and that any associated electrical
components are sealed to prevent
ignition in the event of a refrigerant
release. Consult manufacturer if in
doubt.
The recovered refrigerant shall be
returned to the refrigerant supplier in
the correct recovery cylinder, and the
relevant Waste Transfer Note arranged.
Do not mix refrigerants in recovery
units and especially not in cylinders.
If compressors or compressor oils
are to be removed, ensure that they
have been evacuated to an acceptable
level to make certain that flammable
refrigerant does not remain within
the lubricant. The evacuation process
shall be carried out prior to returning
the compressor to the suppliers. Only
electric heating to the compressor
body shall be employed to accelerate
this process. When oil is drained from
a system, it shall be carried out safely.
Fuse parameters of the machine
Type: 5TE or SMT
Voltage: 250 V
Current: 3.15 A
Transmission
frequency:
infrared
frequency 28 Khz
WIFI frequency: 2412-2472 Mhz
WIFI transmission
power <20.0 dBm
Transmission
power:
802.11b: 17.5 dBm;
802.11g: 15.5 dBm
A. Unit Storage:
1. Unscrew the drainage cover, unplug
the water plug, and discharge the
water in the water pan into other
water containers or directly tilt the
body to discharge the water into
other containers.
2. Turn on the machine, adjust it
to low-wind ventilation mode,
and maintain this state until the
drainage pipe becomes dry, so
as to keep the inside of the body
in a dry state and prevent it from
mildewing.
3. Turn o the machine, unplug the
power plug, and wrap the power
cord around the wrapping post;
install the water plug and the
drainage cover.
4. Remove the exhaust pipe and keep
it properly.
5. Cover the air conditioning witha
plastic bag. Put the air conditioning
ina dry place, keep it out of the
reach of children, and take dust
control measures.
6. Remove batteries of the remote
control and keep them properly.
Note: ensure that the body is placed
in a dry place and keep all machine
components properly.

– 18 – – 19 –
Troubleshooting
Do not repair or disassemble the air conditioning by yourself. Unqualified repair
will lead to failure of the warranty card, and may cause damage to users or their
properties.
Problems Reasons Solutions
The air
conditioning does
not work.
There is no electricity. Turn it on after connecting it to a
socket with electricity.
The overflow indicator
displays “FL”. Discharge the water inside.
The ambient temperature is
too low or too high
Recommend to use the machine in at
the temperature of 7-35
o
C (44- 95
o
F).
In cooling mode, the room
temperature is lower than the
set temperature; in heating
mode, the room temperature
is higher than the set
temperature.
Change the set temperature.
In dehumidification mode, the
ambient temperature is low.
The machine is placed ina room with
an ambient temperature of greater
than 17 oC (62 oF).
The cooling
eect is not good
There is direct sunlight. Pull the Curtain.
Doors or windows are open;
there are a lot of people; or
in cooling mode, there are
other sources of heat.
Close doors and windows, and add
new air conditioning.
The filter screen is dirty. Clean or replace the filter screen.
The air inlet or outlet is
blocked. Clear obstructions.
Big Noise The air conditioning is not
placed ona flat surface.
Put the air conditioning on a flat and
hard place (to reduce noise).
Compressor does
not work. Overheat protection starts.
Wait for 3 minutes until the
temperature is lowered, and then
restart the machine.
The remote
control does not
work.
The distance between the
machine and the remote
control is too far.
Let the remote control get close to
the air conditioning, and make sure
that the remote control directly faces
to the direction of the remote control
receiver.
The remote control is not
aligned with the direction of
the remote control receiver.
Batteries are dead. Replace batteries.
Displays ‘E2’. The pipe temperature sensor
is abnormal.
Check the pipe temperature sensor
and related circuitry.
Displays ‘E1’ The room temperature
sensor is abnormal.
Check the room temperature sensor
and related circuitry.
Note: If problems not listed in the table occur or recommended solutions do not
work, please contact the professional service organization.

– 20 –
10. Addendum
Schematic diagram for air conditioning
(The specific technical parameters of the machine shall be subject to the
nameplate on the product)
Condens
Compress Evaporat
Capillary
Treatment: Don’t put the abandoned machine with other unsorted waste
together.
10474164 10474166
Description Symbol Unit Value Value
Rated cooling eciency P rated c kW 2,64 2.64
Rated heating eciency P rated kW - -
Rated power consumption for cooling P EER kW 1,01 1.01
Rated power consumption for
heating P EER kW - -
Energy Eciency Index for Cooling EERd - 2,60 2.60
Energy Eciency Index for heating COPd - - -
Power consumption in o -mode
thermostat P TO W - -
Power consumption in standby
mode P SB W 1 1
Electrical energy consumption of
air conditioners -single channel
-two -channel (cooling)
SD: Q SD
DD: Q DD
SD: kWh/h
DD: kWh/a
1,01
-
1,01
-
Sound power level L WA dB (A) 65 65
Global warming Potential GWP kg CO2 3 3
Company information Hantech GmbH
Daimlerstr. 6, D-76185, Karlsruhe Germany
