Hanwha Wisenet SPI-50 User manual

SPI-50
IR illuminator
Quick Guide

Caution
CAUTION
RISK OF ELECTRIC SHOCK.DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSISTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS EXCLAMATION POINT SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus.
11. Unplug this apparatus when a card is used. Use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
FCC STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS :
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Caution
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS
A DIGITAL DEVICE, PURSUANT TO PART 15 OF FCC RULES. THESE LIMITS ARE DESIGNED TO
PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIP-
MENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF
NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A
RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER
WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

English_3
Caution
CAUTION
RISK OF ELECTRIC SHOCK.DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSISTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS EXCLAMATION POINT SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus.
11. Unplug this apparatus when a card is used. Use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
FCC STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS :
1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
Caution
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS
A DIGITAL DEVICE, PURSUANT TO PART 15 OF FCC RULES. THESE LIMITS ARE DESIGNED TO
PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIP-
MENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF
NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A
RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER
WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

4_ Contents
OVERVIEW
5
5Product Features
5What’s included
INSTALLATION
6
6 Mounting on the positioning system
8How to set IR illuminator channel
SPECIFICATION
9
9Specification
10 Product Overview
Contents
Product Features
1. It enables you to identify objects even at night with no lighting.
2. You can switch between Day/Night camera modes with the built-in sensor.
3. You can use a single or dedicated bracket to attach the product to the positioning system.
4. You can adjust the brightness of the lighting during the ZOOM operation.
overview
What’s included
Please check if your camera and accessories are all included in the product package.
IR illuminator body 2 Mounted in the positioning system and used
Mounting bracket 1 IR illuminator mounting bracket
Quick Guide
(Optional) 1 -
Warranty card
(Optional) 1 -
L-Wrench 1 Used when assembling the camera body and
bracket
Wrench bolts
(1/4”-1/2”) 9
Used when mounting the bracket
to the camera body (3EA)
Used when mounting the IR illuminator
on the bracket (6EA)

English_5
5Product Features
5What’s included
6
Mounting on the positioning system
8How to set IR illuminator channel
9Specification
10 Product Overview
Contents
Product Features
1. It enables you to identify objects even at night with no lighting.
2. You can switch between Day/Night camera modes with the built-in sensor.
3. You can use a single or dedicated bracket to attach the product to the positioning system.
4. You can adjust the brightness of the lighting during the ZOOM operation.
overview
What’s included
Please check if your camera and accessories are all included in the product package.
IR illuminator body 2 Mounted in the positioning system and used
Mounting bracket 1 IR illuminator mounting bracket
Quick Guide
(Optional) 1 -
Warranty card
(Optional) 1 -
L-Wrench 1 Used when assembling the camera body and
bracket
Wrench bolts
(1/4”-1/2”) 9
Used when mounting the bracket
to the camera body (3EA)
Used when mounting the IR illuminator
on the bracket (6EA)

6_ Installation
Installation
Mounting on the positioning system
1. Secure the bracket to the camera with the
3 supplied bolts.
2. Connect the IR illuminator to the fixed
bracket, using 3 bolts as shown.
3. Insert the IR illuminator cable into the housing
through the wiring hole in the bracket and the
hole in the back of the housing.
4. Connect the power cable and RS-485 cable of
the IR illuminator to the board in the housing.

English_7
Mounting on the positioning system 3. Insert the IR illuminator cable into the housing
through the wiring hole in the bracket and the
hole in the back of the housing.
4. Connect the power cable and RS-485 cable of
the IR illuminator to the board in the housing.
Wiring hole
Wiring hole
RS-485(-)
RS-485(+)
RS-485(+)
RS-485(-)
CH1
CH2
POWER(+)
POWER(-)
POWER(+)
POWER(-)
CH1
CH2

Installation
8_ Installation
Specification
Items
Description
SPI-50
Operational
LED Type IR LED
Distance Performance 200m
Number of LED 9(EA)
Contiunously variable
angle Fixed 25°
Wavelength 850nm
Automatic Control Automatic IR On/Off control related to Camera Day&Night,
Brightness can be controlled during zoom operation
Communication
Between Camera &
illuminator RS-485 9600bps(Techwin Protocol)
illuminator Identification For one camera, use CH1 and CH2 IR light projector together as
one set.
Exterior
Weight(Kg) 0.9kg @1EA
Size(mm) (W)112 * (L)153.2 * (H)65.5
Material Aluminum + PC Cover
Electrical
Power 24V AC(±10%) / 2A @2EA
Power Consumption MAX 24W(Brightness MAX)
Environmental
Operational
Temperature -40°C ~ +60°C
Ingress Protection IP67
Certification EMC(FCC, CE, VCCI, RCM, KC)
When using IR light projector, do not use CH1 and CH1 or CH2 and CH2 together as one set.
Specification
How to set IR illuminator channel
1. Open the round cover on the back of the IR
illuminator.
2. You can set the illuminator channel using the DIP
switch in the DIP switch cover.
Use only the 2nd DIP switch to set the illuminator
channel.
(The 1st and 3rd DIP switches are used to test
devices at the factory. Always set them to OFF.)
`Refer to the settings below.
When set to channel 1 When set to channel 2
J
`
Do not allow the settings to be changed by anyone other than the persons who install or manage
the product. Incorrect settings may cause the product to malfunction.
`
When shipped from the factory, two IR illuminators are set to different channels as Ch1 and Ch2.
If two IR illuminators are set to the same channel, communication errors will occur and they
cannot be used normally.
Used when setting channels
DIP switch

English_9
Specification
Items
Description
SPI-50
Operational
LED Type IR LED
Distance Performance 200m
Number of LED 9(EA)
Contiunously variable
angle Fixed 25°
Wavelength 850nm
Automatic Control Automatic IR On/Off control related to Camera Day&Night,
Brightness can be controlled during zoom operation
Communication
Between Camera &
illuminator RS-485 9600bps(Techwin Protocol)
illuminator Identification For one camera, use CH1 and CH2 IR light projector together as
one set.
Exterior
Weight(Kg) 0.9kg @1EA
Size(mm) (W)112 * (L)153.2 * (H)65.2
Material Aluminum + PC Cover
Electrical
Power 24V AC(±10%) / 2A @2EA
Power Consumption MAX 24W(Brightness MAX)
Environmental
Operational
Temperature -40°C ~ +60°C
Ingress Protection IP67
Certification EMC(FCC, CE, VCCI, RCM, KC)
When using IR light projector, do not use CH1 and CH1 or CH2 and CH2 together as one set.
Specification

Specification
10_ Specification

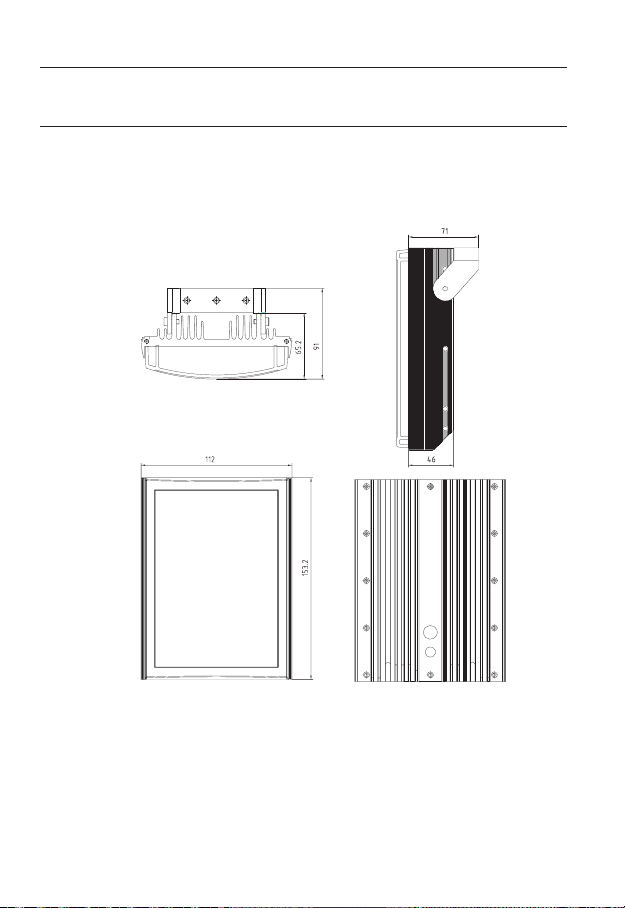

Product Overview
Unit : mm
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household
waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium
or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human
health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your
local, free battery return system.
Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide
customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin’s devotion to creating environmentally friendly products, and indicates that
the product satisfies the EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working
life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.

Specification
Product Overview
Unit : mm
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household
waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium
or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human
health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your
local, free battery return system.
Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide
customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin’s devotion to creating environmentally friendly products, and indicates that
the product satisfies the EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working
life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.

Head Office
6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si,
Gyeonggi-do, 463-400 Rep. of KOREA
Tel : [phone] Fax : [phone]
http://hanwha-security.com
Hanwha Techwin America
500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666
Toll Free : +1.877.213.1222 Direct : +1.201.325.6920
Fax : [phone]
www.hanwha-security.com
Hanwha Techwin Europe
Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom
Tel : [phone] Fax : [phone]
www.hanwha-security.eu
Hanwha Techwin(Tianjin) Co.Ltd
No.11, Weiliu Rd., Micro-Electronic Industrial Park, Jingang Road Tianjin 300385, China
Tel : [phone]
www.hanwha-security.cn
Hanwha Techwin Middle East FZE
JAFZA View 18, 20th floor, office 2001, 2002, 2003, Downtown Jebel Ali,
Dubai, United Arab Emirates
http://hanwha-security.com
