1. Introduction
This 30M Infrared Internet Camera is an inexpensive fully scalable surveillance technology.
Because the 30M Infrared Internet Cameras can be plugged into your existing local area network
infrastructure, you will potentially save thousands of dollars on unnecessary cabling.
The 30M Infrared Internet Camera is accessible via the LAN or Internet connection. Connect your
30M Infrared Internet Camera directly to a local area network or xDSL modem, and with Microsoft
Internet Explorer you get instant, on demand video streams. Within minutes you can set up the
30M Infrared Internet Camera to capture a video sequence to a PC. The live video image can be
uploaded to a website for the world to see or made available only to select users on the network.
Compliant with IEEE802.3af PoE standard, it can easily to obtain power source when it is locate to
a place that is no power outlet.
1.1Overview
This user’s manual explains how to operate the 30M Infrared Internet Camera from a computer.
Basically, the user’s manual is written to be read on the computer display. However, users might
consider printing it out to access easily and read it before you operate the Network Camera.
1.2 Features
zAXIS compatible SDK
zhigh quality 1/3 inch color CCD sensor of 30M IR distance
zClear and high-image quality pictures in the daytime and at night
z3GGP for 3G mobile remote application
zCompliant with IEEE 802.3af (PoE)
zMulti-profile encoder supports MPEG-4 and M-JPEG video compression simultaneously
zIR LED used on ICA-310 are 4 times brighter than ordinary IR LED
4

zSpecial mental base enhances lighting and dissipates heat
zWeather-proof protection housing against the various weather
zPlug-N-Watch is able to simplify system integration in an existing network environment
zSupporting TCP/IP networking, SMTP e-mail, and HTTP public network standards, ICA-310
can be applied and utilized to a mixed IP network environment
zEasy configuration: the network administrator can configure and manage ICA-310 via
Windows-based utility or web interface
zDDNS, PPPoE, FTP upload supports provide more alternative in your surveillance network
zMotion Detection, the motion detection feature can monitor any suspicious movement in
specific area
1.3Package Contents
User can find the following items in the package for ICA-310:
1. ICA-310 x 1
2. Power adapter x 1
3. Wall mount accessories x 1
4. User’s Manual and Utility CD x 1
5. Quick Installation Guide x 1
NOTE : 1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in ICA-310 packet will cause
damage and void the warranty for this product.
3. If ICA-310 is obtaining power from a PoE device, you don’t have to connect the
power adapter.
5

2. Basic Setup
This chapter provides details of installing and configuring the ICA-310
2.1 System Requirements
Network Interface 10/100MBase-TX Ethernet
Monitoring System Recommended for Internet Explorer 6.0 or later
Basic System Hardware · CPU: Pentium 4, 3.0GHz or above
· Memory Size : 512 MB (512 MB or above Recommended )
· VGA card resolution : 1024 x 768 or above
· VGA card memory : 64 MB or above
· Sound card: Necessary
· Network bandwidth: In VGA resolution mode, minimum
upload bandwidth is 1Mbps.
NOTE: The listed information is minimum system requirements only. Actual requirement will
vary depending on the nature of your environment.
6

2.2 Physical Details
Identification of ICA-310 cables RS-485 (Blue: D+ / Red: D- ):
Connect to a Pan/Tilt external scanner unit.
This connector is built inside the ICA-310 housing. If
you need to install the RS-485, please contact your
dealer for more information.
NOTE: The RS-485 of ICA-310 is master that can
control external scanner.
Power Connector:
The input power is 12VDC.
NOTE: Supplies the power to the ICA-310 with the
power adapter included in package.
Video Output Connector (BNC port):
The ICA-310 also provides composite video output.
User can use BNC video cable to connect the ICA-310
with a TV monitor or DVR.
RJ-45 LAN Connector:
For connect a LAN cable to your Hub/Switch or PoE
device.
The LAN port is a RJ-45 connector for connections to
10Base-T Ethernet or 100Base-TX Fast Ethernet
cabling. This Ethernet port built N-Way protocol can
detect or negotiate the transmission speed of the
network automatically. Please use Category 5
“straight” cable to connect the ICA-310 to a 100Mbps
Fast Ethernet network switch or hub. If you are plan to
connect the ICA-310 to a PoE device (such as PoE
switch) to get the power source, you will also connect
the RJ-45 cable from this connector to the PoE device.
NOTE: In case you need to connect the device to PC
or notebook directly, you should use a cross-over
cable instead.
Use only one power source, either 12VDC or Power
over Ethernet through UTP cable at one time. Use of
both powers will damage the camera permanently.
7

2.3 Hardware Installation
1. Fix ICA-310 to the location with wall mount fixture.
2. Plug-in Ethernet Cable into RJ-45 LAN port. Connect an Ethernet cable to the LAN port on the
ICA-310 and connect the other side of the Ethernet cable to a hub/switch or PoE device.
3. Connect RS485 D+ and D- interface (if you need to control P/T external scanner).
4. Connect the bundled power adapter to camera and plug-in this adapter into power outlet. OR ,
connect your ICA-310 to a PoE device.
5. Connect Video BNC connector to a local TV monitor or DVR if necessary.
6. Done.
2.4 Initial Utility Installation
This chapter shows how to quick set up your ICA-310. The ICA-310 is with the default settings.
However to help you find the networked camera quickly the windows utility-IP Wizard can search
the cameras in the network that shall help you to configure some basic setting before you started
advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the autorun program. Once completed,
a welcome menu screen will appear.
2. Click the “IP Wizard” hyperlink; you will see the InstallShield Wizard dialog box as below.
NOTE: If the welcome screen does not appear, click “Start” at the taskbar. Then, select
“Run” and type “D:\Utility\setup.exe”, assume D is your CD-ROM drive.
8

3. The “Welcome to the InstallShield Wizard for IP Wizard” will display on the screen and click
“Next” to continue.
4. Please click “Next” to install with original settings, or you may click “Change…” button to
modify the install folder then press “Next” to continue.
9

5. Please click “Install” to start the installation.
6. Please click “Finish” to complete the installation
7. Please double-click the utility icon on the desktop then you will see the ICA-310
utility.
10

2.5 IP Wizard
When you installed the ICA-310 on a LAN environment, you may execute IP Wizard to discover
ICA-310’s IP address and set up related parameters in the ICA-310.
Search Button:
When click Search button, a searching window will pop up. IP Wizard is starting to search ICA-310
on the LAN. The message “No Network Devices Is Found” will appear on this window if IP Wizard
cannot find any camera on the LAN. Otherwise, existed cameras will be listed. If total quantity is
over, please move the cursor to Information Box. Click on the left button of the mouse and the
Information Box of the Listing Window will roll upward automatically; on the contrary, move the
cursor to the Information Box on the top of Listing Window and click on the left button of the mouse
and Listing Window will roll downward.
11

Wizard Button:
When IP Wizard finds your camera, Wizard button will become available. Please select the device
you would like to configure in the Information Box. The device will turn into yellow which means
this device is selected; please press “Wizard” button. Or you could double click the mouse left key
on the selected camera. Relative settings will be carried out. Details of Install Wizard will be
specified as Section 2.6.
About Button:
When click “About” button, you will see the version information of IP Wizard shown in the pop-up
dialog box.
Exit Button:
Click “Exit” button will close the IP Wizard Program.
12

2.6 Configure With IP Wizard
After pressing Installation Wizard, please key in Username and Password of the device when login
dialog box appears on the screen. You can login the setup page if authorized name and password
is correct. Default username/password for machine login: admin/<no password>

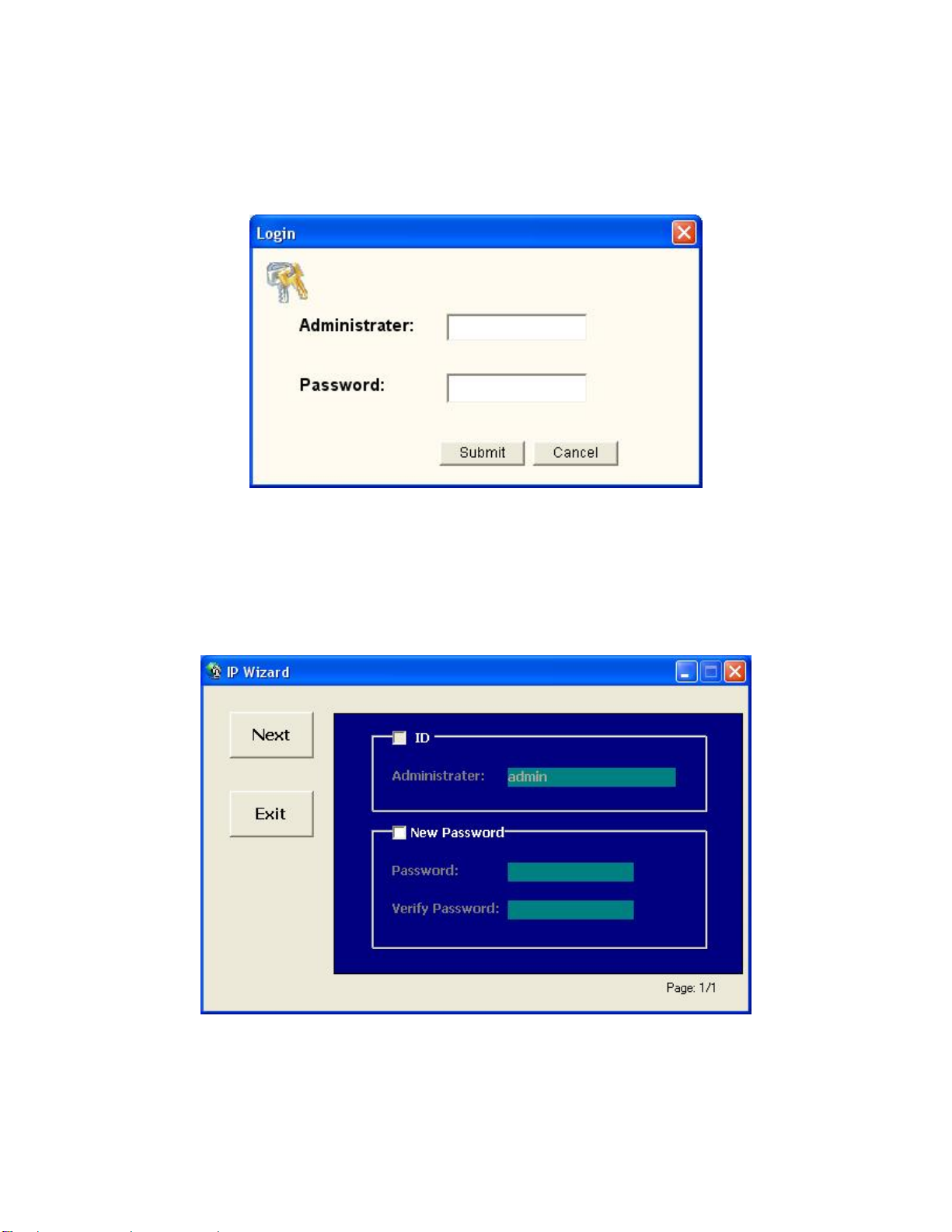

Wizard Page 1: Username and Password
This page is about the change of the authorized user name and password of the selected device. If
you don’t want to change them, please click “Next” to move to the next page. Press “Exit” button if
you don’t want to set up right now. If you want to change authorized name or password, you have
to check the box in front of ID or New Password.Authorized Username should contain at least 5~
20 characters and New Password should contain at least 4~8 characters.
13

Wizard Page 2: LAN Setting
This page is about the select of Static IP or DHCP IP.
LAN You can configure this ICA-310 to obtain its address automatically or manually
assign. If there is a DHCP server in your network environment and you select
“DHCP IP”, ICA-310 can automatically obtain an IP address. If you don’t have
DHCP server or you want to use fixed IP address, please select “Static IP”
and fill in the following fields with proper parameters.
IP Address IP address is a unique number for identifies this device on the WAN or LAN.
These numbers are usually shown in groups separated by periods, for
example: 192.168.0.200
Subnet Mask Subnets allow network traffic between hosts to be separated based on the
network's configuration. In IP networking, traffic takes the form of packets. IP
subnets advance network security and performance to some level by
organizing hosts into logical groups. Subnet masks contain four bytes and
usually appear in the same "dotted decimal" data. For example, a very
common subnet mask in its binary demonstration 11111111 11111111
11111111 00000000 will usually be shown in the corresponding, more
readable form as 255.255.255.0.
Def. Gateway A gateway is a piece of software or hardware that passes information between
networks. You'll see this term most often when you either log in to an Internet
site or when you're transient email between different servers.
DNS1 When you send email or position a browser to an Internet domain such as
xxxxx.com, the domain name system translates the names into IP addresses.
The term refers to two things: the conventions for naming hosts and the way
the names are control across the Internet.
DNS2 The same function as DNS1. It is optional, not necessary
Note: If no IP address is assigned after 30 seconds, the ICA-310 will work with its default IP
14

address 192.168.0.20. User may now open your web browser, and key in http://192.168.0.20 in
the address bar of your web browser to logon ICA-310’s web configuration page.
Wizard Page 3: Confirmation
This page shows the new configurations. If it is correct, please press “Submit” icon and the setting
information will be save to your ICA-310. Click on “Exit” to close this window.
15

2.7 UPnP Function
NOTE: Windows 2000 does not support UPnP feature.
2.7.1 Windows XP
UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides
compatibility among networking equipment, software, and peripherals. This device is an UPnP
enabled device. If the operating system, Windows XP, of your PC is UPnP enabled, the device will
be very easy to configure. Use the following steps to enable UPnP settings only if your operating
system of PC is running Windows XP.
Go to Start > Settings, and Click Control Panel
The “Control Panel” will display on the screen and double click Add or Remove Programs to
continue
16

The “Add or Remove Programs” will display on the screen and click Add/Remove Widows
Components to continue.
The following screen will appear, select Networking Services and click Details to continue
17

The “Networking Services” will display on the screen, select Universal Plug and Play and click
OK to continue.
Please click Next to continue
18

The program will start installing the UPnP automatically. You will see the below pop-up screen,
please wait while Setup configures the components.
Please click Finish to complete the UPnP installation
19
