HARGROVE MANUFACTURING CORPORATION
207 WELLSTON PARK ROAD
SAND SPRINGS OK, 74063
[phone]
www.hargroveoutdoor.com
www.hargrovegaslogs.com

POND-LESS KITS PARTS LIST
KIT - 40R06001
1. R40 - 40” RESERVOIR
4. P0600 – 600 GPH PUMP
5. H16NK – 4’ OF 1” NON KINK VINYL HOSE
6. F12MPTN2 – ¾”MPT 2” NIPPLE
7. V12FPT – ¾” FPT BALL VALVE
8. F12MPT16B – ¾” MPT TO 1” BARB
KIT - 40R06002
1. R40 - 40” RESERVOIR
4. P0600 – 600 GPH PUMP
5. H12NK – 4’ OF 1” NON KINK HOSE (QTY 2)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 3)
7. V12FPT – BALL VALVE ¾” FPT (QTY 2)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 2)
9. F12FPTTEE – ¾” FPT TEE
12
3
45
6
7
8
9
KIT - 48R10501
1. R48 - 48” RESERVOIR
4. P1050 – 1050 GPH PUMP
5. H16NK – 4’ OF 1” NON KINK VINYL HOSE
6. F12MPTN2 – ¾”MPT 2” NIPPLE
7. V12FPT – ¾” FPT BALL VALVE
8. F12MPT16B – ¾” MPT TO 1” BARB
KIT - 48R10502
1. R48 - 48” RESERVOIR
4. P1050 – 1050 GPH PUMP
5. H12NK – 4’ OF 1” NON KINK HOSE (QTY 2)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 3)
7. V12FPT – BALL VALVE ¾” FPT (QTY 2)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 2)
9. F12FPTTEE – ¾” FPT TEE
KIT - 48R10503
1. R48 - 48” RESERVOIR
4. P1050 – 1050 GPH PUMP
5. H12NK – 4’ OF 1” NON KINK HOSE (QTY 3)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 5)
7. V12FPT – BALL VALVE ¾” FPT (QTY 3)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 3)
9. F12FPTTEE – ¾” FPT TEE (QTY 2)
KIT – 48L06001
2. L8X10 - 8’ BY 10’ LINER
3. G48 - 2’ BY 4’ PLASTIC GRATES (QTY 2)
4. P0600 – 600 GPH PUMP
5. H16NK – 4’ OF 1” NON KINK VINYL HOSE
6. F12MPTN2 – ¾”MPT 2” NIPPLE
7. V12FPT – ¾” FPT BALL VALVE
8. F12MPT16B – ¾” MPT TO 1” BARB
KIT – 48L10503
2. L8X10 - 8’ BY 10’ LINER
3. G48 - 2’ BY 4’ PLASTIC GRATES (QTY 2)
4. P1050 – 1050 GPH PUMP
5. H16NK – 4’ OF 1” NON KINK VINYL HOSE (QTY 3)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 5)
7. V12FPT – ¾” FPT BALL VALVE (QTY 3)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 3)
9. F12FPTTEE – ¾” FPT TEE (QTY 2)
RIGID LINER
SOFT LINER

Select an area large enough to accommodate your new
fountain kit and any possible water loss due to splash.
Vegetation and structure not suitable for excessively wet
conditions should not be located near the water fountain due to
the possibility of splash. Area must be free of any underground
utilities and within 15ft of a GFI outlet (cord length 16’)

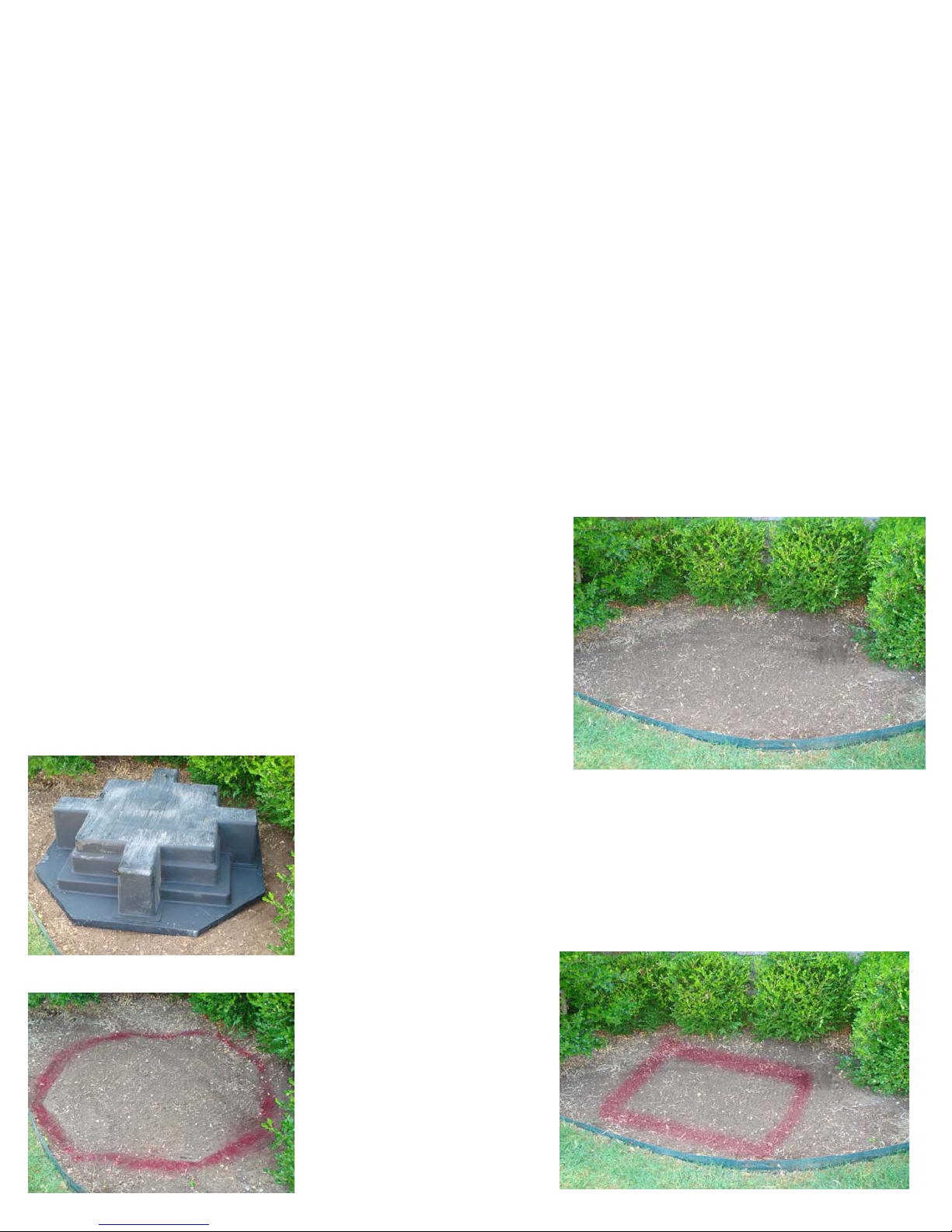

SITE SELECTION
STEP 1
Place the reservoir kit or grating (for soft liner kit) in the desired
location and use it as a template to mark the ground. Marke
r
paint works well, or use a shovel to mark the area that needs to
be dug.
PUMP KITS PARTS LIST
KIT - 06001
4. P0600 – 600 GPH PUMP
5. H16NK – 4’ OF 1” NON KINK VINYL HOSE
6. F12MPTN2 – ¾”MPT 2” NIPPLE
7. V12FPT – ¾” FPT BALL VALVE
8. F12MPT16B – ¾” MPT TO 1” BARB
KIT - 06002
4. P0600 – 600 GPH PUMP
5. H12NK – 4’ OF 1” NON KINK HOSE (QTY 2)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 3)
7. V12FPT – BALL VALVE ¾” FPT (QTY 2)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 2)
9. F12FPTTEE – ¾” FPT TEE
KIT - 10501
4. P1050 – 1050 GPH PUMP
5. H16NK – 4’ OF 1” NON KINK VINYL HOSE
6. F12MPTN2 – ¾”MPT 2” NIPPLE
7. V12FPT – ¾” FPT BALL VALVE
8. F12MPT16B – ¾” MPT TO 1” BARB
KIT - 10502
4. P1050 – 1050 GPH PUMP
5. H12NK – 4’ OF 1” NON KINK HOSE (QTY 2)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 3)
7. V12FPT – BALL VALVE ¾” FPT (QTY 2)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 2)
9. F12FPTTEE – ¾” FPT TEE
KIT - 10503
4. P1050 – 1050 GPH PUMP
5. H12NK – 4’ OF 1” NON KINK HOSE (QTY 3)
6. F12MPTN2 – ¾”MPT 2” NIPPLE (QTY 5)
7. V12FPT – BALL VALVE ¾” FPT (QTY 3)
8. F12MPT16B – ¾” MPT TO 1” BARB (QTY 3)
9. F12FPTTEE – ¾” FPT TEE (QTY 2)
RIGID LINER
SOFT LINER

STEP 2
Remove the template from the
area and dig a hole for your liner.
You will want to position the line
r
an inch or two higher than the
surrounding ground to prevent
runoff. For softer soil you may
need to dig a 3” deeper hole and
filled to the desired depth with
sand. This will insure a solid
foundation for the liner.
STEP 3
Insert the liner in the hole and use a
level to check that it is level front-to-
back and side-to-side. If it is not
level adjust with sand. When
positioned correctly the top of the
reservoir should be an inch or two
above ground level. (Below ground
level will result in dirty water) Use
removed soil to back-fill and pac
k
around the liner.
STEP 4
Depending on the installation (number of outlets) build the
pump hose assembly to match the diagram shown.
ONE OUTLET
THREE OUTLETS
TWO OUTLETS

STEP 5
STEP 6
Install rock on grating by leaning the rock over and sliding the
slip fitting over the PVC (at this low of pressure PVC cement is
not needed). Fill liner with water and plug in pump to a GFI
outlet with a weather cover. Adjust the ball valves to get the
desired water flow from the bubbler rock. Check the flow o
f
water over the rock and determine that most of the splash from
the rock is being caught by the liner. If not adjust water flow
using the ball valves or shimming the rock. The water level will
have to be monitored periodically; damage to pump due to
inadequate water level is not covered under the pump
warranty.
STEP 8
Install grating panel and pull
hoses through the section o
f
the grating in which the
bubbler rock will sit. It may be
necessary to cut a rib of the
grating to get hoses through.
Install the last section of the
grate. (Be aware of the pump
cord, the grating should not
rest on the cord.
)
STEP 7
Now connect the parts that came with the bubbler rock and install
them on the non-kink hose.
Insert the assembly into the
reservoir. Keep in mind the
pump may need to be
accessible at various times
such as adjusting flow outputs
of the bubbler, Make sure to
guide the cord out of the line
r
to nearest GFI outlet. Fo
r
more pump information see
instructions included with
pump kit.

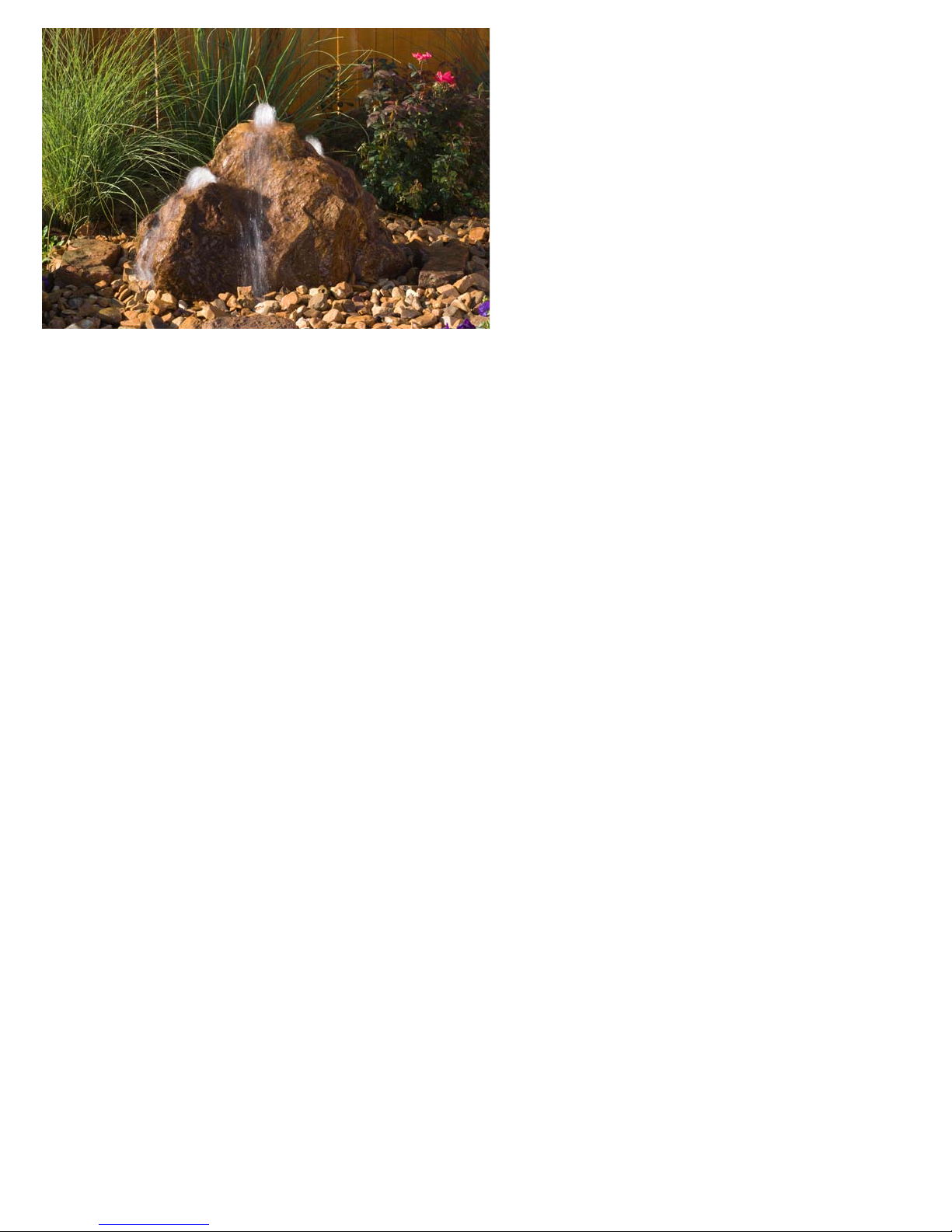

Now that all adjustments have been
made the fountain is now ready fo
r
landscaping. Place crushed stone
or rock on grating and landscape as
desired.
STEP 9
MAINTENANCE
WINTERIZATION
In colder climates where temperatures can reach below 32 degrees Fahrenheit it is recommended
that all water be removed from the fountain kit. Also, remove the water pump, by disconnecting the
union joint, and store in temperature-controlled atmosphere above freezing.
LINER
Check and adjust water level periodically, keeping the water level at or near the bottom of grating
and no lower than your water pump inlet. Also, remove any dirt, rock or debris from inside the
fountain base that may cause damage to the water pump or flexible hose.
PUMP
The pump is a magnetically driven centrifugal water pump. It has no seals to wear and contains no
oil. All electrical components are encapsulated in epoxy. The energy used is approximately ½ of
regular driven pumps. The pre-filter is provided for use in situations where deposits in the water
could clog or damage the pump. For more detailed information see instructions included with pump.
PRECAUTIONS
Always use a properly grounded outlet. Do not immerse plug in water. DO NOT REACH INTO
WATER TO REMOVE PLUG. TURN OFF CIRCUIT FIRST. The National Electric Code requires that
ground fault circuit interrupter (GFCI) be installed in the branch circuit supplying fountain or pond
equipment. NEVER REMOVE GROUND PIN FROM ELECTRICAL PLUG. WARNING: FOR YOUR
PROTECTION ALWAYS UNPLUG THE PUMP UNIT FROM ITS POWER SOURCE BEFORE
INSTALLING OR SERVICING. SHOULD THE UNIT APPEAR TO BE NOT WORKING DO NOT
REACH, REMOVE, OR DISASSEMBLE BEFORE YOU DISCONNECT POWER.
