Harman Kardon HD 950 User manual

HD 950 CD Player
SERVICE MANUAL
Power for the Digital Revolution®

HD 950
CD text support
MP3 playback with ID3 support
24 bit/176 kHz SRC
CD-R/CD-RW playback
HD 950
Single disc CD player with CD Text
Music the way it was meant to be heard. That’s the task assigned to the HD 950, and its performance is
brilliant with signal-to-noise specs mirroring those of the mixing consoles through which the recordings
were made. The HD 950’s no compromise, audio-centric design focuses on purity, adding neither
artifacts or veils to the one thing that matters most: your music.
Specifications
• Supported Data: PCM 16 to 24 bit, 30 to 96 kHz; D/A Conversion: Multibit Delta-Sigma
• Frequency Response: 20Hz – 20kHz, +0dB/–0.5dB; “A”-Weighted S/N Ratio: >110dB; THD:
<0.0009% @ 1kHz; Dynamic Range: >100dB; Channel Separation: >100dB
• General – Dimensions (H x W x D): 63mm x 440mm x 332mm; Weight: 3.8kg
[NOTE: Depth measurement includes knobs, buttons and terminal connections; height measurement includes feet and
chassis.]
Features
• 24 bit/176 kHz Sample Rate Converter (SRC)
• 24 bits Resolution Enhancer for Lowest Possible Noise Level and Inter-Modulation Distortion (IMD)
• High Grade Wolfson®WM8740 D/A Converter, Capable of Highlighting the Outstanding Performance
of the SRC
• CD Playback with CD Text Functionality, MP3 Playback with ID3 Tag Information
• Playback Compatibility with CD-R/RW Recordable Discs
• 99 Programmable Tracks, Random Play, Repeats Entire Disc, Track, or All Discs
• Direct Entry of Discs and Tracks from Remote Control, Forward and Reverse Disc Skip
• Display of Time Elapsed and Time Remaining of Current Track or Time Remaining of Programmed
Tracks
• DOT Matrix Display
All features and specifications are subject to change without notice.
Harman Kardon is a registered trademark of Harman International Industries, Incorporated. Wolfson is a registered trademark of Wolfson Microelectronics.
© 2006 Harman International Industries, Incorporated

1
2
3
45
6
8
10
11
13
2
14
9
7
15
16
12
1 01.00.BZ.X.W.E653 1 CartonboxHD950
22 BarcordLabel
301.00.BZ.F.F.022 2 Flat Polyfoam310*168*28mm
402.25.HD950 1 completedremotecontrolHD950
501.00.BZ.D.Z.E019 1 bag8.4*24cmforRemotecontrol
601.00.BZ.F.P.E199 1 PolyfoamHD970-left
01.00.BZ.F.P.E200 1 PolyfoamHD970-right
71 MainUnit
801.00.BZ.D.C.E068 1 bag540*495*T0.8mmforMainUnit
901.00.BZ.F.F.E037 1 Flat Polyfoam310*168*20MM
1001.00.YS.SM1.E745 1 Owner manual DVD23 EU
1101.00.YS.FY3.E1008 1 SafetyinstructionmanualHD950
1201.00.BZ.D.Z.E020 1 Plasticbag25*35cmforownermanual
1301.47.CNT.CTX.E028 1 Audio/VideocableYellowWhiteRed,1.2m
1401.47.CNT.CTX.027 1 Remotcontroltransmissioncable φ3.5+φ3.5
(singlechannel),black, 1.2m
1501.14.DX.B.0005G 2 battery5#,GPbrand
1601.00.BZ.D.Z.E001 1 Plasticbag15.5*23cmforAVcable
NO.PARTNO.Q'TYDESCRIPTION
HD 950 Packing instruction
PDFcreated withpdfFactorytrialversion www.pdffactory.com

EXPLODE VIEW
HD 950
NO. PART NO. Q'TY DESCRIPTION
22
21
19
20
S1
23
S4
S5 6
1
S1
5
2
3
4
7
6
8
S2
10
9
11
12
16
14
15
17
14
13
15
14
15
S1 S1 S1 S1
S3 S3
S3 S3
S3S3S3 S3
S3
S4
S4
S4
S6
S5 4
S9S9
S9 S9
15
14
S2
S2
S2
1 01.00.WJ.LM.E054 1 Aluminum ally wrap for disc tray HD970
2 01.00.SJ.HD970.E002 1 HD970-Disc tray door
3 01.00.SJ.HD950.E002 1 HD950-len on front panel
4 01.00.SJ.QT.E001 1 VFD filter 105.7mm*24.3mm*0.5
5 01.00.SJ.HD970.E007 1 HD970-Long decorate strip
6 01.00.SJ.HD970.E001 1 HD970-Short decorate strip
7 01.00.SB.E034 1 harman/kardon logo silver/blue color
8 01.00.SJ.HD970.E011 1 HD970-Power Indicator Cover
9 01.00.SJ.HD970.E010 1 HD970-front panel
10 01.00.SJ.HD970.E003 1 HD970-functional button
11 01.00.SJ.HD970.E008 1 HD970-open button
12 02.15.HCD06K3566C01 1 Front panel board ass'y HCD06K-3567C01
13 02.15.HCD06K3566C01 1 Front panel board ass'y HCD06K-3566C01
14 01.00.DP.HM.E158 4 Pedestal underlay 16.2* 8*2.5mm
15 01.00.SJ.DVD22.E010 4 DVD22-Pedestal
16 01.15.JX.EDV345 1 loader DV345 (HD65G+DVD-M06BW)
17 01.00.WJ.TJ.HD950.E001 1 HD950-chassis
18 01.00.SJ.HD970.E013 2 PCB plastic frame φ8*10
19 02.19.HCD06P1254C01 1 SMPS board ass'y 1254C
20 02.11.HCD06M3565C01 1 Mainboard ass'y HCD06M-3565C01
21 01.00.WJ.TJ.HD950.E002 1 HD950-rear panel (EU)
22 01.00.WJ.TJ.E556 1 HD970-top cover
23 01.47.CNT.ACX.E138 1 Power cord with 500mm fixture EU
S1 01.00.WJ.JG.E328 6 Screw ST 3*6KBTTO
S2 01.00.WJ.JG.E451 4 Screw ST 3*6PWMHC W=7
S3 01.00.WJ.JG.E543 9 Screw ST 3*6PWBTTNI W=7
S4 01.00.WJ.JG.E619 4 Screw ST 3*8PWBTTC
S5 01.00.WJ.JG.E142 4 Screw ST 3*6PAHC
S6 01.00.WJ.JG.E166 6 Screw ST 3*8PAHC
S7 01.00.WJ.JG.E089 1 Screw ST 3*6PWAHC
S8 01.00.WJ.JG.E321 4 Screw ST 3*8PAHO
S9 01.00.WJ.JG.E329 4 Screw ST 4*8RTHO
S10 01.00.WJ.JG.E091 2 Screw PMO 3*6PWBTTC
S11 01.00.WJ.JG.E327 2 Screw ST 3*15PWMTTC
S12 01.00.WJ.JG.E717 4 Screw ST 3*4PWBTTNI
N1 01.00.WJ.JG.E119 2 Nut M3
S10
S10 S11
S11
S12 S12 S12 S12
S8 4
18
PDFcreated withpdfFactorytrialversion www.pdffactory.com

harman/kardon HD 950/230
HD950 Component List for Main Board(3565C)
Location.No. Description Specification P/N Qt
y
Note
R89 R96 R104 R105 R112
R115 R121 R145 R163 R164
R165 R169 R170
Resistor, chip 0805-0Ω±5% 01.57.R.3.E000J 13
R135 R136 R161 R162 Resistor, chip 0805-1Ω±5% 01.57.R.3.E1R0J 4
R65 R110 R118 Resistor, chip 0805-22Ω±5% 01.57.R.3.E220J 3
R106 R94 Resistor, chip 0805-33Ω±5% 01.57.R.3.E330J 2
R19 R23 R62 R63 R64 R66
R67 R68 R69 R70 R71 R150
R151 R153 R154 R155 R166
R168
Resistor, chip 0805-100Ω±5% 01.57.R.3.E101J 18
R171 R172 R174 Resistor, chip 0805-240Ω±5% 01.57.R.3.E241J 3
R12 Resistor, chip 0805-270Ω±5% 01.57.R.3.E271J 1
R22 Resistor, chip 0805-300Ω±5% 01.57.R.3.E301J 1
R13 R173 Resistor, chip 0805-390Ω±5% 01.57.R.3.E391J 2
R35 Resistor, chip 0805-470Ω±5% 01.57.R.3.E471J 1
R83 R149 R152 Resistor, chip 0805-560Ω±5% 01.57.R.3.E561J 3
R28 R48 R58 R87 R88 Resistor, chip 0805-1KΩ±5% 01.57.R.3.E102J 5
R141 R157 Resistor, chip 0805-1.5K±5% 01.57.R.3.E152J 2
R107 R108 Resistor, chip 0805-2KΩ±5% 01.57.R.3.E202J 2
R129 R130 R131 R132 Resistor, chip 0805-2.2KΩ±5% 01.57.R.3.E222J 4
R11 R14 R75 R77 R78 R79
R80 R81 R82 R86 R147 R156 Resistor, chip 0805-4.7KΩ±5% 01.57.R.3.E472J 12
R133 Resistor, chip 0805-5.1K±5% 01.57.R.3.E512J 1
R111 Resistor, chip 0805-6.2KΩ±1% 01.57.R.3.E622F 1
R137 R138 Resistor, chip 0805-8.2K ±1% 01.57.R.3.E822F 2
R1 R4 R5 R8 R18 R33 R34
R57 R59 R61 R72 R73 R74
R76 R92 R93 R98 R100 R101
R102 R120 R123 R125 R126
R127 R128 R144 R160
Resistor, chip 0805-10KΩ±5% 01.57.R.3.E103J 28
R114 R109 Resistor, chip 0805-11.8KΩ±1% 01.57.R.3.E1182F 2
R2 R3 R142 R158 Resistor, chip 0805-22K±5% 01.57.R.3.E223J 4
R117 R116 Resistor, chip 0805-33KΩ±5% 01.57.R.3.E333J 2
R6 R146 R148 Resistor, chip 0805-47KΩ±5% 01.57.R.3.E473J 3
R119 R122 R124 R167 Resistor, chip 0805-100KΩ±5% 01.57.R.3.E104J 4
R143 R159 Resistor, chip 0805-1MΩ±5% 01.57.R.3.E105J 2

harman/kardon HD 950/230
HD950 Component List for Main Board(3565C)
Location.No. Description Specification P/N Qt
y
Note
R29 R30 R31 R32 Resistor, chip 1206-680Ω1% 01.57.R.4.E681F 4
R49 R52 R53 R56 Resistor, chip 1206-2KΩ±1% 01.57.R.4.E202F 4
R50 R51 R54 R55 Resistor, chip 1206-2.7KΩ1% 01.57.R.4.E272F 4
R39 R45 R134 R139 R140 Resistor, chip 1206-15KΩ1% 01.57.R.4.E153F 5
R9 R10 Resistor, chip 1206-47KΩ1% 01.57.R.4.E473F 2
R7 Resistor, chip 1206-4.7MΩ±5% 01.57.R.4.E475J 1
RN1 RN2 RN3 RN4 RN5 RN6
RN7 RN8
Resistor, thick film chip
network 33Ω*4 ±5% 01.57.R.8.EP3304 8
C77 C78 C79 C81 Capacitor, multilayer ceramic,
chip 0805-10P NPO±5%/50V 01.54.CS.3.E100N 4
C119 C120 Capacitor, multilayer ceramic,
chip 0805-15P NPO±5%/50V 01.54.CS.3.E150N 2
C21 C19 Capacitor, multilayer ceramic,
chip 0805-22P NPO±5%/50V 01.54.CS.3.E220N 2
C103 Capacitor, multilayer ceramic,
chip 0805-47P NPO±5%/50V 01.54.CS.3.E470N 1
C145 C144 Capacitor, multilayer ceramic,
chip 0805-100P NPO±5%/50V 01.54.CS.3.E101N 2
C99 Capacitor, multilayer ceramic,
chip 0805-120P NPO±5%/50V 01.54.CS.3.E121N 1
C104 Capacitor, multilayer ceramic,
chip 0805-200P NPO±5%/50V 01.54.CS.3.E201N 1
C146 C147 Capacitor, multilayer ceramic,
chip 0805-390P NPO±5%/50V 01.54.CS.3.E391N 2
C141 C155 Capacitor, multilayer ceramic,
chip 0805-470P NPO±5%/50V 01.54.CS.3.E471N 2
C138 Capacitor, multilayer ceramic,
chip 0805-680P NPO±5%/50V 01.54.CS.3.E681N 1
C96 C116 Capacitor, multilayer ceramic,
chip 0805-102 X7R ±10%/50V 01.54.CS.3.E102X 2
C105 C109 C117 Capacitor, multilayer ceramic,
chip 0805-332 X7R±10%/50V 01.54.CS.3.E332X 3
C115 Capacitor, multilayer ceramic,
chip 0805-392 X7R±10%/50V 01.54.CS.3.E392X 1
C97 C129 C135 C153 Capacitor, multilayer ceramic,
chi
p
0805-103 X7R±10%/50V 01.54.CS.3.E103X 4

harman/kardon HD 950/230
HD950 Component List for Main Board(3565C)
Location.No. Description Specification P/N Qt
y
Note
C1 C3 C4 C8 C13 C15 C18
C20 C24 C32 C33 C34 C37
C38 C43 C44 C46 C48 C49
C50 C51 C52 C53 C55 C58
C59 C60 C62 C63 C67 C68
C72 C73 C76 C82 C85 C86
C87 C88 C89 C90 C91 C92
C93 C94 C95 C98 C100 C101
C102 C106 C108 C110 C118
C122 C123 C127 C136 C140
C142 C143 C154 C156 C157
C162
Capacitor, multilayer ceramic,
chip 0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y 65
C107 C113 C114 C121 C128 Capacitor, multilayer ceramic,
chip 0805-105 Y5V-20+80%/16V 01.54.CS.3.E105Y 5
C111 C126 Capacitor, multilayer ceramic,
chip 0805-475 Y5V+80-20%/16V 0154CS3E475/16V 2
C26 C27 C30 C31 Capacitor, multilayer ceramic,
chip 1206-680P NPO±5%/50V 01.54.CS.4.E681N 4
C5 C6 Capacitor, multilayer ceramic,
chip 1206-222 X7R±10%/50V 01.54.CS.4.E222X 2
C74 Capacitor, AL.electrolytic CD110-10UF/16V 5*11 0134CLDE10U16VC 1
C2 C7 C9 C10 C11 C12 C14
C16 C17 C25 C41 Capacitor, AL.electrolytic CD110-47UF/25V 5*11 0134CLDE47U25VC1 11
C130 C131 C132 C133 C134
C148 C149 C150 C151 C158
C159
Capacitor, AL.electrolytic CD110-47UF/50V 6.3*12 0134CLDE47U50VCD 11
C22 C23 C28 C29 C36 C39
C42 C45 C57 C61 C69 C70
C71 C75 C83 C84 C124 C125
C137 C161
Capacitor, AL.electrolytic CD110-100UF/10V 5*12 0134CLDE100U10VD 20
C35 C40 C47 C54 C56 Capacitor, AL.electrolytic CD110-220UF/10V 5*12 0134CLDE220U10VD 5
L1 L2 Inductor, multilayer ceramic,
chip 0805-10UH 01.13.L.L.S.E007 2
T1 Pulse transformer,Coilcraft WB1010-1,DIP6 01.13.L.L.D.E081 1
D2 Diode 30BQ040 SMD 0141DPSE30BQ040 1 Schottky diode 3A
International Rectifier

harman/kardon HD 950/230
HD950 Component List for Main Board(3565C)
Location.No. Description Specification P/N Qt
y
Note
DZ1 Zener Diode ZENER 6.2V 0.4W, In-line Package 01.41.D.WS.E6V2 1
Q23 Q1 Transistor,Philips or DIODES BSS123,SOT-23 01.42.Q.S.E123 2
Q2 Q3 Q6 Q7 Q9 Q14 Q15
Q16 Q20 Q21 Q22 Transistor,Panasonic 2SA1035,SOT23 01.42.Q.S.E1035 11
Q4 Q5 Transistor,ROHM DTC343TKT146,SOT-23 01.42.Q.S.EDTC343 2
Q8 Q10 Q11 Q12 Q13 Q17
Q18 Q19 Transistor,Panasonic 2SC2406,SOT23 01.42.Q.S.E2406 8
Q25 Q24 Transistor,ROHM 2SB1132,MPT3 01.42.Q.S.E1132 2
Q27 Q29 Transistor,ROHM 2SD1664T100R ,MPT3 01.42.Q.S.E1664T 2
Q26 Q28 Mosfet,ROHM 2SK3018T106,UMT3 01.42.Q.S.E3018 2
Q31 Q30 Transistor KTC8050-C/P,TO-92 01.42.Q.D.E8050 2
Q32 Q33 Transistor KTC8550-C/P,TO-92 01.42.Q.D.E8550 2
X1 Fundamental. Oscillator 33.8688MHZ-49S-20P 01.00.JZ.E33868 1
Y1 Oscillator 22.5792MHz Oscillator /3.3V 01.00.JZ.E225792 1
U11 IC, ADI, Blackin DSP ADSP-BF532SBST-C50 REV0.5
LQFP176 0144ICSEBF532S 1
U19 IC, Via, Servo chip VT7208, LQFP216 01.46.IC.E7208G 1
U12 IC, KH,Flash Memory KH29LV040CQC-70G, PLCC32 0146ICEKH29LV040 1 firmware burn-in
U18 IC, AMIC, Flash memory AMIC A290011TL-70, PLCC32 01.46.IC.E290011 1 firmware burn-in
U14 IC,ISSI,SDRAM IS42S16400B-7TL, TSOP54 0146ICE16400B7TL 1
U20 IC, EliteMT, DRAM M11B416256A, SOJ40 0146ICEM11B416256A 1
U24 IC, Rohm, Actuator driver BA5888FP, HSOP-28 01.44.IC.S.E5888 1
U22 IC,TI,TTL input buffer SN74HCT245PWR,TSSOP20 0146ICE74HCT245 1
U2 IC, Sharp, Photoelectric
Coupler PC817,DIP4 0144ICDEPC817C 1
U8 IC, AAC, LDO AZ1117H-5.0, SOT-223 01.44.IC.S.E1117H 1
U13 U17 IC, AAC, LDO AZ1117H-ADJ, SOT-223 01.44.IC.S.E1117 2
U16 IC, AAC, LDO AZ1117H-3.3, SOT-223 0144ICSEA11173V3 1
U23 IC, ST, Comparator LM393, SOP8 01.44.IC.S.ELM393 1
U4 IC, Fairchild, Voltage
Regulator L7912,TO-220 01.44.IC.D.E7912 1
U5 IC, ST, Voltage Regulator L7812,TO-220 01.44.IC.D.E7812 1
U3 IC, AKM, SPDIF transmitter AK4103AVF, VSOP24 01.44.IC.S.E4103 1
U6 U7 IC, JRC, Operational amplifier NJM5534M,DMP8 01.46.IC.NJM5534 2
U9 IC, Wolfsonw, DA converter WM8740SEDS, SSOP-28 01.44.IC.S.E8740 1

harman/kardon HD 950/230
HD950 Component List for Main Board(3565C)
Location.No. Description Specification P/N Qt
y
Note
U1 Jack, Sharp, Fiber optic ouput
jack with shutter GP1FA513TZ, In-line Package 01.43.E005 1 Optical transmitter
J1 Jack, IR in/out jack SCJ351P00XS0B00 (BLACK), In-line
Package 0140CONDCZE121 1
J2 Jack, YuanChang, Coaxial
output jack AV1-8.4-6G, In-line Package 0140CONDCZE123 1 Antiflaming,Orange
J3 Jack, GuanLong, Audio output
jack AV2-8.4-1G, In-line Package 0140CONDCZE122 1 Antiflaming,Down red & up white
J8 Connector PH-5A 0140CONDPHE024 1 Antiflaming
J7 Connector PH-6A 0140CONDPHE028 1 Antiflaming
J4 Connector PH-13A 0140CONDPHE047 1 Antiflaming
J6 FPC connector FPC-0.5-24P with upward touch 0140CONS05E007 1 SMD
J9 FPC connector FPC-1.25-14P 0140CONS13FPC2E002 1 Vertical Type
HD950 Component List for Front panel board(3566C)
Location.No. Description Specification P/N Qt
y
Note
R405 R413 Resistor, chip 0805-100Ω±5% 01.57.R.3.E101J 2
R404 R414 Resistor, chip 0805-470Ω±5% 01.57.R.3.E471J 2
R407 Resistor, chip 0805-1KΩ±5% 01.57.R.3.E102J 1
R401 R403 R406 R408 R409
R410 R411 R412 Resistor, chip 0805-4.7KΩ±5% 01.57.R.3.E472J 8
R402 Resistor, chip 0805-15KΩ±5% 01.57.R.3.E153J 1
R419 R420 R421 R422 R418 Resistor, chip 1206-0Ω±5% 01.57.R.4.E000J 5
C402 C403 Capacitor, multilayer ceramic,
chip 0805-22P NPO±5%/50V 01.54.CS.3.E220N 2
C404 C405 C406 Capacitor, multilayer ceramic,
chip 0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y 3
C401 Capacitor, multilayer ceramic,
chip 0805-225 Y5V-20+80%/16V 01.54.CS.3.E225Y 1
EC401 Capacitor, AL.electrolytic CD11X-47UF/10V 4*7 01.34.CL.D.E47U10V2B 1
EC402 Capacitor, AL.electrolytic CD11X-100UF/10V 5*7 01.34.CL.D.E100U10VB 1
D401 Diode LL4148,DO213AA 01.41.D.PS.ELL4148 1
LED401 Diode, color is blue&amber HFT503CPBO, Φ3, 3P, In-line Package 01.41.D.FD.EHFT503 1
Q403 Transistor KTC8050,SOT-23 01.42.Q.S.E8050 1
Q401 Q402 Transistor KTC8550,SOT-23 01.42.Q.S.EC8550 2
Y401 Fundamental. Oscillator 4.000MHZ-49S-22P 01.00.JZ.E04000 1
U401 IC, ELAN, MCU EM78P156ELM-G, SOIC18 01.46.IC.E78P156G 1 firmware burn-in

harman/kardon HD 950/230
HD950 Component List for Front panel board(3566C)
Location.No. Description Specification P/N Qt
y
Note
IR401 IR receiver HS0038B, In-line Package 01.44.IC.D.E0038B 1
K401 K403 K404 K405 K406
K407 K408 Touch switch 6*6*5 01.39.SW.QC.ED665 7
CN403 FPC connector FPC-1.25-7P 01.40.CON.S13.FPC2.E00
11 Horizontal Type
JMP1JMP2 Jumpe
r
7.5mm 01.00.FZ.ZZ.E002 2
HD950 Component List for Front panel board(3567C)
Location.No. Description Specification P/N Qt
y
Note
R416 Resistor, chip 0805-10KΩ±5% 01.57.R.3.E103J 1
R415 Resistor, chip 0805-20KΩ±5% 01.57.R.3.E203J 1
C411 Capacitor, multilayer ceramic,
chip 0805-30P NPO±5%/50V 01.54.CS.3.E300N 1
C407 C415 Capacitor, multilayer ceramic,
chip 0805-473 X7R±10%/50V 01.54.CS.3.E473X 2
C408 C409 Capacitor, multilayer ceramic,
chip 0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y 2
C410 Capacitor, multilayer ceramic,
chip 0805-225 Y5V-20+80%/16V 01.54.CS.3.E225Y 1
EC403 Capacitor, AL.electrolytic CD11X-47UF/10V 4*7 01.34.CL.D.E47U10V2B 1
D402 Diode LL4148,DO213AA 01.41.D.PS.ELL4148 1
U402 IC, SANYO, VFD Driver LC75711NE,QFP64E 01.44.IC.S.E75711 1
VFD401 VFD VFD22-1302FA 01.16.E1302FA 1
K402 Touch switch 6*6*5 01.39.SW.QC.ED665 1
CN402 FPC connector FPC-1.25-7P 01.40.CON.S13.FPC2.E00
11 Horizontal Type
CN401 FPC connector FPC-1.25-14P 01.40.CON.S13.FPC2.E00
21 Vertical Type
HD950 Component List for SMPS Board(1254C)
Location.No. Description Specification P/N Qt
y
Note
R4,R6 FIXED CARBON FILM RT1/4W-10Ω01.57.R.C.ED100 2
R21 FIXED CARBON FILM RT1/4W-47Ω01.57.R.C.ED470 1
R16 FIXED CARBON FILM RT1/4W-100Ω01.57.R.C.ED101 1
R13,R19,R20 FIXED CARBON FILM RT1/4W-220Ω01.57.R.C.ED221 3
R14 FIXED CARBON FILM RT1/4W-680Ω01.57.R.C.ED681 1
R26 FIXED CARBON FILM RT1/4W-1KΩ01.57.R.C.ED102 1
R17,R18,R22 FIXED CARBON FILM RT1/4W-2.2KΩ01.57.R.C.ED222 3

harman/kardon HD 950/230
HD950 Component List for SMPS Board(1254C)
Location.No. Description Specification P/N Qt
y
Note
R23,R24,R25 FIXED CARBON FILM RT1/4W-5.1KΩ01.57.R.C.ED512 3
R15 FIXED CARBON FILM RT1/4W-10KΩ01.57.R.C.ED103 1
R5 FIXED CARBON FILM RT1/4W-47KΩ01.57.R.C.ED473 1
R2 FIXED CARBON FILM RT1W-68KΩ5% 01.57.R.C.EF683 1
R3 FIXED CARBON FILM RT1W-360KΩ01.57.R.C.EF364 1
R1 FIXED CARBON FILM RT1/4W-1MΩ01.57.R.C.ED105 1
NTC Thermistor NTC-5D-9 01.57.R.R.E5D9 1
RV1 Varistor 10K.471 01.57.R.Y.E10K 1
CX1 High-voltage metallized
polyester film 104/275V X2(lead pitch: 15mm) 01.00.CD.GY.E104275V 1
CY1,CY2 High-voltage metallized
polyester film 471/400V Y1(lead pitch:10mm) 01.00.CD.GY.E471400V 2
CY3 High-voltage metallized
polyester film 102/400V Y1(lead pitch:10mm) 01.00.CD.GY.E102400V 1
C1 High-voltage metallized
polyester film 103/1KV(lead pitch:7.5mm) 01.00.CD.CP.E1031KV 1
C2,C13 RADIAL LEADS MLCC 473/50V X7R±10% (lead pitch:5.08mm) 01.00.CD.DS.E473/50V 2
C3 RADIAL LEADS MLCC 683/50V X7R±10% (lead pitch:5.08mm) 01.00.CD.DS.E683 1
C10 C11 C12 C14 C15 C16 RADIAL LEADS MLCC 104/50V X7R±10% (lead pitch:5.08mm) 01.00.CD.DS.E10450V 6
EC3 CAPACITOR,AL.ELECTROLY
TIC CD288H-4.7UF/160V 8*12 01.34.CL.D.E4U7160VD 1 CAPXON KF4R7M160F115A
EC22 CAPACITOR,AL.ELECTROLY
TIC CD288H-2.2UF/50V 5*11 01.34.CL.D.EH2U250VC 1 CAPXON GF2R2M050C110A
EC17,EC18 CAPACITOR,AL.ELECTROLY
TIC CD288H-47UF/25V 5*12 01.34.CL.D.EH47U25VD 2 CAPXON GF470M025C110A
EC2 CAPACITOR,AL.ELECTROLY
TIC CD288H-47UF/50V 6.3*12 01.34.CL.D.EH47U50VD 1 CAPXON GF470M050E110A
EC1 CAPACITOR,AL.ELECTROLY
TIC CD288H-47UF/400V 18*20 01.34.CL.D.E47U400VG 1 CAPXON KM470M400K210A
EC11,EC12 CAPACITOR,AL.ELECTROLY
TIC CD288H-100UF/25V 6.3*12 01.34.CL.D.E288100U25V D2CAPXON GF101M025E110A
EC5,EC6,EC16,EC21 CAPACITOR,AL.ELECTROLY
TIC CD288H-220UF/16V 6.3*12 01.34.CL.D.E288220U16V D4CAPXON GF221M016E110A
EC9,EC10,EC14,EC15 CAPACITOR,AL.ELECTROLY
TIC CD288H-220UF/25V 8*12 01.34.CL.D.E288220U25V D4CAPXON GF221M025F115A

harman/kardon HD 950/230
HD950 Component List for SMPS Board(1254C)
Location.No. Description Specification P/N Qt
y
Note
EC4 CAPACITOR,AL.ELECTROLY
TIC CD288H-470UF/16V 8*12 01.34.CL.D.EH470U16VD 1 CAPXON GF471M016F115A
EC19,EC20 CAPACITOR,AL.ELECTROLY
TIC CD288H-1000UF/16V 10*20 01.34.CL.D.E1000U16VG 2 CAPXON GF102M015G160A
L7 Pulse transformer,Coilcraft L520-10UH 01.13.L.L.D.E090 1
L6 Bead, leaded fixed LH0810-20UH 01.13.L.L.D.E005 1
L3,L4,L5,L8 Bead, leaded fixed LH0608-22UH 01.13.L.L.D.E051 4
LF1 Common Mode Choke LCL- ET20-010(50MH) 01.13.L.L.D.E086 1
D17 Diode IN4001,SOD81 01.41.D.PD.EIN4001 1
D1,D2,D3,D4 Diode IN4007,SOD81 01.41.D.PD.EIN4007 4
D6,D8,D10,D11,D13 Diode FR104, In-line Package 01.41.D.PD.EFR104 5
D7 Diode FR107, In-line Package 01.41.D.PD.EFR107 1
D14,D16,D18 Diode IN4148,DO-35 01.41.D.PD.EIN4148 3
D12 Diode 21DQ10, In-line Package 01.41.D.PD.E21DQ10 1
D15 Diode 31DQ06, In-line Package 01.41.D.PD.E31DQ06 1
D5 Diode 1U08 , In-line Package 01.41.D.PD.E1U08 1
ZD1 Zener Diode 16V, In-line Package 01.41.D.WD.E16V 1
ZD2 Zener Diode 18V, In-line Package 01.41.D.WD.E18V 1
Q1 Transistor 2N5551,TO-92 01.42.Q.D.E5551 1
Q3 Transistor KTC8550-C/P,TO-92 01.42.Q.D.E8550 1
Q2 Transistor C9014,TO-92 01.42.Q.D.E9014 1
SC1 Silicon Controlled Rectifiers MCR100-6,TO-92 01.44.IC.D.EMCR100 1
IC1 IC, FAIRCHILD, FPS KA5M02659R, DIP8 01.44.IC.D.E2659R 1
IC2 IC, AAC, Adjustable Shunt
Regulator AZ431AZ-AE1TR, TO-92 01.44.IC.D.EAZ431AZ 1
IC6 IC, ROHM, Dropout Voltage
Regulator BA33BCO,TO-220 01.44.IC.D.EBA33 1
IC5 IC, NS, Positive Adjustable
Regulator LM317T, TO-220 01.44.IC.D.ELM317T 1
IC3 IC, ST, Voltage Regulator L7805, TO-220 01.44.IC.D.EL7805 1
PH1 IC, Sharp, Photoelectric
Coupler PC817, DIP4 01.44.IC.D.EPC817C 1
FU1 Fuse Holder BLX-2A 01.40.CON.DCZ.E131 1 Antiflaming
FU1 Fuse T1A/250V 01.38.FUSE.D.E1A250V 1
JP1 Connector Vertical VH three holes two pins(white) 01.40.CON.DCZ.E129 2 Antiflaming
TR1 Switching Power Transformer BCK-EC2802 01.13.L.R.E059 1

harman/kardon HD 950/230
HD950 Component List for SMPS Board(1254C)
Location.No. Description Specification P/N Qt
y
Note
CN1 Connector TJC3-3A 01.40.CON.DTJ.E024 1 Antiflaming
CN2 Connector TJC3-13A 01.40.CON.DTJ.E002 1 Antiflaming
for IC3 Radiator 12*16*23mm 01.00.WJ.TJ.E496 1 Antiflaming
G1,G2,G3,G4 3pins grounding piece M4 01.00.WJ.QT.E041 4

5
5
4
4
3
3
2
2
1
1
E E
D D
C C
B B
A A
1%
1%
1%
1%
1%
NPO 5%
1%
1%
1%
1%
1%
1% NPO 5%
1%
1%
1%
1%
1%
NPO 5%
NPO 5%
1% 1%
1%
1%
1%
1%
1%
1%
NPO 5%
1%
1%
1%
1%
1%
1%
1%
1%
NPO 5%

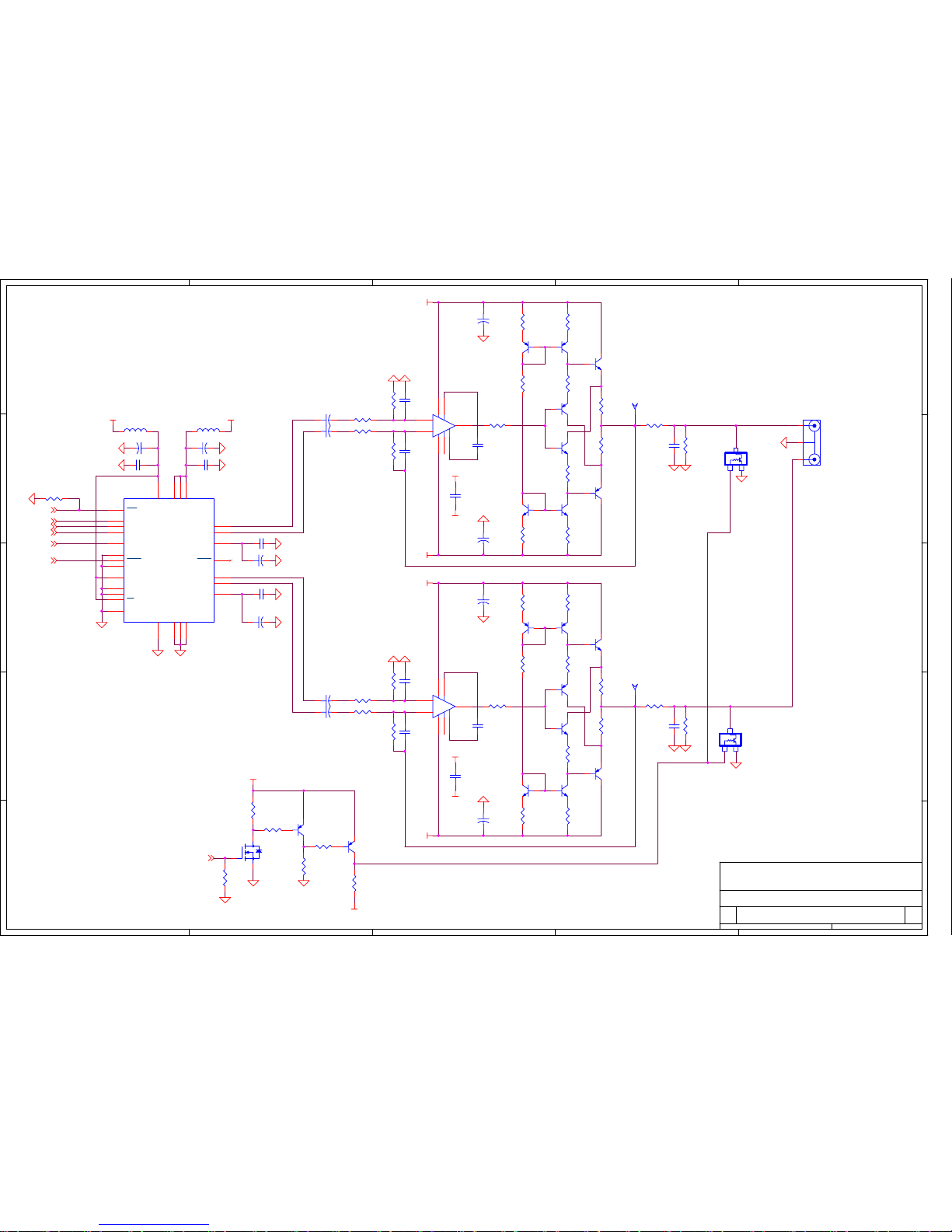

3565C 1.3
HD950 main board
Harman Kardon
A3
210Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
SDATA
BITCLK
MCLK_8740
RST_8740#
MUTE_8740#
LRCLK
MUTE_OUT
-12VA
+5VSTBY
-12VA
+12VA
+12VA
+5VA
-12VA
+12VA
+12VA
-12VA
+5VA
-12VA
R41
330R
C27
680pF
Q8
2SC2406
2 3
1
R55
2K7
C18
100nF
R30
680R
R17
100R
Q13
2SC2406
2 3
1
Q2
2SA1035
1
23
+
C23 100uF/10V
C20
100nF
C31
680pF
Q10
2SC2406
2 3
1
Q16
2SA1035
1
23
C44
100nF
R32
680R
TP4
R43
330R
R51
2K7
R24
330R
R6
47K
C38
100nF
+
C22 100uF/10V
Q7
2SA1035
1
23
R49
2K C26
680pF
C5
2.2nF
R29
680R
R42
330R
Q12
2SC2406
2 3
1
+
C29 100uF/10V
Q18
2SC2406
2 3
1
R56
2K
+
C39
100uF/10V
R53
2K
C43
100nF
R2
22K
C30
680pF
R9
47K
TP3
Q15
2SA1035 1
23
R5
10K
Q20
2SA1035
1
23
R25
330R R16
100R
+
C45
100uF/10V R50 2K7
R1
10K
+
C9
47uF/25V
Q21
2SA1035 1
23
+
C11
47uF/25V
Q17
2SC2406
2 3
1
FB4
FB
+
C12
47uF/25V
Q22
2SA1035
1
23
Q1
BSS123
3
1
2
R36
330R
+
C28 100uF/10V J3
RCA double
1
2
3
FB6
FB
-
+
U6
NJM5534
3
26
7 5
4 8 1
Q11
2SC2406
2 3
1
R10
47K
U9
WM8740
8 15 20 9
7 14 19 10
12
13
17
16
11
18
22
1
3
2
5
21
4
25
6
23
24
26
27
28
DVDD
AVDD
AVDDL
AVDDR
DGND AGND AGNDL AGNDR
VoutR+
VoutR-
VoutL+
VoutL-
VmidR
VmidL
RST
LRCLK
BITCLK
SDATA
MCLK
ZERO
MODE8X
MUTE
DIFFHW
CSBIWO
MODE
MISO/DM0
SCK/DM1
CS/I2S
R26
330R
R3
22K
R46
330R
R31
680R
Q19
2SC2406
2 3
1
C
BE
4.7K
Q4
DTC343TK
+
C10
47uF/25V
Q14
2SA1035
1
23
R54
2K7 C21 22pF
R27
330R
R40
330R
R47
330R
Q3
2SA1035
1
23
C6
2.2nF
+ C42
100uF/10V
R57 10K
C19
22pF
+ C36
100uF/10V
R39
15K
R52
2K
R37
330R
R38
100R
C37
100nF
R44
100R
Q9
2SA1035
1
23
C
BE
4.7K
Q5
DTC343TK
R45
15K
-
+
U7
NJM5534
3
26
7 5
4 8 1
R4
10K

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
3565C 1.3
HD950 main board
Harman Kardon
B
310Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
DRST#
D[0..15]
A2
A1
A3
-IOCS16
DD8
D13
DD4
D3
DD9
DD7
D6
DD13
D10
D14
D2
DD3
DD10
DD12
D1
D8
D7
D11
DD[0..15]
DD15
D9
D12
D5
D4
D0
DD2
DD11
DD1
DD6
DD14
DD0
DD5
D15
DRST#1
DA01
INTRQ1
DD[0..15] 1
DMAACK#1
DA21
DIOWR#1
CS3FX#1
DA11
DMARQ1 GIO71
DIORD#1
CS1FX#1
ATA_RST#
RE#
WE#
ATA_CS0#
ATA_CS1#
IORDY ATA_RDY
DGND
VCC3
DGND
DGND
DGND
VCC3
RN5 SRN33
1
2
3
4 5
6
7
8
RN3
SRN33 1
2
3
45
6
7
8
R78 4K7
R100 10K
RN2
SRN33 1
2
3
45
6
7
8
C77 10pF
R94 33R
R84 NA
RN6 SRN33
1
2
3
4 5
6
7
8
R77 4K7
R85 NA
R80 4K7 R81 4K7
RN4 SRN33
1
2
3
4 5
6
7
8
RN7 SRN33
1
2
3
4 5
6
7
8
C78 10pF
C79 10pF
R82 4K7
C80 NA
C81 10pF
R91 NA
R92 10K
R79 4K7
C67
100nF
R90 NA
A[1..19]
D[0..15]

5
5
4
4
3
3
2
2
1
1
E E
D D
C C
B B
A A
Transmitter configuration:
- serial port in I2S slave mode
- CV informations via SPI port
- MCLK configuration via SPI port
IN
OUT
SPI pull-up resistors
assembled on front board
3565C 1.3
HD950 main board
Harman Kardon
A3
410Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
RST_4103#
CS_4103#
SCK
MOSI
MISO
SDATA_4103
SCK
MOSI
CS_75710
IR_IN
MCLK_8740
MCLK_DSP
LRCLK_4103
BITCLK_4103 USER_4103
AC2
AC1
-29V
+5V
+3.3V
+5VSTBY
+3.3V
+3.3V
+5V
D5V
D5V
+
C2
47uF/25V
T1
WB1010-1
16
5
34
R33 10K
TP7
+
C41
47uF/25V TP12Y1
22.5792MHz
8
1
4
5
VCC
NC
GND
OUT
R11
4K7
R19
100R
+ C7
47uF/25V
R174
240R
C142
100nF
TP8
R35
470R
D1
LL4148
Q23
BSS123
3
1
2
C8
100nF
FB1
FB
R18
10K
TP2
C1
100nF
FB5
FB
C4
100nF
J9
CONN PFC 14P
1
2
3
4
5
6
7
8
9
10
12
13
14
11
U3
AK4103
1718
1
12
24
8
9
10
11
21
6
22
23
20
19
7
5
15
16
4
14
2
3
13
VDDVSS
V1
C1
U1
FS0/CSN
FS1/CDTI
FS2/CCLK
FS3/CDTO
DIF0
BICK
DIF1
DIF2
TXP
TXN
LRCK
SDTI
CKS0
CKS1
MCLK
BLS
TRANS
PDN
ANS
G3
3EN1[BA]
3EN2[AB]
12
U22
74HCT245
2010
19
1
2
3
4
5
6
7
8
9 11
12
13
14
15
16
17
18
J1
PHONEJACK DUAL
1
2
3
6
4
5
R14
4K7
C3
100nF
R173
390R
R155 100R
R13
390R
TP1
U2
PC817 1
23
4
J2
RCA
1
2
3
R8
10K
R153 100R
C34
100nF
R12
270R
R23
100R
U1
GP1FA513TZ
1
3 4 5
2
6
Q6
2SA1035
1
2 3
C13
100nF
R61
10K
R15
NA
R154 100R
TP9
RN1 SRN33
1
2
3
4 5
6
7
8
R34 10K
R22
300R
R7 4M7

5
5
4
4
3
3
2
2
1
1
E E
D D
C C
B B
A A
(HCS1)
(HCS3)
TO DACATAPI BUS TO SPDIF TR.
3565C 1.3
HD950 main board
Harman Kardon
A3
510Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
SDQM1
WE#
OE_FLASH#
CS_FLASH#
OE_FLASH#
SDQM0
WE#
CS_FLASH#
RE#
A5
A15
D2
SDQM0
A2
D14
A7
A12
A2
A11
D6
A16
A7
A6
D8
A18
A6
D3
A8
D7
A12
A12
A9
D6
A5
D9
D7
A1
A10
A3
A11
A16
A19
D10
D9
D5D12
A1
A17
D15
A6
D5
A4
A1
A14
A9
D4
A13
D2
D5
D11
D13
D15
D1
A8
A15
A10
A8
A18
D0
A14
A3
A18
A3 D2
D1D8
D3
D3
A19
A4
D0
D4
D1
A19
D13
D12
D11
D4
D10
D7
A2
SDQM1
A5
A9
A10
D0
A17
D6 A4
D14
A13
A7
SDATA_4103
MISO
SCK
MOSI
SDATA
BITCLK
LRCLK
CS_75710
BITCLK_4103
LRCLK_4103
USER_4103
CS_4103#
IR_IN
MCLK_DSP
RST#
RST_4103#
ATA_CS1#
ATA_CS0#
ATA_RST#
MUTE_OUT
WE#
RE#
ATA_RDY
RST_8740#
MUTE_8740#
+3.3V
+3.3V
+3.3V
+3.3V
TP17
R69 100R
R48
1K
U11B
ADSP-BF532SBSTZ400
51
50
49
48
47
46
38
37
36
35
34
33
32
29
28
27
22
23
24
26
21
79
78
77
76
65
75
64
74
63
62
73
72
61
69
60
68
59
58
67
55
54
53
82
81
PF0/SPISS
PF1/SPISEL1/TMRCLK
PF2/SPISEL2
PF3/SPISEL3/PPI_FS3
PF4/SPISEL4/PPI15
PF5/SPISEL5/PPI14
PF6/SPISEL6/PPI13
PF7/SPISEL7/PPI12
PF8/PPI11
PF9/PPI10
PF10/PPI9
PF11/PPI8
PF12/PPI7
PF13/PPI6
PF14/PPI5
PF15/PPI4
PPI0
PPI1
PPI2
PPI3
PPI_CLK
TMR0
TMR1/PPI_FS1
TMR2/PPI_FS2
RSCLK0
RSCLK1
RFS0
RFS1
DR0PRI
DR1PRI
DR1SEC
DR0SEC
TSCLK0
TSCLK1
TFS0
TFS1
DT0PRI
DT1PRI
DT1SEC
DT0SEC
MOSI
MISO
SCK
RX
TX
U11A
ADSP-BF532SBSTZ400
149
148
147
146
142
141
140
139
138
137
136
135
127
126
125
124
123
122
121
116
115
114
113
112
110
109
108
105
104
103
102
101
100
99
98
161
160
159
158
151
150
154
153
152
162
163
119
120
167
166
165
172
173
169
164
14
13
10
11
16
17
96
95
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
AMS0
AMS1
AMS2
AMS3
ABE0/SDQM0
ABE1/SDQM1
AOE
ARE
AWE
ARDY
BR
BG
BGH
SRAS
SCAS
SWE
SMS
SCKE
CLKOUT
SA10
NMI
RESET
CLKIN
XTALO
RTXO
RTXI
BMODE0
BMODE1
C68
100nF
U12
AT49BV040B-70JU
16
22
24
1
32
13
14
15
12
11
10
9
8
7
6
5
27
26
23
25
4
28
29
17
18
19
20
21
3
2
30
31
GND
CE
OE
A18
VCC
I/O0
I/O1
I/O2
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
I/O3
I/O4
I/O5
I/O6
I/O7
A15
A16
A17
WE
R66 100R
R68 100R
C60
100nF
R58
1K
R70 100R
TP15
R62 100R
R65 22R
TP6
R59
10K
TP16
R67 100R
R64 100R
R28
1K
U14
IS42S16400B-7T
2
4
5
7
8
10
11
13
42
44
45
47
48
50
51
53
23
24
25
26
29
30
31
32
33
34
22
35
21
20
17
37
38
18
16
19
15
39
1 14 27 3 9 43 49
6 12 28 41 46 52 54
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
BA1
BA0
CAS
CKE
CLK
RAS
WE
CS
DQML
DQMU
VCC VCC VCC
VCCQ VCCQ VCCQ VCCQ
GND GND GND GND GND GND GND
R71 100R C50
100nF
R63 100R
A[1..19]
D[0..15]

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VR
0
VR_CD
1 2 3
1
CD_DVD DVD
1(S)
2SD1664(SOT89)
This connector support HD65
P24
For PUH View
2SK3018(T23-SGD)
For PCB View
GIO6
CD
P1
3(D)
VR_DVD
B C E
2(G)
3565C 1.3
HD950 main board
Harman Kardon
B
610Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
F-
LDO1
TR+
CD_DVD
B
VR_CD
E
VR_CD
C
RF
VR_DVD
TR-
MDI
F+
F
D
LDO2
A
CD_DVD
VR_DVD
F+ 3
TR- 3
E1
MDI 1
TR+ 3
B1
GIO61
D1
LDO1 1
C1
RF 1
F- 3
F1
A1
LDO2 1
VRA
A5V
A5V
A5V
VRAA5V
Q26
2SK3018
2
31
R121
0R
Q27
2SD1664
1
3 2
D4
LL4148 C86
100nF
R119
100K
R122
100K
J6
CONN FPC 0.5 24P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
R123
10K
D5
LL4148
TP27
R96 0R
R120
10K
Q29
2SD1664
1
3 2
R124
100K
TP25 TP26
R125
10K
R115
0R
TP24
C92
100nF
Q28
2SK3018
2
31

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Replace
the
BA6208
change from 2.2k
This connector support HD65
3565C 1.3
HD950 main board
Harman Kardon
A3
710Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
DMOEN
DMO
SPIN-
FMO
GIO5
SPIN+
TR-
SLED-
SLED-
SLED+
LIMIT#
SPIN+
LOAD+
F-
TRO
LOAD-
INTRAY
TRAYIN#
SLED+
FOO
OUTTRAY
SPIN-
SPIN+
SPIN-
LOAD-
TR+F+
TRAYOUT#
LOAD+
TRO 1
TR- 4
DMOEN 1
DMO 1
FMO1
F+4
TRAYIN# 1
TRAYOUT# 1
F-4
TR+ 4
FOO1
GIO5 1
INTRAY 1
OUTTRAY1
LIMIT# 1
GIO4 1
D5V
PGND
VRD
VRD
PGND
PGND
PGND
VRD
VRD
VRD
PGND
D5V
PGND
D5V
D5V
VRD
PGND
PGND
PGND
PGND
VRD
PGND PGND
PVCC
PVCC
PVCC
PVCC
PVCC
D5V
PGND
PGND
+
C137
100uF/10V
+
-
U23B
LM393
5
67
84
R170
0R
FOFO1
+
C161
100uF/10V
C135
10nF
R149
560R
C162
100nF
J8
CONN PH 5P
1
2
3
4
5
R160
10K
R147
4K7
R171
240R
FMSO1
R132
2K2
R137
8K2
C156
100nF
TOSO1
R158
22K
R138
8K2
C138
680pF
CONN PH 6P
J7 1
2
3
4
5
6
1
2
3
4
5
6
U24
BA5888FP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
29 30
VINFC
CFCERR1
CFCERR2
VINSL+
VINSL-
VOSL
VNFFC
VCC
PVCC1
PGND
VOSL-
VOSL+
VOFC-
VOFC+
STBY
BIAS
VINTK
CTKERR1
CTKERR2
VINLD
PREGND
PVCC2
VNFTK
PGND
VOLD-
VOLD+
VOTK-
VOTK+
GND GND
DMO1
R136 1R
+
-
U23A
LM393
3
21
84
R131
2K2
R141
1K5
C145 100pF
R163
0R
C141
470pF
R135 1R
R150
100R
R152
560R C146 390pF
C155
470pF
R148
47K
R146 47K
C139
47nF
C143
100nF
C153
10nF
R159
1M
Q31
8050
2
1 3
R142
22K
C144 100pF
Q30
8050
2
1 3
R133
5K1
Q32
8550
2
13
R162 1R
C157
100nF
R143
1M
0R
R145
R151
100R
R156
4K7
C136
100nF
C154
100nF
R144
10K
R130
2K2
R157
1K5
R164 0R
C147
390pF
R161 1R
Q33
8550
2
13
R172
240R

5
5
4
4
3
3
2
2
1
1
E E
D D
C C
B B
A A
AK4103 & TOSLINK
OP-AMPS WM8740
DSP & PERIPH. DSP CORE
PUH & ALPC BJT
VT7208 CKT
VT7208 I/O
VT7208 CORE
2.0V
MOTOR CONTROL
VT7208 RAM
VFD DRIVER
3565C 1.3
HD950 main board
Harman Kardon
A3
810Tuesday, September 26, 2006
Title
Size Document Number Rev
Date: Sheet of
drawn by ABC PCB S
鄏 l
Ch. du Saux 17
CH-1131 Tolochenaz
RST#
+1.2V
+12VA +5VA
-12VA
+3.3V
+3.3V
A+14.5V
A-14.5V
A-14.5V
A+14.5V
A+5V
+5VSTBY
+1.2V
D+5V
D+3.3V
M+5V
D+5V
VCC3
3.3VA
VDD
A+5V
A5V
D5V
+5V
M+5V
PVCC
D+3.3V
+5V_VFD
AGNDPGNDDGND
+3.3V
+3.3V
+3.3V
FB3
FB
SCREW_HOLE_2
TP13
TP23
C127
100nF
C87
100nF
C73
100nF
+ C54
220uF/10V
+ C17
47uF/25V
+ C56
220uF/10V
U4
LM7912
2
13
VIN
GND VOUT
TP20
SCREW_HOLE_4
R73 10K
TP30
FB11
FB
U11C
ADSP-BF532SBSTZ400
94
87
86
85
84
83
1
2
3
7
8
9
15
19
30
39
40
41
42
43
44
56
70
88
89
90
91
92
97
106
117
128
129
130
131
132
133
144
155
170
174
175
176
4
5
6
12
20
31
45
57
71
93
107
118
134
145
156
171
25
52
66
80
111
143
157
168
18
TCK
TDO
TDI
TMS
TRST
EMU
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VROUT
VROUT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDEXT
VDDINT
VDDINT
VDDINT
VDDINT
VDDINT
VDDINT
VDDINT
VDDINT
VDDRTC
R72
10K
C48 100nF
SCREW_HOLE_3
+
C125
100uF/10V
+
C124
100uF/10V
TP10
C62 100nF
+ C25
47uF/25V
+ C14
47uF/25V
TP19
+
C40
220uF/10V
+ C35
220uF/10V
+
C61
100uF/10V
R75 4K7
FB9
FB
R88
1K
C33
100nF
TP14
TP5
TP18
R60 NA
C59 100nF
SCREW_HOLE_1
TP28
TP21
C55
100nF
+ C57
100uF/10V
C15
100nF
+ C75
100uF/10V
+ C47
220uF/10V
C49 100nF
TP29
C32
100nF
J4
CONN PH 13P
1
2
3
4
5
6
7
8
9
10
12
13
11
C52 100nF
R74 10K
C76
100nF
U10
AAT3522 23
1
RSTVCC
GND
TP22
U8
AZ1117H-5.0
3
12 4
VIN
ADJ VOUT VOUT
U17
AZ1117H-ADJ
3
12 4
VIN
ADJ VOUT VOUT
FB12
FB
FB8
FB
U13
AZ1117H-ADJ
3
12 4
VIN
ADJ VOUT VOUT
C46
100nF
+ C71
100uF/10V
FB7
FB
+
C69 100uF/10V
+
C70
100uF/10V
+ C16
47uF/25V
D2
30BQ040
TP11
C24
100nF
R83
560R
R76 10K
+ C84
100uF/10V
C53 100nF
C72
100nF
FB2
FB
C51
100nF
C63 100nF
U16
AZ1117H-3.3
3
12 4
VIN
ADJ VOUT VOUT
J5
CONN RECT 7x2
2
4
6
8
10
12
14
1
3
5
7
9
11
13
C123
100nF
C58 100nF
U5
LM7812
1
23
VIN
GND VOUT
+ C83
100uF/10V
