Key
Features:
►
High impact, 150 Watt direct radiating
pendant
subwoofer
with built-in passive
crossover for
up
to four satellite speakers.
►
200 mm (8 in) long-excursion drive
r.
►
8
ohm
(150 Watt)
and
70V/100V (100 Watt)
operat
ion.
►
Hanging hardware with 4.5 m
05
foot)
galvanized steel cable
and
easy to adjust
clamp.
►
Stylish design, available in black
or
white (-WH).
►
UL
li
sted
(speaker
and
hanging cable
system).
Applications
:
The Control 60PS/T
pendant
subwoofer
loudspeaker
provides bass extension
and
high
impact for high-fidelity
sound
systems in a
wide variety
of
applications including
restaurants, retail stores, music cafes, health
clubs,
theme
bars, leisure venues,
and
other
locations
where
full-range high fidelity
foreground/
background
music systems are
utilized. Featuring 150 Watt
power
handling
and
low distortion, the long-excursion 200 nun
(8 in)
low
frequency driver features butyl
rubber surround for well-damped, tight
sound
quality
and
long-term reliability,
and
a
polypropylene-coated
cone
for humidity
protection.
The
high-temperature 50 mm (2 in)
voice coil
and
low-mass fiberglass coil former
ensure
good
bass transient response
and
excellent stability
under
high power, high duty-
cycle, working conditions.
The
Control 60PS/T may
be
driven by itself
(or
with
other
subwoofers)
on
an
amplifier
channel, sending
it
either a signal that has
been
actively low-passed earlier in the signal
chain via
DSP
or
a full-range signal, utilizing
the
built-in passive 125 Hz low-pass filter. The
included passive crossover also provides high-
passed satellite outputs for use with either two
or
four satellite loudspeakers
(not
for
one
or
three satellite speakers), resulting in a full-
range, wide-bandwidth, passively-crossed,
mono
subwoofer-satellite system. Using the
built-in passive crossover
is
best suited for
satellite
speakers
with sensitivities in
the
82 dB
to 86 dB (2.83V @
lm)
range, resulting
in
a
well-balanced overall frequency response.
A 100 Watt multi-tap, wide-bandwidth, l
ow-
saturation transformer allows
the
speaker
to
be
used
on
either a 70V/100V distributed
speaker
system
or
as a direct low-impedance 8!1
speaker.
If
satellite
speakers
are
used
on
the
70V
/
lO0V
settings,
the
satellite
speakers
should
be low-impedance (8!1 to 16!1 each).
A loop
out
connector
is
provided
on
the
subwoofer
for
looping
the
full-range input
signal to
other
l
oudspeakers
or
to
other
subwoofer
/satellite systems. Rubber
boot
covers for
each
locking
connector
protect
the
terminals
and
the optional MTC-PC60 full-top
cover accessory
adds
additional terminal
protection for
when
using outdoors.
Specifications:
System:
Tra
nsducer:
Enclosure:
Frequency Range (-10 dB)',
42
Hz
-350
Hz
Frequency
Response(±
3 dB)',
55
Hz
-
125
Hz
Power Capacity2: 300 Watts Continuous Program Power, 100 hrs
150 Watts
Continuous
Pink Noise, 100 hrs
Nominal Sensitivity (2.83V/1m), 88 dB
Rated Maximum
SPL,
107 dB @ I m (3.3
ft)
average, 113 dB
peak
Rated Impedance: 8
ohms
Transformer Taps, IIOW, 55W, 30W
(&
15W@70V).
Set via rotary tap-selector switch
(70V/100V
taps
along with direct
Sfl
setting)
on
top
terminal panel
Transformer Insertion
Lossc
0.98
dB@
15W,
0.99
dB@
30W, 0.94
dB@
55W, 1.10@ 110W
Standalone
Hookup:
Connect
to Input
connector
; built-in
low
-
pass
filter
permanent
ly engaged.
Loop
Out
in parallel with Input connector (pre low-pass filter) for
sending to additional speakers.
Subwoofer-Satellite Hookup: For either two
or
four satellite speakers (not for
one
or
three satel
li
te
speakers). With two satellite speakers, must
connec
t to Sat 1
and
Sat 2
terminals only
(NC
to Sat 3
and
Sat 4 terminals). Satellite outputs high-
passed. Suggested satellite speakers include Control 62P (pendant),
Control
52
(surface-mount
on
-wall)
and
Control 42C (in-ceiling). Satellite
speakers to
be
low-Z type (8 to 16!1) regardless whether tap selector is
set to low-Z
or
70V
/
100V.
Loop
Om
in parallel with I
nput
connector (pre
low-pass filter) for sending
lO
additional speakers.
Enclosure Material:
Gri
ll
e,
Environmental:
Termination:
Suspension:
Safety Agency,
200mm (8 in) polypropylene-coated
paper
cone
with butyl rubber
surround,
50
mm (2 in) high-temperature
copper
voice coil, vented
fiberglass resin voice coil former.
Hi
gh
impact polystyrene
Zinc-plated steel grille with powder-coat finish, foam backing (grille
and
grille backing are removable for painting)
Exceeds
Mil
Spec 810 for humidity, salt spray, temperature &
UV.
IP44
capability
per
!EC
529 -splash-proof rating
Six
removable locking 2-pin connectors with screw-down terminals.
Input, Loop
Out
, Sat 1, Sat 2, Sat 3,
Sat
4.
Max
wire
12
AWG
(2.5 mm').
Rubber terminal covers included.
Two
identical suspension cable systems
(one
as main suspension cable
and the other as safety cable),
each
consisting
of
4.5
m (15 ft) long, 2
mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable
with spring-clips for clipping
onto
the loudspeaker bracket
and
GrippJ
eTM
brand adjustable-height cable fasteners for infinitely adjustable height.
Cable has
SWL
rating
of
45 kg (99 lb).
Speaker listed
per
UL1480
(UEAY)
, transformer registered
per
UL1876.
In
accordance with 1EC60849/EN60849. Suspension system and Gripple•-
brand cable fastener listed
per
ULl
598
and
UL2239,
TUY,
and
CSA
Class
3426-01 & Class 3426-81.
Dimensions, 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top
of
cabinet.
369 mm (14.5 in) to top
of
suspension bracket.
Net
Wei
ht
7.6 k (16.7 lb)
Shipping Weight 17.6 kg (38.7 lbs)
per
pair-packed carton
Included Accessories:
Two
suspensi
on
cable systems (see "suspension\ above), six removable
locking 2-pin
euro
-block connectors, six rubber cover boots for euro-
block connectors.
Optional Accessories:
MTC-PC60
full
top
panel / terminal cover. Wire access holes in plastic
cover to
be
drilled
by
installer to suit the
number
and dimensions
of
wire.
Colors, Available in black
or
white (-WH). Paintabl
e.
' Full-space (suspended)
z Continuous Pink Noise rating is !EC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous
Program
power
is
conservative expressi
on
of
the system's ability to handle normal
speech
and
music program material,
and
is defined as 3 dB
above
the Continuous Pink Noise Rating.
JBL
continually engages in research related to product improvement. Changes introduced into existing products without
notice are
an
expression
of
that philosophy.
►
Control
60PS/f
8"
Pendant
Sub-Woofer
with
Crossover
Frequency
Response:
Full Space (4
'1T
),
suspended
100 +
~
I +
+
;=
90
~
80
100 1000
Dimensions:
0333
[013
.
1]
I
"6
II
I
Frequency (Hz)
/oO°'-.
~
I
~
~
+ +
~ ~
t
i±
+
E I
t
~
+
]+
c:;;w
.
~
~(,.)
L
~
t
+
10000 20000
Impedance:
E
.c
Q.
.,
0
C
"'
"O
~
_§
100 . ' f
f
+t
+
+ +
10
,-
' +
➔
1
20 100
Using 2 Control 62P
Satellite Loudspeakers
+
From
Power
Amplifier
Usi
ng Four Control 62P
Satellite Lo
ud
speake
rs
t t t
~
;
+
+++t
t t +
f +
+ t +
+
++Tr
,-
+-
1-+-+-"'·
• + I I > I +
+-
,1,--1,-.,j...,I,-
+ + + '
1000 10000 20000
Frequency (Hz)
□□
□□
• + • +
!l
:
~====::!:
!]
!l
,·--:::::::------
+
Dimensions in mm (in) From
Power
Amplifier
■
JBL
Professional
8500
Ba
lboa Boulevard, P.O. Box 2200
Northridge,
Ca
lifornia 91329
U.S.A.
© Copyright 2014
JBL
Professional
www.jblpro.com
SS
C60PST
CRP
05
/14
II

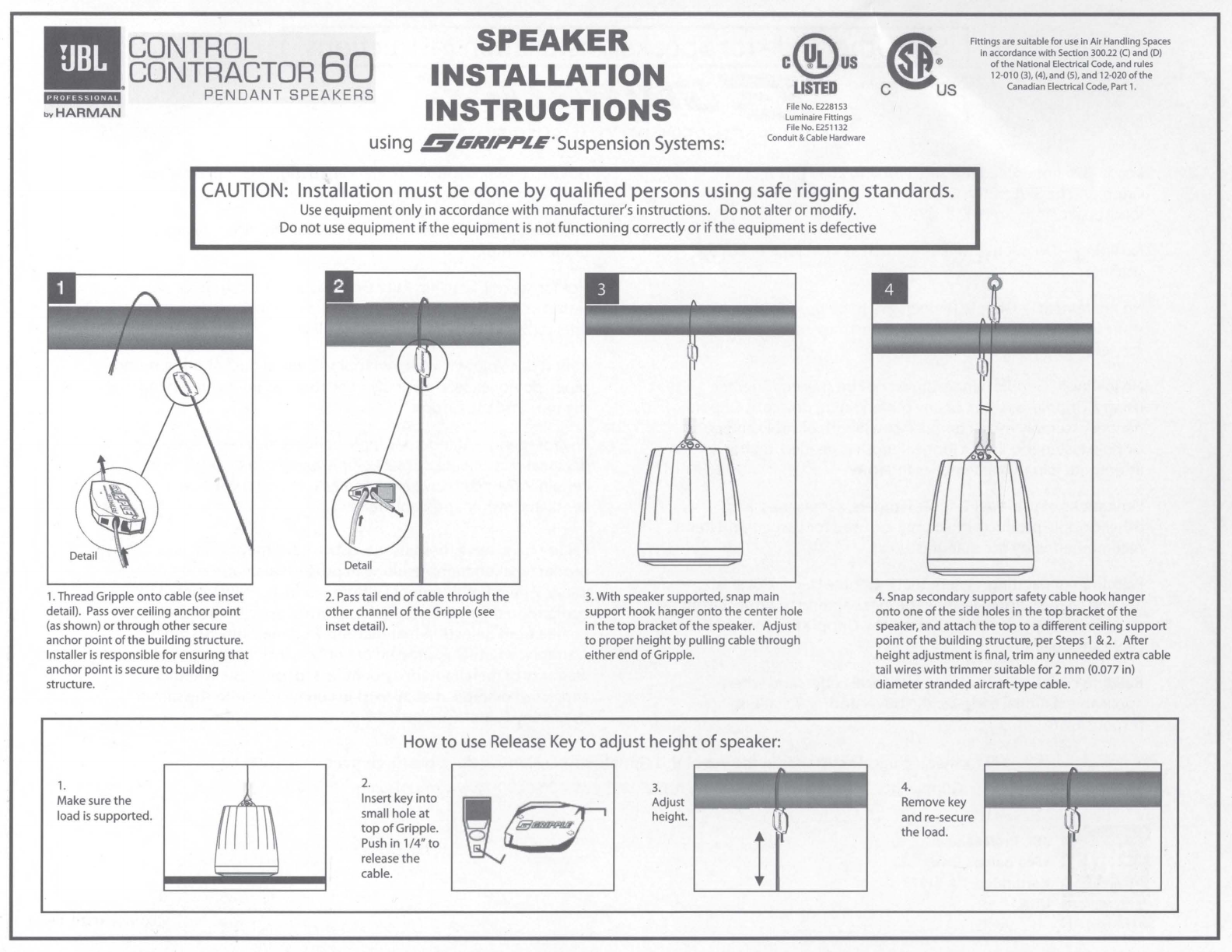

CONTROL
_CONTRACTOR
60
ii·illiiiill
■
fi·ii
PEN
DANT
SPEAKE
RS
bvHARMAN
SPEAKER
INSTALLATION
INSTRUCTIONS
using
•7'6RIPP1.E·suspension
Systems:
c@us
LISTED
File
No.
E228153
Luminaire Fittings
File
No
.
E251132
Conduit &
(able
Hardware
<ti·
C
US
Fittings
are
suitable for
use
in Air Handling
Spaces
in accordance with Section
300.22
(C)
and
(D)
of
the National Electrical Code,and rules
12
-
01
0
(3), (4),
and
(5),
and
12
-
020
of
the
Canadian Electrical
Code,
Part
1.
CAUTION: Installation must be done by qualified persons using safe rigging standards.
1.
Thread Gripple
onto
cable
(see
inset
detail).
Pass
over ceiling anchor
point
(as
shown)
or
through
other secure
anchor
point
of
the
building structure.
Installer
is
responsible
for
ensuring
that
anchor
point
is
secure
to
building
structure.
1.
Make sure
the
load
is
supported.
Use
equipmentonly in accordance
with
manufacturer's instructions. Do
not
alter
or
modify.
Do
not
use
equipment
if
the equipment
is
not
functioning correctly
or
if
the equipment
is
defective
Detail
2.
Pass
tail end
of
cable
thro
·ugh
the
other
channel
of
the
Gripple
(see
inset detail).
3.With speaker supported, snap main
support
hook
hanger
onto
the
center hole
in
the
top
bracket
of
the
speaker. Adjust
to
proper
height
by pulling cable
through
either end
of
Gripple.
How
to
use Release Key
to
adjust
height
of
speaker:
2.
Insert key
into
small
hole
at
top
of
Gripple.
Push
in
1
/4"
to
release
the
cable.
3.
Adjust
height.
4.
Snap secondary supportsafety cable
hook
hanger
onto
one
of
the
side holes in
the
top
bracket
of
the
speaker, and attach
the
top
to
adifferentceiling·support
point
of
the
building structure,perSteps 1&
2.
After
heightadjustment
is
final,
trim
any unneeded extra cable
tail wires
with
trimmer
suitable
for
2
mm
(0.077 in)
diameter stranded aircraft-type cable.
4.
Remove key
and re-secure
the
load.
See
Other
Side
for
Speaker
Installation
tnstructions
•:r6RIPPI.Ee
MANUFACTURER'S
RECOMMENDATIONS
Load -Do
not
exceed
the
Safe
Working Load
(SWL)
of
the
Gripple. The
SWL
of
the
Gripple product included
with
this
loudspeaker
is
45
kg
(100 lbs).
No lifting -Do
not
use
for
lifting, such
as
in a crane
or
pulley
situation.
No movement -Gripple hangers are
to
be used
to
suspend
static loads only. Do
not
use
to
suspend
moving
services,
or
services likely
to
be subject
to
movement.
.No
joining
-Gripple hangers must
not
be spliced
together
using aGripplefastener,
or
any other
joining
device. A Gripple
hangerassembly mustcomprise one length
of
cable and one
Gripple fastener only.
If
a longerlength
is
needed,
do
not
attempt
to
join
two
assemblies together.
Limitations
of
use
-All
Gripple hangers, accessories, and
otherGripple products must
only
be used
for
suspending items
recommended
by
the manufacturer.
Painting -
If
painting, ensure
that
aGripple DecorCover
is
applied
to
the
Gripplefastener before painting
to
protectfrom
the
ingress
of
paint. Do
not
move
the
Gripplefastener on
the
cable after painting.
Building codes -Compliance
with
local codes, and where
applicable national codes,
is
the
buyer
and/or
installers
responsibility.
Not
for re-use -Gripple hangers are designed
for
permanent
installations,
not
for
re-use.
Lubricants -Do
not
applyoil
or
any
other
lubricant
to
any part
of
the assembly.
Not
for seismic bracing -ForGripple products
that
have been
tested and approved
for
seismic restraint applications, please
refer
to
the
GrippleSeismic product line.
Round duct/pipes -When wrapping around
duct
or
other
round
pipes,
do
not
exceed an angle
of
60 degrees between
the
top
of
the
pipe and
the
Gripple.
Environment -Standard Gripple hangers may be used
only
in
dry
locations. Stainless steel Gripple hangers maybe used
in
certain
indoor
corrosive environments such
as
properly
ventilated swimming pool arenas.
Failure
to
observe these usage instructions may result in
product malfunction, resulting in propertydamage and
bodily
injury.
At
time
of
shipmentGripple products are warranted
to
conform
to
the
manufacturer's published specifications and
to
befree from defects in material and workmanship. No
other
warranty, whetherexpressed
or
implied, including any
warranty
of
merchantability
or
fitness
for
purpose,
whether
expressed
or
implied, shall exist in connection
with
the
sale
or
use
of
anyGripple product.
For furthertechnical assistance in
the
use
of
this Gripple suspension product, please contact:
Gripple Inc.
1611
Emily Lane Aurora,
IL
60502 1-630-406-0600 www.gripple.com
•
JBL
Professional
8500 Balboa Blvd
• Northridge,
CA
91329
USA
PROFESSIONAL
bvHARMAN
C601NSTINSTR
08/10
