Hartke HD 75 User manual

Owner's Manual
HD Series Bass Guitar Combos

Important Safety Information
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance in-
structions in the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ÉLECTRONIQUE -
NE PAS OUVRIR
If you want to dispose this product, do not mix it with general household waste. There is a separate
collection system for used electronic products in accordance with legislation that requires proper
treatment, recovery and recycling.
Private household in the 28 member states of the EU, in Switzerland and Norway may return their used
electronic products free of charge to designated collection facilities or to a retailer (if you purchase a
similar new one).
For Countries not mentioned above, please contact your local authorities for a correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling
and thus prevent potential negative effects on the environment and human health.
EMC Notice
HD75, HD150 are Active Speakers for professional use, they can be used in following electro-
magnetic environment: residential, commercial and light industrial, urban outdoors. They are the
apparatus Not intended for rack mounting.
• For HD75, the peak inrush current equals to 9.31A.
• For HD150, the peak inrush current equals to 1.44A.
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)this device may not cause harmful interference,and (2)this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manu-
facturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong are provided for your
safety. If the provided plug does not
fit into your outlet, consult an electri-
cian for replacement of the obsolete
outlet.
10. Protect the power cord from being
walked on or pinched particularly at
the plugs, convenience receptacles,
and at the point where they exit from
the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.

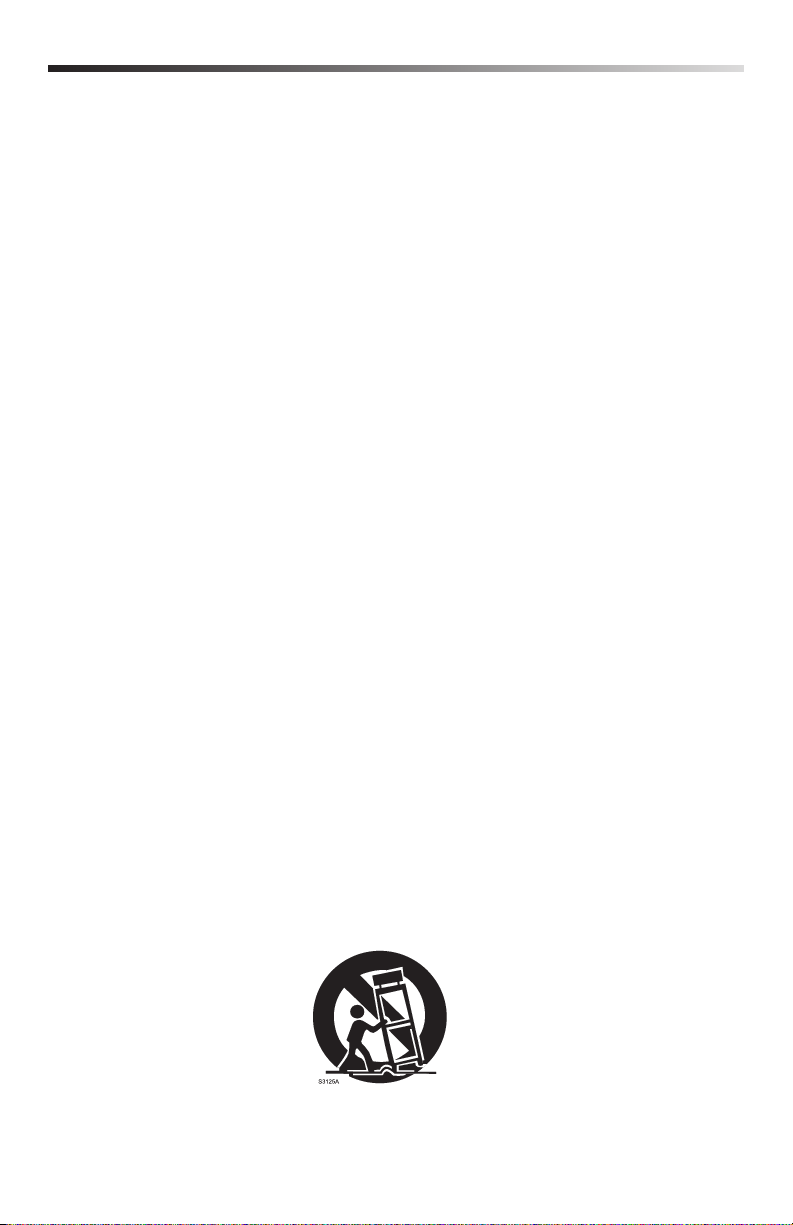

12. Use only with the cart, stand, tripod,
bracket, or table specified
by the manufacturer, or sold
with the apparatus. When
a cart is used, use caution
when moving the cart/appa-
ratus combination to avoid
injury from tip-over.
13. Unplug the apparatus during lighten-
ing storms or when unused for long
periods of time.
14. Refer all servicing to qualified
personnel. Service is required when
the apparatus has been damaged in
any way, such as power supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus has been exposed to rain or
moisture, does not operate normally,
or has been dropped.
15. This appliance shall not be exposed
to dripping or splashing water and
that no object filled with liquid such
as vases shall be placed on the appa-
ratus.
16. Caution-to prevent electrical shock,
match wide blade plug wide slot fully
insert.
17. Please keep a good ventilation envi-
ronment around the entire unit.
18. To prevent injury, this apparatus must
be securely attached to the stand
in accordance with the installation
instructions.
19. WARNING: The battery (battery or
batteries or battery pack) shall not
be exposed to excessive heat such as
sunshine, fire or the like.
20. CAUTION: Danger of explosion if bat-
tery is incorrectly replaced. Replace
only with the same or equivalent type.
Important Safety Information

4
Thank you for purchasing the Hydrive HD75 or HD150 Bass Combo Amplifier from
Hartke! We know you don’t like reading owners manuals, but you’ve just purchased one
of the finest bass combos around, and we want to tell you about it. So, before you plug
in and start playing, we’d like to suggest you take just a few moments to scan these
pages.
The HD75 is a compact combo featuring a 75-watt amp with a 12” Hydrive Series
speaker and a 1” tweeter. The HD150 has a 150-watt amp with a 15” Hydrive
Series speaker and a 1” tweeter. Hartke Hydrive transducers are a radical change,
and improvement, in bass speaker technology. The unique hybrid cone speaker is
constructed using an outside paper cone, producing deep and warm low frequencies,
and an inside aluminum cone which produces mids that cut, yet are still sweet. The
versatility of the Hydrive HD Combos makes them ideal for bassists playing jazz, funk,
country, roots rock, metal or for whatever style you create.
In these pages, you’ll find a description of the many features of your Hydrive bass
amplifier combo, instructions for setting up and using the amp, plus full specifications.
If you purchased the amplifier in the United States you will also find a warranty card
enclosed—please don’t forget to fill it out and mail it so that you can receive online
technical support and so we can send you updated information about this and other
Hartke and Samson products in the future. Also, be sure to check out our website
(www.hartke.com) for complete information about our full product line.
We recommend you keep the following records for reference, as well as a copy of your
sales receipt.
Serial number: ____________________________________________
Date of purchase: __________________________________________
Dealer name: _____________________________________________
With proper care and maintenance, your Hydrive HD Combo will operate trouble-free
for many years. Should the product ever require servicing, a Return Authorization (RA)
number must be obtained before shipping your unit to Samson. Without this number,
the unit will not be accepted. Please call Samson at 1-800-3SAMSON for an RA
number prior to shipping your unit. Please retain the original packing materials and, if
possible, return the unit in its original carton. If your HD75 or HD150 was purchased
outside of the United States, contact your local distributor for warranty details and
service information.
Introduction

HD Series Combos 5
The Hartke HD Series offers all the state-of-the-art speaker technology as well as robust
amplification in an extremely compact size and affordable price. Here are some of its
main features:
• The HD75 delivers 75 Watts of power to its specially designed 12” Hydrive bass
speaker and 1” tweeter
• The HD150 delivers 150 Watts to its specially designed 15-inch Hydrive bass
speaker and 1” tweeter
• Input accommodates a broad range of input levels, so that you can use passive
model basses or those with active circuitry.
• 7-band graphic EQ plus bass, mid, and treble controls to create a broad range of
tonal colors.
• Dedicated 3.5 mm line input is included allowing you to hook up a portable CD or
MP3 player to practice along with.
• Line-level effects loop send and return jacks to connect to professional outboard
effects processors.
• The HD150 features an electronically balanced direct output for routing signal to
mixing consoles in both live performance and recording environments.
• Headphone output automatically disconnects the speaker output allowing use as a
high-quality practice amp.
• Built-in limiter protects the speaker and amplifier from overload.
• Rugged construction makes the HD Series eminently road-worthy.
• The HD150 includes four rolling casters to help transport the amplifier.
Features

6
1. INPUT - Connect your bass guitar here using a standard ¼” unbalanced instru-
ment cable.
2. VOLUME Control - This is the overall volume control. For best signal-to-noise ratio,
keep the output of your bass at or near maximum and adjust the VOLUME to the
desired level.
3. BASS Control - This control is used to adjust the low frequency response. As it is
turned clockwise the frequency area is boosted; as it is turned counterclockwise
the frequency area is attenuated.
4. MID Control - This control is used to adjust the mid frequency response. As it is
turned clockwise the frequency area is boosted; as it is turned counterclockwise
the frequency area is attenuated.
5. TREBLE Control - This control is used to adjust the high frequency response. As it
is turned clockwise the frequency area is boosted; as it is turned counterclockwise
the frequency area is attenuated.
6. Graphic Equalizer - These sliders allow you to “draw” the tonal response of the sys-
tem by adding 12 dB of boost or attenuation to seven different frequency bands.
7. AUX INPUT - Use this ¹⁄8” input to connect a line level device like a portable CD or
MP3 player.
8. Effect SEND jack - Use this ¼” unbalanced jack to send signal from the HD75 to
outboard effects processors. In-line effects, such as stomp boxes, intended for
low signal levels should be placed between the bass and the amplifier input and
not connected with the Effect Send and Return jacks. You can also use the Effect
Send jack to route signal to an external mixing console or amplifier with an input
sensitivity of +4 dB.
9. Effect RETURN jack - Use this ¼” unbalanced jack to return low impedance signal
to the HD75 from an outboard effects processor.
10. Headphones jack - Connect headphones to this standard ¼” jack. When a plug is
inserted into the headphone jack, the speaker output is disconnected, allowing
you to use your HD75 as a practice amplifier.
HD75 Top Panel Controls
1 2 3 4 5 6 7 8 9 10

HD Series Combos 7
1 2 3 4 5 6 7 8 9 10 11
HD150 Top Panel Controls
1. INPUT - Connect your bass guitar here using a standard ¼” unbalanced instru-
ment cable.
2. VOLUME Control - This is the overall volume control. For best signal-to-noise ratio,
keep the output of your bass at or near maximum and adjust the VOLUME to the
desired level.
3. BASS Control - This control is used to adjust the low frequency response. As it is
turned clockwise the frequency area is boosted; as it is turned counterclockwise
the frequency area is attenuated.
4. MID Control - This control is used to adjust the mid frequency response. As it is
turned clockwise the frequency area is boosted; as it is turned counterclockwise
the frequency area is attenuated.
5. TREBLE Control - This control is used to adjust the high frequency response. As it
is turned clockwise the frequency area is boosted; as it is turned counterclockwise
the frequency area is attenuated.
6. Graphic Equalizer - These sliders allow you to “draw” the tonal response of the sys-
tem by adding 12 dB of boost or attenuation to seven different frequency bands.
7. AUX INPUT - Use this ¹⁄8” input to connect a line level device like a portable CD or
MP3 player.
8. Effect SEND jack - Use this ¼” unbalanced jack to send signal from the HD150
to outboard effects processors. In-line effects, such as stomp boxes, intended for
low signal levels should be placed between the bass and the amplifier input and
not connected with the Effect Send and Return jacks. You can also use the Effect
Send jack to route signal to an external mixing console or amplifier with an input
sensitivity of +4 dB.
9. Effect RETURN jack - Use this ¼” unbalanced jack to return low impedance signal
to the HD150 from an outboard effects processor.
10. DIRECT OUT (XLR connector) - This standard, balanced male XLR connector pro-
vides a line-level output signal from the HD150 amplifier for connecting to mixing
consoles or recording interface.
11. Headphones jack - Connect headphones to this standard ¼” jack. When a plug is
inserted into the headphone jack, the speaker output is disconnected, allowing
you to use your HD75 as a practice amplifier.

8
1. Power Switch - Use this to power the amplifier on or off. When powered on, the
switch illuminates red.
2. AC Inlet - Attach the grounded AC power cord here to connect your amplifier to
mains power. This cord comes supplied with the appropriate plug for your geo-
graphic area.
CAUTION: Do not use an adapter to defeat the third grounding pin on this plug or
severe electric shock may result!
3. Fuse Holder - The fuse holder comes from the factory with the appropriately rated
fuse for your model. If you need to change this fuse for any reason, replace it with
one that has the same exact rating.
4. Voltage Selection Switch - This switch is used to select the amplifiers operating
voltage
NOTE: Before using your speaker, be sure the voltage selection switch is set to
the correct voltage for your country. Be sure to install the properly rated fuse when
changing the operating voltage.
Rear Panel Controls
1
2
3
4

HD Series Combos 9
Setting up your Hartke HD Series Combo Bass Amplifier is a simple procedure which
takes only a few minutes:
1. Remove all packing materials and decide where the amplifier is to be physically
placed.
2. Before you plug-in the power cable, be sure the Power switch is in the off posi-
tion. Connect the supplied power cable to the AC inlet located on the rear panel.
Then, plug-in the 3-pin AC plug into any grounded AC socket.
3. Use a standard ¼” instrument cable to connect your bass to the Input jack on the
front panel.
4. On the top panel of the amplifier, turn the Volume the minimum (fully coun-
terclockwise) position, set all EQ knobs to their twelve o’clock position and the
7-band graphic EQ sliders to the center position.
5. Press the rear panel Power switch in order to turn on the amplifier.
6. Set the output of your bass to maximum and then, while playing, slowly turn the
Volume control up until the desired level is achieved.
7. Adjust the equalization controls to taste.
8. Test the headphone output by turning the Volume control to its minimum (fully
counterclockwise) position and then connect a pair of headphones to the top-pan-
el Phones jack. While playing your bass, slowly turn the Volume control up, you
should hear sound from the headphones and none from the connected speaker.
9. The HD Series amplifier features an AUX INPUT that you can use with a portable
CD or MP3 player to play with prerecorded tracks. You can plug any line level
signal into the AUX INPUT including the signal from a keyboard or drum machine.
Connect the line level device to the AUX INPUT using standard 1/8” cable. You
will need to use the volume control on the input device to set the balance between
the track and your bass. So, start with the volume control all the way down and
slowly raise it until you reach a good balance with your bass.
Quick Start

10
The Hartke Systems HD Series Bass Amplifier gives you control over shaping the sound
of your bass, using a process called equalization. To understand how this works, it’s
important to know that every naturally occurring sound consists of a broad range of
pitches, or frequencies, combined together in a unique way. This blend is what gives
every sound its distinctive tonal color. The HD Series EQ controls allow you to alter a
sound by boosting or attenuating specific frequency areas - they operate much like the
bass and treble controls on your hi-fi amp, but with much greater precision.
The HD75 and HD150 offer three bands of equalization. Each EQ knob, labeled Bass,
Mid, and Treble, affects a different frequency area of the audio. We carefully selected
these frequency areas because they have maximum impact on bass guitar signals. The
Bass and Treble controls are shelving EQs, which provide boost when the control is
moved clockwise from the center or cut when the control is moved counterclockwise
from the center. The Mid EQ control is a passive, cut-only, circuit designed to provide a
response that is flat to a mid-scoop.
The seven-band graphic equalizer provides seven sliders, each corresponding to a single
narrow frequency band. This allows you to “draw” the desired tonal response of your
system. When a slider is in its 0, center detent position, it has no effect to the audio
signal. When it is moved above center (towards +12), the particular frequency area is
being boosted; when it is moved below center (towards -15), the frequency area is being
attenuated.
In many instances, the best way to deal with equalization is to think in terms of which
frequency areas you need to attenuate, as opposed to which ones you need to boost. Be
aware that boosting a frequency area also has the effect of boosting the overall signal;
specifically, too much Low EQ boost can actually cause overload distortion or even harm
the connected speaker.
The specific EQ you will apply to your bass signal is very much dependent upon your
particular instrument and personal taste and playing style.
However, here are a few general suggestions:
For reggae or Motown sound, boost the Bass EQ slightly while attenuating the Treble EQ.
To remove boxiness and make your instrument sound more “hi-fi,” attenuate the Mid EQ
control.
For a twangy sound that cuts, try boosting the Treble and slighting rolling off the Bass
EQ control.
As you experiment with the EQ controls of the HD Series, don’t forget that your bass
also provides significant EQ control in the form of its pickup and tonal settings—this
can be particularly effective in instruments that have active circuitry.
Using Equalization

HD Series Combos 11
Rated Output Power
HD75 75 w (1 kHz, 16 ohm, 1% THD)
HD150 150 w (1 kHz, 4 ohm, 1% THD)
Rated Input Level (@ 1 kHz)
HD75 44.6mv rms
HD150 38.8mv rms
Total Harmonic Distortion (@ 1 dB below rated output, 1 kHz typical)
HD75 0.32%
HD150 0.6%
Signal To Noise Ratio (1 Wrms @ 1 kHz)
HD75 1W/62dB
HD150 1W/62dB
Signal Gain Speaker Output
HD75 35V
HD150 24.5V
Signal Gain to Direct Out and Send Jack
HD75 Send Out: 545mV
HD150 Direct Out: 7.6V; Send Out: 900mV
Equalizer BASS, MID, TREBLE Center Frequency
Bass 50 Hz
Mid 700 Hz
Treble 10 kHz
Seven-Band Graphic EQ Frequencies 63Hz, 125Hz, 250Hz,
500Hz, 1.25kHz, 2.5kHz, 5kHz
Fuse Rating
HD75 220V-240V:T1.5AL AC250V
100V-120V:T800mAL AC250V
HD150 220V-240V:T2AL AC250V
100V-120V:T1AL AC250V
Weight
HD75 48.2 lb
24.7 kg
HD150 57.8 lb
26.2 kg
Dimensions (HxWxD)
HD75 19.9” x 18.6” x 13.9”
506 mm x 472 mm x 353 mm
HD150 (without wheels) 23.6” x 21.5” x 13.89”
599 mm x 545 mm x 353 mm
Specications
At Hartke, we are continually improving our products, therefore specifications and
images are subject to change without notice.

Copyright 2014 v1.3
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: [phone]
www.hartke.com
