Rockford Fosgate PUNCH 200 User manual

® ®
car audio
fanatics
for
punch
multi-channel Amplifiers
Operation & Installation
®
4-channel
4-channel
4-channel
4-channel
5-channel

PUNCH 200 PUNCH 400 PUNCH 600 PUNCH 800 PUNCH 600
4-channel 4-channel 4-channel 4-channel 5-channel
Dynamic Power Rating (IHF-202 Standard) - Measured at 14.4 Volts Front/Rear + Subwoofer
Mono into a 4ΩLoad
165 Watts x 2 220 Watts x 2 317 Watts x 2 525 Watts x 2 240 Watts x
2+ -
Per channel into a 2ΩLoad
85 Watts x 4 130 Watts x 4 175 Watts x 4 270 Watts x 4 120 Watts x 4 + 240 Watts x 1
Per channel into a 4ΩLoad
55 Watts x 4 85 Watts x 4 99 Watts x 4 150 Watts x 4 75 Watts x 4 + 115 Watts x 1
Continuous Power Rating (Competition Standard) - Measured at 13.8 Battery Volts
RMS continuous power per channel,
25 Watts x 4 50 Watts x 4 75 Watts x 4 100 Watts x 4 50 Watts x 4 + 100 Watts x 1
both channels driven into a 4Ωload
from 20 to 20,000 Hz with less than
0.05% Total Harmonic Distortion (THD)
RMS continuous power per channel,
50 Watts x 4 100 Watts x 4 150 Watts x 4 200 Watts x 4 100 Watts x 4 + 200 Watts x 1
both channels driven into a 2Ωload
from 20 to 20,000 Hz, with less than
0.1% Total Harmonic Distortion (THD)
RMS continuous power mono into a
100 Watts x 2 200 Watts x 2 300 Watts x 2 400 Watts x 2 200 Watts x 2 + -
4Ωload from 20 to 20,000 Hz, with
less than 0.1% Total Harmonic
Distortion (THD)
Signal-to-Noise Ratio >100dB A-weighted
Crossover Slope (Butterworth) 12dB/octave 12dB/octave 12dB/octave 12dB/octave 12dB/octave + 24dB/octave
Crossover Frequency 80Hz 80Hz
50Hz – 210Hz 50Hz – 210Hz 50Hz – 210Hz + 50Hz – 210Hz
Specifications are subject to change without notice.
S
PECIFICATIONS
– i –

PUNCH 200 PUNCH 400 PUNCH 600 PUNCH 800 PUNCH 600
4-channel 4-channel 4-channel 4-channel 5-channel
Dimensions
2.60" (6.60cm) H 2.60" (6.60cm) H 2.60" (6.60cm) H 2.60" (6.60cm) H 2.60" (6.60cm) H
9.60" (24.38cm) W 9.60" (24.38cm) W 9.60" (24.38cm) W 9.60" (24.38cm) W 9.60" (24.38cm) W
9 .70" (24.63cm) L 9.70" (24.63cm) L 10.70" (27.17cm) L 14.70" (37.33cm) L 14.70" (37.33cm) L
Frequency Response 20Hz to 20kHz ±0.5dB
Bandwidth 20Hz to 200kHz ±3dB
Damping Factor @ 4Ω(at output connector ) >200
Slew Rate 30 Volts/ µs
IM Distortion (IHF) <0.05%
Source Unit Compatibility (+15dB gain overlap) 17V max. (low level in)
Input Sensitivity (+0dB gain overlap) Variable from 250mV to 4V (low level in)
Variable from 650mV to 11V (high level in)
Protection NOMAD - Internal analog-computer output protection circuitry limits power in case of
overload. Thermal switch shuts down the amplifier in case of overheating.
Battery Fuse Rating (External to Amplifier) 30A 50A 50A 60A* 50A
Fuse Type ATC AGU AGU AGU AGU
Equalization (45Hz Punch Bass) Variable Variable Variable Variable Variable
(0 to +18dB) (0 to +18dB) (0 to +18dB) (0 to +18dB) (0 to +18dB)
Input Impedance 20k ohms 20k ohms 20k ohms 20k ohms 20k ohms
* recommended fuse not supplied with amplifier
Specifications are subject to change without notice.
– ii –

Dear Customer,
Congratulations on your purchase of the world's finest brand of car audio amplifiers.
AtRockfordFosgatewearefanaticsaboutmusicalreproductionatitsbest,andweare
pleasedyouchoseourproduct.Throughyearsofengineeringexpertise,handcraftsman-
ship and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized
training through Rockford Technical Training Institute (RTTI). Please read your
warranty and retain your receipt and original carton for possible future use.
Greatproductandcompetent installationsareonlyapieceofthepuzzle whenitcomes
to your system. Make sure that your installer is using 100% authentic installation
accessories from Connecting Punch in your installation. Connecting Punch has
everything from RCA cables and speaker wire to Power line and battery connectors.
Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rockford
wearables,which include everything from T-shirts and jackets tohats and sunglasses.
To get a free brochure on Rockford Fosgate products and Rockford accessories, in the
U.S.call602-967-3565orFAX602-967-8132.Forallothercountries,call+001-602-
967-3565 or FAX [phone].
If, after reading your manual, you still have questions regarding this product,
we recommend that you see your Rockford Fosgate dealer. If you need further
assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial
number, model number and date of purchase available when you call.
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER 100dB
MAY CAUSE PERMANENT HEARING LOSS.HIGH POWERED AUTOSOUND
SYSTEMS MAY PRODUCE SOUND PRESSURE LEVELS WELL OVER
130dB. USE COMMON SENSE AND PRACTICE SAFE SOUND.
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will serve as
verificationofyourfactorywarrantyandmaybecomeusefulinrecoveringyour
amplifier if it is ever stolen.
Serial Number: ________________________________
Model Number:________________________________
– iii –

T ABLE OF C ONTENTS
Specifications.............................................................................................. i
Introduction................................................................................................1
Punch Amplifier Accessory Pack ................................................................... 1
Feature Chart..............................................................................................2
Design Features .......................................................................................... 4
Installation Considerations ...........................................................................7
Mounting Location ...................................................................................... 8
Battery and Charging ..................................................................................9
Wiring the System....................................................................................... 9
Using Passive Crossovers........................................................................... 11
Table of Component Values........................................................................ 12
Installation ...............................................................................................13
System Diagrams...................................................................................... 25
Troubleshooting........................................................................................ 29
Dynamic Power Measurements................................................................... 32
Warranty Information ................................................................................ 34
International Information............................................................................35
Sections marked
ADVANCED OPERATION
include in-depth
technical information
Sections marked
TROUBLESHOOTING
include recommendations for
curing installation problems
Sections marked
INSTALLATION
include “slam dunk”
wiring connections
I
N
S
T
A
L
L
A
T
I
O
N
® ®
TROUBLE-S
H
O
O
T
I
N
G
Welcometo Rockford Fosgate! This manual is designedto provide information
for the owner, salesperson and installer. For those of you who want quick
information on how to install this product, please turn to the Installation
Section of this manual or refer to the icons listed below. Other information can
be located by using the Table of Contents. We, at Rockford Fosgate, have
workedveryhardtomakesurealltheinformationinthismanualiscurrent.But,
asweareconstantlyfindingnewwaystoimproveourproduct,thisinformation
is subject to change without notice.
GETTING STARTED
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

I NTRODUCTION
Rockford engineers designed the Punch multi-channel amplifiers to with-
stand the rugged automotive environment while delivering superior sound
quality in a flexible, reliable, and efficient package. TRANS• ana is a low
voltagecircuitinthepreampstageofallPunchmulti-channelamplifiersthat
lets the music sound crystal clear and very real, even when played at high
volumelevels.ThisismatchedwithTOPAZ,auniquegroundingcircuitused
to eliminate noise problems associated with car audio systems and their
installation.Flexibilityisaccomplishedwiththe useofhigh-levelinputsand
abuilt-incrossover.TheuseofaprotectioncircuitcalledNOMAD,alongwith
MOSFETandDSM(DiscreteSurfaceMount)andourinnovativeMEHSAheat
dissipating technology improves amplifier efficiency. The result of these
components give the Punch amplifier awesome sound quality in a “Bullet
Proof” package.
– 1 –
P UNCH A MPLIFIER A CCESSORY P ACK
The accessory pack shipped with the Punch multi-channel amplifiers includes
the mounting hardware necessary to secure the amp to the vehicle.
Installation & Operation Manual
Punch Verification Certificate
(4) Amplifier mounting screws (#8 x 3/4" Phillips)
(4) Speaker/Power connector set screws (3/32" Allen)
(4) Endbell mounting screws (9/64" Allen)
(1) Allen wrench (3/32")
(1) Allen wrench (9/64")
(2) High Level Input harness (Punch 200/400/600/800, 4-channel)
- Replacement part #CC-1992 - 4 position molex
(1) High Level Input harness (Punch 600, 5-channel)
- Replacement part #CC-2347 - 8 pin mini-DIN
(1) Inline fuseholder (except Punch 800, 4-channel)
(1) ATC 30 amp fuse (Punch 200, 4-channel)
(1)ATC 50 amp fuse (Punch 400/600, 4-channel & Punch 600, 5-channel)
NOTE: Refer to the specifications section for recommended fuse size on the
Punch 800, 4-channel amplifier.

– 2 –
P UNCH M ULTI -C HANNEL A MPLIFIER F EATURE C HART
PUNCH AMPLIFIER MODEL 200 400 600 800 600
F/R + SUB
# of CHANNELS 4 4 4 4 5
RMS Power Stereo (4Ω) 25x4 50x4 75x4 100x4 50x4+ 100x1
RMS Power Stereo (2Ω) 50x4 100x4 150x4 200x4 100x4+ 200x1
RMS Power Bridged/Mono (4Ω) 100x2 200x2 300x2 400x2 200x2 + –
Stable Into: (each channel) 2Ω2Ω2Ω2Ω2Ω+ 2Ω
Stable into: (bridged/mono) 4Ω4Ω4Ω4Ω4Ω+ –
CIRCUITRY
1
TRANS• ana – circuit topology x x x x x
TRANS• nova – patented circuit topology
2
– – – – –
Class-G – high efficiency topology – – – – SUB only
MEHSA – heat dissipating technology – x x x x
TOPAZ – patented noise eliminating circuitry
3
x x x x x
DSM – discrete surface mount x x x x x
MOSFETs – power supply & output devices x x x x x
NOMAD – protection circuit x x x x x
FEATURES
Die Cast Heatsink
4
x x x x x
Hi-Level Inputs – for factory radios x x x x F/R only
RCA Inputs – for aftermarket radios x x x x x
Balanced Inputs – – – – –
Input Switches – eliminates “Y” adaptors x x x x x
Pass-Thru – feeds signal to aux. amp x x x x –
Pwr/Spk Screw Terminals – – – – Spk
Pwr/Spk Block Terminals x x x x Pwr
4 Gauge PWR/GND – – – – –

PUNCH AMPLIFIER MODEL 200 400 600 800 600
Adjustable Punch Bass – – – – –
(0dB/+6dB/+12dB @ 45Hz)
Variable Punch Bass – – x x x
(0dB ~+18dB @ 45Hz)
Adjustable Xover (80Hz) – – – – –
Variable Xover (50Hz ~ 210Hz)
HP/FULL/LP
5
HP/FULL/LP
5
HP/FULL/LP
5
HP/FULL/LP
5
HP/FULL/LP
5
Crossover Slope (Butterworth) 12dB 12dB 12dB 12dB 12dB + 24dB
6
Phase Warp (0
0
~ 180
0
) – – – – –
GENERAL
B+ Fuse Size 30A ATC 50A AGU 50A AGU 60A AGU
7
50A AGU
Dimensions (H x W x L) 2.60"H x 2.60"H x 2.60"H x 2.60"H x 2.60"H x
9.60"W x 9.60"W x 9.60"W x 9.60"W x 9.60"W x
9.70"L 9.70"L 10.70"L 14.70"L 14.70"L
(6.60cm x (6.60cm x (6.60cm x (6.60cm x (6.60cm x
24.38cm x 24.38cm x 24.38cm x 24.38cm x 24.38cm x
24.63cm) 24.63cm) 27.17cm) 37.33cm) 37.33cm)
– 3 –
1Additional information on features, specifications and system designs can be
found at: www.rockfordfosgate.com
2Trans•nova is patented under "U.S. Patent No. 4,467,288"
3TOPAZ is patented under "U.S. Patent No. 5,751,823"
4Diecast Heatsink is patented under "U.S. Patent No. D401,225"
5HP = 12dB/octave High-Pass / LP = 12dB/octave Low-Pass / FULL = Full Range
6Front/Rear = 12dB/octave + Sub = 24dB/octave Low-Pass
7Recommended fuse not supplied with amplifier
--INTERNAL USE ONLY--
Heatsink Type #4 #4 #5 #6 #6

– 4 –
D ESIGN F EATURES
Punch 200, 4-channel
Punch 400, 4-channel
Punch 600, 4-channel
10
Front High
Level Inputs
Gain
Gain
Crossover
Frequency
Front
R
L
R
L
RearPass-Thru
4-2
Input
Punch
Bass
HP-FULL-LP
Crossover
Front
Rear High
Level Inputs
Crossover
Frequency Punch Bass
Rear
L+
L–
R+
R–
Hz
65
80
55
50
110
210 Hz
145
190
Hz
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
HP-FULL-LP
Crossover
REM
B+ GND
LED
LR+ LR– RR+ RR– LF– LF+ RF– RF+
23211 2
56
109
810 6 10 84
9
7
1
L+
L–
R+
R–
L+
L–
R+
R–
Front
Gain
HP–Full–LP
Front 80Hz
Crossover Front
High
Level
Input Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
4 –2
Input HP-Full-LP
Rear 80Hz
Crossover Rear
Gain
REM
LED
LR+ LR–RR+ RR–B+ GND LF–LF+ RF–RF+
8
10
465610
8
7
232 11 2
1

D ESIGN F EATURES
– 5 –
Punch 800, 4-channel
10
2311 2
5
810
7
1
LR+ LR- RR+ RR-
REM
B+ GND
LED
LF- LF+ RF+RF-
Hz
Front
Crossover
Frequency
Front
Gain Front High
Level Input
L+
L–
R+
R–
Front
Punch
Bass
Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
Rear
Punch
Bass
Crossover
HP-Full-LP
Crossover
HP-Full-LP
4-2
Input
Rear
Crossover
Frequency
Rear
Gain
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Hz
65
80
55
50
110
210 Hz
145
190
2
10
6 9
10 6948
Punch 600, 5-channel
549 6
10 9 9
10 10 10 10 1
Sub LP
Crossover
Frequency
Sub
Gain
65
80
55
50
110
210 Hz
145
190
6/4/2
Input
Sub Rear Front
R
L
R
L
Sub
Punch
Bass
Rear
Crossover
Frequency
Rear
Punch
Bass
Rear
Gain
High Level
Input
Front
Crossover
Frequency
Front
Punch
Bass
Front
Gain
HP-Full-LP
Front
Crossover
HP-Full-LP
Rear
Crossover
65
80
55
50
110
210 Hz
145
190
GND LF-LF+
RF+
RF- LR+
RR-
RR+
LR-
LR+
LR-
RR+
RR-
RF- LF+ Sub-
RF+ LF- Sub+
REM
B+ GND
LED
LR+
LR-
RR+
RR-
RF- LF+ Sub-
RF+ LF- Sub+
11 232 888

– 6 –

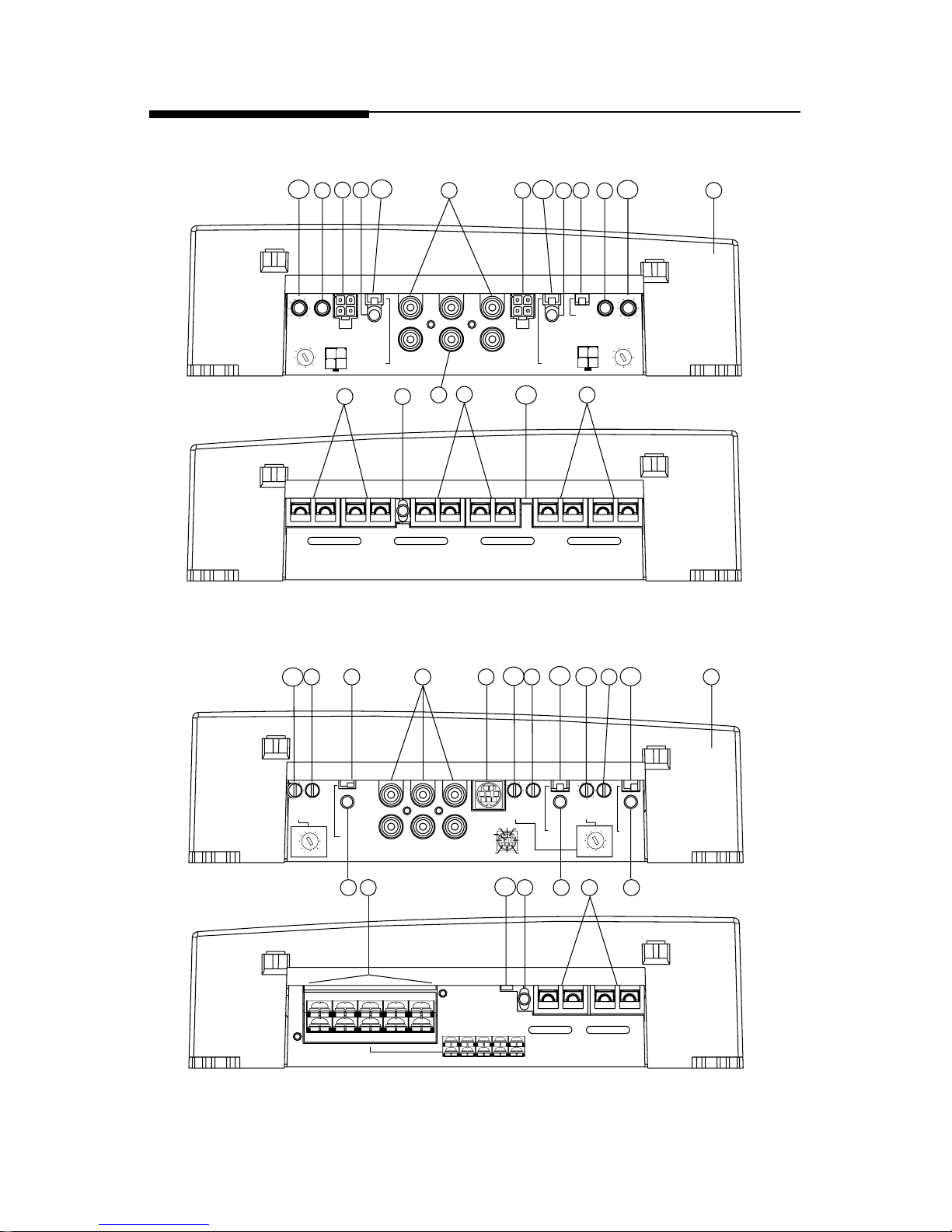

1. Cast Aluminum Heatsink – The cast aluminum heatsink of the Punch
amplifier dissipates heat generated by the amplifier's circuitry. The inherent
advantageofcastingprovidesa30%improvementofcoolingoverconven-
tional extrusion heatsink designs.
2. Speaker/Power Terminals – The heavy duty, gold-plated terminal block
connectors(+ and –) will accept wire sizes from 8 AWG to 18 AWG and are
immune to corrosion that can cause signal degradation. The Punch 600,
5-channel also utilizes a barrier strip that will accept #8 spade lugs or bare
speker wires sized from 12-18 AWG.
3. REM Terminal – Thisspadeterminalis used to remotely turn on and turn off
the amplifier when +12V DC is applied.
4. Signal Input Switch – This switch allows the amplifier to be driven with
either2or4pairsofinputs. ThePunch600,5-channelallowstheamplifier
to be driven with either 2, 4, or 6 pairs of inputs.
5. RCA Input Jacks – The industry standard RCA jacks provide an easy
connection for signal level input. They are gold-plated to resist the signal
degradation caused by corrosion.
6. High Level Inputs – The high level inputs use a detachable connector
terminatedwith20AWGleads.Theseinputsshouldbeusedifthesourceunit
has only speaker line (high level) outputs and not RCA outputs.
7. RCA Pass-Thru Jacks – The Pass-Thru provides a convenient source for
daisy-chaining an additional amplifier without running an extra set of RCA
cables from the front of the vehicle to the rear amplifier location.
8. Gain Control – The input gain control is preset to match the output of most
sourceunits.Itcanbeadjustedtomatchoutputlevelsfromavarietyofsource
units.
9. PunchBass–ThePunchBasshelpscorrectforacousticaldeficienciesinthe
listeningenvironmentbyhelpingreproducefull rangesoundwithoutadding
excessive boost. The Punch Bass control is a narrow band adjustment
centered at 45Hz variable from 0dB to +18dB.
10. Internal Crossover – The internal crossover is a 12dB/octave Butterworth
filter selectable for High-Pass (HP), Full Range (FULL), or Low-Pass (LP)
operation. The Punch 200/400, 4-channel amplifiers utilize a fixed 80Hz
crossover. The Punch 600/800, 4-channel and Punch 600, 5-channel
amplifiers utilize a crossover variable from 50Hz to 210Hz with the Sub
channel operating at 24dB/octave.
11. LED Power Indicator – The LED illuminates when the unit is turned on.

I NSTALLATION C ONSIDERATIONS
Thefollowingis alistoftoolsyouwillneedforinstalling thePunchamplifier:
Voltmeter Wire strippers
Electric hand drill w/assorted bits Battery post wrench
17' (5 m) Red Power Wire Wire cutters
12' (4 m) Remote Turn-On Wire Assorted connectors
1.5' (45 cm) Black Grounding Wire Wire crimpers
– 7 –
Thissectionfocuses on some of the vehicle considerations for installing your
new Punch amplifier. Checking your battery and present sound system, as
well as pre-planning your system layout and best wiring routes, will save
installationtime. Whendecidinghowtolayoutyournewsystem,besurethat
each component will be easily accessible for making adjustments.
Before beginning any installation, be sure to follow these simple rules:
1. Besuretocarefullyreadandunderstandtheinstructionsbeforeattempt-
ing to install the amplifier.
2. For safety, disconnect the negative lead from the battery prior to
beginning the installation.
3. Foreasierassembly,wesuggestyourunallwirespriortomountingyour
amplifier in place.
4. Route all of the RCA cables close together and away from any high
current wires.
5. Use high quality connectors for a reliable installation and to minimize
signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel
lines, brake or hydraulic lines, vacuum lines or electrical wiring when
working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the
vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic
grommets to protect any wires routed through metal, especially the
firewall.
9. ALWAYS protect the battery and electrical system from damage with
proper fusing. Install a fuseholder and appropriate fuse on the +12V
power wire within 18” (45 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the
metal to ensure a good, clean ground connection. Grounding connec-
tions should be as short as possible and always be connected to metal
that is welded to the main body, or chassis, of the vehicle.

M OUNTING L OCATION
Themountinglocationandpositionofyouramplifierwill haveagreateffect
on its ability to dissipate the heat generated during normal operation. The
design of our cast aluminum heatsink serves to easily dissipate the heat
generatedoverawiderangeofoperatingconditions.However,tomaximize
theperformance of youramplifier,care shouldbetaken to ensureadequate
ventilation.
Trunk Mounting
Mounting the amplifier vertically on a surface with the fin grooves running
up and down will provide the best cooling of the amplifier.
Mounting the amplifier on the floor of the trunk will work but provides less
cooling capability than vertical mounting.
Mounting the amplifier upside down to the rear deck of the trunk will not
provide proper cooling and will severely affect the performance of the
amplifier and is strongly not recommended.
Passenger Compartment Mounting
Mounting the amplifier in the passenger compartment will work as long as
you provide a sufficient amount of air for the amplifier to cool itself. If you
aregoingtomounttheamplifierundertheseatofthevehicle,youmusthave
at least 1" (2.54cm) of air gap around the amplifier's heatsink.
Mounting the amplifier with less than 1" (2.54cm) of air gap around the
amplifier's heatsink in the passenger compartment will not provide proper
cooling and will severely affect the performance of the amplifier and is
strongly not recommended.
Engine Compartment Mounting
Rockford Fosgate amplifiers should never be mounted in the engine
compartment. Not only will this void your warranty but could create an
embarrassing situation caused by the ridicule from your friends.
– 8 –

B ATTERY AND C HARGING
– 9 –
Amplifiers will put an increased load on the vehicle's battery and charging
system. We recommend checking your alternator and battery condition to
ensure that the electrical system has enough capacity to handle the
increased load of your stereo system. Stock electrical systems which are in
good condition should be able to handle the extra load of any Rockford
amplifier without problems, although battery and alternator life can be
reduced slightly. To maximize the performance of your Rockford Fosgate
amplifier,wesuggesttheuseofaheavydutybatteryandanenergystorage
capacitor.
W IRING THE S YSTEM
CAUTION: Avoid running power wires near the low level input cables,
antenna,power leads,sensitive equipment orharnesses. Thepowerwires
carry substantial current and could induce noise into the audio system.
1. Planthewirerouting.TakecarewhenrunningsignallevelRCAcables
to keep them close together but isolated from the amplifier's power
cables and any high power auto accessories, especially electric
motors. This is done to prevent coupling the noise from radiated
electricalfields into the audio signal. When feeding the wires through
the firewall or any metal barrier, protect them with plastic or rubber
grommets to prevent short circuits. Leave the wires long at this point
to adjust for a precise fit at a later time.

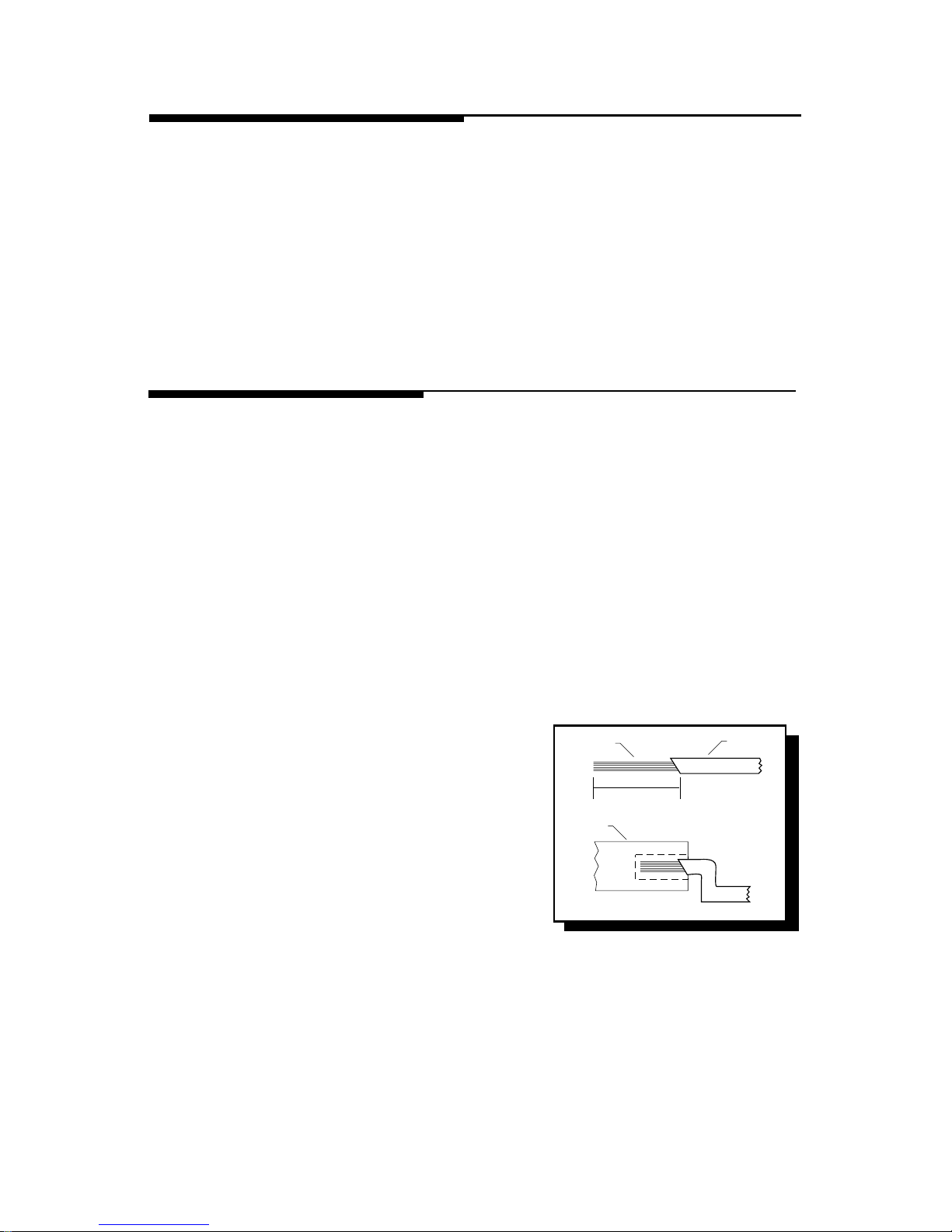

2. PreparethePowercableforattach-
ment to the amplifier by stripping
5/8" of insulation from the end of
thewire. The use of 8gaugepower
cablecaninterferewiththeinstalla-
tion of the end caps. Proper wire
dress can prevent this from occur-
ring. To prevent the wire from fray-
ing, strip the insulation at a 45°
angle. Insert the bared wire into the B+ terminal with the long side of
theinsulationonthetop.Bendthecabledownata90°angle.Tighten
the set screw to secure the cable in place.
3. Strip 3/8" from the battery end of the power cable and crimp a large
ring terminal to the cable. Use the ring terminal to connect to the
battery positive terminal. Do not install the fuse at this time.
>< 5/8"
INSULATION
STRIP WIRE
>
>
AMP
>

– 10 –
4. Prepare a length of cable to be used for the ground connection. Strip
5/8" of insulation from the end of the cable as described above and
connecttotheappropriateterminaloftheamplifier.Preparethechassis
ground by scraping any paint from the metal surface and thoroughly
clean the area of all dirt and grease. Strip the other end of the wire and
attach a ring connector. Fasten the cable to the chassis using a non-
anodized screw and a star washer.
5. PreparetheREMturn-onwireforconnectiontotheamplifierbystripping
1/4" of insulation from the wire end and crimping an insulated spade
connector in place. Slide the connector over the REM terminal on the
amplifier. Connect the other end of the REM wire to a switched 12 volt
positive source. The switched signal is usually taken from the source
unit's auto antenna or the accessory lead. If the source unit does not
have these outputs available, the recommended solution is to wire a
mechanicalswitchinlinewitha12voltsourcetoactivatetheamplifier.
6. Securely mount the amplifier (with supplied screws) to the vehicle or
amprack. Becareful nottomount theamplifieron cardboardor plastic
panels.Doingso mayenablethe screws to pull out from the panel due
to road vibrations or sudden vehicle stops.
7. Determinethenumber ofinputs neededto drivethe amplifierandmove
the input switch to the desired setting.
8. Connect the source signal to the amplifier by plugging the RCA cables
or high level inputs into the input jack(s) at the amplifier.
9. Connect the speakers. Strip the speaker wires 5/8" and insert into the
appropriate terminal on the amplifier. Insert the bared wire into the
speakerterminal andtightenthe set screwtosecure into place. Besure
tomaintainproperspeakerpolarity. DONOTchassisgroundanyofthe
speaker leads as unstable operation may result.
10. Perform a final check of the completed system wiring to ensure that all
connectionsare accurate. Check all power andgroundconnectionsfor
frayed wires and loose connections which could cause problems from
road vibrations.

– 11 –
U SING P ASSIVE C ROSSOVERS
Apassivecrossoverisacircuitthatusescapacitorsand/orcoilsandisplaced
onspeakerleadsbetweentheamplifierandspeaker.Thecrossoverdelegates
aspecificrangeoffrequenciestothespeakerforoptimumdriverperformance.
A crossover network can perform one of three functions: High-Pass (capaci-
tors),Low-Pass(inductorsorcoils)andBandpass(combinationofcapacitor
and coil).
The most commonly used passive crossover networks are 6dB/octave
systems. These are easy to construct and require one component per filter.
Placing this filter in series with the circuit will reduce power to the speaker by
6dB/octave above or below the crossover point depending on whether it is a
high-pass or low-pass filter. More complex systems such as 12dB/octave or
18dB/octavecancause impedance problems if not professionally designed.
Passivecrossoversaredirectlydependentuponthespeaker'simpedanceand
component value for accuracy. When passive crossover components are
used in multiple speaker systems, the crossover's effect on the overall
impedance should be taken into consideration along with the speaker's
impedancewhendetermining amplifier loads. CAUTION: The Punch ampli-
fiersarenotrecommendedforimpedanceloadsbelow2Ωstereoand4Ω
bridged (mono) loads.
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

– 12 –
T ABLE OF C ROSSOVER C OMPONENT V ALUES
6dB/Octave Low-Pass 6dB/Octave High-Pass
Freq.
Hertz Speaker Impedance
80 4.1mH 1000µF 8.2mH 500µF 16mH 250µF
100 3.1mH 800µF 6.2mH 400µF 12mH 200µF
130 2.4mH 600µF 4.7mH 300µF 10mH 150µF
200 1.6mH 400µF 3.3mH 200µF 6.8mH 100µF
260 1.2mH 300µF 2.4mH 150µF 4.7mH 75µF
400 .8mH 200µF 1.6mH 100µF 3.3mH 50µF
600 .5mH 136µF 1.0mH 68µF 2.0mH 33µF
800 .41mH 100µF .82mH 50µF 1.6mH 26µF
1000 .31mH 78µF .62mH 39µF 1.2mH 20µF
1200 .25mH 66µF .51mH 33µF 1.0mH 16µF
1800 .16mH 44µF .33mH 22µF .68mH 10µF
4000 .08mH 20µF .16mH 10µF .33mH 5µF
6000 51µH14µF .10mH 6.8µF .20mH 3.3µF
9000 34µH 9.5µF68µH 4.7µF .15mH 2.2µF
12000 25µH 6.6µF51µH 3.3µF 100µH 1.6µF
2 OHMS 8 OHMS
4 OHMS
LC L CL C
LC
L = Low-Pass (Inductor)
C = High-Pass (Capacitor)
For more information, see your Authorized Rockford Fosgate Dealer.
a
d
v
a
n
c
e
d
O
p
e
r
a
t
i
o
n

INSTALLATION
– 13 –
Using RCA Inputs -or-
High Level Inputs
Punch 200, 4-channel
Punch 400, 4-channel
Punch 600, 4-channel
Punch 800, 4-channel
•RCA Inputs connect to radio's RCA preamp outputs
•High Level Inputs connect directly to radio's speaker outputs
NOTE: When using High Level Inputs on the Punch 600, 5-channel amplifier,
signal from the Front/Rear inputs are summed to provide a Subwoofer input.
Sub LP
Crossover
Frequency
Sub
Gain
65
80
55
50
110
210 Hz
145
190
6/4/2
Input
Sub Rear Front
R
L
R
L
Sub
Punch
Bass
Rear
Crossover
Frequency
Rear
Punch
Bass
Rear
Gain
High Level
Input
Front
Crossover
Frequency
Front
Punch
Bass
Front
Gain
HP-Full-LP
Front
Crossover
HP-Full-LP
Rear
Crossover
65
80
55
50
110
210 Hz
145
190
GND LF-LF+
RF+
RF- LR+
RR-
RR+
LR-
white
white/black
gray
gray/black
GND LF-LF+
RF+
RF- LR+
RR-
RR+
LR-
LF+
LF-
RF+
RF-
purple/black
purple
green/black
green LR+
LR-
RR+
RR-
shield/ground
RCA INPUT HIGH-LEVEL
INPUT
AUD SEL
1 2 3 4 5 6
RDM
RPT
SCAN PAUSE
D.SCN DIM
AM
FM
Ch
RPT
LD
RDM
DISC ST
P.SCN LOUDDSPL
R
CLOCK ILLUM
PWR
AUTO
® ®
VOL TUNE
Using RCA Inputs -or-
High Level Inputs
Punch 600, 5-channel
I
N
S
T
A
L
L
A
T
I
O
N
® ®
CAUTION: Use only one input configuration to prevent damage to the amplifier.
L+
L–
R+
R–
Hz
Front
Crossover
Frequency
Front
Gain Front High
Level Input
L+
L–
R+
R–
Front
Punch
Bass
Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
Rear
Punch
Bass
Crossover
HP-Full-LP
Crossover
HP-Full-LP
4-2
Input
Rear
Crossover
Frequency
Rear
Gain
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Hz
65
80
55
50
110
210 Hz
145
190
High Level
Inputs
white
white/black
gray
gray/black
L+ L–R+ R–white
white/black
gray
gray/black
L+ L–R+ R–
RCA INPUT
HIGH-LEVEL
INPUT
Front Rear
AUD SEL
1 2 3 4 5 6
RDM
RPT
SCAN PAUSE
D.SCN DIM
AM
FM
Ch
RPT
LD
RDM
DISC ST
P.SCN LOUDDSPL
R
CLOCK ILLUM
PWR
AUTO
® ®
VOL TUNE
The Punch Multi-Channel amplifier inputs can be used with radios that have either
RCA (low-level) preamp outputs or Speaker (high-level) outputs.

– 14 –
Crossover Operation
Punch 600, 4-channel
Punch 800, 4-channel
Punch 600, 5-channel
Hz
Front
Crossover
Frequency
Front
Gain Front High
Level Input
L+
L–
R+
R–
Front
Punch
Bass
Front Pass-Thru Rear
RR
LL Rear
High
Level
Input
Rear
Punch
Bass
Crossover
HP-Full-LP
Crossover
HP-Full-LP
4-2
Input Rear
Crossover
Frequency
Rear
Gain
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
Hz
65
80
55
50
110
210 Hz
145
190
+3
+2
+1
0
–1
–2
–3
–4
–5
–6
–7
–8
–9
–10
–11
–12
Ap
50 80 210 500 1k 2k55 65 110145
Low-P ss (LP)
Oper tion
Ap
+3
+2
+1
0
–1
–2
–3
–4
–5
–6
–7
–8
–9
–10
–11
–12 50 80 210 500 1k 2k
55 65 110 145
Frequency in Hz
FULL
65
80
55
50
110
210 Hz
145
190
LP
High-P ss (HP)
Oper tion
Frequency in Hz
Crossover Frequency Crossover
HP FULL
65
80
55
50
110
210 Hz
145
190
LP
Crossover Frequency Crossover
HP
•HP Operation enables frequencies above the cut-off point to pass to the speaker
•FULL Operation enables all frequencies to pass to the speaker
•LP Operation enables frequencies below the cut-off point to pass to the speaker
NOTE: The Punch 200, 4-channel &Punch 400, 4-channel amplifiers utilize a
fixed 80Hz crossover with HP, FULL & LP configurations.
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Front
channel Rear channel

– 15 –
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Punch Bass Operation
• Carefully increase potentiometer to add Punch to your bass frequencies
• Exercise caution when increasing Punch Bass. Maximum boost can cause
potential woofer damage caused by overexcursion
Front High
Level Inputs
Gain
Gain
Crossover
Frequency
Front
R
L
R
L
RearPass-Thru
4-2
Input
Punch
Bass
HP-FULL-LP
Crossover
Front
Rear High
Level Inputs
Crossover
Frequency Punch Bass
Rear
L+
L–
R+
R–
Hz
65
80
55
50
110
210 Hz
145
190
Hz
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
HP-FULL-LP
Crossover
33Hz 45Hz 67.5Hz
+18
+12
+6
+3
0dB 33Hz 45Hz 67.5Hz
Minimum
Flat Maximum Boost
•Pass-Thru feeds signal to secondary amplifier
•Signal from Pass-Thru remains stereo
Note1: If using High Level Inputs causes engine whine in an amplifier connected
to the Pass-Thru, the Pass-Thru amplifier should have its RCA input shield
connected to the radio chassis ground. Refer to the Troubleshooting
section of this manual for more information.
Pass-Thru
Front High
Level Inputs
Gain
Gain
Crossover
Frequency
Front
R
L
R
L
RearPass-Thru
4-2
Input
Punch
Bass
HP-FULL-LP
Crossover
Front
Rear High
Level Inputs
Crossover
Frequency Punch Bass
Rear
L+
L–
R+
R–
Hz
65
80
55
50
110
210 Hz
145
190
Hz
L+
L–
R+
R–
65
80
55
50
110
210 Hz
145
190
HP-FULL-LP
Crossover
Front Input
Connect Pass-Thru to
input of secondary
amplifier if needed.
Rear Input
F/R
Left F/R
Right
Front
channel Rear channel
See Note1
