Hartke KM100 User manual

O
L
O
L

Copyright 2005 - 2006, Samson Technologies Corp.
Printed April, 2006 v1.2
Samson Technologies Corp.
45 Gilpin Avenue
Hauppauge, New York 11788-8816
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: [phone]
www.hartke.com

WARNING: To reduce the risk of fire or electric shock, do not expose this unit
to rain or moisture. To reduce the hazard of electrical shock, do not remove
cover or back. No user serviceable parts inside. Please refer all servicing to
qualified personnel.The lightning flash with an arrowhead symbol within an
equilateral triangle, is intended to alert the user to the presence of uninsu-
lated "dangerous voltage" within the products enclosure that may be of suf-
ficient magnitude to constitute a risk of electric shock to persons. The excla-
mation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
Important Safety Instructions
1. Please read all instructions before operating the unit.
2. Keep these instructions for future reference.
3. Please heed all safety warnings.
4. Follow manufacturers instructions.
5. Do not use this unit near water or moisture.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with
the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A ground-
ing type plug has two blades and a third grounding prong. The wide blade
or third prong is provided for your safety. When the provided plug does
not fit your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on and pinched particularly at
plugs, convenience receptacles and at the point at which they exit from
the unit.
11. Unplug this unit during lightning storms or when unused for long periods
of time.
12.Refer all servicing to qualified personnel. Servicing is required when the
unit has been damaged in any way, such as power supply cord or plug
damage, or if liquid has been spilled or objects have fallen into the unit,
the unit has been exposed to rain or moisture, does not operate normally,
or has been dropped.

ATTENTION: Pour éviter tout risque d’électrocution ou d’incendie, ne pas exposer cet appareil à la pluie ou
à l’humidité. Pour éviter tout risque d’électrocution, ne pas ôter le couvercle ou le dos du boîtier. Cet appareil ne
contient aucune pièce remplaçable par l'utilisateur. Confiez toutes les réparations à un personnel qualifié. Le
signe avec un éclair dans un triangle prévient l’utilisateur de la présence d’une tension dangereuse et non
isolée dans l’appareil. Cette tension constitue un risque d’électrocution. Le signe avec un point d’exclamation
dans un triangle prévient l’utilisateur d’instructions importantes relatives à l’utilisation et à la maintenance du
produit.
Consignes de sécurité importantes
1. Veuillez lire toutes les instructions avant d’utiliser l’appareil.
2. Conserver ces instructions pour toute lecture ultérieure.
3. Lisez avec attention toutes les consignes de sécurité.
4. Suivez les instructions du fabricant.
5. Ne pas utiliser cet appareil près d’une source liquide ou dans un lieu humide.
6. Nettoyez l’appareil uniquement avec un tissu humide.
7. Veillez à ne pas obstruer les fentes prévues pour la ventilation de l’appareil. Installez l’appareil selon les
instructions du fabricant.
8. Ne pas installer près d’une source de chaleur (radiateurs, etc.) ou de tout équipement susceptible de
générer de la chaleur (amplificateurs de puissance par exemple).
9. Ne pas retirer la terre du cordon secteur ou de la prise murale. Les fiches canadiennes avec polarisation
(avec une lame plus large) ne doivent pas être modifiées. Si votre prise murale ne correspond pas au
modèle fourni, consultez votre électricien.
10. Protégez le cordon secteur contre tous les dommages possibles (pincement, tension, torsion,, etc.).
Veillez à ce que le cordon secteur soit libre, en particulier à sa sortie du boîtier.
11. Déconnectez l’appareil du secteur en présence d’orage ou lors de périodes d’inutilisation prolongées.
12. Consultez un service de réparation qualifié pour tout dysfonctionnement (dommage sur le cordon
secteur, baisse de performances, exposition à la pluie, projection liquide dans l’appareil, introduction
d’un objet dans le boîtier, etc.).
ACHTUNG: Um die Gefahr eines Brandes oder Stromschlags zu verringern, sollten Sie dieses Gerät weder
Regen noch Feuchtigkeit aussetzen.Um die Gefahr eines Stromschlags zu verringern, sollten Sie weder
Deckel noch Rückwand des Geräts entfernen. Im Innern befinden sich keine Teile, die vom Anwender gewar-
tet werden können. Überlassen Sie die Wartung qualifiziertem Fachpersonal.Der Blitz mit Pfeilspitze im glei-
chseitigen Dreieck soll den Anwender vor nichtisolierter “gefährlicher Spannung”im Geräteinnern warnen.
Diese Spannung kann so hoch sein, dass die Gefahr eines Stromschlags besteht. Das Ausrufezeichen im
gleichseitigen Dreieck soll den Anwender auf wichtige Bedienungs- und Wartungsanleitungen aufmerksam
machen, die im mitgelieferten Informationsmaterial näher beschrieben werden.
Wichtige Sicherheitsvorkehrungen
1. Lesen Sie alle Anleitungen, bevor Sie das Gerät in Betrieb nehmen.
2. Bewahren Sie diese Anleitungen für den späteren Gebrauch gut auf.
3. Bitte treffen Sie alle beschriebenen Sicherheitsvorkehrungen.
4. Befolgen Sie die Anleitungen des Herstellers.
5. Benutzen Sie das Gerät nicht in der Nähe von Wasser oder Feuchtigkeit.
6. Verwenden Sie zur Reinigung des Geräts nur ein feuchtes Tuch.
7. Blockieren Sie keine Belüftungsöffnungen. Nehmen Sie den Einbau des Geräts nur entsprechend den
Anweisungen des Herstellers vor.
8. Bauen Sie das Gerät nicht in der Nähe von Wärmequellen wie Heizkörpern, Wärmeklappen, Öfen oder
anderen Geräten (inklusive Verstärkern) ein, die Hitze erzeugen.
9. Setzen Sie die Sicherheitsfunktion des polarisierten oder geerdeten Steckers nicht außer Kraft. Ein
polarisierter Stecker hat zwei flache, unterschiedlich breite Pole. Ein geerdeter Stecker hat zwei flache
Pole und einen dritten Erdungsstift. Der breitere Pol oder der dritte Stift dient Ihrer Sicherheit. Wenn der
vorhandene Stecker nicht in Ihre Steckdose passt, lassen Sie die veraltete Steckdose von einem Elektriker
ersetzen.
10. Schützen Sie das Netzkabel dahingehend, dass niemand darüber laufen und es nicht geknickt werden
kann. Achten Sie hierbei besonders auf Netzstecker, Mehrfachsteckdosen und den Kabelanschluss am
Gerät.
11. Ziehen Sie den Netzstecker des Geräts bei Gewittern oder längeren Betriebspausen aus der Steckdose.
12. Überlassen Sie die Wartung qualifiziertem Fachpersonal. Eine Wartung ist notwendig, wenn das Gerät auf
irgendeine Weise, beispielsweise am Kabel oder Netzstecker beschädigt wurde, oder wenn Flüssigkeiten
oder Objekte in das Gerät gelangt sind, es Regen oder Feuchtigkeit ausgesetzt war, nicht mehr wie
gewohnt betrieben werden kann oder fallen gelassen wurde.

Copyright 2003 Samson Technologies Corp.
Printed January, 2003 - 2006 v 5.0
www.hartke.com
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: [phone]
PRECAUCION: Para reducir el riesgo de incendios o descargas, no permita que este aparato quede expuesto
a la lluvia o la humedad. Para reducir el riesgo de descarga eléctrica, nunca quite la tapa ni el chasis. Dentro
del aparato no hay piezas susceptibles de ser reparadas por el usuario. Dirija cualquier reparación al servicio
técnico oficial. El símbolo del relámpago dentro del triángulo equilátero pretende advertir al usuario de la
presencia de“voltajes peligrosos” no aislados dentro de la carcasa del producto, que pueden ser de la magni-
tud suficiente como para constituir un riesgo de descarga eléctrica a las personas. El símbolo de exclamación
dentro del triángulo equilátero quiere advertirle de la existencia de importantes instrucciones de manejo y
mantenimiento (reparaciones) en los documentos que se adjuntan con este aparato.
Instrucciones importantes de seguridad
1. Lea todo este manual de instrucciones antes de comenzar a usar la unidad.
2. Conserve estas instrucciones para cualquier consulta en el futuro.
3. Cumpla con todo lo indicado en las precauciones de seguridad.
4. Observe y siga todas las instrucciones del fabricante.
5. Nunca utilice este aparato cerca del agua o en lugares húmedos.
6. Limpie este aparato solo con un trapo suave y ligeramente humedecido.
7. No bloquee ninguna de las aberturas de ventilación. Instale este aparato de acuerdo a las instrucciones
del fabricante.
8. No instale este aparato cerca de fuentes de calor como radiadores, calentadores, hornos u otros apara-
tos (incluyendo amplificadores) que produzcan calor.
9. No anule el sistema de seguridad del enchufe de tipo polarizado o con toma de tierra. Un enchufe polar-
izado tiene dos bornes, uno más ancho que el otro. Uno con toma de tierra tiene dos bornes normales y
un tercero para la conexión a tierra. El borne ancho o el tercero se incluyen como medida de seguridad.
Cuando el enchufe no encaje en su salida de corriente, llame a un electricista para que le cambie su
salida anticuada.
10. Evite que el cable de corriente quede en una posición en la que pueda ser pisado o aplastado, especial-
mente en los enchufes, receptáculos y en el punto en el que salen de la unidad.
11. Desconecte de la corriente este aparato durante las tormentas eléctricas o cuando no lo vaya a usar
durante un periodo de tiempo largo.
12. Dirija cualquier posible reparación solo al servicio técnico oficial. Deberá hacer que su aparato sea repa-
rado cuando esté dañado de alguna forma, como si el cable de corriente o el enchufe están dañados, o
si se han derramado líquidos o se ha introducido algún objeto dentro de la unidad, si esta ha quedado
expuesta a la lluvia o la humedad, si no funciona normalmente o si ha caído al suelo.
ATTENZIONE: per ridurre il rischio di incendio o di scariche elettriche, non esponete questo apparecchio
a pioggia o umidità. Per ridurre il pericolo di scariche elettriche evitate di rimuoverne il coperchio o il pan-
nello posteriore. Non esistono all'interno dell'apparecchio parti la cui regolazione è a cura dell'utente. Per
eventuale assistenza, fate riferimento esclusivamente a personale qualificato. Il fulmine con la punta a freccia
all'interno di un triangolo equilatero avvisa l'utente della presenza di "tensioni pericolose" non isolate all'interno
dell'apparecchio, tali da costituire un possibile rischio di scariche elettriche dannose per le persone. Il punto
esclamativo all'interno di un triangolo equilatero avvisa l'utente della presenza di importanti istruzioni di
manutenzione (assistenza) nella documentazione che accompagna il prodotto.
Importanti Istruzioni di Sicurezza
1. Prima di usare l'apparecchio, vi preghiamo di leggerne per intero le istruzioni.
2. Conservate tali istruzioni per una eventuale consultazione futura.
3. Vi preghiamo di rispettare tutte le istruzioni di sicurezza.
4. Seguite tutte le istruzioni del costruttore.
5. Non usate questo apparecchio vicino ad acqua o umidità.
6. Pulite l'apparecchio esclusivamente con un panno asciutto.
7. Evitate di ostruire una qualsiasi delle aperture di ventilazione. Posizionatelo seguendo le istruzioni del
costruttore.
8. Non posizionatelo vicino a sorgenti di calore come radiatori, scambiatori di calore, forni o altri apparecchi
(amplificatori compresi) in grado di generare calore.
9. Non disattivate la protezione di sicurezza costituita dalla spina polarizzata o dotata di collegamento a
terra. Una spina polarizzata è dotata di due spinotti, uno più piccolo ed uno più grande. Una spina dotata
di collegamento a terra è dotata di due spinotti più un terzo spinotto di collegamento a terra. Questo
terzo spinotto, eventualmente anche più grande, viene fornito per la vostra sicurezza. Se la spina fornita in
dotazione non si adatta alla vostra presa, consultate un elettricista per la sostituzione della presa obsoleta.
10. Proteggete il cavo di alimentazione in modo che non sia possibile camminarci sopra né piegarlo, con parti-
colare attenzione alle prese, ai punti di collegamento e al punto in cui esce dall'apparecchio.
11. Staccate l'apparecchio dalla alimentazione in caso di temporali o tempeste o se non lo usate per un lungo
periodo.
12. Per l'assistenza, fate riferimento esclusivamente a personale qualificato. È necessaria l'assistenza se
l'apparecchio ha subito un qualsiasi tipo di danno, come danni al cavo o alla spina di alimentazione, nel
caso in cui sia stato versato del liquido o siano caduti oggetti al suo interno, sia stato esposto a pioggia o
umidità, non funzioni correttamente o sia stato fatto cadere.

Table of Contents
ENGLISH
Introduction.................................................................1
Hartke KM60 and KM100 Keyboard Amplifier Features. . . . . . . . . . . . . . . . . . . . . . . . 2
GuidedTour-FrontPanel ....................................................3

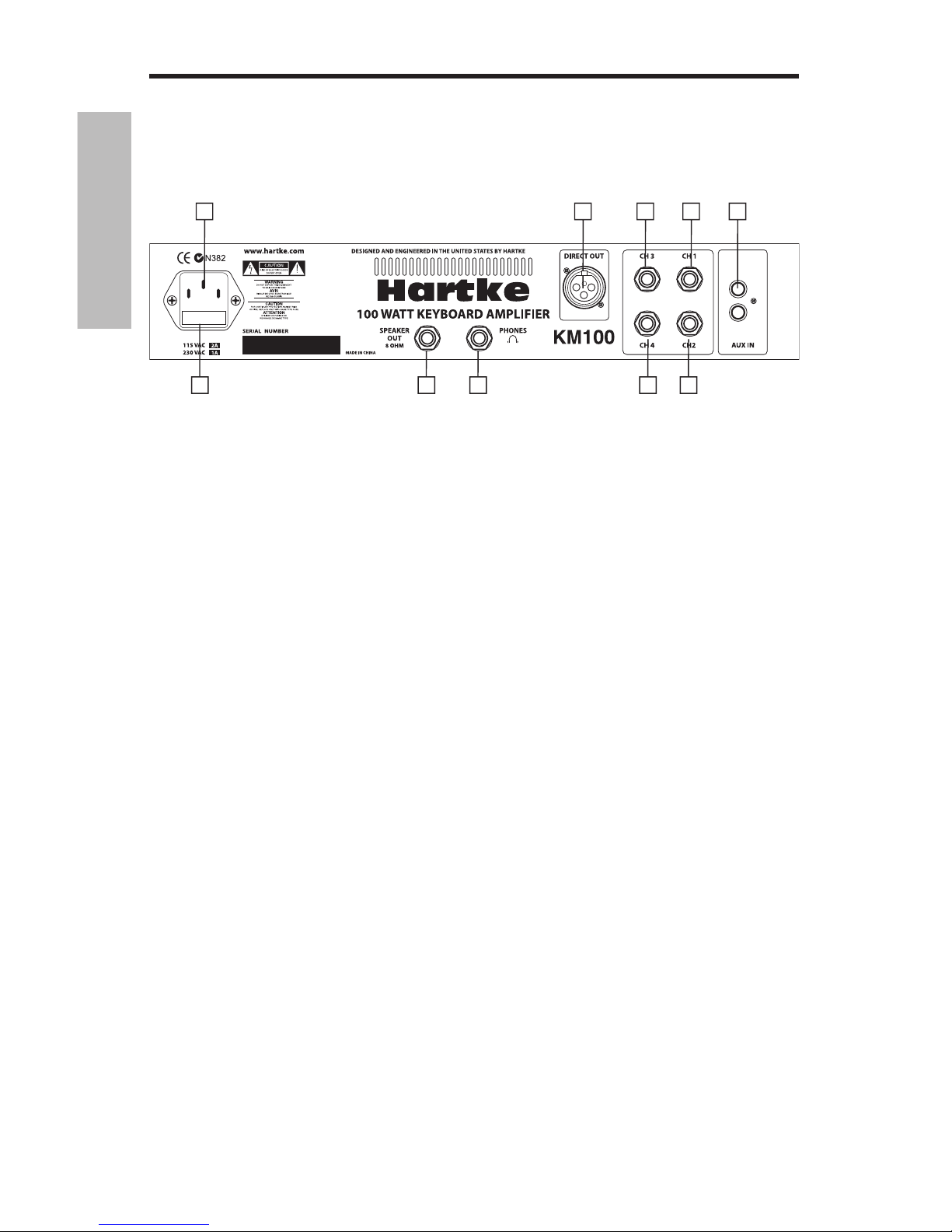

GuidedTour-RearPanel.....................................................4

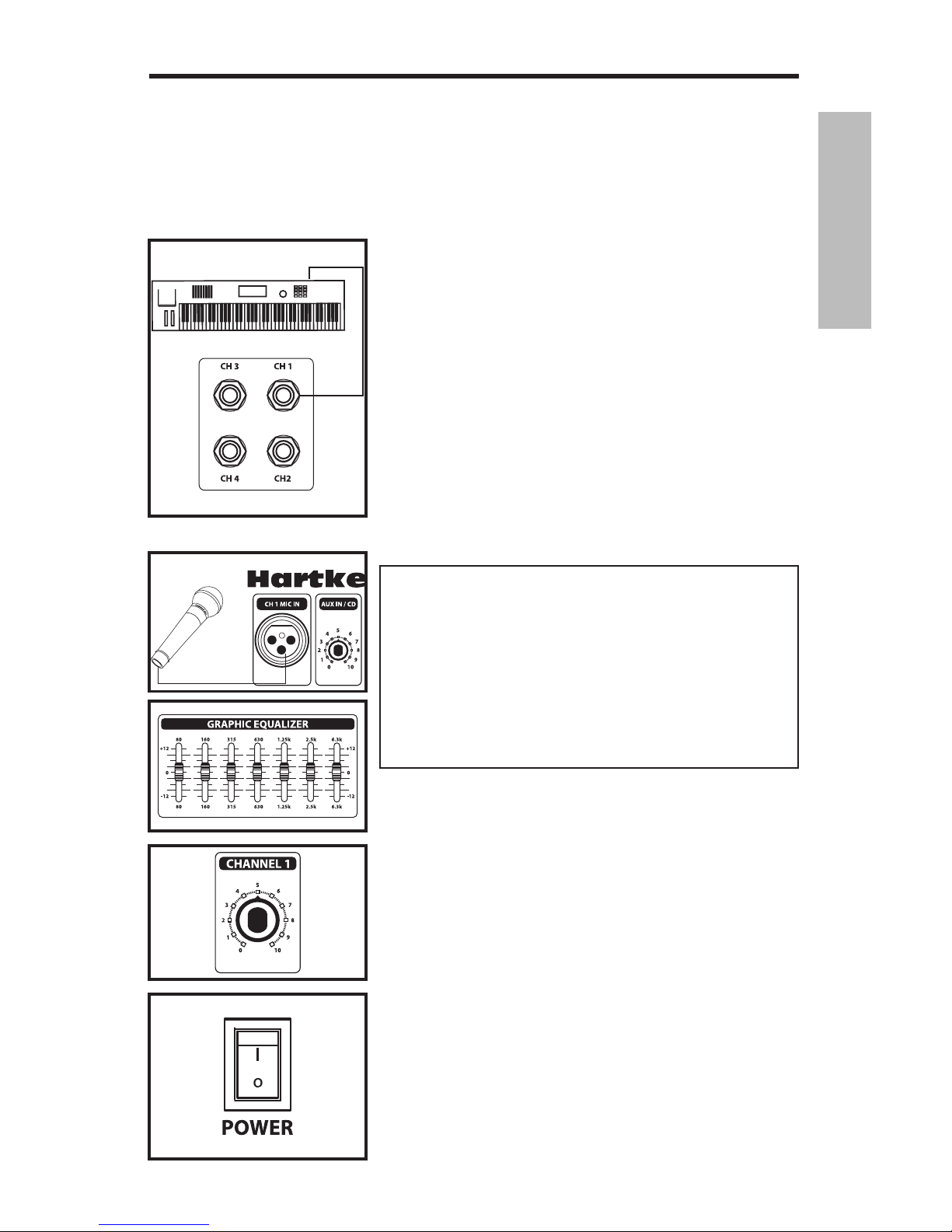

Setting Up and Using Your Hartke KM60 and KM100 Keyboard Amplifier. . . . . . . 5

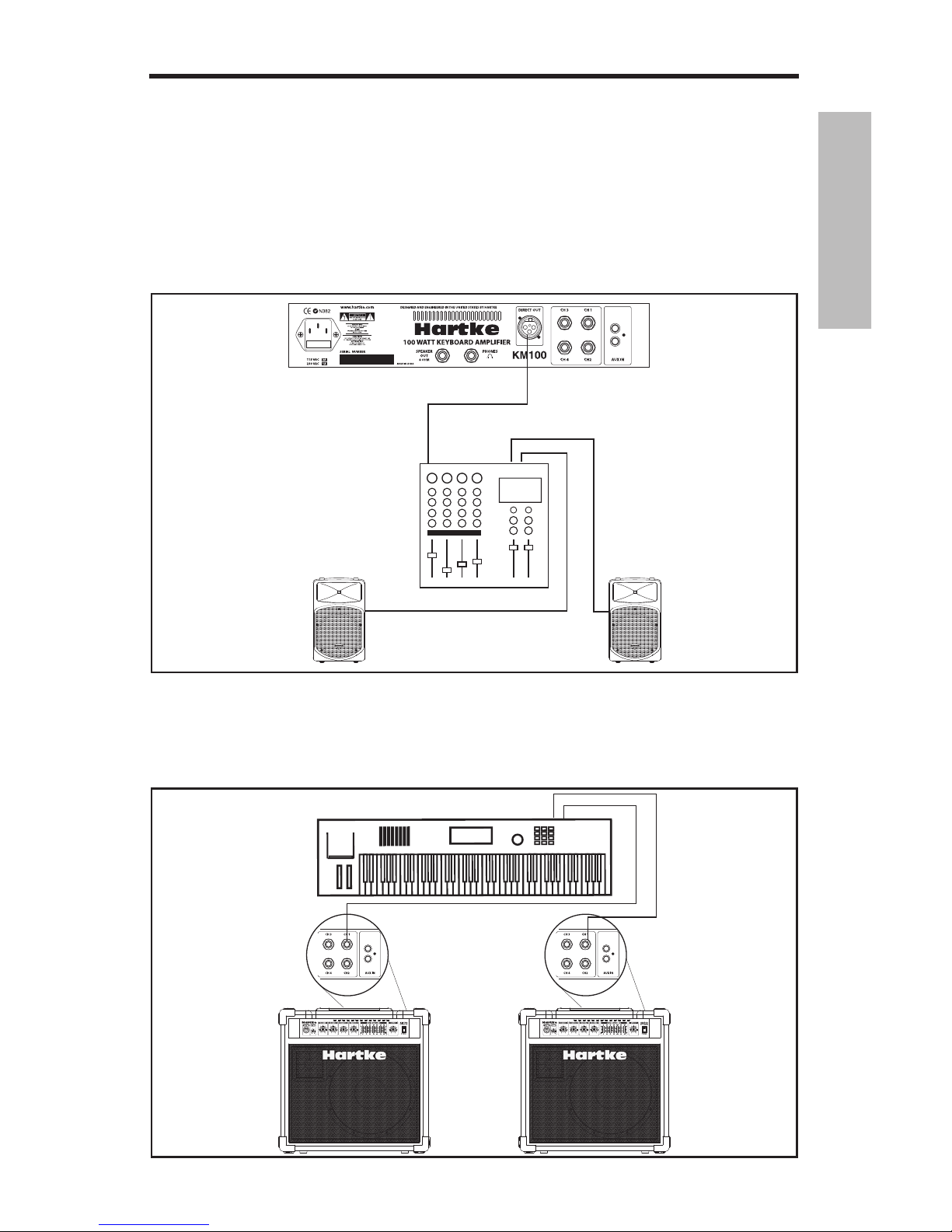

UsingtheKM60andKM100'sSet-ups.........................................7
Specifications...............................................................46
FRANÇAIS
Introduction................................................................10
HartkeKM60etKM100-Caractéristiques....................................11
Présentationdelafaceavant................................................12
Présentationdelafacearrière...............................................13
Configuration et utilisation des amplificateurs Hartke KM60 et KM100 . . . . . . . . 14
ConfigurationsdesKM60etKM100..........................................16
Caractéristiquestechniques.................................................47
DEUTSCHE
Einleitung ..................................................................19
Features des Hartke KM60 und KM100 Keyboard-Amps . . . . . . . . . . . . . . . . . . . . . . 20
GeführterRundgang-Vorderseite...........................................21
GeführterRundgang-Rückseite.............................................22
Hartke KM60 und KM100 Keyboard Amp einrichten und einsetzen . . . . . . . . . . . 23
KM60undKM100Setups....................................................25
TechnischeDaten...........................................................48
ESPAÑOL
Introducción................................................................28
Características de los amplificadores de teclado Hartke KM60 y KM100 . . . . . . . 29
Recorridoguiado-Panelfrontal.............................................30
Recorridoguiado-Paneltrasero.............................................31
Configuraciones del KM60 y KM100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Especificacionestécnicas....................................................49
ITALIANO
Introduzione................................................................37
Amplificatori per tastiere Hartke KM60 e KM100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Caratteristiche..............................................................38
Tourguidato-PannelloFrontale.............................................39
Tourguidato-PannelloPosteriore...........................................40
Configurare e utilizzare gli amplificatori per tastiere Hartke KM60 e KM100 . . . 41
UtilizzareKM60eKM100-Setups............................................43
Specifiche..................................................................50

1
ENGLISH
Introduction
Congratulations on purchasing the Hartke KM60 or KM100 Keyboard Amplifier! The KM60 and
KM100 are perfect solutions for just about any keyboard player who needs a flexible mix /moni-
tor system to handle a sophisticated instrument rig, and who demands a high quality ampli-
fier that faithfully reproduces the sound, nuances, and soul, of their performance. The KM60
achieves this goal by delivering a solid 60 watts of power, driving a custom designed Hartke 10”
aluminum cone low frequency drive unit, working with a ceramic tweeter, fit in a rugged enclo-
sure. The KM100 handles the job by delivering 100 watts of power, driving a custom designed
Hartke 12” aluminum cone low frequency drive unit, working with a 1” titanium compression
driver, enclosed in an innovative kickback cabinet, giving you a powerful full-range 2-way pro-
fessional monitoring system.
For players with multiple keyboards and sound modules, an additional mixer isn’t needed
because the KM60 and KM100 have one built-in. The mixer features a Mic/Line input, as well
as three additional inputs, giving you a total of 4 channels, plus a stereo Aux in. The KM60 and
KM100 also feature a powerful 7-band Graphic Equalizer allowing you to set a customized fre-
quency response contour that’s perfect for your sound and helps you hear yourself better on
stage. The KM60 and KM100 are easy to transport and the solid construction makes them reli-
able performers from night-to-night and venue-to-venue.
Although these units are designed for easy operation, we suggest you first take some time to go
through these pages so you can fully understand how we’ve implemented a number of unique
features. In these pages, you’ll find a detailed description of the many features of the KM60 and
KM100 keyboard amplifiers, as well as a guided tour through it's front and rear panels, step-by-
step instructions for setting up and using the product, detailed discussions about equalization
and compression, and full specifications. You’ll also find a warranty card enclosed—please
don’t forget to fill it out and mail it so that you can receive online technical support and so we
can send you updated information about these and other Hartke and Samson products in the
future.
With proper care and adequate air circulation, your KM60 or KM100 will operate trouble free
for many years. We recommend you record your serial number in the space provided below for
future reference.
Serial number: __________________________________
Date of purchase: ________________________________
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained
before shipping your unit to Samson. Without this number, the unit will not be accepted. Please
call Samson at 1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to
shipping your unit. Please retain the original packing materials and if possible, return the unit in
the original carton and packing materials.
1

2
ENGLISH
2
Hartke KM60 and KM100 Keyboard Amplifier Features
The Hartke KM60 and KM100 keyboard amplifiers offer all the newest concepts in Keyboard
amplification. Here are some of their main features:
• Four Channel Keyboard mixer amplifier with 2-way speaker system.
• Microphone input, plus 3 additional mono input channels.
• The KM60 features 60 Watts of clean Hartke power while the KM100 provides 100 Watts,
delivered to thier 2-way internal speaker system.
• For rocking lows, the KM60 employs a 10-inch, custom designed Hartke Aluminum Cone
Low Frequency Drive Unit and the KM100 emlpoys a 12-inch, custom designed Hartke
Aluminum Cone Low Frequency Drive Unit.
• To capture and project the high frequencies of your keyboard rig, the the KM60 utilizes a
ceramic tweeter, and the KM100, a 1-inch Throat Titanium Compression Driver.
• A 7-band Graphic Equalizer is provided to shape the overall tone of the keyboard monitor.
• The KM100 features an innovative Kickback enclosure design that allows the sound to be
projected up at the player.
• Rugged construction makes the KM60 and KM100 eminently road-worthy.
• Three year extended warranty.
O
L
O
L

3
ENGLISH
3
Guided Tour - Front Panel
O
L
       
1. Channel 1 MIC IN - XLR input connector for connecting to Channel 1’s Low-noise
Microphone Pre-amp.
2. AUX IN/CD - Your KM Series amplifier features a CD input which you can use with a por-
table CD player, cassette, mini disk or MP3 player. You can use the CD input to jam with pre-
recorded tracks or to learn a riff from a favorite recording.
3. Channel 1 Volume - Control knob is used to control the overall level of the Channel 1 input.
4. Channel 2 Volume – This control knob used to control the overall level of the Channel 2
input.
5. Channel 3 Volume - Control knob is used to control the overall level of the Channel 3 input.
6. Channel 4 Volume – This control knob is used to control the overall level of the Channel 4
input.

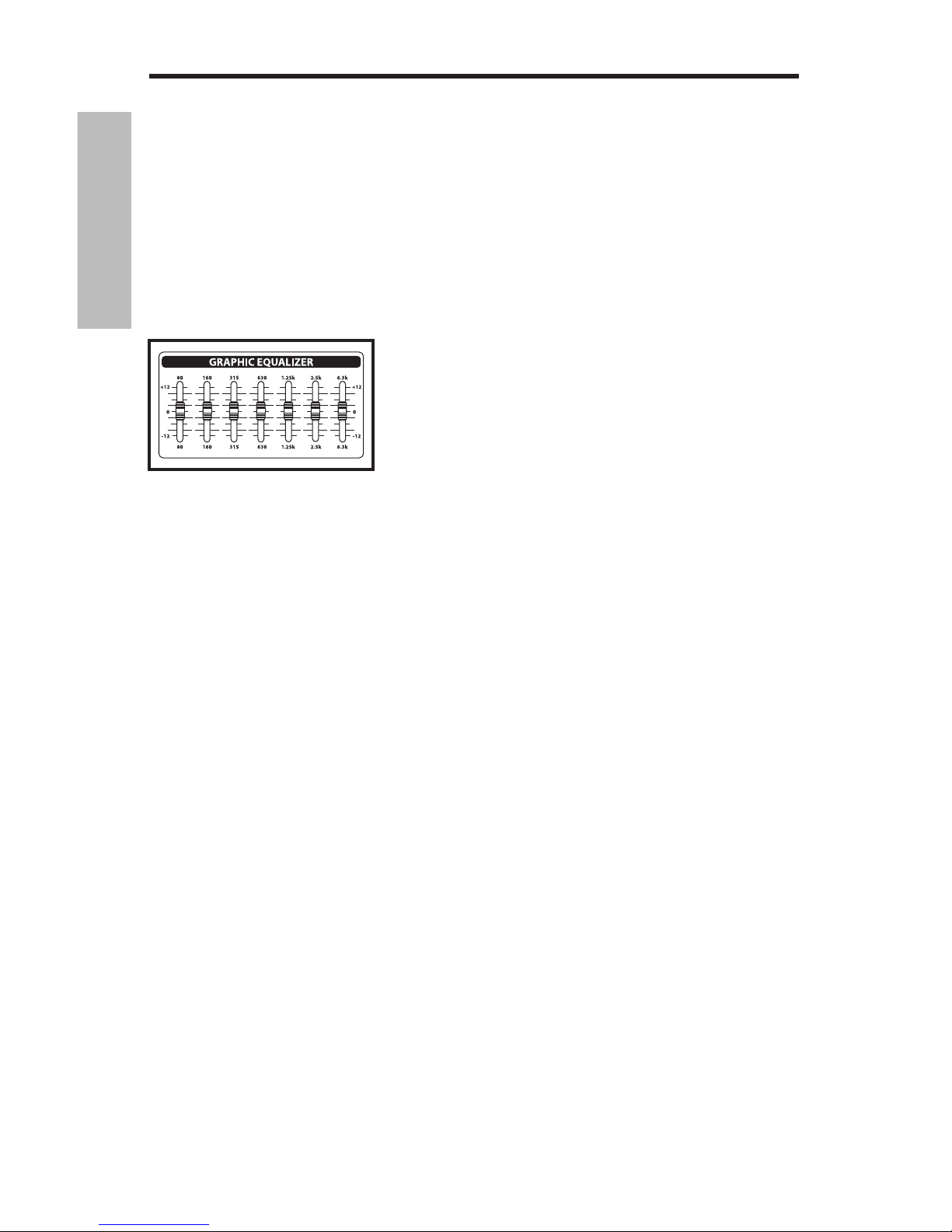

7. Graphic Equalizer - These sliders allow you to“draw”the tonal response of the system by
adding 12 dB of boost or attenuation to seven different narrow-band frequency areas (100
Hz, 250 Hz, 500 Hz, 1 kHz, 2.5 kHz, 5 kHz, and 10 kHz), affecting the main output signal of
the KM100. When a slider is at its center detented (“0”) position, the selected frequency
area is unaffected (it is said to be flat). When a slider is moved up (above the“0” position,
towards the “+12” position), the selected frequency area is boosted, and when it is moved
down (below the“0” position, towards the“-12” position), the selected frequency area is
attenuated. For more information, see the “About Equalization” section on pages 9 - 10 of
this manual.
8. Volume - Control knob used to control the overall level the KM60 or KM100 amplifier.
9. Power switch - Use this to power the KM60 or KM100 on or off.

4
ENGLISH
4
Guided Tour - Rear Panel
' ( ) *
"#
!$
&
%
A. AC INLET - Connect the supplied standard IEC power cable here.
B. Direct Output XLR - This connector carries the Balanced signal from the KM60 or 100's
mixer output and can be used to connect to the main PA mixer.
C. Channel 3 Input - 1/4-inch phone jack for connecting line level inputs. Use this input if
you are connecting a mono signal source.
D. Channel 1 Input - 1/4-inch phone jack for connecting line level inputs like those from key-
boards and drum machines.
E.
Aux Input – RCA inputs for connecting an external line level signal like that from a CD, MP3
player or sound card.
F. FUSE - User accessible fuse.
G. PHONES - Connect any stereo headphone (600 ohms or less) to this standard 1/4" stereo
jack. When a plug is inserted into the headphone jack, the speaker output is disconnected,
allowing you to use your KM60 or KM100 as a practice amplifier. The level of the signal sent
to the headphones is determined by the setting of the Output knob—at the point where a
connected speaker would clip, the headphones will clip.
WARNING: Because even the smallest KM Series amplifier is capable of generating extremely high
headphone signal levels, always start with the Volume knob at minimum and then slowly turn it up. In
particular, a clicking sound is an indication of distortion and possible damage to the headphones (and/
or your hearing!); don’t let things get to that point!
H. Speaker Output - 1/4-inch phone jack for connecting the internal speaker (KM100 only).
I. Channel 4 Input - 1/4-inch phone jack for connecting line level inputs like those from key-
boards and drum machines.
J. Channel 2 Input - 1/4-inch phone jack for connecting line level inputs like those from key-
boards and drum machines.
.

5
ENGLISH
5
Setting Up and Using Your Hartke KM60 and
KM100 Keyboard Amplifier
KM200 Basic Operation
Setting up your Hartke KM60 or Km100 Keyboard amplifier is
a simple procedure which takes only a few minutes:
1. Remove all packing materials (save them in case of need
for future service) and decide where the amplifier is to be
physically placed. To avoid potential overheating problems,
be sure that the rear panel is unobstructed and that there is
good ventilation around the entire unit.
2. Connect the 3-pin AC plug into any grounded AC socket.
Don’t turn the amplifier on just yet, though.
3. Use standard music instrument cables to connect your
keyboards and/or drum machines to the appropriate Input
jack, or jacks, on the rear panel. If you want to connect a
microphone, connect a low impedance mic to the Channel 1
XLR mic input located on the front panel.
4. Set the main Volume control to“0” (fully counterclockwise
and set channel volume knobs to“5”(the twelve o’clock posi-
tion). Then, set the graphic equalizer sliders to the middle
0dB position.
5. Press the front panel Power switch in order to turn on the
amplifier.
WARNING: Hartke amplifiers can deliver very high power
levels. Driven to full power, they can damage connected
loudspeakers, regardless of brand, size, or configuration.
Care should be taken not to strain connected loudspeak-
ers as this can cause permanent damage and will degrade
the performance of the entire system. If you see connect-
ed loudspeakers moving excessively, turn your system
down immediately or use the equalization and/or com-
pression controls to reduce the amount of sub harmonic
(extremely low frequency) signal.

6
ENGLISH
6. Set the output of your keyboard to about 3/4’s the way up
and then, while playing, slowly turn the main Volume control
up until the desired level is achieved. If you hear distortion
even at low amplifier Master volume settings, back off the
output of your Keyboard (or check for a faulty cable).
7. Next, experiment with the KM60 or KM100's graphic
equalizer. Begin by setting each of the seven sliders to their
flat“0”center detented position. Finally, move each slider in
turn as you play your Keyboard. For more information, see
the“About Equalization” section on pages 8-9 of this manual.
Again, when you get a graphic equalization setting that
complements your instrument and playing style, it’s a good
idea to write it down for future use.
If you have followed all the steps above and are still experi-
encing difficulties, call Samson Technical Support (516-932-
1062) between 9 AM and 5 PM EST.
6
Setting Up and Using Your Hartke KM60 and
KM100 Keyboard Amplifier
8. Your KM series amplifier features a AUX/CD input which you
can use with a portable CD player, cassette, mini disk or MP3
player to jam with pre-recorded tracks or learn a riff from a
favorite tune. In fact, you can plug any line level signal into
the AUX input including the signal from a keyboard or drum
machine. Connect the CD player or other Line level device to
the AUX Input using standard RCA cable. You will want to use
the volume control on the CD player or other Line level device
to set the balance between the track and your keyboard. So,
start with the volume control all the way down and slowly
raise it until you reach a good balance with your keyboard
9. Test the headphone output by turning the Volume control
to its minimum (fully counterclockwise) position and then
connect a standard stereo headphone to the rear panel
Phones jack. While playing your keyboard, slowly turn the
Volume control up—you should hear sound from the head-
phones and none from the connected speaker.

7
ENGLISH
7
Using the KM60 and KM100's Set-ups
Using the Direct Output
The KM 60 and KM100 feature a Direct Out jack for connencting to the main PA systems. Use
this electronically balanced XLR jack to route signal from the KM60 or KM100 to a professional
mixing console or as a tap to a main PA system via a mic input on the console. The signal out-
put from this jack is low impedance (100 ohm) with an output level of approximately -30 to -20
dB. You can also use the Direct Out jack to route signal to an external amplifier with a -10 dB
input sensitivity.
O
L
O
L
KM60 or KM100 Stereo Set-up
You can use two KM60's or KM100's for stereo operation by simply connecting the left output
of your keyboard to one KM60 or KM100 and the right output of your keyboard to the second
KM60 or KM100. You can repeat this set-up for up to four stereo keyboards or drum machines
using channel 1 - 4 on each KM series amplifier.

8
ENGLISH
8
About Equalization
The Hartke KM60 or KM100 Keyboard amplifier gives you
enormous control over shaping the sound of your keyboard
rig, using a process called equalization. To understand how
this works, it’s important to know that every naturally occur-
ring sound consists of a broad range of pitches, or frequen-
cies, combined together in a unique way. This blend is what
gives every sound its distinctive tonal color. EQ controls
allow you to alter a sound by boosting or attenuating specific
frequency areas—they operate much like the bass and treble
controls on your hi-fi amp, but with much greater precision.
The KM60 or KM100 provides you with one most effective
tool for shaping the overall tone of your Keyboard sound; a
Graphic Equalizer providing 12 dB of cut or boost in seven
narrow frequency bands.
The seven-band graphic equalizer provides seven sliders,
each corresponding to a single narrow frequency band (100
Hz, 250 Hz, 500 Hz, 1 kHz, 2.5 kHz, 5 kHz, and 10 kHz). This
allows you to “draw” the desired tonal response of your sys-
tem. When a slider is in its center position (“0”), it is having
no effect. When it is moved above center (towards “+12”),
the particular frequency area is being boosted; when it is
moved below center (towards “-12”), the frequency area is
being attenuated. We carefully selected these frequency areas
because they have maximum impact on keyboard signals.
For example, the lowest slider (100 Hz) affects the very lowest
audible frequencies (in fact, most humans cannot hear below
20 Hz), while the highest four sliders affects the mid-range
and high frequencies.
To find out how each graphic equalizer slider affects the
sound of your particular keyboard, start with all seven bands
flat (that is, all seven sliders at their “0” center position).

9
ENGLISH
About Equalization
Then, one by one, raise and lower each slider,
listening carefully to the effect of each. Note that
turning all EQ controls up the same amount will
have virtually the same effect as simply turning
up the main Volume; conversely, turning them
all down the same amount will have virtually the
same effect as turning down the main Volume.
Both approaches are pointless (after all, that’s why
we gave you a main Volume control!)
In many instances, the best way to deal with
equalization is to think in terms of which fre-
quency areas you need to attenuate, as opposed
to which ones you need to boost. Be aware that
boosting a frequency area also has the effect of
boosting the overall signal; specifically, too much
low frequency EQ boost can actually cause over-
load distortion or even harm a connected speaker.
The specific EQ you will apply to your Keyboard
signal is very much dependent upon your par-
ticular instrument and personal taste and playing
style. However, here are a few general sugges-
tions:
• For that super-deep reggae or techno bass
sound, boost low frequencies slightly while
attenuating the highest ones (leave mid-
range frequencies flat or slightly attenuated),
as shown in the illustration on the right.
• To remove boxiness and make your instru-
ment sound more“hi-fi,”try attenuating
mid-range frequencies while leaving low and
high frequency settings flat, as shown in the
illustration on the right.
• For a bright, cutting sound, try boosting the
high and high mid-range frequencies, as
shown in the illustration on the right.
• Whenever you get a really good EQ setting
for a particular instrument or song, write it
down (you’d be amazed how easy it is to for-
get these things!).
Finally, as you experiment with the EQ controls of
the KM60 or Km100, don’t forget that your key-
board probably provides EQ control, so experi-
ment by using both.

51

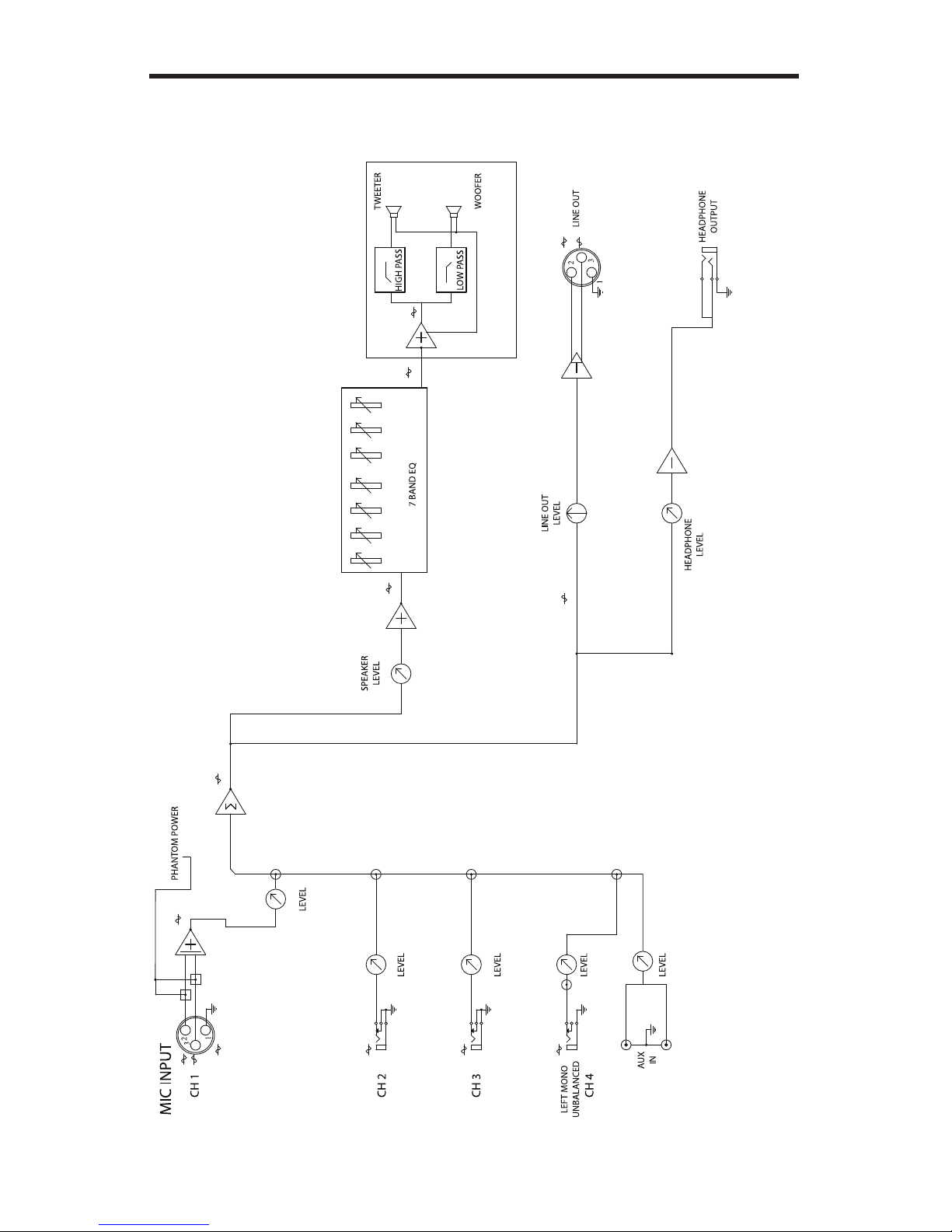

KM60 and KM100 Block Diagram
51

52
