Operator manual
OPERATOR MANUAL
TELESCOPIC
HANDLERS
HTL4014 - HTL4017
2420331560 E 04 07 GB
TELESCOPIC HANDLERS

Operator manual
A
GENERAL SAFETY
B
THE RESPONSIBILITIES OF THE PARTIES INVOL-
VED
C
PRE-OPERATION AND CONTROLS
D
OPERATION
E
ATTACHMENTS
F
EMERGENCY PROCEDURE
G
TECHNICAL SPECIFICATIONS
H
LUBRIFICATION AND MAINTENANCE
I
INTERVENTION LOG
SUMMARY

Operator manual

5
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
You have just bought a
HAULOTTE® telescopic handler
we would like to thank you for your business!
1 - Operator Manual
IAs indicated on the delivery slip, this manual is one of the documents in the carry-on case supplied
upon delivery of your telescopic handler.
In order to guarantee you full satisfaction, you must scrupulously follow the operating instructions
contained in this manual.
We would like to draw your attention in particular to 2 essential points.
• Compliance with the safety precautions (machine, operation, environment)
• Use within the equipment performance limits.
2 - After-Sales Service
Our HAULOTTE Services® after-sales service is at your disposal, both during and beyond the
warranty period, to provide you with the service you require.
• Contact our After-Sales service, indicating the exact machine type and its serial number.
• When ordering any consumables or spare parts, please use this manual and the Haulotte
Essential catalogue to receive original spare parts, the only guarantee of interchangeability and
perfect operation.
• In the event of malfunctions or incidents involving a HAULOTTE® machine, contact HAULOTTE®
immediately even if no material or bodily damage is observed and we will intervene as soon as
possible.

62420331560 E 04 07 GB
TELESCOPIC HANDLERS
3 - Compliance
We remind you that HAULOTTE® machines comply with the provisions of thedirectives currently
applicable to this type of machine.
HAULOTTE® cannot be held liable for the technical specifications contained in this manual.
HAULOTTE® reserves the right to make improvements or modifications to the machine without
modifying this manual.

A
B
C
D
E
F
G
H
I
1
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
A- GENERAL SAFETY
1 - General Precautions
The operator manual is intended for HAULOTTE ® machine operators. .
2 - Hazard Classification
2.1 - SYMBOLS USED
Symbols are used to alert the operator to safety precautions or to highlight practical information.
The operator manual does not replace the basic training required for all worksite equipment operators.
This manual contains the operator instructions provided by HAULOTTE
® for using the machines
efficiently and safely.
The operator manual must be kept in the cab in its storage case. This manual must be made available
to each operator and kept in good condition. Additional copies can be ordered from HAULOTTE
Services®.
Symbol meanings
Symbol Meaning
Risk of injury or death (work safety)
Risk of material damage (work quality)
Prohibition relating to work safety and quality
No identified risk but a reminder of common sense, good practice or
pre-action prerequisites
Cross-reference to another part of the manual (see section or sheet)
Cross-reference to another manual (see manual)
Cross-reference to repairs (contact Haulotte Services ® )
N.B. Additional technical information

22420331560 E 04 07 GB
TELESCOPIC HANDLERS
2.2 - LABEL COLORS
The potential dangers and specific regulations are indicated on the machine by labels and
identification plates.
.
The labels must be kept in good condition. Additional labels can be obtained from HAULOTTE
Services®.
Familiarize yourself with the labels and their respective color codes.
Label color code
Label Color Meaning
Red Potentially fatal danger
Orange Risk of serious injury
Yellow Risk of material damage and/or minor injury
Others Additional technical information

A
B
C
D
E
F
G
H
I
3
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
A- GENERAL SAFETY
3 - Operation Safety
3.1 - TIP-OVER HAZARDS
• Do not exceed the rated lifting capacity.
• Check that the ground can support the machine..
Never use an accessory without having checked the HAULOTTE®
accessory load capacity chart installed on the telehandler.
Do not drive at high speed with the boom raised.
When driving at high speed, use only front-wheel steering (if the steering
mode can be selected).

42420331560 E 04 07 GB
TELESCOPIC HANDLERS
Do not raise the boom unless the chassis is level (0 degrees).
Do not level the machine with the boom or the accessory above 30°.

A
B
C
D
E
F
G
H
I
5
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
A- GENERAL SAFETY

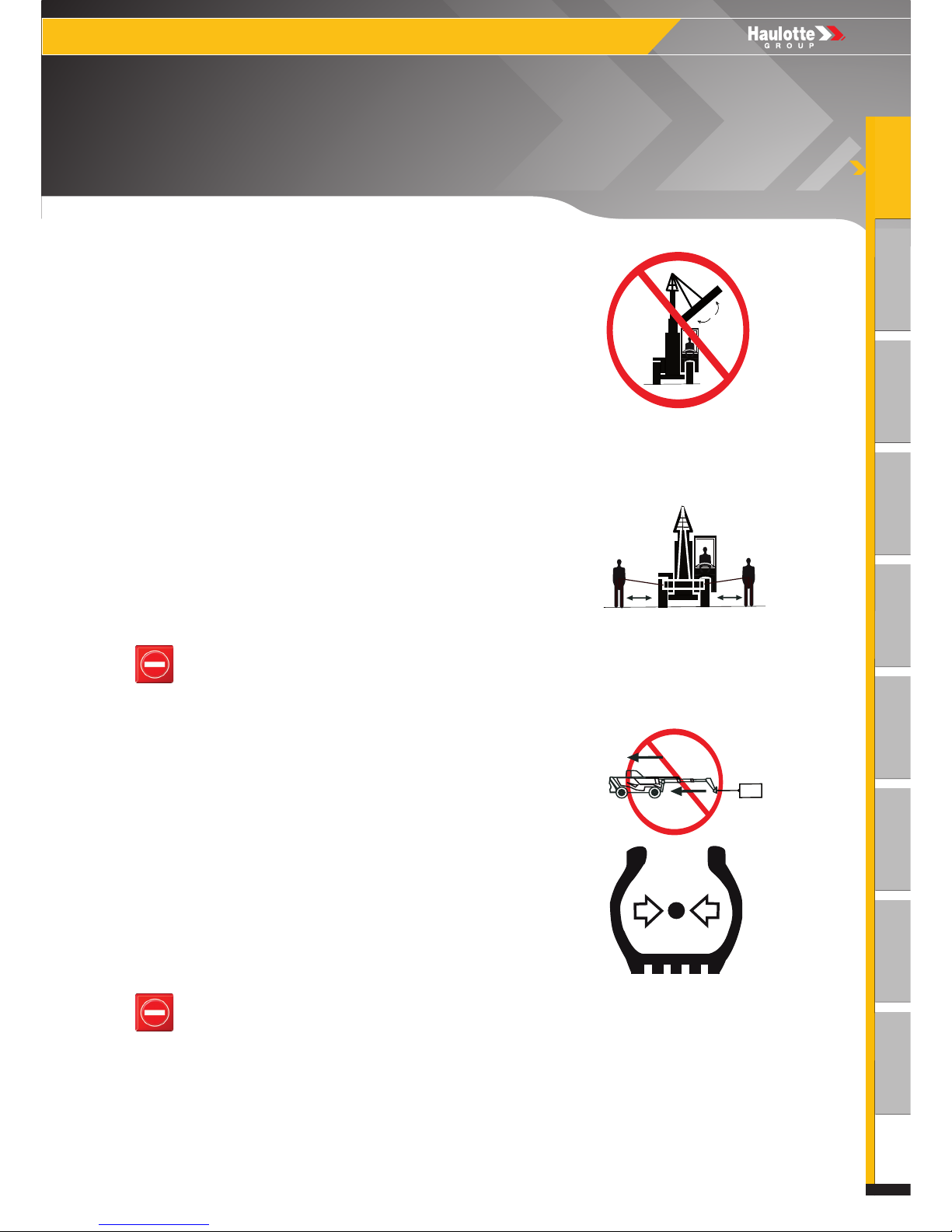

• Transport the load as low as possible.
Attach the suspended loads to restrict
movement.
• Comply with the capacity charts displayed in the
cab.
• The weight of all riggings (slings, etc…) must be
included as part of theload weight.
• Start, travel, turn and stop slowly to prevent the
load from tipping over.
• Beware of the wind. The wind can cause a
suspended load to tip over and generate
destabilising side forces (even withtag lines).
Do not try to use the telehandler's dumping function to return the load to horizontal position.
• Keep the heaviest part of the load closest to the
attachment.
• Never drag the load. Lift it vertically.
• Maintain proper tire pressure at all times.
Otherwise, the machine could tip over.
Do not ballast the tires.

62420331560 E 04 07 GB
TELESCOPIC HANDLERS

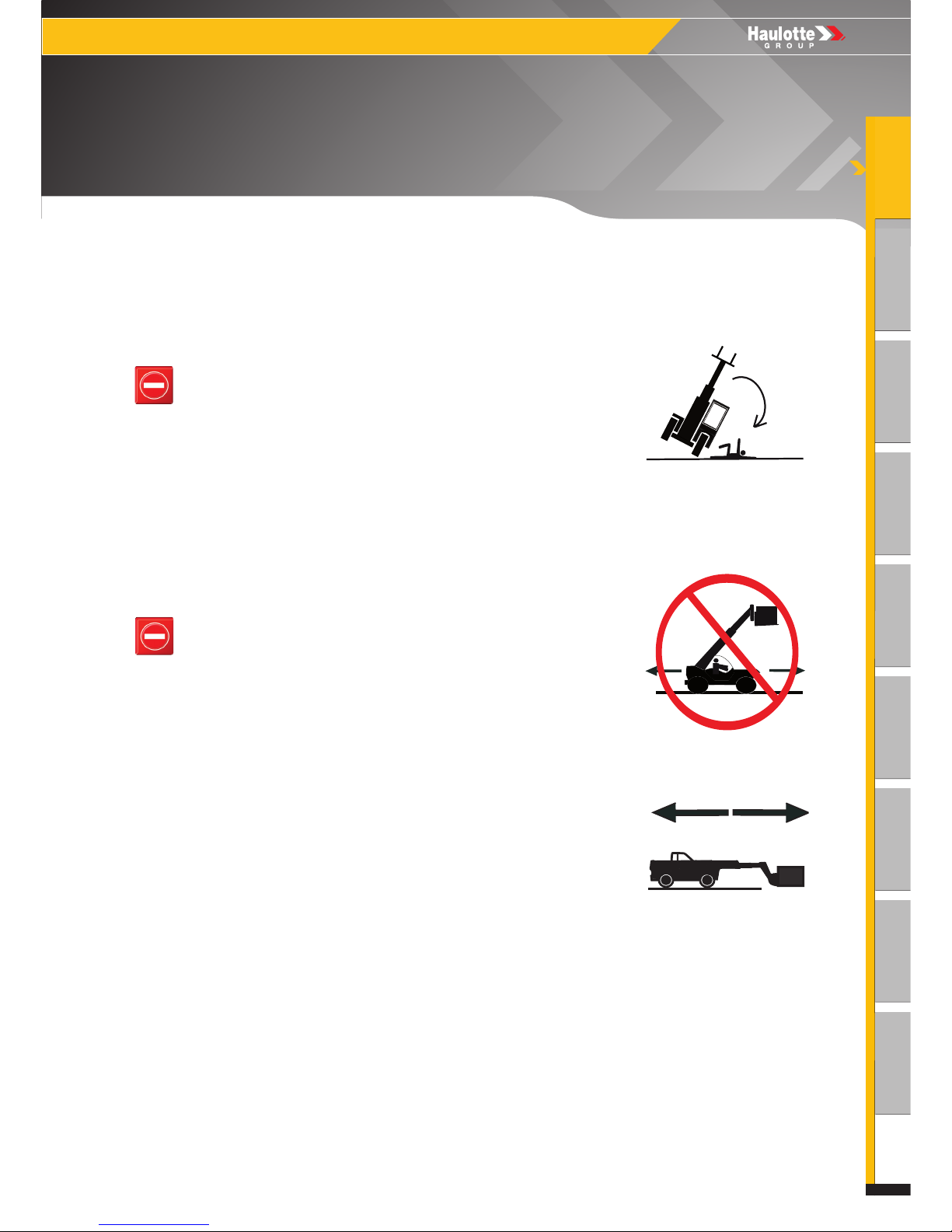

3.2 - ELECTRICAL HAZARDS
• Always check for power lines before raising the boom.
• Always wear the seat belt.
Do not hang your head, your arms, your hands, your legs or any other parts of your body out of the cab.
If the telehandler starts to tip over:
• Stay in the machine.
• Keep your seat belt fastened.
• Hold on tightly.
• Lean away from the point of impact.
Trying to escape from a tipping machine could result in death or serious injury.
• This machine is not insulated and does not
offer any protection in the event of proximity to
or contact with electrical current.
Never operate the handler in an area where overhead power lines, overhead or underground cables or
other power sources may exist without ensuring that the appropriate utility company has de-energized
the lines.

A
B
C
D
E
F
G
H
I
7
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
A- GENERAL SAFETY
3.3 - TRAVEL HAZARDS
• The turning radii change according to the
steering mode selected (2 or 4 steer wheels).
• Ensure that adequate clearance is provided for
pivoting the rear tail and the front fork.
The rear offset is larger in "4 steer wheels" mode.
Look out for and avoid other personnel, machinery and vehicles in the area. Use a spotter in the event
of bad visibility.
• Before moving the machine, ensure that the
path is clear and sound the horn.
• When driving, retract the boom and keep the
boom and the attachment as low as possible.
• Maintain visibility of the mirrors and optimal
visibility of the path of travel.
• Always look in the direction of travel.
• Always check boom clearances carefully
before driving underneath overhead obstacles.
Position the attachment or the load so as to
clear the obstacles.

82420331560 E 04 07 GB
TELESCOPIC HANDLERS
3.4 - LOAD FALLING HAZARDS
The forks must be centred under the load and on the fork carriage and spaced apart as far as
possible.
3.5 - MECHANICAL ATTACHMENT LOCKING DEVICES
• Ensure that the person-lifting platform is securely fastened to the accessory locking device. Follow
the installation procedure set out in Section E.
• Ensure that the machine is placed on a firm and level surface.
• Activate the parking brake. Blocking the wheels is also recommended.
• Level the handler both sideways (chassis swaying) and lengthways (accessory tilt).
• Ensure that there is no-one under the accessory.
• Do not lift or transport anyone in the bucket or on the forks..
Never suspend loads from the forks or from any other parts of the fork carriage.
Do not drill holes in the fork(s).
Do not heat or solder the forks.
Never tilt the platform forward, rearward or sway the machine when the platform is occupied. Serious
injury or death could result.
Always ensure that the fork carriage or the attachment is correctly positioned on the boom and is
secured by a lock pin and a retainer pin. Incorrect installation could result in the fork carriage /
attachment / load disengaging, causing death or serious injury.

A
B
C
D
E
F
G
H
I
9
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
A- GENERAL SAFETY

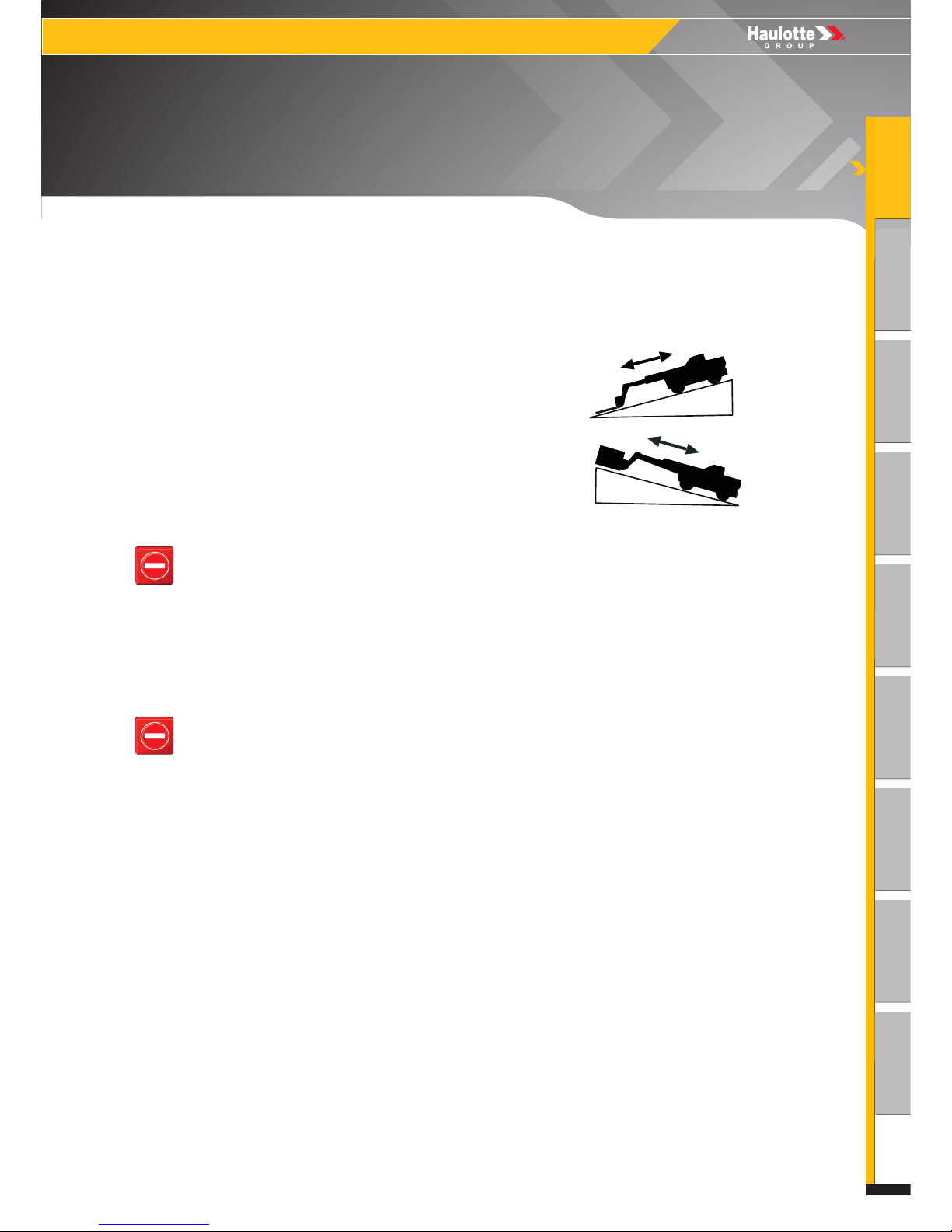

3.6 - DRIVING HAZARDS ON SLOPES
• Avoid excessively steep slopes or unstable surfaces. To avoid tipping over, do not drive across
excessively steep slopes under any circumstances.
• Avoid turning on a slope. Never engage "inching" or shift to "Neutral" when going downhill.
To maintain sufficient traction and braking
capabilities, travel on slopes as follows:
• When the machine is unloaded, the rear of the
machine is the "heavy end". Drive with the forks
pointed downhill.
• When it is loaded, the front of the machine is
the "heavy end". Drive with the forks pointed
uphill.
• To avoid the machine racing on slopes,
downshift to a lower gear and use the service
brake as necessary to maintain a slow speed.
Do not shift to neutral to avoid coasting downhill.
Do not park on a slope without having blocked the machine wheels.

10 2420331560 E 04 07 GB
TELESCOPIC HANDLERS

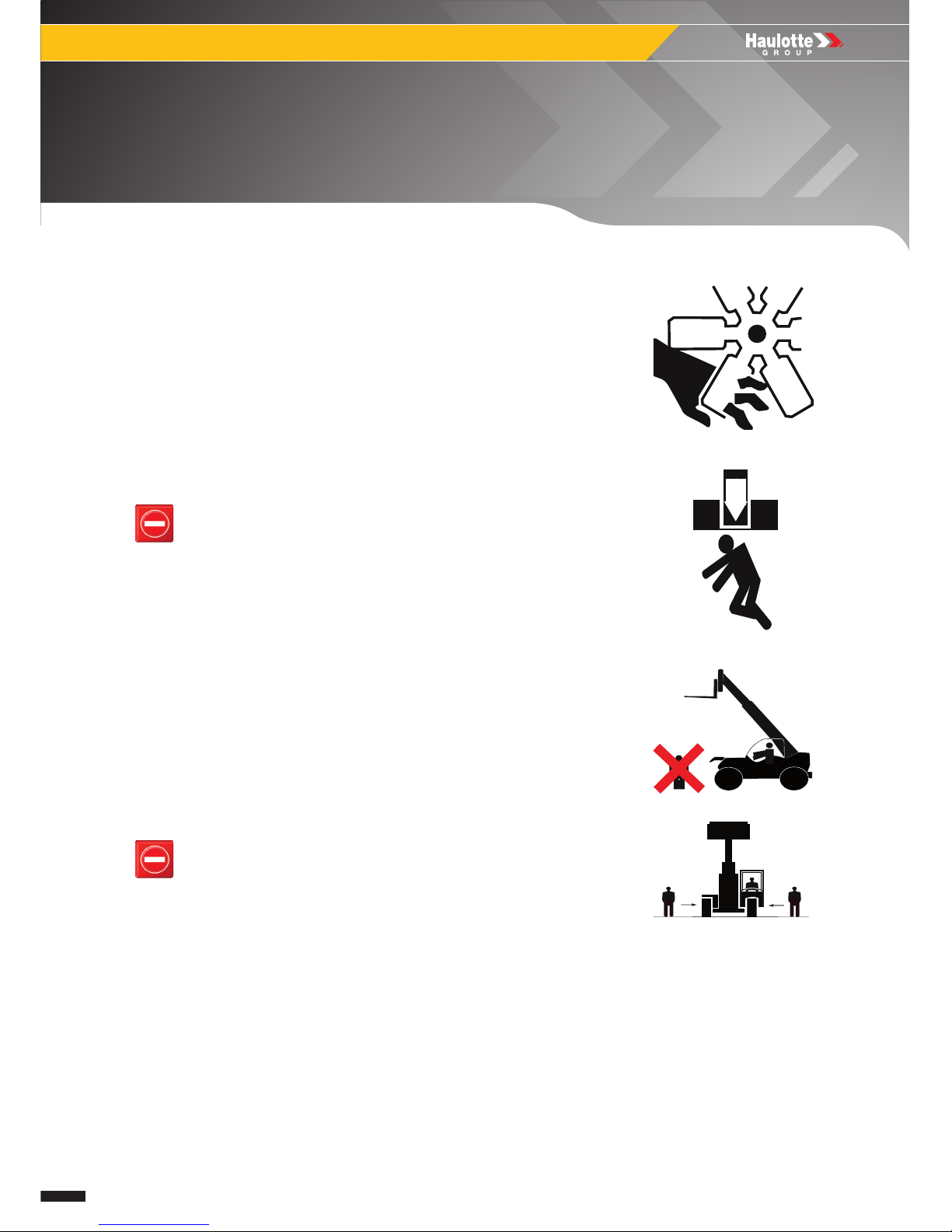

3.7 - PINCHING AND CRUSHING HAZARDS
Stay clear of pinch points and rotating parts on the handler.
Stay clear of moving parts when the engine is running.
Keep clear of the tires and the chassis or other steering parts when
manoeuvring the telehandler.
Keep clear of the boom.
Keep arms and hands clear of the attachment tilt cylinder.
Keep hands and fingers clear of the fork carriage and the forks.
Keep others away during operation.

A
B
C
D
E
F
G
H
I
11
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
A- GENERAL SAFETY
3.8 - FALL HAZARDS
3.9 - CHEMICAL HAZARDS
3.9.1 - Exhaust Fumes
3.9.2 - Flammable Fuel
Enter the cab using the proper hand rails and the
steps provided.
Always keep 3 anchor points when entering or
leaving the machine.
Never grab the control levers or the steering wheel when mounting or
dismounting the machine.
Never leave the machine until the complete shutdown procedure has
been performed.
Do not carry any passengers. Falling from the machine may cause
death or serious injury.
Do not operate the machine in an enclosed area without proper ventilation.
Do not operate the machine in hazardous environments unless specifically approved by Haulotte or the
site owner. Sparks produced by the electrical system or the engine exhaust can cause an explosion.
Do not fill the fuel tank or service the fuel system near a naked flame,
sparks or smoking material. Engine fuel is flammable and can cause a
fire and/or an explosion.

12 2420331560 E 04 07 GB
TELESCOPIC HANDLERS

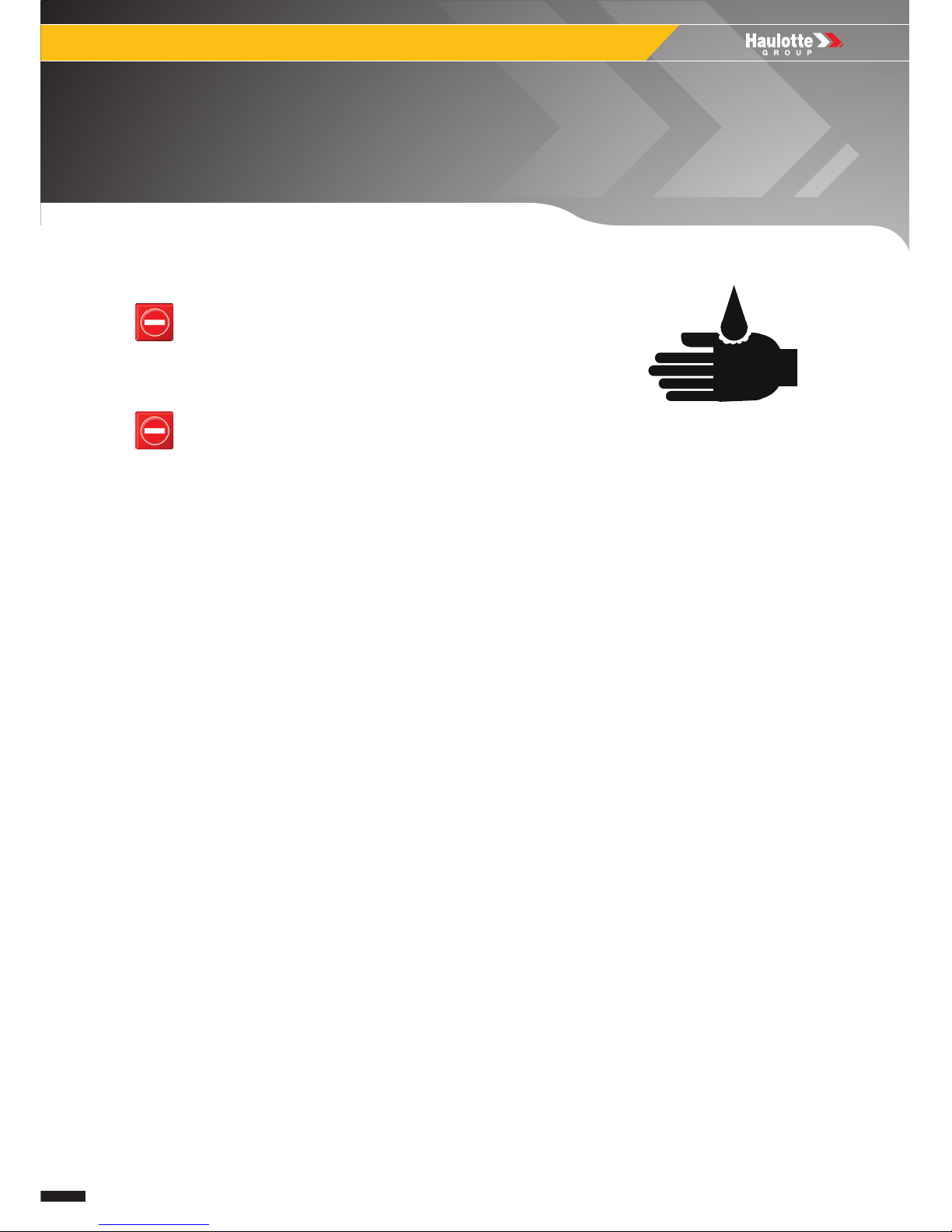

3.9.3 - Hydraulic Fluid
Do not attempt to repair or tighten any hydraulic hoses or fittings while
the engine is running or when the hydraulic system is under pressure.
Do not use your hand to check for leaks; the pressurized hydraulic fluid can penetrate the skin.
Use a piece of cardboard or paper instead. Wear gloves and goggles to protect yourself from fluid
splashes.

A
B
C
D
E
F
G
H
I
13
2420331560 E 04 07 GB
TELESCOPIC HANDLERS
B- THE RESPONSIBILITIES OF THE PARTIES
1 - The owner's (or hirer's) responsibility
The owner (or hirer) has the obligation to inform operators of the operator manual instructions.
The owner (or hirer) has the obligation to renew all manuals or labels that are either missing or in
bad condition. Additional copies can be ordered from HAULOTTE Services
® .
The owner (or hirer) is responsible for applying the local regulations regarding operation.
2 - The employer's responsibility
The employer has the obligation to issue the operator with a driving permit.
The employer has the obligation to inform the operator of the local regulations. .
3 - The trainer's responsibility
The trainer must be qualified to provide training to operators in an obstacle-free area until the trainee
is able to drive and operate the machine safely.
Forbid machine operation to anyone:
• under the influence of drugs, alcohol, ...
• subject to crises, loss of motricity, dizziness, …

14 2420331560 E 04 07 GB
TELESCOPIC HANDLERS
4 - The operator's responsibility
The operator must read and understand this manual and the labels affixed on the machine.
The operator must inform the owner (or hirer) if the manual or any labels are missing or in bad
condition.
The operator may only operate the machine for the purpose intended by the manufacturer.
All operators must be familiar with the emergency controls and how to operate the machine in an
emergency.
It must be operated by pairs of operators so that one of the operators can intervene rapidly if
necessary.
• Take over the controls in the event of an accident or failure.
• Monitor and regulate the movement of machines or personnel in the work area.
• Guide the driver if necessary.
The operator has the obligation to stop using the machine in the event of malfunctions or safety
problems on the machine or in the work area.
Only authorized and qualified operators may operate HAULOTTE® machines.
