Hawk 308N User guide

HAWK
OWNER'S HANDBOOK
(English Version)
FROM SERIAL NO: 308N010630, 312N004207 HANDBOOK: 308055 (REV.4.)
Issue 23.03.01
CODE
308N . 312N
(Push) (Auto Drive)

308055LC071195B
CERTIFICATE OF CONFORMITY
I, the undersigned M.A. Wright, of:
HAYTER LIMITED, Spellbrook, Bishop’s Stortford
Herts CM23 4BU
ENGLAND
certify that the lawnmowers:
1. Machine Type No. 308N 312N
2. Category. Combustion Engine Combustion Engine
3. Make. Hayter Hayter
4. Type. Rotary Rotary
5. Engine - Manufacturer. Briggs & Stratton Briggs & Stratton
- Type. 098902-2093-E1 098982-2194-E1
- Speed of rotation during test. 3000 rpm 3000 rpm
Conforms to the specifications of Directive 84/538/EEC as adapted to technical
progress by Directive 87/252/EEC and amended by Directive 88/180/EEC.
Guaranteed maximum sound power level. 96 dB(A) 96 dB(A)
- Type of cutting device Cutterbar Cutterbar
- Width of cutting device 41cm 41cm
- Speed of rotation of the cutting device 3000 rpm 3000 rpm
TESTED AT SUDBURY, SUFFOLK, ENGLAND
09.03.95 09.03.95
M.A. Wright
(Technical Director)
Signed
EC DECLARATION OF CONFORMITY
Company Name HAYTER LIMITED
Company Address Spellbrook
Bishop’s Stortford
Herts. CM23 4BU
ENGLAND
Machine Type No.. CODE 308N CODE 312N
Models Hawk Push Hawk Auto Drive
Directives complied with: 89/392/EEC amended by 91/368/EEC, 93/44/EEC and 93/68/EEC
Essential Health & Safety Requirements Relating to the Design & Construction of Machinery
and Safety Components.
84/538/EEC amended by 87/252/EEC and 88/180EEC Permissible Sound Power Levels of Lawn Mowers
89/336/EEC amended by 92/31/EEC Electromagnetic Compatibility
Standards Used: EN292, EN836, EN ISO 14982
I declare on behalf of Hayter Limited that these machines conform to the EC Essential Health & Safety
Requirements.
Date: 23.03.01 23.03.01
M.A. Wright
(Technical Director)
Signed
VIBRATION INFORMATION
Lawnmower vibration information. RMS acceleration measured in 3 - axes at operators contact position on the
handlebars. CODE 308N = 7.8ms-2. CODE 312N = 7.8ms-2.

1.31.3
308055LC071195B
CONTENTS
Page No.
CONTENTS
INTRODUCTION.
WARRANTY.
SAFETY PRECAUTIONS.
Decals
SPECIFICATIONS.
ASSEMBLY INSTRUCTIONS.
General assembly.
Assembling the mower for the first time.
STARTING THE ENGINE.
Before starting the engine.
To start the engine.
STOPPING THE ENGINE.
OPERATING THE MOWER.
Safety Notice
Height of Cut.
Travel.
Turning the mower.
Mowing with grass collection.
Mowing without grass collection.
Heavy growth.
Transporting the mower.
Cutterbar operation.
Mowing and grass care tips.
MAINTENANCE.
Engine.
Grassbag.
Deck housing.
Securing nuts and bolts.
Lubrication.
Clutch cable adjustment.
Cutterbar.
PREPARING THE MOWER FOR STORAGE.
FAULT FINDING.
308N & 312N PARTS LIST.
308N & 312N MAINFRAME DIAGRAM.
308N & 312N UPPER MAINFRAME DIAGRAM.
NOTES.
CUSTOMER INFORMATION.
1.4
1.5
1.6 - 1.9
1.9
1.10
1.11
1.11
1.12 - 1.13
1.14
1.14
1.15
1.16
1.16 - 1.22
1.16 - 1.17
1.17
1.18
1.18
1.19
1.20
1.20
1.20
1.21
1.21 - 1.22
1.23
1.23
1.23
1.23
1.24
1.24
1.24
1.25 - 1.26
1.27
1.28 - 1.29
2.1 - 2.3
2.4
2.5
2.6
2.7

1.41.4
308055LC071195B
INTRODUCTION
Thank you for purchasing a Hayter mower. The following pages are designed to help you
gain safe and efficient service from your machine.
IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the machine as it
gives essential information regarding machine safety, operation, maintenance and
specifications. Read and understand this handbook prior to operating your machine for the
first time. Make sure you are familiar with all the controls and points of regular maintenance.
If you have any doubts, consult your Hayter authorised dealer who will be pleased to give
you assistance.
IMPORTANT: This machine is designed solely for use in a domestic grass cutting
environment. Use in any other way is considered as contrary to the intended use. Compliance
with and strict adherence to the conditions of operation, service and repair as specified in this
handbook also constitute essential elements of the intended use.
This machine should be operated, serviced and repaired only be persons who are familiar with
its particular characteristics and who are acquainted with the relevant safety procedures.
The safety precautions listed here in and all other generally recognised regulations on safety
must be observed at all times.
Any arbitrary modifications carried out to this machine may relieve Hayter Limited of
liability for any resulting damage or injury.
All Hayter mowers are robustly constructed and designed for efficient economical perform-
ance under normal mowing conditions. Correct operation and maintenance will ensure a long
and satisfactory service life. Prior to despatch from our factory every effort is made to ensure
your machine arrives in perfect condition.
Throughout this handbook all references to left hand and right hand are as viewed from
behind
the handlebar, facing in the direction of forward travel.
This handbook is based on information available at the time of publication.
HAYTER LIMITED reserve the right to make changes at any time without notice.
INTRODUCTION

1.51.5
308055LC071195B
WARRANTY
LIMITED WARRANTY
Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects
in material and workmanship under normal use and service for a period of three years from the
date of purchase. The manufacturers of the engine and battery pack system (where applicable)
furnish their own warranty and services are provided through their authorised network (Refer to
"Engine/Battery Pack Warranty Statement"). To qualify for the full benefit of the warranty, the
warranty registration card must be returned within 60 days of purchase. Subject to the conditions
and exclusions noted in this limited warranty, we shall at our option, repair or replace any
warranted part during the applicable period. If you are in doubt or experience any difficulty,
please consult a Hayter Authorised Service Dealer for clarification.
To qualify for the extended warranty (second and third year) of the three year limited warranty
the machine must have annual services carried out by an Authorised Hayter Service Dealer.
These chargeable services should be carried out within 12 and 24 months of the date of purchase.
Excluded from the extended warranty period are those items which are subject to normal wear
and tear e.g. tyres, wheels, cutterbars, cables, batteries and other consumable wearing parts.
All consumer machines which are fitted with a genuine Hayter friction disc as original
equipment before use, are covered by a Lifetime Warranty against the engine crankshaft
bending. Note: friction washers, blade brake units and other such devices are not applicable.
Only machines fitted with a genuine Hayter friction disc, which are used in accordance with the
recommended operating and maintenance procedures, are covered.
This warranty does not apply to any unit that has been tampered with, altered, misused, abused or
used for hire, and will become invalid if non genuine Hayter parts are fitted. This warranty does
not cover minor mechanical adjustments unless they are due to defective material or
workmanship. Consult the Owner's Handbook or a Hayter Authorised Service Dealer for
assistance when making these adjustments.
A warranty period of 90 days applies to machines used for commercial purposes.
To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of
purchase stating the machine serial number and date of purchase. The service receipt(s) or this
Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as
proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in
this limited warranty, the authorised dealer will, at our option, repair or replace any warranted
part within the duration of the warranty period.
This limited warranty gives you specific legal rights and is in addition to any statutory rights to
which you may be entitled and your statutory rights are not affected by this warranty. If you need
additional information concerning this written warranty, or assistance in obtaining services,
please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop's Stortford,
Hertfordshire CM23 4BU
UK ONLY: Details of your local Hayter authorised dealer are contained in Yellow Pages or
contact:- Freephone 0800 616298.
Date.................................................................... Date.............................................................
Signed................................................................ Signed..........................................................
DEALER STAMP
DEALER STAMP
1st Year
Service
Record
2nd Year
Service
Record

1.61.6
308055LC071195B
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
The Hawk is perfectly safe if used correctly. Failure to observe the
following simple precautions may result in serious injury.
THIS SYMBOL MEANS BE ALERT! YOUR SAFETY IS INVOLVED.
WHEN YOU SEE THIS SYMBOL BE ALERT TO THE POSSIBILITY OF
INJURY. CAREFULLY READ THE MESSAGE THAT FOLLOWS AND
INFORM OTHERS.EXERCISE GREAT CARE AND FOLLOW THE
ADVICE GIVEN TOAVOID POTENTIALLY HAZARDOUS SITUATIONS.
Training:
Read the instructions carefully. Ensure that you are familiar with the controls and the proper
use of the equipment. Learn how to stop the mower quickly in an emergency.
Never allow children or people unfamiliar with these instructions to use the mower.
Never mow while people , especially children, or pets are nearby.
Keep in mind that the user is responsible for accidents or hazards occurring to other people
or their property.
Preparation:
While mowing, always wear substantial footwear and long trousers. Do not operate the equip-
ment when barefoot or wearing sandals.
Thoroughly inspect the area where the mower is to be used and remove all objects which may
be thrown by the machine.
WARNING: Petrol is highly flammable.
-Store fuel in containers specifically designed for this purpose.
-Refuel outdoors only and do not smoke while refuelling.
-Add fuel before starting the engine. Never remove the cap from the fuel tank or add petrol
while the engine is running or when the engine is hot.
-If petrol is spilled, do not attempt to start the engine but move the mower away from the area
of spillage. Avoid creating any source of ignition until petrol vapours have dissipated.
-Replace all fuel tank caps and fuel container caps securely.
Replace faulty silencers.

1.71.7
308055LC071195B
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS Continued.
Always ensure that the mower is in a safe operating condition. Frequently check all nuts, bolts
and screws for tightness. Use only genuine Hayter replacement parts.
A damaged cutterbar and loose fixing bolt are a major hazard. Before use, visually inspect the
cutting mechanism to ensure that it is in good condition.A damaged cutterbar must be replaced
immediately with a genuine Hayter replacement part. A cutterbar which is slightly worn can
be resharpened. Ensure that both cutting edges are resharpened equally to maintain balance.
An unbalanced cutterbar may cause serious damage to your machine.
Refer to "Maintenance."
Operation:
Do not operate the engine in a confined space where dangerous carbon monoxide fumes can
collect.
Mow only in daylight or good artificial light.
Avoid using the mower on wet grass, where feasible.
Always be sure of your footing on slopes.
Walk, never run.
Mow across the face of slopes, never up and down.
Exercise extreme caution when changing direction on slopes.
Do not mow excessively steep slopes.
Use extreme caution when reversing or pulling the mower towards you.
Stop the engine if the mower has to be tilted for transportation when crossing surfaces other
than grass and when transporting the mower to and from the area to be mowed.
Never operate the mower unless the guards are securely in position and in good condition.
Do not change the engine governor settings or overspeed the engine.
Disengage the rear roller drive clutch before starting the engine. (Auto-Drive model only).

1.81.8
308055LC071195B
SAFETY PRECAUTIONS
Operation continued:
Start the engine carefully, with feet well away from the cutterbar.
Do not tilt the mower when starting the engine.
Do not put hands or feet near or under rotating parts.
Never pick up or carry a mower while the engine is running.
Stop the engine and disconnect the spark plug lead:
- Before clearing blockages or unclogging the discharge chute.
- Before cleaning/checking or working on the mower.
- After striking a foreign object. Inspect the mower for damage and make repairs
before restarting and operating the mower.
- If the mower starts to vibrate abnormally ( check immediately ).
Stop the engine:
When using the machine without the grassbag, do not lift the rear deflector guard whilst the
mower is in operation.
WARNING: THE CUTTERBAR CAN CONTINUE TO ROTATE
AFTER THE ENGINE IS SWITCHED OFF.
SAFETY PRECAUTIONS Continued.
- Whenever you leave the mower.
- Before refuelling.

DECAL - ENGINE STOP
Part No. 331046
DECAL - HEIGHT OF CUT INDICA-
TOR: Part No. 305113
1.91.9
308055LC071195B
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS Continued.
Maintenance and storage:
Keep all nuts, bolts and screws tight to ensure that the equipment is in safe operating condition.
Never store the mower with petrol in the tank within an enclosed area where fumes may reach
an open flame or spark.
Allow the engine to cool before storing in any enclosure.
To reduce the fire hazard, keep the engine, silencer and petrol storage area free of grass, leaves,
or excessive grease.
Check the grassbag frequently for wear or deterioration.
Replace worn or damaged parts for safety.
If the fuel tank has to be drained, it is essential that this be done outdoors.
DECALS
WARNING DECAL: Part No. 219189
DANGER OF BEING HIT BY THROWN OBJECTS.
KEEP BYSTANDERS AT A SAFE DISTANCE
FROM THE MACHINE.
WARNING - CAUTION RISK OF DANGER - SAFETYALERT.
DANGER OF SEVERING TOES OR FINGERS
IN CUTTING MECHANISM.
STOP ENGINE AND REMOVE SPARK PLUG LEAD BEFORE
PERFORMING MAINTENANCE OR REPAIR WORK.
CAREFULLY READ THE OPERATORS MANUAL BEFORE
USING THE MACHINE.
DECAL - CUT HEIGHT ADJUSTMENT:
2
4
6
STOP

1.101.10
308055LC071195B
SPECIFICATIONS
SPECIFICATIONS
Engine
Engine type
Engine / cutterbar
speed
Fuel type
Fuel capacity
Oil type
Oil sump capacity
Cutting width
Cutting height
Overall dimensions
Dry Weight
CODE 312N
Auto Drive
CODE 308N
Push
MODELS
Briggs & Stratton Sprint 375
098902 - 2093 - E1 098982 - 2194 - E1
3000 rpm
Unleaded petrol
1.0 litres ( 1.8 UK pints )
SAE 30 engine oil
0.6 litres ( 1.1 UK pints )
410mm ( 16 inch )
12 - 65mm ( 0.5 - 2.6 inch )
1,340 x 451 x 1,041mm ( 52.75 x 17.75 x 41 inch )
24.5 Kg ( 53.9 lbs ) 28.3 Kg ( 62.3 lbs)

1.111.11
308055LC071195B
ASSEMBLY INSTRUCTIONS
SAFETY NOTICE
ASSEMBLY INSTRUCTIONS
GENERALASSEMBLY
Before using the mower, read this owners handbook carefully.
Pay particular attention to the safety precautions.
1 Handlebar.
2 Ground Drive Clutch Lever (312N Only).
3 Grassbag Assembly.
4 Rear Deflector.
5 Serial Number Decal.
6 Oil Filler Cap and Dipstick.
7 Height of Cut Adjuster.
8 Spark Plug Lead.
9 Primer Bulb.
10 Fuel Filler Cap.
11 Handlebar Securing Knob.
12 Rope Guide.
13 Engine Start-Grip.
14 Engine Stop lever.
15 Air Cleaner.
16 Height of Cut Indicator.
1D30800
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15

1.121.12
308055LC071195B
Qty
1
1
1
1
Check that parts are delivered correctly: Having removed the
mower from the packaging, check that all loose items have been
supplied correctly. Refer to the delivery checklist opposite and
the general assembly. If any items are missing, contact an autho-
rised Hayter Dealer.
Description
Grassbag
Owner's Handbook
Engine Handbook
Warranty Reg. Card
DELIVERY CHECKLIST

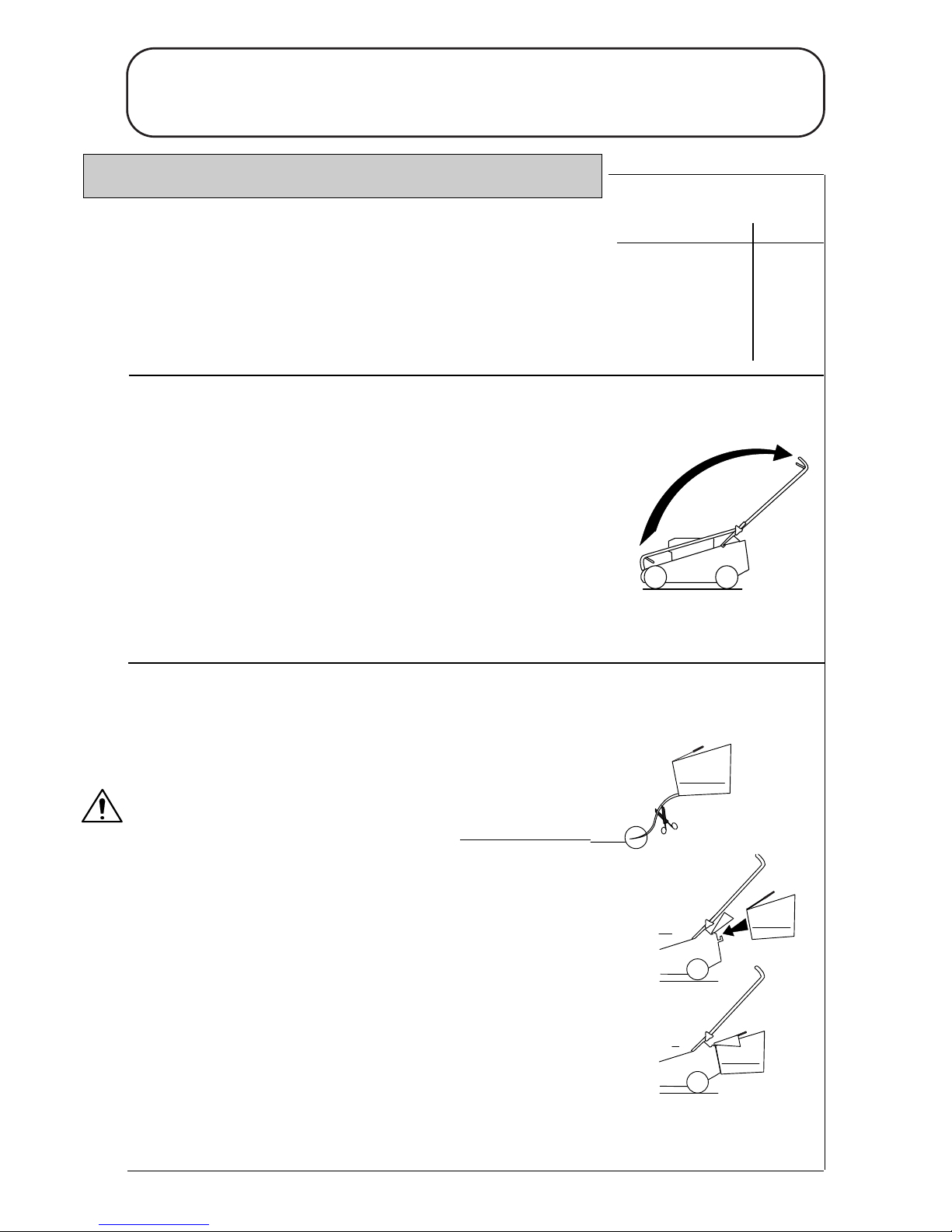

ASSEMBLING THE MOWER FOR THE FIRST TIME
ASSEMBLY INSTRUCTIONS
Assemble the handlebar: Unscrew the knobs securing the
handlebar sufficiently to allow it to be pivoted. Move the engine
stop lever away from the engine to avoid damage and unfold the
handlebar to its operating position. Tighten the two knobs to
secure the handlebar. Ensure that both knobs are assembled to the
outside of the handlebars.
CAUTION - PREVENT DAMAGE : When unfolding the
handlebar, take care to ensure that the controls and cables do
not become damaged. Always replace damaged controls and
cables before using the mower.
Assemble the grassbag: Identify the grassbag and remove
the long ribbon label by cutting it off close to the grassbag.
Discard the ribbon label.
WARNING - AVOID ENTANGLEMENT: Completely re-
move this ribbon before using the mower.
Raise the rear deflector. Lower the grassbag through the handle-
bar and hook in position behind the deflector springs. Lower the
grassbag to rest against the rear of the mower. Finally lower the
rear deflector to rest against the top of the grassbag.
CS089
HAYTER
HA
YTER
CS105
HAYTER
CS151

1.131.13
308055LC071195B
ASSEMBLY INSTRUCTIONS

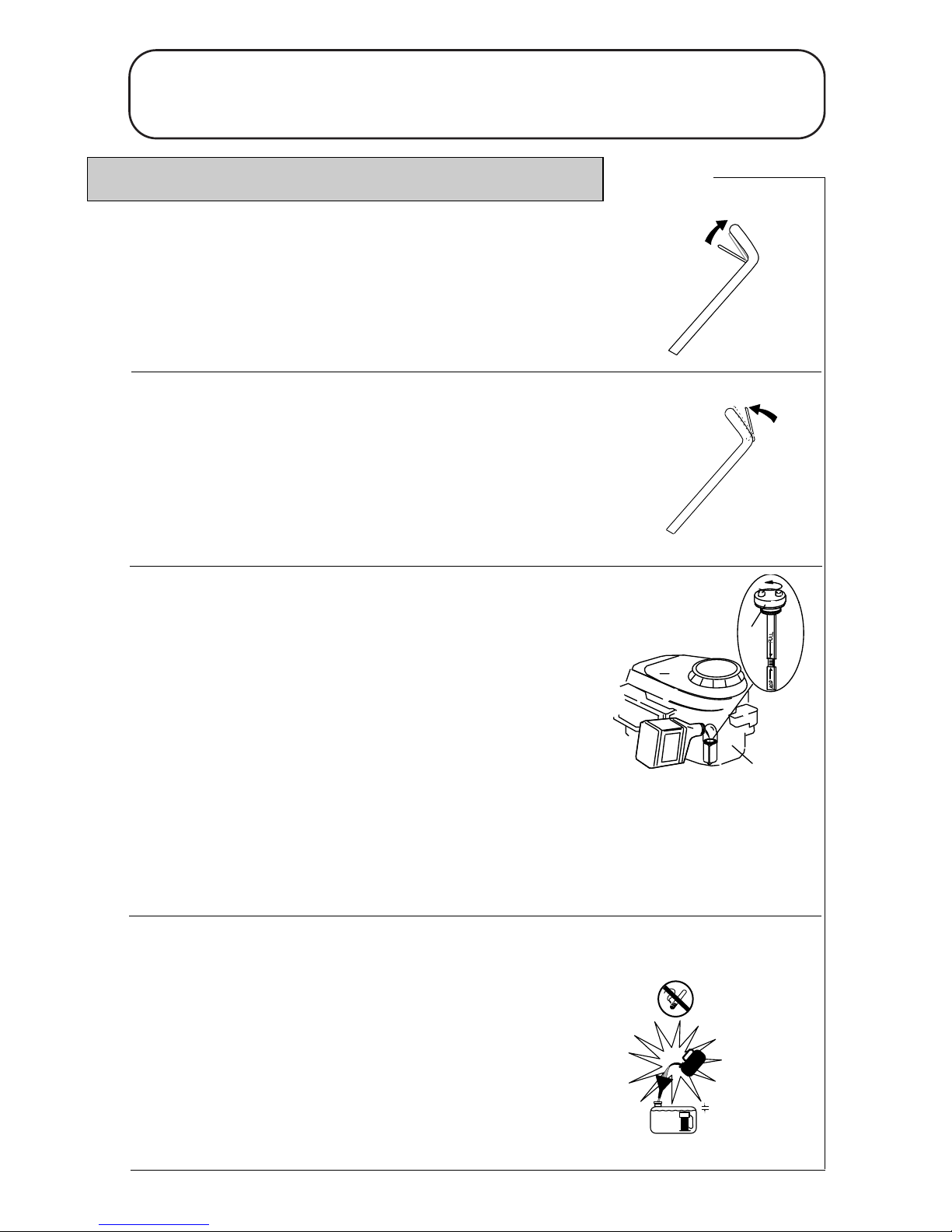

ASSEMBLING THE MOWER FOR THE FIRST TIME Continued.
Check engine stop lever operation: Operate the engine stop
lever several times. Ensure that the cable moves freely and that
the lever returns automatically to the engine stop position when
released.
Check clutch lever operation - Auto Drive model only:
Operate the clutch lever several times and ensure that the cable
moves freely.
Fill the engine with oil: With the mower on a level surface,
unscrew and remove the oil filler - dipstick. Always use high
quality detergent oil classified for service SE, SF, SG and SAE
30 oil. Screw the oil filler - dipstick back in place, then unscrew
and remove it to check the oil level.
The oil level is correct when it is between the add and full marks
on the dipstick.
IMPORTANT: The oil filler - dipstick must be secured when
the engine is running.
Fill the engine with petrol: Remove the fuel filler cap and fill
the fuel tank with clean unleaded petrol. Purchase fuel quantities
that can be used within 30 days. Never mix oil with petrol.
Do not overfill the fuel tank.Allow 6mm minimum of tank space
for fuel expansion.
IMPORTANT: The fuel filler cap must be secured when the
engine is running.
1
2
CS285
CS168
1. Engine.
2. Dipstick.
6mm
minimum
CS036
CS179

1.141.14
308055LC071195B

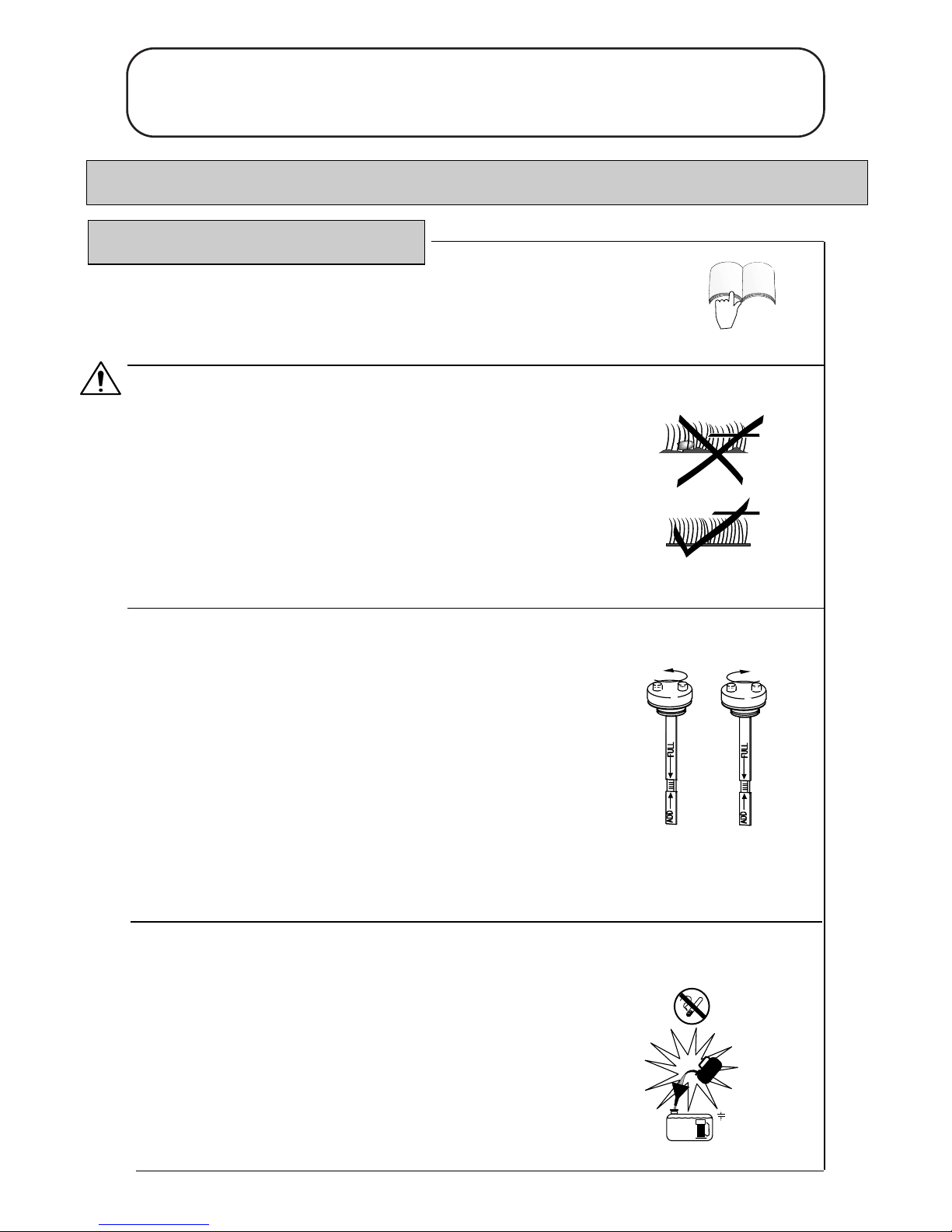

STARTING THE ENGINE
PREVENT ENGINE DAMAGE
STARTING THE ENGINE
To prevent engine damage, the engine is shipped without oil or
petrol. The engine must be filled with the correct grade of oil and
petrol before starting the engine.
Check fuel level: Remove the fuel filler cap and fill the fuel
tank with clean unleaded petrol.
Do not overfill the fuel tank.Allow 6mm minimum of tank space
for fuel expansion.
IMPORTANT: The fuel filler cap must be secured when the
engine is running.
WARNING: The cutterbar rotates when the engine is
operating.
ALWAYS operate the engine stop lever several times and ensure
the engine stop cable moves freely before starting the engine.
ALWAYS position the mower on a level stone free grass surface
before starting the engine. The engine will be difficult to start if
the cutterbar is prevented from rotating freely. Ensure that the
cutterbar is set above the level of the grass, for easy starting.
Check oil level: With the mower on a level surface, unscrew and
remove the oil filler - dipstick. Wipe oil from it with a clean cloth.
Screw the oil filler - dipstick back in place, then unscrew and
remove it to check the oil level.
The oil level is correct when it is between the add and full
marks on the dipstick.
Add SAE 30 engine oil as necessary and replace the oil filler dip-
stick.
IMPORTANT: The oil filler - dipstick must be secured when
the engine is running.
6mm
minimum
ENGINE
Remove
Dipstick Tighten
Dipstick
CS130
CS037

1.151.15
308055LC071195B
STARTING THE ENGINE
TO START THE ENGINE
Operate the engine stop lever: Use one hand to hold the engine
stop lever in the operating position firmly against the handlebar.
To start the engine and during operation of the mower, the engine
stop lever must be held in the operating position. If the engine
stop lever is released the engine will stop.
Operate the primer bulb: Note: Push on the primer bulb 5
times at two second intervals to provide the extra fuel to start the
engine after assembling the mower for the first time.
In normal use push on the primer bulb 3 times at 2 second inter-
vals to provide the extra fuel required to start a cold engine.
Operation of the primer bulb is usually unnecessary when start-
ing a warm engine.
IMPORTANT: Prevent engine damage. Never pull the engine start-grip when the
engine is running.
Operate the engine start - grip: Stand behind the mower and
maintain a firm hold on the handlebar and the engine stop lever
with your left hand to prevent the mower moving towards you.
Use your right hand to hold the engine start-grip and pull rapidly
to crank the engine. When the engine starts carefully return the
engine start - grip to the storage position. If the engine does not
start after 5 attempts - refer to "Fault Finding".
CS182
CS171
1
2
CS117

1.161.16
308055LC071195B
STOPPING THE ENGINE
Stopping the engine: Disengage the engine stop lever by releas-
ing the lever.
STOPPING THE ENGINE
Emergency stop: If the engine stop lever fails, disconnect the
spark plug lead to stop the engine.
SAFETY NOTICE
OPERATING THE MOWER
WARNING: PREVENT ACCIDENTAL STARTING -
Always stop the engine and disconnect the spark plug lead
before cleaning, inspecting or working on the machine.
STOP
3
2
1
STOP
CS129
3
2
1
STOP
CS129
1. Engine.
2. Spark Plug Lead.
3. Spark Plug.
1. Engine.
2. Spark Plug Lead.
3. Spark Plug.

1.171.17
308055LC071195B
OPERATING THE MOWER
SAFETY NOTICE Continued
WARNING:PREVENT ACCIDENTS - Before mowing,
thoroughly inspect the area where the mower is to be used
and remove all stones, sticks, wires, bones and other foreign
objects, which when contacted by the mower cutterbarcould
become dangerous projectiles.
Inspect the area for hidden obstructions which when con-
tacted by the cutterbar could risk health and safety. Remem-
ber the location of these obstructions and ensure that you
mow around them.
HEIGHT OF CUT
To adjust the height of cut: Hold the trigger against the handle and
raise or lower the mower using the handle to achieve the desired
cut height. Release the trigger to secure the mower at the required
position.
There are seven height of cut positions. The setting is indicated by
the position of the connecting rod relative to the height of cut
indicator.
Always select a height of cut to suit operating conditions. Aim to
prevent engine overloading and blockages by avoiding low cuts
in long grass conditions. Be prepared to make two cuts when the
grass is long.
Auto Drive model only: When changing height of cut it is some-
times necessary to re-adjust the clutch cable, refer - "Mainte-
nance; Clutch cable adjustment."
CAUTION: Prevent engine damage - DO NOT use the mow-
er on a slope greater than 20 degrees.
CS031
305113
CS286
2
4
6
20 MAX.

1.181.18
308055LC071195B
TURNING THE MOWER
To make a wide turn : Steer the mower with the handlebar
whilst travelling forward.
To make a tight turn : Stop forward travel. Apply downward
pressure on the handlebar to raise the front wheels of the mower
just above ground level and steer the mower using the handlebar
in the required direction.
WARNING: PREVENTACCIDENTS - DO NOT raise the front of the mower exces-
sively when making a turn. NEVER raise the rear of the mower when the engine is
running.
Forward travel:
Push model - Hold and push against the handlebar with both
hands to move the mower forwards.
Auto Drive model only - Hold the handlebar and operate the
clutch lever to achieve forward travel.
Release the clutch lever to stop forward travel.
When the clutch lever is disengaged the mower can be operated
as a push model. This feature is useful when mowing in confined
areas.
Reverse travel:
Push model - Hold and pull against the handlebar with both
hands to reverse the mower towards you.
Auto Drive model only - Disengage the clutch lever. Hold and
pull against the handlebar with both hands to reverse the mower
towards you.
OPERATING THE MOWER
WARNING: PREVENT ACCIDENTS - Always reverse the mower carefully towards
you. Always switch off the engine before walking backwards with the mower.
TRAVEL
HAYTER
CS083
CS201

1.191.19
308055LC071195B
OPERATING THE MOWER
MOWING WITH GRASS COLLECTION
The grassbag is designed to collect grass clippings.
To achieve best grass collection performance, mow in dry oper-
ating conditions
Recognise that when the grassbag is full the airflow stops and the
grassbag deflates.
Grassbag attachment: Raise the rear deflector. Lower the
grassbag through the handlebar and hook in position behind the
deflector springs. Lower the grassbag to rest against the rear of
the mower. Finally lower the rear deflector to rest against the top
of the grassbag.
Grassbag removal: Raise the rear deflector and lift the grassbag
away from the mower. Finally lower the rear deflector to rest
against the rear of the mower.
Grassbag emptying: To empty the grassbag, pour out the grass
clippings and shake the grassbag vigorously to clean the airways.
Good grass collection depends on good air flow through the
grassbag. When collecting grass clippings it is important that the
grassbag is emptied regularly to prevent blockages and engine
overloading.
WARNING: PREVENT ACCIDENTS - ALWAYS check the condition of the grassbag
for signs of damage. Replace a damaged grassbag immediately. DO NOT operate the
mower with a damaged grassbag.ALWAYS stop the engine and disconnect the spark plug
lead before attempting to remove a grass blockage.
HAYTER
HA
YTER
CS105
HAYTER
CS106

1.201.20
308055LC071195B
OPERATING THE MOWER
MOWING WITHOUT GRASS COLLECTION
HEAVY GROWTH
TRANSPORTING THE MOWER
To mow without collecting the grass clippings, remove the grass-
bag and operate the mower with the rear deflector in its lowest
position.
Areas of heavy growth should be mown without grass collection.
If grass collection is required, first mow the area without grass
collection at the maximum height of cut setting. Allow the grass
clippings to dry out and then mow the area at the maximum
height of cut setting with the grassbag fitted. Reduce the height
of cut and mow the area again as necessary until the required fin-
ish is obtained.
WARNING: PREVENT ACCIDENTS - Transport the mower carefully at slow walking
speed with the engine switched off.
Set the mower to its maximum height of cut to protect the cut-
ting mechanism when transporting the mower over surfaces other
than grass.
WARNING: PREVENTACCIDENTS -ALWAYS check the condition of the reardeflec-
tor for signs of damage. Replace a damaged rear deflector immediately. Never operate
the mower with a damaged rear deflector.
CS086
