Hayward Pool Products Nautyl PHCP50A Service manual

SWIMMING POOL HEAT PUMP
UNIT
Installation & Instruction Manual
Models PHCP50A
PHCP65A
Hayward Pool
Products Canada, Inc.
2880 Plymouth Dr., Oakville, ON L6H 5R4
Haywardpool.ca / 1.888.238.7665

CONTENTS
1. Preface 1
2. Specifications 2
2.1 Performance Data of Swimming Pool Heat Pump Unit 2
2.2 Dimensions for Swimming Pool Heat Pump Unit 3
3. Installation and Connection 4
3.1 Installation of System 4
3.2 Swimming Pool Heat Pumps Location 5
3.3 How Close to Your Pool? 5
3.4 Swimming Pool Heat Pumps Plumbing 6
3.5 Swimming Pool Heat Pumps Electrical Wiring 7
3.6 Initial Start-up of the Unit 7
4. Usage and Operation 8
4.1 Function of the controller 8
4.2 Usage of the controller 9
4.3 Parameter table 14
4.4 Mulfunction table 15
5. Maintenance and Inspection 16
6. Appendix 17

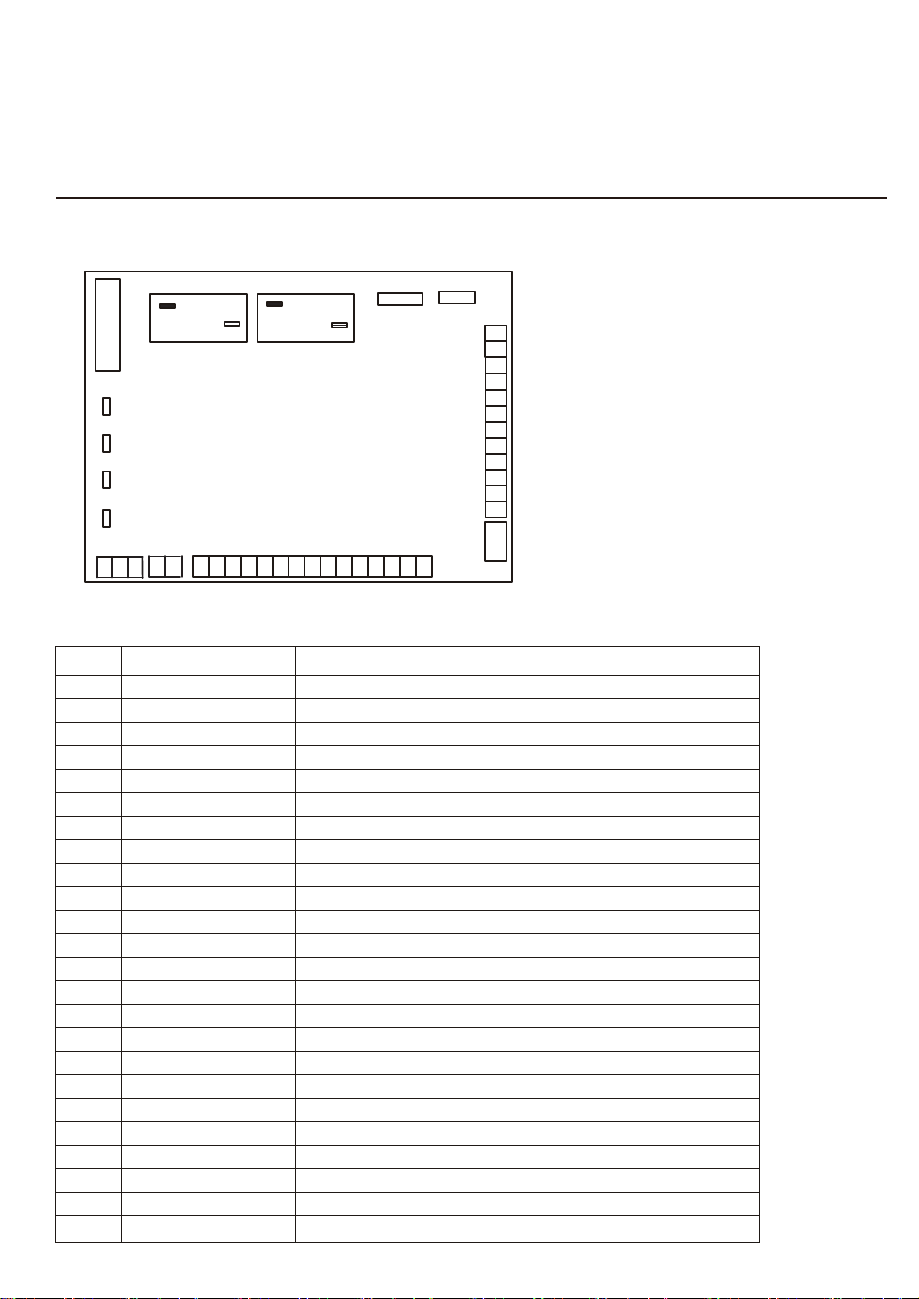

6.1 Connection of PCB: Illustration 17
6.2 Wiring Diagram 18
6.3 Exploded View and Spare Parts List 19

1. PREFACE
In order to provide our customers with quality, reliability and versatility, this product has been made
to strict production standards. This manual includes all the necessary information about installa-
tion, debugging, discharging and maintenance. Please read this manual carefully before you open
or maintain the unit. The manufacture of this product will not be held responsible if someone is
injured or the unit is damaged, as a result of improper installation, debugging, or unnecessary
maintenance. It is vital that the instructions within this manual are adhered to at all times. The unit
must be installed by qualified personnel.
The unit can only be repaired by qualified installer centre , personnel or an authorised dealer.
Maintenance and operation must be carried out according to the recommended time and frequency,
as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to suit a
luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged exposure to
swimming pool water.
2 Installation flexibility
The unit can be installed outdoors or indoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor, which
guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be set.
Operation status can be displayed on the LCD wire controller. Remote controller can be chosen
as future option.
1

2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
REFRIGERANT : R410A
Unit
Model
PHCP50A
PHCP65A
Heating Capacity
kW
11. 1 9
14.7
Heating Power Input
kW
1. 8 7
2.68
Running Current
A
8. 2 2
12
Power Supply
208-230V~/ 60Hz
208-230V~/ 60Hz
Compressor Quantity
1
1
Compressor
rot ary
rotary
Fan Quantity
W
1
1
Fan Power Input
RPM
120
120
Fan Rotate Speed
850
850
Fan Direction
horizontal
horizontal
Noise
dB(A)
54
54
Water Connection
mm
48.3
48.3
Water Flow Volume
m3/ h
4.0
4.5
Water Pressure Drop(max)
kPa
12
10
Unit Net Dimensions(L/W/H)
mm
See t he dra wing of t he unit s
Unit Shipping Dimensions(L/W/H)
mm
See package label
Net Weight
kg
See nameplat e
Shipping Weight
kg
See package label
Heating: Outdoor air temp:27℃/24℃, Inlet water temp:26℃
2

2.SPECIFICATION

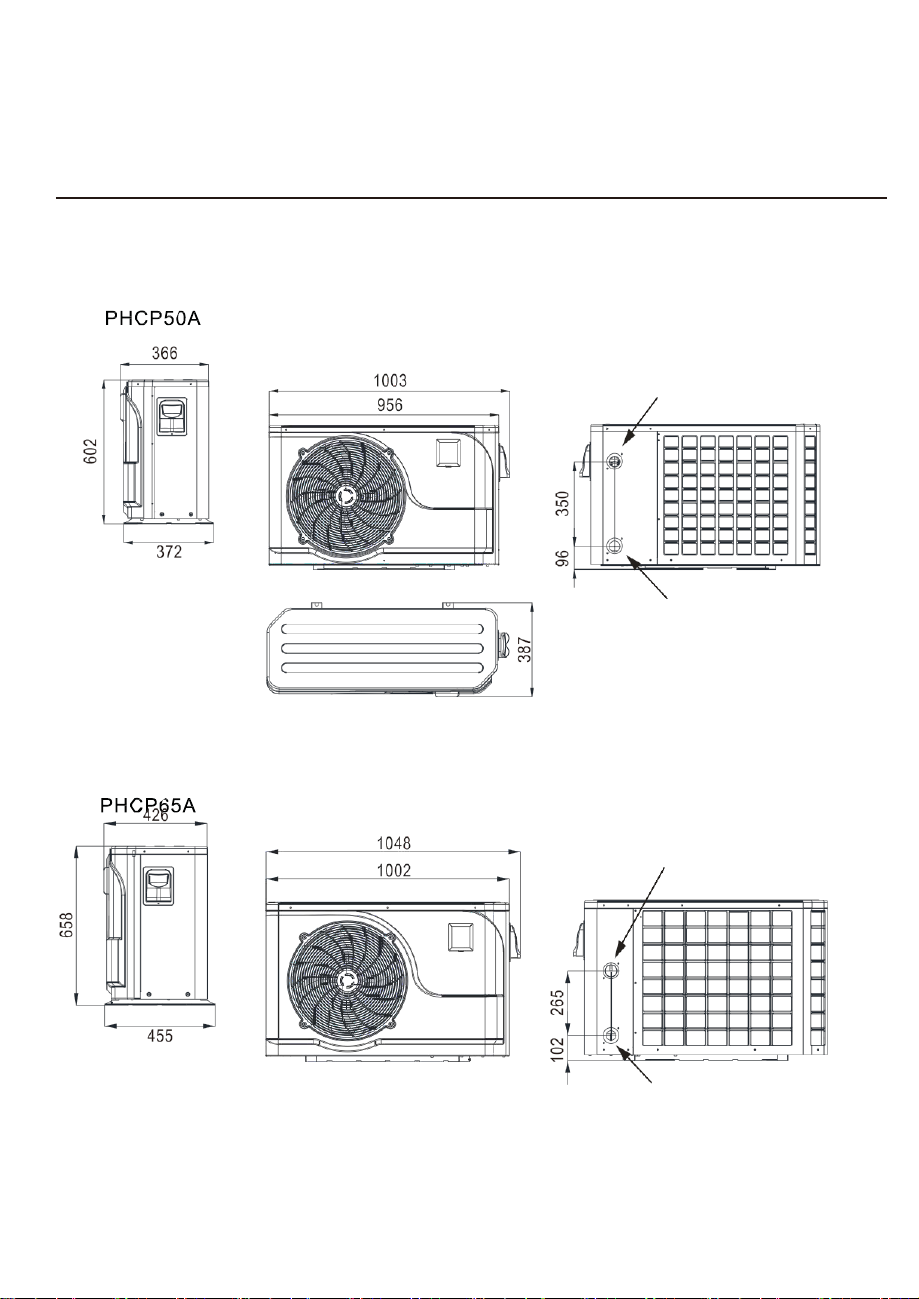

2.2 The dimensions for Swimming Pool Heat Pump Unit
Water Outlet
48.3
Wate r Intlet
48.3
Water Outlet
48.3
Wate r Intlet
48.3
3

3.INSTALLATION AND CONNECTION
3.1 Installation illustration
Chlorinator cell Water outlet Valve
Water supply
Water inlet Sand filter
(or other type filter)
Pool
Water pump
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration are
necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat
pump while plumbing installation.
4

3.INSTALLATION AND CONNECTION
500mm
3.2 Swimming Pool Heat Pumps Location
The unit will perform well in any outdoor location provided that the following three factors are presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the supplier. Unlike
a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units discharge air will be
re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a continuous
source of fresh air which reduces it efficiency and may prevent adequate heat delivery.
Air inlet
Air outlet
3.3 How Close To Your Pool?
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the distance from the
pool, the greater the heat loss from the piping. For the most part ,the piping is buried. Therefore, the heat
loss is minimal for runs of up to15 meters(15 meters to and from the pump = 30 meters total), unless the
ground is wet or the water table is high. A very rough estimate of heat loss per 30 meters is 0.6 kW-hour,
(2000BTU) for every 5 ℃difference in temperature between the pool water and the ground surrounding the
pipe, which translates to about 3% to 5% increase in run time.
5

3.INSTALLATION AND CONNECTION

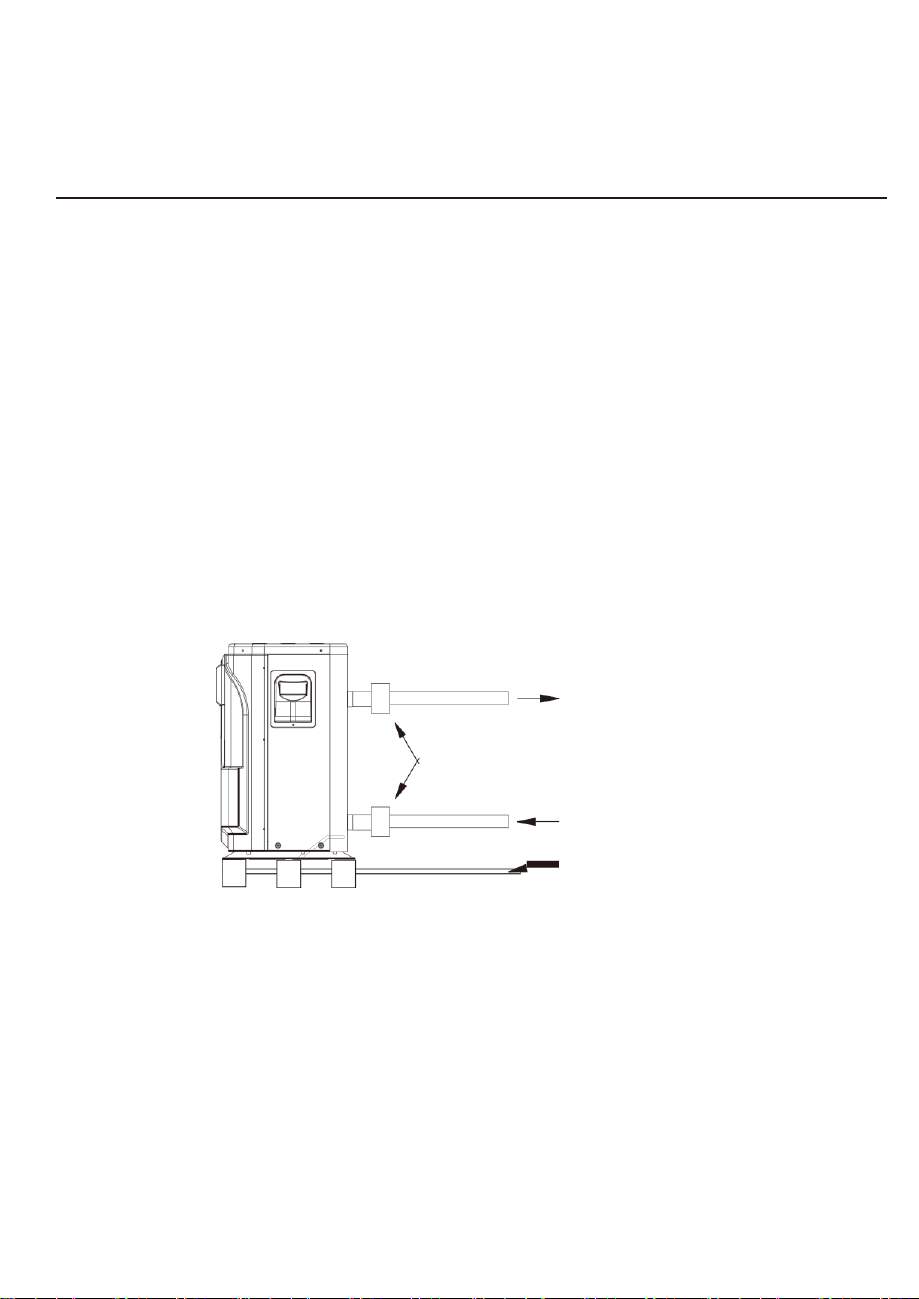

3.4 Swimming Pool Heat Pumps Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special
plumbing arrangements except bypass(please set the flow rate according to the nameplate). The water
pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame Tempera-
tures, The unit does not need copper heat sink piping. PVC pipe can be run straight into the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter and pool
pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 32mm or 50 mm PVC pipe for connection to the
pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 40NB
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow easy
draining of unit for winterizing and to provide easier access should servicing be required.
To pool
PVC COUPLER
RECOMMENDED(Provided)
From pump
CONDENSATION DRAIN
BARB FTG
Condensation: Since the Heat pump cools down the air about 4 -5℃, water may condense on the fins
of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as much as
several litres an hour. The water will run down the fins into the basepan and drain out through the
barbed plastic condensation drain fitting on the side of the basepan. This fitting is designed to accept
20mm clear vinyl tubing which can be pushed on by hand and run to a suitable drain. It is easy to
mistake the condensation for a water leak inside the unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the pool pump
running. If the water stops running out of the basepan, it is condensation. AN EVEN QUICKER WAY IS
to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine present, then it's condensation.
6

3.INSTALLATION AND CONNECTION
3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply
prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect
you against short circuits inside the unit. Bonding is also required.
The unit has a separate molded-in junction box with a standard electrical conduit nipple already in
place. Just remove the screws and the front panel, feed your supply lines in through the conduit nipple
and wire-nut the electric supply wires to the three connections already in the junction box (four
connections if three phase). To complete electrical hookup, connect Heat Pump by electrical conduit,
UF cable or other suitable means as specified (as permitted by local electrical authorities) to a
dedicated AC power supply branch circuit equipped with the proper circuit breaker, disconnect or time
delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be located within
sight of and readily accessible from the unit, This is common practice on commercial and residential air
conditioners and heat pumps. It prevents remotely-energizing unattended equipment and permits turning
off power at the unit while the unit is being serviced.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to circulate water
through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire controller, It
should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is cooler(Between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water emperature is reached.
When the water-in temperature reach setting, The unit just shuts off. The unit will now automatically
restart (as long as your pool pump is running)when the pool temperature drops more than 2℃below set
temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to protect
control circuit components and to eliminate restart cycling and contactor chatter. This time delay will
automatically restart the unit approximately 3 minutes after each control circuit interruption. Even a brief
power interruption will activate the solid state 3 minute restart delay and prevent the unit from starting
until the 5 minute countdown is completed. Power interruptions during the delay period will have no effect
on the 3 minute countdown.
7

4. USAGE
4.1. Function of wire controller
LED display
Auto indicator light
Heating indicator light
Cooling indicator light
Turn on
indicator light
Timer on
indicator Timer off indicator
Touche
Key name
Key function
ON/OFF
Press this key to turn on/off the unit
Mode
Press this key to change the working mode
Timer
Press this key to set system time
Choose key
Press this key to choose the Celsius degree
or Fahrenheit degree
TIMER ON
Press this key to set timer-on
TIMER OFF
Press this key to set timer-off
Up
Press this key to select the upward option
or increase the parameter value.
Down
Press this key to select the downward
option or decrease the parameter value.
8

4. USAGE
4.2. Usage of wire controller
4.2.1 Turn ON/OFF the unit
When the unit is off, press the key“ ”0.5s to turned on the unit;
When the unit is on, press the key“ ”0.5s to show down the unit;。
System
time
Press“”0.5s
Heating
Temp.
HEA T
COOL
M O DE
Press“”0.5s
HEA T
COOL
M O DE Heating
indicator light
T I M E R ON T I M E R O F F CLOCK T I M E R ON T I M E R O F F CLOCK
Standinterfaceby Running interface
4.2.2 Mode switch
You can choose unit mode.
In the unit on or off state ，you can choose cooling 、heating or automatic mode by
pressing "MODE" button.
Attention: if the unit is only for heating/cooling, the mode switching operation is invalid.
Cooling temp. Heating temp.
Cooling indicator light Heating indicator light
Press “MODE”
AUTO
AUTO
HEAT
MODE
COOL
HEAT
MODE
COOL
T I ME R ON T I M E R OFF CLOCK T I ME R ON T I M E R OFF CLOCK
4.2.3 Temperature selection
Choose display type of unit temperature, when the unit is on, press mode button ć/" and
choose Celsius degree or Fahrenheit degree freely.
9

4. USAGE
Celsius degree Fahrenheit degree
Press “”
AUTO
AUTO
HEAT
MODE
COOL
Press “”
HEAT
MODE
COOL
T I ME R ON T I M E R OFF CLOCK T I ME R ON T I M E R OFF CLOCK

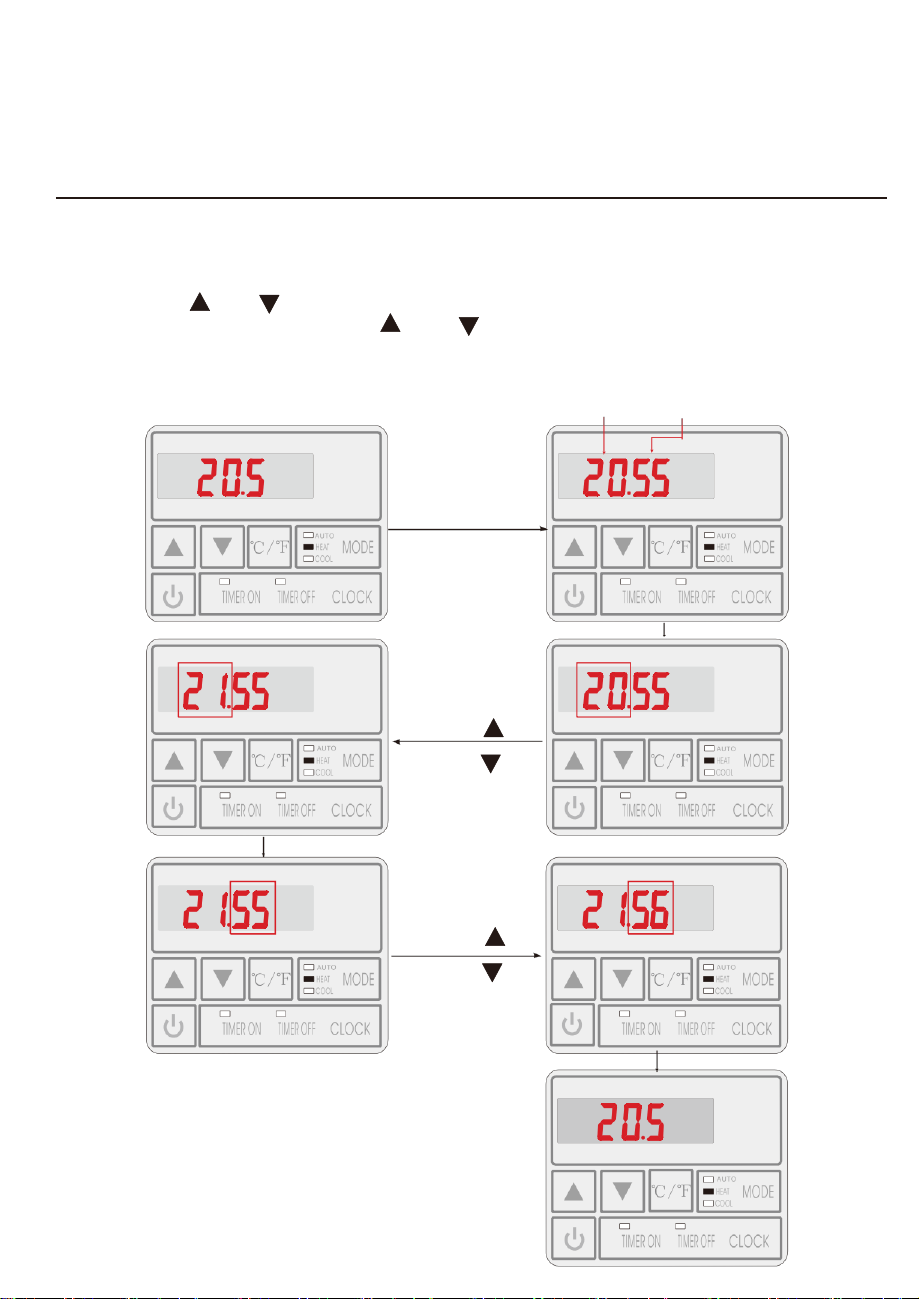

4.2.4 Setting temperature
In the main interface，press“ ”or“ ”and the current mode target-temperature
flashes, then press“ ”to increase the temp.value, or press“ ”to decrease it.
Press“MODE”can save setting parameter and back to the main interface；
Press“ ”can not save setting parameter but back to the main interface；
Attention ： If there is no operation for 5s ， system would remember parameter setting and
back to the main interface.
Running interface
Press “”Cooling set
or“”
System will save user's
setting and return back
to main interface if there
is no operation on
buttons in 5s.
Press “” Press “”
Press “MODE”
Save parameter
Cooling set
10

4. USAGE
4.2.5 Clock setting
In the main interface，press“CLOCK” twice，Hours start to flashing ，and press“ ” to increase
value or press“ ”to decrease value，and press“CLOCK”to setting；At the same time, minute start
to flashing ，press“ ”to increase value or press“ ”to decrease value，and press“ CLOCK”to
save setting.
Press“ ”can not save setting parameter and back to main interface.
Attention：If there is no operation for 5s system will remember parameter setting and back to the main
interface. Hours Minute
Press “CLOCK”
Press
“CLOCK”
Press “”
or “”
Press
“CLOCK”
Press “”
or “”
Press
“CLOCK”
11

4. USAGE
4.2.6 Timer setting
(1) You can set the timer of unit on
In the on or off state, Press "TIME ON" to enter timer-on interface，Press "TIME ON" and time-hour-bit
flashing，Press " " or " " to change the hours value，Press "TIME ON" to save hours，At the
same time, minutes-bit flashing，Press " " or " " to change the minute value，Press "TIME
ON" to save and exit. At this time, "TIME ON" LED light is on. ( The time-off setting is to press "TIME
OFF", the other operation is the same as timer-on )
For example：Hours Minute
Press “TIMER ON”
Press
“TIMER ON”
Press “”
or “”
Press
“TIMER ON”
Press “”
or “”
Press
“TIMER ON”
12

4. USAGE
(2) The setting of cancelling the timer
If there is no need to set timer on or timer off, the timer setting can be cancelled.At unit on or off state,
press “TIME On”to enter timer-on setting interface, then press “ ” to cancel the timer-on, at this timer,
the timer-on light turn off. (press “TIME Off”to enter timer-off setting interface, then press
“ ” to cancel the timer-off, at this timer, the timer-off light turn off.
Press “TIMER ON”
On Press “”
Off
4.2.7 Keyboard lock
To avoid mis-operations, please lock the controller after parameter setting.
At the main interface, pressing “”for 5 seconds,when hearing one sound , the keyboard is locked.；
When the keyboard is locked, pressing “”for 5 seconds，when hearing one sound, the keyboard
lock is open.。
NOTES: When the unit is in alarming state, the key lock can be removed automaticly.
13

4. USAGE

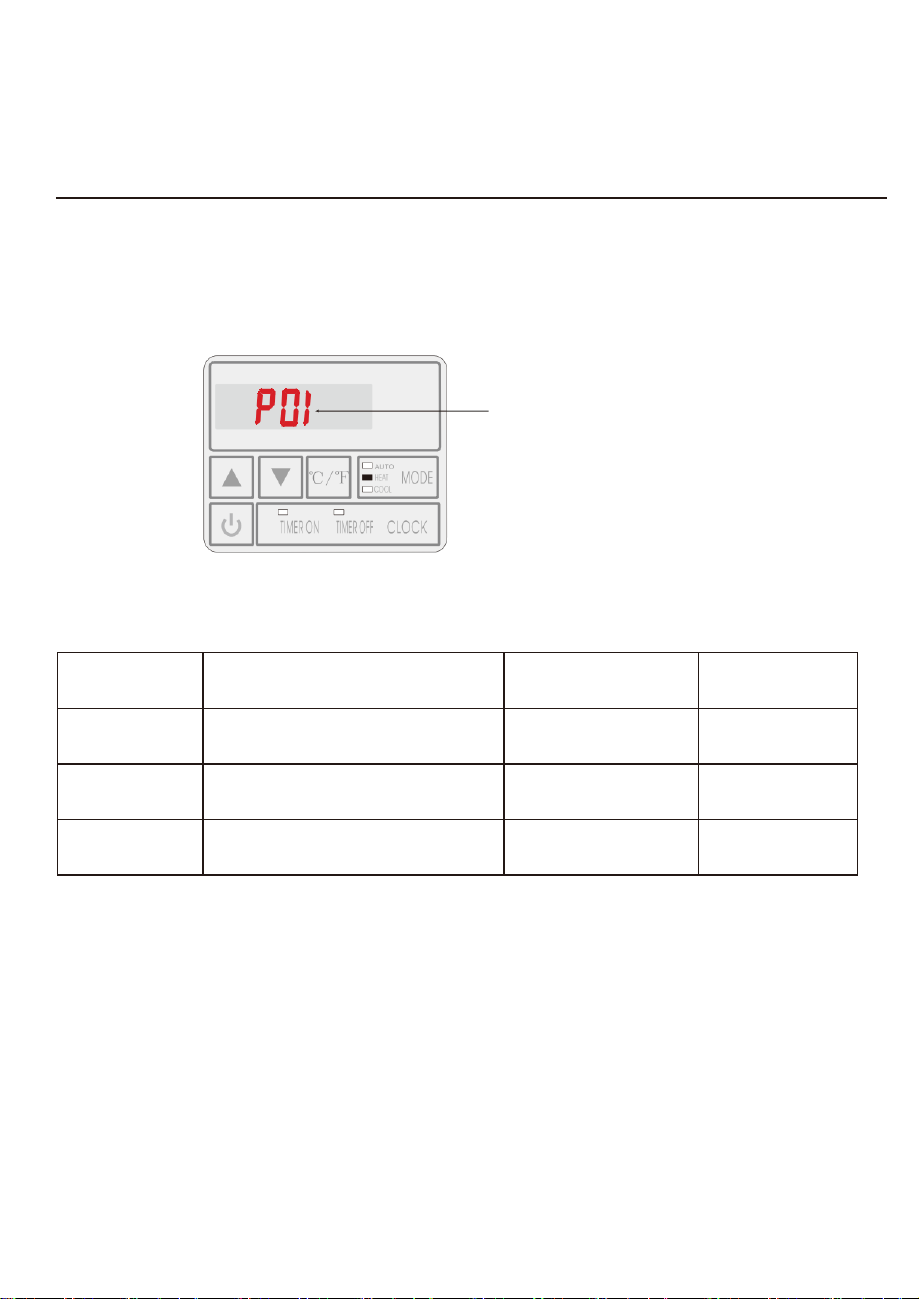

4.2.8 Malfunction display
There will be malfunction code showing on the controller screen when relative malfunction occurs. You
can refer to the malfunction table to find out the failure cause and solution. For example：
Water inlet temp. Sensor failure
4.3 Parameter table
Code
Meaning
Default
Remarks
r01
Set-point of cooling target temp.
27℃
Ajustable
r02
Set-point of heating target temp.
27℃
Ajustable
r03
Set-point of auto mode target temp.
27℃
Ajustable
14

4. USAGE
4.4 Malfunction Table
The common failure cause and solution.
15

5. MAINTENANCE AND INSPECTION
Check the water supply device and the release often. You should avoid the condition of no water or
air entering into system, as this will influence unit's performance and reliability. You should clear the
pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter.
The area around the unit should be dry, clean and well ventilated. Clean the side heating exchanger
regularly to maintain good heat exchange as conserve energy .
The operation pressure of the refrigerant system should only be serviced by a certified technician.
Check the power supply and cable connection often,.Should the unit begin to operate abnormally,
switch it off and contact the qualified technician.
Discharge all water in the water pump and water system ,so that freezing of the water in the pump or
water system does not occur. You should discharge the water at the bottom of water pump if the unit
will not be used for an extended period of time. You should check the unit thoroughly and fill the
system with water fully before using it for the first time after a prolonged period of no usage.
16

6.APPENDIX
T5AL250V
FUSE
12V NET GND DI01 GND DI02 GND DI03 GND DI04 GND DI05 GND DI06 GND
6.1 Connection of PCB illustration
OUT1 OUT2 CN19 CN6
OUT3
3 3
4 4
CN4
GND
AI06
GND
AI05
GND
OUT4 PC1001
OUT5
AC-N
CN1 CN2
AI04
GND
AI03
GND
AI02
GND
AI01
+5V
CN16
GND
CN3
Connections explanation：
No.
Symbol
Meaning
1
OUT1
Compressor of system1（220-230VAC）
2
OUT2
Water pump（220-230VAC）
3
OUT3
4way valve （220-230VAC）
4
OUT4
Fan motor（220-230VAC）
5
OUT5
No use
6
AC-N
Neutral wire
7
NET GND 12V
Wire controller
8
DI01 GND
IOn/Off Switch(input)
9
DI02 GND
Flow switch (input)
10
DI03 GND
Low pressure switch
11
DI04 GND
High pressure switch
12
DI05 GND
No use
13
DI06 GND
No use
14
AI01 GND
Suction temp.(input)
15
AI02 GND
TWater in temp.(input)
16
AI03 GND
Water out temp.(input)
17
AI04 GND
Coil Temp. ( input)
18
AI05 GND
Ambient temp.(input)
19
AI06 GND
Ajustable fan speed/Exhaust temperature
20
CN1
Primary transformer
21
CN2
Secondary transformer
22
CN6
No use
23
CN19
No use
24
5V CN16 GND
No use
17
