HDC Kurzweil KP90L User manual

KP90L

02
INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
Please connect the designated DC adaptor to an AC outlet
of the correct voltage.
Do not connect it to an AC outlet of voltage other than that
for which your instrument is intended.
Unplug the DC power adaptor when not using the instru-
ment, or during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the instru-
ment. If this happens, remove the electric plug from the
outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
CAUTION
The normal function of the product may be disturbed
by Strong Electro Magnetic Interference. If so, simply
reset the product to resume normal operation by
following the owner's manual. In case the function
could not resume, please use the product in other
location.

Contents
Panel & Display Description
Front Panel..................................................................4
Rear Panel...................................................................5
Display.........................................................................5
Setup
Power Supply...............................................................6
Connections
Connecting an MP3/CD Player....................................7
Connecting an Audio Equipment.................................7
Connecting a pair of Headphones...............................7
Connecting a Microphone............................................7
Connecting a Sustain Pedal........................................7
Connecting a Computer...............................................7

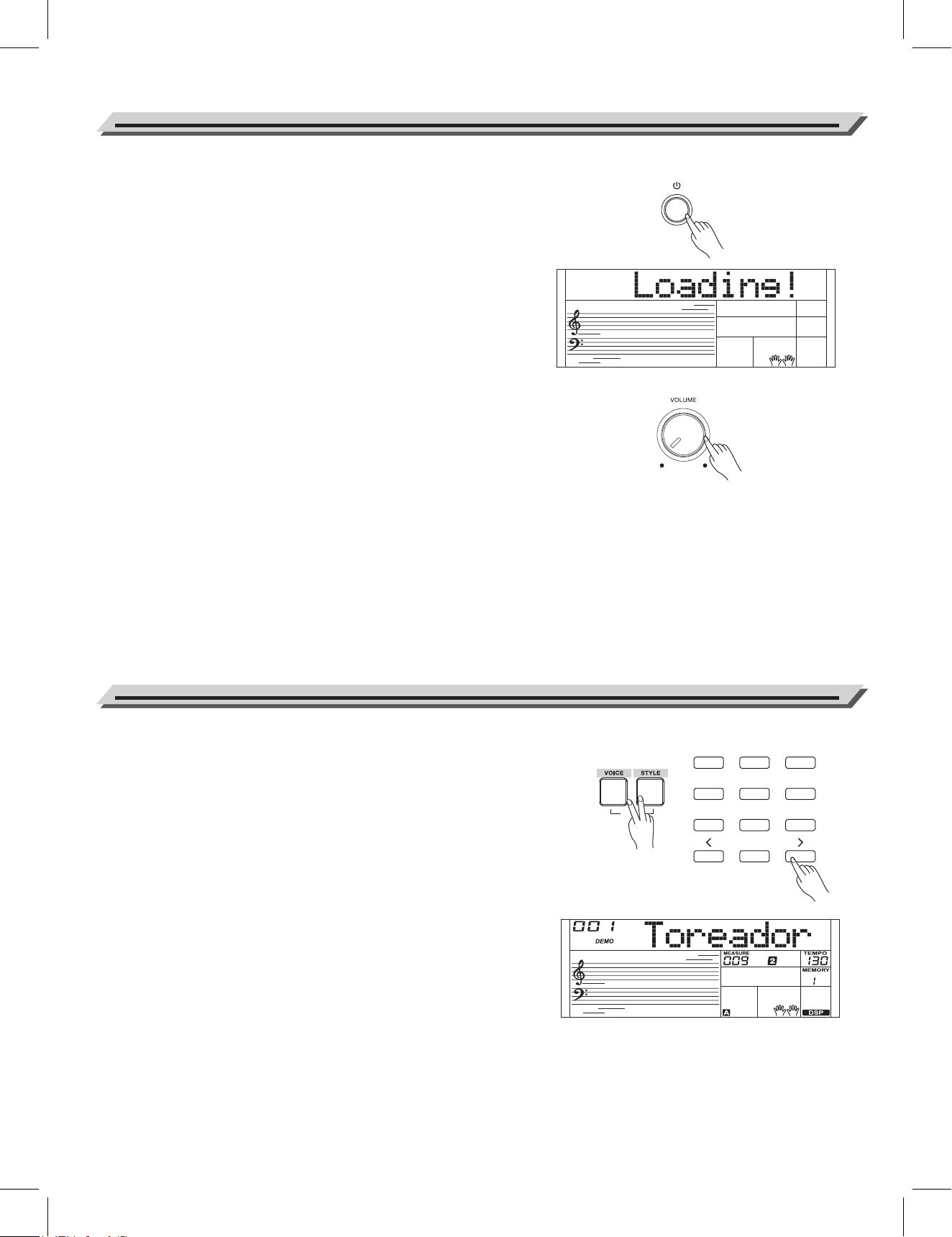

Power Switch and Master Volume...........................8
Playing the Demos....................................................8
Playing the Voices

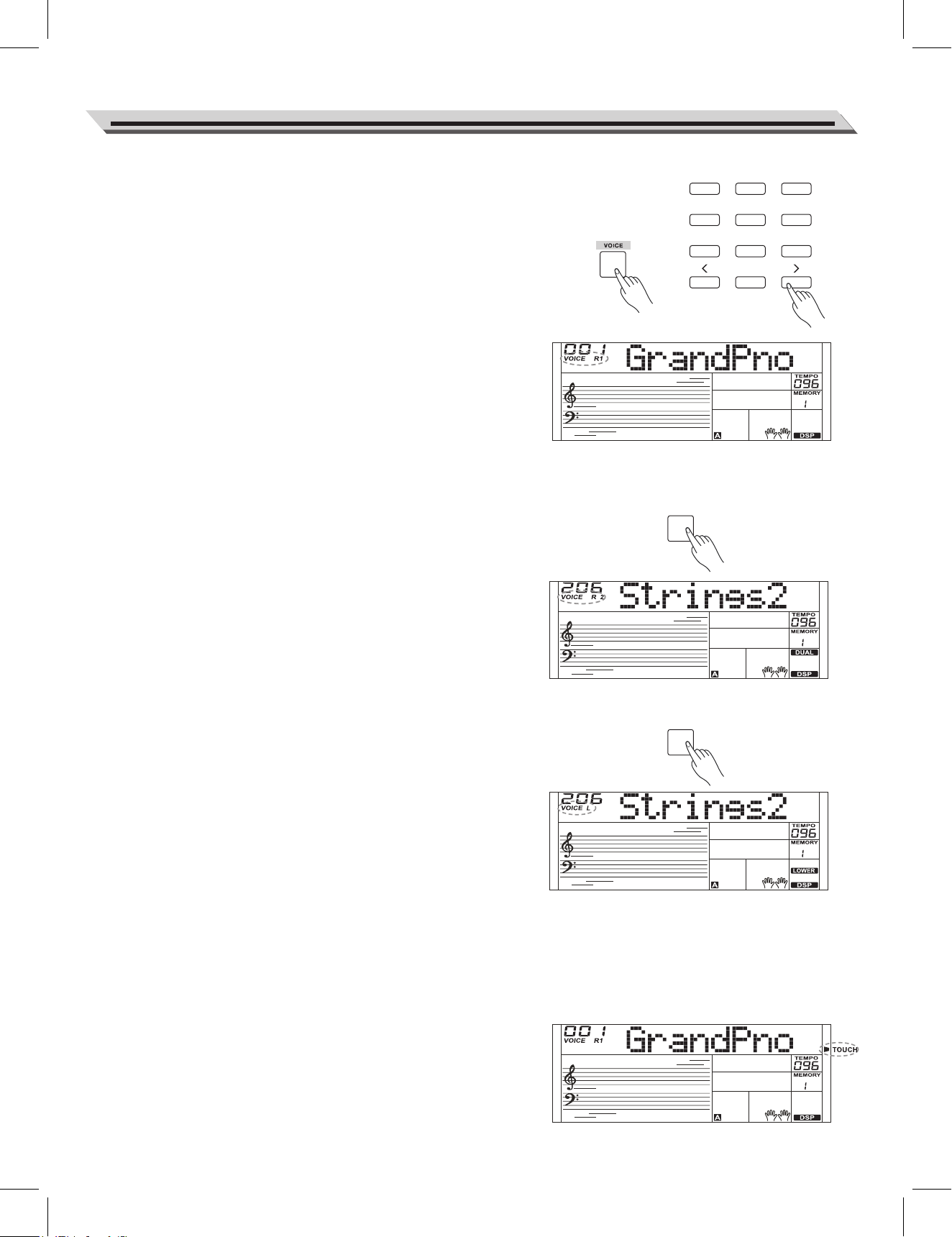

Playing a Voice............................................................9
Playing Two Voice Simultaneously-DUAL...................9
Playing Different Voices with Both hands-LOWER.......9
Touch...........................................................................9
Sustain.......................................................................10
DSP Effect.................................................................10

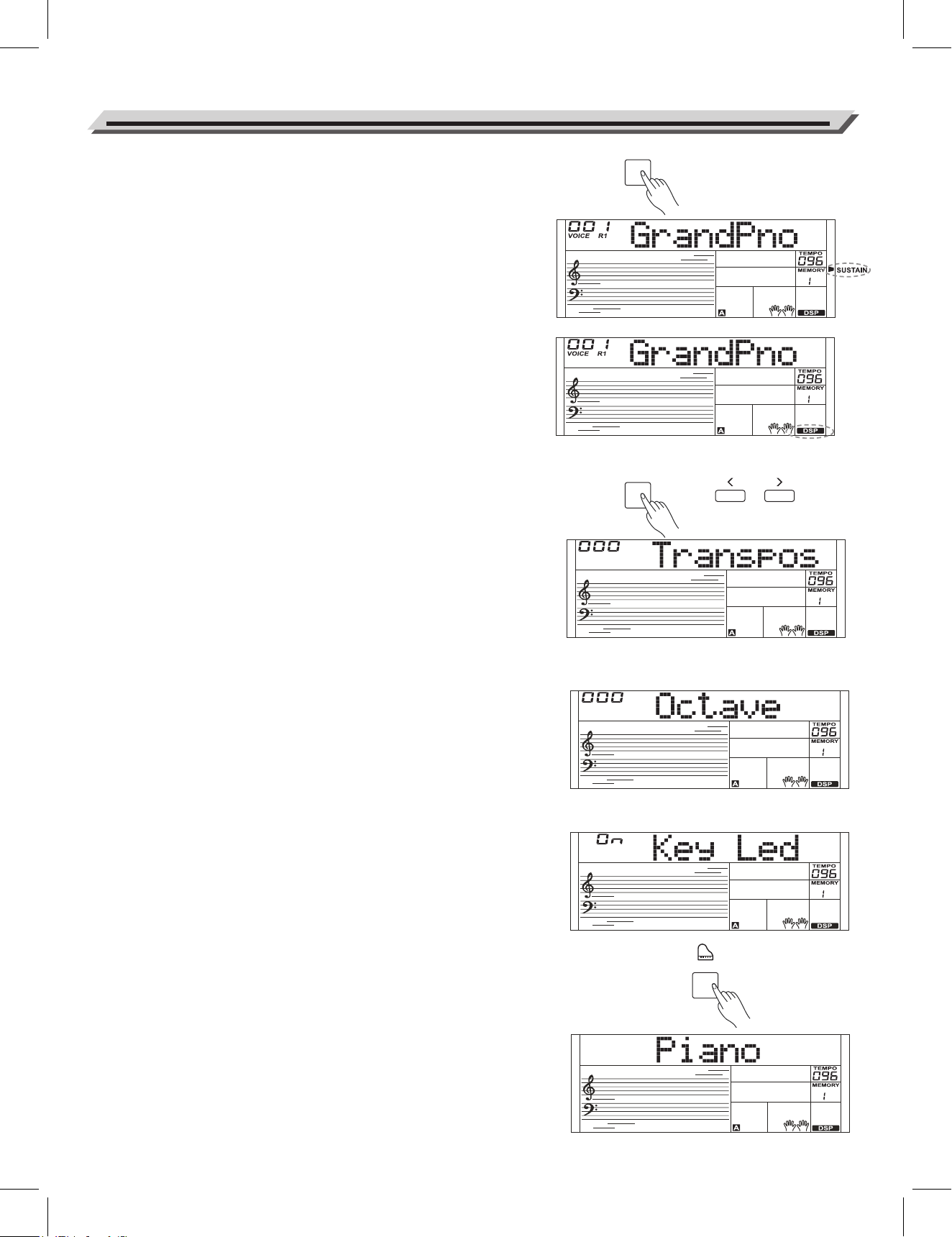

Transpose..................................................................10
Octave.......................................................................10
Key Light....................................................................10
Piano Mode...............................................................10
Auto Accompaniment

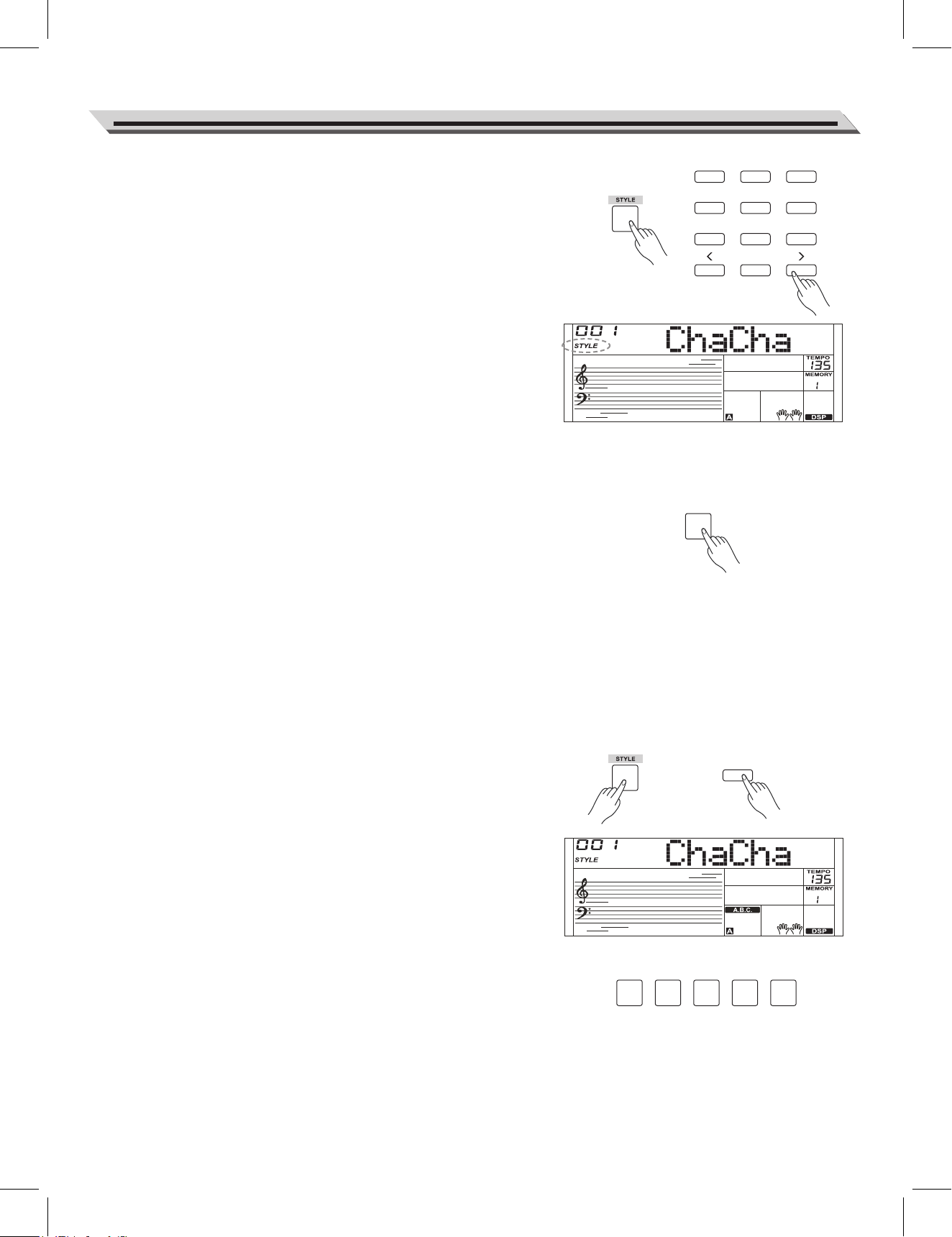

Selecting a Style........................................................11
Playing a Fill..............................................................11
Intro/Ending...............................................................11
Sync Start..................................................................12
Fade In/Out................................................................12
Accompaniment Volume............................................12
Tempo........................................................................12
Auto Bass Chord.......................................................13
Chord Basics.............................................................13
One Touch Setting.....................................................14
Metronome
Turning on the Metronome........................................14
Selecting the Beat.....................................................14
Arpeggiator..............................................................15
Mixer.........................................................................15
Function Menu
Tune...........................................................................16
Octave.......................................................................16
Split Point...................................................................16

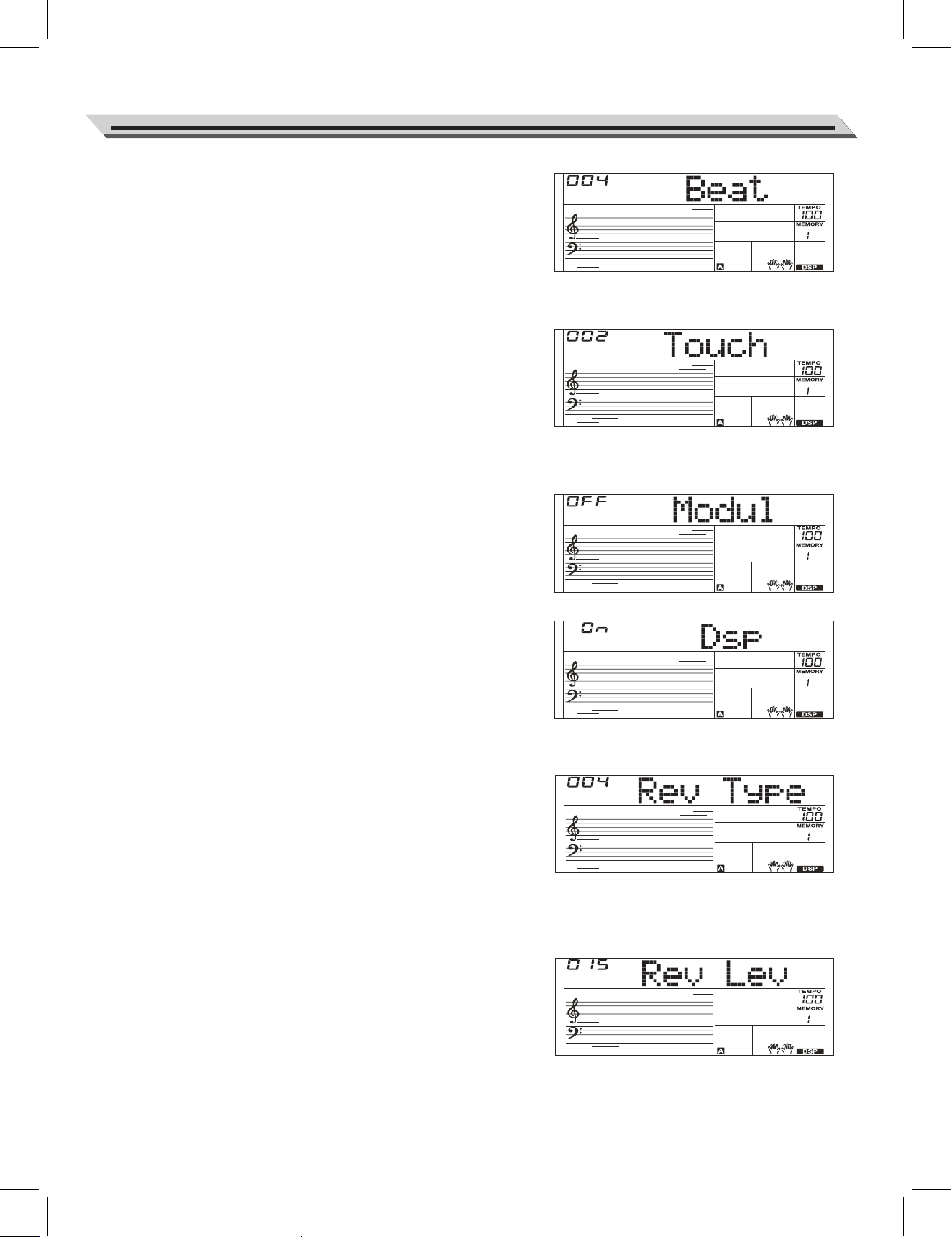

Beat Type...................................................................17
Touch.........................................................................17
Modulation.................................................................17
DSP............................................................................17
Reverb Type..............................................................17
Reverb Level.............................................................17

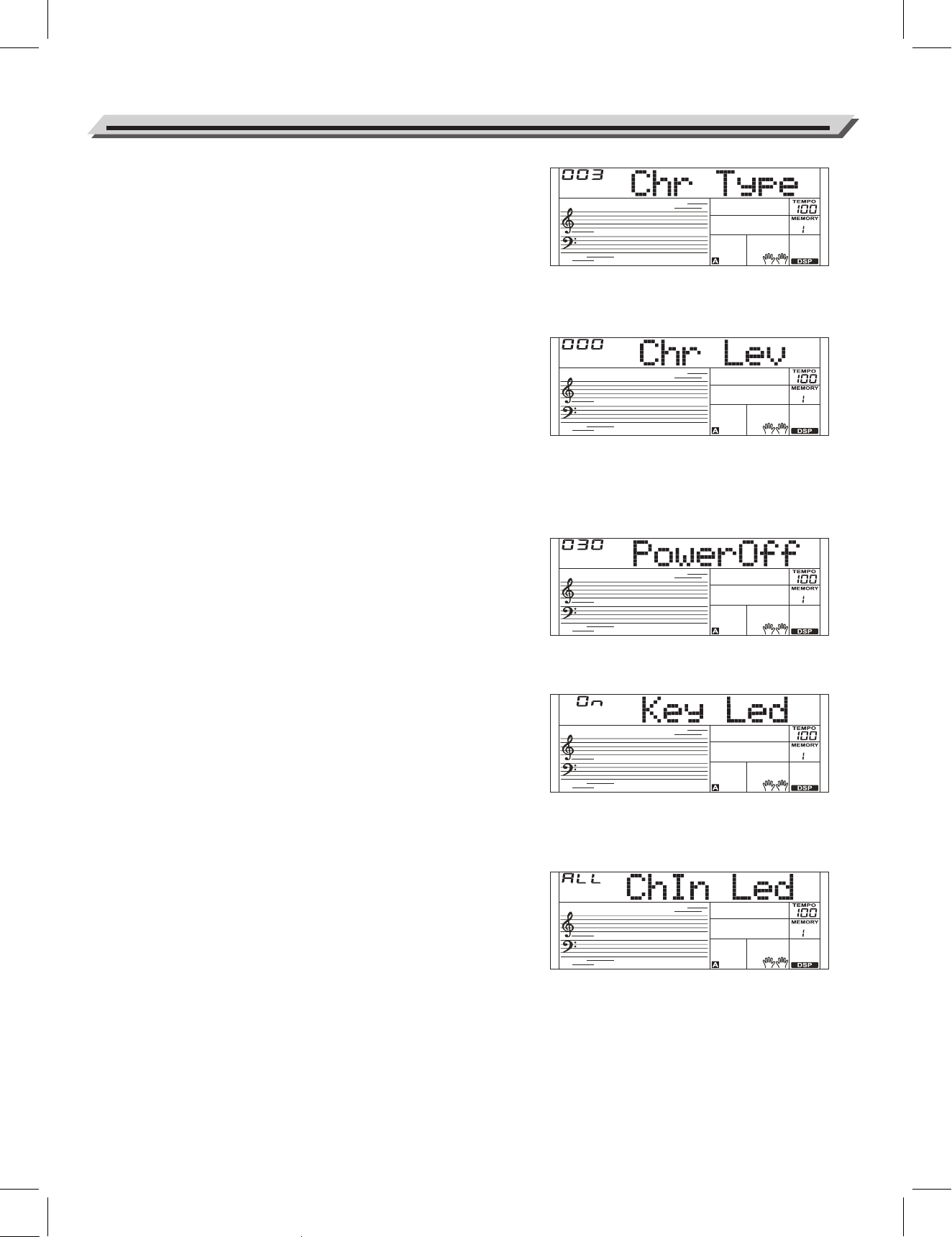

Chorus Type..............................................................18
Chorus Level.............................................................18
Auto Power Off..........................................................18
Key Light....................................................................18
Key Light Channel......................................................18
Register Memory.....................................................19
Selecting a Registration Bank....................................19
Chord Dictionary.....................................................19
Playing the Songs
Listening to the Songs...............................................20
Lesson Mode.............................................................20
Recording and Playback.........................................21
MIDI Function
What’s MIDI?.............................................................21
MIDI Connection........................................................21
Trouble Shooting.....................................................22
Specifications..........................................................22
Appendices
Voice List...................................................................23
Style List....................................................................28
Song List....................................................................30
MIDI Implementation Chart........................................32
03

DEMO
DEMO
VOLUME
START/
STOP
SYNC
START
INTRO/
ENDING FILL AFILL BMIXER FUNCTIONPIANOMETROLOWERSUSTAINDUAL
M2M1 M3 M4
O.T.S.
1 2 3
456
789
0
TEMPO
LESSON L / R FADE
CHORD DICT.
TRANSPOSE
CHORD
PLAY ARP.
BANK
RECORD
DEMO
DEMO
VOLUME
START/
STOP
SYNC
START
INTRO/
ENDING FILL AFILL BMIXER FUNCTIONPIANOMETROLOWERSUSTAINDUAL
M2M1 M3 M4
O.T.S.
1 2 3
456
789
0
TEMPO
LESSON L / R FADE
CHORD DICT.
TRANSPOSE
CHORD
PLAY ARP.
BANK
RECORD
Panel & Display Description

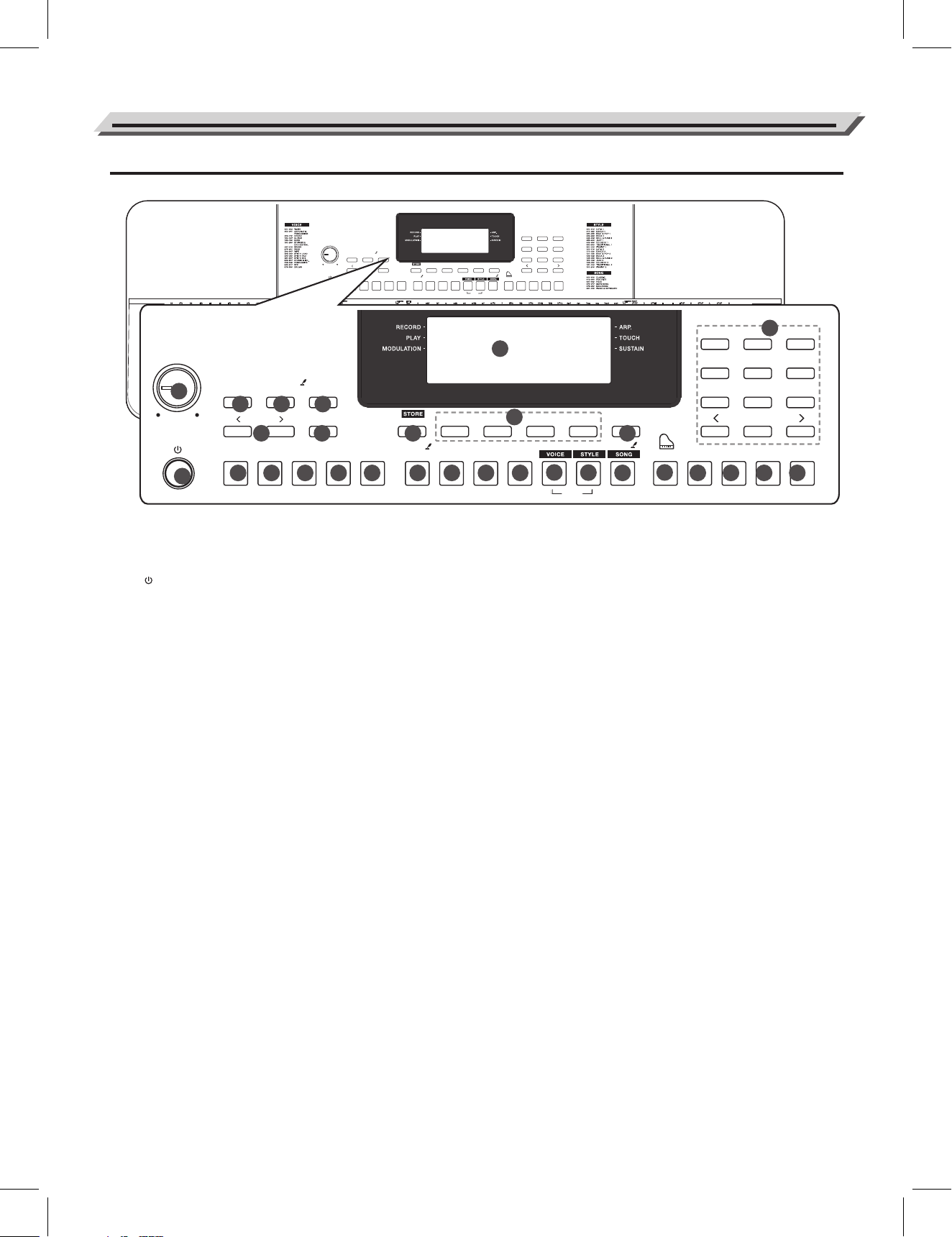

Front Panel
1. [VOLUME] Knob
Adjust the master volume.
2. [ ] Button
Turn the power on or off.
3. [LESSON] Button
Enter the lesson mode.
4. [L/R] Button
Choose to practice the left hand
or right hand part.
[CHORD DICT.] Button
Turn the chord dictionary function
on or off.
5. [FADE] Button
Turn the Fade In/Out function on
or off.
6. [TEMPO +/-] Buttons
Adjust the current tempo value.
7. [CHORD] Button
Enter the Chord Mode.
8. [INTRO/ENDING] Button
Play the Intro or Ending pattern.
9. [FILL A] Button
Play the fill-in pattern A.
10. [FILL B] Button
Play the fill-in pattern B.
11. [SYNC START] Button
Turn the Sync Start function on
or off.
12. [START/STOP] Button
Start or stop playing the style or
song.
13. [BANK] Button
Switch between memory banks.
[STORE] Button
Register the current panel settings.
14. [M1]~[M4] Buttons
Recall the registered panel settings.
15. [O.T.S.] Button
Turn the One Touch Setting
function on or off.
16. [RECORD] Button
Enter the Record Mode.
[PLAY] Button
Play back the recording.
17. [DUAL] Button
Turn the dual function on or off.
18. [LOWER] Button
Turn the lower function on or off.
19. [SUSTAIN] Button
Turn the sustain function on or off.
20. [VOICE] Button
Switch to Voice Mode.
Press [VOICE] and [STYLE] at the
same time to enter Demo Mode.
21. [STYLE] Button
Switch to Style Mode.
Press [VOICE] and [STYLE] at the
same time to enter Demo Mode.
22. [SONG] Button
Switch to Song Mode.
[ARP.] Button
Turn the Arpeggiator function on
or off.
23. [PIANO] Button
Turn the Piano Mode on or off.
24. [METRO] Button
Turn the metronome on or off.
25. [TRANSPOSE] Button
Adjust the Transpose value.
26. [MIXER] Button
Enter the Mixer menu.
27. [FUNCTION] Button
Enter the function menu.
28. [+]/[-] and Number Buttons
Set parameters value or select
the number.
29. LCD Display
Display all parameters and values
related to the current operation.
04
1
11
22012
13 15
16 17 18 19
5
67
8 9 10
43
21 22 24 272623 25
29
14
28

Panel & Display Description
Rear Panel
1. RECORD/PLAY/MODULATION
2. NUMBER
3. VOICE/STYLE/DEMO/SONG
4. CHARACTER
5. ARP/ TOUCH/SUSTAIN
6. RECORD
7. TREBLE CLEF
8. BASS CLEF
9. MEASURE
10. BEAT
11. TEMPO
12. CHORD
13. MEMORY/O.T.S.
14. A.B.C./FULL RANGE/FADE/A/B
15. NOTE INDICATION
16. LESSON
17. DUAL/LOWER/DSP
30. USB Jack
Connect to a computer.
31. SUSTAIN Jack
Connect a sustain pedal.
32. PHONES/OUTPUT Jack
Connect a pair of headphones or an
audio equipment.
33. AUX IN Jack
Connect an external audio source,
such as MP3 or CD player.
34. MIC Jack
Connect a microphone.
35. DC IN Jack
Connect the DC 12V power adapter.
05
Display
HARMONY
2
6
4
8
9
12
13
14
10
3
7
11
15
16 17
15
ARP.
SUSTAIN
30 31 32 33 34 35

Setup
This section contains information about setting up your instrument
and preparing to play. Please go through this section carefully
before turning the power on.
Power Supply
You can power the instrument either by batteries or by power adaptor.
Follow the instructions described below.
Using Batteries
The instrument needs 6 pieces of AA (NO.5) or equivalent alkaline
batteries for power supply.
1. Open the battery cabinet cover located on the bottom of the
instrument.
2. Insert the batteries, carefully following the polarity markings on the
cabinet.
3. Replace the cabinet cover. Make sure it locks firmly in place.
Notes:
1. Do not mix using any used and new batteries.
2. Always use the same types of batteries.
3. Remove the batteries when the instrument is not in use for a long
period of time.
Using Power Adaptor
1. Turn down the volume before connecting to power supply.
2. Connect the adaptor to the DC IN jack of the instrument.
3. Plug the adaptor into an AC outlet. This will automatically cut off
the battery power supply.
Notes:
1. In order to save energy, the instrument will automatically shut down
after 30 minutes if it is not used. (Please refer to Auto Power Off).
2. For your safety, please unplug the instrument when it is not in use
or during a thunderstorm.
06

Connecting an MP3/CD Player
The rear-panel AUX IN jack receives audio signals from an external
audio source such as an MP3 or a CD player.
Use an audio cable to connect the AUX IN jack of the instrument to
the OUTPUT jack of the MP3/CD player. The instrument’s speakers
will play the music transmitted from the external player, and you can
play along.
Connecting an Audio Equipment
The rear-panel PHONES/OUTPUT jack delivers the output of the
instrument to an external audio equipment such as a keyboard
amplifier, a stereo sound system, a mixing console, or a recorder.
Use an audio cable to connect the PHONES/OUTPUT jack of the
instrument to the INPUT jack of the external audio equipment.
Notes:
1. Turn off the power to all units before connecting or disconnecting
the external equipment.
2. To avoid damaging the speakers, please set the master volume
to minimum level before turning on the power.
Connecting a pair of Headphones
A standard pair of stereo headphones can be connected to the
PHONES/OUTPUT jack for private practice or late-night playing.
The internal stereo speaker system is automatically shut off when a
pair of head phones is plugged into this jack.
Note:
Do not listen with the headphones at high volume for long periods
of time. Doing so may cause hearing loss.
Connecting a Microphone
You can plug a microphone to the MIC jack to sing along with your
keyboard performance or song playback.
1. Set the master volume to minimum level before connecting or
disconnecting a microphone.
2. Plug a microphone into the MIC jack.
3. Adjust the master volume to an appropriate level.
Connecting a Sustain Pedal
An optional footswitch can be plugged into the sustain jack and be
used to switch sustain on or off. Simply by pressing the pedal, you
will have a natural sustain as you play.
Connecting a Computer
Use a standard USB cable to connect the USB jack of the instru-
ment to the USB port of a computer. You can transmit MIDI
messages between the instrument and the computer.
Notes:
1. Do not set the USB device to be input and output simultaneously
when setting the software on the computer. Otherwise, the sound
will be overlapped when playing the keyboard.
2. We recommend using a USB2.0 interface to connect the
instrument to computer.
Connections
07

Power Switch
Before you switch your instrument on, please turn down the volume
of instrument and the connected audio equipment first.
1. Make sure the instrument is properly connected to power supply.
2. Press POWER SWITCH, the LCD screen is lit, and displays
“Loading!”, indicating the instrument is powered on.
Master Volume
Rotate the [VOLUME] knob clockwise to increase the master
volume or counter-clockwise to decrease it. You can use the knob
to set the desired volume level.
Note:
If the speakers do not produce sound, please check if the master
volume is set too low or if headphones are plugged into the
PHONES jack.
Power Switch and Master Volume
08
The instrument features a variety of demo songs.
1. Press the [STYLE] and [VOICE] buttons simultaneously to start
playing all demo songs in a loop. The LCD will display the current
demo number and name.
2. Select a demo song.
Use the number keys, the [+]/[-] buttons to select the desired
demo song.
3. Press the [STYLE] and [VOICE] buttons simultaneously again or
press the [START/STOP] button to stop playing and exit the demo
mode.
Note:
During demo playback, only the following buttons will work:
[START/STOP], [TEMPO -]/[TEMPO +], [+]/[-], the Number buttons,
[VOLUME] and [POWER].
Playing the Demos
DEMO
123
456
789
0

DUAL
The instrument features a variety of exceptionally realistic voices. Please
refer to Voice List.
Playing a Voice
1. Press the [VOICE] button.
Enter the VOICE mode. LCD shows “VOICE R1”, the voice number and
the voice name.
2. Select a voice.
Use the number keys, the [+]/[-] buttons to select the voice you want to
play.
3. Play the voice.
Play the keyboard and enjoy the beautiful voice.
Note:
When the DUAL and LOWER function is on, you can press [VOICE] button
repeatedly to choose the voice source. The corresponding LCD indicator
will highlight between R1, R2, and L.
Playing Two Voice Simultaneously-DUAL
1. Press the [DUAL] button to turn on the dual function. LCD shows
“VOICE R2”, the dual voice number and name.
2. Use the number keys, the [+]/[-] buttons to select a voice for VOICE R2.
3. Play the keyboard, you will hear two different voices layered together,
just like two different instruments being played at the same time.
4. Press the [DUAL] button again to turn off the dual function.
Playing Different Voices with Both hands-
LOWER
The Lower function splits the keyboard into two areas so as to create
different voices for each of your hands. The left hand voice is the lower
voice “L” .
1. In idle mode, press the [LOWER] button to turn the lower function on.
The LCD displays the left hand voice name and number, and the
indicator “VOICE L” and “LOWER”.
2. Use the number keys, the [+]/[-] buttons to select a voice for VOICE L.
3. Play the keyboard with both hands, and you will hear two different
voices.
4. Press the [LOWER] button again to turn off the lower function.
Split Point
The key on the keyboard that separates voice L and voice R1/R2 is called
the “split point”. The default split point is at F#3 (19) , however you can
assign it to any other key. Refer to the Function Menu.
Touch
The keyboard is equipped with a touch response feature that lets you
dynamically and expressively controls the level of the voice with your
playing strength – just as on an acoustic instrument. Please refer to the
function menu to adjust the touch level.
Playing the Voices
09
123
456
789
0
LOWER

Sustain
When the Sustain feature is ON, all notes played on the keyboard will
have a longer sustain. Press the [SUSTAIN] button to turn sustain on or
off.
Note:
When using a sustain pedal, you can produce a much stronger and more
natural sustain effect than by using the [SUSTAIN] button.
DSP Effect
The DSP simulates sounds in real environment. With the DSP effects,
you can add ambiance and depth to your performance in a variety of
ways.
The function is turned on by default. You can refer to the function menu
to turn the DSP effect on or off.
Transpose
Transpose function allows the overall pitch of the instrument to be
transposed up or down by one octave in semitone steps.
1. the [TRANSPOSE] button to enter transpose menu. The LCD shows
the current transpose value.
2. Use [+]/ [-] buttons to adjust the transpose value.
3. Press the [+] and [-] buttons simultaneously to reset the transposition
to 0.
Octave
The octave function will shift the pitch of the specified voice layer up or
down in the step of an octave.
You can refer to the function menu to adjust the octave value.
Note:
After adjusting the octave, notes in the highest and lowest keyboard
range may not sound normally.
Key Light
When playing the keyboard or playing a song, the keys on the keyboard
will blink along.
You can refer to the function menu to turn the key light on or off.
Piano mode
This function is to set the voice of the entire keyboard to piano instantly.
1. Press [PIANO] button to enter or exit piano mode.
2. In piano mode, you can play the accompaniment as in the other
modes, but it plays only the rhythm part.
Note:
In piano mode, the A.B.C. is automatically turned off.
Playing Voices
10
TRANSPOSE
SUSTAIN
PIANO

SYNC
START
The auto accompaniment function puts a full backing band at your
fingertips. All you have to do is to play chords with your left hand, and
the accompaniment will automatically play along, instantly following the
chords you play. With auto accompaniment, even a solo performer can
enjoy playing with the backing of an entire band or orchestra.
The instrument features a variety of styles, please refer to the Style
List. Try selecting the different styles and enjoy the auto accompani-
ment.
Selecting a Style
1. Press the [STYLE] button.
Enter the STYLE mode. LCD shows “STYLE”, the style number and
the style name.
2. Use the number keys, the [+]/[-] buttons to select the style you want
to play.
3. Press the [START/STOP] button to start the rhythm tracks of the
auto accompaniment.
Sync Start
When style stops, press the [SYNC START] button to turn on the
function. The beats on LCD will flash along with the tempo.
1. In Sycn Start mode, if the A.B.C. function is turned off, you can press
a key on the keyboard to start playing auto accompaniment of the
rhythm track.
2. In Sycn Start mode, if the A.B.C. function is in use, you can press a
key on the chord range of the keyboard to start playing auto
accompaniment of all tracks.
Intro/Ending
The intro is an opening section of a song. When the intro pattern
finished, the system will automatically shift to the main section.
Ending is the ending section of a song. When the ending is finished,
accompaniment automatically stops.The length of the ending differs
depending on the selected style.
1. Press the [STYLE] button.
2. Select a style.
3. Turn the Chord Mode on.
4. Turn SYNC START on.
5. Press the [INTRO/ENDING], the “A” or “B” flashes on LCD, the style
is ready to play.
6. It will start the accompaniment as soon as you start playing in Chord
section. When the playback of the intro is finished, it automatically
switched to main A or B section.
7. Press the [INTRO/ENDING] again to play the ending section.
When the ending is finished, the auto accompaniment automatically
stops.
Note:
If you press [FILL A] or [FILL B] before the ending is finished, it will play
a fill-in then switch to the corresponding main section.
Auto Accompaniment
11
123
456
789
0
CHORD
START/
STOP
SYNC
START
INTRO/
ENDING
FILL A FILL B

TEMPO
Playing a Fill
Auto fill in function automatically adds a fill to your performance. When
the fill-in is finished,accompaniment shifts to the Main section (A,B).
Note:
If you keep pressing [FILL A]/[FILL B] buttons during style playback,
the fill-in pattern will repeat playing until the button is released.
Playback will then shift to the related MAIN section.
When style stops, press the [FILL A]/[FILL B] buttons to select a MAIN
section. “A or B” will highlight on LCD.
Fade In/Out
Fade In
Starting the style with fade in produces a smooth beginning, the
volume increases from low to high. Press the [FADE] button when
Style is stopped，LCD will show FADE. Press the [START/STOP]
button to start Style playing. LCD will show◢FADE.
The Accompaniment Volume will change from 0 to the set value in
about 8 seconds. The keyboard volume will change from 0 to default
value at the same time.
Fade Out
Stopping the style with fade out produces a smooth ending, the
volume decreases from high to low. Press the [FADE] button during
Style playing. LCD will show FADE◣.
The Accompaniment Volume will change from the set value to 0 in
about 8 seconds, and the style stops.
Accompaniment Volume
The function adjusts the accompaniment volume, so as to keep an
appropriate balance between the accompaniment volume and the
voice volume.
Press repeatedly the [MIXER] button to enter the mixer menu, and
when the LCD displays "Accomp", you can adjust the volume level
over the range of 0-32. LCD will show the current volume level.
Notes:
In the mixer menu, press both [-] and [+] buttons simultaneously to
mute the accompaniment part. LCD shows “OFF Accomp”. Press both
buttons again to unmute the accompaniment volume.
Tempo
Each style of the instrument has been programmed with a default
tempo; however, you can change it as needed.
1. Use the [TEMPO -]/[TEMPO +] buttons to change the tempo. The
value ranges from 30 to 280.
2. Hold down the [TEMPO -]/[TEMPO +] buttons to change the tempo
quickly.
3. Press the [TEMPO+] and [TEMPO-] buttons simultaneously to
restore the default tempo setting.
Auto Accompaniment
12
FILL A FILL B
FADE
MIXER

CHORD
Auto Bass Chord
1. Press the [CHORD] button, the LCD will display the “A.B.C.”
indicator. The left hand section of the keyboard is the chord section.
You can play different chords in the chord section.
Press [CHORD] button again to enter Full Range mode. The “FULL
RANGE” indicator will be lit. You can play chords over the entire
keyboard in multi-fingering.
2. Play chords in the chord section, and the LCD will display the
corresponding chord names.
3. Split Point Setting
Please refer to the function menu to set the split point. The split
point and the keys to its left all belong to the chord section.
Auto Accompaniment
13
Chord Basics
A chord, in music, is any harmonic set of three or more notes that is
heard as if sounding simultaneously. The most frequently encountered
chords are triads. A triad is a set of three notes that can be stacked in
thirds. When stacked in thirds, the triad's members, from lowest
pitched tone to highest, are called: the Root, the Third, and the Fifth.
Triad Type
There are following basic triad types:
Chord Inversion
We define this chord its root is not in the bass (i.e., is not the lowest
note) as an inversion chord. When the root is in the bass, we call the
chord: root-position chord. If we put the Third and Fifth in the root
position, then it forms “Inversion”, we call this chord “Inversion Chord”.
See the following major triad and its inverted chord.
Chord Name
The chord name contains two parts content: Chord root and Chord type.
Single Finger
Single finger type not only can detect single finger but also can detect
multi finger. And the single finger makes it easily to play chords through
only one, two or three keys. Including major, minor, seventh, and minor
seventh chord. Refer to relevant picture on the right for details.
Major Triad
Minor Triad
Augmented
Triad
Diminished
Triad
A root with a major third added above and a perfect fifth
will consist as a “Major Triad”.
A root with a minor third added above and a perfect fifth
will consist as a “Minor Triad”.
A root with a major third added above and an
augmented fifth will consist as an “Augmented Triad”.
A root with a minor third added above and a diminished
fifth will consist as a “Diminished Triad”.

TEMPO
O.T.S.
Auto Accompaniment
14
Metronome
Multi-finger
Multi-finger allows you to play chords in normal fingering. Try playing
the 32 chord types in C scale as listed on the right.
Note:
In full range mode, the entire keyboard will only recognize chords
played in normal fingering.
One Touch Setting
When One Touch Setting is switched on, you can instantly recall all
auto accompaniment related settings including voices selection and
digital effects simply with a single touch of a button.
1. Press the [O.T.S.] button to turns on the One Touch Setting for
current style. LCD shows “O.T.S.”.
2. Press one of the [M1]-[M4] buttons, various panel settings (such as
voice, effect, etc.) that match the selected style can be instantly
recalled.
3. A.B.C. is automatically turned on during O.T.S. mode.
4. Press the [O.T.S.] button again to quit One Touch Setting mode,
the “O.T.S.” indicator will disappear.
Note:
In O.T.S. mode, the memory is not selectable.
Turning on the Metronome
Press the [METRO] button to turn on the metronome.
Press the [METRO] button again to turn off the metronome.
Press the [TEMPO+] / [TEMPO-] buttons to change the tempo of the
metronome.
Selecting the Beat
You can set the beat type in the function menu, please refer to the
function menu for details.
If you turn on the metronome during style playback, the metronome
sound will start from the next beat and its beat will match the current
style. When style stops, you can change the metronome beat as
desired.
The metronome is not usable in song mode.
METRO

15
The Mixer allows you to adjust separately the volume of different tracks.
1. Press the [MIXER] button to enter the mixer menu, the LCD displays
the current mixer track.
2. Repeatedly press the [MIXER] button to select the track you want.
Then use [+]/[-] buttons to change the parameters.
The option and parameters are as follows:
Note:
It will exit the mixer menu if there is no operation in 3 seconds. Pressing
[+] and [-] buttons at the same time will mute the selected track, the
LCD will display “OFF”. Press the two buttons at the same time again to
unmute the track.
Mixer
Arpeggiator
The arpeggiator function will automatically generate arpeggios. Simply
play a chord with your left hand, and the instrument will play a preset
arpeggio pattern to produce a beautiful melody.
Turn the Arpeggiator on or off
Press and hold the [ARP.] button for 2 seconds to turn on the function.
The corresponding indicator will be lit. Press and hold the [ARP.] button
for 2 seconds again to turn off the function. The corresponding indicator
will light off.
Note:
Each voice is matched with a preset arpeggio pattern, so when you
change the voice, the default arpeggio pattern will change as well.
The Split Point of Arpeggiator
When you turn on the arpeggiator, the keyboard will be split into two
areas. Play chords in the left hand area, and melody in the right hand
area. The default split point is the same as in the lower function: F#3
(19).
Options
Adjust the Accomp volume
Adjust the Rhythm track volume
Adjust the Bass track volume
Adjust the Chord 1 track volume
Adjust the Chord 2 track volume
Adjust the Chord 3 track volume
Adjust the Upper 1 track volume
Adjust the Upper 2 track volume
Adjust the Lower track volume
LCD Display
XXX Accomp
XXX Rhythm_m
XXX Bass
XXX Chord1
XXX Chord2
XXX Chord3
XXX Upper 1
XXX Upper 2
XXX Lower
Range
0-32
0-32
0-32
0-32
0-32
0-32
0-32
0-32
0-32
ARP.
MIXER

FUNCTION
Press the [FUNCTION] button to enter the function menu. The LCD
displays the current parameter item.
Press repeatedly the [FUNCTION] button to select an item, then use
the [+]/ [-] buttons to change the value of the selected item.
Parameter items and the value range in the function menu:
Note:
It will exit the function menu if there is no operation in 3 seconds.
Tune
The function adjusts the pitch of the entire keyboard in a 2-cent increment.
1. Repeatedly press the [FUNCTION] button to select the tune menu.
The LCD displays “Tune”.
Use the [+] / [-] buttons to change the value over the range of -50 - +50.
2. Pressing [+] and [-] buttons at the same time will reset the tune value
to default “000”.
The setting applies to both accompaniment and the voice.
Octave
1. Repeatedly press the [FUNCTION] button to select the octave menu.
The LCD displays “Octave”.
Use the [+] / [-] buttons to change the value over the range of -2 - +2.
2. Pressing [+] and [-] buttons at the same time will reset the octave value
to default “000”.
Split Point
The Point on the keyboard that separates voice L and voice R1/R2 is
called the "split point". Left hand section controls the auto bass chord
accompaniment when the A.B.C. function is on, or it plays the lower voices
when the A.B.C. function is off.
1. Repeatedly press the [FUNCTION] button to select split point menu.
The LCD displays “Split Pt”. Use [+] / [-] buttons to change Split Point.
The range of Split Point is: 1~61.
2. Press [+] / [-] buttons simultaneously will set the split point value to its
default setting: F#3 (19).
16
Parameter Item
Tune
Octave
Split Point
Beat Type
Touch
Modulation
DSP
Reverb Type
Reverb Level
Chorus Type
Chorus Level
Auto Power Off
Key Light
Key Light Channel
LCD Display
XXX Tune
XXX Octave
XXX Split Pt
XXX Beat
XXX Touch
XXX Modul
XXX Dsp
XXX Rev Type
XXX Rev Lev
XXX Chr Type
XXX Chr Lev
XXX PowerOff
XXX Key Led
XXX ChIn Led
Range
-50 - +50
-2 - +2
1 - 61
0, 2 - 9
OFF, 1 - 3
On, OFF
On, OFF
1 - 10
0 - 32
1 - 8
0 - 32
OFF, 30, 60
On, OFF
ALL, 1 - 16
Function Menu

Beat Type
1. Repeatedly press the [FUNCTION] button to select the beat menu.
The LCD displays “Beat”.
Use the [+ ]/ [-] buttons to change the beat type.
2. Pressing [+] and [-] buttons at the same time will reset the beat type
to default “004”.
Touch
1. Repeatedly press the [FUNCTION] button to select the touch menu.
The LCD displays “Touch”.
Use the [+ ]/ [-] buttons to change the touch level.
2. Pressing [+] and [-] buttons at the same time will reset the touch level
to default “002”.
Modulation
Repeatedly press the [FUNCTION] button to select the modulation menu.
The LCD displays “Modul”.
Use the [+] / [-] buttons to switch modulation on or off.
Note:
Modulation is not available for percussive voices.
DSP
Repeatedly press the [FUNCTION] button to select the DSP menu. The
LCD displays “Dsp”.
Use the [+] / [-] buttons to switch DSP on or off.
Reverb Type
1. Repeatedly press the [FUNCTION] button to select the reverb type
menu. The LCD displays “Rev Type”.
Use the [+]/ [-] button to change the type value.
2. Pressing [+] and [-] buttons at the same time will reset the reverb type
to default “004”.
Reverb Level
1. Repeatedly press the [FUNCTION] button to select the reverb level
menu. The LCD displays “Rev Lev”.
Use the [+]/ [-] button to adjust the level over the range of 0-32.
2. Pressing [+] and [-] buttons at the same time will reset the reverb level
to default.
Function Menu
17

Chorus Type
1. Repeatedly press the [FUNCTION] button to select the chorus type
menu. The LCD displays “Chr Type”.
Use the [+]/ [-] button to change the type value.
2. Pressing [+] and [-] buttons at the same time will reset the chorus type
to default “003”.
Chorus Level
1. Repeatedly press the [FUNCTION] button to select the chorus level
menu. The LCD displays “Chr Lev”.
Use the [+]/ [-] button to adjust the level over the range of 0-32.
2. Pressing [+] and [-] buttons at the same time will reset the chorus level
to default.
Auto Power Off
1. Repeatedly press the [FUNCTION] button to select the power off
menu. The LCD displays “PowerOff”.
Use the [+]/ [-] button to change the time setting.
2. Pressing [+] and [-] buttons at the same time will reset the setting to
default “030” (30 min).
Key Light
Repeatedly press the [FUNCTION] button to select the key light menu.
The LCD displays “Key Led”.
Use the [+] / [-] buttons to switch key light on or off.
Key Light Channel
Repeatedly press the [FUNCTION] button to select the ChIn Led menu.
The LCD displays “ChIn Led”.
Use the [+] / [-] buttons to set the channel that will receive key light
message, setting range: all, 1-16.
Function Menu
18

L / R
CHORD DICT.
The Registration Memory feature allows you to save virtually all panel
settings to a registration memory, and you can instantly recall them by
pressing a single button.
The instrument has 8 memory banks, and each bank has 4 memories
(M1-M4).
1. Hold down [STORE] button , then press one of the memory buttons
[M1] - [M4] to save the panel settings. The LCD will display “Mem
Stor” and the new settings will replace the previous memory data.
2. Press one of the memory buttons [M1] - [M4] to recall the panel
settings saved to that memory.
3. You can save following parameters to the memory:
Voice Parameter: voice, dual, DSP, mixer.
Accompaniment Parameter: style, tempo, and chord no/off,
accompaniment sections.
Function Parameter: touch, some parameters in the function menu.
Note:
Registration memory cannot be recalled when the One Touch Setting
function is in use. The registration memory will reset to default settings
after power off.
Selecting a Registration Bank
1. Press the [BANK] button. The LCD will display the bank number.
2. Repeatedly press the [BANK] button to select a bank over the range
of 1-8.
If you know the name of a chord but don't know how to play it, you can
use the Chord Dictionary function.
1. Press and hold the [CHORD DICT.] button for 2 seconds to enter this
mode. The LCD displays the Chord Type and Chord Notes.
2. The keys above C4 (including C4) are used to assign the Chord Type,
and the keys above C6 (including C6) are used to assign the Chord
Root. When the Chord Type and Chord Root are confirmed, the LCD
will display the Chord and the staff notation.
3. When you play the correct chord on the chord range of the keyboard,
an applause sound will be heard.
4. Press and hold the [CHORD DICT.] button for 2 seconds again to exit
this mode.
19
Register Memory
Chord Dictionary
M2M1 M3 M4BANK
BANK

The instrument has a variety of songs (Please refer to the Song List).
Each song can be practiced in LESSON mode.
Listening to the Songs
1. Press the [SONG] button to enter the song mode. It will play all
songs circularly. Press the [SONG] button again, it will stop the song.
2. In song mode, use the number keys and [+]/[-] buttons to select a
song.
3. During song playback, you can press the [START/STOP] button to
stop the song, press it again to play the current song repeatedly.
4. Use the [TEMPO+]/[TEMPO-] buttons to change the tempo of the
current song.
5. When the song is stopped, press [STYLE], [VOICE], [DUAL],
[M1] - [M4] to exit the song mode.
Lesson Mode
The instrument presets 3 different ways to practice a song, as specified
in Lesson 1, Lesson 2 and Lesson3. The instrument will grade your
practice when you finish a lesson, helping you to keep track of your
progress.
1. When song playback is stopped, press the [LESSON] button to enter
the lesson mode or select a lesson to practice.
2. Press the [START/STOP] button to start the lesson. The LCD displays
the note that needs to be played.
3. Press the [START/STOP] button again to stop the lesson.
4. In lesson mode, press repeatedly the [L/R] button to select to practice
the left hand part, the right hand part, or both hands.
5. You can select to practice one of the three lessons. It will grade your
practice when you finish a lesson.
In lesson 1, you will learn to practice at the correct time value. It doesn't
matter even you play the wrong notes.
In lesson 2, you will learn to play the correct notes. The lesson will
continue only when you have played correctly the note displayed on
LCD.
In lesson 3, you will learn to play the correct notes at the correct time
value.
When you finish a lesson, the instrument will grade your practice by
telling you the level you get.
Level 1: OK.
Level 2: Good.
Level 3: Very Good.
Level 4: Excellent.
After grading, the song will play back again, and you can practice again.
Playing the Songs
20
L / R
CHORD DICT.
LESSON
